WAGNER Opti-Stain Sprayer User manual

EnglishEspañol
0614 • Form No. 0529841D
Owner’s Manual
Read this manual for complete instructions
Español (página 13)
Contents
2 Important Safety Information
4Components
5 Material Preparation
6Assembly
7Spraying
8 Cleanup
10 Maintenance
11 Troubleshooting
24 Parts List
26 Warranty
Questions?
Call Wagner Technical Service at:
1-800-328-8251
Register your product online at:
www.wagnerspraytech.com
Opti-Stain Sprayer

English
2 © Wagner Spray Tech - All Rights Reserved
Important Safety Information
Read all safety information before
operating the equipment. Save these
instructions.
Indicates a hazardous situation which,
if not avoided, could result in death or
serious injury.
To reduce the risks of re or explosion,
electrical shock and the injury to
persons, read and understand all
instructions included in this manual. Be
familiar with the controls and proper
usage of the equipment.
Grounding Instructions
This product must be grounded. In the event of an
electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for
the electric current. This product is equipped with a
cord having a grounding wire with an appropriate
grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING - Improper installation of
the grounding plug can result in a risk
of electric shock.
If repair or replacement of the cord or plug is
necessary, do not connect the green grounding wire
to either at blade terminal. The wire with insulation
having a green outer surface with or without yellow
stripes is the grounding wire and must be connected
to the grounding pin.
Check with a qualied electrician or serviceman
if the grounding instructions are not completely
understood, or if you are in doubt as to whether the
product is properly grounded. Do not modify the
plug provided. If the plug will not t the outlet, have
the proper outlet installed by a qualied electrician.
This product is for use on a nominal 120 volt
circuit and has a grounding plug that looks like
the plug illustrated below. Make sure that the
product is connected to an outlet having the same
conguration as the plug. No adapter should be
used with this product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
WARNING - To reduce the risk
of re or explosion:
1. Do not spray ammable or combustible
materials near an open ame, pilot lights
or sources of ignition such as hot objects,
cigarettes, motors, electrical equipment and
electrical appliances. Avoid creating sparks
from connecting and disconnecting power
cords.
2. For use with only water-based or mineral
spirit-type materials with a minimum ash point
of 38ºC (100º F) — Do not spray or clean with
liquids having a ash point of less than 38ºC
(100º F). Flash point is the temperature at which
a uid can produce enough vapor to ignite.
3. Verify that all containers and collection systems
are grounded to prevent static discharge.
4. Connect to a grounded outlet and use
grounded extension cords (electric models
only). Do not use a 3 to 2 adapter.
5. Keep spray area well ventilated. Keep a good
supply of fresh air moving through the area
to keep the air within the spray area free from
accumulation of ammable vapors.
6. Do not smoke in the spray area.
7. Do not operate light switches, engines, or
similar spark producing products in the spray
area.
8. Keep area clean and free of paint or solvent
containers, rags, and other ammable materials.
9. Know the contents of the paint and solvents
being sprayed. Read all Material Safety Data
Sheets (MSDS) and container labels provided
with the paints and solvents. Follow the paint
and solvent manufacture’s safety instructions.
10. Fire extinguisher equipment shall be present
and working.

English
© Wagner Spray Tech - All Rights Reserved 3
Important Safety Information
WARNING - To reduce the risk of
injury:
1. Always wear appropriate gloves, eye protection,
clothing and a respirator or mask when
painting. Hazardous vapors – Paints, solvents,
insecticides, and other materials can be harmful
if inhaled or come in contact with body. Vapors
can cause severe nausea, fainting or poisoning.
2. Do not operate or spray near children. Keep
children away from equipment at all times.
3. Do not overreach or stand on an unstable
support. Keep eective footing and balance at
all times.
4. Stay alert and watch what you are doing.
5. Do not operate the unit when fatigued or under
the inuence of drugs or alcohol.
6. Never aim spray gun at any part of the body.
7. Follow all appropriate local, state, and national
codes governing ventilation, re prevention,
and operation.
8. The United States Government Safety Standards
have been adopted under the Occupational
Safety and Health Act (OSHA). These standards,
particularly part 1910 of the General Standards
and part 1926 of the Construction Standards
should be consulted.
9. Use only manufacturer authorized parts. User
assumes all risks and liabilities when using parts
that do not meet the minimum specications
and safety devices of the turbine manufacturer.
10. Power cord must be connected to a grounded
circuit.
11. Do not spray outdoors on windy days.
WARNING - To reduce the risk of
electric shock:
1. Always remove turbine before cleaning.
2. Power cord must be connected to a grounded
circuit.
3. Never submerge electrical parts.
4. Never expose the equipment to rain. Store
indoors.
5. Keep electrical cord plug and spray gun trigger
free from paint and other liquids. Never hold
the cord at plug connections to support the
cord. Failure to observe may result in an
electrical shock.
Important Electrical
Information
Use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will
accept the plug on the product. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough
to carry the current your product will draw. An
undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. A 14
gauge or 12 gauge cord is recommended. If an
extension cord is to be used outdoors, it must be
marked with the sux W-A after the cord type
designation. For example, a designation of SJTW-A
would indicate that the cord would be appropriate
for outdoor use.
IMPORTANT: Household use only. Intended
for outdoor use ONLY with materials having
ashpoint above 100ºF (38ºC).

English
4 © Wagner Spray Tech - All Rights Reserved

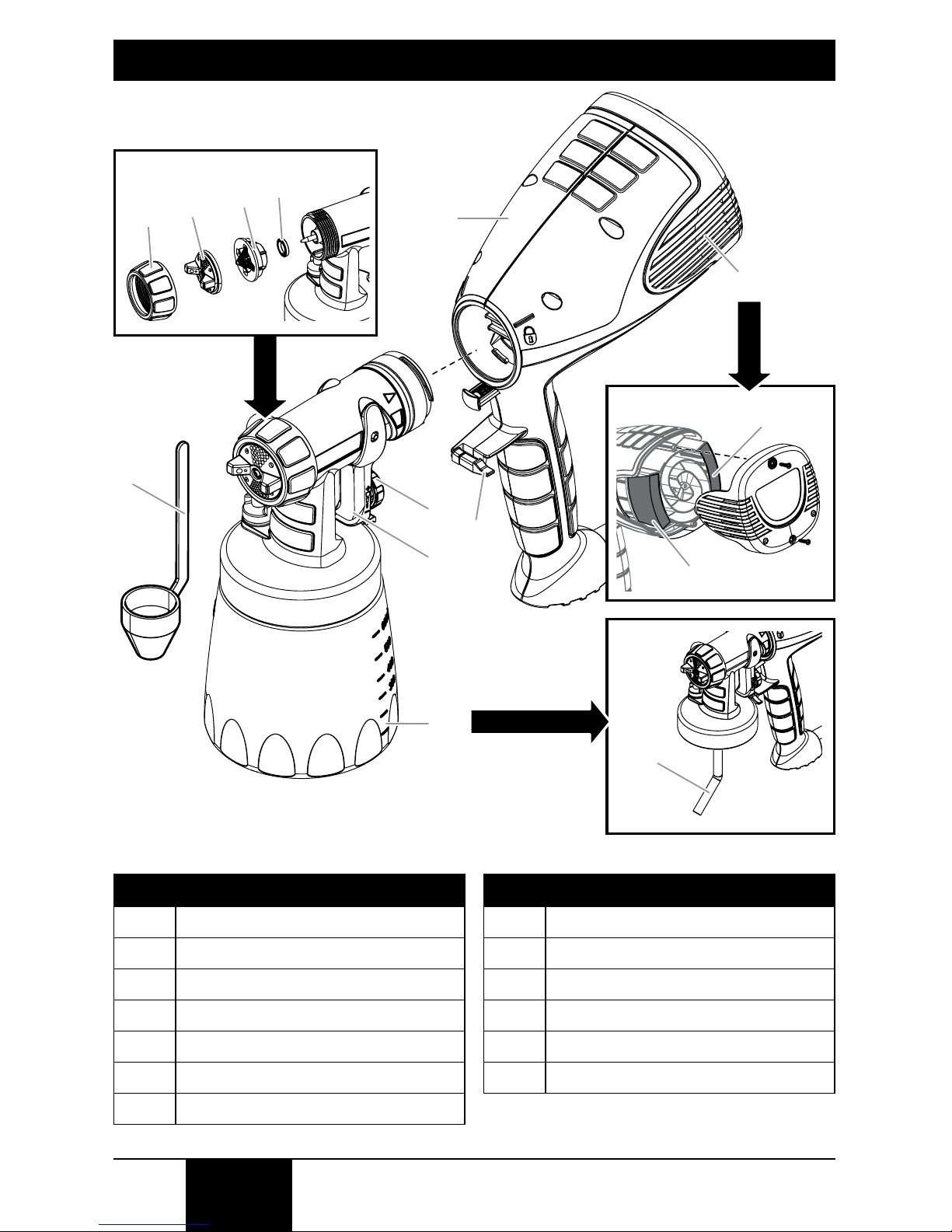

Components
Item Description
aTurbine
bFilter housing
cFilter (2)
dMaterial ow control
e2-stage trigger
fRelease tab
g600 ml cup
Item Description
hSuction tube
iViscosity cup
jNut
kAir cap
lNozzle
mNozzle seal
d
b
a
j
i
h
klm
ef
c
c
g

English
© Wagner Spray Tech. - All Rights Reserved 5
Material Preparation
Note: Before spraying, the material being used
may need to be thinned with the proper solvent
as specified by the material manufacturer. Never
exceed the thinning advice given by the coating
manufacturer.
Do not use materials with a ashpoint below 100°F
(38°C). Follow the instructions below.
To Prepare the Material:
1. Stir the spraying material thoroughly.
2. Dip the viscosity test cup completely into the
spraying material.
3. Hold the test cup up and measure the time in
seconds until the liquid empties out. This time is
referred to below as Runout Time.
4. Unscrew the cup from the nozzle.
5. After the material has been properly thinned and
strained, ll the container to desired level.
1
2
4
5
Thinning Chart
Material Runout Time (seconds)
Oil enamel 25-40
Oil based primer 30-45
Oil stain No thinning required
Clear sealer No thinning required
Polyurethane No thinning required
Varnish 20-50
3
Do not thin with materials that have
a ashpoint below 100°F (38°C). The
material ashpoint should be shown
on the material container.

English
6 © Wagner Spray Tech. - All Rights Reserved
Assembly
Before you begin:
NEVER point the spray gun at
any part of the body.

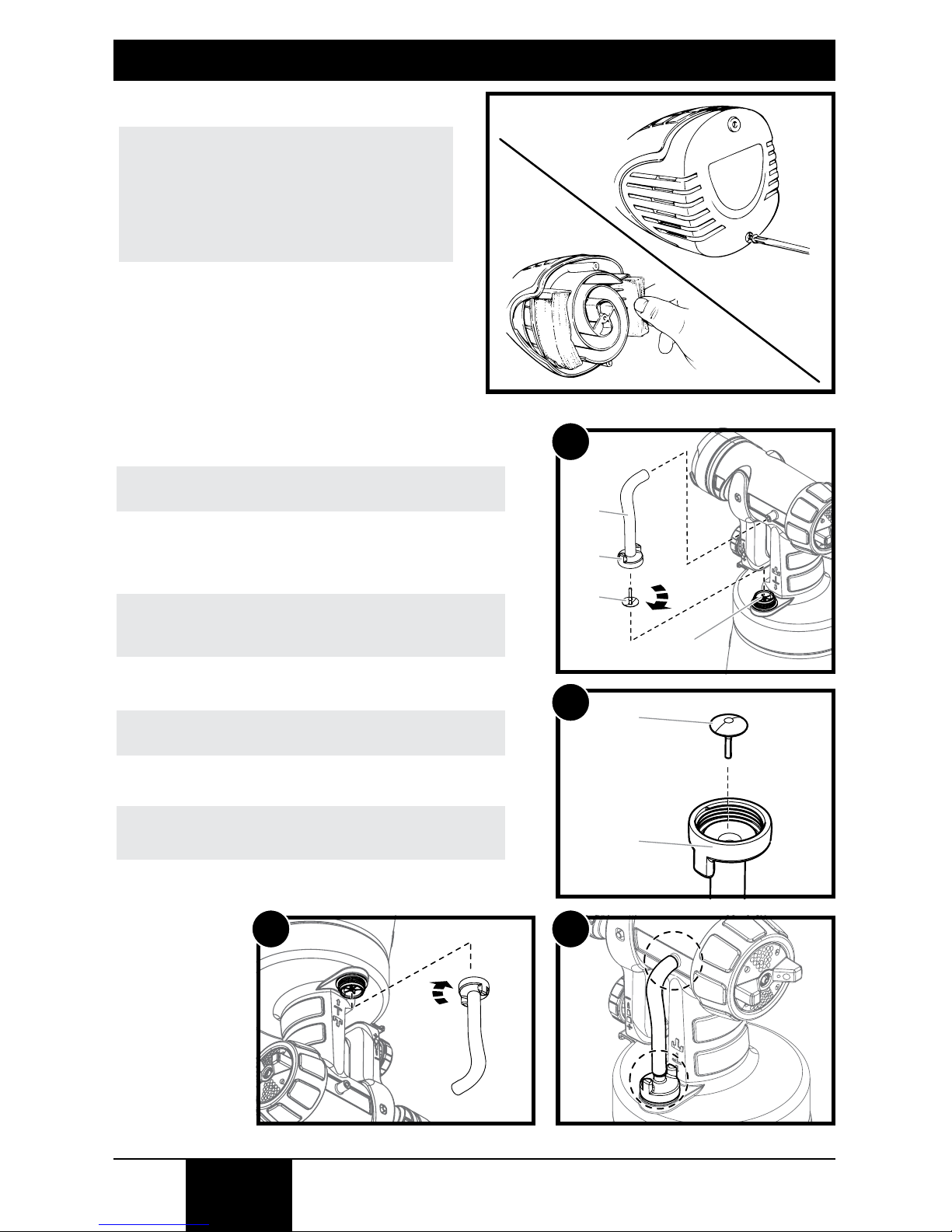

To Assemble:
IMPORTANT: Make sure the power cord is
unplugged.
1. Insert the suction tube into the intake opening.
2. Align the suction tube -
a. If you are going to be spraying in a downward
direction, the angled end of the suction tube
should be pointing toward the front of the gun.
b. If you are going to be spraying in an upward
direction, the angled end of the suction tube
should be pointing toward the rear of the gun.
Note: Make sure the suction tube is inserted as far as
it will go to ensure a tight t.
IMPORTANT: Never tip the sprayer at more than a
45° angle. Material could get into the turbine and
damage the sprayer.
3. Carefully screw the cup back onto the nozzle
assembly. Tighten rmly.
4. Align the arrow on the nozzle with the “unlock”
symbol on the turbine.
5. Insert and twist the nozzle into the turbine toward the
“lock” symbol on the turbine.
The tab below the trigger will lock the two pieces into
place.
45
2b
3
2a
1

English
© Wagner Spray Tech - All Rights Reserved 7
Spraying
Adjust Spray Pattern
The spray pattern shape is adjusted by turning the
ears of the air cap to either the vertical, horizontal,
or diagonal positions. The positions of the air cap
and the corresponding spray pattern shapes are
illustrated below.
Test each pattern and use whichever pattern is
suitable for your application.
NEVER trigger the gun while
adjusting the ears on the air cap.
NEVER point the spray gun at any
part of the body.
Air cap ears

Horizontal pattern
Use ‘up and down’
spraying motion
=
=
Vertical pattern
Use ‘side to side’ spraying
motion
=
Diagonal pattern
Use ‘up and down’ or ‘side
to side’ spraying motion
For coating smaller areas,
corners and edges
Material Flow Adjustment
Set the material volume by turning the regulator on
the trigger of the spray gun.
Proper Spraying Technique
If spraying with an HVLP spray system is new or
unfamiliar to you, it is advisable to practice on a
piece of scrap wood or cardboard before beginning
on your intended workpiece.
Surface Preparation
All objects to be sprayed should be thoroughly
cleaned before spraying material on them. Areas
not to be sprayed may, in certain cases, need to be
masked or covered.
Spray Area Preparation - outdoor use only
The spray area must be clean and free of dust in
order to avoid blowing dust onto your freshly
sprayed surface.
How to Spray Properly
STOP
Partially pulling the trigger will start
the turbine, but no material will spray
until the trigger is pulled fully. It is
recommended that the trigger rst be
pulled partially in order to start the
turbine before a spray pass is made.
• Position the spray gun perpendicular to and
one (1) or more inches from the spray surface,
depending upon the spray pattern size desired.
• Spray parallel to the surface with smooth passes
at a consistent speed as illustrated below.
Doing this will help avoid irregularities in the
nish (i. e. runs and sags).
• Always apply a thin coat of material on the rst
pass and allow to dry before applying a second,
slightly heavier coat.
• The closer your sprayer is to the object being
sprayed the lower the overspray.
6 to 12 inches
Correct
Keep stroke smooth and at an even speed
Even coat throughout
• When spraying, always trigger the spray gun
after spray pass has begun and release trigger
before stopping the pass. Always keep the
gun pointed squarely at the spray surface and
overlap passes slightly to obtain the most
consistent and professional nish possible.
Incorrect
Do not ex wrist while spraying.
Light coat Heavy coat Light coat

English
8 © Wagner Spray Tech - All Rights Reserved
Cleanup
Flushing the unit
Before you begin:
When cleaning, use the appropriate cleaning solution (warm,
soapy water for latex materials; mineral spirits for oil-based
materials)
IMPORTANT: Never clean air cap or air holes in the
nozzle with sharp metal objects. Do not use solvents or
lubricants containing silicone.
Special cleanup instructions for use with
flammable solvents (must have a flashpoint
above 100ºF (38ºC):
 • Alwaysushspraygunoutside.
 • Areamustbefreeofammablevapors.
 • Cleaningareamustbewell-ventilated.
 • Donotsubmergeturbine!
To Flush the Unit:
1. Unplug the power cord. Loosen the material container
by 1/2 turn, but do not remove it. This will relieve any
pressure left over in the system.
Pull the trigger so that the material inside the spray
nozzle drains back into the container.
2. Unscrew the container and remove. Empty any
remaining material back into the material container.
3. Pour a small amount of the appropriate cleaning solution
into the cup (Water=1/2 full. Mineral spirits=1/4 full).
4. Attach the cup to the nozzle and plug in the sprayer.
5. Spray the cleaning solution into a safe area.
While spraying, gently shake the spray gun. This slight
agitation will help break up smaller particles of spray
material.
6. Unplug the power cord. Loosen the material container
by 1/2 turn, but do not remove it. This will relieve any
pressure left over in the system.
Pull the trigger so that the material inside the spray
nozzle drains back into the container.
IMPORTANT: If you cleaned the sprayer using mineral
spirits, repeat steps 1-6 using warm, soapy water.
Move on to “Cleanup - Cleaning the Nozzle”, next page.
2
54
3
1/2
1/2
1
6
PULL
PULL
Empty waste
container

English
© Wagner Spray Tech - All Rights Reserved 9
Cleanup
Cleaning the Nozzle
To Clean the Nozzle:
1. Make sure power cord is unplugged.
Push the tab below the trigger, twist and separate the
nozzle from the turbine. Wipe the exterior of the cup and
nozzle until clean.
2. Unscrew the nut and remove the air cap and nozzle.
3. Remove the parts as shown*. Clean all parts with a
cleaning brush and the appropriate cleaning solution.
Reassemble when clean**.
4. Clean the air vent (c) on the suction tube with a soft
bristled cleaning brush.
5. Clean the rear of the nozzle (d) with the appropriate
cleaning solution. Use a thin layer of petroleum jelly to
lubricate the O-ring (e).
(d)
(e)
(c)
543
2
1
** It is important that the nozzle
seal inside the nozzle be re-installed
properly. Make sure the cup side of the
seal (the side with the groove) is facing
out towards the front of the nozzle.
Groove
* Nozzle seal
The red nozzle seal may become
stuck inside the spray nozzle
when the nozzle is removed. If
this occurs, make sure to pull
it out.

English
10 © Wagner Spray Tech - All Rights Reserved
Maintenance
Cleaning the Filters:
IMPORTANT: You should inspect the air
lters in the turbine to see if it is excessively
dirty. If it is dirty, follow these steps to
replace it.
IMPORTANT: Never operate your unit
without the air lters. Dirt could be sucked in
and interfere with the function of the unit.
1. Unplug the spray gun. Remove the lter cover
from the turbine by removing the two screws
holding it in place.
2. Remove the dirty lters and replace with new
ones. The smooth side of the air lter must be
placed toward the turbine.
3. Secure the cover back onto the turbine.
Cleaning the Air Tube:
Note: If material has entered the air tube, proceed as
follows.
1. Pull the air tube (a) at the top from the nozzle. Screw
o the valve cover (b). Remove the valve seal (c).
Clean all the parts carefully. Make sure to remove any
material from valve seal housing area (d).
IMPORTANT: The air tube and valve seal (c) are only
solvent-resistant to a limited extent. Do not immerse
in solvent, only wipe.
2. Place the valve seal (c) in the valve cover (b) with the
pin facing into the tube.
Note: Installing the valve seal into the valve cover will
be much easier if the valve cover is inverted.
3. Turn the nozzle upside down and screw on the valve
cover (with valve seal inside) from underneath.
Note: Turning the nozzle upside down will prevent
the valve seal from falling out of the valve cover during
reinstallation.
4. Place the air tube on the valve cover and on the nipple
at the nozzle.
(a)
(b)
(c)
(d)
(c)
(b)
1
2
43
