INSTALLATION AND MAINTENANCE INSTRUCTIONS
WALDIS BASIC 480
RESISTANCE LEVEL II
AS PER EN1143-1

Thank you
Thank you so much for putting your trust in Waldis for your security needs.
You’ve chosen to buy an EN1143-1-certified safe. A high-quality Swiss product
checked and approved by the VdS.
Please read these instructions carefully before setting up your safe!
For any questions, please contact:
WALDIS Tresore AG
Hofwisenstrasse 20
CH-8153 Rümlang
Tel: [phone]
Fax: [phone]
Email: [email protected]

Contents
General information ...................................................................................................................1
1.1. Safety instructions ..............................................................................................................1
1.2. Weight...................................................................................................................................1
1.3. Regulations and insurance ................................................................................................1
1.4. Operation elemnts ..............................................................................................................2
1.5. Set up ...................................................................................................................................2
Installation....................................................................................................................................2
2.1. Positioning against the building wall ................................................................................2
2.2. Anchoring the safe..............................................................................................................3
2.2.1. Important prior clarification ........................................................................................3
2.2.2. Preparing the safe .......................................................................................................3
2.2.3. Anchoring hole dimensions........................................................................................4
2.2.4. Procedure .....................................................................................................................4
Maintenance and care instructions .........................................................................................5
Guarantee against theft .............................................................................................................6

500.0037-A 1 Technical alterations reserved
General information
Every WALDIS Basic 480 safe is equipped with an electronic security lock. To operate the
lock, please use the 500.0021 instruction manuals enclosed. You can find the
comprehensive instruction manual, produced by the manufacturer, at: www.carl-
wittkopp.com (Primor 1000/3000).
1.1. Safety instructions
󱛻󱛼󱛽PLEASE NOTE: Please make sure that no body parts get trapped between the doors and
the case when opening and closing the doors!
󱛻󱛼󱛽PLEASE NOTE: Before closing the doors, make sure that the handle is in the open
position and the bolt is retracted!
1.2. Weight
1.3. Regulations and insurance
For all safes with a net weight of less than 1000 kg, professional anchoring either during
construction or by the client is a minimum requirement of the EN1143-1 standard. For this
reason, all safes are equipped with 3 bore holes (2 on the back wall and 1 on the base)
with a diameter of 16.5 mm. If it is not possible to anchor the safe in accordance with
current regulations, the property insurance company must be informed and an alternative
solution must be found.
󱛻󱛼󱛽PLEASE NOTE: The safe’s warranty and certification terminate after attempted break-ins,
fires and unauthorised interference with the structure!
Model
Weight (kg)
Basic 480
ca. 125

500.0037-A 2 Technical alterations reserved

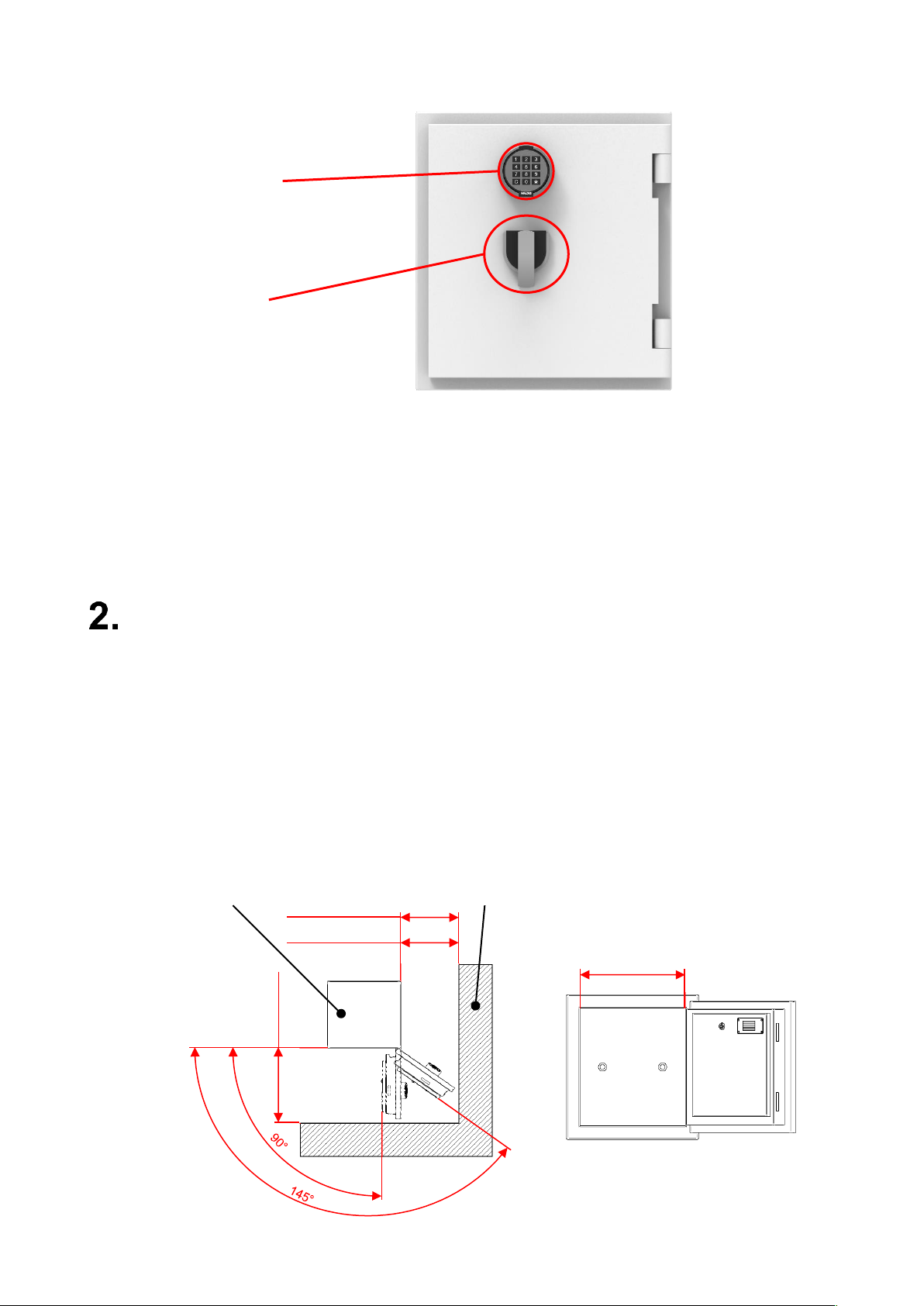

1.4. Operation elemnts
Input unit
Handle
1.5. Set up
The safe is delivered without a battery inserted as standard, meaning it can be opened
and closed without entering a code.
If the battery is inserted and the safe is locked when delivered, please follow the 500.0021
instruction manual.
Installation
2.1. Positioning against the building wall
When placing the safe, it must be noted that a minimum distance of 440 mm to the wall
must be maintained at the front in order to be able to open the door more than 90°. If you
also want to be able to use the full light width of the safe, a minimum distance of 340 mm
must also be maintained from the hinge side to the wall so that the door can be opened by
145°. If the door is to be opened 180°, a minimum distance of 410 mm must also be
maintained from the hinge side (see following figure).
Safe
Building wall
View from above with building wall
Front view (doors opened to 145°)
Internal
diameter
min. 340mm (145°)
min. 410mm (180°)
min. 440mm

500.0037-A 3 Technical alterations reserved
2.2. Anchoring the safe
󱛻󱛼󱛽PLEASE NOTE: Assembly and anchoring may only be carried out by WALDIS Tresore
AG’s trained staff or by authorised specialists! WALDIS Tresore AG accepts no liability for
damage to people or property in case of incorrect assembly and anchoring.
2.2.1. Important prior clarification
Check that the building floor and building wall are suitable for installing the safe and that
there are no wires, pipes or similar in the area to be drilled!
In case of doubt, an expert report should be issued to guarantee that the intended
assembly location in the building can withstand the weight of the safe, including its
contents.
2.2.2. Preparing the safe
Before anchoring through the rear wall, two screw plugs (Allen key 8mm) must first be
removed from the interior of the safe. Before anchoring through the floor, one screw plug
(Allen key 8mm) must be removed from the interior of the safe:
Anchoring sleeve
in the safe wall
Screw plug
Front view
View from above

500.0037-A 4 Technical alterations reserved
2.2.3. Anchoring hole dimensions
In order to drive the supplied drop-in anchor into the building wall or building floor at the
assembly location in advance, please consult the dimensions in the following figure for
drilling pattern for the WALDIS Basic 480.
2.2.4. Procedure
The safe is delivered with 2x cylinder screws with an M12x30 internal hex (DIN 912,
strength grade 8.8), 2x M12 washers (DIN 125 A) and 2x M12x50 drop-in anchors.
󱛻󱛼󱛽If it is not possible to use the installation material specified or it is not possible to anchor
the safe, please consult your property insurance provider to find an alternative anchoring
solution.
Follow this procedure to anchor the safe into the building wall or floor:
1. Draw the drilling pattern on the desired position and then drill the anchoring holes with
Ø15 concrete drill and an impact drill.
➔The Ø15 drill hole must be at least 54 mm (from the wall/floor) or at least 84 mm
(from the safe’s interior wall) deep.
2. The EA2 M12x50 drop-in anchor can be hammered in once all anchoring holes have
been drilled.
➔Please consult the manufacturer’s information sheet for hammering in the Fischer
EA2 M12x50 drop-in anchor (Fischer no.: 48406).
3. Align the safe with the installation holes in the building wall or the building floor.
4. If the safe is to be anchored to the building wall, it has to be evenly hammered into the
wall evenly.
5. Level out the safe so that the door stands still in any position and does not start to
swing in one direction (open or closed) on its own.
➔To do this, place small hardboards (Pavatex) under the corners required.
Front view (without door)
for rear wall anchoring
View from above (without door)
for floor anchoring
120
200
220
240
181,5

500.0037-A 5 Technical alterations reserved
6. Attach a washer to each of the cylinder screws and screw them through the anchoring
sleeve into the drop-in anchor (10mm Allen key) until they line up.
7. Tighten the cylinder screws to 35 Nm (10mm Allen key), and then tighten them again
to 35 Nm in the same order to be sure.
󱛻󱛼󱛽If the installation material supplied cannot be used owing to the quality of the floor or wall,
installation has to be adapted to the actual conditions. The dowel used must match the
type of quality of the building material to be anchored into (minimum requirements for
threaded rods, screws and dowels M12: Strength grade 8.8, DIN 975 with ISO 7089
discs). Please observe the manufacturer’s instructions
Maintenance and care instructions
Your safe is essentially maintenance-free. However, we still recommend carrying out a
lubricating and servicing interval as follows, depending on frequency of use but at least
every 12 months:
●Lightly oil the hinges using penetrating oil (e.g. Brunox Turbo Spray).
●Open the door and extend the bolt using the handle, then grease lightly using a
multi-purpose grease (e.g. Motorex 176 GP).
●The chrome-steel shelf can be cleaned using a standard chrome-steel cleaner (e.g.
Dr. Weigert neoblank spray).
●The varnished surfaces can be wiped down with a damp cloth.
󱛻󱛼󱛽WARNING: Do not clean with household chemical products!
Should any mechanical problems or electrical issues occur, please consult your trusted
specialist dealer or contact WALDIS Tresore AG directly.
Safe wall
Anchoring sleeve
Cylinder-head screw
with washer
Building wall /
Building floor
Drop-in anchor

500.0037-A 6 Technical alterations reserved
Exemption from liability
The above guarantee and the theft guarantee include a final provision with regard to the
delivery of the item purchased. Any further liability is completely excluded. As for services
by WALDIS that are to be arranged separately, such as transportation, packaging,
insurance, assembly and installation, WALDIS’ liability is limited to damage caused by
gross negligence or deliberate intent (Art. 100, Para. 1 OR). The customer also recognises
WALDIS’ right to use external companies to fulfil the additional services listed. In this case,
WALDIS’ liability is limited to selecting and instructing the external companies with care
(Art. 399, Para. 2 OR).
Guarantee against theft
WALDIS provides a guarantee against theft from the secure storage unit for safes starting
from resistance level 2 to cover the duration stated in the order confirmation, as per
European standard EN 1143-1. In particularly vulnerable locations, WALDIS may limit this
guarantee or make it subject to additional measures, e.g. an alarm system. In these cases,
the alarm system has to have been functional and activated at the time the theft took place
and the alarm has to have been triggered and relayed. Otherwise, the theft guarantee
terminates immediately.
The guarantee against theft means that, in the event of theft of the secure storage box
anchored by WALDIS at that location, WALDIS is obliged to replace the secure storage
box concerned, but not to cover damages resulting from the theft, or additional costs such
as transportation and assembly of the new secure storage box, or disassembly or disposal
of the old secure storage box. The customer is not entitled to any kind of compensation or
replacement of the contents of the secure storage box. The guarantee against theft only
applies to theft at the location where the secure storage box was positioned and anchored
at least four times in accordance with the current instruction manual either by WALDIS or
an authorised partner company. If the secure storage box is not positioned, anchored or
moved by WALDIS or an authorised partner company, the theft guarantee terminates
immediately.
The safe’s warranty and certification terminate after attempted break-ins, fires and
authorised interference with the structure.
