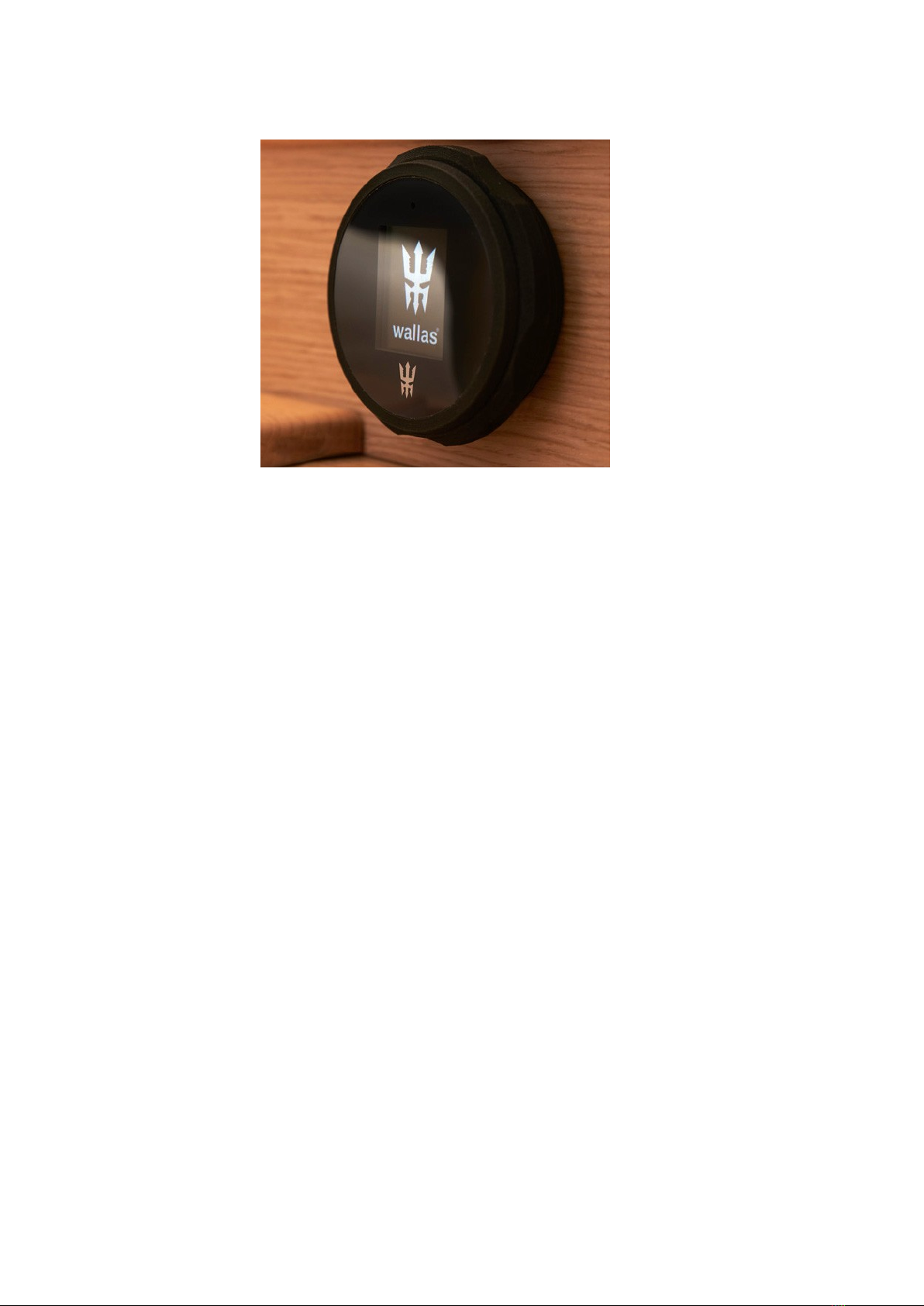

wallas 3007 User manual

INTELLIGENT CONTROL PANEL

- -
Control Panel installation - Parts 2 ...................................................................................................................
2 .....................................................................................................................................................................................
Control Panel Installation - Steps 3 ..................................................................................................................
3 .....................................................................................................................................................................................
Control Panel functions - Control Panel functions 5 ......................................................................................
5 .....................................................................................................................................................................................
Control Panel functions Combi/40 EA - Control Panel functions Combi/ 40 EA 7 ......................................
8 .....................................................................................................................................................................................
Wallas Remote application and Control Panel connection - Wallas Remote application and Control
Panel connection 9 .......................................................................................................................................
9 .....................................................................................................................................................................................
Control Panel - SW update 13 ............................................................................................................................
13 ...................................................................................................................................................................................

- 2 -
Parts

- 3 -

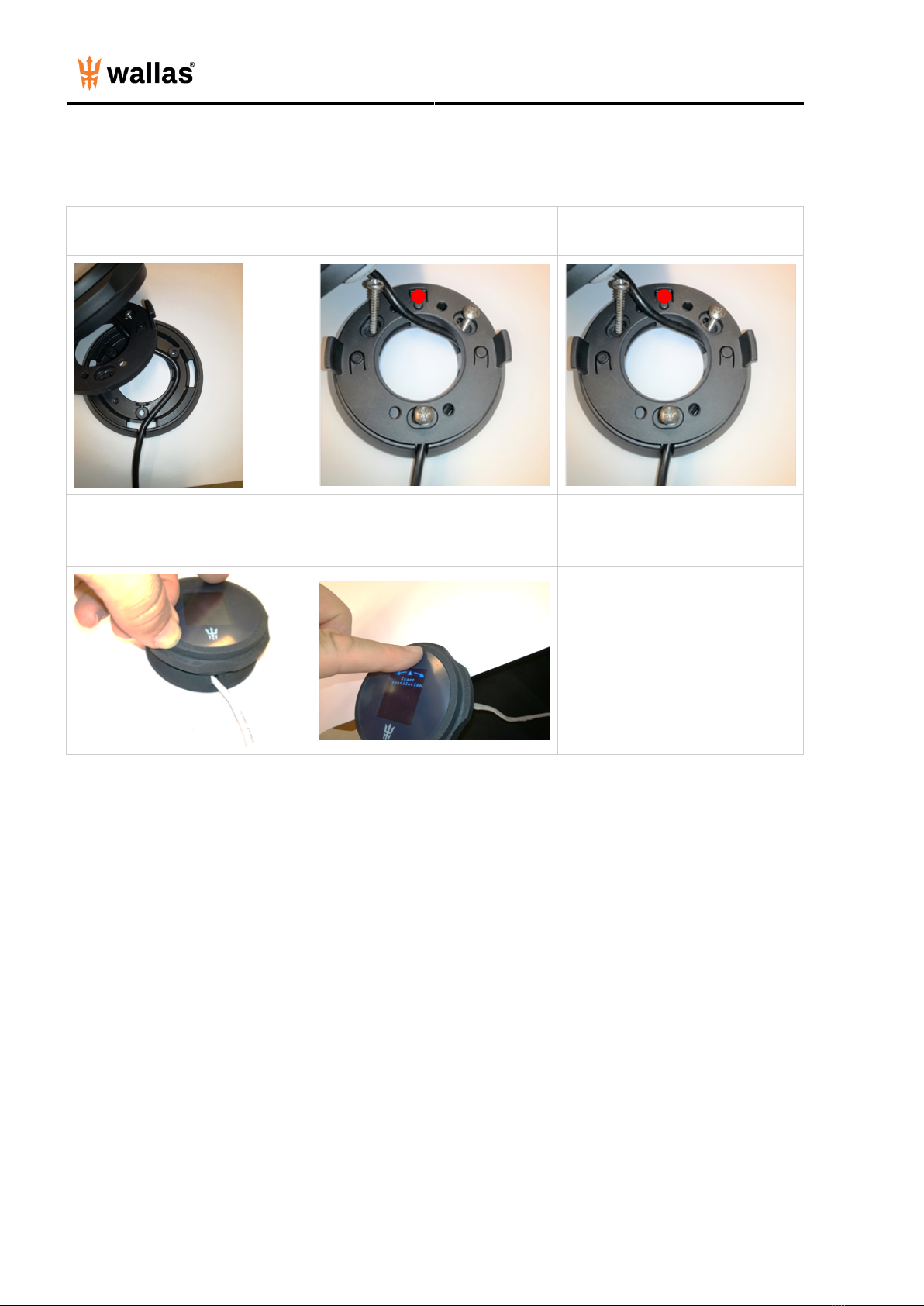

Steps
Step 1. Install cable into Wall assembly plate.
Step2. Install assembly plate. (Wall assemby plate is
only needed in surface assembly)
NOTE! RED DOT UPSIDE.
Step3. Install screws 3 pcs. Pull carefully extra cable
out.
NOTE! RED DOT UPSIDE.
Step 4. Snap Control panel. NOTE! do not snap
before plate is in right position.
Step 5. Connect cable into heater.
To start using:
- rotate the wheel
- select by pressing top of panel ( rocker switch)
Hole assembly:
Wall assemby plate is not needed.
Drill opening for cable. Min. 24 mm to allow free
movement for cable rubber.

- 4 -

- 5 -
Control Panel functions
Intelligent Control Panel
At first, make sure that the Intelligent Control Panel is assembled correctly with the assembly plate ( see assembly
instructions). And connected into the Wallas unit. This manual refers to Control panel SW 1.0.53.
The Control Panel is operated by rotating the Control Ring and making selection by pressing the button in the top of the
display.
After powering the panel for the first time, turn the control ring and your display will appear similar to the images below.
Wiew modes by rotation
control ring
Select a function by
pressing the button
Last mode is settings
(gear)
when selected this
dislays is shown.
Press button again and
you can move
in top menu.
Note: Wallas unit's starting procedure will take few minutes (5-8 minutes). To get familiar with the Control Panel's
functionality, select Settings Menu (gear icon).
By pressing the button again it will open the main menu displays.

- 6 -

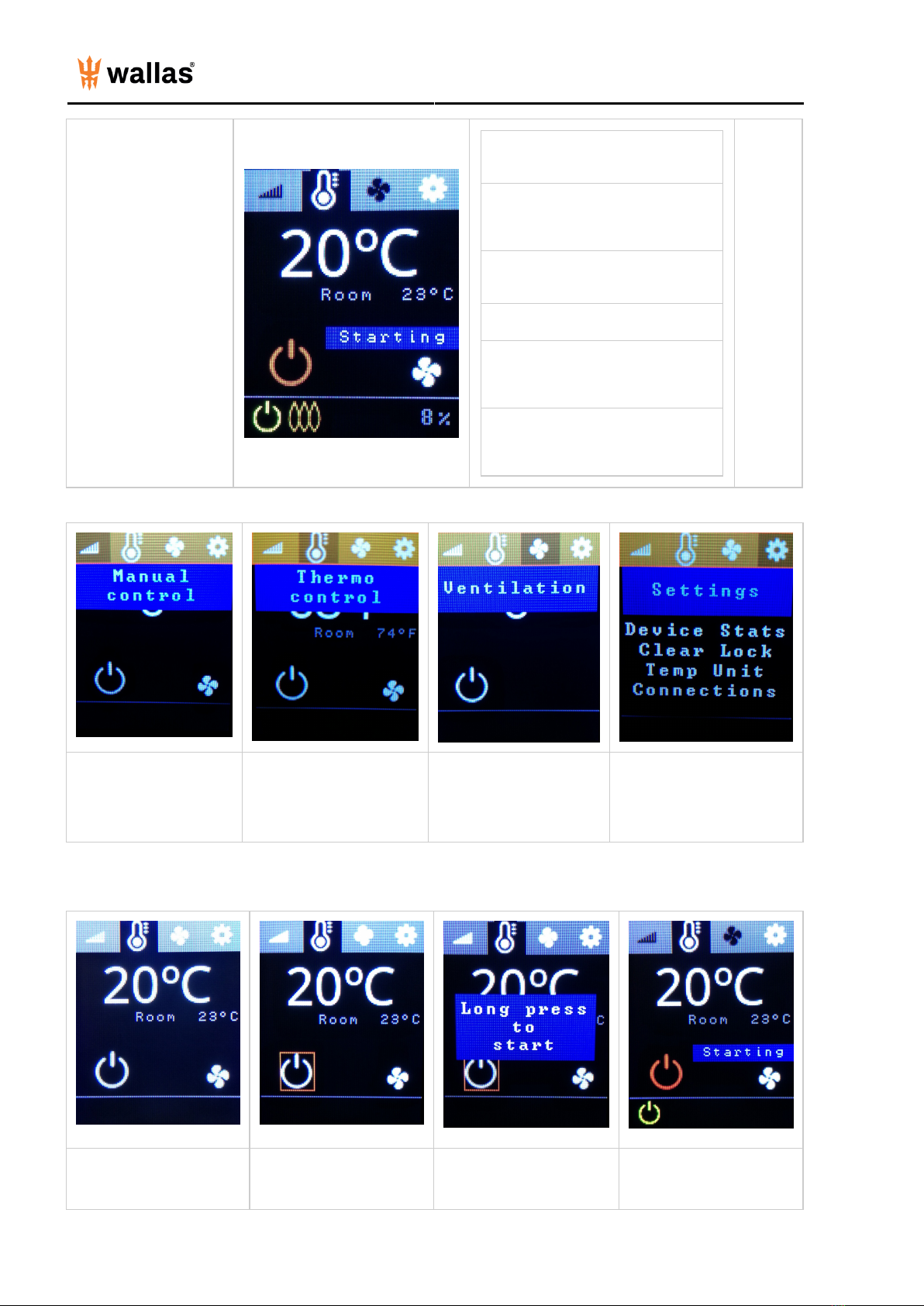

Display areas:
Main menu ( selectable)
Temperature target (selectable)
Room Temperature
Heater status
ON/OFF and ventilation fan boost
(selectable)
Info bar : On/Off , flame, info, lock,
heater power %
Manual control
- heater power is manually
controlled
- power levels 1-6 (6 is
highest)
Thermo control
- set the desired target
temperature
- heater controls the power level
automatically
Ventilation
- ventilation fan speed is set
- speed levels 1-6 ( 6 is
highest)
Settings
- See details below
Example: start heater in thermo control mode.
Select thermo control mode
from the top menu.
Rotate to set the orange
selection square around the
start icon and select.
Confirm selection with long
press on top of panel. (long
press is for child safety)
Device is started and starting
indication text is shown.

- 7 -
After few minutes heater is
ignited and flame indicator is
shown.
Heater will start increasing
power.
Scroll the selection square
around the temperature target
and press the button.
When temp selection is active
and you can change temperature
target setting by rotating the
Control Ring.
Heater status bar
indicates it's state
- starting
- stopping
- paused
Settings:
Settings menu
- you can scroll and select the row.
For example, select " Temp
Sensor".
Temp sensor
-wired is sensor hardwired to
heater unit.
- wireless sensors are listed by
sensor address.
-select any sensor to measure
room temperature.
Device Info
- shows you heater software
versions.
Device Stats
- shows you heater statistics.
Temp Unit
- select temperature unit
Celcius / Fahrenheit.
Connections
- clear all bonded mobile phone
devices.
Clear Lock
- if error message "Device locked"
is shown and lock indicator is
displayed.
- CHECK the heater before
removing locked state by selecting
"Clear Lock"
ERROR message
- If something goes wrong, there
are many error messages, and
they are shown immediately when
error happens.
- If there are three errors in a row
the Wallas unit will be Locked for
safety reasons.

- 8 -
Control Panel functions Combi/ 40 EA
Control Panel functions in Wallas Combi heater
Control panel has COMBI and VENTILATION functionalities, when it is connected into Wallas Combi heater.
(Combined AIR & WATER heater.)
Combi
Select combi mode by pressing
button.
Scroll Temperature target and
select it , to set the air
temperature target.
Room temperature is visible
bellow.
Water temperature is visible
bellow.
Note: Water temperature
safety limit is preset and
can not be adjused.
In other functionalities please refer to AIR heater instructions. ( Note! Manual mode is not available in COMBI heater)
Control Panel functions in Wallas 40EA heater
Wallas 40 EA heater is used only with thermostat
mode. User is able to adjust wanted room temperature
and secondary water pump when installed.

- 9 -
Wallas Remote application and Control Panel
connection
Local Connection
Control Panel can be connected into Mobile Application with local connection.
You can then operate you heater with the "Wallas Remote " application.
First you need to download the Wallas Remote application to your mobile device from your application store.
When you start Wallas Remote first time it will search if there is Wallas heater with intelligent Control Panel in range.
When it locates heater it will start heater and application bonding process.
First time connected application
search for near by heater.
When heater is found :
-fill PINCODE from Control
Panel display. **
After connection is ready:
-Set room temperature target.
-Start heater.
When you start application and
heater is not in range you can
operate heater by opening the
"remote link".
Note: your heater must be
connected to the internet.

- 10 -
- Control panel will display pin code.
**
- you need to give this pin code into
your
mobile device.
Control panel will tell when bonding
was successful.
- If connection is not free (
someone else is already using
the connection) remove old
connection first from Control
Panel . (settings / connections/
remove )
After pairing mobile application and control panel will remember connection when you re-enter into operating range.
Heater OPERATING MODE
can be selected from
application. Select: "Heating" or
"Ventilation".
Application ventilation power
can be adjusted 1 to 6
(highest).
Note . Heater must be stopped
before changing operation
mode from ventilation to
heating.

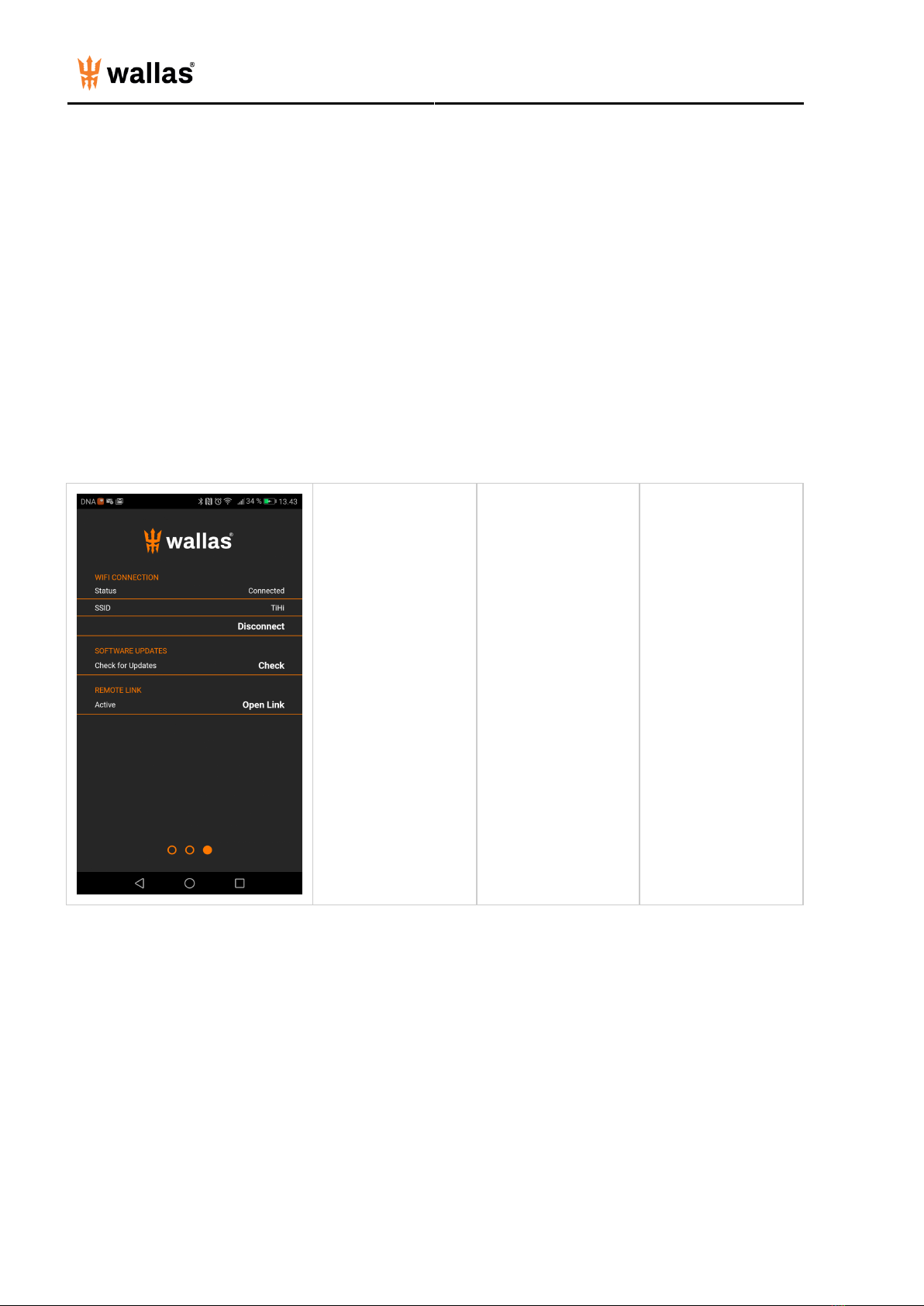

WiFi Connection
Control panel can be connected to the internet with WiFi connection.
You can then operate your heater with the " Wallas Remote" application trough Internet.
Wifi connection is created trough Wallas Remote application . ( Local connection between application and Control
Panel must be available before setup)
When you first time select connecting, application will ask SSID and Password. Application will share this information
with Control Panel.
NOTE! If you sell heater or give it away you need to clear Wifi settings. ( SSID="empty", password="empty") . You
should remove wallas application from you device.

- 11 -
Feed your internet connection
details.
When internet connection is
finalized status will be
"connected"
After few minutes " REMOTE
LINK"
will appear .
"REMOTE LINK " display will
connect to internet panel. You
can :
- set room temperature target
- start /stop your heater
Note: heater start and stop takes
several minutes.
You can see when heater was
last connected into internet, and
what is the heater state.
You can see some statistics of
your heater. Available graphs
will vary depending of your
heater model.
Note! Before you can operate heater,
you need to read safety warnings
and agree.
When you start application
and heater is not in range you
can operate heater by
opening the "Remote Link".
If heater is not found after
several attempts " Change
Device" link appears. Change
Device link will clear heater
pairing information from
application, and you may
connect application into other
Wallas heater.
Wallas reserves right to develop application useabilility and features.
Connections tips:
1. Read your mobile device user guide how connections and Wifi connections are managed in your device.
2. Make sure your mobile device local connections and WIFI is allowed in you mobile device . ( flight mode is OFF)

- 12 -
3. You mobile device is not in power save mode and location premission is given to Wallas application.
4. Check that heater is connected into power and Control panel is connected into heater. ( Rotate panel control ring ,
lights on)
5. Distance between Mobile device and Control Panel is not too long.
6. Control Panel is not in use by other person, ( only one local connection can operate panel at time.)
7. If you mobile device has allready connection into heater it can not create new before old connection is removed from
you device. In some phone models this has to be made manually. Remove "WALLAS OP" from your phones paired BT
devices list (note there might be several OP pairings in mobile device list, remove all) and restart Bluetooth before new
pairing is possible. This may be the case if control panel pairing code only blinks fast and you mobile device is
repeating the connection requests.
8. Change connection to other Wallas heater.
- close Wallas remote application .
- remove old connections from you mobile device bluetooth paired devices list. Resatrt you devices bluetooth.
- if there is no other users for new Wallas heater you can select Control panel menu Settings/ Connections/remove all
- Restart application. When/if "Change Device " link appears (30-60 sec) press the link.
- Wait connection procedure to finalize. Note in some phone models Pairing request will open in background info
window. ( See you mobile devices user guide.)

- 13 -
SW update
Before SW update:
- check the power
-check the WiFi and internet connection
- be prepared to disconnect control panel cable, or heater power to make master reset to the system.
SW update is complicated process, and something may happen during the update, example :sudden power
brakedown, network failure, etc.
Therefore it is forbidden to start SW update for control panel if Wallas heater is the only heat source and being unable
to start heater would create a danger.

- 14 -
For SW update make sure you have
strong and reliable wifi signal.
Wifi HotSpot name (SSID) is visible in
application page and status is
"Connected".
It is advised to turn the heater "OFF"
before starting the update. Update may
take up to 6 minutes, depending on
network and connection.
If new SW version is
available "Update link"
will appear into display.
Select uppdate.
Do not close application
or heater power while
update in ongoing.
Control panel display will
close and start a few
times during the update.
After the update is done,
control panel will start
and application will
reconnect to panel. Note
in some phone model you
may have to re-bonding
after SW update again.
Wait 5 minutes update to
finish.
If update is not
succesfull, file error:
- start update again after
few minutes
If update is stopped
during download
( % count is no 100%)
-close application
-restart you device BT.
- start update again.
if update is not able to
finish:
- find different place,
where wifi signal is better
or wifi hotspot has better
connection.
If control panel is jammed
during update ,
disconnect panel cable
and try again after few
minutes.
