Wallbox commander User manual

COMMANDER - installation guide en
INSTALLATION GUIDE
COMMANDER
plug & drive

COMMANDER - installation guide
GET MORE INFO AT:
www.wallbox.com/en/support
[e-mail]
en 2

COMMANDER - installation guide
The user must read and understand in its entirety the safety instructions here provided.
Disregard of or actions contrary to the safety information and instructions contained in this manual and printed on the
device may lead to electric shock, fire and/or severe injury and either damage to the vehicle’s battery or to the Wallbox
device. Any resulting damage from such actions is excluded from the warranty.
The installation of the Wallbox device must be performed by a qualified electrician in accordance with the perceptive
regulation.
The information provided in this Installation Guide does not relieve the user of responsibility to follow all norms and
standards or local regulations that may apply.
The Wallbox charger device has been designed, developed and manufactured to satisfy requirements, safety disposi-
tions and norms in accordance with the directives presented in the declaration of conformity (view Users Guide).
en
SECURITY PRESCRIPTIONS
3

COMMANDER - installation guide
1. SAFETY INSTRUCTIONS 5
2. PRODUCT DESCRIPTION 7
3. UNBOXING & CHECK LIST 10
4. INSTALLATION NOTES 11
4.1 DIMENSIONS AND POSITIONING 12
4.2 DRILL & MOUNT 13
5. STARTUP 16
6. TROUBLE SHOOTING MAINTENANCE 17
7. WARRANTY 18
en
CONTENTS
4

COMMANDER - installation guide
Do not operate in case of observing physical defects, such as cracks, breaks, corrosion or other damage. In this case please contact your distributor to
get the Wallbox Commander replaced..
Only authorized specialist can open, disassemble, repair, manipulate or modify the Wallbox device. Unauthorized modification of the Wallbox equipment
voids the manufacturer’s warranty.
Unauthorized modifications or conversions are forbidden.
Do not remove any notices on the device, such as safety symbols, warning notices, rating plates, nameplates or cable markings
Install your Wallbox Charger in a position protected from impacts.
The charging station does not have its own power switch. Always follow your local electrical regulations and norms as applicable.
The Wallbox chargers can only be used under the specified operating parameters (Product description) and within the normal environmental
conditions described below:
en 5
SAFETY INSTRUCTIONS 1/2
Follow all of the safety instructions below and take special care to keep this manual handy. This installation manual is intended for qualified
personnel only.
Environmental conditions¹:
Ambient temperature range -25ºC to 40ºC
Average temperature (24h avg.) < 35ºC
Storage Temperature -40ºC to 70ºC
Relative Humidity 5% to 95% (Non condensing)
¹ Do not use your Wallbox charger under inclement weather conditions that could aect either the vehicle or
the Wallbox device. Do not open the connector panel cover in the rain.

COMMANDER - installation guide
CONNECTOR RECOMMENDATIONS
Always check the charging cable and contacts for damage and contamination before using them.
Never use a damaged charging cable, vehicle inlet, or infrastructure socket outlet for charging.
Never use contacts that are dirty or damp
Only connect the charging cable to vehicle inlets and infrastructure socket outlets that are protected against water, moisture and liquids.
After stopping the charging process the vehicle connector and the infrastructure plug can be disconnected. Never use force to disconnect the
vehicle connector from the vehicle inlet and the infrastructure plug from the socket outlet. Such dangerous actions can lead to death or serious
injuries.
Depending on the charging station and the electric vehicle, the termination of the charging process and the duration of unlocking may vary.
There are electric vehicles that can be started with a connected charging cable. Always make sure to disconnect the charging cable before
driving away.
Do not use the charging cable with an extension cable or an adapter.
If the connector emits smoke or starts melting, never touch the charging cable. If possible, stop the charging process. In any case, disconnetc the power
supply of the Wallbox Commander.
Make sure that the charging cable is out of reach of children. The charging cable may only be used by persons with a valid driver's license for motor
vehicles.
Be particullary careful with the connector, do not step on it or its cable.
The cable must NOT UNDER ANY CIRCUMSTANCES be strained when connected to the vehicle.
en 6
SAFETY INSTRUCTIONS 2/2

INTRODUCTION
Wallbox is a revolutionary system of smart charging for electric vehicles, equipped with the latesttechnology and a functional and sophisticated
design to deliver the best performance in the daily life of individuals and companies.
The Wallbox device has been conceived for private and semi-public use, in such places as private land, company car parks and depots.
The Wallbox device is used exclusively for charging electric and plug-in hybrid vehicles.
The Wallbox device is a smart charger provided with touch screen display and connectivity functionalities.
Wallbox software allows our technical support service to solve any issue remotely, no wait times and no need to set appointments and almost
instantaneously
The Wallbox device is provided with a specific Electric Vehicle Connector (EVC). Depending on the version acquired it comes equipped with:
TYPE 1 Connector
TYPE 2 Connector
This charging station is designed to operate with a supply voltage of 230 V 50 Hz (1P) or 400V 50Hz (3P)
COMMANDER - installation guide en
PRODUCT DESCRIPTION 1/3
7

COMMANDER - installation guide en 8
PRODUCT DESCRIPTION 2/3
GENERAL
Model Name Commander Type 2
Mode Mode 3
Overall Dimensions (w/o connector) 220x150x135mm
Weight 4-6Kg. depending on cable length
Operating Temperature -25ºC to 45ºC
Storage Temperature -40ºC to 70ºC
CE marking
SPECIFICATIONS
Max Power 22 kW three phase
Input voltage 230VAC (1P), 400V AC (3P) ± 10%
Max. Current 32A, cable sizes up to 5x6mm²
Nominal Frequency 50Hz
Protection Class I
Degree of Protection IP54
Overvoltage Category CAT III
STATUS & USER INTERFACE
Screen dimensions 7inch (164,9x95,4mm,)
Touchscreen Model Capacitive
Resolution 800x480px
Communications Wi-Fi / Ethernet
Commander Type 1
Mode 3
220x150x135mm
4-6Kg. depending on cable length
-25ºC to 45ºC
-40ºC to 70ºC
IEC61851-1 , IEC61851-22
7,4kW one phase
230V, AC ± 10%
32A, cable sizes up to 5x6mm²
50Hz
I
IP54
CAT III
7inch (164,9x95,4mm,)
Capacitive
800x480px
Wi-Fi / Ethernet
IEC61851-1 , IEC61851-22
MECHANICAL
Installation
Cooling Wall Mount Natural Cooling Wall Mount
Natural Cooling
SUMMARY INFORMATION

IDENTIFY YOUR WALLBOX
In your Wallbox device you will find the following identification plate.
COMMANDER - installation guide en
PRODUCT DESCRIPTION 3/3
Network settings
Ingress Proteccion degree
Registry Date
CE Marking
CE Marking
9
S/N: 000001
32A 230/400VAC 50Hz 3P+N+PE
IP 54
WB- COMM0101A
DATE: 20/01/16
0 602938 062800 Made in EU
1
2
3
4
5
6
7
8
9
10
Disposal information
Serial Number
EAN 13 Code Number
EAN 13 Bar Code
Part Number
1
2
3
4
5
6
7
8
9
10

The delivered Wallbox charger components must comply the following list ¹ :
Wallbox Commander + Electric Car Vehicle Connector
Installation Manual
Drilling template
Mounting components:
3x 6,3x40mm Screws
3x Ø8mm Wall Anchors
2x Sealing 2xRutaSeal®
3x Plugs
1x Torx
COMMANDER - installation guide en
UNBOXING & CHECK LIST COMPONENTS
¹ If any of the items described is missing, please contact www.wallbox.com/support or [email protected]
10
type 2 - installation guide en - de - fr - es
INSTALLATION GUIDE
COMMANDER
plug & drive
DRILLING TEMPLATE
FRONT VIEW

The electrical installation of your Wallbox Commander must be performed by a qualified electrician in accordance with the applicable norms and
standards. You must consider the local electrical installation regulations, fire prevention measures and accident prevention regulations as well as
emergency routes at this site.
Please contact an electrical contractor or arrange installation at your premises with your local distributor
COMMANDER - installation guide en
INSTALLATION NOTES
11
Outdoors installation: The charging station is designed for
both satisfy indoors and outdoors installation. In case of the
outdoors we recommend it to be installed in covered
locations like a garage or a carport, avoiding always roof
drains.
PRECAUTIONS
Take special care while selecting the mounting surface, it has to be constructed in order to withstand your Wallbox Commander weight and the
mechanical forces associated with the charging process.
The power supply connection must comply with the standards and regulations for cabling and building infrastructure.
The Wallbox device must be connected through a permanent grounded conductor of the power supply system.
Before installing or cleaning your Wallbox Commander ensure that the power supply is turned o and the system is not energized.
Suicient air circulation must be ensured at the mounting site so that the charging station is cooled during operation: Always observe the allowed
operating temperatures
Do not install the Wallbox charger nearby:
Flammable, explosive or combustible materials.
Chemicals or solvents,
Flood prone, running water areas or humid environments
Gas conductors or vapor outlets.
Accumulators, storage radiators or heat emitting elements
Direct Sunlight radiation, so as to avoid overheating and
degradation over time.

COMMANDER - installation guide en
DIMENSIONS & POSITIONING
Before selecting the mounting situation of your Wallbox Commander, please read the following tips and references:
A proper installation is absolutely necessary and lies outside of the scope of liability of Wallbox
12
According to the product standard, the charging station must be located at a height
between 1.30 m and 1.70 m. We recommend mounting the charging station at a height of 1.60 m.
Keep in mind that national regulations can limit this height.
It is compulsory to consider the following precautions:
The required mounting area for the Wallbox charging station is at least
250 x 150 mm (H x W).
Wallbox uses a simple framework of rails located underneath its body to
upgrade and embed new accessories. To avoid future interferences, it is
recommended to keep an extra 100mm below your device.
To keep the socket ergonomics, choose a mounting site that is comfortable
and extend a free 200mm on the right hand of the charger device to ensure
complete functionality.
When mounting the Wallbox Commander, the cable should easily reach the
charging port.
For a safe operation of your charging station, the recommended minimum
distances to other technical installations must be observed
TOOLS REQUIRED:
Phillips head screwdriver
Drilling machine plus 10mm tool
Cutter or razor for the wall cable,

DRILLING TEMPLATE PROCEDURE
Use the drilling template as a guide to mark the location on the wall for the three mounting screws. Pay special attention when levelling the
template. The use of a spirit level is highly recommended.
Drill the marked mounting holes with the diameter specified for the selected installation hardware
and check the positioning of the holes. For installation on concrete, brick and wood walls,
use the included installation hardware.
Before start mounting:

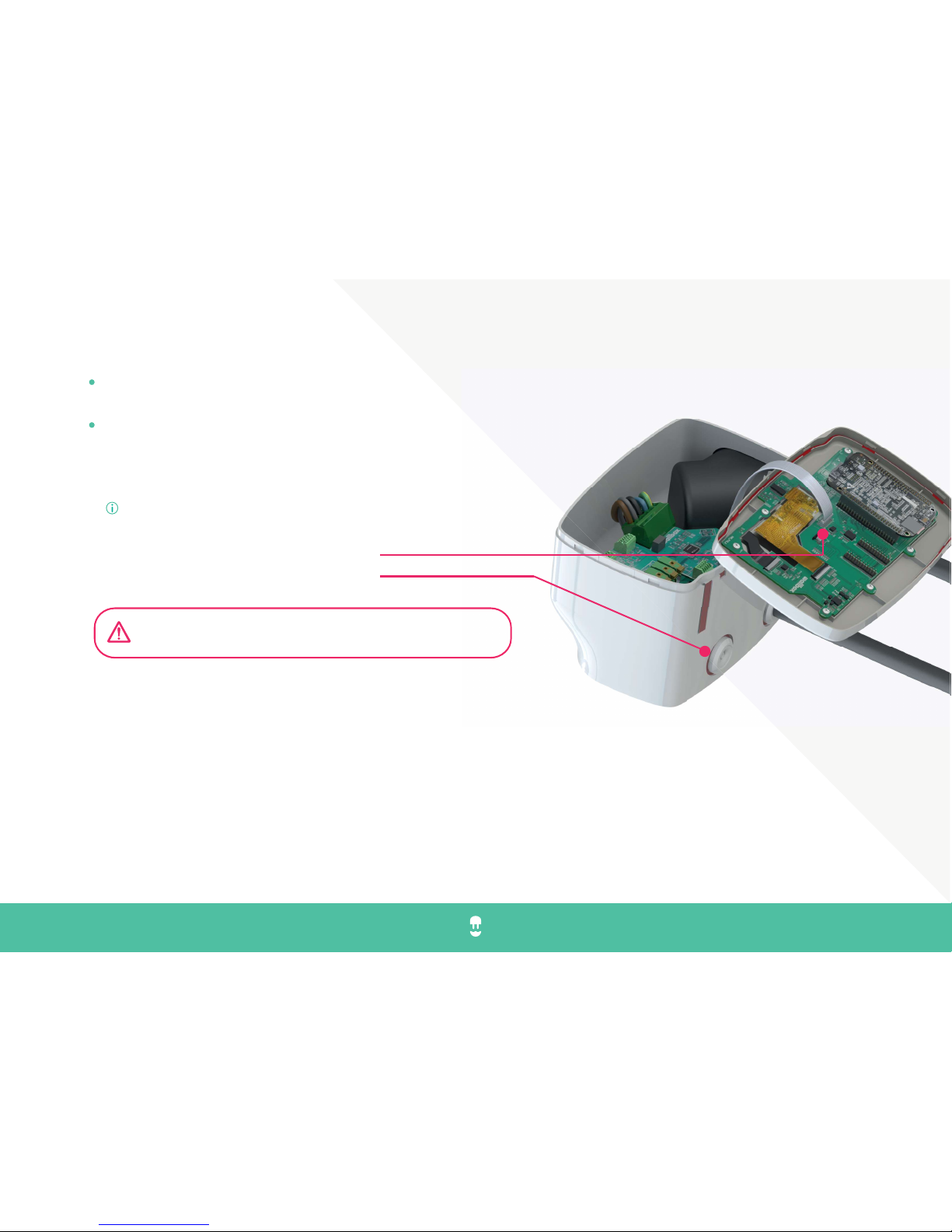

Open carefully the cover (Use the underneath cavities to loosen the fittings)
Disconnect the cover communication cable.
Insert fittings in the cavities underneath
MOUNTING
IMPORTANT: In case your Wallbox is using a backside-wall cable connection, please follow steps 0 and Step 00. If not using such cable connection,
please go to step 1.
Step 0: In the backside of the Wallbox charger you will find an insertion with a thinner wall; use a cutter, razor or a sharp tool and carefully make an
incision into the cable opening. Please meticulously remove all sharp edges. Take a Rutaseal bushing and install it.
Step 00: Very carefully, firmly insert your cable supply through the bushing. Bush hole sealing is prepared for a range that can vary from 11 to 17mm
which falls within the standard for cables that can carry up to 22kW.
COMMANDER - installation guide en
DRILL & MOUNT 1/3
13
Make sure the power supply is turned o during all mounting steps

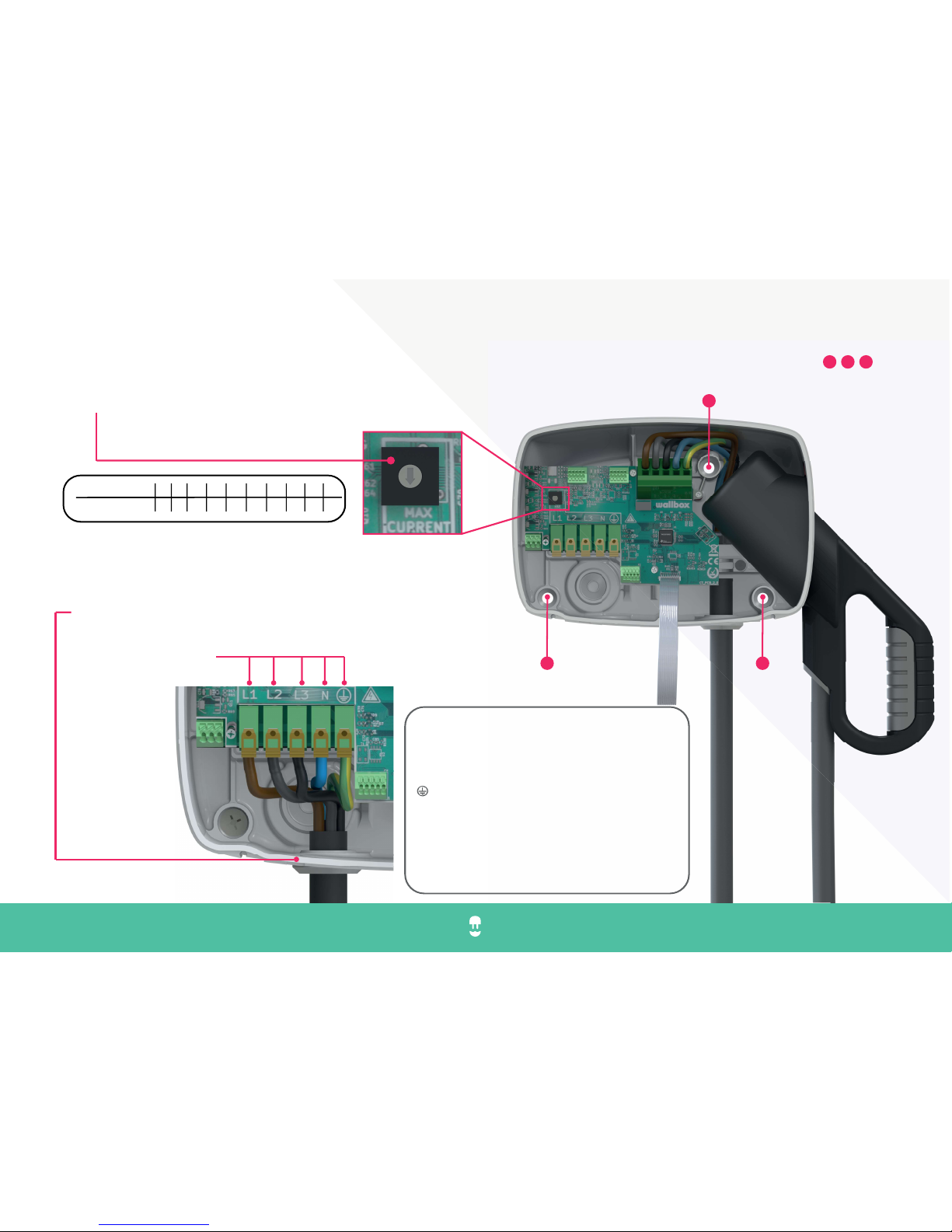

Step 1: Proceed to fix your charger to the wall. Insert the screws in the positions marked, starting with the top one, and continuing clockwise.
Verify that your Wallbox Commander is firmly attached and insert the plugs to complete this process.
Step 2: Use the selector to choose the maximum operating current of the supply connection.
Step 3: Insert the mains supply cable through the bushing (as pictured)
Step 4: Connect the power lines, neutral and protective earth using the
terminal blocks provided
COMMANDER - installation guide en
DRILL & MOUNT 2/3
14
A B C
A
BC
L1,L2 & L3 (Current-carrying conductors)
N: Neutral line
:Protective Earth
The presented color connection is not subject
to an international standard, please always check
the power supply connection
POSITION
CURRENT (A)
0
0
1
6
2
10
3
13
4
16
5
20
6
25
7
32
8
0
9
0
From left to right:

COMMANDER - installation guide en 15
DRILL & MOUNT 3/3
Step 5: confirm the previous four steps.
Step 6: reconnect the cover communication cable, and close the front cover taking special care of the fitting and that the O-ring sealing remains in
place.
Cover communication cable
O-ring sealing
Cover close representation
Step 7: Secure the Wallbox Commander cover by screwing the
Torx provided as shown in the picture below.

COMMANDER - installation guide en 16
STARTUP
Once the DRILL & MOUNT process is completed your Wallbox Commander is ready to operate. But first let’s take a moment to read and review
some useful information before starting to use your Wallbox Commander:
Do not use your Wallbox Commander for purposes not described in the Product description chapter
Do not open in any case the Wallbox Commander front cover while the power supply is on.
Special preventions must be taken for medical or implantable electronics. Please contact the device manufacturer to understand the eects
that charging may have on such electronics.
REVIEW & CONFIRM ALL THE STEPS TAKEN
At this point you can now turn on the power supply and start your Wallbox experience

COMMANDER - installation guide en 17
TROUBLESHOOTING
MAINTENANCE
Your network supply is continuously checked to ensure a safety operation. If one of the parameters is not in range the charger will stop the power
supply to the vehicle.
Charging process uses a secure communication protocol (called Control Pilot) between your Wallbox and the vehicle. If the car detects a problem
during the charging process, it will be interrupted. At this point a message will pop up in your status menu.
The internal stats of the Wallbox Commander are also being parameterized in real time. A change in the normal operating values will lead the
charger to safely disconnect the power supply to the vehicle.
Please take some precautions to ensure a correct maintenance:
There are no parts inside your Wallbox Commander that need to be maintained by the user. Only qualified electrician can open and manipulate
your Wallbox Commander.
Remember that before start cleaning ensure that the power supply is turned o.
In case you want to clean up your Wallbox Commander, we recommend you to use a soft, or a dry damp cloth. Do not use a spray or
direct water to clean your Wallbox Commander.
It is mandatory to use the side socket of your Wallbox Commander to preserve your connector from falling and climate agents.

COMMANDER - installation guide en 18
The Wallbox Commander warranty is limited to the terms and conditions established in our Sales and Refunds policy and in this installation guide. Please in
the uncommon case that you experience a problem or you need extra information, please contact us:
In case your Wallbox Commander needs to be repaired or replaced to correct manufacturing defects please provide us with a description of the issue
including serial number and date of manufacture of your Wallbox Commander.
WARRANTY
You can contact us sending an e-mail: [email protected]
Or you can call our technical support (Local call rates may apply) : [phone]

COMMANDER - installation guide en 19
© 2016 WALL BOX CHARGERS S.L. All rights reserved.
All information in this document including technical details, figures, specifications and MyWallbox software is subject to copyright and
other intellectual property rights of Wall Box Chargers S.L., and its licensors. This material may not be modified, reproduced or copied, in
whole or in part, without the prior written permission of Wall Box Chargers S.L. and its licensors. Additional information is available upon
request.
Specifications are subject to change due to ongoing technical development. No guarantee is oered in respect of any of the specifications
given here. All rights reserved.
In no event shall Wall Box Chargers S.L be liable for incidental or consequential damages arising from use of this document or the software
and hardware described in this document.
All other trademarks contained in this document are the property of their respective owners and their use herein does not imply sponsors-
hip or endorsement of their products or services.
GET MORE INFO AT:
www.wallbox.com/en/support
[email protected]

COMMANDER - installation guide en
Josep Ros i Ros, 21A
Sant Andreu de la Barca
08740 Barcelona
P: [phone]
E: [e-mail]
www.wallbox.com
20
plug & drive
