Warmlite WL42009 User manual

2000W
PATIO HEATER
MODEL WL42009
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
www.warmlite.co

2
CUSTOMER SUPPORT TEAM: [phone]
TECHNICAL DATA
Description: Patio Heater
Model: WL42009
Rated Voltage: 220 - 240V
Frequency: ~ 50/60Hz
Power Consumption: 2000W
DOCUMENTATION
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
2009/125/EC Eco-Design of Energy Related Products.
RK Wholesale LTD Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.

3
www.warmlite.co
WARNING:
This Appliance MUST be Earthed
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the mains lead of this appliance
may not correspond with the coloured markings
identifying the terminals in your plug, please
proceed as follows:
The wires in the mains lead are labelled in
accordance with the following code:
BLUE NEUTRAL [N] BROWN LIVE [L]
GREEN/YELLOW [EARTH]
Plug Fitting Details (Where Applicable).
The wire labelled blue is the neutral and must be
connected to the terminal marked [N].
The wire labelled brown is the live wire and must
be connected to the terminal marked [L].
The wire labelled green/yellow must be
connected to the terminal marked with the letter
[E].
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal.
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug.
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug - disconnect it
from the mains - then cut it o of the mains lead
and immediately dispose of it in a safe manner.
Never attempt to reuse the plug or insert it into a
socket outlet as there is a danger of an electric
shock.
FUSE
Earth
(Green/Yellow)
Fuse
Neutral
(Blue)
Live
(Brown)

4
CUSTOMER SUPPORT TEAM: [phone]
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should
always be followed including the following:
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance
before operating.
• Please ensure that the appliance
is used on a stable, level, and
heat resistant surface.
• DO NOT immerse cords, plugs
or any part of the appliance in
water or any other liquid.
• DO NOT leave the appliance
unattended while it is operating.
• Close supervision is necessary
when any appliance is used by
or near children or pets.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved.
• Children shall not play with the
appliance.
• Cleaning and user maintenance
shall not be made by children
without supervision.
• Switch o at the wall socket
then remove the plug from
the socket when not in use or
before cleaning.
• If the supply cord or appliance
is damaged, stop using the
appliance immediately and seek
advice from the manufacturer
or its service agent or a similarly
qualied person.
• DO NOT let the cord hang over
the edge of a table or counter or
let it come into contact with any
hot surfaces.
• The use of accessory
attachments is not
recommended by the appliance
manufacturer, apart from those
supplied with this product. DO
NOT use an extension cord with
this appliance.
• DO NOT pull the plug out by the
cord as this may damage the
plug and/or the cable.
• DO NOT use this product for
anything other than its intended
use.
• This appliance is for household
use only.
• DO NOT carry the appliance by
the power cord.
• Always ensure that the heater is
placed on a rm level surface.

5
www.warmlite.co
• Ensure that the heater is not
positioned or mounted close to
curtains, canopies, furniture or
any combustible materials as
this will create a re hazard.
• The heater must not be located
immediately below a mains
socket outlet.
• DO NOT cover the heater as this
may lead to a re risk.
• DO NOT obstruct any of the
openings of the heater.
• DO NOT insert any object
through any openings on the
heater.
• Check all inlets and outlets from
time to time for accumulated
dust.
• DO NOT use the heater in
areas where ammable liquids
are stored or where ammable
fumes may be present.
• DO NOT operate the heater on
a timer, or leave on overnight.
• When not being used, please
unplug the heater from the
mains socket.
• Keep the mains lead away from
the hot body of the heater and
ensure that it is not pulled tight
between the socket and the
heater.
• DO NOT touch the hot surfaces
of the heater while it is turned
on to avoid risk of burns and /or
other injury.
• NEVER touch the heater with
wet hands whilst it is plugged
into the mains and turned on to
avoid damage and/or injury.
• DO NOT use the heater in the
immediate surroundings of a
bath, a shower, a swimming
pool or similar indoor locations.
• Always unplug the heater and
allow it to cool before moving it
from one location to another.
• DO NOT attempt to dismantle or
repair any part of the heater.
• This movable appliance is
designed for use in gardens,
but can be used both indoors
and outdoors. The warranty will
not apply to appliances used for
professional usage. Although
the heater may be used
outdoors, the main plug must
only be connected to the supply
indoors.
• The heater is provided with an
anti-tilt switch and will switch
o the heater if it is overturned,
and will switch it on again
automatically when the heater is
restored to its upright position.

6
CUSTOMER SUPPORT TEAM: [phone]
• DO NOT rotate the appliance’s
heating element assembly while
it is turned on. Turn o the
appliance and allow it to cool
completely (for at least for 15
minutes after the appliance has
been turned o) before rotating
the heating assembly.
• WARNING! Although the heating
element of the patio heater has
stopped glowing it might still
be on and may still be VERY
HOT, and potentially dangerous.
Ensure the appliance has cooled
o completely, is turned o
and unplugged from the mains
before handling or touching the
appliance.
• Switch o the appliance:
After use. In the event of a
malfunction before cleaning it.
• DO NOT operate the appliance if
it has fallen over.
• DO NOT dismantle the
appliance since it contain non-
user serviceable parts. Return it
to the manufacturer for repair.
• The warranty will be void in the
event of damage arising from
improper use.
• WARNING! This heater is not
equipped with a device to
control the room temperature.
DO NOT use this heater in small
rooms when they are occupied
by persons not capable of
leaving the room on their own,
unless constant supervision is
provided.
• In the unlikely event the
appliance develops a fault,
stop using it immediately and
seek advice from the Customer
Support Team.
HIGH VOLTAGE HOT SURFACE DO NOT COVER

7
www.warmlite.co

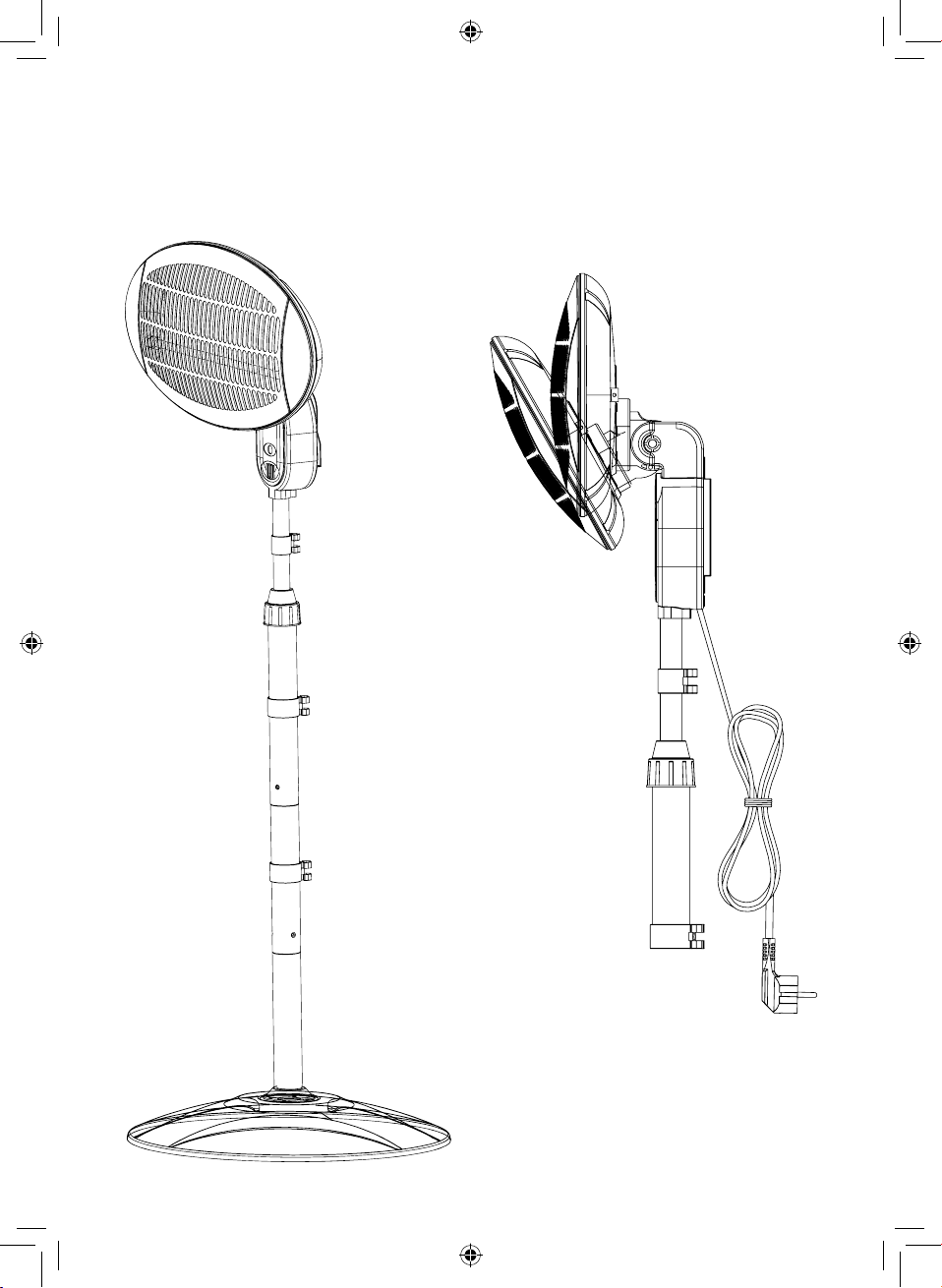

WHAT’S IN THE BOX
Instruction Manual
10 Fixing Screws
Quartz Patio Heater
Lower Post
Middle Post
Upper Post
Base

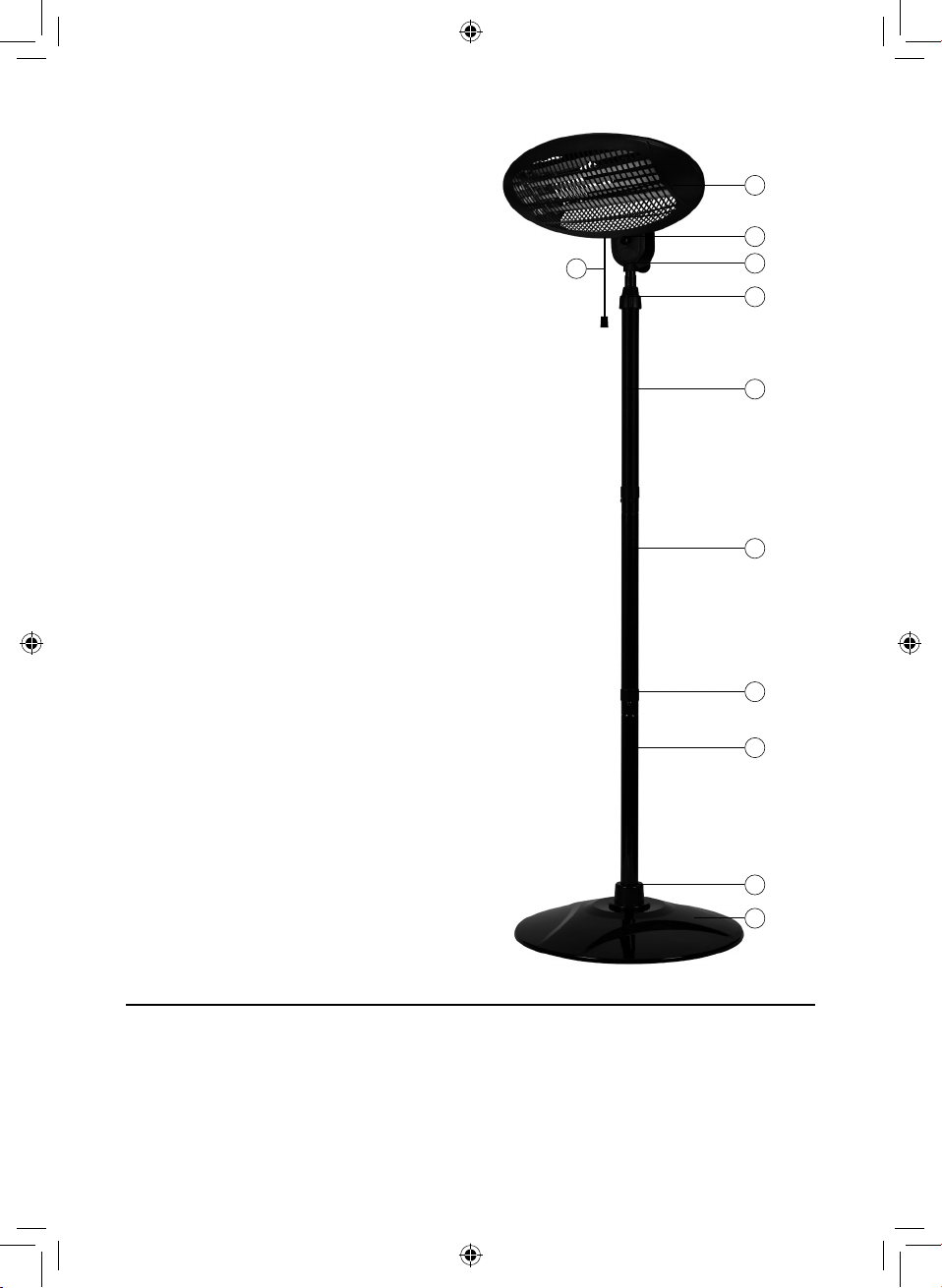

1. Heating Element Assembly
2. Position Indication Plate
3. Heating Element Tightening Knob
4. Tube Cover
5. Upper Post Assembly
6. Middle Post
7. Clamp
8. Lower Post Assembly
9. Base Cover
10. Base Assembly
11. Pull Cord
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Check that there is no damage to the cord or any visible damage to the body.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
1
2
3
4
5
6
8
9
7
10
11

8
CUSTOMER SUPPORT TEAM: [phone]
ASSEMBLY:
1. Insert the lower post assembly (8) into the
base assembly (10) and then x it tightly
by means of 4 x M6X30 screws, and
insert the clamp (7) into the lower post (8).
2. Join the Lower Post Assembly (8) and the
Middle Post (6) together with 3 x M5X6
screws.
3. Join the Upper Post Assembly (5) and the
Middle Post (6) together with 3 x M5X6
screws.

9
www.warmlite.co
4. Join the Heating Element Assembly (1)
and the Upper Post Assembly (5) together,
then x them tightly by rotating the knob,
and put the power cord supply into the
clamp.
5. Adjust the Heating Element by loosening
the Heating Element Tightening Knob
(3). Once the angle is correct, tighten
the Heating Element Tightening Knob.
The angle can be adjusted from 0 to 45
degrees.

10
CUSTOMER SUPPORT TEAM: [phone]
WALL MOUNTING YOUR HEATER
Your patio heater can be wall mounted for more
permanent placing.
1. To mount, remove the three screws from
the base of the mounting plate at the rear
of the heater.
2. Use the pre-cut holes as guides for
masonry screws and ax securely to the
wall using 2cm screws and 1.5cm wall
plugs. (not supplied)
3. Make sure that the heater is well above
head height and cannot be obstructed.
Great care should be taken positioning
the unit.
USING YOUR APPLIANCE
1. Sit the heater on a at, stable surface,
making sure the heating element is away
from any combustible materials e.g.
curtains, furnishings etc.
2. The pull switch cycles through 4 dierent
positions. Select the appropriate position
below:
Position 0: Stop
Position 1: 650W (normal power)
Position 2: 1350W (intermediate power)
Position 3: 2000W (full power)
Note: The heater is equipped with a safety
tilt switch. This will switch the heater o if it is
tipped over.
3. When you are nished using the heater
switch o all elements.
4. Allow the heater to fully cool and unplug
from the mains supply before carrying or
cleaning.
CLEANING AND CARE
Be sure to switch o the power supply at the
wall socket and disconnect the plug before
commencing cleaning.
• Wait for the heater to cool down fully
before commencing cleaning.
• Clean the grilles of dust.
• Only clean the body of the heater with a
damp cloth.
• Do not allow water into the appliance.
• Never use soap or chemicals which may
damage the housing of the heater.
• Allow sucient drying time before
operating again.
• When the unit is not in use, we
recommend that it is repacked in its
original packaging and stored in a cool,
dry place.
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.
WARNING:
DO NOT IMMERSE ANY ELECTRICAL PART
OF THE APPLIANCE IN WATER SUCH AS
MOTOR UNITS OR PLUGS.
PLEASE SEE CLEANING SECTION FOR
FURTHER INSTRUCTIONS.

11
www.warmlite.co
TROUBLE SHOOTING
Problem Solution
The heater
will not turn
on.
Make sure the appliance
is plugged into the mains
and that it is switched on. If
plugged in, make sure the
Power button is in the On
position.
The heating
element lights
will not turn
on.
Check with the manufacturer
or a qualied service person
for repair.

We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by visiting:
www.warmlite.co
Make sure to retain your original receipt.
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
[phone]
Distributed throughout the UK by RK Wholesale LTD
1119.V3
