FLECK 2815
WATER SOFTENER OR FILTER CONTROL VALVE
SERVICE MANUAL

2• FLECK 2815 Control Valve Service Manual
TABLE OF CONTENTS
JOB SPECIFICATION SHEET.................................................... 2
OPERATING PARAMETERS...................................................... 3
INSTALLATION ......................................................................... 4
START-UP INSTRUCTIONS
(ELECTROMECHANICAL TIMER ONLY) ................................... 5

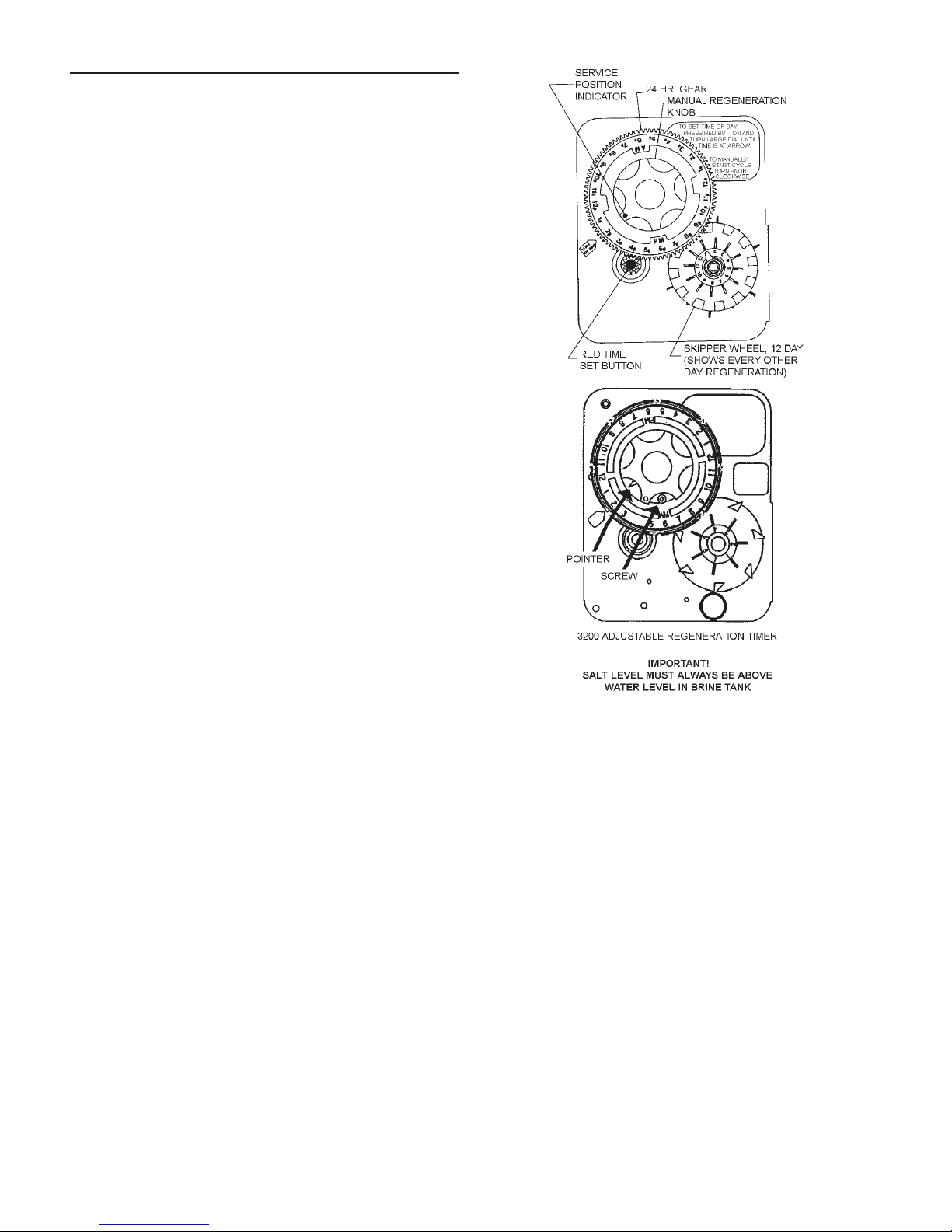

3200 TIMER SETTING PROCEDURE ........................................ 6
3210 TIMER SETTING PROCEDURE ........................................ 7
3200, 3210 REGENERATION CYCLE SETTING PROCEDURE .. 8

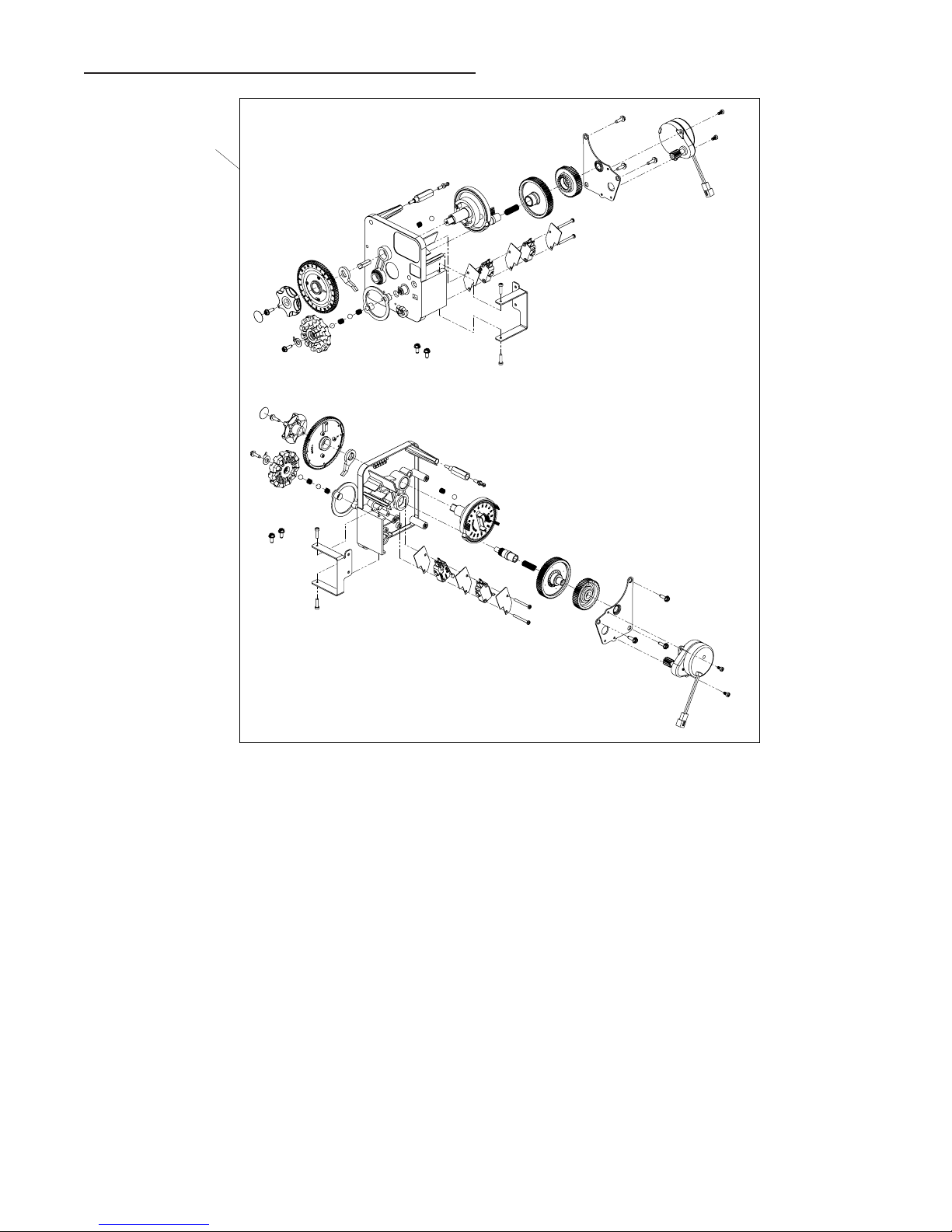

3200 TIME CLOCK TIMER ASSEMBLY...................................... 9
3210 METER DELAYED TIMER ASSEMBLY.............................. 10

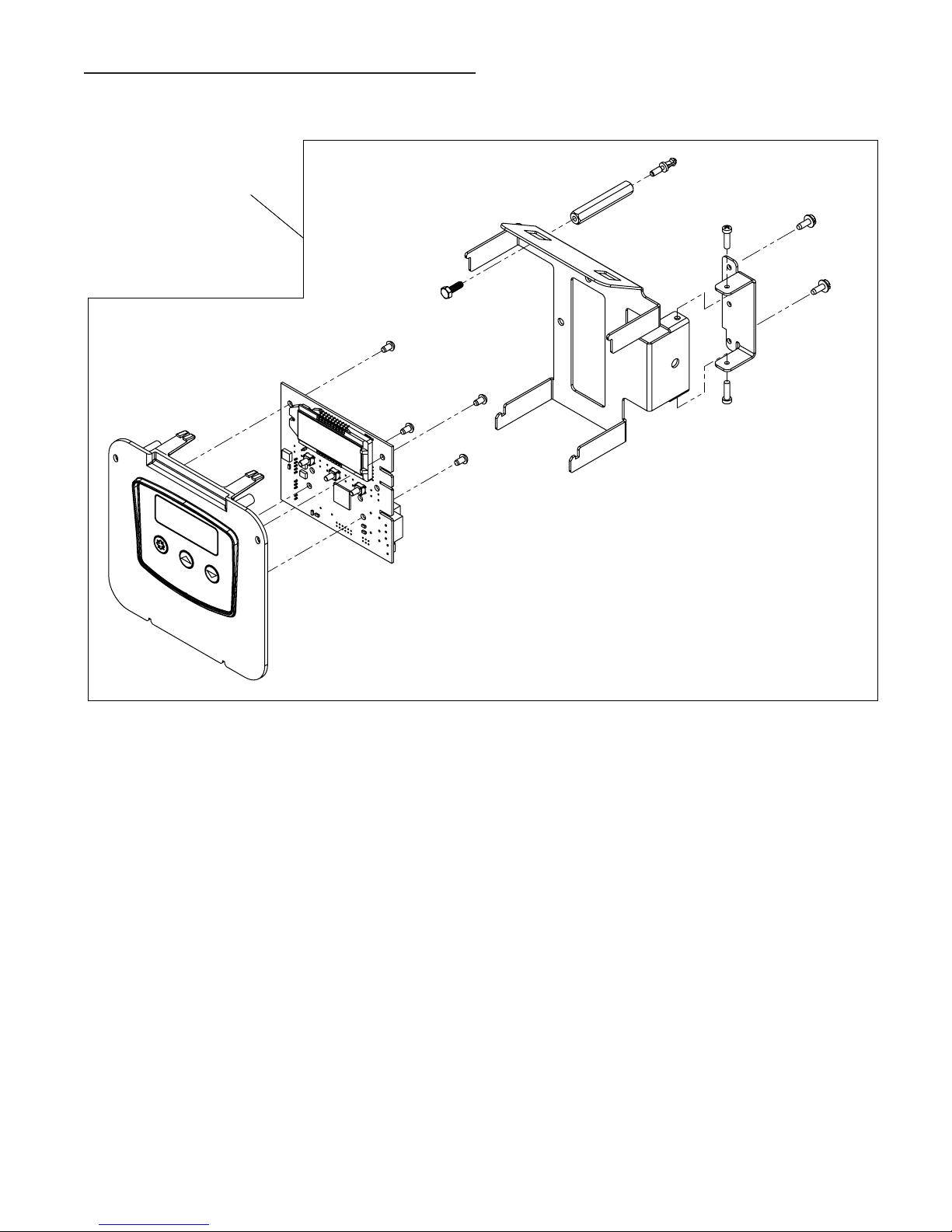

SXT TIMER ASSEMBLY............................................................. 11
XTR2 TIMER ASSEMBLY .......................................................... 12
2815 ELECTROMECHANICAL CONTROL VALVE ASSEMBLY... 13
2815 SXT CONTROL VALVE ASSEMBLY ................................... 13
2815 XTR2 CONTROL VALVE ASSEMBLY................................. 13
2815 VALVE ACCESSORIES...................................................... 14
2815 VALVE ASSEMBLIES........................................................ 15
2815 CONTROL VALVE ASSEMBLY .......................................... 16

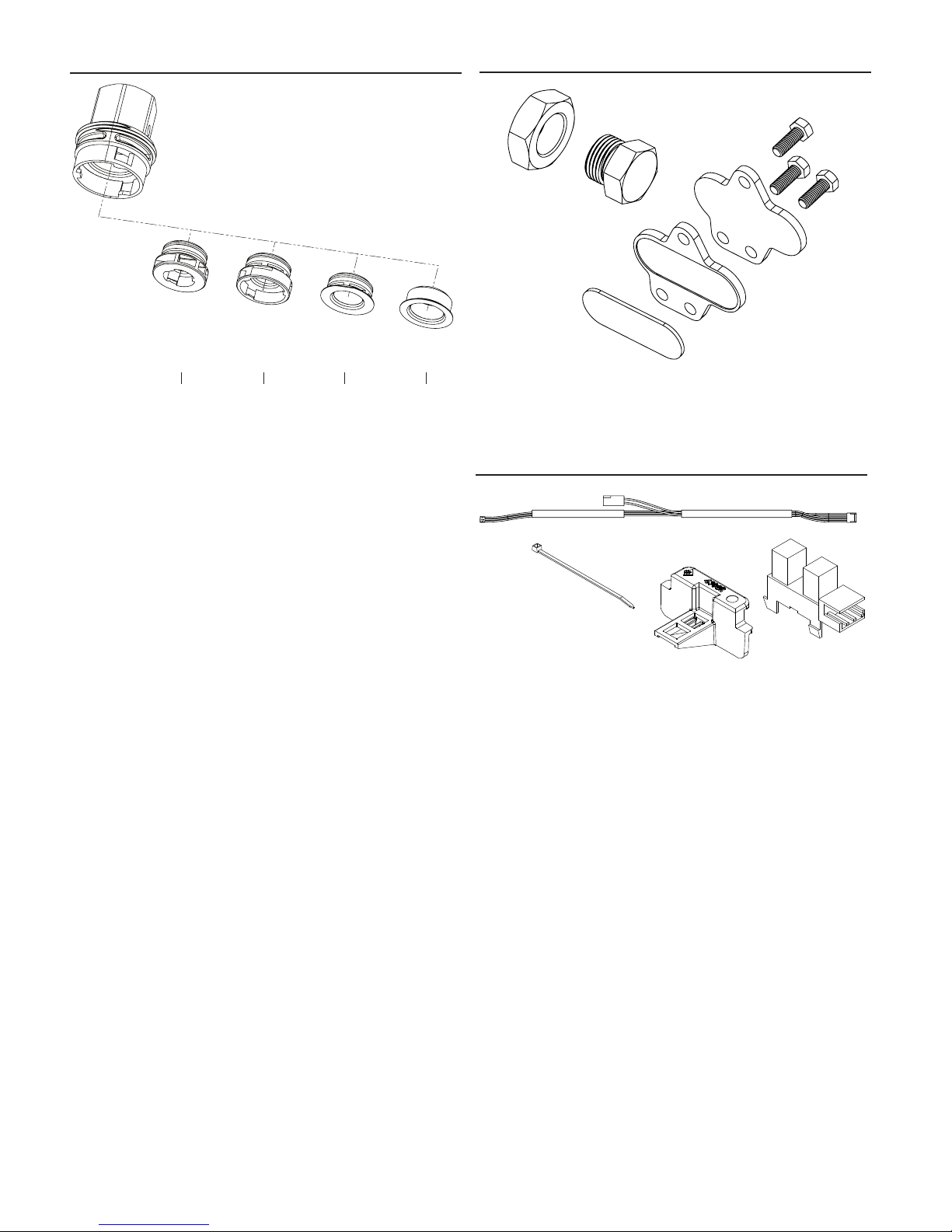

DLFC INSERT OPTIONS........................................................... 18
FILTER CONVERSION KIT ........................................................ 18
KIT, WIRE HARNESS, DC ......................................................... 18
1720 BRINE SYSTEM ASSEMBLY............................................. 19

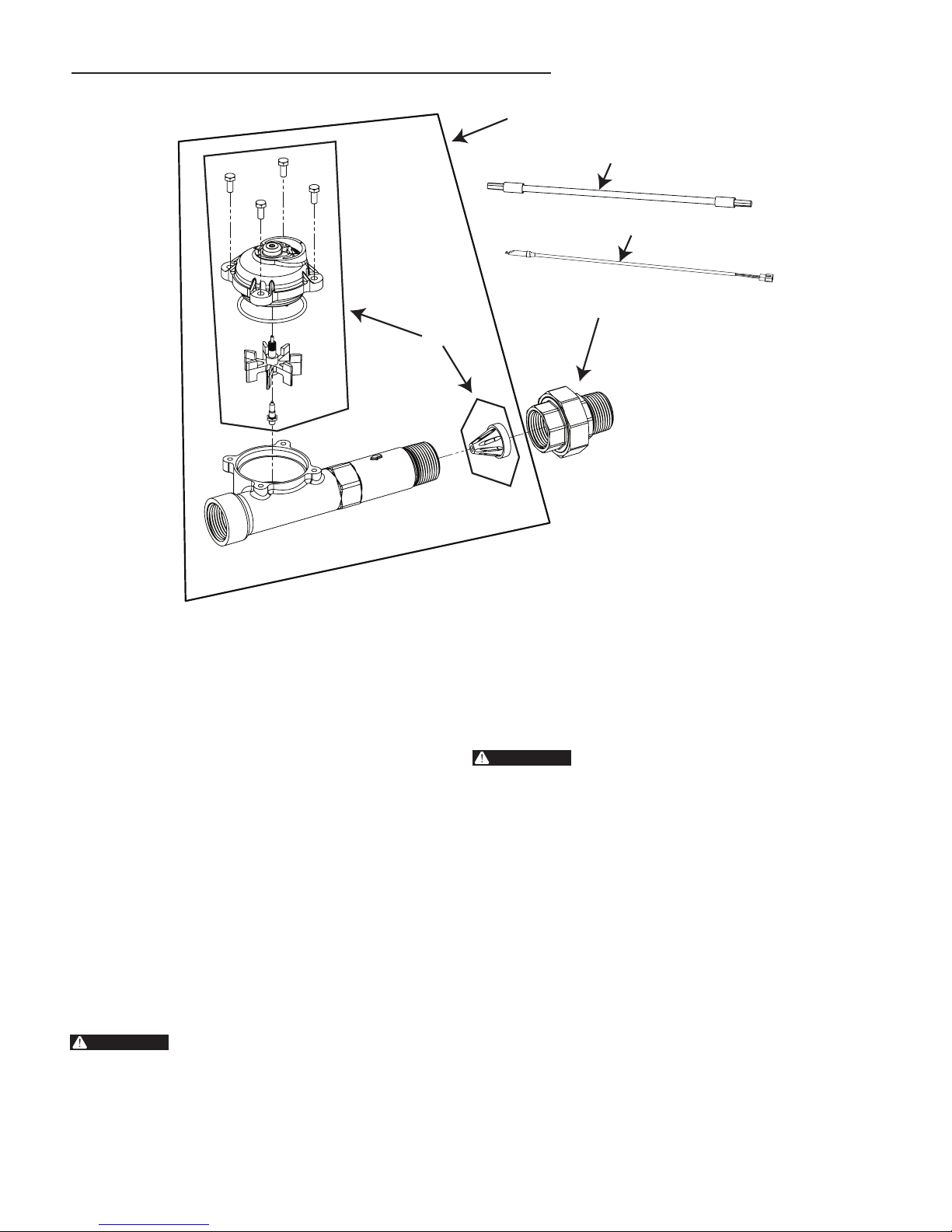

1-1/2 INCH STAINLESS STEEL METER ASSEMBLY ............... 20
2310 SAFETY BRINE VALVE ..................................................... 21
2350 SAFETY BRINE VALVE ..................................................... 22
TROUBLESHOOTING................................................................ 23
WATER CONDITIONER FLOW DIAGRAMS ............................... 24
FLOW DATA & INJECTOR DRAW RATES.................................. 25
DIMENSIONS............................................................................ 28
SYSTEM #4 .............................................................................. 31
SYSTEM #5 INTERLOCK ......................................................... 31
SYSTEM #6 .............................................................................. 32
SYSTEM #7............................................................................... 32
WIRING..................................................................................... 33
PISTON ASSEMBLY/SEAL AND SPACER CARTRIDGE
REPLACEMENT........................................................................ 36
BRINE ASSEMBLY REPLACEMENT......................................... 36
INJECTOR REPLACEMENT...................................................... 37
TIMER REPLACEMENT............................................................ 37
MOTOR DRIVE ASSEMBLY REPLACEMENT ............................ 37
DLFC REPLACEMENT.............................................................. 37
JOB SPECIFICATION SHEET
Job Number: ______________________________________________
Model Number:____________________________________________
Water Hardness: _________________________________ppm or gpg
Capacity Per Unit:__________________________________________
Mineral Tank Size (Height x Diameter): _________________________
Salt Setting per Regeneration:________________________________
1. Type of Timer:
A. 7 Day or 12 Day
B. Meter Initiated
2. Regenerant Flow Direction: Downflow
3. Meter Size:
A. 1-1/2 inch Std Range (625 - 10,625 gallon setting)
B. 1-1/2 inch Ext Range (3,125 - 53,125 gallon setting)
C. Electronic ____Pulse Count ___ Meter Size ____________
4. System Type:
A. System #4: 1 Tank, 1 Meter, Immediate, or Delayed Regen-
eration
B. System #4: Time Clock
C. System #4: Twin Tank
D. System #5: 2-4 Tanks, Interlock Electronic Meter per unit
E. System #6: 2-4 Tanks, 1 Meter, Series Regeneration,
Electronic
F. System #7: 2 Tanks only, 1 Meter, Alternating Regeneration
5. Timer Program Settings:
A. Backwash: Minutes
B. Brine and Slow Rinse: Minutes
C. Rapid Rinse: Minutes
D. Brine Tank Refill: Minutes
E. Pause Time: Minutes
F. Second Backwash: Minutes
6. Drain Line Flow Control: ________ gpm
7. Brine Line Flow Controller: ________ gpm
8. Injector Size Number: ________
9. Piston Type:
A. Hard Water Bypass
B. No Hard Water Bypass
California Proposition 65 Warning
WARNING:
This product contains chemicals known to
the State of California to cause cancer or
birth defects or other reproductive harm.

FLECK 2815 Control Valve Service Manual • 3
OPERATING PARAMETERS
Minimum Pressure 20 psi/1.38 bar/138 kPa
Maximum Pressure 125 psi/8.62 bar/862 kPa
Minimum Water
Temperature
34°F/1°C
Maximum Water
Temperature
150°F/65°C
Maximum Humidity 75%
IMPORTANT PLEASE READ:
• The information, specifications and illustrations in this manual are
based on the latest information available at the time of release. The
manufacturer reserves the right to make changes at any time without
notice.
• This manual is intended as a guide for service of the valve only.
System installation requires information from a number of suppliers
not known at the time of manufacture. This product should be
installed by a plumbing professional.
• This product must be installed in compliance with all state and
municipal plumbing and electrical codes. Permits may be required at
the time of installation.
• Do not install the unit where ambient temperatures may
fall below 32°F (0°C) or rise above 120°F (52°C).
• Do not place the unit in direct sunlight. Black units will absorb radiant
heat increasing internal temperatures.
• Do not strike the valve or any of the components.
• Warranty of this product extends to manufacturing defects.
Misapplication of this product may result in failure to properly
condition water, damage to product, or personal injury.
• A prefilter should be used on installations in which free solids are
present.
• In some applications local municipalities treat water with
Chloramines. High Chloramine levels may damage valve components.
• Correct and constant voltage must be supplied to the controller to
maintain proper function.
• The system is intended to treat only potable quality water. It is not
intended as the permanent primary treatment of water from a source
that is contaminated, such as from radon, pesticides, insecticides,
sewage or wastewater.
• This system is not intended for use by persons (including children)
with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
• Children shall not play with the system.
• Cleaning shall not be made by children without supervision.
• Periodic cleaning and maintenance may be required to function
properly.

4• FLECK 2815 Control Valve Service Manual

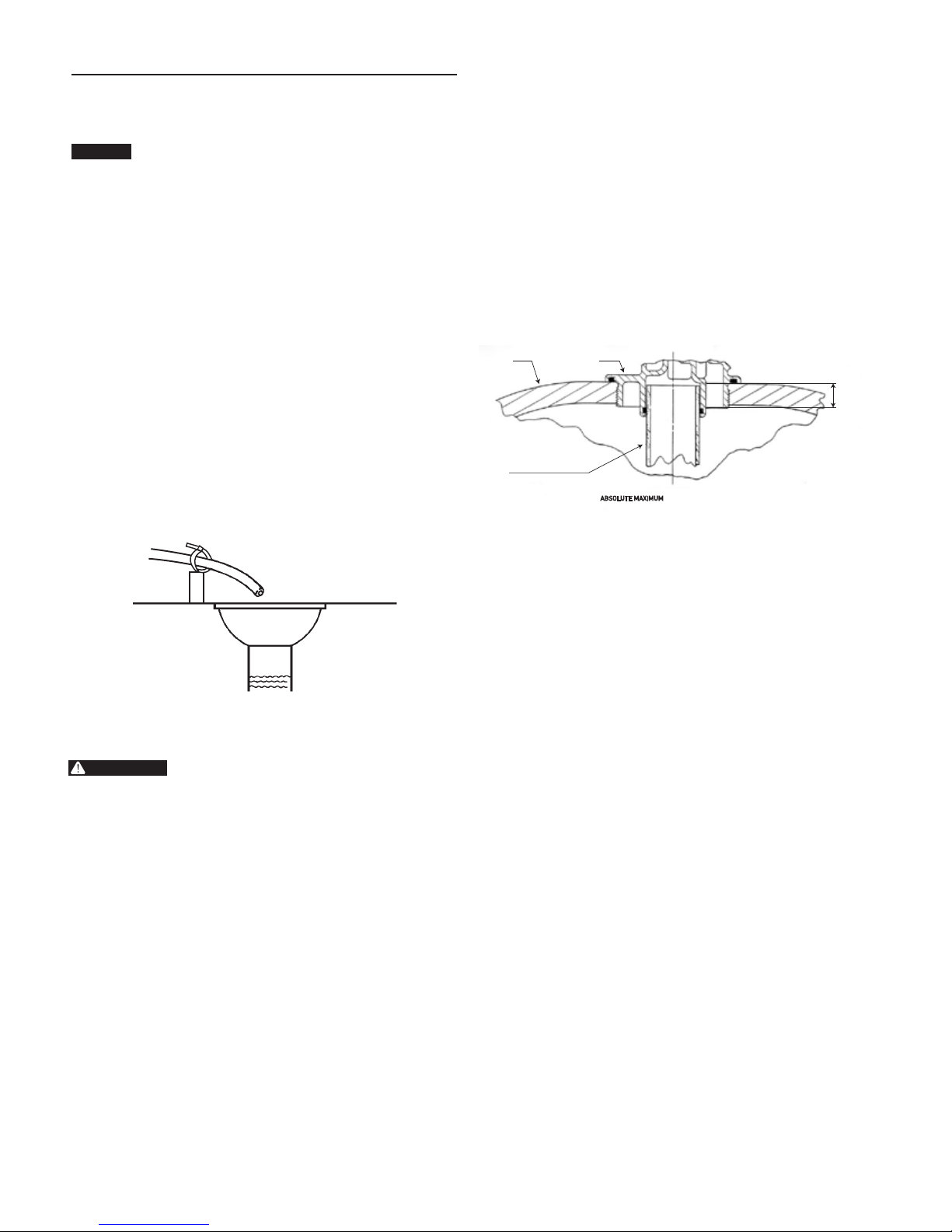

INSTALLATION
Water Pressure
A minimum of 20 psi/1.38 bar/138 kPa water pressure is
required for control valve to operate effectively.
CAUTION
Water pressure is not to exceed 125 psi (8.6 bar),
water temperature is not to exceed 150°F (65°C),
and the unit cannot be subjected to freezing
conditions.
Electrical Facilities
An uninterrupted alternating current (AC) supply is required.
NOTE: Other voltages are available. Please make sure your
voltage supply is compatible with your unit
before installation.
NOTE: All electrical connections must be connected
according to local codes. Be certain the electrical
outlet is uninterrupted.
Existing Plumbing
Condition of existing plumbing should be free from lime and
iron buildup. Piping that is built up heavily with lime and/
or iron should be replaced. If piping is clogged with iron, a
separate iron filter unit should be installed ahead of the water
softener.
Location Of System And Drain
You must have an air gap on the drain line to prevent back flow
of drain water into the system. Follow local plumbing codes.
Figure 1
Air Gap
Drain
Installation Locations
FOR DRY LOCATIONS ONLY.
Bypass Valves
Always provide for the installation of a bypass valve if unit is
not equipped with one.
Installation Instructions
1. Place the softener tank where you want to install the unit
making sure the unit is level and on a firm base.
2. During cold weather, the installer should warm the valve to
room temperature before operating.
3. All plumbing should be done in accordance with local
plumbing codes.
4. Cut the distributor tube 0.12” (3 mm) below top of tank
then chamfer the tube to prevent cutting the pilot o-ring.
Figure 2
TANK
1-1/2” DISTRIBUTOR TUBE
FLUSH
- FLUSH WITH TOP OF TANK
SHOULD CUT 0.12” BELOW TOP OF TANK
VALVE
0.88”
5. Lubricate the distributor o-ring seal and tank o-ring seal.
Place the main control valve on tank. Only use silicone
lubricant that is approved for use with potable water.
6. Solder joints near any plastic or rubber components
must be done prior to installation. Leave at least 6 inches
(15 cm) between any plastic parts and solder joints.
Failure to do so could cause damage to plastic or rubber
components.
7. Plumber tape is the preferred sealant to be used on the
drain fitting. Plumbers tape can be used on any type of
connection while pipe dope can only be used on metal to
metal connections. Installations with multiple valves may
be run through a common drain line flow control
8. Make sure that the floor is clean beneath the salt storage
tank and that it is level.
9. Place approximately 1 inch (25 mm) of water above the grid
plate. If a grid is not utilized, fill to the top of the air check
(Figure 3) in the salt tank. Do not add salt to the brine tank
at this time.
10. On units with a by-pass (or a three-ball valve by-pass),
place in by-pass position. Turn on the main water
supply. Open a cold soft water tap nearby and let run
a few minutes or until the system is free from foreign
material (usually solder) that may have resulted from the
installation. Once clean, close the water tap.
11. Install power supply (routing cable through backplate
and using cord restaint to secure power cord). Refer to
dimensional drawing for power cord entry point.
12. Program the timer as desired.
13. Slowly open the inlet ball valve letting water flow into the
mineral tank. When water flow stops, put the control valve
into the backwash position. Leave control valve in the
backwash position until clear water is running smoothly
out the drain line.
IMPORTANT:
Use thread sealant intended for use with
stainless steel connections and approved for use with potable
water. To reduce the risk of seizing or galling, a nickel
impregnated PTFE (polytetrafluoroethylene) thread sealing
tape is recommended.

FLECK 2815 Control Valve Service Manual • 5
Meter Dome and Union Orientation
Control valves outfitted with an electromechanical timer and
stainless steel water meter include a special male x female
threaded stainless steel union to insure proper installation and
operation of the water meter.
The location of this union in relation to the
control valve and water meter is critical for
proper operation. DO NOT omit or substitute
this special union; it positions the meter dome
at the correct distance from the control valve
and allows re-positioning the water meter
dome for proper operation.
1. Apply a suitable thread sealant to the male threads of the
union and meter body.
2. Thread the union into the OUTLET port of the control valve,
then thread the meter into the union. See illustrations
below.
3. Rotate the water meter body so the meter dome is at the
12 o’clock position. Loosen the nut on the union to facilitate
this if required. Once in position, tighten the union nut.
4. Connect the meter cable to the open port in the center of
the meter dome.
5. Continue with the installation of the control valve.
Meter
Union
Valve Body
Position
Meter Dome
at 12 o’clock
orientation
14. Manually advance the control valve through the cycle
positions (checking for leaks at each position) and
stopping at the brine fill position. Let the brine fill cycle
automatically complete and the control valve advance to
the service position to ensure the proper amount of water
has been let into the brine tank. Add salt to the brine tank
as needed. Make sure the salt level is always higher than
the water level to maintain the correct salt dosage.
15. Open outlet ball valve. To purge air from the plumbing
system, open each faucet starting from the closest location
to the control valve to the farthest faucet location.
CHECK HEIGHT
CHECK HEIGHT
Figure 3 Air Check Valve
START-UP INSTRUCTIONS
(ELECTROMECHANICAL TIMER ONLY)
NOTE: For electronic controls, please refer to the manual
regeneration part of the timer operation section.
If the valve came with a separate electronic timer
service manual, refer to the timer operation section
of the electronic timer service manual.
The water softener should be installed with the inlet,
outlet, and drain connections made in accordance with the
manufacturer’s recommendations, and to meet applicable
plumbing codes.
NOTE: Always remove the meter cable from the meter cap
before opening the timer door.
1. Open the timer door and urn the manual regeneraton knob
slowly in a clockwise direction until the program micro
switch lifts on top of the first set of pins. Allow the drive
motor to move the piston to the first regeneration step and
stop. Each time the program switch position changes, the
valve will advance to the next regeneration step. Always
allow the motor to stop before moving to the next set of
pins or spaces.
2. Position the valve to backwash. Ensure the drain line flow
remains steady for 10 minutes or until the water runs
clear.
3. Position the valve to the brine / slow rinse position. Ensure
the unit is drawing water from the brine tank.
4. Position the valve to the rapid rinse position. Check the
drain line flow, and run for 5 minutes or until the water
runs clear.
5. Position the valve to the start of the brine tank fill cycle.
Ensure water goes into the brine tank at the desired rate.
The brine valve drive cam will hold the valve in this position
to fill the brine tank for the first regeneration.
INSTALLATION Continued
6. Close and secure the control box cover.
7. Put salt in the brine tank.
Do not use granulated or rock salt.
Salt level must always be above water level in brine tank.

6• FLECK 2815 Control Valve Service Manual
3200 TIMER SETTING PROCEDURE
How To Set Days On Which Water Conditioner Is To
Regenerate (Figure 4)
Rotate the skipper wheel until the number “1” is at the red
pointer. Set the days that regeneration is to occur by sliding
tabs on the skipper wheel outward to expose trip fingers.
Each tab is one day. Finger at red pointer is tonight. Moving
clockwise from the red pointer, extend or retract fingers to
obtain the desired regeneration schedule.
How To Set The Time Of Day
1. Press and hold the red button in to disengage the
drive gear.
2. Turn the large gear until the actual time of day is at the
time of day pointer.
3. Release the red button to again engage the drive gear.
How To Manually Regenerate Your Water Conditioner At
Any Time
1. Turn the manual regeneration knob clockwise.
2. This slight movement of the manual regeneration knob
engages the program wheel and starts the
regeneration program.
3. The black center knob will make one revolution in
approximately three hours.
4. Even though it takes three hours for this center knob to
complete one revolution, the regeneration cycle of your
unit might be set for only one half of this time.
5. In any event, conditioned water may be drawn after rinse
water stops flowing from the water conditioner drain line.
How to Adjust Regeneration Start Time
1. Disconnect the power source.
2. Locate the three screws behind the manual regeneration
knob by pushing the red button in and rotating the 24 hour
dial until each screw appears in the cut out portion of the
manual regeneration knob.
3. Loosen each screw slightly to release the pressure on the
time plate from the 24-hour gear.
4. Locate the regeneration time pointer on the inside of the
24 hour dial in the cut out.
5. Turn the time plate so the desired regeneration start time
aligns next to the raised arrow.
6. Push the red button in and rotate the 24 hour dial. Tighten
each of the three screws.
7. Push the red button and locate the pointer one more time
to ensure the desired regeneration start time is correct.
8. Reset the time of day and restore power to the unit.
61502-3200 Rev A
Figure 4

FLECK 2815 Control Valve Service Manual • 7
3210 TIMER SETTING PROCEDURE
Typical Programming Procedure
Calculate the gallon capacity of the system, subtract the
necessary reserve requirement and set the gallons available
opposite the small white dot on the program wheel gear
(Figure 54).
NOTE: Drawing shows 8,750 gallon setting. The capacity
(gallons) arrow (15) shows zero gallons remaining.
The unit will regenerate tonight at the set
regeneration time.
How To Set The Time Of Day
1. Press and hold the red button in to disengage the drive
gear.
2. Turn the large gear until the actual time of day is opposite
the time of day pointer.
3. Release the red button to again engage the drive gear.
How To Manually Regenerate Your Water Conditioner At
Any Time
NOTE: Always remove the meter cable from the meter cap
before opening the timer door.
1. Turn the manual regeneration knob clockwise.
2. This slight movement of the manual regeneration knob
engages the program wheel and starts the
regeneration program.
3. The black center knob will make one revolution in the
following approximately three hours and stop in the
position shown in the drawing.
4. Even though it takes three hours for this center knob to
complete one revolution, the regeneration cycle of your
unit might be set for only a portion of this time.
5. In any event, conditioned water can be drawn after the
rapid rinse cycle has completed or no water is flowing out
the drain line.
NOTE: The program wheel in Figure 4 may be different than
the program wheel on the product.
NOTE: To set meter capacity rotate manual knob one - 360°
revolution to set gallonage.
NOTE: Immediate regeneration timers do not have a
24-hour gear. No time of day can be set.
61502-3200 Rev A
Figure 5

8• FLECK 2815 Control Valve Service Manual
3200, 3210 REGENERATION CYCLE
SETTING PROCEDURE
How To Set The Regeneration Cycle Program
The regeneration cycle program on your water conditioner has
been factory preset, however, portions of the cycle or program
may be lengthened or shortened in time to suit
local conditions.
3200 Series Timers
NOTE: Always remove the meter cable from the meter cap
before opening the timer door.
1. To expose cycle program wheel, grasp timer in upper left-
hand corner and pull, releasing snap retainer and swinging
timer to the right.
2. To change the regeneration cycle program, the program
wheel must be removed. Grasp program wheel and squeeze
protruding lugs toward center, lift program wheel off timer.
Switch arms may require movement to facilitate removal.
3. Return timer to closed position engaging snap retainer in
back plate. Make certain all electrical wires locate above
snap retainer post.
Timer Setting Procedure
How To Change The Length Of The Backwash Time
The program wheel as shown in Figure 6 is in the service
position. As you look at the numbered side of the program
wheel, the group of pins starting at zero determines the length
of time your unit will backwash.
For example, if there are six pins in this section, the time of
backwash will be 12 min. (2 min. per pin). To change the length
of backwash time, add or remove pins as required. The number
of pins times two (x2) equals the backwash time in minutes.
How To Change The Length Of Brine And Rinse Time
1. The group of holes between the last pin in the backwash
section and the second group of pins determines the length
of time that your unit will brine and rinse (2 min. per hole).
2. To change the length of brine and rinse time, move the rapid
rinse group of pins to give more or fewer holes in the brine
and rinse section. Number of holes times two (x2) equals
brine and rinse time in minutes.
How To Change The Length Of Rapid Rinse
1. The second group of pins on the program wheel determines
the length of time that your water conditioner will rapid
rinse (2 min. per pin).
2. To change the length of rapid rinse time, add or remove pins
at the higher numbered end of this section as required. The
number of pins times two (x2) equals the rapid rinse time
in minutes.
How To Change The Length Of Brine Tank Refill Time
1. The second group of holes in the program wheel determines
the length of time that your water conditioner will refill the
brine tank (2 min. per hole).
2. To change the length of refill time, move the two pins at the
end of the second group of holes as required.
3. The regeneration cycle is complete when the outer
microswitch is tripped by the two pin set at end of the brine
tank refill section.
4. The program wheel, however, will continue to rotate until
the inner micro switch drops into the notch on the
program wheel.
61502-3210 Rev A
Figure 6

FLECK 2815 Control Valve Service Manual • 9
Item No. QTY Part No. Description
1.................1........ 62018-10............Timer Assy, EM, 2815, 12 Day, 60Hz
1........ 62018-11............Timer Assy, EM, 2815, 12 Day, 50Hz
1........ 62018-20............Timer Assy, EM, 2815, 7 Day, 60Hz
1........ 62018-21............Timer Assy, EM, 2815, 7 Day, 50Hz
1........ 62018-30............Timer Assy, EM, 2815, 12 Day, 60Hz 12AM
1........ 62018-31............Timer Assy, EM, 2815, 12 Day, 50Hz 12AM
1........ 62018-40............Timer Assy, EM, 2815, 7 Day, 60Hz 12AM
1........ 62018-41............Timer Assy, EM, 2815, 7 Day, 50Hz 12AM
Not Shown
1........ 62055 .................Kit, Wire Harness, EM
1........ 44143 .................Power Supply, AC
3200 TIME CLOCK TIMER ASSEMBLY
EXPLODED VIEW
NO SCALE
EXPLODED VIEW
NO SCALE
1
62018 Rev A

10 • FLECK 2815 Control Valve Service Manual
Item No. QTY Part No. Description
1.................1........ 62019-11............Timer Assy, EM, 2815, Delay, 60Hz 1-1/2”STD
1........ 62019-12............Timer Assy, EM, 2815, Delay, 50Hz 1-1/2”STD
1........ 62019-13............Timer Assy, EM, 2815, Delay, 60Hz 1-1/2”, 40M3, EXT
1........ 62019-14............Timer Assy, EM, 2815, Delay, 50Hz 1-1/2”, 40M3, EXT
1........ 62019-21............Timer Assy, EM, 2815, Delay, 60Hz 1-1/2”, EXT
1........ 62019-22............Timer Assy, EM, 2815, Delay, 50Hz 1-1/2”, EXT
1........ 62019-23............Timer Assy, EM, 2815, Delay, 60Hz 1-1/2”, 200M3, EXT
1........ 62019-24............Timer Assy, EM, 2815, Delay, 50Hz 1-1/2”, 200M3, EXT
Not Shown
1........ 62055 .................Kit, Wire Harness, EM
1........ 44143 .................Power Supply, AC
3210 METER DELAYED TIMER ASSEMBLY
1
62019 Rev A

FLECK 2815 Control Valve Service Manual • 11
Item No. QTY Part No. Description
1.................1........ 62066 .................Timer Assy. SXT, DC, 2815
Not Shown
1........ 62057 .................Kit, Wire Harness, DC
1........ 44164 .................Power Supply, Intl, 24V DC 3M, 2A
SXT TIMER ASSEMBLY
11
62066 Rev A

12 • FLECK 2815 Control Valve Service Manual
XTR2 TIMER ASSEMBLY
Item No. QTY Part No. Description
1.................1........ 62067 .................Timer Assy, XTR2, 2815
Not Shown
1........ 62057 .................Kit, Wire Harness, DC
1........ 44164 .................Power Supply, Intl, 24V DC 3M, 2A
11
62067 Rev A

FLECK 2815 Control Valve Service Manual • 13
2815 ELECTROMECHANICAL
CONTROL VALVE ASSEMBLY
2815 SXT CONTROL VALVE ASSEMBLY
2815 XTR2 CONTROL VALVE ASSEMBLY
Item No. QTY Part No. Description
1................... 1......... 281501-001........... 2815, SOF, DNF, CLK, 12DA, 24-60,
HW 2--, 1.0, LES, NP4, 1720, HWBP
.......... 281500-003........... 2815, SOF, DNF, CLK, 7DAY, 24-60,
HW 2--, 1.0, LES, NP4, 1720, HWBP
.......... 281501-002........... 2815, SOF, DNF, CLK, 12DA, 24-60,
HW 4--, 2.0, LES, NP4, 1720, NHWB
.......... 281500-004........... 2815, SOF, DNF, CLK, 7DAY, 24-60,
HW 4--, 2.0, LES, NP4, 1720, NHWB
.......... 281502-001........... 2815, SOF, DNF, M15, MDEL, 24-60,
HW 2--, 1.0, LES, NP4, 1720, HWBP
.......... 281500-001........... 2815, FIL, DNF, CLK, 7DAY, 24-60,
HW BWF, BWF, LES, NP4, BWF-,
HWBP
.......... 281501-003........... 2815, FIL, DNF, CLK, 12DA, 24-60,
HW BWF, BWF, LES, NP4, BWF-,
HWBP
.......... 281500-002........... 2815, FIL, DNF, CLK, 7DAY, 24-60,
HW BWF, BWF, LES, NP4, BWF-,
NHWB
.......... 281501-004........... 2815, FIL, DNF, CLK, 12DA, 24-60,
HW BWF, BWF, LES, NP4, BWF-,
NHWB
Above part numbers DO NOT include the following parts:
Distributor Adapter, Bypass Assembly, Connector Assembly
Flow Washer, DLFC. See 2815 accessories page for options.
Item No. QTY Part No. Description
1................... 1......... 281506-001........... 2815, SOF, DNF, CLK, SXT-, 24-DC,
HW 2--, 1.0, LES, NP4, 1720, HWBP
.......... 281506-002........... 2815, SOF, DNF, CLK, SXT-, 24-DC,
HW 4--, 2.0, LES, NP4, 1720, NHWB
.......... 281506-003........... 2815, FIL, DNF, CLK, SXT-, 24-DC, HW
BWF, BWF, LES, NP4, BWF-, HWBP
.......... 281506-004........... 2815, FIL, DNF, CLK, SXT-, 24-DC, HW
BWF, BWF, LES, NP4, BWF-, NHWB
Above part numbers DO NOT include the following parts:
Distributor Adapter, Bypass Assembly, Connector Assembly
Flow Washer, DLFC. See 2815 accessories page for options
Item No. QTY Part No. Description
1................... 1......... 281508-001........... 2815, SOF, DFN, CLK, XTR2, 24-DC,
HW 2--, 1.0, LES, NP4, 1720, HWBP
.......... 281508-002........... 2815, SOF, DFN, CLK, XTR2, 24-DC,
HW 4--, 2;0, LES, NP4, 1720, HWBP
Above part numbers DO NOT include the following parts:
Distributor Adapter, Bypass Assembly, Connector Assembly
Flow Washer, DLFC. See 2815 accessories page for options.

14 • FLECK 2815 Control Valve Service Manual
2815 VALVE ACCESSORIES
Covers
62069-01 .....................2815 Black Cover/Blue Bezel,
Clear Window
62069-02 .....................2815 Black Cover/Black Bezel,
Clear Window
62069-03 .....................2815 Black Cover/Silver Bezel,
Clear Window
62069-04 2815 Black Environmental Cover
Meter Assemblies
61933-10 .....................Meter Assy, 1-1/2” NPT, STD, SS
61933-11 .....................Meter Assy, 1-1/2” NPT, EXT, SS
44024...........................Fitting, Union, 1.5”, NPT
61560-09 .....................Meter Assy, 1-1/2” Inln, NPT, Elec,
Plas, Brs Nipples, Turb
61560-13 .....................Meter Assy 1-1/2”, Inln, NPT, Elec
Meter Cables Assemblies
19791-02 .....................Meter Cable Assy, 30”
19791-04 .....................Meter Cable Assy, Turbine, 100”
19791-05 .....................Meter Cable Assy, Turbine, 304”
Housing
43773...........................Housing, Internal DLFC
Retainers
62033...........................Retainer Assy,1.7-7 GPM,
Flow Washer, 5812
62034...........................Retainer Assy, 8-25 GPM,
Flow Washer, 5812
62035...........................Retainer Assy, 30-45 GPM,
Flow Washer, 5812
44182...........................Retainer, DLFC, 2815
Washers
19151...........................Washer, Flow, 1.0 GPM
12087...........................Washer, Flow, 2.0 GPM
12090...........................Washer, Flow, 3.5 GPM
12091...........................Washer, Flow, 4.0 GPM
19147...........................Washer, Flow, 4.5 GPM
12092...........................Washer, Flow, 5.0 GPM
17814...........................Washer, Flow, 6.0 GPM
12408...........................Washer, Flow, 7.0 GPM
17943...........................Washer, Flow, 8.0 GPM
17944...........................Washer, Flow, 9.0 GPM
16529...........................Washer, Flow, 10.0 GPM
16735...........................Washer, Flow, 12.0 GPM
16736...........................Washer, Flow, 15.0 GPM
16528...........................Washer, Flow, 20.0 GPM
16737...........................Washer, Flow, 25.0 GPM
43736...........................Washer, Flow, 30 GPM
43737...........................Washer, Flow, 35 GPM
43738...........................Washer, Flow, 40 GPM
43739...........................Washer, Flow, 45 GPM
43740...........................Washer, Flow, 50 GPM
43766...........................Washer, Flow, 55 GPM
43767...........................Washer, Flow, 60 GPM
43768...........................Washer, Flow, 65 GPM
43769...........................Washer, Flow, 70 GPM
COVER COVER, ENVIRONMENTAL
RETAINER ASSY
HOUSING, DLFC
FLOW WASHER
BEZEL

FLECK 2815 Control Valve Service Manual • 15
2815 VALVE ASSEMBLIES
Injector Assemblies
62058...........................Kit, Injector Assembly
44150-01 .....................Injector Assy, 1720, #1 VIOLET
44150-02 .....................Injector Assy, 1720, #2 BLUE
44150-03 .....................Injector Assy, 1720, #3 YELLOW
44150-04 .....................Injector Assy, 1720, #4 GREEN
44150-05 .....................Injector Assy, 1720, #5 WHITE
44150-06 .....................Injector Assy, 1720, #6 RED
Injector Screen
44071 ..........................Injector Screen, 2815
Brine Valves
62020-10 .....................Brine Valve, 1720, 1.0 GPM
62020-20 .....................Brine Valve, 1720, 2.0 GPM
62020-50 .....................Brine Valve, 1720, 5.0 GPM
Program Wheel
60405-20 .....................Program Wheel, w/ 3/4” Ext Label
1-1/2” STD Set @ 100
60405-21 .....................Program Wheel, 40M3 Ext
60405-70 .....................Program Wheel, w/ 1-1/2” Ext Label
60405-71 .....................Program Wheel, 200M3 Ext
Powerhead/Timer Assemblies
62067...........................Timer Assy, XTR2, 2815
62066...........................Timer Assy, SXT, 2815
62018-10 .....................Timer Assy, EM, 2815, 12 Day, 60Hz
62018-11 .....................Timer Assy, EM, 2815, 12 Day, 50Hz
62018-20 .....................Timer Assy, EM, 2815, 7 Day, 60Hz
62018-21 .....................Timer Assy, EM, 2815, 7 Day, 50Hz
62018-30 .....................Timer Assy, EM, 2815, 12 Day, 60Hz 12am
62018-31 .....................Timer Assy, EM, 2815, 12 Day, 60Hz 12am
62018-40 .....................Timer Assy, EM, 2815, 7 Day, 60Hz 12am
62018-41 .....................Timer Assy, EM, 2815, 7 Day, 50Hz 12am
Timer Motors
43978...........................Motor, 24V, 60Hz, 1/30 RPM, Plug
44114...........................Motor, 24V, 50 Hz 1/30 RPM, Plug
Auxilary Switch Kits
60320-02 .....................Switch Kit, 3200/9000 Timer Auxilary
Power Supplies
44143...........................Transformer, US, 24V, 40VA, Cord Conn
44164...........................Power Supply, Intl 24V DC 3M, 2A
Drive Moter Assemblies
62046-01 .....................Drive Assy, 2815, Switch
62046-02 .....................Drive Assy, 2815, Switch, AUX SWT BF
62046-03 .....................Drive Assy, 2815, Switch, AUX SWT RR
62047-01 .....................Drive Assy, 2815, Optical
62047-02 .....................Drive Assy, 2815, Optical, AUX SWT BF
62047-03 .....................Drive Assy, 2815, Optical, AUX SWT RR
No Hard Water (NHWBP) Piston Conversion Kits
62050-01 .....................Plug/Piston Ass, 2815, Bypass
62050-02 .....................Plug/Piston Ass, 2815, NHWBP
Filter Conversion Parts
62081...........................Filter Plate Kit, 2815

16 • FLECK 2815 Control Valve Service Manual

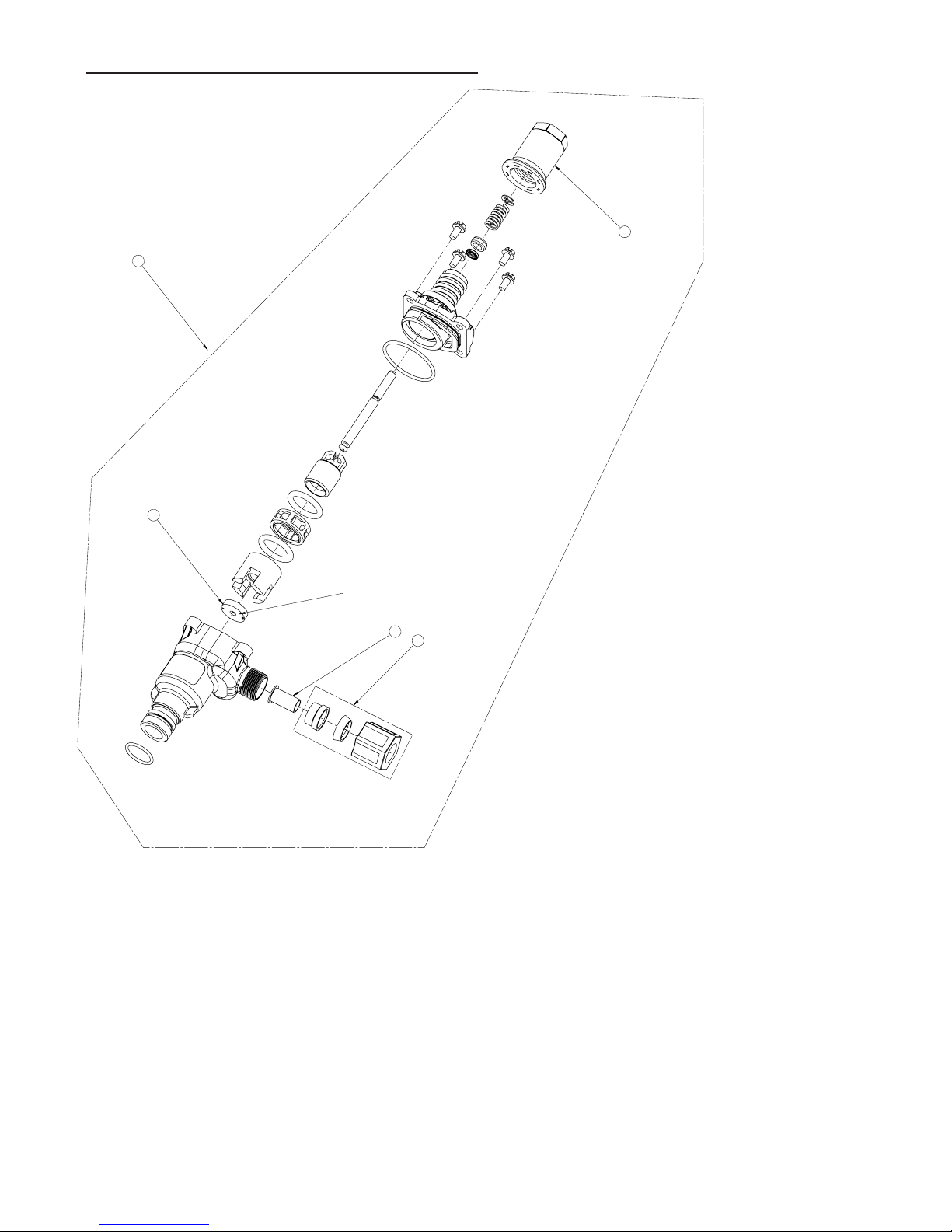

2815 CONTROL VALVE ASSEMBLY
61500-2815 Rev A
6
10
BACK VIEW
5
411
3
9
8
FRONT VIEW
2
71
12

FLECK 2815 Control Valve Service Manual • 17
2815 CONTROL VALVE ASSEMBLY CONTINUED
Item No. QTY Part No. Description
1.................1........ 62050-01............End Plug / Bypass Piston Sub
Assembly
1........ 62050-02............End Plug / NHWBP Piston Sub
Assembly
2.................1........ 62046-02............Drive Assy, 2815, Switch, Aux,
SWT BF
1........ 62047-02............Drive Assy, 2815, Optical, Aux, SW
BF
3.................1........ 62058 .................Service Kit, Injector Assy
4.................1........ 44150-01............Injector Assy, 1720, #1 Violet
1........ 44150-02............Injector Assy, 1720, #2 Blue
1........ 44150-03............Injector Assy, 1720, #3 Yellow
1........ 44150-04............Injector Assy, 1720, #4 Green
1........ 44150-05............Injector Assy, 1720, #5 White
1........ 44150-06............Injector Assy, 1720, #6 Red
5.................1........ 19151 .................Washer, Flow, 1.0 GPM
1........ 12087 .................Washer, Flow, 2.0 GPM
1........ 12090 .................Washer, Flow, 3.5 GPM
1........ 12091 .................Washer, Flow, 4.0 GPM
1........ 19147 .................Washer, Flow, 4.5 GPM
1........ 12092 .................Washer, Flow, 5.0 GPM
1........ 17814 .................Washer, Flow, 6.0 GPM
1........ 12408 .................Washer, Flow, 7.0 GPM
1........ 17943 .................Washer, Flow, 8.0 GPM
1........ 17944 .................Washer, Flow, 9.0 GPM
1........ 16529 .................Washer, Flow, 10.0 GPM
1........ 16735 .................Washer, Flow, 12.0 GPM
1........ 16736 .................Washer, Flow, 15.0 GPM
1........ 16528 .................Washer, Flow, 20.0 GPM
1........ 16737 .................Washer, Flow, 25.0 GPM
1........ 43736 .................Washer, Flow, 30 GPM
1........ 43737 .................Washer, Flow, 35 GPM
1........ 43738 .................Washer, Flow, 40 GPM
1........ 43739 .................Washer, Flow, 45 GPM
1........ 43740 .................Washer, Flow, 50 GPM
1........ 43766 .................Washer, Flow, 55 GPM
1........ 43767 .................Washer, Flow, 60 GPM
1........ 43768 .................Washer, Flow, 65 GPM
1........ 43769 .................Washer, Flow, 70 GPM
6.................1........ 62069-01............Cover Assy, Blue
1........ 62069-02............Cover Assy, Black
1........ 62069-03............Cover Assy, Silver
1........ 62069-04............Cover Assy, Environmental
7.................1........ 62017 .................Seals and Spacers Kit, 2815
8.................1........ 17470 .................Cable Guide Assy,
11.12” x 2.0”R
9.................1........ 19608-15............Disperser, Commerical
1-1/2” 2850/2900/9500
10...............1........ 43262-00............Bezel, Blue, 2815, 5800
1........ 43262-01............Bezel, Black, 2815, 5800
1........ 43262-02............Bezel, Silver, 2815, 5800
1........ 43407 .................Bezel, 5800, Environmental
11...............1........ 44071 .................Injector Screen, 2815
12...............1........ 62057 .................Kit, Wire Harness, DC
Not Shown
..................1........ 62068 .................Seals Kit 5 PK
..................1........ 62070 .................Hardware Kit 5 PK
..................1........ 44143 .................Power Supply, AC
1........ 44164 .................Power Supply, Intl.,
24V DC 3M, 2A
..................1........ 61415 .................Sidemount Adapter, NPT
1........ 61415-20............Sidemount Adapter, BSP
..................1........ 17744 .................Meter Cable, 20.75” 1-1/2” STD
..................1........ 43822-01............Label, Injector, #1
..................1........ 43822-02............Label, Injector, #2
..................1........ 43822-03............Label, Injector, #3
..................1........ 43822-04............Label, Injector, #4
..................1........ 43822-05............Label, Injector, #5
..................1........ 43822-06............Label, Injector, #6

18 • FLECK 2815 Control Valve Service Manual
DLFC INSERT OPTIONS FILTER CONVERSION KIT
KIT, WIRE HARNESS, DC
Item No. QTY Part No. Description
1.................1........ 62081 .................Filter Plate Kit, 2815
Item No. QTY Part No. Description
1.................1........ 62057 .................Kit, Wire Harness, DC
Item No. QTY Part No. Description
1.................1........ 43773 .................Housing, Internal DLFC
2.................1........ 62033 .................Retainer Assy, 1.7-7 GPM, Flow
Washer, 5812
3.................1........ 62034 .................Retainer Assy, 8-25 GPM, Flow
Washer, 5812
4.................1........ 62035 .................Retainer Assy, 30-45 GPM, Flow
Washer, 5812
5.................1........ 44182 .................Retainer, DLFC, 2815,
50-70 GPM
1
3
1.7-7
GPM
8-25
GPM
30-45
GPM
50-70
GPM
542
62081 Rev A

FLECK 2815 Control Valve Service Manual • 19
5
2
3
4
FLOW WASHER MARKING ON THIS SURFACE
1
1720 BRINE SYSTEM ASSEMBLY
Item No. QTY Part No. Description
1.................1........ 62020-00............Brine Valve Assy,
No Flow Washer
......... 62020-10............Brine Valve Assy, 1.0 GPM
......... 62020-20............Brine Valve Assy, 2.0 GPM
......... 62020-50............Brine Valve Assy, 5.0 GPM
2.................1........ 19151 .................Washer, Flow, 1.0 GPM
......... 12087 .................Washer, Flow, 2.0 GPM
......... 12092 .................Washer, Flow, 5.0 GPM
3.................1........ 17906 .................Guide, Brine Valve Stem
4.................1........ 41056 .................Nut Assy, 1/2”
5.................1........ 15415 .................Fitting, Insert, 1/2” Tube

20 • FLECK 2815 Control Valve Service Manual
1-1/2 INCH STAINLESS STEEL METER ASSEMBLY
Item No. QTY Part No. Description
1.................1........ 62049-01............Kit, 1” & 1-1/2” Meter, Std
1........ 62049-02............Kit, 1” & 1-1/2” Meter,
Ext
2.................1........ 61933-10............Meter Assy, 1-1/2” NPT, Std, SS
Inline, Paddle, Univ Cap
1........ 61933-11............Meter Assy, 1-1/2” NPT, Ext, SS
Inline, Paddle, Univ Cap
1........ 61933-20............Meter Assy, 1-1/2” INLN, BSP,
SS, PDL
1........ 61933-21............Meter Assy, 1-1/2” INLN, BSP,
EXT, SS, PDL
3.................1........ 44024 .................Fitting, Union, 1.5”, NPT
1........ 44025 .................Fitting, Union, 1.5”, BSP
4.................1........ 19791-02............Meter Cable Assy, 30”
......... 19791-04............Meter Cable Assy, Turbine 100”
......... 19791-05............Meter Cable Assy, Turbine 304”
5.................1........ 17744 .................Meter Cable, 20.75” 1-1/2” STD
Not Shown (optional)
1........ 62072 .................Kit, Meter Sleeve, 1-1/2” to 1”
IMPORTANT:
For valves equipped with electromechanical
timers and stainless steel meters, refer to the Meter Dome
and Union Orientation section on page 5.
1
3
2
4
5
IMPORTANT:
Use thread sealant intended for use with
stainless steel connections and approved for use with potable
water. To reduce the risk of seizing or galling, a nickel
impregnated PTFE (polytetrafluoroethylene) thread sealing
tape is recommended.
