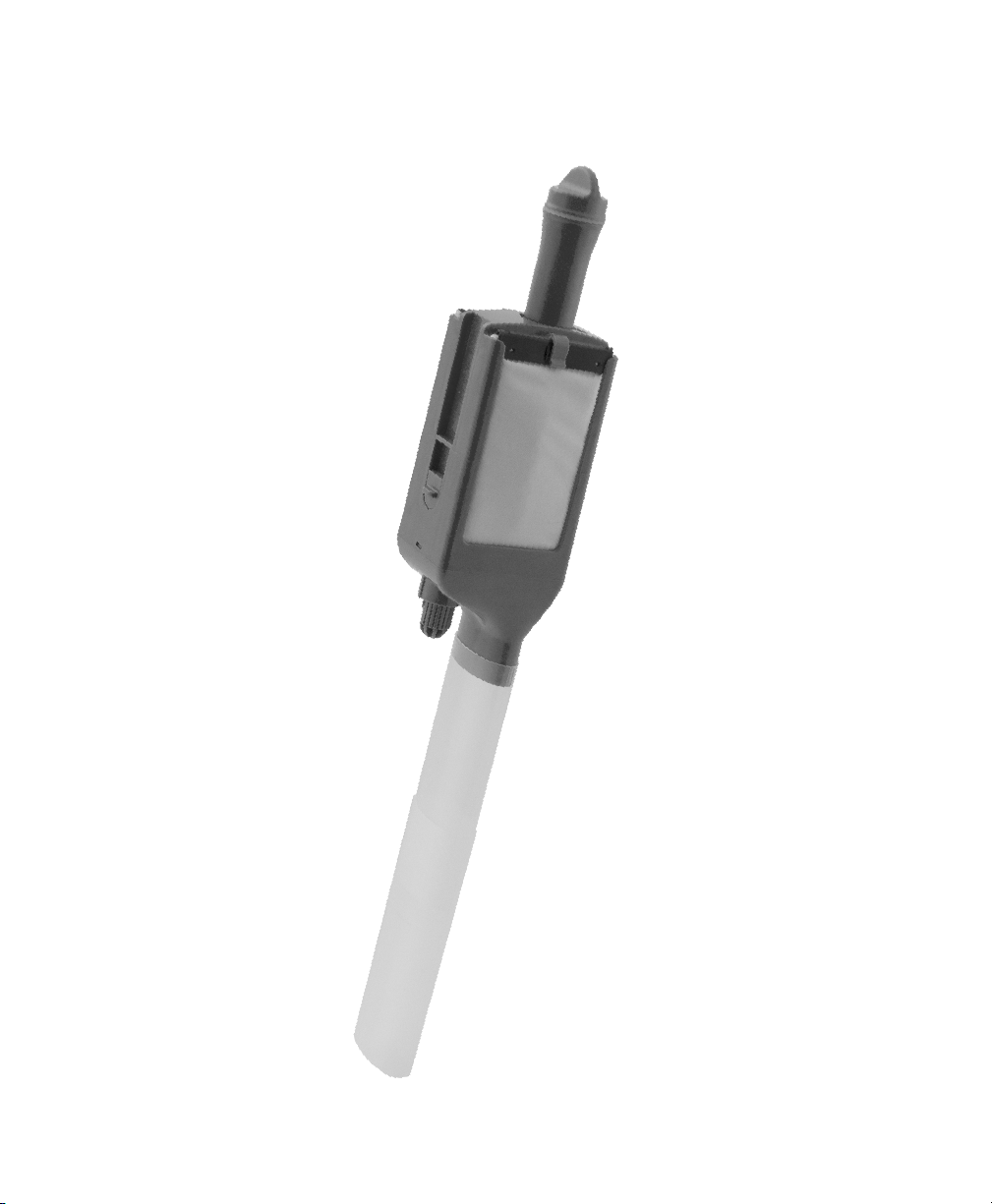

WaterTech Aquarium Cleaner User manual

Operator Manual
WATER TECH
AquArium CleAner
TM

IMPORTANT SAFETY INSTRUCTIONS
BEFORE USING THIS APPLIANCE READ AND UNDERSTAND ALL THE SAFETY INSTRUCTIONS,
WARNINGS AND CAUTIONARY MARKINGS IN THIS MANUAL AND ON THE APPLIANCE. FAILURE TO
DO SO CAN RESULT IN SERIOUS PERSONAL INJURY.
WARNINGS
1. Never allow children to operate this product. This is NOT a toy, children should be supervised to ensure they do not play with this product.
2. Keep the cleaner and its accessories out of reach of children.
3. Do not attempt to operate if the cleaner appears to be damaged in any way.
4. This cleaner is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
5. The warnings, cautions, and instruction discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It
must be understood, the operator should always exercise intensive caution and common sense when utilizing the cleaner.
6. Do not operate this cleaner in the presence of ammable or combustible liquids.
7. Never service the cleaner while the unit is on.
8. Never install batteries of different chemistry or age. (Alkaline batteries recommended)
9. Leaks from a battery may occur under extreme conditions. If battery liquid gets on the skin, wash immediately with water. If it gets in your eyes,
immediately ush your eyes with a mild solution of baking soda and water, and seek medical attention.
10. Keep hair, loose tting clothing and all body parts away from openings and moving parts of this cleaner.
USAGE INFORMATION
11. Use this product only for its intended purpose as described in this manual.
12. Submerge the cleaner in water immediately after turning the unit “ON” to prevent damage to the seal on the motor shaft. Failure to do so will
shorten the life of the water seal and / or void the warranty.
13. Use this product only for its intended purpose as described in this manual. Use only Water Tech accessories and lters.
14. This product is not intended for commercial use.
15. Never leave your cleaner in water when it is “OFF” or when it has run out of power.
16. The cleaner is designed for routine maintenance of your aquarium.
17. The cleaner is designed for underwater use in aquariums only. It is not an all-purpose vacuum cleaner.
18. Store cleaner in a clean dry place. Do not store in direct sunlight or expose to extreme temperatures.
19. Avoid picking up sharp objects as they may damage the lter.
20. Keep all openings on the cleaner free of debris which may reduce water ow.
21. Do not use the appliance without lters installed.
1
English
Environmental Recycling Programs USA
Help protect the environment.
THIS PRODUCT IS PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENTS:
6,797,157; 6,939,460; 7,060,182; 7,178,188; 7,636,975; 8,281,441;
D485,652; D518,253; D522,191S; D556,396; D660,526; D682,493; D685,542;
European Patent No. 1579096; CN100549350; IL1682251
6,797,157; 6,939,460; 7,060,182; 7,178,188;
D485,652; D518,253; D522,191S.
OTHER U.S. AND INTERNATIONAL PATENTS PENDING.

2
LIMITED WARRANTY
Water Tech Corp (“WT”) warrants this product, including supplied accessories against defects in material or workmanship for the time periods as set forth below. Pursuant to this
Limited Warranty WT will, at its option (i) repair the product to the original specications or (ii) replace the product with a new or refurbished product. In the event of a defect, these
are your exclusive remedies. For purposes of this Limited Warranty, “refurbished,” means a product or part that has been returned to its original specications.
For a period of one (1) year from the original date of purchase of the product, WT will, at its option, repair or replace with new or refurbished product or parts, any product or parts
determined to be defective.
Accessories. Included accessories are covered by this Limited Warranty for a period of one (1) year from the original date of purchase of the product.
Instructions. Please retain the original box and internal packaging materials. To obtain warranty service, you must comply with the following requisite instructions:
(1) Visit Water Tech Corp’s Customer Support Department via web at www.wtrma.com. You will be guided through the correct process on how to obtain the required RMA# (Return
Merchandise Authorization Number.) All customers must obtain an RMA number before any product will be accepted for warranty service. If you need additional assistance please
contact us by telephone: [phone]) or email: [email protected].
(2) Package the unit and the WT battery charger only ( if the unit requires a WT charger ) properly and securely in the original box.
(3) Attach your RMA number and Bar-Code you received from the website to the outside of the package. If you could not print the RMA number and
bar-code from the website you must write your RMA number in thick black indelible marker on two sides of the box.
(4) Send the package by USPS or express courier of choice to: Water Tech Corp, 10 Alvin Court, East Brunswick, New Jersey 08816; (WT suggests you insure the contents of your
package.) WT is not responsible for lost, stolen or damaged property in transit to WT.
Repair/Replacement Warranty. This Limited Warranty shall apply to any repair, replacement part or replacement product for the remainder of the original Limited Warranty period or
for ninety (90) days, whichever is longer. Any parts or products replaced shall become the property of WT.
This Limited Warranty covers only product issues caused by defects in material or workmanship during ordinary consumer use; it does not cover product issues caused by any other
reasons, including but not limited to product issues caused by commercial use, acts of God, misuse, abuse, limitations in technology, or modication of or to any part of the WT
product. This Limited Warranty does not cover WT products sold AS IS or WITH ALL FAULTS or consumables (such as batteries). This Limited Warranty is invalid if the factory-
applied serial number has been altered or removed from the product. This Limited Warranty is valid only in the United States and Canada.
EXPRESS LIMITATION: THIS LIMITED WARRANTY ONLY APPLIES IF THE PRODUCT WAS PURCHASED FROM AN AUTHORIZED WATER TECH DEALER. THIS
WARRANTY IS NOT TRANSFERABLE
LIMITATION ON DAMAGES. WT WILL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT.
DURATION OF IMPLIED WARRANTIES. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations or how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This Limited Warranty gives you specic legal rights and you may have other rights, which vary from state to state.
Product Breakdown
(1) Suction Pipe Assembly
(P12A021)
(2) Nose Cap
(3) Cleaner Body
(4) Filter & Frame Assembly (QTY. 2)
(P12A022XF)
(5) Battery Chamber
(6) Battery Chamber Cap and Gasket /
ON - OFF Knob
(7) Syphoning Adapter & Hose
(P12A883)
Model: 12A0000

C
A B
EF
D
X
3
MIN. MAX.
Twist for ON /OFF
ON OFF
FOR GENERAL CLEANING
D.1 D.2
VOLUTE ATTACHED
(VOLUTE PLATE)
VOLUTE NOT ATTACHED

C
A B
EF
D
X
4
FOR SYPHONING FEATURE
MIN. MAX.
Twist for ON /OFF
D.1 D.2
ON OFF
VOLUTE ATTACHED
(VOLUTE PLATE)
VOLUTE NOT ATTACHED

AA.1
A.2 X
5
MAINTENANCE

A
B
C
D
E
F
6
Insert Batteries into Unit
After unit is ON, submerge into water
and dig into sand or pebbles to agitate
and remove debris.
Gate Slider Should be CLOSED
It takes 3 C Cell Batteries.
Attaching Tube Extension
Set Power Level
Turn Unit ON / OFF
Minimum Power (Figure D.1)
Maximum Power (Figure D.2)
Cleaning the Filter & Frame Assembly
Long Term Storage
Always clean the unit and Filter Bags before storing.
Always store your cleaner in a cool, dry indoor shelter.
Remove batteries before long term storage.
You should remove and clean the Filter & Frame Assembly following each use. (Figure A.1)
Smooth side of Filter & Frame Assembly must face outwards. Filter frames must lock under the
cleaner’s body. (Figure A.2)
Don’t scrub the bag against itself while rinsing it.
English - FOR GENERAL CLEANING (Page 3)
FOR SYPHONING FEATURE (Page 4)
A
B
C
D
E
Insert Batteries into Unit
After unit is ON, submerge unit into
water immediately.
Gate Slider Should be OPEN
It takes 3 C Cell Batteries.
Insert Siphon Adapter &
Hose into the Unit
Set Power Level to MAXIMUM
Turn Unit ON / OFF
Minimum Power (Figure D.1)
Maximum Power (Figure D.2)
- Filter & Frame Assembly is not required when Syphoning.
- No Suction Pipe Assembly is required when Syphoning.
- Keep Nose Cap on unit when Syphoning.
MAINTENANCE (Page 5)
Volute Plate
The Volute Plate must always be attached to unit
in order for unit to work properly.
D
Volute Plate
The Volute Plate must always be attached to unit
in order for unit to work properly. Important Note: Please be careful around sh
when Cleaning and Syphoning.

10 Alvin Ct., Suite 111
East Brunswick, NJ 08816 - USA
Tel: [phone] US, Canada & International
Fax: [phone] US & International
www.WaterTechCorp.com
Register at www.watertechcorp.com/register
Rev.: 5242018
