Wavecom TnT Titan User manual

Wavecom
User Manual
+ Certificate of Warranty and Product Support Information
TnT Titan
Portable Appliance Tester

Wavecom Certificate
of Warranty
Your Wavecom Appliance Tester comes with a
conditional 24 month warranty.
Your warranty applies for 12 months from the date of purchase, and will
be extended an additional 12 months if your Tester is calibrated within 12
months of the date of purchase (see rear cover of this manual).
The Manufacturer (Wavecom Instruments Pty. Ltd.) warrants its products against defects in materials and
workmanship for a period of 12 months from the date of purchase. During the warranty period, the Manufacturer
will repair (or at its option replace at no charge) the product that proves to be defective. This warranty does not
apply if the product has been damaged by accident, abuse, misuse or mis-application or as a result of service
or modification by anyone other than the Manufacturer of this tester.
The TnT & TnP Product Range of devices or its Manufacturer is not responsible for incidental or consequential
damages resulting from the breach of any express or implied warranty, including damage to property and to the
extent permitted by law, damages for personal injury. The distributors of this product cannot assume liability
or responsibility for any loss of damage resulting from the use of this device.
The Manufacturer reserves the right to discontinue models, change specifications, price or designs at any time
without notice or obligation.

Product Support
Safety Information
Important Calibration Information
At Wavecom we take great pride in our customer service and support. We provide assistance,
troubleshooting and support over the phone, via Skype or Facetime, via email or in person to help
you get the most from your Wavecom Portable Appliance Tester. To be eligible for our support
services you must register your product.
You can register via the WinPATS App (this is done automatically during the setup process), or
online at:
https://www.wavecom.com.au/wcm_product_registration.php
The TnT Titan has been designed to meet stringent safety requirements, however no device can
completely protect you from the consequences of incorrect use. The testing of electrical appliances
requires that extra care and caution is taken at all times to ensure personal safety.
The Manufacturer also advises that appliance testing should be conducted by a Competent Person
who is suitably trained (see P.5 AS/NZ 3760:2010 for the definition of Competent Person), as well as
any additional legislation or rulings in different states. If in doubt, the manufacturer suggests the
user contact their responsible authority.
For maximum safety, always ensure that the following advice is followed:
• The equipment being tested is in good condition and passes a visual check.
• All instructions are read, understood and followed.
• The power supply connections are always checked - if the N-E (middle) LED Indicator flashes
red, do not proceed before consulting the manual.
• Always use specified fuses and protection devices.
• Do not use leads that require repair or are damaged.
• If you are unsure, call a licensed Engineer/Electrician.
Your Wavecom Appliance Tester should be calibrated every 12 months. A correctly calibrated
tester is essential for ensuring testing accuracy is maintained, and for complying with the AS/NZS
3760:2010.
To book your tester in for calibration, go to:
https://www.wavecom.com.au/calibration_services.php
Then, send your tester to your nearest calibration service centre:
For Western Australian customers:
Wavecom WA Calibrations
Unit 2/17 Casino Street,
Welshpool, WA 6016
For all other customers:
Wavecom Calibrations
257 Grange Road,
Findon, SA 5023

4
TnT Titan User Manual Wavecom
Important Information 5
Contents 5
TnT Titan Diagrams 6
Precautions 6
Using the Tablet 8
Operating the TnT Titan 9
Powering on the Tester 9
Using the TnT Titan with WinPATS 9
Setting up the Barcode Scanner 15
LED Indicators 16
TnT Titan Testing Menu – Main Menu A 17
TnT Titan Testing Menu – Main Menu B 18
Meter Mode ® [Not available in Battery Mode] 23
Specifications 25
Technical Information 26
Visual Inspection 26
Class 1 (Earthed Appliance) Construction 26
Class 2 (Double Insulated) Construction 27
Testing of Electrical Equipment 27
Leakage Test 27
Earth Continuity Test 28
3 Phase Testing 28
Integrated Tests 29
No Connection No Test 29
Wavecom Tags 30
Tester Serial, WinPATS Coupon Code
& Purchase Information Rear Cover

5
TnT Titan User Manual Wavecom
Important Information
Contents
TnT Titan Diagrams
Tester Diagram
• TnT Titan Portable Appliance Tester
• WinPATS voucher (valued at $30+GST) for App Purchase
through Google Playstore
• 8 inch 4G-Ready Android tablet with mount accessories
• Tablet Charging Cable
• USB-OTG Adapter
• IEC Test Lead (500mm Orange)
• USB A to USB B Interface Cable
• Earth Lead with Alligator Clips (1800mm Black)
• IEC Power Cable (10A units)
• IEC 20/10 Power Cable with Circuit Breaker (20A Units)
• 24 Month Conditional Warranty
• Manufacturer’s 1st Calibration Certificate (Valid for 12 months
from purchase)
• User Manual
• Quick Start Guide
• Welcome Letter
Tablet Dock
Function Buttons
Indicator LEDs
Appliance Test Socket
Enter Button
Power Switch
Battery Indicator
IEC Test Socket
LCD Screen
Bluetooth LED

6
TnT Titan User Manual Wavecom
Rear Panel of Tester Diagram
Precautions
Using the Lithium Ion Battery
Using the TnT Titan on Mains Power
To use the TnT Titan on mains power, simply plug in the supplied power cable and connect it to a mains power
outlet. Your TnT Titan will automatically connect to mains power and begin charging the battery.
Using the TnT Titan on Battery Power
When unit is not connected to mains, simply press and hold the power button at the rear of the tester till unit
you hear a beep and the LCD screen turns on. Use the same button to turn off the unit when in battery mode.
Mains Supply tests, Leakage tests and Meter Mode functions are not available on battery power. To perform
RCD Tests, the TnT Titan is required to be connected to mains power.
Important: Ensure that the battery isolation switch is ON while operating the unit & performing tests. The
isolation switch is located on the rear of the tester.
To Charge the Battery
Internal lithium-ion battery (98Wh, 6700mAh) can power the TnT Titan for around 3000 sets of tests. The
battery is charged simply by plugging the TnT Titan into mains power, and it takes around four hours to fully
charge.
Note: Turning off the Isolation Switch (located on the rear of the tester) isolates the battery completely and prevents the
battery from charging.
While the TnT Titan is charging and not in use, the display can be turned off by pressing and holding the ENTER
button until you hear a beep and the LCD screen backlight turns off. You will then see charging information
displayed on the screen. Once the battery is fully charged and it is still connected to mains, battery symbol will
convert to plug symbol. It is advised not to put unit to charge when it is unattended or overnight.
Transporting Lithium Ion Battery Products
It has come to the attention of Wavecom Instruments Pty Ltd, that products containing batteries are being
shipped by customers through air freight. It is our understanding that, for the purpose of air transport,
Power Button
PS/2 Port
USB Port Micro USB Port
IEC Charging Port
Serial Port
Circuit Breaker
Isolation Switch

7
TnT Titan User Manual Wavecom
lithium ion batteries are considered dangerous goods under the International Air Transport Authority (IATA)
regulations. It is the responsibility of the shipper to ensure that the product being shipped and the packaging
used comply with all regulations, noting that extensive penalties can be imposed by the relevant authorities
for any breach.
The IATA and other laws and regulations covering the transport of goods are very comprehensive, and Wavecom
Instruments makes no warranty that these regulations will permit particular shipments of its products by air
freight. Lithium ion batteries are not allowed to be transported by air. Products that contain internal batteries
are allowed, as long as the batteries are not damaged.
Should you require further information on the relevant regulations and requirements, please contact your
dangerous goods adviser and/or review the IATA website:
www.iata.org/publications/dgr/Pages/index.aspx
This letter is not intended to constitute legal advice, and you should obtain your own professional advice.
Please contact Wavecom Instruments Pty Ltd for more information.
Competent Person
To ensure that all electrical equipment or devices are inspected, tested and tagged correctly, regulations
require that a ‘competent person’ such as a Licensed Electrician be employed to perform the required tests.
Please refer to the above definition as described in the current AS/NZ-3760:2010 Standard and in addition, to
any other local legislation or jurisdictions as may be relevant in your State.
A person competent to undertake Inspection and Testing of electrical equipment must have:
• Knowledge and practical experience of electricity and its hazards.
• A clear understanding of precautions to avoid danger.
• The ability to recognise at all times whether or not it is safe for work to continue.
• The ability to carry out visual examinations of electrical equipment.
• The ability to distinguish between electrical equipment that is double insulated and equipment that is
earthed as well as being able to identify the appropriate test for each type.
• The competency to safely carry out the Earthing Continuity, Insulation Resistance or Leakage Test and RCD
tests on electrical equipment.
• The knowledge of how to use the relevant testing instruments, interpret and record the results for
compliance with the Standard/Workplace requirements.
• The knowledge to be able to correctly recommend the frequency of testing required.
Due to the potential hazards of electrical testing, due care must be taken at all times.
Warnings
Operating Environment: Charging – 0° to ~45°C; Discharging -20°to ~ 60°C.
Please ensure the unit is stored in compliance with the operating environment requirements and in a safe and
secure location.
When sending the TnT Titan for calibration, please turn off the battery isolation switch which is located on the
rear panel of the tester. If you have any questions about the battery of your TnT Titan please contact Wavecom
for further advice.

8
TnT Titan User Manual Wavecom
Using the Tablet
The TnT Titan comes with an Android tablet to be used with the WinPATS App to control your tester, save your
test results and generate reports. In the next section you will find a short introduction to using the TnT Titan
with your tablet, and more detailed, step by step guides are available on our website - www.wavecom.com.au
The tablet provided is intended for use with WinPATS only - using additional apps (other than those already
installed) may interfere with the functions of WinPATS and may slow down the app significantly. We strongly
recommend that you do not install other apps on this tablet, to ensure the stable operation of the WinPATS
App.
Before using your tablet with WinPATS, you must set it up as per the manufacturers instructions, and connect it
to the internet (via 4G or wifi). We also recommend that the tablet is fully charged before the first use.
Your tablet warranty is covered by the manufacturer (Telstra). While Wavecom are happy to provide support to
help you use your tablet for WinPATS, any issues that arise from the tablet (and not the WinPATS App) will need
to be resolved with the manufacturer.
With your TnT Titan you will have two tablet docking accessories. These are to be attached to your tablet so you
can secure your tablet to your TnT Titan.
To attach the docking accessories, we recommend docking them to the TnT Titan as shown below.
Then, peel off the backing plastic to expose the adhesive and place your tablet onto the docking accessories.
Take care to ensure that your tablet’s camera and charging port are not blocked by the docking accessories.

9
TnT Titan User Manual Wavecom
Operating your TnT Titan
Powering on the Tester
To use your TnT Titan, ensure the isolation switch (located on the rear of the tester) is switched ON. We
recommend that the TnT Titan is fully charged before the first use.
Your TnT Titan will be powered on automatically when you connect it to mains power. To power on your TnT
Titan in battery mode, press and hold the rear power button until the unit beeps and the LCD screen turns on.

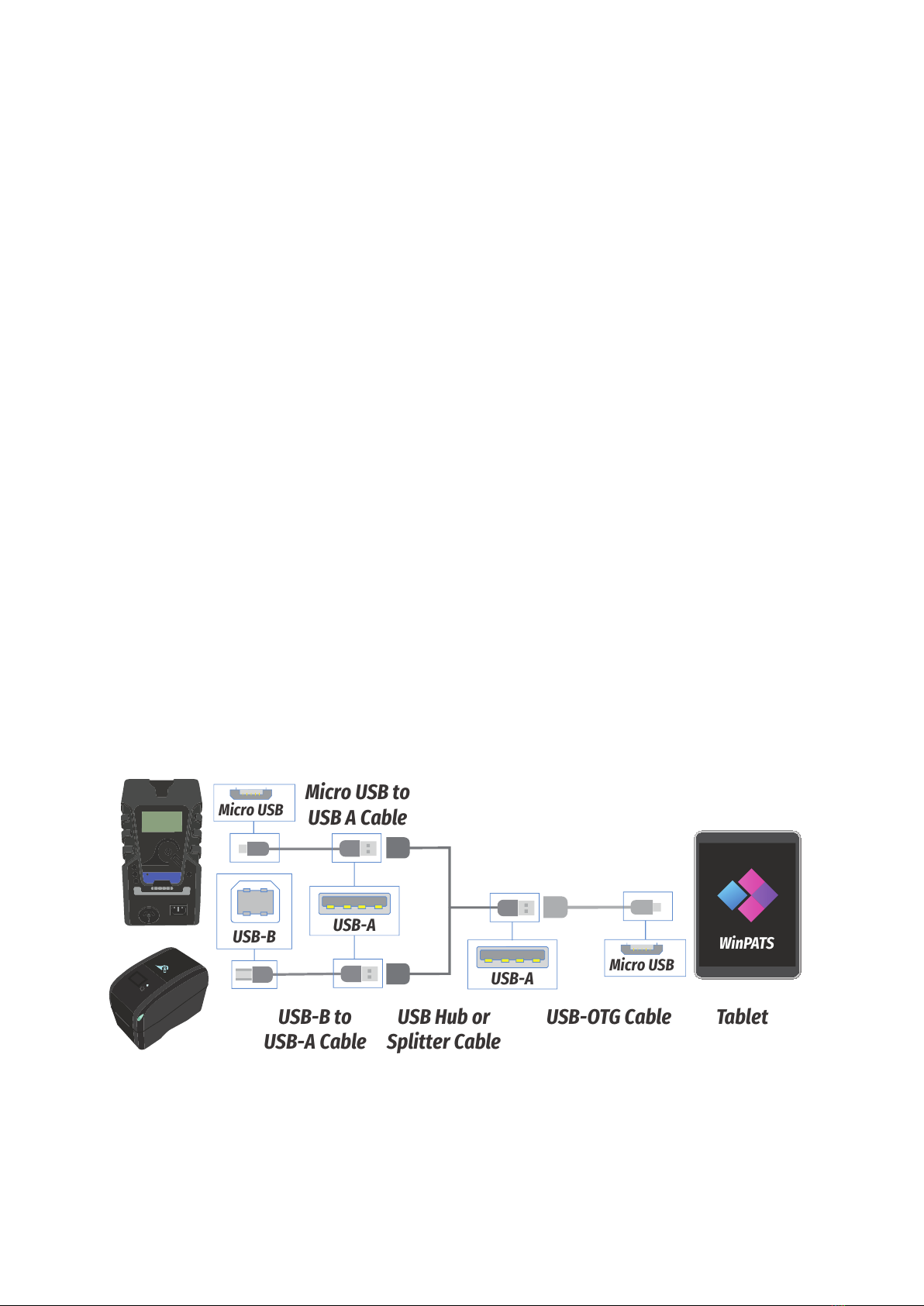

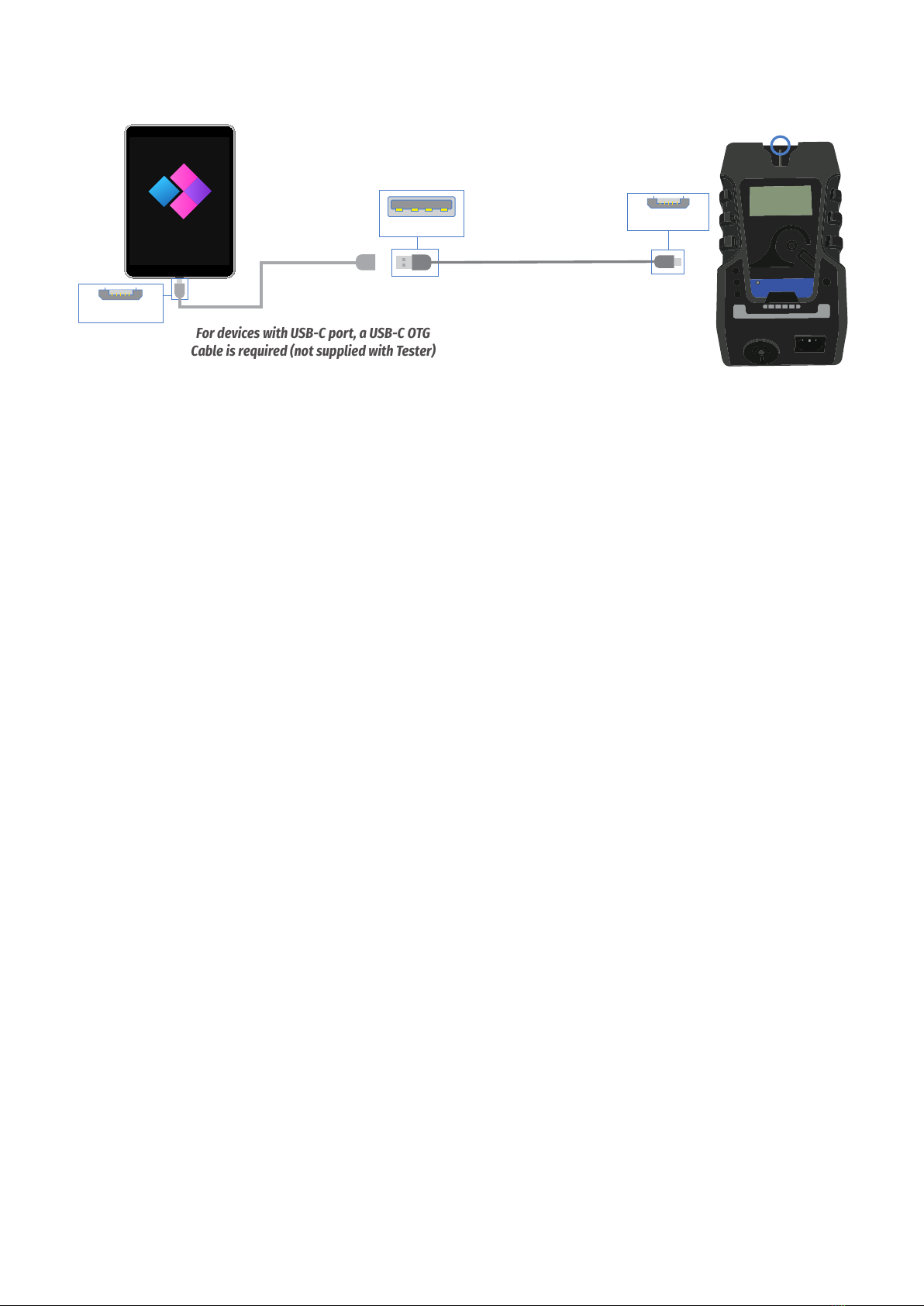

Using your TnT Titan with the new WinPATS App
Setting up the new WinPATS App is simple, but can take some time. We recommend setting up WinPATS before
you need to use it on site. You will need to download the WinPATS App from the Google Play Store onto your
Android tablet. On our website, you can find a set of videos that will guide you through the various functions
and features of the new WinPATS App. This guide will walk through setting up WinPATS and connecting to your
tester.
Once you have downloaded the WinPATS App, open it and create up a 4 digit pin code. This will help keep your
data secure.
Next, it’s time to set up your Company Account. If your employer or organisation has an account already, you
can log in now using the details provided to you. Otherwise, tap Register Company to set up your Company
Account - you will be prompted to enable WinPATS’ permissions - this allows you to use the full set of WinPATS
features.
Now, fill in your details - a valid ABN is required to register a new company. You should use the address and
contact details of your head office. Once your details are entered, check they are correct, then tap Register.
You will be sent a One Time Password (OTP) to the email you entered in the previous step. This is used to verify
your email address - enter the OTP to continue. This OTP is only valid for 10 minutes - if your OTP expires,
simply go back and then tap ‘Register’ again. If you don’t see your OTP email, check your spam folder.
Now you can pay for your WinPATS License - you should have a coupon code on the rear cover of this booklet
which provides you with one free license for the WinPATS App. Your coupon code is linked to your tester, and
you will need to connect your Android tablet to your TnT Titan to authenticate your code. Using the USB-OTG
cable supplied with your tester, connect your tablet to your tester in the following chain: Tablet > USB-OTG >
USB-A to Micro USB Cable > Micro USB port of your TnT Titan (located on the rear of your tester). See diagram
on page 10. Once your TnT Titan is connected to your tablet, enter your coupon code and tap APPLY. You should
see the Total Amount number drop to zero. Tap PAY to proceed.
Once you have entered your code or paid, you can now Log In and set up your password. Enter the Company ID
and temporary Password which was emailed to you, which will enable you to log in for the first time. You will
now be prompted to set up a new password.

10
TnT Titan User Manual Wavecom
You can now set up your User Account - this is your individual profile. If you are the first or the only Test and
Tag technician at your organisation, you should set yourself as an ‘ADMIN’ user, which will allow you to use the
full features of WinPATS. Technician users have reduced access to features - this is designed for organisations
with multiple technicians and/or multiple sites.
Once your details are complete, tap ADD to create your account. Confirm your details are correct, then tap
CONFIRM to finish registering your user account.
When you start WinPATS for the first time you’ll be required to perform a data sync. This creates a new cloud
database for you or connects your WinPATS App to your company’s existing database. If your database has
many items, this may take up to 5 minutes, but usually only takes a few seconds.
Connecting via Bluetooth
To control your TnT Titan via Bluetooth, you will need to perform a short setup procedure. Ensure you have
both your tablet with WinPATS installed, and your TnT Titan in front of you.
Go to the Bluetooth settings in your Tablet’s settings menu
Ensure that Bluetooth is enabled, then select your TnT Titan from the list of available devices (ensure you
select the correct tester by referring to the serial number. Your TnT Titan’s serial number is located on the
bottom of your tester, and on the rear cover of this booklet).
You may now be prompted to pair your two devices using a PIN code. If so, your TnT Titan will display a code on
the screen. Enter this code into WinPATS and tap OK. You will be asked to confirm the connection - tap Confirm
after checking the details are correct.
Note: If you have any issues with the PIN code, you can disable this function from the TnT Titan settings menu. Power on
your TnT Titan, then hold Enter and press F2 to open the settings menu. Navigate to ‘Bluetooth Configuration’ and press
Enter. When prompted with ‘Use Security PIN for Bluetooth’ select ‘Disable’ by pressing F3.
Go to the WinPATS App
To connect your TnT Titan, go to the Test menu in the WinPATS App (at the top of the screen). You should be
prompted to connect a Wavecom Appliance Tester as soon as you open the Test Menu for the first time. Tap
‘BLUETOOTH’ to begin the Bluetooth setup process.
WinPATS
USB OTG
Cable USB-A to Micro USB
Cable
USB-A
For devices with USB-C port, a USB-C OTG
Cable is required (not supplied with Tester)
Micro USB
Micro USB

11
TnT Titan User Manual Wavecom
WinPATS will scan for any available TnT or TnP testers and display them in a list - select your tester from the
list by tapping it. If you see multiple TnT or TnP products in the list, use the serial number of your TnT Titan to
identify your tester.
You will now be asked to register your TnT Titan - this allows you to receive product support, service and
calibration reminders from Wavecom. Once complete, tap Register. You’re now ready to start testing with
WinPATS!
Connecting via USB
You can also connect to your TnT Titan via USB if needed. Follow the following diagrams to connect your TnT
Titan to your tablet or PC, with or without your printer. Please note that you need to connect your printer in
addition to your TnT Titan as shown.
Connecting your TnT Titan to your Tablet via USB
To connect your TnT Titan to your tablet via USB, you will need:
• A USB-A to USB-B cable (Included)
• A Micro-USB to USB-A cable (Included)
• A USB Hub or USB Splitter cable
• A USB-OTG Cable (Included)
Connect your cables in the sequence shown below. Your TnT Titan USB-B port is located inside the storage
compartment, and the Printer USB-B port is located at the rear of the printer. Once connected, open WinPATS
on your tablet. You should see the Test icon and the Print icon (if you connect the printer) at the top of the
screen change to green.
Connecting your TnT Titan to your PC via USB
To connect your TnT Titan to your PC via USB, you will need:
• A USB-A to USB-B cable (Included)
• A Micro-USB to USB-A cable (Included)
• A USB Hub or USB Splitter cable
WinPATS
USB-OTG Cable
Micro USB
TabletUSB Hub or
Splitter Cable
USB-B to
USB-A Cable
Micro USB to
USB A Cable
USB-B USB-A
USB-A
Micro USB

12
TnT Titan User Manual Wavecom

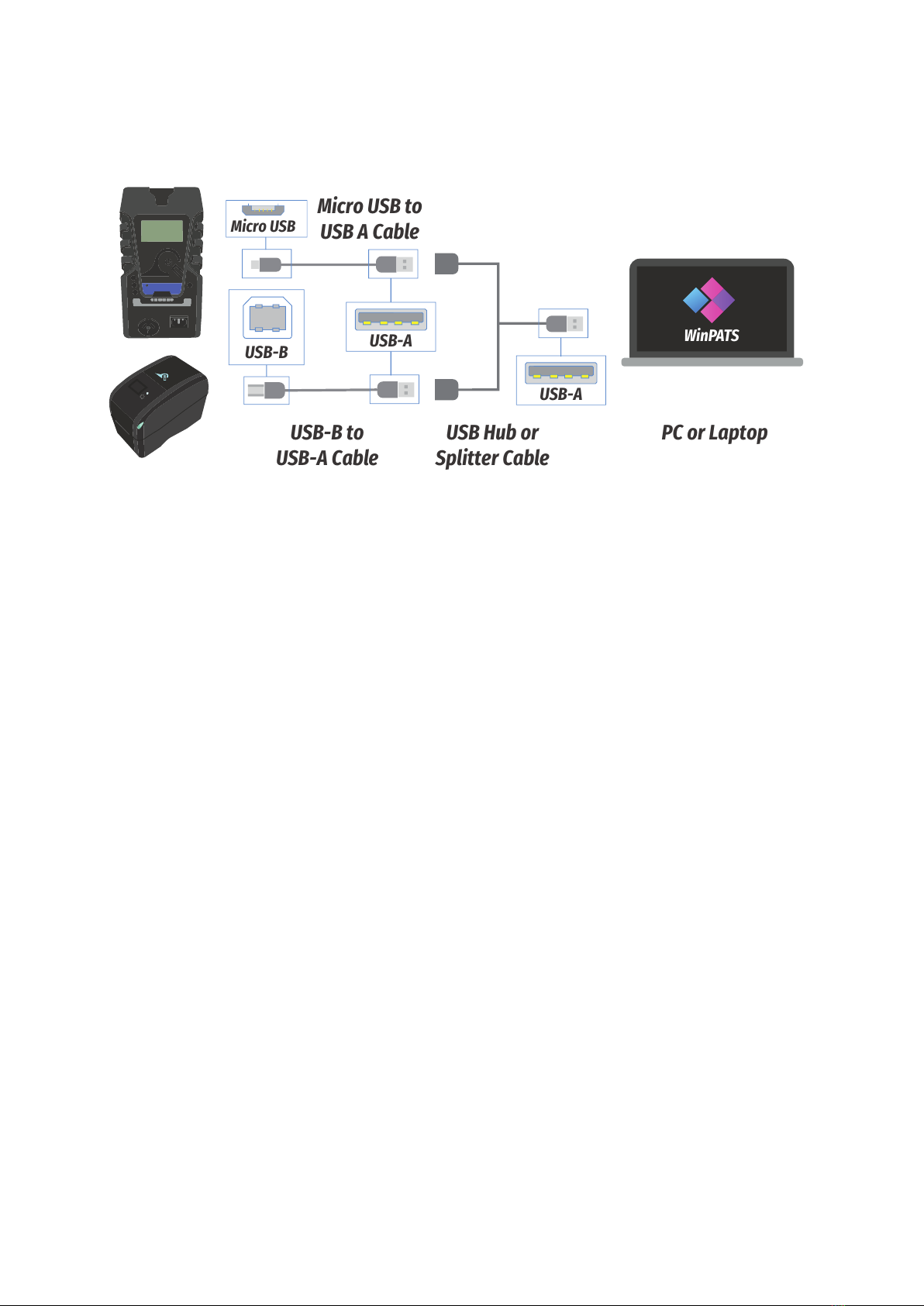

Connect your cables in the sequence shown below. Your TnT Titan USB-B port is located inside the storage
compartment, and the Printer USB-B port is located at the rear of the printer.
Adding a User
Note: You will have already created a WinPATS User during the setup process. Follow this process to add another user, or
to edit the details of your users. This feature requires Admin access, Technician level users will need to enter the Company
Password to access this feature.
Important: To avoid duplication of data a User must only be logged in and active on one tablet at a time.
To add a new User to WinPATs, open the Side Menu, then tap the User Profile Picture at the top of the menu. If required,
enter the Company Password. You can now view the Users at your company using the dropdown menu, then edit,
suspend (lock the user but keep the profile) or delete the user.
To add a new User, tap the ‘+’ symbol next to the dropdown menu. Fill out the form, including selecting a profile picture
and assigning Admin permissions (if required), then tap ‘Add’ when complete. You can now select this user from the
dropdown menu.
When changing users, select your user from the menu, then tap ‘Confirm’ to switch to that user.
Adding a Customer
Note: You can also add a new customer during the ‘Adding an Item’ process if needed.
To add a new Customer to WinPATS, open the Side Menu, then tap ‘Database+’, then tap ‘Customers’. You can
view your existing customers in the list, and add a Site, edit their details and delete the customer by tapping a
customer in the list.
Tap ‘Add Customer’ to open the new Customer form. Fill out the form - please note, a valid ABN is required to
add a new customer. When complete, tap ‘Add Customer’. You will now be able to assign sites and items to this
customer.
USB Hub or
Splitter Cable PC or LaptopUSB-B to USB-A Cable
USB-B USB-A
USB-A
WinPATS
Micro USB Micro USB to
USB A Cable

13
TnT Titan User Manual Wavecom
Adding a Site
Note: You can also add a new site during the ‘Adding an Item’ process if needed.
To add a new Site to WinPATS, open the Side Menu, then tap ‘Database+’, then tap ‘Sites’. You can view your
existing sites (and filter by Customer) in the list, and edit or delete your sites by tapping a site in the list.
Tap ‘Add Site’ to open the new Site form. Fill out the form, and tap ‘Add Site’ when complete. You will now be
able to assign locations (places within a site) and items to this customer.
Entering a New Item
To add a new item to WinPATs, open the Side Menu, then tap ‘Database+’, then tap ‘Add Equipment’. Fill out the
form, including selecting the Customer and Site. Set the Current Status, Test Frequency and Test Sequence -
this allows WinPATS to tell your TnT Titan which test to run when you test this item.
If you wish to add multiple versions of your item (for instance, if your company has purchased 5 identical new
printers), you can change ‘Add Multiple Identical Equipment’ to ‘Yes’.
When you have added all the information to your item, tap ‘Add Equipment’. You can now test this item by
searching for it in your database.
Testing Items
Note: There are multiple ways an item can be tested using WinPATS. This part will cover the two most common methods.
Both of these methods require that your TnT Titan to be connected to your tablet (see above ‘Connecting via Bluetooth’).
Testing from the Test Menu
At the top of the WinPATS home screen you should see the ‘Test’ icon. Tap this to open the Test Menu. Here you
will see 6 options:
Quick Test This allows you to run a test first, then create an item or assign the results to an existing item after the test is complete
New Test This allows you to select an existing item from your database, or add a new item, then conduct tests on it. Using this method means
you can use the ‘Test Procedure’ assigned to the item to run the test, meaning you don’t need to manually select a test.
New to Service This is the same as ‘New Test’, but will categorise the item as ‘New to Service’
Out of Service This is the same as ‘New Test’, but will categorise the item as ‘Out of Service’
Visual Check Only This is the same as ‘New Test’, but will categorise the item as ‘Visual Check Only’
Data Logger This feature is still in production
Select the best option for your situation. If you select Quick Test, select the test you wish to conduct from the
list. Set up the item to be tested by plugging it into the TnT Titan (along with any accessories as required),
adjust any options (such as test voltage), then tap ‘Start Test’.

14
TnT Titan User Manual Wavecom
Conduct the Visual Test, and if the item passes, the test will be conducted in stages automatically, and the
results displayed on screen. If you wish to continue without saving, simply tap the ‘Home’ button. If you wish to
save these results, tap ‘Save Results’.
You will be taken to a screen where you can either search for an item in your database, or add an existing item.
Follow the relevant steps and your test results will be assigned to the item you select/create. If you have a
Wavecom tag printer, you can print a tag at the end of this process. Otherwise you can now continue with your
testing.
If you select New Test (or New to Service, Out of Service, or Visual Check Only), you will create or select the
item you wish to test first. Either search for an existing item in your database, or add a new item.
Once you have created/selected the item, review the Assigned Test Sequence and ensure the correct test will
be conducted. Set up the item to be tested by plugging it into the TnT Titan (along with any accessories as
required) then tap ‘Start Test’.
Conduct the Visual Test, and if the item passes, the test will be conducted in stages automatically, and the
results displayed on screen. Your results will be saved, and if you have a Wavecom tag printer you can now
print your tag (or save it to the Print Queue to print later). You can now continue with your testing.
Testing from the Item Information Screen
You can also conduct tests from the Item Information Screen. If you: Search for an Item from the Asset Lookup
on the Home Screen, scan a barcode or find the item in your Inventory (Side Menu > Database+ > Inventory).
Once you are on the Item Information screen, review the Assigned Test Sequence and ensure the correct test
will be conducted.
Set up the item to be tested by plugging it into the TnT Titan (along with any accessories as required) then tap
‘Start Test’. Conduct the Visual Test, and if the item passes, the test will be conducted in stages automatically,
and the results displayed on screen. Your results will be saved, and if you have a Wavecom tag printer you can
now print your tag (or save it to the Print Queue to print later). You can now continue with your testing.
Printing Tags
If you have a Wavecom Tag Printer, the WinPATS App can print tags to your printer via Bluetooth. You can print
tags at the end of a test as part of the testing process, or save tags to print later from the Print Menu.
To print a tag during the test process, carry out the test as described above. Once the test is complete, tap
‘Save Result’. After the result is saved, you will see the ‘Save Result’ button change to ‘Print Tag’. To print a tag
now, tap this button. To save a tag to print later, tap the arrow at the bottom of the screen (in the centre). This
will open a sub menu, including the option ‘Print Later’. Tap this to save the tag to print later from the Print
Menu.
To access to Print Menu, tap the ‘Print’ icon at the top of the Home Screen. You will see a list of tags that have
been saved to print later. To print a tag from the list, tap on it. You will see a number of options appear: Print
Tag, Print Mini and Delete. To print a standard tag, tap ‘Print Tag’. To print a small form tag, tap ‘Print Mini’. To
delete the item from the print menu, tap ‘Delete’.
You can also adjust print settings and more by tapping the ‘More’ symbol above the list of tags.

15
TnT Titan User Manual Wavecom
Editing Items
Items in your database can be edited from the Inventory screen. To open the Inventory screen, open the Side
Menu, tap ‘Database+’ then ‘Inventory’. Double tap (or press and hold) an item in the Inventory list to open the
Item Information screen.
You can then tap ‘Update Details’ to change any of the details of the items. You can then edit any of the fields,
and tap ‘Update Item’ when complete.
You can also edit multiple items at once - view the ‘Managing your Inventory with WinPATS’ video on the
Wavecom Youtube channel for more information.
Deleting Items
Items in your database can be deleted from the Inventory screen. To open the Inventory screen, open the Side
Menu, tap ‘Database+’ then ‘Inventory’. Double tap (or press and hold) an item in the Inventory list to open the
Item Information screen. Tap ‘Update Details’, then scroll to the bottom of the ‘Update Details’ screen and tap
the red Trash icon to delete that item.
Setting up the Barcode Scanner
To use the supplied Bluetooth 1662 BT scanner you will need your tablet and Bluetooth scanner in front of
you. Your Bluetooth scanner comes with a quick start guide which may be useful for troubleshooting, but you
can set up your scanner using the following instructions. We recommend that you ensure the scanner is fully
charged before using it on site.
First, ensure the battery is in installed in your barcode scanner. The LED on your scanner should begin flashing
blue, indicating it is ready to be paired to your tablet.
Now, open the Bluetooth Settings menu of your tablet and turn Bluetooth on (if it is not already on). Tap ‘Pair
New Device’ to begin scanning for Bluetooth devices.
Your scanner should appear in the list - you can identify your scanner by the first 4 numbers “1662” followed
by the serial number (e.g 1662CFJ000123). The serial number of your scanner is located on the label of your
scanner box. Tap your scanner in the list to pair it with your tablet. If you see a prompt to enter a PIN code,
simply tap ‘Pair’ without entering anything - the PIN setting is disabled by default on the scanner and is not
required.
Your scanner should now be paired with your TnT Titan. To test your scanner, open the WinPATS App and return
to the Home screen. Scan one of the barcodes on the outside of the scanner box, and you should see the
barcode appear in the ‘Search Barcode’ field on screen.
If you encounter any issues with your scanner, consult the quick start guide included with the scanner, or
contact us for support.

16
TnT Titan User Manual Wavecom
LED Indicators
Battery LEDs
The battery LED indicators display how much charge is remaining in your TnT Titan. Use the table below for
reference.
100% - Battery is fully charged
80%
60%
40%
20% (LED 2 will be flashing)
0% (LED 1 will be flashing)
Indicator LEDs
The indicator LEDs are used to display various statuses and results. Use the table below for reference.
TnT Titan is running on battery power, no Bluetooth connection.
When the test socket is live during a test, the LEDs will flash white.
TnT Titan is running on battery power, active Bluetooth connection. LEDs will flash
blue during tests
TnT Titan is running on mains power, and is charging, no Bluetooth connection.
LEDs will flash yellow during tests.
TnT Titan is running on mains power, and is charging, active Bluetooth connection.
LEDs will flash solid yellow during tests.
TnT Titan is fully charged, no Bluetooth connection
TnT Titan is fully charged, active Bluetooth connection
When an appliance fails a test, the Indicator LEDs will turn red while the test
results are on screen
When an appliance passes a test, the Indicator LEDs will turn green while the test
results are on screen

17
TnT Titan User Manual Wavecom
If there is a fault with the mains power connection, you may see one (or more) of the Indicator LEDs turn
red. This may indicate a serious issue with the mains power supply - consult a qualified professional before
proceeding. This won’t apply when using battery power.
Standard Mains Supply Test result with no issues.
N-E Fault - If the N-E light in on, DO NOT PROCEED. The N-E LED will turn red if there
is a voltage difference between the neutral and earth, or if no earth is connected.
If you are working from a generator or inverter this is likely to occur and you may
need to consult a qualified electrician before proceeding.
If the N-E LED is red, and A-N is green, there is a fault with the Mains Supply
You may also see more than one, or all of these turn red. For more information, see Mains Supply Test (Page 25)
TnT Titan Testing Menu – Main Menu A
If you are using your TnT Titan with the WinPATS App, you do not need to operate the TnT Titan manually - all
functions can be controlled directly from the App.
Class 1 - Earthed Appliance Test - Menu A - F1
The Class 1 Test completes the following sequences as part of its procedure:
• Integrated Supply Mains Test - Refer to Integrated Test section
• Integrated NCNT Test - Refer to Integrated Test section
• Earth Bond Test (@ 200mA): 200mA test current, pass level less than 1Ω
• Insulation Test (@ 250V or 500V): pass level greater than 1MΩ
Note: 250V insulation testing applies to Class 1 appliances if selected (refer to Technical Information for details to change
test voltage).
In some situations, if the DUT is labelled with “Surge Protection Fitted” or if it contains MOV’s (Metal Oxide
Varistors), conduct a 250V-insulation test. If unsure refer to the AS/NZS:3760 Standard. Should it still fail,
remove it from service. (Refer to the Technical Information section to change test voltage).
Note: Ensure that the device is isolated from any ground loop.
Procedure:
1. Complete a Visual Inspection.
2. Plug device into appliance test socket.
3. Plug the IEC Clamp Cable into the IEC socket of the TnT Titan
4. Connect earth clip to any exposed metal on the device. If this is not possible, you can use a metal mesh
braid to establish an earth connection (sold separately)
5. Navigate to Main Menu A, then Press the F1 key to begin the test
6. The test will be conducted
7. Once complete, read and record results appropriately
If the result was a PASS - Tag with PASS tag showing “next test due” date and return the device to service.
If the result was a FAIL - Tag the DUT with a DANGER tag and remove the device from service.

18
TnT Titan User Manual Wavecom
Class 2 Test - Double Insulation Test – Menu A - F2
The Double Insulation Test completes the following test sequences as part of its procedure:
1. Integrated Supply Mains Test - Refer to Integrated Test section
2. Integrated NCNT Test Refer to Integrated Test section
3. Double Insulation Test (@250V or 500V): pass level greater than 1MΩ
Procedure:
1. Complete a Visual Inspection, and inspect the compliance plate to ensure the appliance is
a Class 2 appliance. Look for the double insulated symbol, seen here.
2. Plug the appliance into the appliance test socket of the TnT Titan
3. Navigate to Main Menu A, then Press the F2 key to begin the test
4. Read and record results appropriately
If the result was a PASS - Tag with PASS tag showing “next test due” date and return the device to service.
If the result was a FAIL - Tag with a DANGER tag and remove the device from service.
Note: In some situations, if the device is labelled with “Surge Protection Fitted” or if it contains MOV’s (Metal
Oxide Varistors), conduct a 250V-insulation test. Always read the compliance plates before testing, especially
on surge protected powerboards. If unsure always refer to the AS/NZS:3760:2010 Standard. Should it still fail,
remove it from service.
Lead Test (Extension Lead Test) – Menu A - F3
Note: Extension leads should always be uncoiled before using or testing. Please ensure that the IEC Adaptor & the IEC
socket are inserted firmly or it may result in a continuity/polarity fail.
The Lead Test completes the following sequence as part of its comprehensive testing procedure:
1. Integrated Supply Mains Test - Refer to Integrated Test section
2. Earth Bond Test (@ 200mA): 200mA test current, pass level less than 1Ω
3. Insulation Test (@ 250V or 500V): pass level greater than 1MΩ
4. Continuity and Polarity Test 240VAC @ 2mA Checks continuity & polarity of leads
Procedure:
1. Complete a Visual Inspection
2. Plug in the IEC-550 Orange Lead adaptor lead supplied into the IEC socket.
3. Plug male end of extension lead or power board into the appliance test socket.
4. Connect the IEC-550 Orange lead to your extension lead
5. Navigate to Main Menu A, then Press the F3 key to begin the test
6. Read and record results appropriately.
7.
If the result was a PASS - Tag with PASS tag showing “next test due” date and return the device to service.
If the result was a FAIL - Tag with a DANGER tag and remove the device from service.

19
TnT Titan User Manual Wavecom
TnT Titan Testing Menu – Main Menu B
Use the Enter button to switch between Menu A and Menu B. All tests on Menu B require a Mains Power source.
Power Test - Menu B – F1
The Power Test is for the purposes of monitoring and performance of equipment. The Power Test feature is
for single phase appliances only. The Power Test allows the user to turn the appliance on and measure its
performance as a digital wattmeter.
Displayed parameters are:
• Volts AC
• Current
• Volt Amp
• Power Factor
• Watts
This test is ideal for service agents and electricians. The user can plug in the appliance and turn it on with real
time measurements displayed on the display. This is useful when testing an appliance with a compliance/
name plate on it. The operator can compare the name plate details of operating voltage, operating current,
and power factor etc. Should the appliance exceed the said values on the name plate it could be deemed faulty
and require service.
The Power Test completes the following sequence as part of its comprehensive testing procedure:
1. Integrated Supply Mains Test - Refer to Integrated Test section
2. Power Test
Caution: Before operating ensure the equipment is firmly secured to eliminate the possibility of causing injury
or damage. This function will power the appliance on, and in the case of appliance with movable parts these
parts may begin to move. Ensure the appliance can power on safely before proceeding.
Procedure:
1. Complete a Visual Inspection. If the unit passed the Visual Inspection, continue with the following
instructions. If not, refer to the First Test section.
2. Ensure the appliance is safely located and secured, as it will be powered and operational during this test.
3. Plug male end of appliance into Appliance Test Socket.
4. Press F1 to start the power test.
5. A warning message will appear on screen. If the appliance is safely located and secured press F3 to
proceed. The unit will power on.
6. Read and record results appropriately.
7. Once the appliance has powered down and the test is complete, unplug the unit.
8. Press Enter to return to the main menu.
Note: Because the power test is not required in the electrical testing standards there is no pass/fail value built in to the
tester. It is up to the user to determine if the item is a pass or a fail based on the compliance/name plate.
If the result was a PASS - Tag with the appropriate tag including “next test due” date and “return to service”.
If the result was a FAIL - Tag with a DANGER TAG and remove the unit from service.

20
TnT Titan User Manual Wavecom
Leakage / Run Test – Menu B – F2
Note: Leakage Tests can only be conducted when connected to mains power.
The Leakage Test is an alternate method to perform insulation resistance tests. Leakage testing is a major
function of the TnT Titan. There are three types of Leakage test available on the TnT Titan - take care to ensure
you use the correct test for your appliance.
This test determines errors of leakage not otherwise detected in a normal insulation test. If there are any
doubts with insulation testing of the equipment, the Standard (AS/NZS:3760) allows for a leakage test to be
carried out instead. The TnT Titan has been designed to perform these tests. The Leakage Test applies power
to the Device Under Test and measures any imbalance or leakage current. The leakage is tested to the limits of
the class types specified in the Standard AS/NZS 3760 i.e. Class 1 = > 5mA as Fail.
The limit of imbalance measured on the TnT Titan will read well in excess of the limits set in mA. However,
should the supply circuit be protected by an RCD this device will trip anywhere between 10 to 30mA and trip
the mains supply switch OFF. The Leakage Test allows the user to operate the appliance in normal operation
conditions and measure its Operating Leakage current. The displayed parameter is mA. The mA Display Range
0.0 to 22.0 mA.
A predefined value for individual class types is programmed into your TnT Titan. These limits are set according
to the AS/NZ3760. Should these values change in future it can be simply altered in firmware. The run time
period can be adjusted (by 5 second increments). The value can be changed by selecting the leakage test time
in the options menu. The factory default setting is 20sec. The value for the leakage runtime is also used for the
power test.
Caution: Before operating ensure the equipment is firmly secured to eliminate the possibility of causing injury
or damage. This function will power the appliance on, and in the case of appliance with movable parts these
parts may begin to move. Ensure the appliance can power on safely before proceeding.
Procedure:
1. Complete a Visual Inspection. For details refer to the First Test section. If the device passed the Visual
Inspection, continue with the following instructions, if not, refer to the First Test section
2. Ensure that the appliance is safely located and secure as it will be powered and operational during this
test.
3. Plug the appliance into the Appliance Test Socket of the TnT Titan
4. If testing a Class 1 Appliance, plug the IEC Clamp Cable into the IEC socket of the TnT Titan, then clamp it
onto earthed metal on the appliance
5. If testing an RCD, plug the IEC-550 Orange Cable into the IEC socket of the TnT Titan, then plug it into a
socket on your RCD and turn that switch on
6. Navigate to Main Menu B, then press F2 to enter the Leakage Test Menu(cont...)
7. Press a function key to start the test
F1 = Earth Leakage, limit set to MAX then 5mA fail
F2 = Double Insulated Leakage and Extension Leads, limit set to MAX then 5mA fail
F3 = RCD Leakage (not a full RCD Trip Time or Ramp Test)
8. The TnT Titan will conduct the first part of the test without powering the appliance
9. A warning will be displayed on screen - ensure the appliance is safely located, then press F3 to power the
appliance and continue the leakage test
10. Your results will appear on the screen - If you have a Wavecom tag printer you can now print the tag,
otherwise you can now end the test.
If the result was a PASS - Tag with the appropriate tag including “next test due” date and “return to service”
If the result was a FAIL - Tag with a DANGER TAG and remove from service.
