Webasto NiteCool RCC-100 User manual

NiteCool TCC-100/RCC-100
Standkühlanlage
Parking cooler system
Rafraîchisseur d'air
Raffrescatore a veicolo fermo
Enfriador evaporativo
Interieurkoeler
03/2007
9015539B
Betriebsanweisung
Operating Instructions
Notice d’utilisation
Istruzioni per l’uso
Indicaciones de funcionamiento
Gebruiksinstructie

Das unsachgemäße Einbauen oder Reparieren von Webasto Heiz- und Kühlsystemen kann Feuer
verursachen oder zum Austritt von tödlichem Kohlenmonoxid führen. Dadurch können schwere oder
tödliche Verletzungen hervorgerufen werden.
Für den Einbau und die Reparatur von Webasto Heiz- und Kühlsystemen bedarf es eines
Webastotrainings, technischer Dokumentation, Spezialwerkzeuge und einer Spezialausrüstung.
Versuchen Sie NIEMALS, Webasto Heiz- oder Kühlsysteme einzubauen oder zu reparieren, wenn Sie
das Webastotraining nicht erfolgreich abgeschlossen und dabei die notwendigen technischen
Fähigkeiten erworben haben und die für einen sachgerechten Einbau und Reparatur nötigen
technischen Dokumentationen, Werkzeuge und Ausrüstungen nicht zur Verfügung stehen.
Befolgen Sie IMMER alle Webasto Einbau- und Reparaturanleitungen, und beachten Sie alle
Warnhinweise.
Webasto übernimmt keine Haftung für Mängel und Schäden, die auf einen Einbau durch ungeschultes
Personal zurückzuführen sind.
Improper installation or repair of Webasto heating and cooling systems can cause fire or the leakage of
deadly carbon monoxide leading to serious injury or death.
To install and repair Webasto heating and cooling systems you need to have completed a Webasto
training course and have the appropriate technical documentation, special tools and special equipment.
NEVER try to install or repair Webasto heating or cooling systems if you have not completed a Webasto
training course, you do not have the necessary technical skills and you do not have the technical
documentation, tools and equipment available to ensure that you can complete the installation and
repair work properly.
ALWAYS carefully follow Webasto installation and repair instructions and heed all WARNINGS.
Webasto rejects any liability for problems and damage caused by the system being installed by
untrained personnel.

II
NiteCool TCC-100/RCC-100 parking cooler system
Contents
Page
1 Maintenance and safety instructions 11
2 General 12
3 Operation 14
3.1 Control elements 14
3.2 Control panel 15
3.3 Functions 16
3.4 Remote control 18
3.5 Air vents 18
4 Malfunctions and possible remedies 19

NiteCool TCC-100/RCC-100 parking cooler system
11
1 Maintenance and safety
instructions
Meaning of signal words
Throughout this manual, the signal words
WARNING, IMPORTANT and NOTE have
the following meanings:
WARNING
This heading is used to highlight operating
instructions or procedures which, if not
or not correctly followed, may result in per-
sonal injury or fatal accidents.
IMPORTANT
This heading is used to highlight operating
instructions or procedures which, if not
or not correctly followed, may result in da-
mage to the equipment or its components.
NOTE
This heading is used to direct your
attention to a special feature deemed
essential to highlight.
IMPORTANT
1. The units must be installed as set out in
the installation and service manual.
2. If the vehicle height stated in the vehicle
registration document is exceeded due to
the installation of the parking cooler
system, it must be legalised through a type
approval.
3. Installation, maintenance and repair
work must be carried out by trained
personnel in authorised workshops. This
work may only be carried out with the
engine at a standstill and the power supply
switched off.
Disconnect the battery before working on
the electrical wiring.
4. As is the case with all parts of a vehicle,
the parking cooler system is continuously
subjected to a certain amount of stress
and strain. To guarantee that the system
operates correctly and to prevent any
damage to the parts,
the maintenance work must be carried out
at regular intervals.
5. The proper treatment of the system and
a record of all maintenance work are
necessary for the acceptance of any
warranty claims involving damage to parts
that require regular maintenance.
6. Irrespective of the schedule in the
installation and service manual, check all
the attachments on the unit and the
connections to ensure that they are tight
within the first four weeks of using the
parking cooler system for the first time.
7. Even if the parking cooler system is not
in use, individual components may be
subject to wear due to the normal ageing
process or the stresses or strains
generated by driving the vehicle. The
appropriate checks listed in the
maintenance and service chart in the
installation and service manual must
therefore be carried out regardless of the
time in which the system is in use.
8. The evaporator unit for cooling the air
must be renewed at least every 6 months
or in accordance with the degree of
contamination.
The filter insert in the precooling chamber
must be changed once every season or in
accordance with the degree of
contamination.
9. When the vehicle is being cleaned at a
vehicle wash, bear in mind the height of
the vehicle including the parking cooler
system.

NiteCool TCC-100/RCC-100 parking cooler system
12
10. The blower must be switched on at
least once every month, even in winter
time, for 10 minutes to preserve the easy
movement of all movable parts.
11. Failure to follow the installation and
service manual and the notes contained
therein will lead to all liability being refused
by Webasto. The same applies if repairs
are carried out incorrectly or with the use
of parts other than genuine spare parts.
2 General
For rapid cooling of the interior of the
vehicle when the outside temperature is
high and the sun is shining into the cab, we
recommend initially running the blower at
maximum with the cooling function
switched on. Once a pleasant interior
temperature has been achieved, you can
reduce the blower to a lower setting
according to your requirements.
If the sunshine has heated up the vehicle
considerably, we recommend opening the
doors and windows with the vehicle at a
standstill to allow ventilation to take place
before switching on the parking cooler
system.
Before starting a drive and when you have
finished your working day, check the
content of the water tank and refill if
necessary.
To avoid damage due to the water freezing
in cold weather, drain all of the water from
the parking cooler system.
If it is necessary to tilt the cab, first wait
three to four minutes after switching off the
parking cooler system to allow all the
water contained in the piping system to
drain back into the water tank.
Evaporator unit
The following guidelines must be followed:
The parking cooler system is equipped
with an evaporator unit for cooling the air.
This must be renewed every six months or
according to the level of contamination.
We recommend fitting a new evaporator
unit before the start of the hot weather
season.
Evaporator units are available from your
Webasto Installation and Service station.
WARNING!
Batteries from our products are to be
returned to the point of sales or nearby
when used.
Returning is free of charge.
The consumer is legally obliged to return
used batteries.
Batteries are by no means to be disposed
of with domestic refuse.
Risk of explosion if the batteries are
exchanged improperly!
Follow the instructions to dispose of the
batteries!
This product is subject to the EC directives
2002/96EC and EN 50419. Notes on
disposal are supplied with the sample or
the operating instructions.
WARNING!
The water tank must always be filled with
drinking water. Do not add any perfumes
or other products to the water that have
not been approved by Webasto.
The water piping system must be cleaned
as follows, at least every two months:
a) - First drain the entire system by
removing the tank drain cover from the
water tank.
b) - Then screw the tank drain cover back
on and fill the water tank half full with a
solution of drinking water and a

NiteCool TCC-100/RCC-100 parking cooler system
13
commercially available cleaning/
disinfectant agent containing sodium
hypochloride (follow the mixing ratio as
specified by the manufacturer). Then run
the parking cooler system at blower
setting 6, with the cooling function
switched on, for two hours.
Leave the cab windows open during the
cleaning process and make sure no-one
remains in the cab.
Clean the fresh water tank of mobile
homes according to the vehicle
manufacturer instructions.
c) - After cleaning, drain the system
completely again and thoroughly clean the
water tank with water in order to flush out
the residues.
d) - Fill the system with drinking water if the
parking cooler system is to be put back
into operation again immediately.
e) - Alternatively, the water system can be
cleaned with recommended Katadyn®
Care products (please follow the
manufacturer's instructions).
Important information
The user is exclusively responsible for
complying with all guidelines, in particular
those relating to the use and function of
the parking cooler system and to hygienic
and sanitary conditions in order to
maintain correct operation.
Failure to follow the instructions will lead to
all liability being refused by Webasto.

NiteCool TCC-100/RCC-100 parking cooler system
14
3Operation
3.1 Control elements
1 - Control panel
2 - Air vents
2
1
2
2

NiteCool TCC-100/RCC-100 parking cooler system
15

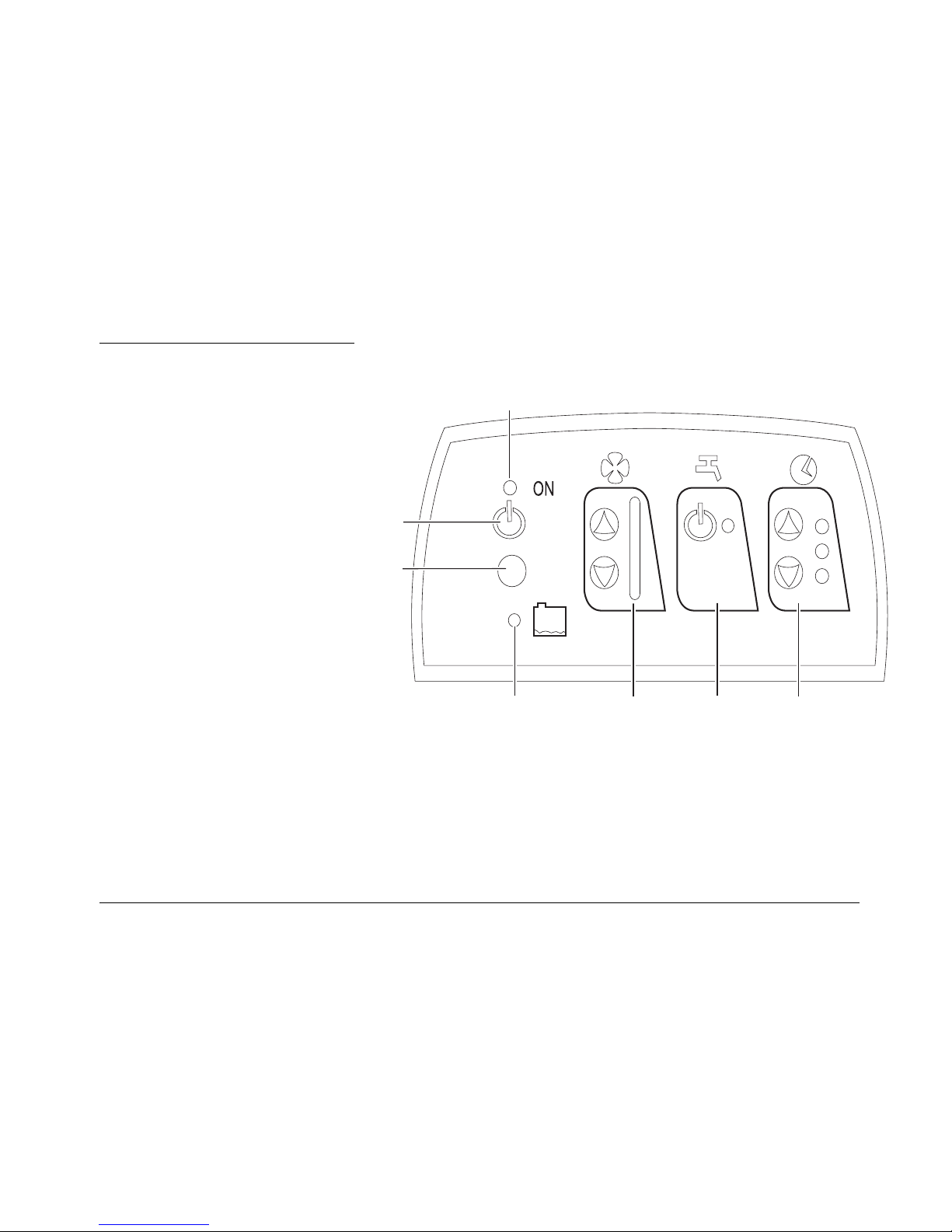

3.2 Control panel
1 - ON/OFF switch
2 - Switch-on indicator LED
3 - Blower switch
4 - Cooling function on/off switch
5 - Timer
6 - Low water level indicator
7 - Infrared sensor
3
6
7
1
2
45

NiteCool TCC-100/RCC-100 parking cooler system
16
3.3 Functions
ON/OFF switch
The parking cooler system is switched on/
off by pressing button 1. LED 2 lights up
when it is switched on.
IMPORTANT!
If the blower is blocked, the system is
switched off and LED 2 is blinking. The
trouble shooting must be carried out by
trained personnel in authorised
workshops.
Blower switch
Pressing button 1 increases the blower
setting.
Pressing button 2 reduces the blower
setting.
The corresponding blower setting (1 – 8) is
shown on the indicator 3.
This function is only available when the
parking cooler system is switched on.
Cooling function ON/OFF switch
Pressing button 1 switches on the cooling
function of the parking cooler system, and
the switch-on indicator LED 2 lights up.
Pressing button 1 again switches off the
cooling function of the parking cooler
system, and the switch-on indicator LED 2
goes out.
This function is only available when the
parking cooler system is switched on.
IMPORTANT!
If a water pump is blocked, the system is
switched off and LED 2 is blinking. The
trouble shooting must be carried out by
trained personnel in authorised
workshops.
1
2
3
2
112

NiteCool TCC-100/RCC-100 parking cooler system
17

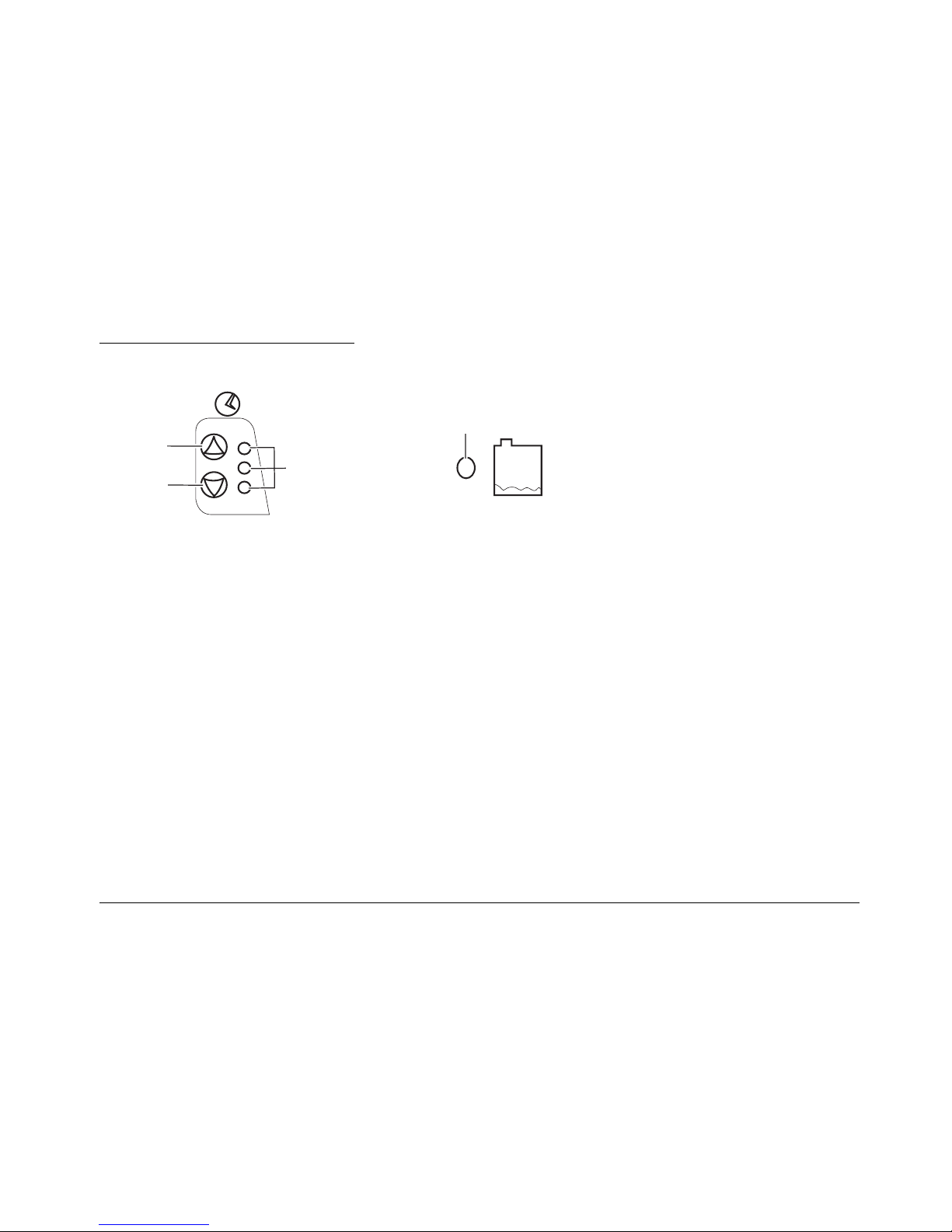

Timer
Pressing button 1 increases the operating
time of the parking cooler system and
pressing button 2 reduces it.
Pressing button 1 once activates the timer
and further presses increase the operating
time in two-hourly steps. The set operating
time is displayed by the 3 LEDs.
1 LED - 2-hour operating time
2 LEDs - 4-hour operating time
3 LEDs - 6-hour operating time
This function is only available when the
parking cooler system is switched on.
Low water level indicator
The cooling function is deactivated and the
low water level indicator 1 lights up if there
is insufficient water or a defect in the water
pumping system.
1
2
3
1

NiteCool TCC-100/RCC-100 parking cooler system
18
3.4 Remote control
ON/OFF switch
Pressing button 1 switches on the parking
cooler system.
Pressing button 2 switches off the parking
cooler system.
Cooling function ON/OFF switch
Pressing button 3 switches on the cooling
function of the parking cooler system.
Pressing button 4 switches off the cooling
function of the parking cooler system.
This function is only available when the
parking cooler system is switched on.
Blower switch
Pressing button 5 reduces the blower
setting.
Pressing button 6 increases the blower
setting.
This function is only available when the
parking cooler system is switched on.
3.5 Air vents
To enable the air vents to be directed
according to individual requirements as
much as possible, the air vents 1 can be
rotated 360° and the gills 2 opened or
closed individually.
1
3
5
2
4
6
1
2

NiteCool TCC-100/RCC-100 parking cooler system
19
4 Malfunctions and
possible remedies
Symptom Possible cause Remedy
No cooling power Water pumps not running Check the connection to the water pumps
Check fuses
Water level sensors are providing incorrect
information
Check water level sensors
Clean water tank
Water pipes kinked or squashed Remedy the cause of the fault, seal any leaks
Water pump pressure too low Check water pump function
Filter insert in water tank or precooling chamber
clogged
Clean
Reduced cooling
power
Evaporator unit contaminated Renew evaporator unit
Water flow rate too low Water line routed so it is kinked or squashed. Re-lay
hoses. Water pump pressure too low (see above for
remedy)
Water leaks from
parking cooler
system
Hose connection loose Check the hose lines are connected firmly
Water hose damaged Route a new hose and connect it
No ventilation Blower does not function Check the fuses and plug connectors
Check the blower motor function
Check the battery voltage

NiteCool TCC-100/RCC-100 parking cooler system
20
Page for notes

Webasto AG
Postfach 80
82131 Stockdorf
GERMANY
http://www.webasto.com
Änderungen vorbehalten
Subject to modification
Sous réserve de modifications
Con riserva di modifiche
Veranderingen voorbehouden
© 2007 All Rights Reserved
IDENT.-NR. 9015539B
