EN
5110159D Webasto Pure 9
Table of Contents
1 General information.................................. 11
1.1 Purpose of the document................................ 11
1.2 Using this document........................................ 11
1.3 Intended use....................................................11
1.4 Use of symbols and highlighting...................... 11
1.5 Warranty and liability.......................................11
2 Safety........................................................ 11
2.1 General information.........................................11
2.2 General safety information.............................. 12
2.3 Safety information for installation.................... 12
2.4 Safety information for electrical connection..... 13
2.5 Safety information for initial start-up............... 13
3 Unit description......................................... 13
4 Operation.................................................. 14
4.1 overview..........................................................14
4.2 LED indicators..................................................14
4.3 Touch control switch (reset).............................15
4.4 Key-operated switch........................................ 15
4.5 Start charging.................................................. 15
4.6 Stop charging.................................................. 15
5 Transportation and storage....................... 16
6 Scope of delivery....................................... 16
7 Required tools........................................... 16
8 Installation and electrical connection........ 16
8.1 Requirements at the installation location......... 17
8.2 Criteria for the electrical connection................ 17
8.3 Installation.......................................................18
8.4 Electrical connections...................................... 18
8.5 DIP switch settings.......................................... 18
8.6 Initial start-up.................................................. 19

EN
10 5110159D Webasto Pure
9 Settings....................................................... 19
9.1 To activate programming mode.........................19
9.2 Dim LED indicator (option 1)..............................20
9.3 Deactivate charging current limit (option 2)....... 20
10 Decommissioning the product.....................21
11 Maintenance, cleaning, repair..................... 21
11.1 Maintenance..................................................... 21
11.2 Cleaning............................................................ 21
11.3 Repair................................................................21
12 To replace the charging cable..................... 21
13 Disposal...................................................... 21
14 Declaration of conformity........................... 22
15 Assembly.....................................................22
16 Technical data............................................. 22
17 Check list for the installation of the
Webasto charging station........................... 23

EN
5110159D Webasto Pure 11
1 General information
1.1 Purpose of the document
These operating and installation instructions
are part of the product and contain inform-
ation for the user to ensure safe operation
and for the electrician to carry out safe in-
stallation of the Webasto Pure charging sta-
tion.
1.2 Using this document
u Carefully read the operating and installa-
tion instructions before installing and
starting up the Webasto Pure.
u Keep these instructions ready to hand.
u Hand these instructions on to the follow-
ing owner or user of the charging sta-
tion.
1.3 Intended use
The Webasto Pure charging station is de-
signed for charging electric vehicles in ac-
cordance with IEC 61851-1, charge mode 3.
In this charge mode, the charging station
ensures:
–The voltage is not applied before the
vehicle has been connected correctly.
–The maximum power is calibrated.
The AC/DC converter is in the vehicle.
1.4 Use of symbols and
highlighting
DANGER
This signal word denotes a hazard
with a high degree of risk which, if
not avoided, will lead to death or
serious injury.
WARNING
This signal word denotes a hazard
with a moderate degree of risk
which, if not avoided, may lead to
minor or moderate injury.
CAUTION
This signal word denotes a hazard
with a low degree of risk which, if
not avoided, will lead to minor or
moderate injury.
NOTE
This signal word denotes a Special
Technical Feature or (if not observed)
potential damage to the product.
Refers to separate documents which
are enclosed or can be requested
from Webasto.
Symbol Explanation
Requirements for the following ne-
cessary action
Necessary action
1.5 Warranty and liability
Webasto shall not assume liability for de-
fects or damage that are the result of the
installation and operating instructions being
disregarded. In particular, this liability exclu-
sion applies in the following cases:
–Improper use.
–Use of non-original spare parts.
–Installation and commissioning carried
out by unqualified staff (not an electri-
cian).
–Modification of the device without ob-
serving Webasto repair instructions.
2 Safety
2.1 General information
The charging station has been developed,
produced, tested and documented accord-
ing to the relevant safety regulations and
environmental requirements. The device
must only be used in a technically faultless
condition.
Have any malfunctions that adversely affect
the safety of persons or of the device recti-
fied immediately by an electrician in accord-
ance with nationally applicable regulations.

EN
12 5110159D Webasto Pure
NOTE
It is possible that the signalling in the
vehicle differs from that described
here. Always read the operating in-
structions of the respective vehicle
manufacturer and always observe
these.
2.2 General safety information
–Hazardous voltages are present within
the casing.
–The charging station does not have its
own main ON/OFF switch. The pro-
tective devices installed in the power
supply system are therefore also used
to disconnect the power supply.
–Check charging station for visual dam-
age before use. Do not use the char-
ging station if damaged.
–Installation, electrical connection and
initial operation of the charging sta-
tion must only be carried out by an
electrician.
–Do not remove the cover of the in-
stallation area whilst in operation.
–Do not remove markings, warning
symbols and the type label from the
charging station.
–The charging cable must only be re-
placed by an electrician in accordance
with the installation instructions.
–It is strictly prohibited to connect
other equipment/devices to the char-
ging station.
–When not in use, store the charging
cable in the designated holder and
lock the charging coupling in the
charging station. Loosely wind the
charging cable around the charger
casing so that it does not touch the
ground.
–Make sure that the charging cable
and coupling cannot be driven over,
trapped and are protected from any
other hazards.
–Immediately notify Webasto Customer
Service if the charging station, char-
ging cable or the charging coupling
are damaged. Do not continue using
the charging station.
–Prevent the charging cable and coup-
ling from coming in contact with ex-
ternal heat sources, water, dirt and
chemicals.
–Do not attach extension cables or ad-
apters to the charging cable.
–Remove the charging cable by pulling
on the charging coupling only.
–Never clean the charging station with
a high-pressure cleaner or similar
device.
–Switch off the power supply before
cleaning the charging sockets.
–When using the charging cable,
please ensure that the maximum per-
mitted force of 39N (for 11kW) and
48N (for 22kW) is not exceeded.
–Ensure only persons who have read
these operating instructions have ac-
cess to the charging station.
2.3 Safety information for
installation
–Installation and connection of the
charging station must only be carried
out by an electrician.
–Only use the supplied installation ma-
terial.
–The Webasto Pure safety concept is
based on a power supply system that
is earthed at all times. The electrician
must ensure this requirement during
installation.
–The charging station is suitable for use
in areas without access restrictions.
–Do not install the charging station in
an explosion sensitive area (EX zone).
–Install the charging station in such a
way that the charging cable does not
block any passageways.

EN
5110159D Webasto Pure 13
–Do not install the charging station in
areas subject to ammonia or air con-
taining ammonia.
–Do not install the charging station in
a location where falling objects (e.g.
extension reel or tyres) can damage
the charging station.
–The charging station is designed for
use indoors, e.g. garages as well as
for use in protected outdoor areas,
e.g. carports. Do not install the char-
ging station in the vicinity of water
jets, e.g. car wash installations, high
pressure cleaners or garden hoses.
–The charging station shall not be ex-
posed to direct rain to prevent dam-
age due to freezing, hail or similar.
–Protect the charging station from dir-
ect sunlight. The charging current
may be reduced at high temperatures
or charging may be disabled com-
pletely.
–The installation location of the char-
ging station should be selected such
that vehicles cannot inadvertently col-
lide with it. Protective measures must
be implemented if the possibility of
damage cannot be ruled out.
–Do not place the charging station into
operation if it is damaged during in-
stallation. A replacement will be re-
quired.
2.4 Safety information for
electrical connection
–Comply with the nationally applicable
requirements pertaining to electrical
installations, fire protection, safety
regulations and escape routes at the
intended installation location. Ob-
serve the applicable national installa-
tion regulations.
–Each charging station must be protec-
ted with its own line circuit breaker
and residual current circuit breaker.
See "Requirements at the installation
location on page 17".
–Make sure that the electrical connec-
tions are de-energised before con-
necting the charging station to the
power supply.
–Do not connect a vehicle during initial
start-up of the charger.
–Make sure that the correct supply
cable is used for the power connec-
tion.
–Do not leave the charging station un-
attended with the cover open.
–Do not install the charging station
without the mounting frame.
–Change DIP-switch settings only with
the power off.
–Register with the power supply com-
pany as required.
2.5 Safety information for
initial start-up
–Initial start-up of the charging station
must be carried out only by an electri-
cian.
–Prior to initial start-up, the electrician
must check that the charging station
has been connected correctly.
–Before starting-up the charging sta-
tion, check the charging cable, char-
ging coupling and the charging sta-
tion for visible damage. The charging
station must not be started up if it is
damaged or if the charging cable/
charging coupling is damaged.
3 Unit description
These operating and installation instructions
describe the Webasto Pure. You can find a
detailed product description on the type la-
bel of your Webasto Pure
See also Fig. 1

EN
14 5110159D Webasto Pure
4 Operation
4.1 overview

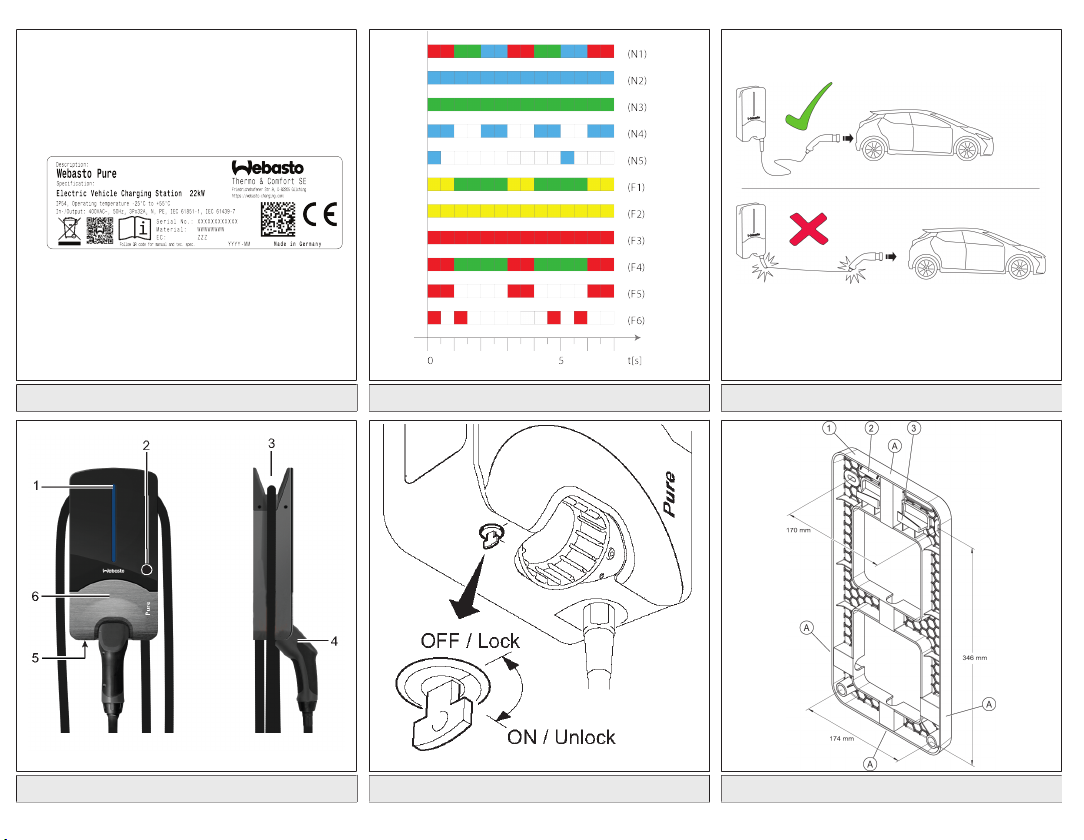

See also Fig. 2
Legend
1 LED indicator 4 Charging coupling
holder
2 Touch control switch 5 Key-operated
switch, accessible
from below
3 Charging cable holder 6 Installation cover
4.2 LED indicators
See also Fig. 3
Legend
N1 … N5 LED operating indicator
F1 … F6 LED fault list
t [s] Time [s]
4.2.1 LED-colours
LED-
col-
ours
Description
Blue Stand by
Green Charging
Red Faults
Yellow Temperature limit
Purple Charging current limit activated (20 A
for 1-phase charging)
Light
blue
Charging current limit deactivated
LED-
col-
ours
Description
White Programming mode
4.2.2 LED operating indicator
Oper-
ating
indic-
ator
Description
N1 LED flashes red/green/blue at 1 second
intervals:
Charging station is starting.
N2 LED is blue:
Charging station in standby mode; char-
ging station can be used.
N3 LED is green:
Charging station being used; charging
vehicle.
N4 LED flashes blue at 1 second intervals:
Charging coupling connected to the
vehicle, charging complete or charging
temporarily interrupted.
N5 LED flashes for half a second at 5
second intervals:
The charging station is in operation but
locked with the key-operated switch.
Table1: Indicator lamps
4.2.3 LED fault list
Fault
list
Description
F1 LED is yellow for 1 s and green for 2 s:
The charging station has become hot
and charges the vehicle with reduced
power. After a cool-down phase the
charging station continues the normal
charging cycle.
F2 LED is yellow:
Excess temperature. Charging stopped
due to high temperature within the
charger. After a cool-down phase the
charging station continues the normal
charging cycle.
F3 LED is red and a buzzer sounds for 28s
and then for 2s every 10 minutes:
There is a problem in the voltage or sys-
tem monitoring.
Table2: Fault indicators and troubleshooting
DANGER
Danger of fatal electric shock.
uSwitch off and secure the power
supply to the charging station.
Only then unplug the cable from
the vehicle.
uContact the Webasto Charging
Hotline at 00800-24274464.
Fault
list
Description
F4 LED is red for 1s and green for 2s:

EN
5110159D Webasto Pure 15
Fault
list
Description
There is a fault in the power connection
to the charging station, phase monitor-
ing is active, charging station charges
with reduced power.
uChecking of the rotary field by
an authorised electrician.
F5 LED flashes red for 1s at 2s intervals, a
signal sounds for 28s and then for 2s
every 10 minutes:
There is a fault in the vehicle.
uRe-connect the vehicle
Table3: Fault indicators and troubleshooting
NOTE
If the warning persists, contact
Webasto Charging Hotline under
00800-24274464.
Fault
list
Description
F6 LED flashes red for 0.5s at 0.5s and
3s intervals:
the supply voltage is outside the valid
range of 180 V to 270 V.
uChecking by an authorised elec-
trician.
Table4: Fault indicators and troubleshooting
4.3 Touch control switch
(reset)
NOTE
Do not press but only touch the
touch control switch, do not wear
gloves when operating.
The touch control switch is used to acknow-
ledge faults.
Action Description
uTouch and hold
the switch for at
least 10s.
Starts a system self-test
and resets failures.
After the fault has been
rectified, the charging
station switches back
to "standby" mode.
4.4 Key-operated switch
The key-operated switch is used for author-
isation purposes and can be turned through
90°. Turn clockwise to unlock the charging
station. Turn anticlockwise to lock the char-
ging station.
See also Fig. 4
NOTE
The key can be removed in both pos-
itions.
4.5 Start charging
NOTE
Always take into account the vehicle
requirements before charging a
vehicle.
NOTE
Park the vehicle for charging such as
to avoid strain in the charging cable.
See also Fig. 5
Action Description
uConnect
the char-
ging
coupling
to the
vehicle.
Charging station performs system
and connection tests.
LED: is blue, turns red for about 2
seconds after connecting to the
vehicle and then either turns
green (vehicle is charging) or
flashes blue (vehicle not yet ready
for charging).
4.6 Stop charging
4.6.1 The vehicle has stopped the
charging cycle automatically
Action Descrip-
tion
uUnlock the car if necessary.
uUnplug the charging coup-
ling from the vehicle.
uLock charging coupling in
the holder of the charging
station.
LED flashes
blue at 1
second in-
tervals.
Vehicle con-
nected, not
charging.

EN
16 5110159D Webasto Pure
4.6.2 If the vehicle does not
automatically stop the
charging cycle
Action Description
uSet key-op-
erated
switch to
"OFF" posi-
tion.
Charging cycle is stopped. LED
changes to blue and flashes at 5
second intervals. See "LED indic-
ators on page 14", operating
status N5.
Or
uStop char-
ging cycle
at vehicle.
Charging cycle is stopped. LED
changes to blue and flashes at 1
second intervals. See "LED indic-
ators on page 14", operating
status N4.
5 Transportation and
storage
Observe the ambient temperature for stor-
age during transportation. See "Technical
data on page 22".
Transport the charging station only when
suitably packaged.
6 Scope of delivery
Scope of delivery Amoun
t
Charging station with pre-assembled
charging cable
1
Mounting frame 1
Scope of delivery Amoun
t
Key 2
Installation kit for wall mounting
–Wall plug (8 x 50 mm, Fischer
UXR8)
4
–Screw (6 x 70, T25) 2
–Screw (6 x 90, T25) 2
–Washer (ISO 7089-8,4) 4
Operating and installation instructions 1
Table5: Scope of delivery
uTake the charging station and the mount-
ing frame from the package.
uCheck the completeness of the delivery.
uCheck the complete delivery for damage.
7 Required tools
Tool description Amou
nt
Slot-head screwdriver 0.5x3.5mm 1
Torx screwdriver Tx25 1
Torx screwdriver Tx10 1
Drilling machine with 8 mm drill 1
Mounting tools for 8 mm plugs and
screws
1
Hammer 1
Mounting tools for electrical cables and
wire end ferrules
1
Multimeter 1
Tool description Amou
nt
EV simulator with rotary field display 1
Required when replacing the charging
cable:
Mounting tools for cable glands M16
(wrench size 20mm) and M32 (wrench
size 36mm)
1
Round file 1
Combination pliers 1
8 Installation and
electrical connection
Observe the safety information provided
here "Safety on page 11".
NOTE
In addition to these operating and in-
stallation instructions, follow and
comply with the local regulations re-
lating to operation, installation and
environmental protection.
NOTE
The Webasto Pure safety concept is
based on a power supply system that
is earthed at all times, which must al-
ways be ensured by an electrician
during installation.

EN
5110159D Webasto Pure 17
8.1 Requirements at the
installation location
Take into account the following points
when selecting the installation location for
the Webasto Pure:
–The normal parking position of the
vehicle.
–The location of the charging plug on the
vehicle.
–A cable run from the charging station to
the vehicle as short as possible.
–No risk of driving over the charging
cable.
–Possible electrical connections.
If several charging stations are to be in-
stalled next to each other, a spacing of at
least 200 mm must be maintained between
each station.
The mounting surface must be completely
flat (max. 1 mm difference between the in-
dividual mounting points).
The charger casing must not sag or twist.
NOTE

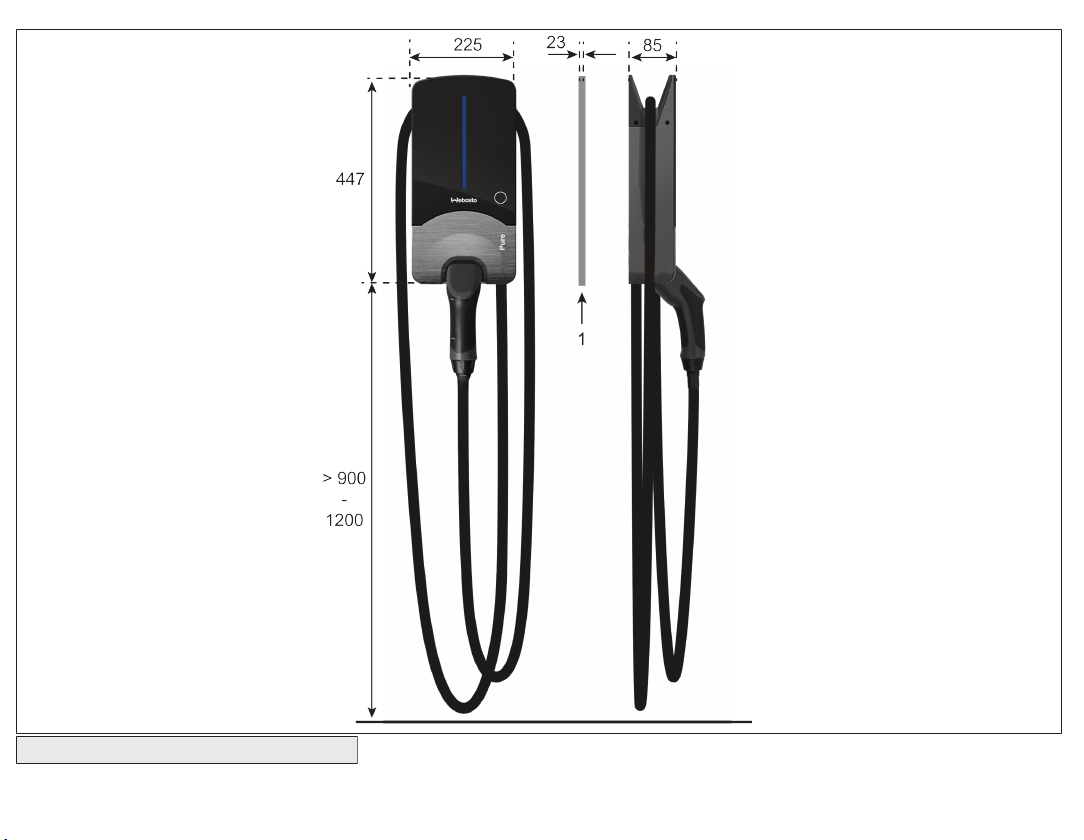

The mounting distance between the
bottom edge of the charging station
and the floor must be at least 0.9 m.
8.2 Criteria for the electrical
connection
The maximum charging current is factory
set and is indicated on the type plate of the
charging station. The maximum charging
current can be adapted to the value of the
installed circuit breaker with the DIP-
switches.
NOTE
The current value of the selected
protective device must not fall below
the current value specified on the
type plate for the charging station or
that set using the DIP switch.
See "DIP switch settings on page
18".
Before connecting, have the prerequisites
for connection checked by an electrician.
Comply with the nationally applicable regu-
lations of the authorities and power supply
companies, e.g. registration of installation
of a charging station.
NOTE
1-phase charging of vehicles is lim-
ited to 20 A in Germany, This is as
specified by the technical connection
rules E VDE-AR-N 4100 (draft). See
also https://www.vde.com/. Other
countries permit 1-phase charging
with 32 A charging current, subject
to local regulations. You must not
deactivate the 20 A limit if this is not
in accordance with your national
regulations and standards.
All protective devices specified must be de-
signed such that every power supply pole of
the charging station is disconnected in the
case of a fault. When selecting the protect-
ive device, you must use the national install-
ation regulations and standards.
8.2.1 Dimensioning of the
Residual Current Circuit
Breaker (RCCB)
To protect against sinusoidal AC residual
currents, pulsating DC residual currents and
smooth DC residual currents, a residual cur-
rent device (RCD) type B in accordance with
EN 62423 must be connected upstream.
The rated residual current must not be
greater than 30mA.
8.2.2 Dimensioning of the circuit
breaker
The circuit breaker must conform to IEC
60898. The let-through energy (I²t) must
not exceed a maximum 80,000 A²s.
Alternatively, a residual current circuit
breaker combination (RCBO) according to
EN 61009-1 can be used. The aforemen-
tioned parameters apply for this circuit
breaker combination.
8.2.3 Mains isolation device
The charging station does not have its own
main ON/OFF switch. The protective devices
installed in the power supply system are
therefore also used to disconnect the power
supply.

EN
18 5110159D Webasto Pure
8.3 Installation
See also "Assembly on page 22". The sup-
plied installation material is intended for
mounting the charging station on a concrete
wall or on an external stand. For installation
on a stand, the mounting material is in-
cluded in the scope of delivery of the stand.
Only use the supplied installation material to
install the mounting frame. See for an over-
view of the mounting frame.
See also Fig. 6
Legend
Mounting frame Hook to attach the
charging station
Spirit level Prepared weak spot
Weak-spots for cable leadthroughs for sur-
face mounting the connection cable.
uMark the 4 holes with the aid of the
mounting frame and spirit level.
–Make sure that the holes are centred.
uDrill the 4 holes in the wall.
uInsert the wall plugs in the holes.
uPrepare the mounting frame for the cable
installation:
–Connection cable from rear:
feed the cable through the bottom part of
the frame.
–Connection cable from top/left/right/bot-
tom:
remove the prepared weak-spots in the
frame.
uPlace the mounting frame in level posi-
tion.
uSecure the mounting frame with the 2
short screws and washers on the top
holes.
uRemove the bottom cover from the hous-
ing.
See also Fig. 7
uFeed the connection cable through the
opening in the lower part of the housing
and fix it with the rubber grommet sup-
plied in the scope of delivery.
uPlace the charging stations on the two
hooks at the top of the frame.
uSecure the bottom part of the charging
station with the 2 long screws and wash-
ers.
8.4 Electrical connections
–The connection terminals are alligator
clips.
–Depending on the cable and type of in-
stallation, the minimum cable cross-sec-
tion for a standard installation is 6mm²
(for 16 A) and 10mm² (for 32A).
NOTE
Use wire end ferrules in case of flex-
ible connection cable.
uFeed the connecting cable through the
rubber grommet into the centre of the
charging station housing, straight and
without tension. See also "Installation on
page 18".
uRoute the connection cable with the cor-
rect radius (approx. cable diameter x10) to
the connection terminals.
uCut the wires to the correct length. Keep
the connections as short as possible. The
PE conductor should be longer than all
the other wires.
uStrip the wires to a length of 12mm.
uCheck whether the power supply is 1-
phase or 3-phase.
–1-phase: Use only L1, N and PE.
–3-phase: Use L1, L2, L3, N and PE. Then
measure the phase order.
NOTE
A clockwise phase order is required.
uSecure the wires to the connection ter-
minals as illustrated.
See also Fig. 8
uCheck that the connections are tight and
connection cable is secure.
8.5 DIP switch settings
DANGER
High voltages.
uDanger of fatal electric shock.
uEnsure safe isolation from the power sup-
ply.

EN
5110159D Webasto Pure 19
DIP-switches configure the current setting
of the charger.
See also Fig. 9
DIP switch up/ON = 1
DIP switch down/OFF = 0
DIP-switch factory setting: 1100
NOTE
Changes to the DIP switch settings
become active after restarting the
charging station.
NOTE
DIP switches 3 and 4 are set at the
factory. Switches 3 and 4 must be
left set to 0.
Switch
1 2 3 4 Ca-
pa-
city
Description 1- or
3-
phas
e
16 or
32 A
per
phase
Factory
setting
16A (1-phase) 0 0 0 0 3.7
kW
32A (1-phase) * 0 1 0 0 7.4
kW
16A (3-phase) ** 1 0 0 0 11
kW
32A (3-phase) 1 1 0 0 22
kW
Table6: DIP-switch settings
* The charging current is limited to 20 A in the
factory in the case of a 22 kW variant with
1-phase charging. See "Deactivate charging
current limit (option 2) on page 20". * The
charging current is already limited to 16 A in
the factory in the case of an 11 kW variant.
** A Webasto Pure programmed for 11 kW
cannot be set to 22 kW with the DIP
switches.
8.6 Initial start-up
8.6.1 Safety check
Document the results of the checks and
measurements carried out during initial
start-up corresponding to the applicable in-
stallation requirements and standards.
The local regulations relating to operation,
installation and environmental protection
also apply.
8.6.2 Start-up procedure
uRemove material residues from the con-
nection area.
uCheck that every screw is correctly
tightened and every clamp is correctly
engaged.
uFit the lower cover.
uSecure the bottom cover with the mount-
ing screws; Tighten the mounting screws
to the stop. See "Installation on page
18".
uSwitch on power supply.
–Start sequence is activated (duration up
to 60 seconds).
–LED indicator flashes in colours at 1
second intervals.
Red/green/blue. See "LED indicators on
page 14", operating status N1.
uIf necessary, unlock charging station with
key-operated switch.
uPerform initial operation check and re-
cord measured values in test log. An EV
simulator is used for the measurement at
the charging coupling.
uSimulate and test the individual operating
and protection functions with the EV sim-
ulator.
uConnect the charging cable to the
vehicle.
–The LED changes from blue to green.
9 Settings
NOTE
It is necessary to complete the fol-
lowing procedures within a certain
time, therefore read through all the
steps before starting the procedure.
9.1 To activate programming
mode
See also "Key-operated switch on page 15".
üCharging station switched on.
üLED indicator is blue.
üKey-operated switch set to ON.

EN
20 5110159D Webasto Pure
üNo vehicle connected.
uSet key-operated switch from ON to OFF,
wait until LED indicator flashes blue 3
times.
uSet key-operated switch from OFF to ON
(for max. 3 seconds).
uSet key-operated switch from ON to OFF;
wait until LED indicator flashes blue once.
uSet key-operated switch from OFF to ON
(for max. 3 seconds).
uSet key-operated switch from ON to OFF;
wait until LED indicator flashes blue 3
times.
–When the LED indicator flashes for the
fourth time it changes to white and the
charging station automatically assumes
programming mode.
Programming mode activated
The charging station runs through two op-
tions 10 times. If no option is selected with
the key-operated switch after the charging
station has run through them 10 times, pro-
gramming mode will be deactivated auto-
matically without any changes.
9.2 Dim LED indicator (option
1)
NOTE
The LED colours blue and green can
be dimmed. The brightness of the red
warning colour can not be changed.
Programming mode activated:
The LED indicator flashes white in the fol-
lowing sequence once:
–0.5s OFF;
–0.5s ON;
After a four second pause the LED indicator
switches to yellow for one second:
uSet key-operated switch from OFF to ON.
–"Dim LED indicator" function activated.
The LED indicator changes to blue and dims
in several stages from maximum to min-
imum, in 3 second intervals. After reaching
the lowest dim level the LED indicator
switches back to maximum.
NOTE
If the key-operated switch setting is
not changed from ON to OFF within
180 seconds, the original dim level
will remain unchanged and the pro-
gramming mode will be deactivated.
uSet key-operated switch from ON to OFF.
Dim level is selected.
If the key-operated switch setting is not
changed further within 60 seconds, the se-
lected dim level will be saved and program-
ming mode deactivated.
uSet key-operated switch back from OFF to
ON to switch to standby mode.
9.3 Deactivate charging
current limit (option 2)
NOTE
The charging current limit is only ac-
tivated in the factory for a 22 kW
variant.
NOTE
The charging current is only limited to
20 A for 1-phase charging.
NOTE
The charging current limit may only
be deactivated in compliance with na-
tional regulations and standards.
Programming mode activated:
The LED indicator flashes white in the fol-
lowing sequence once:
–0.5s OFF;
–0.5s ON;
–0.5s OFF;
–0.5s ON;
After a three second pause the LED indicator
switches to yellow for one second:
uSet key-operated switch from OFF to ON:
–Activate "charging current limit" function.
The current setting is indicated in colour by
the LED:
Charging current limit activated = purple
Charging current limit deactivated = light
blue
