WEG CFW-10 EASYDRIVE User manual

Frequency Inverter
Convertidores de Frecuencia
Inversores de Freqüência

FREQUENCY
INVERTER
MANUAL
Series: CFW-10
Software: version 1.0X
0899.5034 E/2
Please take this page out when
unpacking the product

03/2005
FREQUENCY
INVERTER
MANUAL
Series: CFW-10
Software: version 1.0X
0899.5034 E/2
ATTENTION!
It is very important to check if the
inverter software version is the
same as indicated above.

4
The table below describes all revisions made to this manual.
Revision Description Section
1 First Edition -
2 AdditionoftheCFW10MECIIand -
additionoftheEMC filter for MECI.
Generalrevision.
Sumarry of Revisions

CONTENTS
Quick Parameter Reference,
Fault and Status Messages
IParameters ..................................................................08
IIFaultMessages ...........................................................11
IIIOtherMessages..........................................................11
CHAPTER 1
Safety Notices
1.1SafetyNoticesin the Manual ....................................12
1.2SafetyNotice on The Product ...................................12
1.3PreliminaryRecommendations.................................12
CHAPTER 2
General Information
2.1AboutthisManual .....................................................14
2.2SoftwareVersion......................................................14
2.3About the CFW-10 ...................................................15
2.4CFW-10 Identification...............................................19
2.5Receivingand Storing ..............................................20
CHAPTER 3
Installation and Connection
3.1MechanicalInstallation..............................................21
3.1.1Environment.......................................................21
3.1.2MountingSpecifications .....................................22
3.2ElectricalInstallation .................................................24
3.2.1Power/GroundingConnections...........................24
3.2.2PowerTerminals ................................................29
3.2.3LocationofthePower/Grounding/Control
Connections.......................................................30
3.2.4Signaland Control Connections .........................30
3.2.5TypicalTerminalConnections .............................32
3.3 European EMC Directive .........................................34
3.3.1Installation ..........................................................35
3.3.2 EMC Categories Description.............................36
3.3.3InverterandFilters..............................................38
3.3.4 Characteristics of the EMC Filters......................39
CHAPTER 4
Start-up
4.1 Pre-Power Checks...................................................41

CONTENTS
4.2InitialPower-up.........................................................41
4.3Start-up ....................................................................42
4.3.1Start-upOperation via Keypad(HMI) ..................42
4.3.2Start-upOperation viaTerminals.........................43
CHAPTER 5
Keypad (HMI) Operation
5.1Keypad(HMI) Description ........................................44
5.2Useofthe Keypad (HMI)...........................................45
5.2.1Keypad Operation..............................................45
5.2.2InverterStatus ....................................................46
5.2.3Read-OnlyVariables ..........................................46
5.2.4Parameter Viewing and Programming ...............47
CHAPTER 6
Detailed Parameter Description
6.1Symbols...................................................................49
6.2Introduction...............................................................49
6.2.1V/F (Scalar) Control ...........................................49
6.2.2FrequencyReferenceSources...........................50
6.2.3Commands........................................................53
6.2.4Local/Remote Operation Modes ........................53
6.3 Parameter Listing.....................................................54
6.3.1AccessandRead Only
Parameters - P000 to P099 ...............................55
6.3.2 Regulation Parameters - P100 to P199..............56
6.3.3 Configuration Parameters - P200 to P398 .........65
CHAPTER 7
Diagnostics and Troubleshooting
7.1 Faults and Possible Causes.....................................78
7.2Troubleshooting........................................................80
7.3Contacting WEG ......................................................81
7.4PreventiveMaintenance ...........................................81
7.4.1CleaningInstructions ..........................................82
CHAPTER 8
Options andAccessories
8.1RFIFilters ............................................................... 83
8.2Line Reactor ............................................................84
8.2.1Application Criteria ............................................84

CONTENTS
8.3 Load Reactor ...........................................................86
8.4Rheostatic Braking...................................................86
8.4.1Sizing ................................................................87
8.4.2Installation ..........................................................88
CHAPTER 9
TechnicalSpecifications
9.1 Power Data..............................................................89
9.1.1200-240V PowerSupply ....................................89
9.1.2 110-127 V Power Supply ...................................89
9.2Eletronic/General Data .............................................91
CHAPTER 10
Warranty
WarrantyTermsfor FrequencyInverters-CFW-10 .........92

8
CFW-10 - QUICK PARAMETER REFERENCE
Software:V1.0X
Application:
Model:
SerialNumber:
Responsible:
Date: / / .
QUICK PARAMETER REFERENCE, FAULTAND STATUS MESSAGES
I.Parameters
Parameter Function Adjustable Range Factory Unit User Setting Page
Setting
P000 ParameterAccess 0 to 4, 6 to 999 = Read 0- 55
5 =Alteration
READ ONLY PARAMETERS(P002 to P099)
P002 FequencyProportional Value 0 to 6553 - - 55
(P208xP005)
P003 MotorCurrent (output) 0 to 1.5xInom - A 55
P004 DCLinkVoltage 0 to 524 - V 55
P005 MotorFrequency (output) 0.00 to 99.9,100to .300 - Hz 55
P007 MotorVoltage(output) 0 to 524 - V 55
P008 HeatsinkTemperature 25 to 110 - ºC 55
P014 Last Fault 00 to 41 - - 55
P023 SoftwareVersion x . y z - - 55
REGULATION PARAMETERS (P100 to P199)
Ramps
P100 AccelerationTime #1 0.1 to 999 5.0 s 56
P101 DecelerationTime #1 0.1 to 999 10.0 s 56
P102 AccelerationTime #2 0.1 to 999 5.0 s 56
P103 DecelerationTime #2 0.1 to 999 10.0 s 56
P104 0= Inactive 0% 56
SRamp 1 = 50
2 = 100
Frequency Reference
P120 DigitalReference Backup 0 = Inactive
1 =Active 1 - 57
2 = Backup by P121
P121 KeypadFrequencyReference P133 to P134 3.00 Hz 57
P122 JOGSpeedReference P133 to P134 5.00 Hz 57
P124 MultispeedReference 1 P133 to P134 3.00 Hz 58
P125 MultispeedReference 2 P133 to P134 10.00 Hz 58
P126 MultispeedReference 3 P133 to P134 20.00 Hz 58
P127 MultispeedReference 4 P133 to P134 30.00 Hz 58
P128 MultispeedReference 5 P133 to P134 40.00 Hz 58
P129 MultispeedReference 6 P133 to P134 50.00 Hz 58
P130 MultispeedReference 7 P133 to P134 60.00 Hz 58
P131 MultispeedReference 8 P133 to P134 66.00 Hz 58
Speed Limits
P133 MinimumFrequency (Fmin) 0.00 to P134 3.0 Hz 59
P134 MaximumFrequency (Fmax) P133 to 300Hz 66.0 Hz 59

9
CFW-10 - QUICK PARAMETER REFERENCE
Parameter Function Adjustable Range Factory Unit User Setting Page
Setting
(1) Thisparameter can be changed only with the inverter disabled (stopped motor).
(2) ThisParametercannotbe changed when the routine "load factory default" is excuted (P204=5).
V/F Control
P136ManualTorqueBoost 0.0 to 100 20.0 % 59
(IxRCompensation )
P137 AutomaticTorqueBoost 0.0 to 100 0.0 %60
(automaticIxR Compensation)
P138 SlipCompensation 0.0 to 10.0 0.0 % 61
P142(1) (2) MaximumOutputVoltage 0.0 to 100 100 % 62
P145(1) (2) Field weakening P133 to P134 60.0 Hz 62
frequency(Fnom)
DC Link Voltage Regulation
P151 Actuationlevelofthe voltage Model 100: 360 to 460 430 V 63
regulationat theDC Link Model 200: 325 to 410 380
(intermediarycircuit)
Overload Current
P156 (2) MotorOverloadCurrent 0.3xInom to 1.3xInom 1.2xP295 A 64
Current Limitation
P169 (2) MaiximumOutput Current 0.2x1nomto 2.0x1nom 1.5xP295 A 64
CONFIGURATION PARAMETERS (P200 to P398)
Generic Parameters
P202(1) Control Mode 0 = Linear V/F Control 0- 65
1=Quadratic V/F Control
P204(1) Load parameterswith 0 to 4 = not used 0 - 66
Factory Setting 5 = Load Factory Default
6 to 999 = not used
P206 Auto-ResetTime 0 to 255 0 s 66
P208 ReferenceScale Factor 0.0 to 100 1.0 - 66
P219(1) Starting point of the switching 0.0 to 15.0 15.0 Hz 66
frequencyreduction
Local/Remote Definition
P221(1) SpeedReference 0 = HMI Keys / 0 - 67
Selection – Local Mode 1 = AI1
2 = E.P.
3to 5 = Reserved
6 = Multispeed
P222(1) SpeedReference 0 = HMI Keys / 1 - 67
Selection–RemoteMode 1 =AI1
2 = E.P.
3to 5 = Reserved
6 = Multispeed
P229(1) Command Selection 0 = HMI Keypad 0 - 67
Local Mode 1 = Terminals
P230(1) Command Selection 0 = HMI Keypad 1 - 67
– Remote Mode 1 = Terminals
P231(1) Forward/Reverse 0 = Forward 2 - 67
Selection 1=Reverse
2= Commands
AnalogInputs(s)
P234 AnalogInput AI1Gain 0.0 to 999 100 % 68
P235 (1) Analog Input AI1Signal 0 = (0 to 10) V/ (0 to 20)mA 0-69
1 = (4 to 20) mA
P236 AnalogInputAI1 Offset -120 to 120 0 % 69
P248 AnalogInput (AI1) Filter 0 to 200 200 ms 69
TimeConstant

10
CFW-10 - QUICK PARAMETER REFERENCE
Parameter Function Adjustable Range Factory Unit User Setting Page
Setting
(1) Thisparametercanbechangedonlywiththe inverter disabled (stopped motor).
Readonly
Parameter
Digital Inputs
P263(1) Digital InputDI1 0 = No Function 1 - 69
Function 1 = No Function or
P264(1) Digital InputDI2 GeneralEnable 5 - 69
Function 2 = GeneralEnable
P265(1) Digital InputDI3 3 = JOG 6 - 69
Function 4 = Start/Stop
P266(1) Digital InputDI4 5= Forward/Reverse 4 - 70
Function 6 = Local/Remote
7 = Multispeed
8 = Multispeed using
2nd ramp
9= Forward
10=Reverse
11=Forwardwith2nd ramp
12=Reversewith2nd ramp
13=On
14= Off
15 = Activates 2nd ramp
16 = Accelerates E.P.
17 = Decelerates E.P.
18 = Acclerates E.P. with
2nd ramp
19 = Decelerates E.P. with
2nd ramp
20=Withoutexternalfault
21 = Error reset
Digital Outputs
P277(1) Relay Output RL1 function 0 = Fs>Fx 7 - 74
1 = Fe>Fx
2 = Fs=Fe
2 = Is=Ix
4 and 6 = not used
5 = Run
7 = Not Fault
Fx and Ix
P288 Fx Frequency 0.0 to P134 3.0 Hz 75
P290 IxCurrent 0.0 to 1.5x1nom P295 A 75
Inverter Data
P295 RatedInverter 1.6 A 75
Current(Inom) 2.6
4.0
7.3
P297(1) Switching Fraquency 2.5 to 15.0 5.0 kHz 75
DC Braking
P300 DCBraking Time 0.0 to 15.0 0.0 s 76
P301 DCBraking Startfrequency 0.0 to 15.0 1.0 Hz 76
P302 BrakingTorque 0.0 to 100 50.0 % 76

11
CFW-10 - QUICK PARAMETER REFERENCE
Display Description Page
E00 OutputOvercurrent/Short-Circuit 78
E01 DCLinkOvervoltage 78
E02 DCLinkUndervoltage 78
E04 InverterOvertemperature 79
E05 OutputOverload (Ixt Function) 79
E06 ExternalFault 79
E08 CPUError (Watchdog) 79
E09 ProgramMemory Error (Checksum) 79
E24 ProgrammingError 79
E31 Keypad(HMI)CommunicationFault 79
E41 Self-DiagnosisError 79
II.FaultMessages
III.OtherMessages Display Description
rdy Inverteris ready to be enabled
Sub Powersupply voltage is too low for the inverter
operation(undervoltage)
dcb Inverterin DCbrakingmode
EPP Inverteris loading factory setting

12
CHAPTER 1
SAFETYNOTICES
Thismanual contains necessary information for the correct
useof the CFW-10Variable FrequencyDrive.
This manual has been written for qualified personnel with
suitabletrainingandtechnicalqualificationtooperatethistype
ofequipment.
ThefollowingSafetyNotices will be used inthismanual:
DANGER!
IftherecommendedSafetyNoticesare not strictly observed,
it can lead to serious or fatal injuries of personnel and/or
materialdamage.
ATTENTION!
FailuretoobservetherecommendedSafetyProcedures can
lead to material damage.
NOTE!
Thecontentofthismanualsuppliesimportantinformation for
thecorrectunderstandingofoperationandproperperformance
oftheequipment.
Thefollowingsymbolsmaybeattachedtotheproduct,serving
asSafety Notice:
High Voltages
Componentssensitivetoelectrostaticdischarge.Donot
touch them without proper grounding procedures.
Mandatory connection to ground protection (PE)
Shield connection to ground
DANGER!
Only qualified personnel should plan or implement the
installation, start-up, operation and maintenance of this
equipment. Personnel must review entire Manual before
attemptingtoinstall, operate or troubleshootthe CFW-10.
Thesepersonnel must followall safety instructions included
inthisManualand/ordefinedby local regulations.
Failure to comply with these instructions may result in
personnelinjuryand/orequipmentdamage.
1.3 PRELIMINARY
RECOMMEN-
DATIONS
1.2 SAFETYNOTICEONTHE
PRODUCT
1.1 SAFETY NOTICESINTHE
MANUAL

13
CHAPTER 1 - SAFETY NOTICES
NOTE!
Inthismanual,qualifiedpersonnelare defined as people that
aretrained to:
1. Install, ground, power up and operate the CFW-10
according to this manual and the local required safety
procedures;
2. Useofsafetyequipmentaccordingtothelocal regulations;
3. Administer FirstAid.
DANGER!
Theinvertercontrolcircuit(CC10,DSP)andtheHMI-CFW10-
Parenotgrounded. They are highvoltagecircuits.
DANGER!
Always disconnect the supply voltage before touching any
electricalcomponentinsidetheinverter.
Manycomponentsare charged withhighvoltages,evenafter
the incoming AC power supply has been disconnected or
switchedOFF. Wait atleast10minutesforthe totaldischarge
ofthe power capacitors.
Alwaysconnecttheframeoftheequipmenttotheground(PE)
atthesuitableconnectionpoint.
ATTENTION!
All electronic boards have components that are sensitive to
electrostatic discharges. Never touch any of the electrical
componentsorconnectorswithoutfollowingpropergrounding
procedures.Ifnecessarytodoso,touchtheproperlygrounded
metallicframeor use asuitable ground strap.
NOTE!
Inverterscaninterferewithotherelectronicequipment.Inorder
toreducethisinterference,adoptthemeasuresrecommended
inSection3“Installation”.
NOTE!
Read this entire manual carefully and completely before
installingoroperating the CFW-10.
Do not apply High Voltage (High Pot) Test on the Inverter!
If this test is necessary, contact the Manufacturer.

14
Thischapterdefinesthe contents and purposes ofthismanu-
al and describes the main characteristics of the CFW-10
frequency inverter. Identification, receiving inspections and
storagerequirements are alsoprovided.
ThisManual is divided into10 Chapter,providing infornation
totheuseronreceiving, installation, start-up and operation:
Chapter 1 - SafetyNotices;
Chapter 2 - GeneralInformationsandReceiving the CFW-
10;
Chapter 3 - CFW-10 and RFI Filters - Mechanical and
ElectricalInstallation(powerandcontrolcircuitry)
Chapter 4 - Start-up- Stepstofollow
Chapter 5 - Using theKeypad (HumanMachineInterface -
HMI)
Chapter 6 - Setup and Read-only Parameters - Detailed
description.
Chapter 7 - Solving problems, cleaning instructions and
preventivemaintenance
Chapter 8 - CFW-10 Optional Devices - Description,
technicalcharacteristicsandinstallation.
Chapter 9 - CFW-10 ratings - Tables and technical
information.
Chapter 10 - CFW-10Warranty.
This Manual provides information for the correct use of the
CFW-10.TheCFW-10isveryflexibleandallows theoperation
inmanydifferent modes asdescribed in this manual.
AstheCFW-10canbeappliedinseveralways,itisimpossible
todescribeherealloftheapplicationpossibilities.WEGdoes
not accept any responsibility when the CFW-10 is not used
accordingtothisManual.
NopartofthisManualmaybereproducedinanyform,without
thewrittenpermissionof WEG.
It is important to note the Software Version installed in the
CFW-10,sinceit defines the functionsandthe programming
parametersof theinverter.
This manual refers to the software version indicated on the
insidecover.Forexample,theVersion1.0Xappliestoversions
1.00 to 1.09, where “X” is a variable that will change due to
minorsoftwarerevisions.
The Software Version can be read in the Parameter P023.
GENERALINFORMATION
2.1ABOUTTHIS MANUAL
2.2 SOFTWAREVERSION
CHAPTER 2

15
CHAPTER 2 - GENERAL INFORMATION
2.3ABOUT THE CFW-10 TheCFW-10frequencyinverter isfittedwiththeV/F(scalar)
controlmethod.
The V/F (scalar) mode is recommended for more simple
applicationssuchaspumpandfandrives.Inthesecasesone
can reduce the motor and inverter losses by using the
"QuadraticV/F"option,that results in energysaving.
TheV/F modeisalsousedwhen morethanonemotorshould
be driven simultaneously by one inverter (multimotor
application).
Chapter 9 shows the different power lines and additional
technicalinformation
The block diagram below gives a general overview of the
CFW-10.
Figure 2.1 - CFW-10 Block Diagram for models 1,6 - 2,6 - 4,0A / 200-240V
Power
Supply L/L1
PE
Analog
Input
(AI1)
Digital
Inputs
(DI1 to DI4)
POWER
CONTROL
POWER SUPPLY AND
CONTROL/POWERINTERFACES
"CC10"
CONTROL BOARD
WITH DSP Relay
Output
(RL1)
Motor
U
V
W
Rsh
NTC
RFI Filter
N/L2

16
CHAPTER 2 - GENERAL INFORMATION

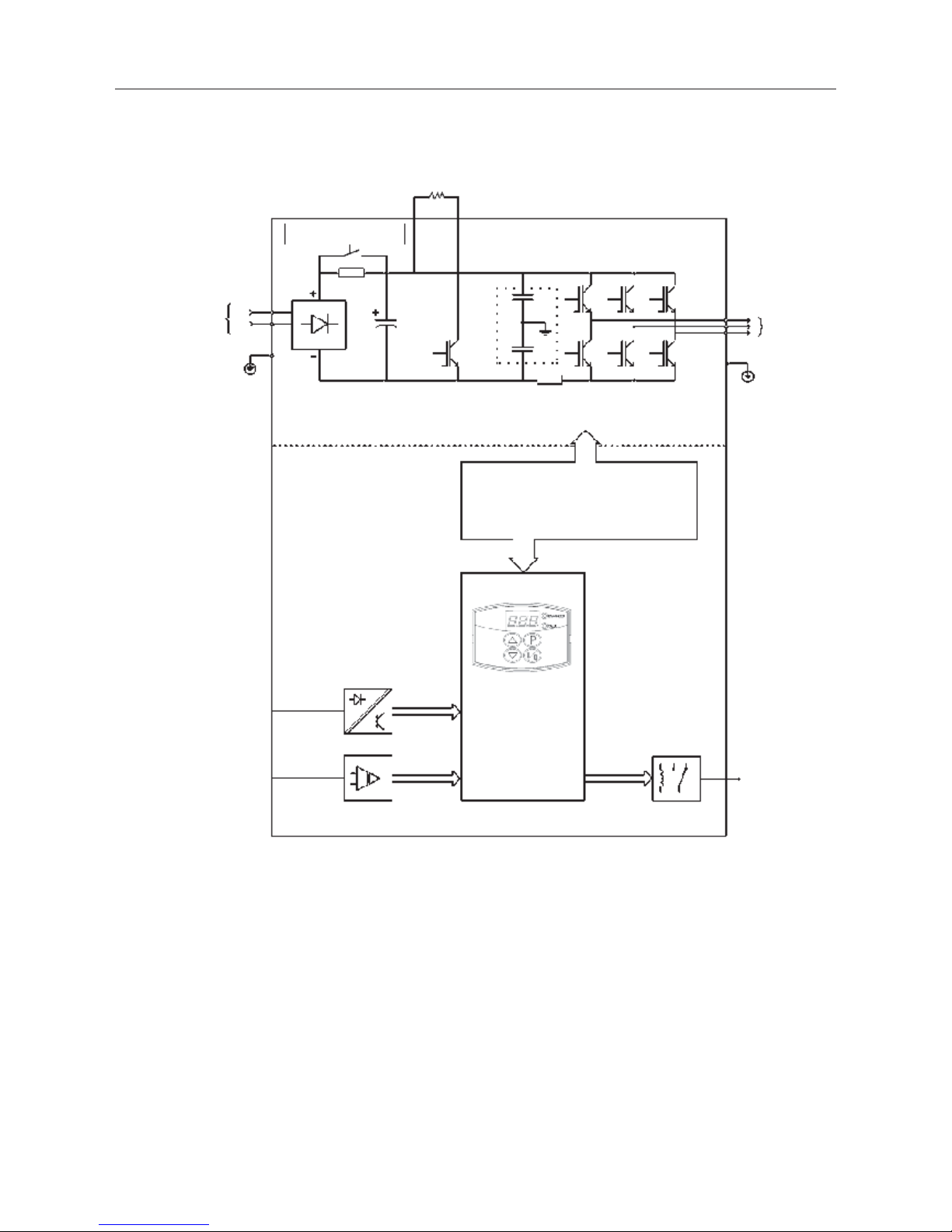

Figure 2.2 - CFW-10 Block Diagram for model 7,3 A/200-240 V
Power
Supply L/L1
PE
Analog
Input
(AI1)
Digital
Inputs
(DI1 to DI4)
POWER
CONTROL
POWER SUPPLY FOR ELETRONICS
ANDINTERFACE BETWEEN
POWERANDCONTROL.
"CC10"
CONTROL
BOARD
WITH DSP Relay
Output
(RL1)
Motor
U
V
W
Rsh
+UD
RFI Filter
N/L2
BR
Breaking Resistor
(Optional)
Pre-Load

17
CHAPTER 2 - GENERAL INFORMATION
Power
Suplly L/L1
Analog
Input
(AI1)
Digital
Inputs
(DI1 a DI4)
POWER
CONTROL
POWER SUPPLY FOR ELETRONICS
ANDINTERFACE BETWEEN
POWERANDCONTROL.
"CC10"
CONTROL
BOARD
WITH DSP Relay
Output
(RL1)
Motor
U
V
W
Rsh
NTC
PE PE
RFI Filter
N/L2

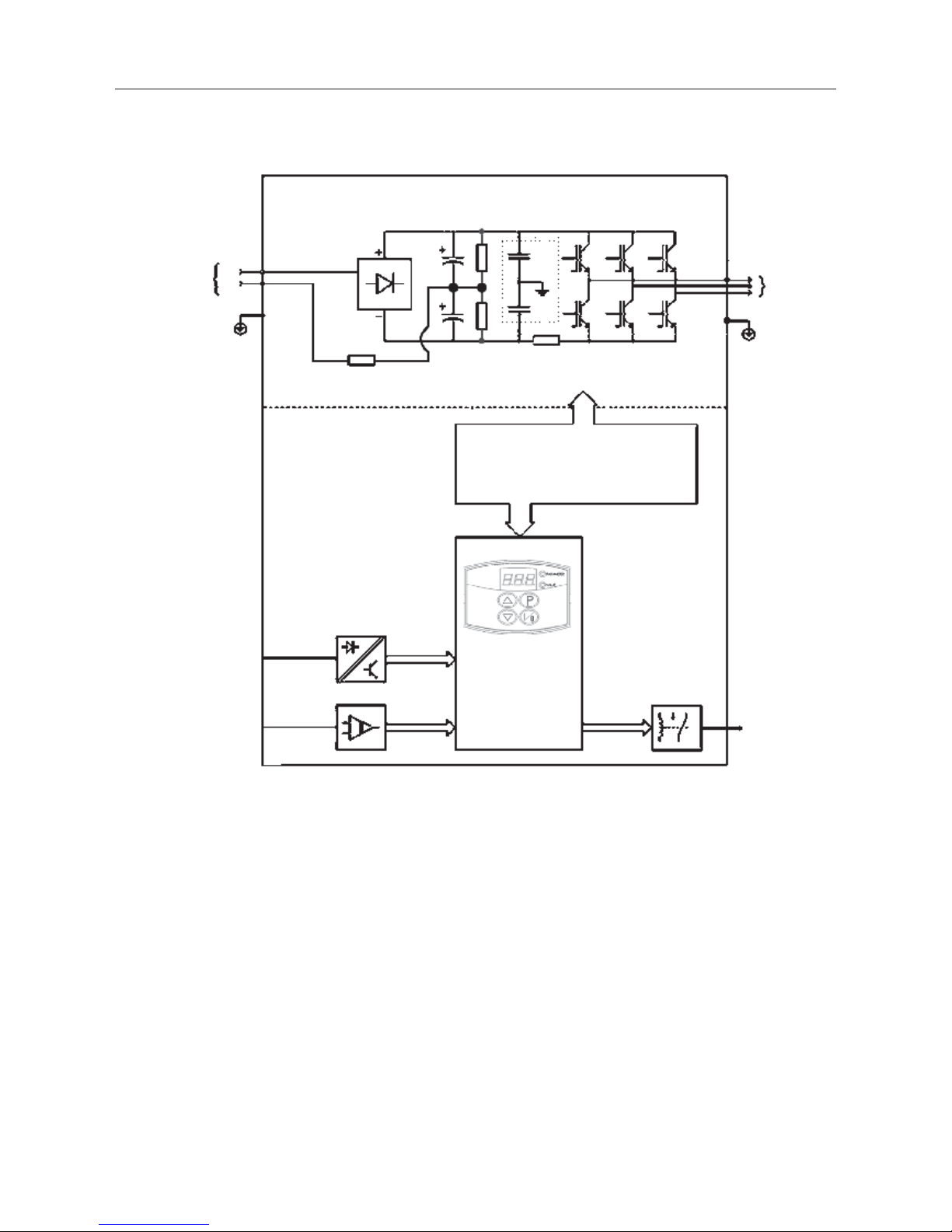

Figure 2.3 - CFW-10 Block Diagram for model 1,6Ato 2,6A/110-127 V

18
CHAPTER 2 - GENERAL INFORMATION
Figura 2.4 - CFW-10 Block Diagram for model 4,0A /110-127 V
Power
Suplly L/L1
Analog
Input
(AI1)
Digital
Inputs
(DI1 a DI4)
POWER
CONTROL
POWER SUPPLY FOR ELETRONICS
ANDINTERFACE BETWEEN
POWERANDCONTROL.
"CC10"
CONTROL
BOARD
WITH DSP Relay
Output
(RL1)
Motor
U
V
W
Rsh
PE PE
RFI Filter
N/L2
+UD BR
Breaking Resistor
(Optional)
Pre-Load

19
CHAPTER 2 - GENERAL INFORMATION
2.4 CFW-10IDENTIFICATION
Figure 2.5 - Description and Location of the Nameplate
Software
Version Hardware
Revision
Rated Input Data
(Voltage, Current, etc)
Manufacturing DateWEG Part NumberSerial Number
CFW-10 Model
Rated Output Data
(Voltage, Frequency)
LateralNameplate CFW-10

20
CHAPTER 2 - GENERAL INFORMATION
HOWTO SPECIFY THECFW-10 MODEL
CFW-10 0040 S 2024 P O 00 00 00 Z
Special
Software
00= none
Special
Hardware
00= none
Rated Output
Current for
220 a 240V:
0016=1.6A
0026=2.6A
0040=4.0A
0073=7.3A
110 a 127V:
0016=1.6A
0026=2.6A
0040=4.0A
Number of
phases of
the power
supply
s=single
phase
Manual
Language:
P=Portuguese
E=English
S= Spanish
Power
supply:
2024 =
200 to 240V
1112 =
110 to 127V
Options:
S= standard
O=with
options
WEG
Series 10
Frequency
Inverter
Control
Board:
00=
standard
control
End code
NOTE!
The Option field (S or O) defines if the CFW-10 is a
standard version or if it will be equipped with any optional
devices.Ifthestandardversionisrequired,thespecification
codeends here.
Themodel number hasalways the letter Z atthe end. For
example:
CFW100040S2024ESZ = standard 4.0A CFW-10 inver-
ter, single-phase at 200V to 240V input with manual in
English.
If the CFW-10 is equipped with any optional devices, you
mustfill out all fieldsin the correctsequence up tothe last
optional device, the model number is completed with the
letterZ.
Thelistingoftheexistingmodels(voltage/current)isshown
initem 9.1.
The CFW-10 is supplied in cardboard boxes.
Thereisanameplateontheoutsideof the packing box that is
identicalto that one onthe CFW-10.
Please check if the CFW-10 is the one you ordered.
Checkif the:
CFW-10nameplatedatamatcheswithyourpurchaseorder.
Theequipmenthasnot been damaged during transport.
Ifanyproblemisdetected, contactthecarrierimmedately.
If the CFW-10 is not installed immediately, store it in a clean
and dry room (storage temperatures between -25°C and
60°C). Cover it to protect it against dust, dirt or other
contamination.
2.5 ReceivingandStoring
