Weidmüller UR20-1SM-50W-6DI2DO-P User manual
Remote-I/O-System u-remote UR20
Stepper motor module UR20-1SM-50W-6DI2DO-P
Manual
Letʼs connect.
Content
2575290000/03/03.2020 2Manual Stepper motor module UR20-1SM-50W-6DI2DO-P
1 About this documentation 3
1.1 Symbols and notes 3
1.2 Complete documentation 3
1.3 Standard data structure 4
2 Safety 5
2.1 General safety notice 5
2.2 Intended use 6
2.3 Use in a potentially explosive atmosphere 6
2.4 Legal notice 7
3 Module description 8

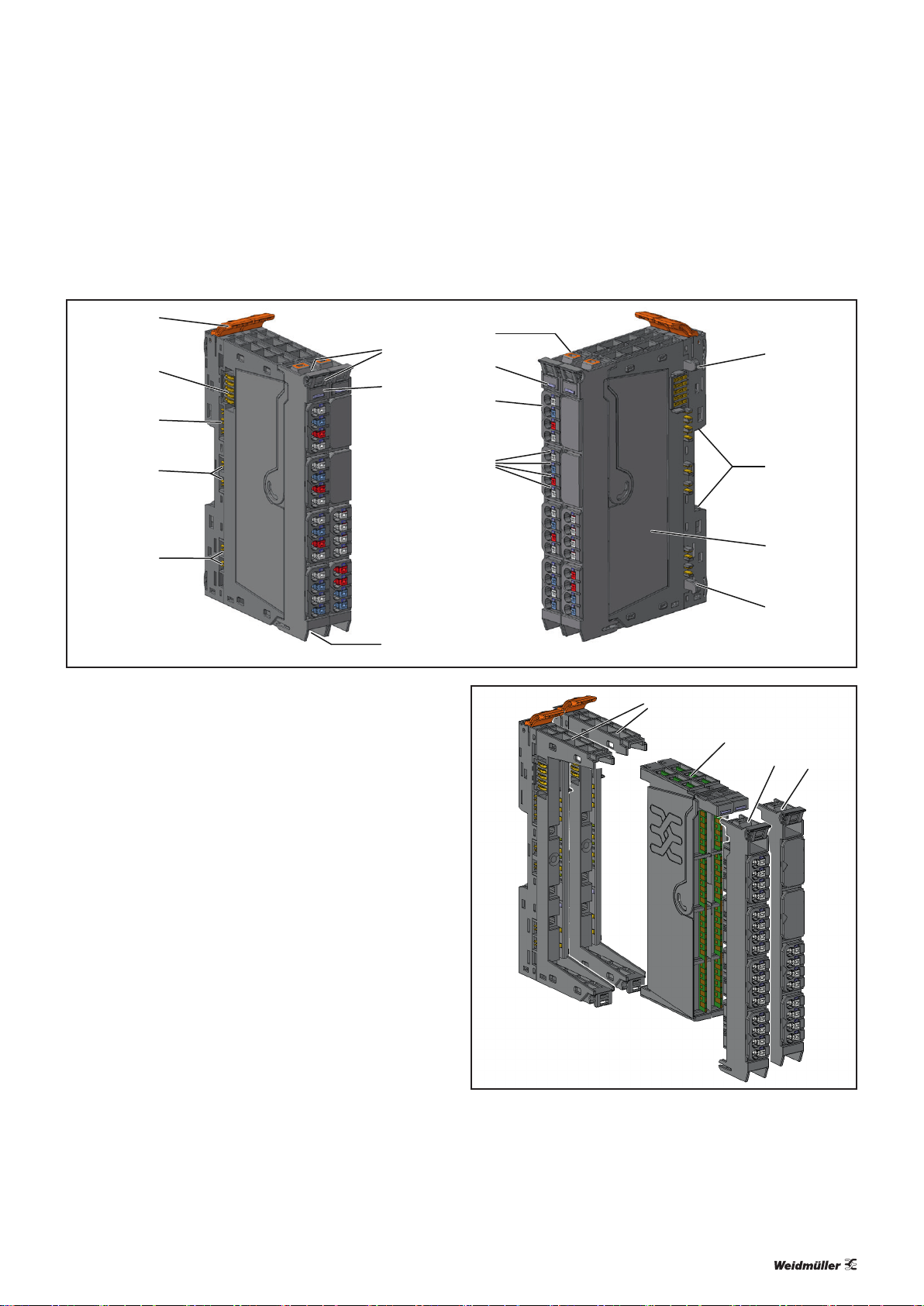

3.1 Device description 9

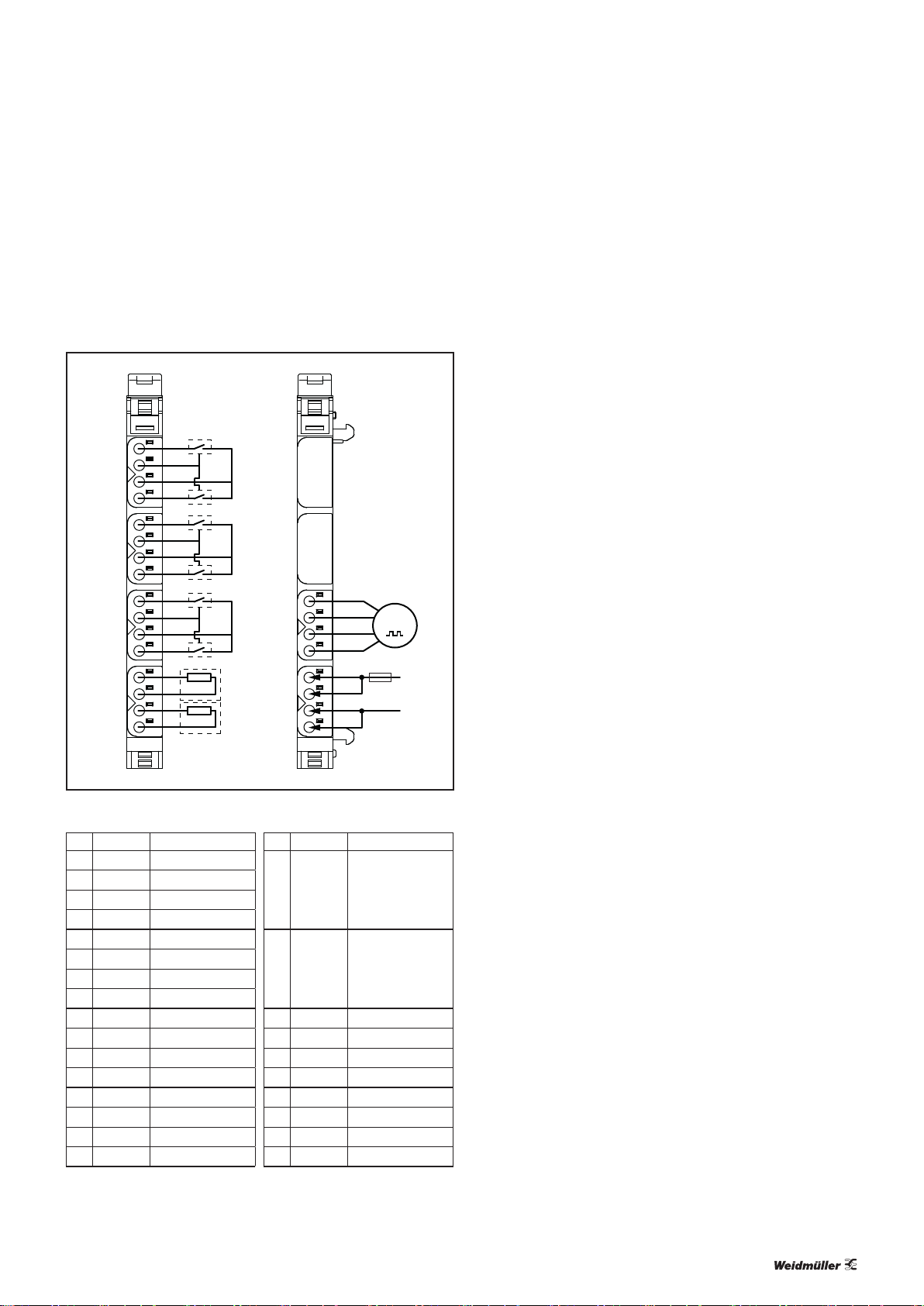

3.2 Connections 10

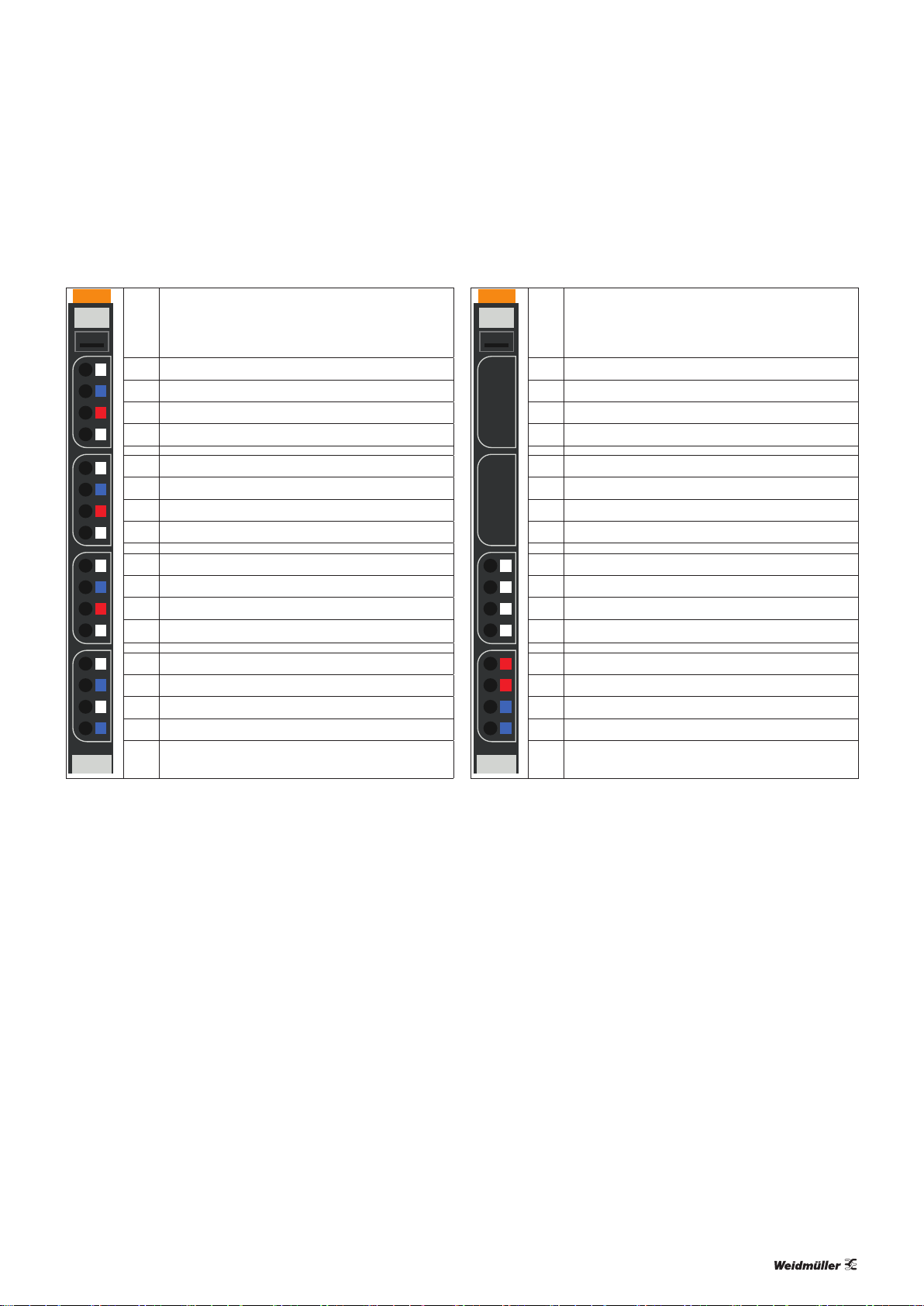

3.3 LED indicators 11

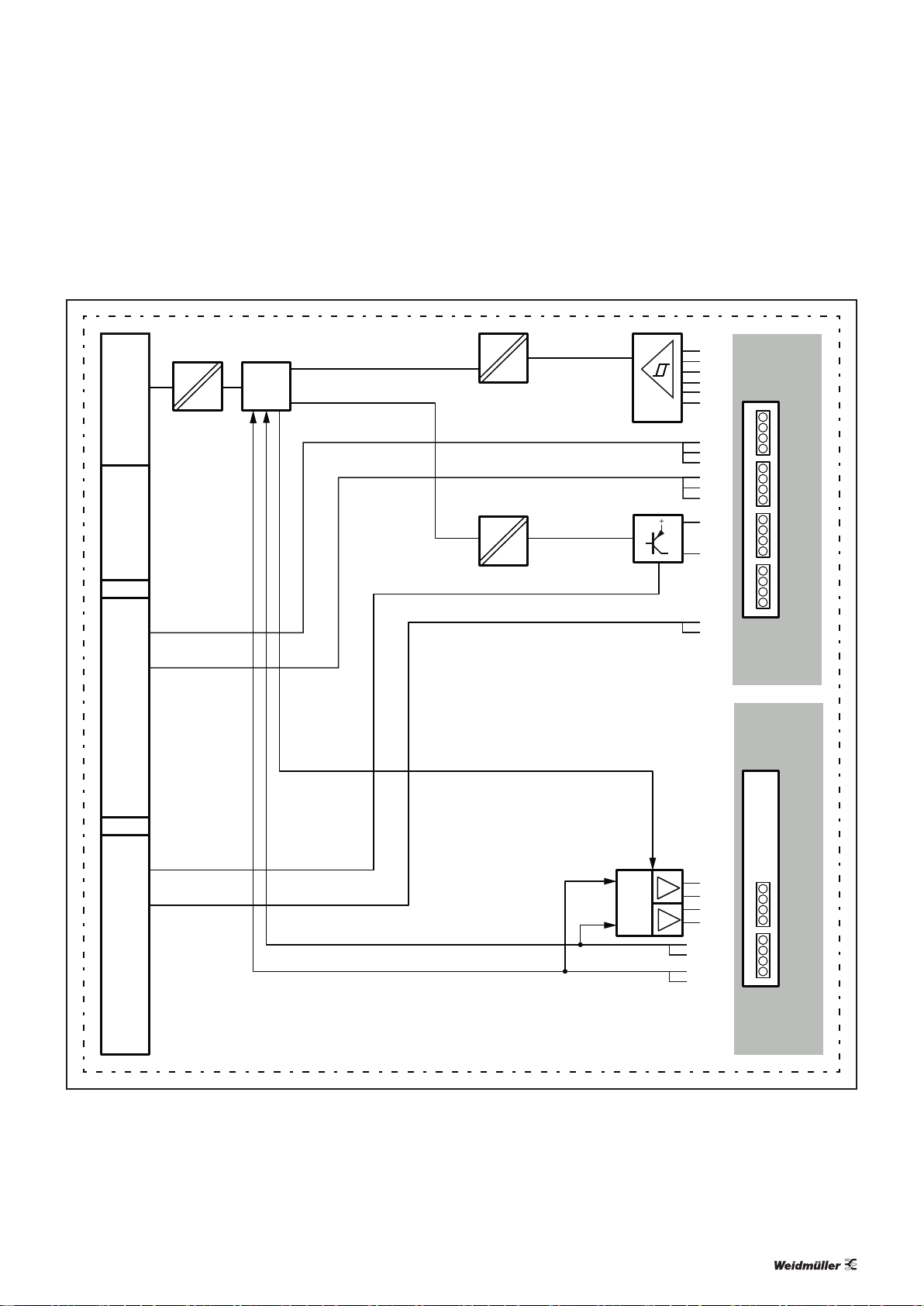

3.4 Block diagram 12
3.5 Technical data 13
3.6 Derating curves 16
3.7 Adjustable parameters 17
4 Assembly and installation 22
4.1 Connecting the external power supply 22
4.2 Connecting the stepper motor 22
4.3 Connecting the reference switch 23
4.4 Connecting the limit switch 23
4.5 Connecting the incremental rotary encoder 24
4.6 Connecting signalers for jog mode and tip mode 24
4.7 Connecting standard eld devices 24
5 Commissioning and operation 25
5.1 Requirements 25
5.2 Device description les 25
5.3 Integrating the module in the conguration 25
5.4 Parameterising the module for the drive system 26
5.5 Controlling the drive system 28
5.6 Register communication via process data 30
5.7 Creating motion proles with the conguration application 32
5.8 Acceleration types 35
5.9 Behaviour on interruption of power supply 37
6 Process data 38
6.1 Process input data 38
6.2 Process output data 39
6.3 Data width, dependent on the coupler used 40
7 Diagnostics and troubleshooting 41
7.1 Diagnostic data 41
7.2 LED indicators and troubleshooting 42
8 Disassembly and disposal 43
8.1 Disassembling a u-remote-Modul 43
8.2 Disposing of a u-remote-Modul 43
Manufacturer
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
T +49 5231 14-0
F +49 5231 14-292083
www.weidmueller.com
Dokument No. 2575290000
Revision 03/March 2020
1 About this documentation | Symbols and notes
3Manual Stepper motor module UR20-1SM-50W-6DI2DO-P2575290000/03/03.2020
1.1 Symbols and notes
The safety notices in this documentation are designed accor-
ding to the severity of the danger.
DANGER
Imminent danger to life!
Notes with the signal word “Danger” warn you
of situations that will result in serious injury
or death if you do not follow the instructions
given in this manual.
WARNING
Possible danger to life!
Notes with the signal word “Warning” warn
you of situations that may result in serious
injury or death if you do not follow the
instructions given in this manual..
CAUTION
Risk of injury!
Notes with the signal word “Caution” warn
you of situations that may result in injury if
you do not follow the instructions given in this
manual.
ATTENTION
Material damage!
Notes with the signal word “Attention” warn you of hazards
that may result in material damage.
Text next to this arrow are notes that are
not relevant to safety, but provide important
information about proper and effective work
procedures.
The situation-dependent safety notices may contain the fol-
lowing warning symbols:
Symbol Meaning
Warning against dangerous electrical voltage
Warning against explosive atmospheres
Warning against electrostatically charged com-
ponents
Warning against automatic startups
Observe the documentation
▶All instructions can be identified by the black triangles
next to the text.
–Lists are marked with a tick.
1.2 Complete documentation
The documentation is intended for trained elec-
tricians who are familiar with national and inter-
national laws, provisions and standards.
This manual contains product-specic informa-
tion and notes about the Stepper motor module
UR20-1SM-50W-6DI2DO-P. It supplements but
does not replace the u-remote IP20 manual
(document No. 1432790000).
The u-remote Web Server Manual
(document No. 2112220000) describes how to
use the web server application.
All documents are available to download on the
Weidmüller Website.
1 About this documentation
1 About this documentation | Standard data structure
4Manual Stepper motor module UR20-1SM-50W-6DI2DO-P2575290000/03/03.2020
1.3 Standard data structure
All given details of data structure (e.g. process
data, parameters) refer to the u-remote internal
mapping, when the standard data format is set in
the coupler parameters (see table below).
The way these data are represented by other
eldbus participants (e.g. the PLC), depends addi-
tionally on the eldbus specication and the data
format of the communicating device. Therefore
it might happen, that bytes are changed within a
word or words are changed within a double word.
Standard data formats
Fieldbus coupler Standard data format
UR20-FBC-PB-DP, UR20-FBC-PB-DP-V2
Motorola
UR20-FBC-PN-IRT, UR20-FBC-PN-IRT-V2,
UR20-FBC-PN-ECO
UR20-FBC-MOD-TCP, UR20-FBC-MOD-TCP-V2,
UR20-FBC-MOD-TCP-ECO
UR20-FBC-CAN
Intel
UR20-FBC-EC, UR20-FBC-EC-ECO
UR20-FBC-EIP
UR20-FBC-DN
UR20-FBC-PL
UR20-FBC-IEC61162-450
1.4 Software releases described
The present manual describes the following rmware releas-
es of the couplers:
Firmware releases
Order No. Fieldbus coupler Release
1334870000 UR20-FBC-PB-DP 01.09.00
2614380000 UR20-FBC-PB-DP-V2 01.09.00
1334880000 UR20-FBC-PN-IRT 01.08.00
2566380000 UR20-FBC-PN-IRT-V2 01.10.01
2659680000 UR20-FBC-PN-ECO 01.00.00
1334910000 UR20-FBC-EC, HW 01.xx.xx 01.11.00
1334910000 UR20-FBC-EC, HW 02.xx.xx 01.12.00
2659690000 UR20-FBC-EC-ECO 01.00.00
1334930000 UR20-FBC-MOD-TCP 02.07.00
2476450000 UR20-FBC-MOD-TCP-V2 02.08.00
2659700000 UR20-FBC-MOD-TCP-ECO 01.00.00
Firmware releases
Order No. Fieldbus coupler Release
1334920000 UR20-FBC-EIP, HW 01.xx.xx 01.08.00
1334920000 UR20-FBC-EIP, HW 02.xx.xx 02.09.00
1334900000 UR20-FBC-DN 01.08.00
1334890000 UR20-FBC-CAN 01.08.00
1334940000 UR20-FBC-PL 01.08.00
2661310000 UR20-FBC-IEC61162-450 01.01.00
Device description files
Fieldbus protocol Release
PROFIBUS UR20-FBC-PB-DP 2.93
UR20-FBC-PB-DP-V2 2.93
UR20-FBC-PN-ECO 20200227
PROFINET UR20-FBC-PN-IRT 20200105
UR20-FBC-PN-IRT-V2 20200207
EtherCAT UR20-FBC-EC 00011200
UR20-FBC-EC-ECO 00010000
Ethernet/IP 1.6
DeviceNet 1.3
CANopen 1.19
POWERLINK 1.0
Web server language files
Language Release Availablity
German 01.05.00 On delivery
English 01.05.00 On delivery
Chinese 01.05.00 On delivery
French 01.05.00 Available online
Italian 01.05.00 Available online
Spanish 01.05.00 Available online
Portuguese 01.05.00 Available online
Korean 01.05.00 Available online
Japanese 01.05.00 Available online
