Welch Allyn SureSight User manual

4341 State Street Road
Skaneateles Falls, NY 13153-0220
140400-1 Rev. A

Table of Contents
Warnings&Symbols..............................1
Misesengardeetsymboles........................4
TechnicalSpecifications ...........................8
FunctionandIntendedApplication ..................10
SureSightDisplay,Controls,andFeatures ............11
FirstTimeSet-Up ...............................13
Stand ............................................13
Battery...........................................13
PlusorMinusCylinderConvention .....................14
DiopterPowerResolution ............................14
Controls.......................................15
OperatingInstructions............................16
ImportantOperatingTips.............................18
Helpfulhintsfortestingpre-schoolers...................18
Results...........................................19
Adult/ChildCalibration ...............................20
Adult/ChildModeTips ...............................20
Replacement and Recycling of Battery . . . . . . . . . . . . . . . 20
ReplacingtheBattery ...............................20
Charging..........................................21
RecyclingLithiumIonBattery .........................21
ScreeningModeandSoftwareUpdates..............22

ScreeningMode ...................................22
UpdatingSureSightSoftware .........................22
HandStrapReplacement .........................23
Cleaning and Sterilization of the SureSight . . . . . . . . . . . . 23
Service,Calibration,andWarrantyInformation.........24
Warranty .........................................24
ServiceandWarranty................................25
SureSightRechargeableBattery .......................25
CalibrationandMaintenance ..........................25

1
Warnings & Symbols
ATTENTION: Refer to the operating instructions. This symbol ( ) is
intended to advise the user of the presence of important operating or
maintenance instructions in the documents accompanying the
instrument.
Service or Repair to be performed by qualified, authorized personnel
only. There are no user serviceable parts inside the instrument.
Opening this device can expose the user to harmful invisible laser
radiation.
Use only with Welch Allyn 710 series chargers.
Replacement parts and accessories - Use only approved replacement
parts and accessories specified in this manual. Refer to the
maintenance section of this manual for more information.
Do not sterilize the instrument or any of its components.
Use only with IEC 60601-1 approved printers, or keep printer out of
patient vicinity.
Disassembly of instrument beyond the extent described in this
manual will void the warranty. Refer all servicing to Welch Allyn or a
Welch Allyn authorized service representative listed in the Servicing,
Calibration and Warranty Information section. Opening this device
can expose the user to harmful invisible laser radiation. Only the
battery cover is to be opened by the user.
Battery replacement: Replace with Welch Allyn model # 72420
Lithium Ion battery only.

2
Do not attempt to disassemble or modify the battery pack. There are
no user serviceable parts inside pack.
Do not attempt to directly solder to the battery pack.
Do not attempt to connect the positive and negative battery terminals
to each other, nor to any other device.
“Caution” - use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous
radiation exposure.
Do not operate, charge, leave or discard battery pack in any
environment where it may exceed 0°C to 40°C.
Do not immerse the battery pack in water.
Do not attempt to open or pierce the battery pack.
Do not strike or throw the battery pack.
Do not use a battery pack which appears to be deformed, leaking,
corroded, or is otherwise irregular.
If electrolyte leaking from battery contacts your skin or eyes, rinse
with running water and immediately seek medical attention.
IPXØ: Not protected against the ingress of water.
Not for use in the presence of flammable anesthetics.

3
Type BF Equipment.
Double Insulated.
ETL listed: UL2601-1, CSA C22.2 No. 601.1, IEC 60601-1, AS 3200.1.
IEC 60601-1-2
Australia EMC Framework Compliance
The CE mark on this device indicates that it has been tested and
conforms to the provisions noted within the 93/42/EEC Medical
Device Directive.

4
Mises en garde et symboles
ATTENTION : Consulter le mode d'emploi. Ce symbole ( ) signale
à l’utilisateur la présence de renseignements importants relatifs au
fonctionnement ou à l'entretien de l'instrument dans les documents
qui l'accompagnent.
L'entretien ou la réparation ne doivent être effectués que par un
personnel compétent habilité. Cet instrument ne contient pas de
pièces réparables par l'utilisateur. L'ouverture de ce dispositif risque
d'exposer l'utilisateur à un rayonnement laser invisible nocif.
Utiliser uniquement avec des chargeurs Welch Allyn série 710.
Pièces et accessoires de rechange – Utiliser uniquement les pièces et
accessoires de rechange autorisés spécifiés dans ce manuel.
Consulter la section Entretien de ce manuel pour des informations
supplémentaires.
Ne pas stériliser l'instrument ni aucun de ses composants.
Utiliser uniquement avec une imprimante conforme à la norme CEI
60601-1, ou utiliser l'imprimante à distance du patient.
Un démontage de l'instrument au-delà des recommandations de ce
manuel annule la garantie. Confier toutes réparations à Welch Allyn ou
à un représentant agréé par Welch Allyn listé dans la section
Informations sur les réparations, l'étalonnage et la garantie.
L'ouverture de ce dispositif risque d'exposer l'utilisateur à un
rayonnement laser invisible nocif. Seul le couvercle de la batterie peut
être ouvert par l'utilisateur.

5
Remplacement de la batterie : Remplacer uniquement par une
batterie au lithium Welch Allyn modèle no72420.
Ne pas essayer de démonter ou de modifier le bloc-batterie. Il ne
contient pas de pièces réparables par l'utilisateur.
Ne pas essayer de souder directement sur le bloc-batterie.
Ne pas essayer de relier les bornes positive et négative l'une à l'autre,
ou à d'autres dispositifs.
Attention : Des procédures de contrôle, de réglage ou de
performance autres que celles qui sont spécifiées dans cette notice
peuvent entraîner une exposition dangereuse au rayonnement.
Ne pas activer, charger, laisser ou jeter le bloc-batterie à un endroit où
la température ambiante est inférieure à 0° C ou supérieure à 40°C.
Ne pas immerger le bloc-batterie dans l'eau.
Nepasessayerd'ouvriroudepercerlebloc-batterie.
Ne pas frapper ni lancer le bloc-batterie.
Ne pas utiliser un bloc-batterie qui semble fuir ou être déformé,
corrodé ou anormal.

6
En cas de contact cutané ou oculaire avec une fuite d'électrolytes
de la batterie, rincer à l'eau courante et consulter immédiatement
un médecin.
IPXØ : Non protégé contre l’infiltration d'eau.
Ne pas utiliser en présence d'anesthésiques inflammables.
Equipement de type BF.
Double isolation.
Homologations ETL : UL 2601-1, CSA C22.2, No601.1 et IEC 60601-
1,
AS3200.1, IEC 60601-1-2
Obedece la norma australiana EMC Framework
La marque CE appliquée sur ce dispositif indique qu'il a été testé et
déclaré conforme aux dispositions de la directive 93/42 de la CEE
sur les appareils médicaux.

7
Authorized European Representative Address:
European Regulatory Manager
Welch Allyn, Ltd.
Navan Business Park
Dublin Road
Navan, County Meath, Republic of Ireland
Telephone: [phone]
Fax: [phone]
Note: This product complies with current required standards for electromagnetic
interference and should not present problems to other equipment or be affected
by other devices. As a precaution, avoid using this device in close proximity to
other equipment.
Note: This product contains no hazardous materials. Its disposal will not
contaminate or harm the environment, or present any risk to individuals disposing
of the product. As a precaution, it is recommended you contact your local
disposal and/or recycling authority for information regarding the disposal of the
equipment.

8
Technical Specifications
Technology: Welch Allyn proprietary autorefractor hardware/
algorithm
Working distance: 14 inches (35 cm.)
Distance detection: Automatic, with audible and visual cues
Eyepiece: Illuminated target for easy aiming
Data acquisition time: 2.4s/eye
Data acquisition: Measures and averages 5 to 8 readings/eye
Reliability measure: Indicates number of and variation among
measurements for the given eye
Diopter display: 1/8 or 1/4 diopter increments
Axis: 1( increments
Stand: Compact charger and SureSight storage
Weight: Approximately 2.0 lbs. (0.9 Kg.)
Dimensions: 6.5” x 7.75” x 2”
Class II equipment: Continuous operation.
Transport/Storage: -20°C~49°C, 10%(100% R.H. Max, 500hPa -
1060hPa Altitude
Operating: 10°C~30°C, 30%(75% R.H. Max, 500hPa - 1060hPa
Altitude
Measurement Range: Sphere: +6.0 to -5.0 Diopters
Cylinder: ( 3 Diopters
Battery voltage: 7.2v nominal (Lithium Ion)
Battery life: More than 3 hours of continuous usage

9
Low-Battery warning: Indicates 10 - 15 minutes usage remains
Interfaces: Remote infrared link to thermal printer.
RS-232 interface for IBM compatible PC for future
software upgrades/data transfer to electronic
medical records.
Laser safety: Class 1 Laser Product per CDRH 21CFR 1040.10 and
1040.11, IEC 825-1 (1996) pending and EN60825-1
(1996) pending
Patents: US 6,007,204 and Des. 413,979 International Patents
Pending
Office illumination: Not for use in direct sunlight. Indoor operation only.
Materials: This product is latex free.
Electromagnetic FCC Part 15, Class A (USA)
Compatibility: This device complies with CFR 47 Part 15, Class A of
the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
and
(2) This device must accept any interference
received including interference that may cause
undesired operation.

10
Function and Intended Application
Thank you for purchasing the Welch Allyn SureSight™ Autorefractor. Please read
and follow the instructions found in this manual before using your new SureSight
to ensure accurate and reliable service.
SureSight is the child-friendly, portable autorefractor that lets you test patients -
including young children and adults - anytime, anywhere. Carry it from room to
room, to your waiting area, even off-site.
SureSight solves many of the problems you face when performing exams. You
can perform objective refraction from a non-threatening 14 inches (35 cm) away -
even through glasses and contact lenses. The unit’s flashing lights and sounds
engage the patient throughout the exam. There’s no intimidating equipment. No
cycloplegic drops to contend with. Just fast, easy refractions. That’s why
SureSight makes testing even your toughest patients quick and painless - for both
you and your patients.

11

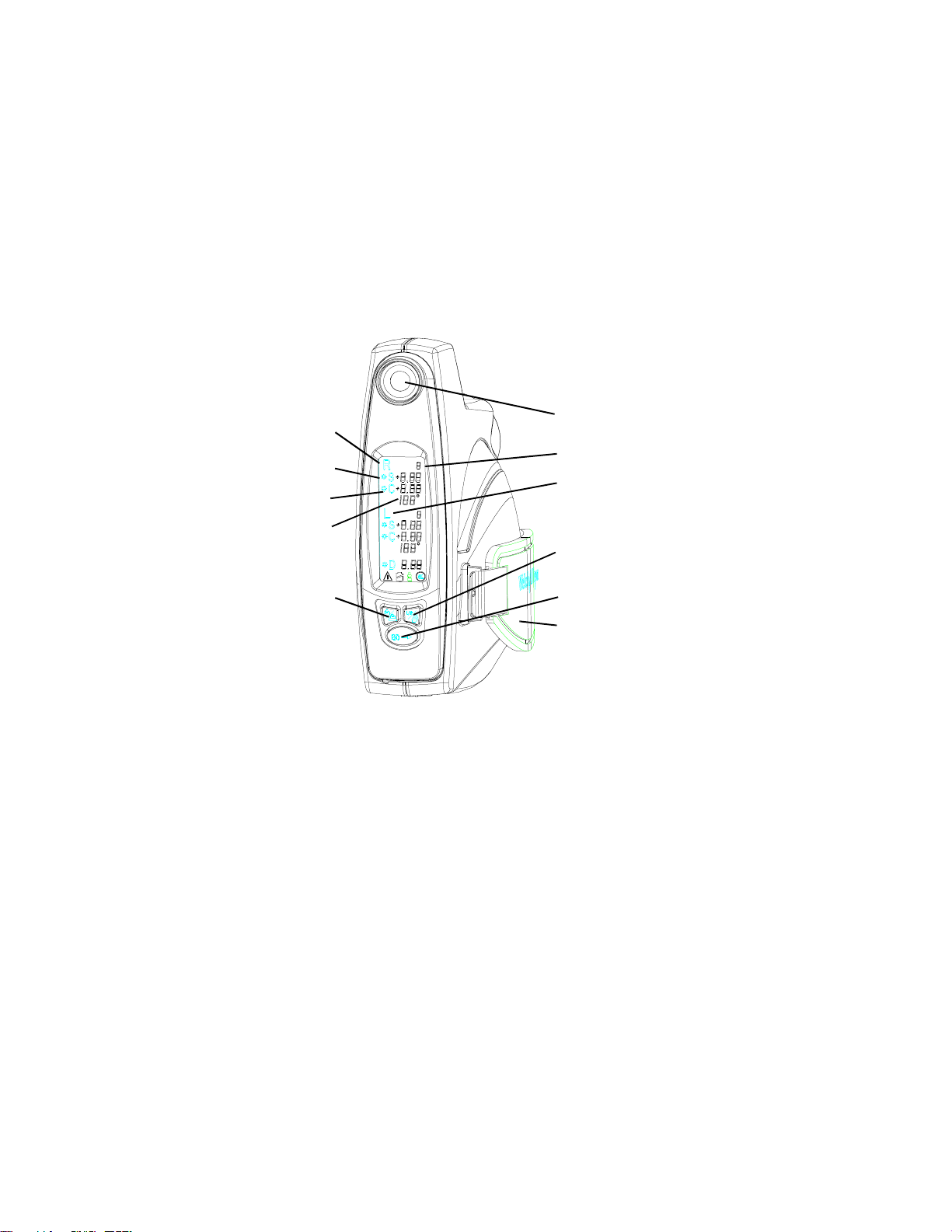

SureSight Display, Controls, and Features
“Right” eye field
Sphere
Cylinder
Axis
Clear results
and Child/adult
calibration
Peephole with
crosshair target
for aiming
Reliability measure
“Left” eye field
Print and left/
right toggle
Start Button
Self-adjusting
hand strap

12

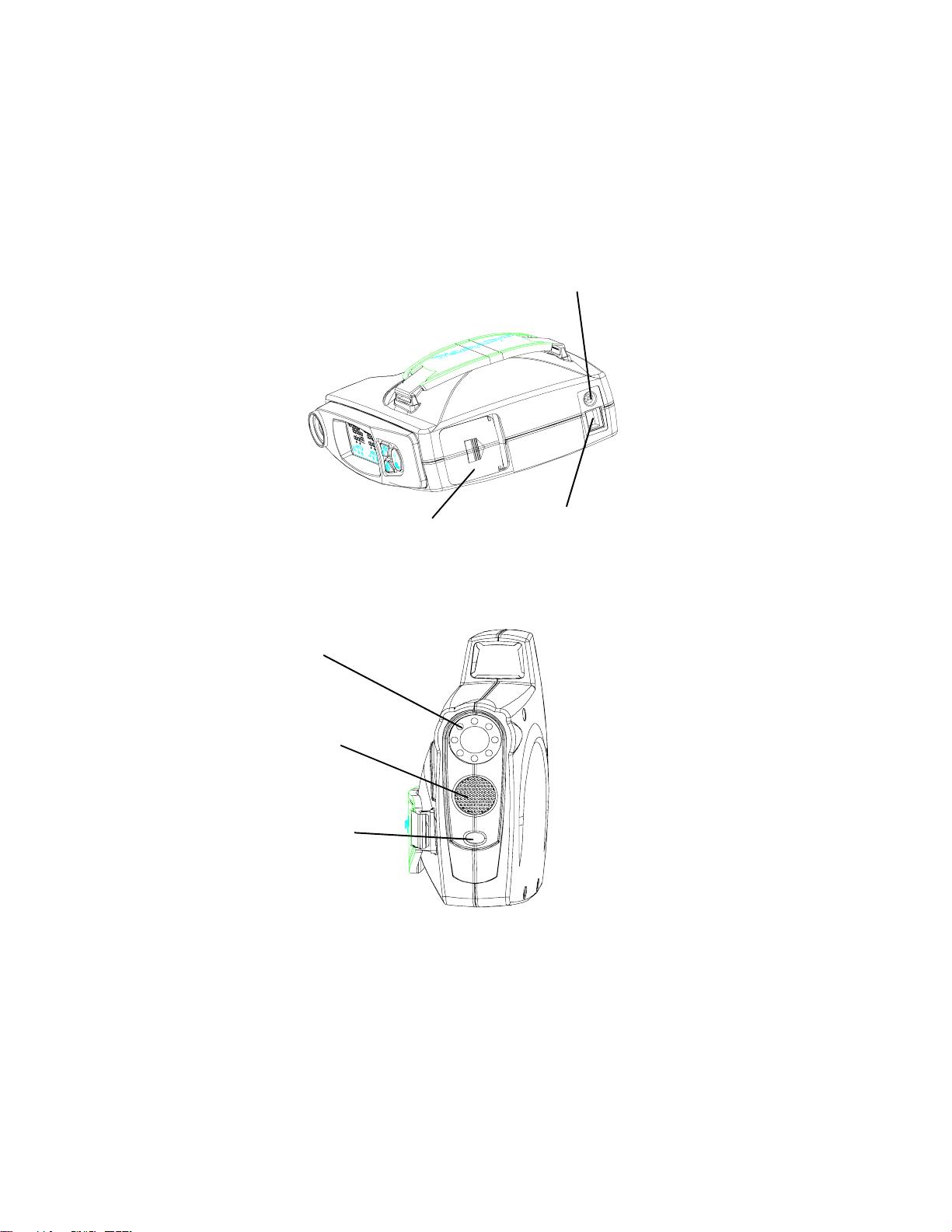

Charging Jack Receptacle
Receptacle for
RS232 Connection
Battery Compartment
Fixation LEDs
Distance Sensor
IR link to printer

13
First Time Set-Up
Stand
• Insert right angle connector into stand
• Optional: Two strips of hook and loop fasteners are provided on the stand.
Attach mating strips to countertop or “home” location of the stand. For best
results, clean surface and allow to dry before adhering. Hook and loop
fasteners keep stand firmly in place for use, while allowing it to be removed
as needed.
Battery
• Insert battery:
1) Open the battery cover located on the underside of the unit by sliding it in the
direction indicated by the arrow and lifting out.
2) Insert the new battery into the compartment in the direction of the arrow on
the battery itself, so that the terminal end enters the compartment first. If
necessary, rotate the lever obstructing the compartment in a clockwise
direction until the compartment is unobstructed. NOTE: Insert the battery
only as directed. Failure to do so will prevent the instrument from
functioning.
3) While pushing in on the battery, rotate the lever in a counter-clockwise
direction until it covers the battery.
4) Replace the cover by lightly pushing in on the raised end until it is level and
sliding the cover in the opposite direction of the arrow until it locks into place.

14
Plus or Minus Cylinder Convention
Your SureSight was set at the factory to the Minus Cylinder Convention. If you
wish to change your unit to the plus convention:
1) Open the battery cover located on the underside of the unit by sliding it in the
direction indicated by the arrow and lift up.
2) Rotate the lever holding the battery in and lift the battery from its
compartment.
3) View the DIP switches inside the battery compartment located on the button
side of the unit.
4) Using tweezers or another appropriate tool, pull the first switch (located on
the side of the unit with the handstrap) up towards the bottom of the
SureSight.
Diopter Power Resolution
Your SureSight was set at the factory to display power in 1/4 diopter increments.
If you wish to change to 1/8 diopter increments:
1) Open the battery cover located on the underside of the unit by sliding it in the
direction indicated by the arrow and lift up.
2) Rotate the lever holding the battery in and lift the battery from its
compartment.
3) View the DIP switches inside the battery compartment located on the button
side of the unit.
4) Using tweezers or another appropriate tool, pull the third switch (third from
side of SureSight with the handstrap) up towards the bottom of the
SureSight.

15
Controls
The buttons on the back of the instrument function as follows:
The instrument will turn off when unused for one minute. Any button pressed on
the SureSight will bring up results.
C
hild/Adult Calibration
• Clears readings
• Changes child/adult
Calibration by holding it down
Left/Right Toggle & Print
• Selects single eye to re-test
or switches back to regular
test.
• Prints results (hold button
down while aiming patient
side of SureSight at printer
until you hear “tah-dah”)
“GO” Button
•Unit on: starts test
•Unit off: recalls old readings

16
Operating Instructions
• Push any button to turn on the unit.
• Position the patient so that eye levels can be adjusted for unit use.
• Press the child/adult button until you hear a beep to choose the appropriate
calibration. (Child/Adult Calibration cut over age is 6 - see Adult/Child
Calibration Section, Page 20 for more information).
• Explain the test procedure to the patient:
“Now I will check your eyes. (Or “Now I’m going to take movies of you.”)
“I want you to look for the red light in the middle of the blinking green lights.”
• Position yourself at eye-level and square with the face of the patient.
• Push the “GO” button on the unit and check that the patient is fixated
correctly during the test.
• Position the unit at the correct distance from the patient:
• When too far away, you will hear slow, low-pitched beeps.••••••
• Slowly move closer. When the unit is at the correct distance (~14”), you
will hear a steady, low tone.————
• When the unit is too close, you will hear quick, high-pitched beeps ……
• The cross hairs will flash in synch with the tones.
• When you are at the correct distance, look through the peephole and align
the cross hairs on the pupil of the patient’s right eye. While the unit is
acquiring data, you will hear a very high-pitched chirping sound with a steady
low tone. °°°°°
• When the test of the right eye is complete, you will hear the “tah-dah”
sound.
•Rotate the unit to the left eye and align the cross hair over the left eye’s pupil
and repeat. (Testing resumes 1 second after the first eye is complete, so you
do not need to press any buttons.)
• At the end of the test, you will hear the “tah-dah” sound again.
• If the unit has not gathered enough good readings from either eye, you will
hear 5 tones to signify that the testing has stopped. - - - - - You must re-test
that eye.
