Well THERM-IR-VITAL-WL User manual

INSTRUCTION MANUAL
INFRARED FOREHEAD THERMOMETER
Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Model: THERM-IR-VITAL-WL (FT-100B)

The infrared forehead thermometer is an electronic thermometer using an infrared sensor to
measure human body temperature for people of all ages, Its operation is based on measuring the
natural thermal radiation emanating from the forehead.
Specification:
Reference to the standard of EN12470-5:2003 Clinical thermometers -- Part 5: Performance of
infra-red ear thermometerxand ASTM E 1965-98: Standard specification for infrared
thermometers for intermittent determination of patient temperature.
Measurement range:
32.0℃~42.9℃
Accuracy: ±0.3℃ (32.0℃ ~ 42.9℃)
Operating ambient:
Temperature: 10℃~40
Humidity: ≤85%RH
Atmospheric pressure: 700~1060hPa
Altitude: ＜3000m
Storage and transport condition:
Temperature: -20℃ ~ 55℃
Humidity: ≤93%RH
Display resolution temperature range: 0.1℃
Display: liquid crystal display, 3 digits
Temperature unit: ℃
Display of memory: last 10 memories
Low voltage warning: the LCD display ' '
Power consumption: ≤30mW
Battery: 1 x CR2032 (not included)
Battery life: over 2500 times with 1 pc. CR2032
Dimension: 105mm X 35mm X35mm
Net weight: 36g
Beeper sign: on/off, measuring finish, etc.
Self-check test: Press the＂ON/OFF/MEM＂button to turn on the thermometer and all of the
symbols (See Fig A) should be displayed on the LCD in one second.
Calibration frequency: If used privately no calibration is needed. For professional use it is
recommend to check once a year.

Cautions
1. Before measuring, the thermometer shall be stabilized at least 30min under operating
condition.
2. Do not expose the thermometer to the electric shock.
3. Do not modify this device.
4. Do not expose the thermometer to the sunlight or immerse it into the water.
5. Do not use near strong electromagnetic fields, i.e. Keep it away from any radio systems
or mobile phones.
6. This device must always be kept in a clean, dry area.
7. Degree of protection against electric shock is Type BF applied part.
8. The disposal of the battery and device shall comply with the local environment
requirements.
9. : The battery in this product complies with the Requirements stated in
European Directives 2006/66/EEC.
10. This device include small parts, don't inhale or swallow it.
11. Do not apply a strong shock to, drop, step on, or vibrate the main unit.
12. Persistent fever, in particular in children, has to be treated by a doctor, please get in touch
with your doctor!

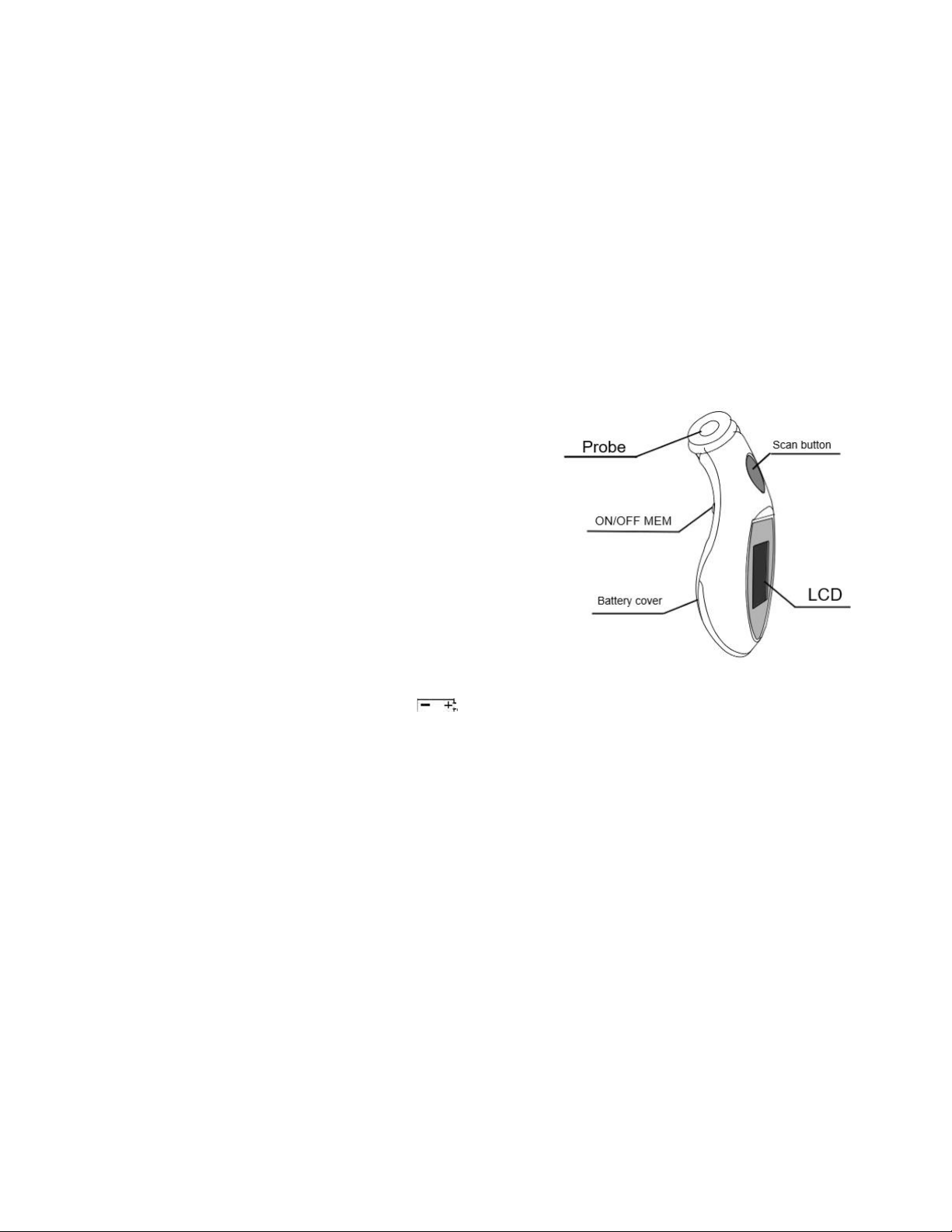

How to use
1. Press the 'ON/OFF' button to turn on the thermometer, a beep sound is
heard and the LCD displays as Fig A in one second.
When the LCD displays as Fig B, it is ready for use.
2. The probe shall be aimed at the forehead, from a distance of (1-3) cm,
press the ‘SCAN’ button and then release it. When you hear a beep
sound, that indicates the measurement is completed, remove the
thermometer. The display shows the measured temperature.
Note: Display as Fig C shows when the measured temperature is lower
than the measurement range.
Display as Fig D shows when the measured temperature is higher
than the measurement range.
3. Memory search: press the ’MEM‘button, which will then display the last
measured temperature, as Fig F shows, and allows for a view of the last 10
measurements taken.
4. Measuring again: If you want to measure again, repeat the step 1 and step 2.
Note: The time between each reading should be not less than 1min.
5. The LCD will display as Fig G and cannot display temperature when the
ambient temperature is out of the operating ambient.
Note: Before measuring, the thermometer shall be stabilized at the operating
ambient condition for at least 30 min.

6. Shut off: The thermometer will automatically shut off after 1 min of inactivity.
Or press the 'ON/OFF ' button for about 4 seconds, then the thermometer will be shut off.
Explanation of symbols
Low voltage
Product disposal instructions for electronic devices
The battery in this product must complies with the requirements stated in European Directives
2006/66/EEC.
Type BF equipment
Memory
Subject temperature is under 32°C
Subject temperature is above 42°C
Read IFU carefully
Lot number
Authorized representative in the European community
Manufactured by
CE conformity marking
Classification according to the degree of protection against ingress of water
Cleaning and Storage
1. Store the thermometer in a dry location free from the dust and contamination and away from
the direct sunlight. The ambient temperature at the storage location should remain fairly
constant and within the range of -20 C to 55°C.
2. Use an alcohol swab or cotton swab moistened with alcohol (70% Isopropyl) to clean the
thermometer body, if it is dirty. Ensure that no liquid enters the interior of the thermometer.
3. Never use abrasive cleaning agents, thinners or gasoline for cleaning and never immerse
the thermometer into the water or other cleaning liquids. Take care not to scratch the surface
of the display.
Replacing the batteries
1. When voltage of the batteries are low, the LCD will display ' ' symbol, please replace
with new battery in unit. The thermometer cannot work accurately under the condition of low
voltage.
3. Remove the battery cover and take out the old battery.
4. Place new battery according to the '+' or '-’.
5. Please take out the batteries to avoid battery leaking if the unit is not used for over 3 months.
6. The disposal of the battery and device shall comply with the local environment requirements.
