  9. Wellis Solaris-A17 User manual

Wellis Solaris-A17 User manual

Solaris infrared sauna
INSTALLATION GUIDE 2
Solaris infrarot sauna
AUFBAUANLEITUNG 13
Sauna infrarouge Solaris
GUIDE D’INSTALLATION 25
Solaris infravörös szauna
TELEPÍTÉSI ÚTMUTATÓ 37
EN
DE
FR
HU WS00162
SOLARIS
Model
Cabin material
Length
Width(depth)
Height
Voltage
EN
2/12
PREFACE
Thank you very much for purchasing our product.
Please read this manual carefully before assembling and save it afterwards. Please write down the control
box serial number of the cabin as this number will be required in case of repair or order of spare parts.
ATTENTION
Installation and repair should only be done by a qualified electrician!
Check power supply rating and make sure the grounded outlet is correctly connected before installation.
Use original parts only. Do not share the outlet with any other appliances.
When not in use, turn off the cabin's power unit.
Locate your cabin indoors and on a flat, level and dry surface.
DANGER
Heaters shall not be subjected to water spray; shower heads shall not be installed within the infrared cabin.
Covering the radiator causes a fire hazard due to overheating. Do not cover the heaters !
Keep flammable or easily combustible materials/objects (eg.towels) away from the radiator at all times.
Do not touch the radiator during and shortly after use as a burning hazard exists due to hot parts.
The light bulb heats in use. If the bulb needs to be changed, unplug the cabin and let the bulb cool down
before changing it.
Should the electrical connection get damaged, it must be replaced-either by the manufacturer or by a
licensed electrician!
WARNING
If you suffer from illness or other health-related problems, especially heart conditions or circulatory
disturbances or if you take medication, you should consult a doctor before using the infrared cabin.
Children and frail persons should never be in the cabin without supervision.
If you feel uncomfortable while using the infrared cabin, stop immediately and consult with your doctor.
Never go to a hot infrared cabin if you have taken alcohol, strong medicines or narcotics.
Technical data
Solaris-A17
Regular hemlock
1314 mm
993 mm
1940 mm
230volt 50Hz
Radiators Type
Total output
Back panel
Front
Calves
Ruby halogen tube radiator & Carbon fiber tube radiator
2000W 8.7A
350W x 2
400W x 2
500W x 1
3/12
PARTS LIST
EN
Cabin Individual parts (variations possible)
NO NAME Q'TY
1
3
4
6
8
10
1
1
1
1
1
1
11 1
12
1
13
1
Box No
1
2
2
2
3
1
1
1
2 1 1
5 2 3
913
1
14
1
712
1
Floor panel(1314*993*65mm)
Back panel (1860*1246*43.5mm)
Side panel 2 (1860*595*48mm)
Side panel 1 (1860*595*48mm)
Side glass 1830(*294*6)
Upright column 1(left,1860*96*96mm)
Upright column 2(right,1860*96*96mm)
Top panel (1314*993*65mm)
Bench support panel (1188*90*40mm)
Calves guardrail (670*250*43mm)
Bench surface panel (1188*450*33mm)
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
Back guardrail (1188*728*43mm)
Front glass 1(1830*268*6mm)
Front glass 2(with hole,1830*268*6mm)
2 3
4/12
ASSEMBLE INSTRUCTIONS
Assemble tips
Tools
Spiral drill (kit)
Screwdriver (kit)
Allen Wrench (kit)
Spirit level
Tape measure Electric drill
Cutter
Pencil
Hammer
Stepladder
Hardware parts (variations possible)
Please remove transport packaging and inspect that your infrared cabin has been delivered complete and
intact before beginning assemble.
A least 2 persons are required for assemble of the cabin
Please check the countersink and hole diameter of the drill holes to avoid damaging the wood..
The minimum room height required for installation is 2065mm
EN
20x
Φ4*40
2x
Φ6*60
Rubber strip
17m 12x
Φ4*50
15
16
17
3
1
1
1
2
1
MDF cover (1288*967*3mm)
NO NAME Q'TY Box No
Door handle (outside,180*40*45mm & inside,120*40*45mm)
Glass door (1798*572*6mm)
Glass clip
1x
5/12
ASSEMBLE INSTRUCTIONS
Assemble steps
EN
1
2
3
48-Φ4*40
5X2
(A)
(B)
(1)
(3)
(2)
(4)
Note: connect front
heater cable
4 5
6/12
ASSEMBLE INSTRUCTIONS
Assemble steps
EN
6
7
8
9
2-Φ4*40
(1)
(2)
10-Φ4*40
10
Make sure the temperature sensor should be out about
2cm from the silicon
pipe
(pipe/3cm+sensor/2cm=5cm away from ceiling).
(6)
(5)
Note: connect front
heater cable
7/12
ASSEMBLE INSTRUCTIONS
Assemble steps
EN
(9) (10)
11
4-Φ4*50
4-Φ4*50
14
12
4-Φ4*50
Front
Back
13
(7) (8)
6 7
8/12
ASSEMBLE INSTRUCTIONS
Assemble steps
EN
Note: connect all cables on the roof of the cabin
Rubber
Strip
15
17
16
(11)
Handle
Glass door
Handle
2-Φ6*60
Wood cover
Hinge surface
Rubber fitting
Glass door
Hinge bottom
Rubber fitting
Hex screw
Glass clip
9/12
EN
To Heater
AC230V/15A
MAX:10A/1PCS
Power box
Temperature
Sensor
Mp3
Antenna Speaker
4Ω/3W
4Ω/3W
OUTPUT DC12V/3A
INPUT AC230V
Color light
DC12V/8W
105°C
Temperature Control
AC230V/500W
FKF-603
Input Voltage
Power Rating
Current Rating
Safety Grade
Model
I
8.7A
2000W
AC230V/50HZ
CIRCUIT DIAGRAM
EN
AC230V/350W
AC230V/350W
AC230V/400W
AC230V/400W
8 9
OPERATING INSTRUCTIONS
4)Color light
Short press ,you can set the desired color(7 color totally)and close the light; Long press to go
into an automatically cycling mode,changing 7 colors every 5 seconds.
Connect the power unit to wall outlet, the LED indicator will start to blink on the display.
Now it is possible to switch on the infrared heaters, the light and the music function.
Color light
Time setting
Temperature setting
Time/Temperature+
Time/Temperature-
ON/OFF
1)Startup
Press to switch on the display and heaters start to work, the length of time is automatically set to 99 minutes
and the air temperature inside the cabin will be presented. Press again could switch off the heaters.
2)Temperature settings
The left display refers to the air temperature. Press , you can set the desired temperature from 35℃ to 60℃
by pressing the / keys,Interval=1℃; The setting number blinks 10 seconds then automatically presents
the air temperature; When at this temperature, the heaters will stop working automatically; When it fall 2℃
below this temperature, the cabin will start up automatically.
Please note: The maximum air temperature reachable in the cabin may be lower than the desired
temperature. This is dependent on the temperature outside the cabin. Default temperature=40℃
3)Time settings
The right display refers to the length of time. Press , you can set the desired time from 5mins to 99mins
by pressing the / keys; Interval=1mins; When count down to 00, the heaters will shut off automatically.
Default time=99minutes.
5)Mp3 player
USB/SD or Bluetooth mode:
You can select songs by short pressing the / keys and adjust the volume (0-32) by long pressing
the / keys. The key for pause.
FM radio mode:
Long press to search stations (87.5MHZ-108MHZ) automatically, the system will save all of them;
You can select stations by short pressing the / keys and adjust the volume (0-32) by long pressing
the / keys. 10/12
EN
Activate the MP3 player by pressing and holding the " ” button on the MP3 player.  Select the
preferred mode with brief repeated presses of the " "button on the MP3 player.(USB, MMC CARD,
Bluetooth,FM radio)
SERVICE
Use instructions
Drink plenty of liquids before and after use of the infrared cabin.
Dry yourself off completely.
The optimal cabin temperature for a pleasant session lies between 35 and 60℃.
After a heating period of an hour at the latest, the cabin should be switched off and a heating brake of
at least 30 minutes should be taken.
Maintenance instructions
Clean the cabin with a damp cotton towel, dry with a clean dry towel.
Clean the glass with a window/glass cleaner and a soft cloth.
Do not pour water in the control panel or clean it with wet cloth. For cleaning purposes, use a cleaning
cloth that has been only slightly moistened with a mild soapy solvent (dish detergent).
Do not use chemical detergents to clean the cabin.
Please fasten the screws of the bench once every three months, avoid the loose or drop off.
11/12
It is recommended to take a warm shower and relax after use.
Notes:
EN
10 11

Other manuals for Solaris-A17

1

This manual suits for next models

1

Other Wellis Plumbing Product manuals

Wellis Carpera WC00432 Manual

Wellis

Wellis Carpera WC00432 Manual

Wellis CORSICA BLACK WF00073 Manual

Wellis

Wellis CORSICA BLACK WF00073 Manual

Wellis Eclipse-Hemlock User manual

Wellis

Wellis Eclipse-Hemlock User manual

Wellis Pillar WB00443 User manual

Wellis

Wellis Pillar WB00443 User manual

Wellis SPRING WC00217 Manual

Wellis

Wellis SPRING WC00217 Manual

Wellis Helios-A17 User manual

Wellis

Wellis Helios-A17 User manual

Wellis Flipper faucet set Manual

Wellis

Wellis Flipper faucet set Manual

Wellis Aurum ACS0317 User manual

Wellis

Wellis Aurum ACS0317 User manual

Wellis Bellini ACS0212 Manual

Wellis

Wellis Bellini ACS0212 Manual

Wellis Helios-A17 User manual

Wellis

Wellis Helios-A17 User manual

Wellis CLARICE EE00274 User manual

Wellis

Wellis CLARICE EE00274 User manual

Wellis Fizz ACS0216 Manual

Wellis

Wellis Fizz ACS0216 Manual

Wellis SENSE ACS0319 Manual

Wellis

Wellis SENSE ACS0319 Manual

Wellis Retro faucet set Manual

Wellis

Wellis Retro faucet set Manual

Wellis Sundance-A17 User manual

Wellis

Wellis Sundance-A17 User manual

Wellis Aurum ACS0318 Manual

Wellis

Wellis Aurum ACS0318 Manual

Wellis PALOMA User manual

Wellis

Wellis PALOMA User manual

Wellis Clement User manual

Wellis

Wellis Clement User manual

Wellis CLEMENT WF00089 User manual

Wellis

Wellis CLEMENT WF00089 User manual

Wellis Sundance-A17 User manual

Wellis

Wellis Sundance-A17 User manual

Wellis Cosmo ACS0206 Manual

Wellis

Wellis Cosmo ACS0206 Manual

Wellis Lipari EE00276 User manual

Wellis

Wellis Lipari EE00276 User manual

Wellis Bellini Manual

Wellis

Wellis Bellini Manual

Wellis ACS0210 Manual

Wellis

Wellis ACS0210 Manual

Popular Plumbing Product manuals by other brands

noken TONO 100307799 manual

noken

noken TONO 100307799 manual

Bradley Sentry SN2003/TT Installation

Bradley

Bradley Sentry SN2003/TT Installation

Franke HDTX810L 7612979000252 Installation and operating instructions

Franke

Franke HDTX810L 7612979000252 Installation and operating instructions

Deca LC1272 installation instructions

Deca

Deca LC1272 installation instructions

Hans Grohe Metris 31480000 Instructions for use/assembly instructions

Hans Grohe

Hans Grohe Metris 31480000 Instructions for use/assembly instructions

Harvia Griffin Infra CG170I Control unit

Harvia

Harvia Griffin Infra CG170I Control unit

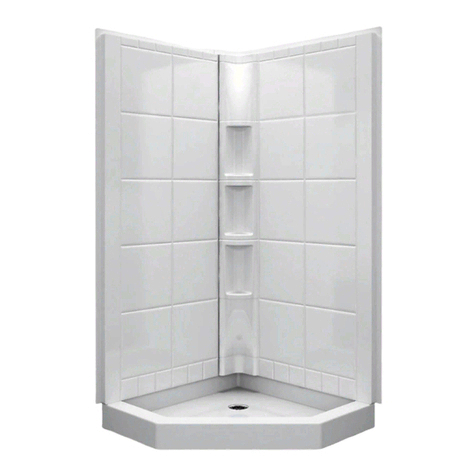

Sterling Plumbing INTRIGUE 72040100 Specifications

Sterling Plumbing

Sterling Plumbing INTRIGUE 72040100 Specifications

Spectrum Brands Pfister Aliante LF-042-AT Quick installation guide

Spectrum Brands

Spectrum Brands Pfister Aliante LF-042-AT Quick installation guide

Axor Select 18356 Series Installation

Axor

Axor Select 18356 Series Installation

Kohler 8881T-VC01-BN installation instructions

Kohler

Kohler 8881T-VC01-BN installation instructions

JADO 832 860 Series installation instructions

JADO

JADO 832 860 Series installation instructions

ABEY Gareth Ashton 316 RHS07-316 installation guide

ABEY

ABEY Gareth Ashton 316 RHS07-316 installation guide

MediaShop AQUADON EcoTornado Instructions for use

MediaShop

MediaShop AQUADON EcoTornado Instructions for use

American Standard Yorkville 2320 Elongated installation instructions

American Standard

American Standard Yorkville 2320 Elongated installation instructions

Spectrum Brands Pfister Rhen LG6-1RH1 Quick installation guide

Spectrum Brands

Spectrum Brands Pfister Rhen LG6-1RH1 Quick installation guide

Kallista P34000-00 installation guide

Kallista

Kallista P34000-00 installation guide

Thetford C500 Demounting instruction

Thetford

Thetford C500 Demounting instruction

Franke PROTRONIC-S EPRTRS0027 Installation and operating instructions

Franke

Franke PROTRONIC-S EPRTRS0027 Installation and operating instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
