Clement monoblock

Before you start
Before starting installation, read the instructions carefully to familiarise yourself with the necessary
tools, materials and the order of the installation steps. Please keep this instruction guide after
finishing the installation.
Before installation, check the toilet for damage during transport. If damage is present or there is a
visible defect, do not proceed with the installation and inform the seller of the product immediately.
Caution: Risk of personal injury or product damage!
Handle with care! The porcelain toilet bowl can break or crack if the product is handled
carelessly.
– Be sure to observe all local plumbing and building codes.
– Carefully inspect your new toilet for any damage.
– If your current toilet does not have an angle valve under its tank, add one before installing
the new toilet.
Required tools
Tape measure
Sponge
Spirit level
Screwdriver Glue gun Pencil
Drilling/screwing
machine
Safety goggles
EN
EN Clement monoblock rimless toilet
INSTRUCTION GUIDE

Required parts

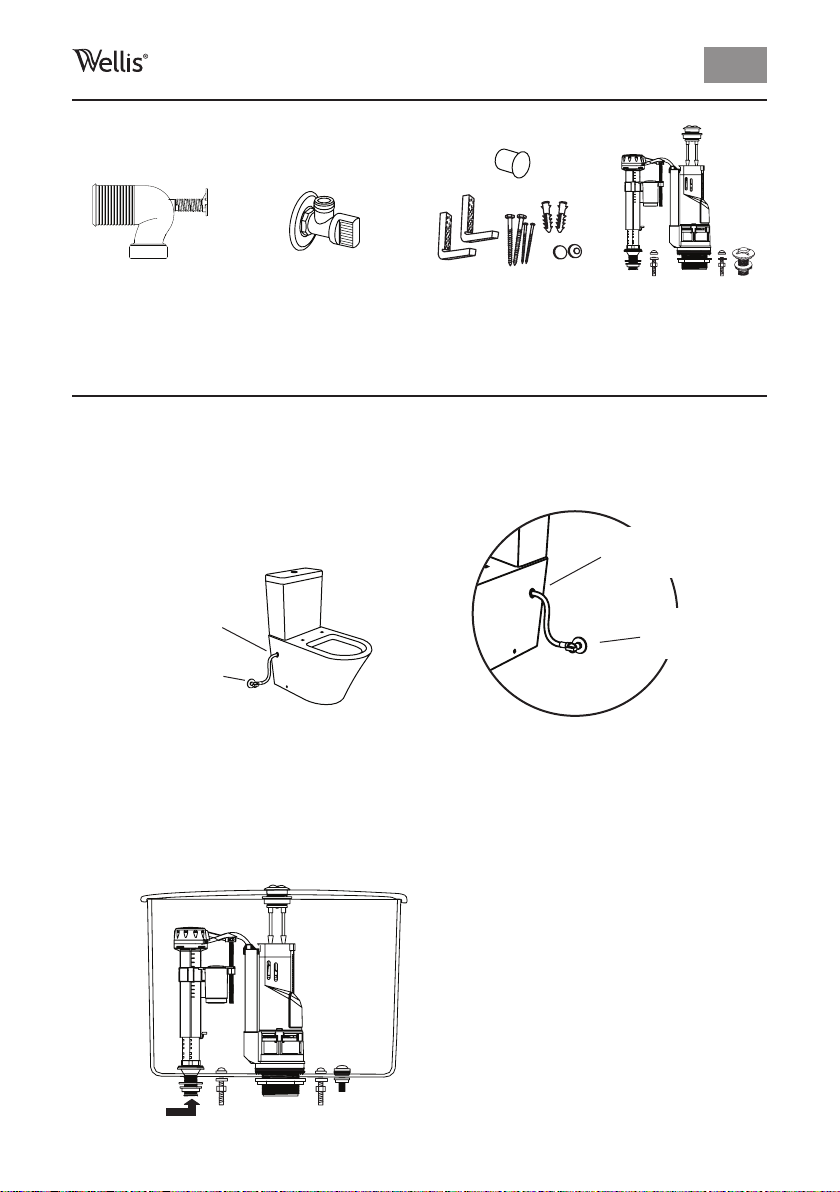

Preparations Installation of the tank - lower water inlet
1. Check the position of the angle valve.
2. Install the inlet valve into the tank. Close the other inlet opening of the tank with the help of the
provided threaded plug.
Left-hand connection Right-hand connection
Lower inlet valve kit
+ tank stopper plug
(included with tank)
Waste water
connection pipe
(Sold separately)
Angle valve (Not
included)
Cover plug + Toilet
bowl fixing screws
(Included)
Angle valve
Side inlet opening Angle valve
Side inlet opening
EN

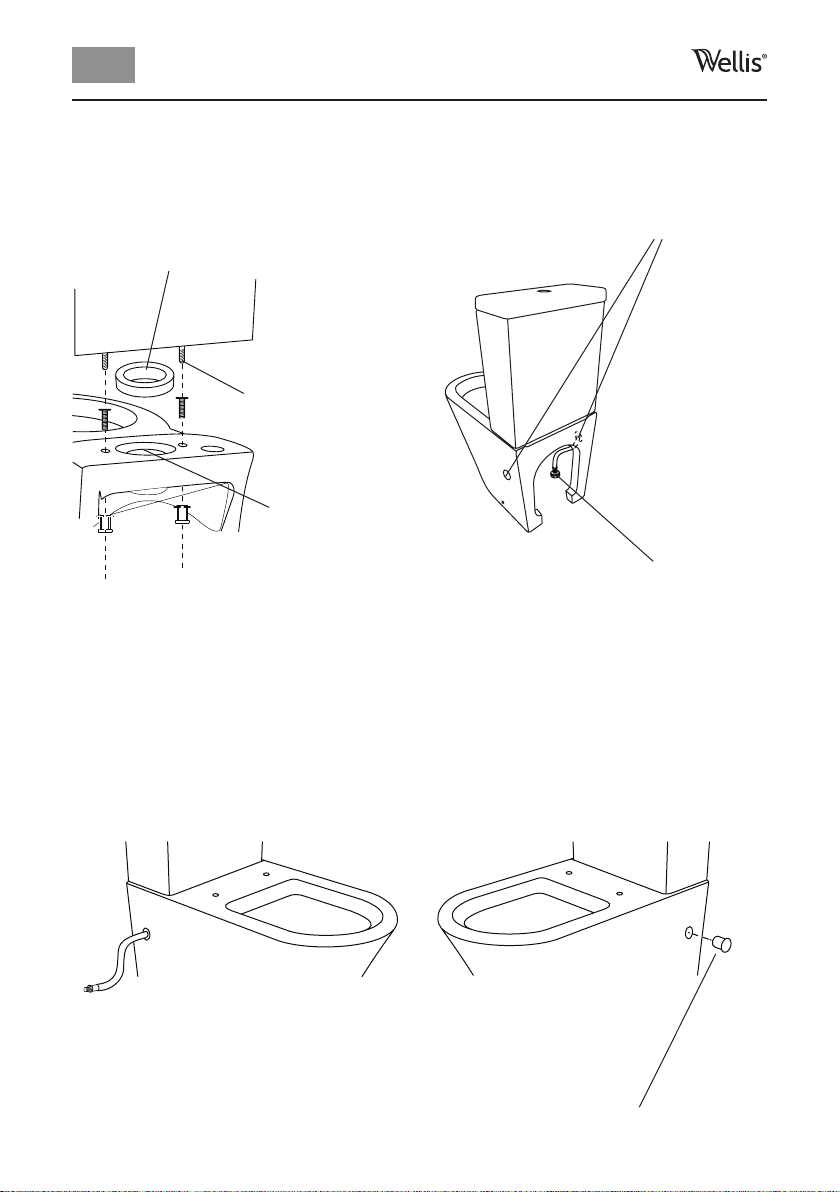

3. Place the tank on the toilet bowl
so that the sealing ring is accurately
positioned as well.
Tighten the screws thoroughly so that the
tank is level.
5. Connect the water connection pipe to the angle valve and check for leaks. Then turn
off the angle valve and disconnect the connection pipe. Close the unused inlet opening
with the supplied plug.
4. Connect the water connection pipe to
the tank and pull it through the suitable
opening on the corresponding side for the
toilet bowl.
Sealing
Fixing screw
Side connection
openings
Water connection pipe
(Not included)
Cover plug
Toilet bowl inlet
EN

1. Determining the position of the
connection pipe: Insert the connection
pipe into the outlet opening of the
toilet bowl and fit the other end into the
opening of the waste water pipe stub.
3. Drill the fixing holes for the places marked on the floor and insert the dowels.
2. Use a pencil or template to mark the
location of the fixing screws for the toilet
bowl on the floor.
Installing the toilet bowl
Template
Wall
Location of fixing
screws
Paneled wall
Waste water
connection
pipe
Eccentric toilet
connection
Waste water pipe
Toilet bowl waste
water outlet
Bracket Screw
Washer ringCover cap
Fixing hole
Dowel
Dowel
Washer
Hexagon socket
head screw
4. Place the washers
on the hexagon socket
head screws and fix the
brackets to the floor.
5. Fit the toilet bowl to the
indicated location, while
ensuring that the mounting
brackets are connected to
the toilet bowl connector.
6. Place the washer rings
into the fixing holes and
secure the toilet bowl to
the support brackets.
With the flexible S-connection pipe option available from Wellis, both bottom and rear connections
are possible.
EN

Installing the push button
Finalising the installation
Replace the tank lid and check the
push buttons.
Adjust the rods as necessary.

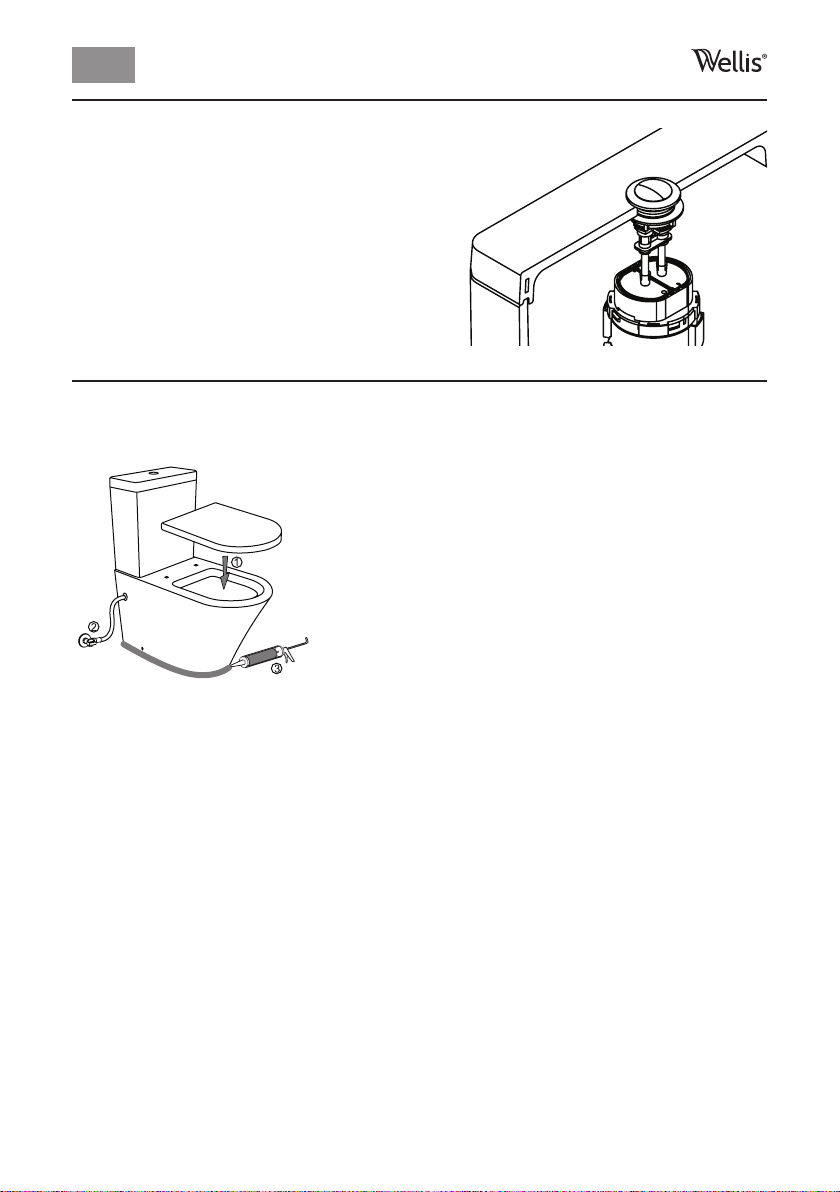

1. Install the toilet seat according to the instruction
guide provided with the seat.
2. Fasten the water connection pipe to the angle
valve permanently. Check for leaks.
3. Apply a suitable sealant between the toilet bowl
and the adjacent surfaces.
After the flush button is pressed, there will be a continuous flow of water in the toilet bowl until the
tank is replenished, so as to fill the trap element with the correct amount of water.
Sound pressure when flushing: 85-95 dB
EN

Setting up the Clement toilet flush and filling valve
Setting the amount of water for a low
volume flush
The amount of water for a low volume
flush can be adjusted with the blue slider
according to the scale located on its left
side.
Adjusting the float height
The float height can be adjusted by
moving the float housing up and down.
This allows you to set the amount of
water used up before the valve starts to
refill.
After setting the locking element to the
open position, the blue housing can be
moved up and down on the filling valve
housing. After adjustment, the locking
element must be snapped back into the
closed position.
Locking element in the open and
closed positions
open position closed position
Setting the amount of water for a high
volume flush
The amount of water for a high volume
flush can be adjusted with the larger blue
adjustment device, again according to the
scale on the left side. (The numbers on
the scales indicate the amount of flush
water in litres.)
EN

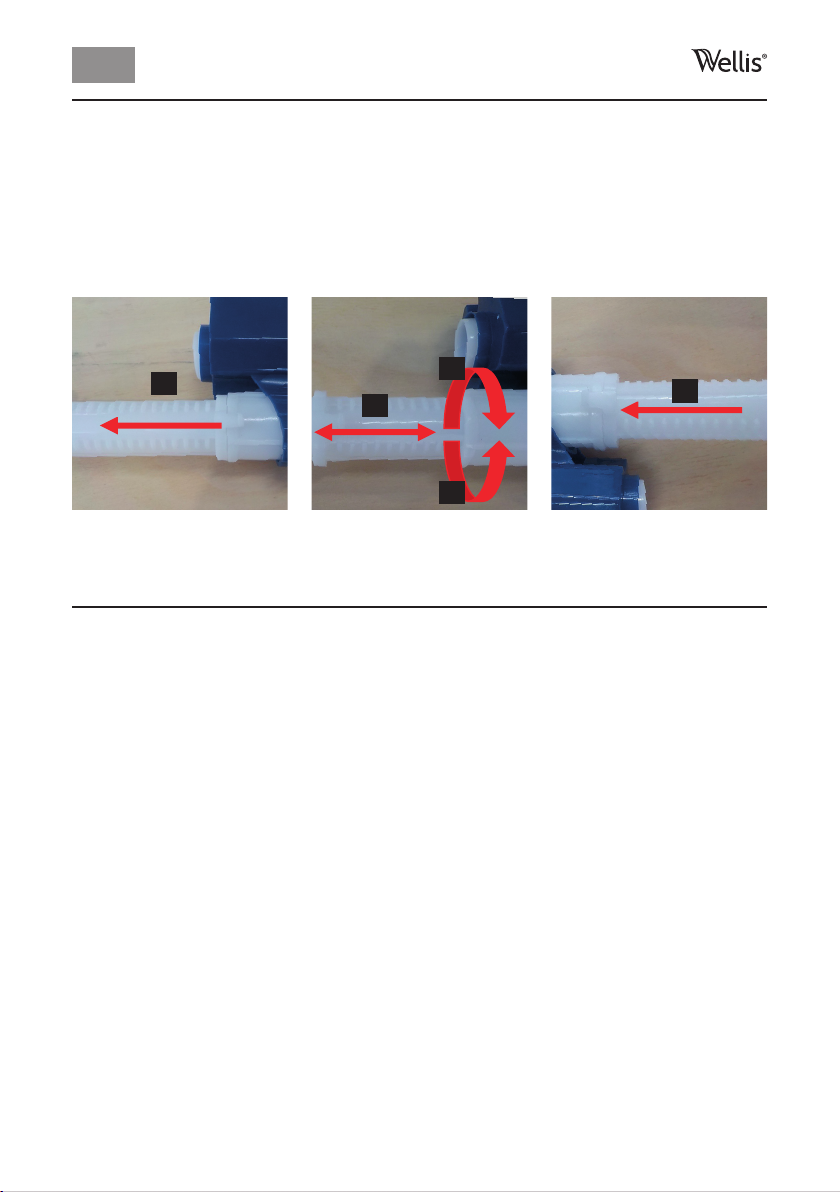

Adjusting the amount of water in the tank:
1. Push the peg off.
2. Release the bayonet catch by unscrewing the valve body.
3. Adjust the desired amount of water (litres) according to the scale by moving the
valve body up/down.
4. Lock the bayonet catch again (slight click) by twisting the valve body in the opposite
direction.
5. Push the mounting pin back in until it snaps back into place properly.
1.
3.
2.
4.
5.
Handling instructions
Do not use abrasive or scouring cleaners to clean the toilet bowl and seat as they can
scratch and scrape the toilet bowl and seat. Do not use cleaning agents containing
chlorine as they can seriously damage the assembly elements. Use warm water or
liquid detergent to clean the surface and wipe it dry with a soft cloth.
EN

Problems and solutions
A: The filling valve will not close.
• Open the filling valve cap and clean the valve seal or replace the seal if it is
defective or cracked.
• The float is positioned too high. Position the valve float correctly by adjusting the
threaded mechanism.
• Replace the filter net if it is worn.
• Check the tightness of the structure.
B: Water leaks under the tank:
• The assembly screws must be tightened.
• The sealing between the toilet bowl and the tank is not positioned correctly or is
worn out. Replace the sealing.
C. Poor flush performance
• Adjust the water level inside the tank.
• Check that the water supply valve is fully open.
• Clean the inlets to the drain pipe and the holes at the rim of the toilet bowl to
remove any material that may cause clogging.
D. No flushing
• Check that the water supply valve is closed.
• Check that the water pipe is not blocked.
E. Filling the tank takes a long time.
• Check that the water tank valve is fully open.
• Check that the inlet valve pipe is not leaking.
