1Overview
WiPG-1500 is a spectacular wireless presentation device which connects
multi-platform devices (Windows/Mac/Pad/Smartphone/AirPad) for engaging
interactive presentations by supporting finger-touch technology, virtual whiteboard
and Win 7/8 HID conformable remote devices.
WiPG-1500 Highlight Features:
Icon
Feature
Description
DoWiFi
Wireless presentation for Windows and Mac
Win: XP/Vista/7/8,
Mac: 10.6/10.7/10.8/10.9
MirrorOp for Galaxy
MirrorOp sender for Samsung Galaxy series devices
Support. Users can project any contents from their
Samsung Galaxy devices.
WiFi-Doc
High quality presentation via iPhone/iPad or
Android devices (Word, Excel, PPT, PDF , Photo ,
Screenshot)
SidePad
Control the projecting screen on PC or Mac via
iPhone/iPad or Android devices
WebSlides
Broadcast slides to your devices with WiFi and web
browser.
Audience can save the projecting slides for
taking notes.
Webslides can be secured by password.
Direct Draw
Make free drawing on virtual
whiteboard/blackboard without any
computer connected
Make annotation on any projecting content.
This new feature allows you to annotate on
the screen during the presentation
Annotating, writing and drawing can be done
using touch screen, AirPad or any other USB
HID device

6
4-to-1 projection
Project four PC/Mac screens or WiFi-Doc content to
one projector/display at once.
Conference Control /
OSD User-List
Control projection from WiPG's web page, or use
mouse/keyboard to select a PC from the standby
screen.
Conference control function can be secured by
password.
Moderator can control who is projecting.
Moderator can compare 4 screens side by
side.
SNMP V3
Manage WiPG devices across the corporate network
through enhanced SNMP V3 protocol
Key Features
High performance screen/audio projection for Windows/Mac (Windows 7/8
and Mac 10.7/10.8/10.9)
Remote desktop control from AirPad, Touch Screen or Mouse/Keyboard for
Windows/Mac
Plug&Show: launching the projection application from a USB Token without
installation. Extra USB tokens with the PlugandShow function can be easily
created in the wePresent software.
High performance 4-to-1 Quadrant Screen Projection
Support up to 64 concurrent login users
Conference Control: Mediator function through the device web page or
standby screen
Support Wireless Multi-touch control (Win7/8 standard HID compatible device)
by UoIP driver.
Support drawing feature for projecting sender screen, or drawing on
whiteboard without PC
Changeable Customized Image of full size Splash/standby screen.
-Place your company logo on the start screen/standby screen.
-Replace entire start screen with background image. (No whiteboard and
user list feature.)
SNMP V3: manage/configure multiple WiPGs through SNMP V3 protocol
-Firmware upgrade via FTP
-Enhance the remote SNMP manageability to higher security level

7
Wi-Fi Enterprise encryption support
Support MSI installer for Windows software deployment and execute
application from command line
Extended desktop support for both Windows and Mac
Security design: Session Login Code, WEP/WPA/WPA-Enterprise WiFi Security,
and GateKeeper
HDMI and VGA dual video interfaces
WiFi AP and AP-Client mode:Make WiPG-1500 a part of your wired or
wireless network. Allowing internet access to all connected users and
presentation from network computers.
WiFi 802.1b/g/n
2Package Contents
wePresent WiPG-1500 Box
wePresent WiPG-1500 USB Token
Power Adapter (DC +5V, 2.6A)
2 WiFi Antenna
Quick Installation Guide
Wall Mount Kit
Warranty Card
3USB Token Contents
Windows Installer (WiPG-1500 Windows Installer)
MAC Installer (WiPG-1500 Mac Installer)
VAC Driver (For Windows XP Audio Projection)
VDD Driver (For Windows XP/Vista Virtual Extended Screen)
USBoIP Driver (For USB IWB Bridge)
User Manual
wePresent WiPG Execution File
SVS Driver
Utility
PtG Converter (For MobiShow PtG function)
SNMP Manager (For SNMP Management)

8
4Physical Details

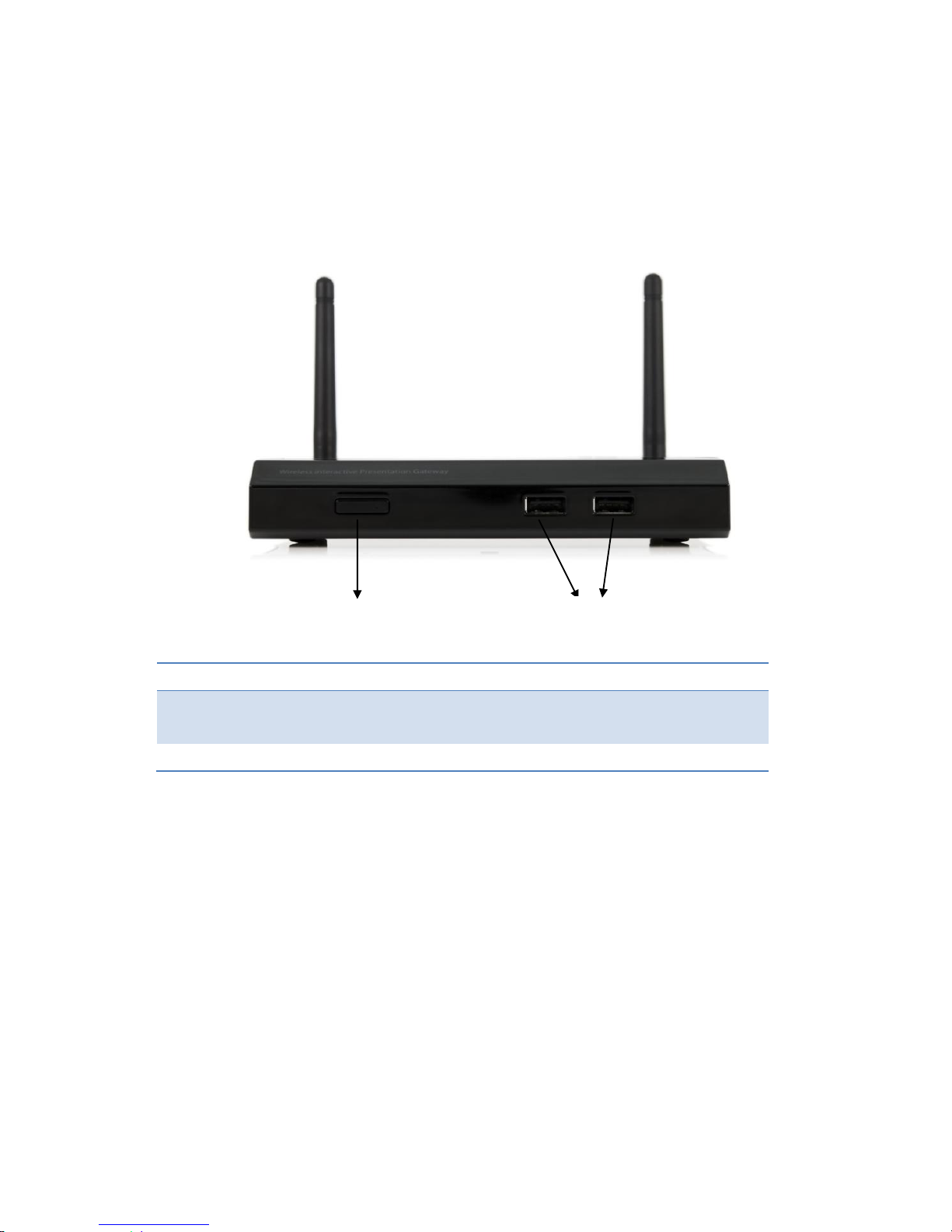

Front Panel
Description
Power Button and LED
Power on/off button.
LED Indicator: System Loading(Red), Ready(Green)
USB Port (Front)
2 USB ports for USB mouse and keyboard
Power Button and LED
USB Port

9
Rear Panel
Description
Antenna
WiFi Antenna
USB Port (Rear)
USB port for USB IWB device (HID type)
RJ-45
10/100M RJ-45 port
VGA Connector
VGA connector
HDMI
HDMI Connector
Audio Jack
Audio Jack (3.5mm)
Power Jack
Power Jack (5V/2.5A)
Power Jack
VGA Connector
RJ-45
Antenna
Audio Jack
HDMI
Antenna
USB Port

10

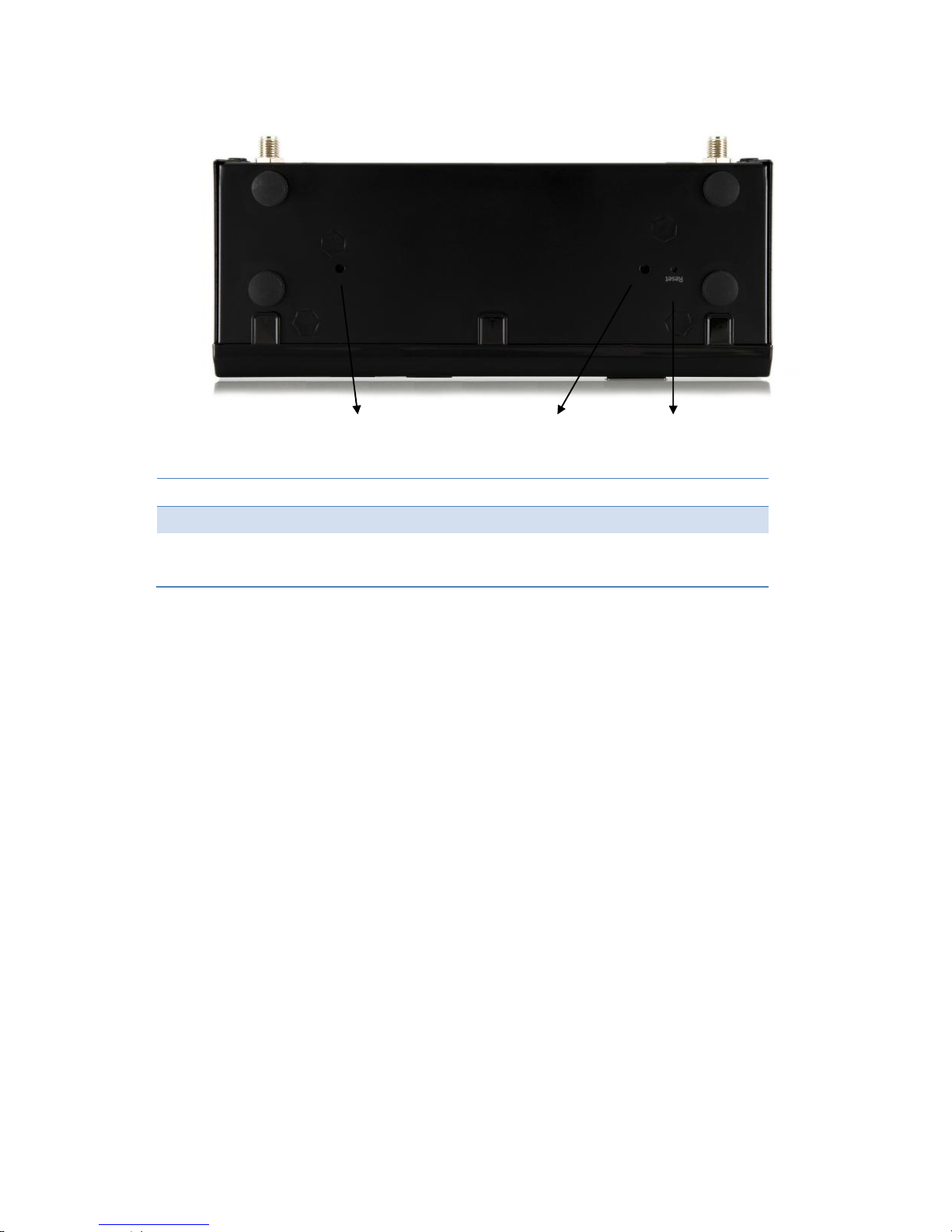

Bottom Side
Description
Screw Hole
Screw Hole for Wall Mount Kit
Reset Button
Press reset button and power on the device to execute
Hardware Reset.
5What You Might Need
Projector/display with VGA/HDMI interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod-touch device
Android Phone or Tablet device
Speaker (Optional, for audio projection feature)
USB Mouse and Keyboard (Optional, for remote desktop feature)
USB HID Touch Screen/IWB Device (Optional, for UST or IWB over IP feature)
Reset Button
Screw hole
(Optional kit for Wall Mount)

11
6Quick Installation

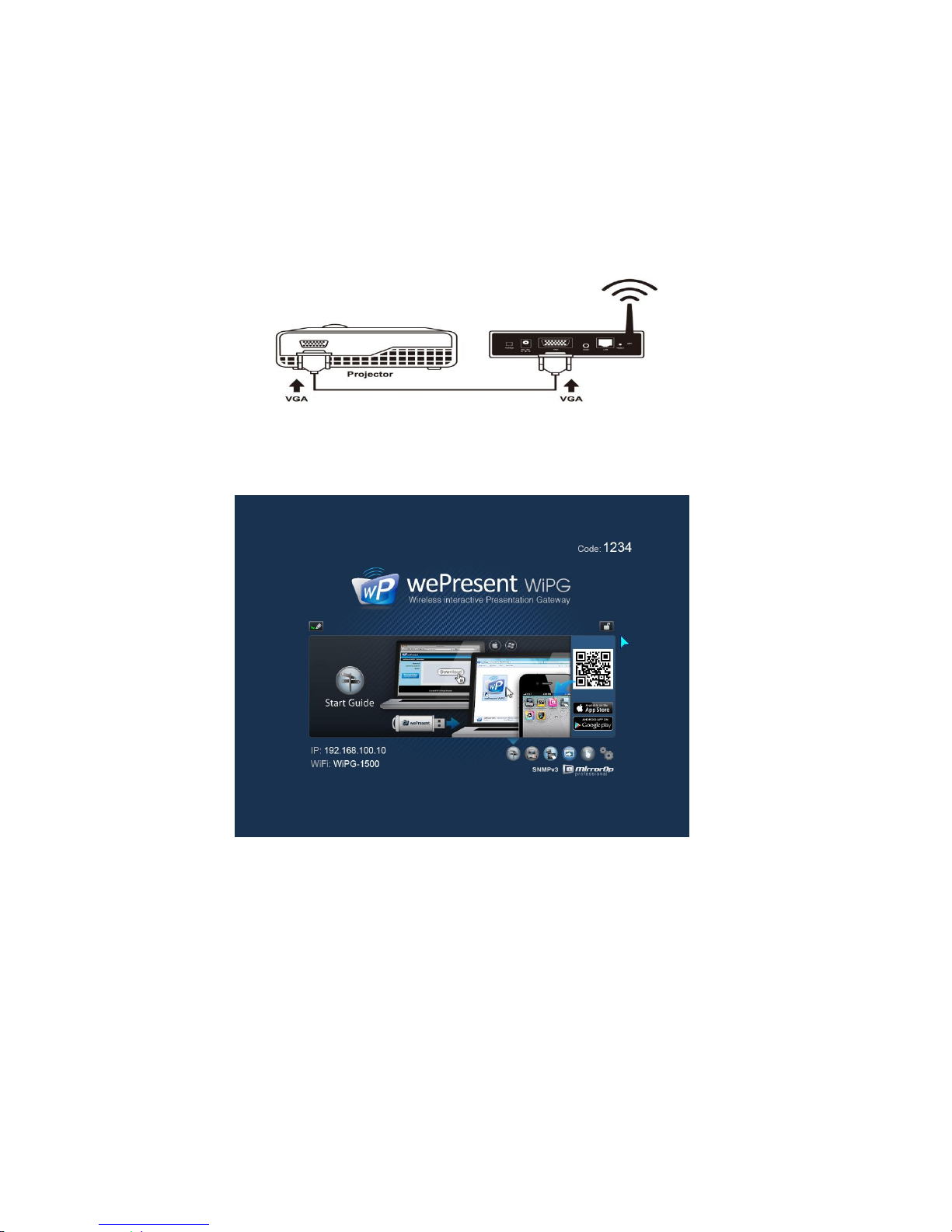

1) Connect wePresent WiPG-1500 device to Projector/display through VGA/HDMI
port and turn on projector/display power.
2) Connect the power adaptor to WiPG-1500 device and press the power button to
turn on WiPG-1500 device. System will be ready when the LED light turns to green.
It will show the default standby screen as below when system is ready.
3) Insert the speaker cable to WiPG-1500 audio jack for audio output
4) Insert the USB mouse or keyboard/AirPad to WiPG-1500 front/rear USB port for
On-Screen Display (OSD) control. (Optional)
5) Insert the USB IWB/Touch Screen cable to WiPG-1500 rear USB port for UST/IWB
remote touch control if needed. (Please noted that the front 2 USB ports do not
support UoIP function).

12
7WiPG-1500 Start/Standby Page
7.1 Quick Guide / User-List
When there is any new user connected to WiPG-1500, the user name will be show on
the user-list area. WiPG-1500 allows multiple user connection. See below image for
detail.
7.2 Feature Icons
1) You can also click on the feature Icons on the right hand bottom to view the Quick
Guide for each highlight feature.
(1) Quick Guide: Click on Quick icon , it describes that WiPG-1500 can support
Windows, Mac and Mobile devices. If your Smartphone has QR code scan App, you
can scan the QR code image on the screen with your Smartphone which will lead
you to the corresponding place to download all the available Apps.

13

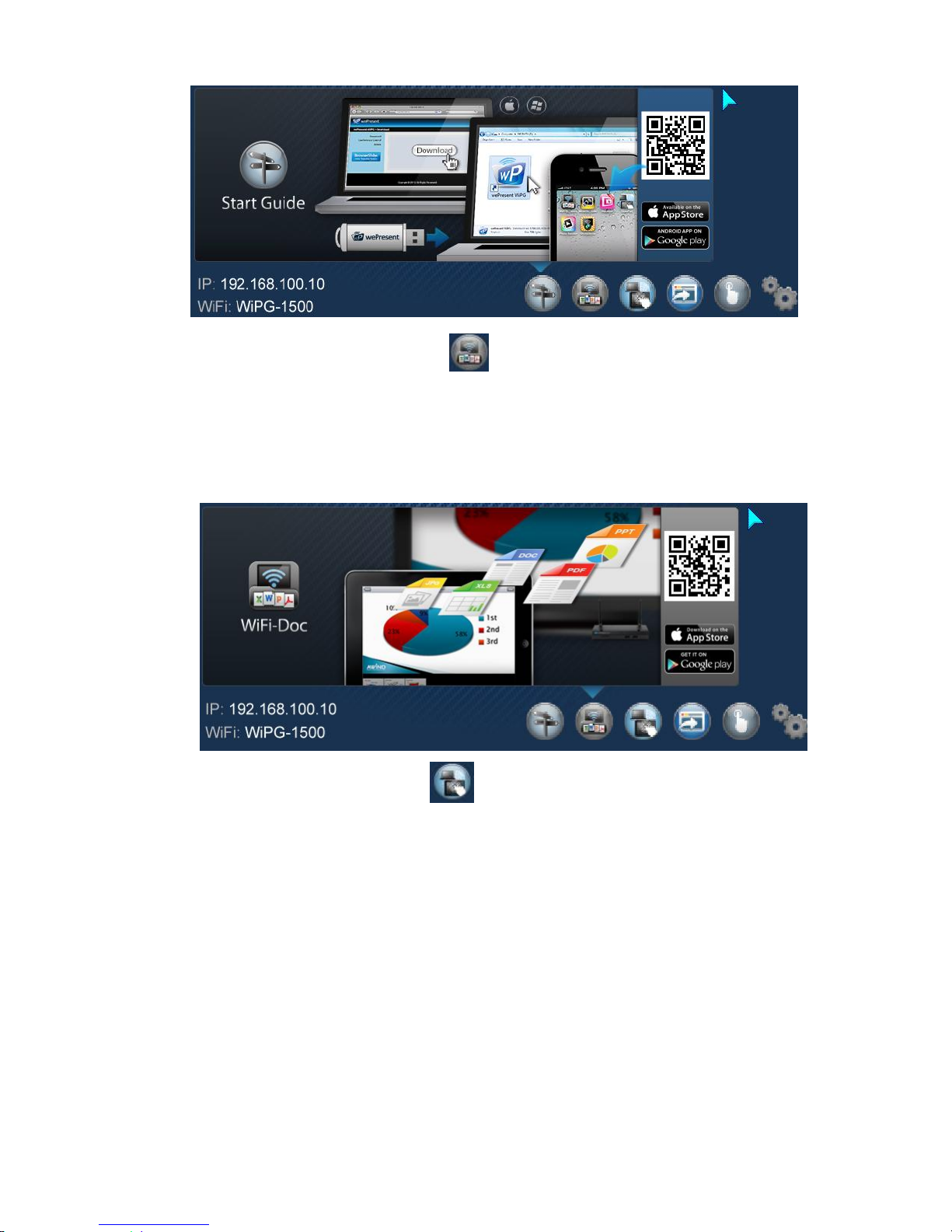

(2) WiFi-Doc: Click on WiFi-Doc icon , it describes the wireless presentation for
Mobile using WiFi-Doc. If your Smartphone has QR code scan App, you can scan
the QR code image on the screen with your Smartphone which will lead you to the
corresponding place to download all the available Apps.（See below image）
(3) SidePad: Click on SidePad icon , it describes WiPG-1500 support SidePad
feature which allow users control the projecting screen on PC or Mac via
iPhone/iPad or Android devices. If your Smartphone has QR code scan App, you can
scan the QR code image on the screen with your Smartphone which will lead you to
the corresponding place to download all the available Apps.（See below image）

14
(4) WebSlides: Click on WebSlides icon . It describes WiPG-1500 support
WebSlides feature which can broadcast slides to audience’s web browser through
network.
(5) UST/UoIP: Click on UST icon . It describes WiPG-1500 support
UST(Universal Single Touch) which can support standard single touch device
without installing driver, and UoIP(USB over IP) which support standard HID device
through network.

15
(6) Setup: click on Setup icon , you can find the Firmware (FW) version,
resolution, WiFi channel and AP-client status information on the screen.
Meanwhile, you can also click on the “Calibration” function to calibrate the
projecting screen to an optimization mode.
7.3 Remote Touch Control (UST/UoIP)
WiPG-1500 can support standard Win7/8 compatible HID touch device. By
connecting the HID touch screen/IWB device, users can control the standby screen,
direct draw and the projecting screen remotely from the Touch Screen/IWB device.
WiPG-1500 support universal single touch without driver installation. Universal
multi touch can be supported via UoIP.
Note:
1. The UST/UoIP can only support standard HID touch device, it can’t support the
touch device required installing additional driver.
2. The front 2 USB ports do not support UoIP function

16
7.4 Conference Control Mode
1) Click to enable conference control mode.
2) Click to disable conference control mode.

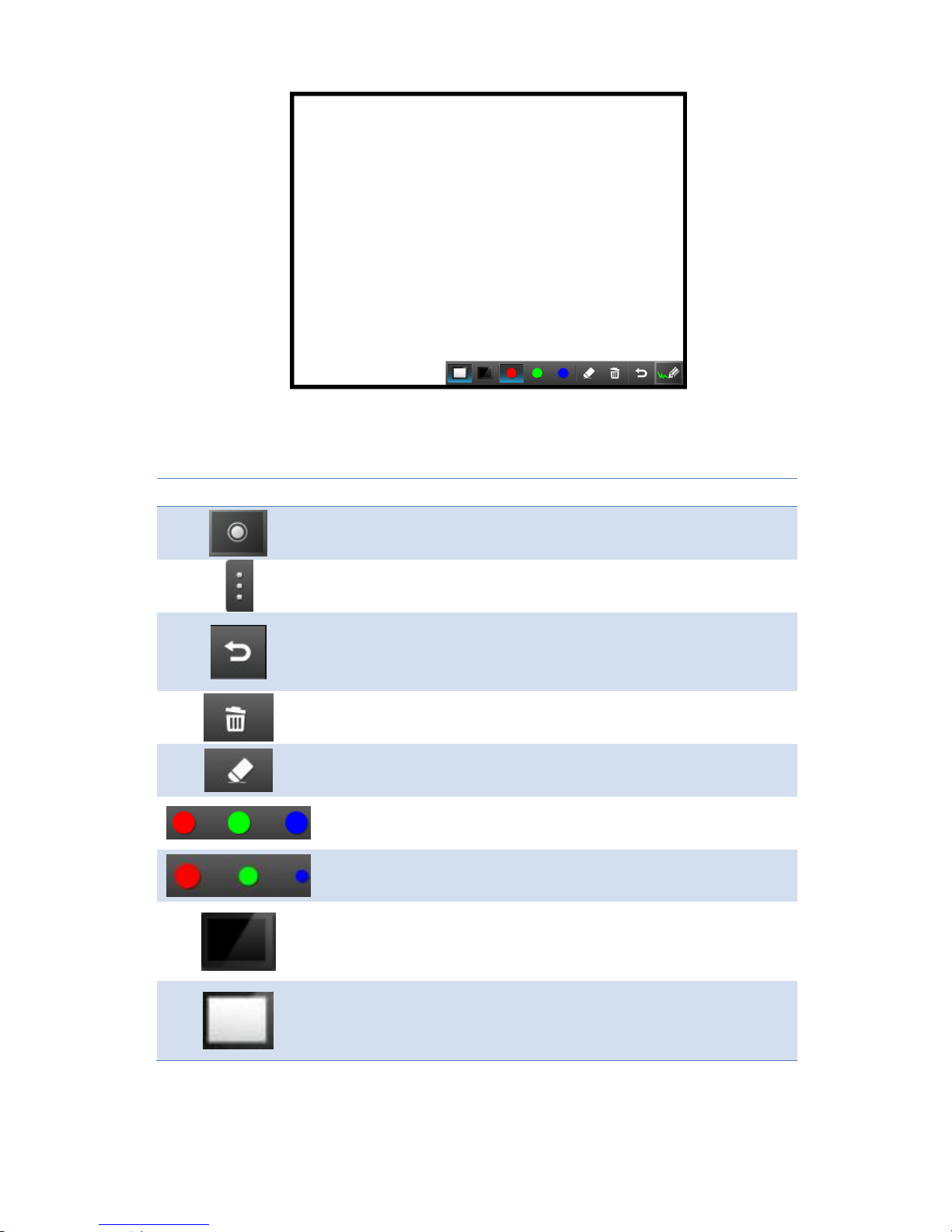

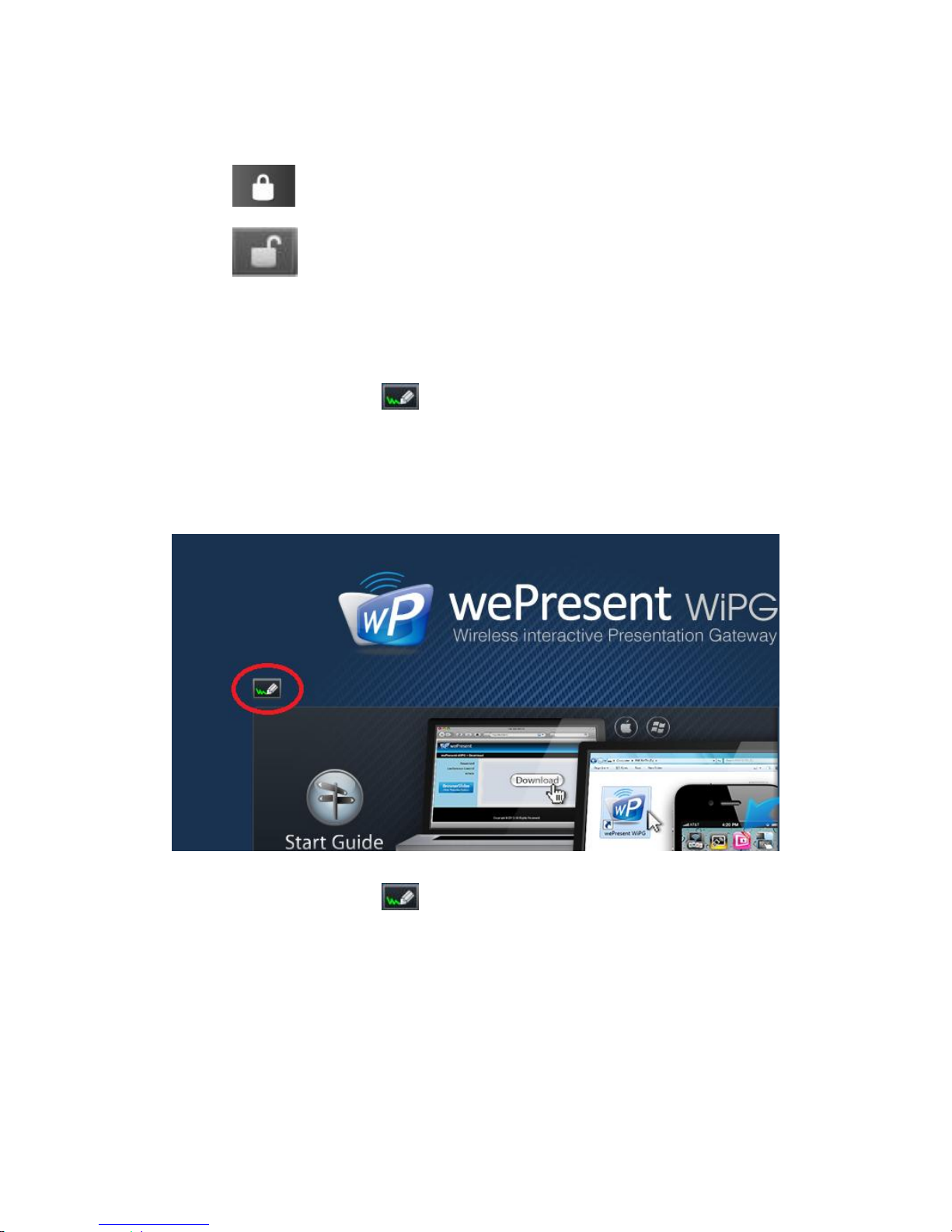

7.5 Direct Draw
1) Click on the “direct draw”button on the start page to enter “direct draw”
function page. You can make the free drawing on device screen through Mouse,
AirPad, Touch Screen or IWB device.
2) Click on the “direct draw” icon, the menu will pop up as below image.

17
Pen Menu Function
item
Description
Minimize all Pen menu bar.
Click to open up the entire pen menu.
Go back to wePresent home standby screen.
Clear all of the drawing/writing on the screen.
Erase part of drawing/writing.
Select the pen color. (Red, Green, Blue)
Select the size of the pen. (Small, Medium, Big)
Click to use the blackboard. (All the drawing/writing will be
cleared when changes to different mode)
Click to use the whiteboard. (All the drawing/writing will be
cleared when changes to different mode)

18
7.6 Pen Menu Function Under Projecting Mode.
1) When users are projecting through Windows, Mac, Android and iOS application,
any Win7/8 standard HID compatible device (i.e AirPad/Mouse/IWB/Touch Screen)
can be used for Pen feature. Users can do free drawings/writings and annotation on
the projecting screen.
Item
Description
PageUp, press this button to go to previous page.
PageDown, press this button to go to next page.
When the user is projecting a PPT file, press this button to
enable Slide Show function.
ESC. When the user is projecting a PPT file, press this button to
quit Slide Show mode.
Click this button to enable conference control mode.
Click this button to disable conference control mode.
Minimize all Pen menu bar.
、
Click to fold up or extend the pen menu.
Click to open up the entire pen menu.
Home, Go back to wePresent home standby screen.

19
Clear all of the drawing/writing on the screen.
Erase part of drawing/writing.
Select the color and size for Pen mode. (Red, Green, Blue)
Select the size of the pen. (Small, Medium, Big)
Enable the magnifier function.
Change to Mouse mode for remote control function.
Change to Pen mode for drawing/writing function.
Change to Pointer Mode.
Smart Pointer: Long press for over 1 second, it will change to
Pen mode automatically. After releasing the finger, it will
change back to Pointer mode. And it will clear previous
annotation record every time when the Smart Pointer function
is activated.
Enter into Direct Draw mode.

20
8DoWiFi for Windows
(Do Not Support Windows Phone, Windows RT)
8.1 Install the application
1) Make sure your PC WiFi is enabled already, and connect your PC to wePresent
WiPG-1500 box through WiFi. You can find the WiFi name of your WiPG -1500 box
information on the start/standby page.
2) Launch your browser and enter the Device Host Name (SSID) or IP address in the
browser. You can find the IP address and Host Name (SSID) on the
projector/display screen. (Default Host Name (SSID) is WiPG-1500-xxx, Default IP
is 192.168.100.10)
3) Download the wePresent software for “XP/Vista/Windows 7 / 8” and install on your
PC. (Ps. You can also launch the application from USB token directly.)
