Westcott L60-B User manual

L60-B Bicolor COB
User Manual
v 1.0.0
9/15/2022

1
Contents
Contents 1
Important things to know… 2
Included Components 2
Firmware Updates 2
L60-B COB: Warnings 2
L60-B COB: Overview 3
L60-B COB: LCD Display 4
L60-B COB: Getting Started 5
AC Power Operation 5
DC Power Operation 5
L60-B DC Battery Mount 5
D-Tap Battery 5
L60-B COB: Mounting 5
Mounting to a Light Stand 5
Yoke Positioning 5
L60-B COB: Attaching & Removing Modifiers 6
Connecting a Modifier 6
Removing a Modifier 6
L60-B COB: Controls 6
Adjusting the Light Output 6
Adjusting the Color Temperature (Kelvin) 6
Enabling and Adjusting the Visual FX 6
FX Options 7
Enabling Bluetooth® 7
L60-B COB: Wireless Control 7
Connecting a Light 7
Connecting Multiple Lights 8
Removing a Light 8
Renaming a Light 8
L60-B COB: Firmware Updates 8
Installing the Firmware 8
Important Firmware Details 9
L60-B COB: Technical Specifications 9
Warranty Information 10
Legal Information 11

2
Important things to know…
Included Components
● L60-B COB
● 45º Ultra Reflector
● AC Power Adapter & Cord
● Protective COB Cover
● Travel Case
NOTE : Components and accessories may vary depending on the kit purchased.
Firmware Updates
The L60-B COB is designed to allow for firmware updates over-the-air (OTA) via the free Westcott
StudioLink mobile app. The app is available via the Apple App Store and Google Play Store. Future
firmware updates may result in performance enhancements, modified menu options, or improved menu
layouts.
Please review the steps in the “ Installing the Firmware ” section of this manual for additional details.
L60-B COB: Warnings
Caution
● IMPORTANT: The physical surface temperatures of the COB LED and select components will
increase during use. Please use caution and avoid direct skin contact with the COB LED,
surrounding metal components, and accessories after immediate use to avoid serious injury.
● Use only with the Westcott L60-B AC Power Adapter and Cord, NP-F970/750/550 L-Series
Batteries & NPF Battery Grip, or 14.4/14.8V D-tap Batteries.
● Never leave unsecured and unattended equipment around children and/or pets.
● Keep away from fire, water, and moisture.
● Do not submerge in water.
● Avoid drastic temperature changes before, during, or after use.
● Do not overtighten the yoke or tilter bracket tension knobs.
● Ensure the L60-B is securely mounted before use.
● Only use compatible modifiers and accessories.
● Do not attempt to modify any Westcott products. Contact Westcott for any assistance.
● The operating temperature range is 14-104°F(-10-40°C).

3

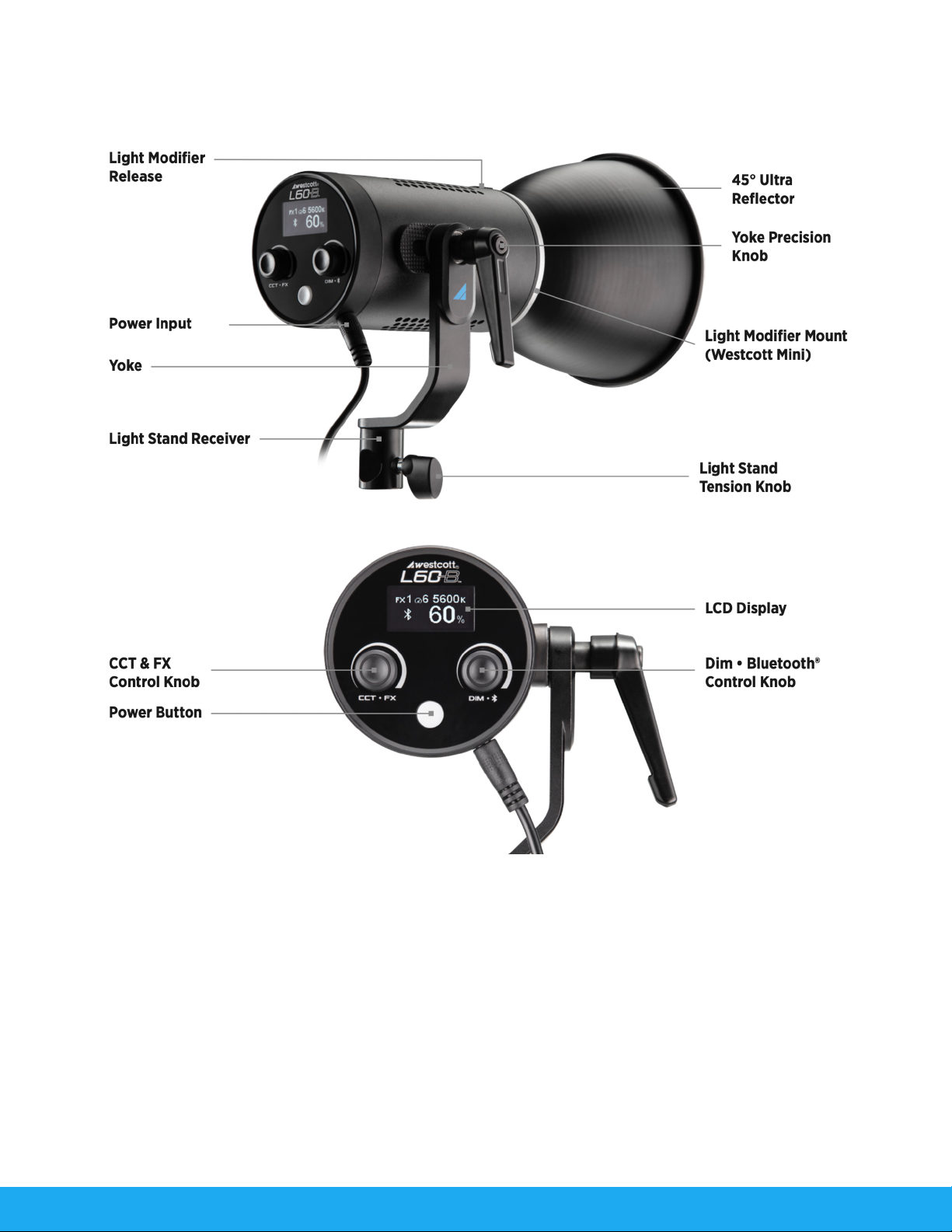

L60-B COB: Overview

4
L60-B COB: LCD Display

5
L60-B COB: Getting Started
AC Power Operation
1. Connect the AC cable to the AC power adapter.
2. Plug the two-prong connector of the cable into a wall outlet.
3. Locate the barrel plug on the AC cable and plug it into the L60-B power port.
4. Ensure that the clear protective cover has been removed from the front of the L60-B by sliding
the modifier release toward the rear of the unit and turn the cover counterclockwise.
5. Turn the COB ON by pressing and holding the Power button.
DC Power Operation
L60-B DC Battery Mount
1. Completely charge two compatible NPF batteries (NP-F970/750/550).
2. Insert both batteries into the battery mount.
3. Loosen the L60-B light stand tension knob.
4. Insert the battery mount silver spigot into the yoke receptacle.
5. Tighten the light stand tension knob.
6. Turn the COB ON by pressing and holding the Power button until the start-up screen
appears.
D-Tap Battery
1. Ensure the D-Tap battery has been fully charged.
2. Plug the L60-B D-Tap to Barrel Cable into the battery’s D-Tap port.
3. Plug the barrel plug end of the cable into the L60-B power port.
4. Turn the COB ON by pressing and holding the Power button until the start-up screen
appears.
NOTE: The L60-B DC Battery Mount, NP-F batteries, and D-Tap batteries are sold separately.
L60-B COB: Mounting
Mounting to a Light Stand
1. Rotate the L60-B yoke’s light stand tension knob counterclockwise to loosen. Do not completely
remove.
2. Insert the light stand spigot into the L60-B’s 5/8"-16 mm yoke receiver.
3. Tighten the tension knob to secure the COB to the light stand.
Yoke Positioning
1. The L60-B allows horizontal adjustments for yoke positioning.

6
2. When mounting heavier modifiers, we recommend positioning the yoke in the middle of the
oval mounting bracket. This will allow for the most secure positioning.
NOTE: The L60-B was designed for compatibility with various modifiers. However, the yoke’s
positioning, the modifier’s depth, the modifier’s weight & the location of the weight on the modifier
could cause the yoke to be unable to maintain the desired position.
L60-B COB: Attaching & Removing Modifiers
Connecting a Modifier
1. Ensure that the clear protective cover has been removed from the front of the L60-B by sliding
the modifier release toward the rear of the unit and turn the cover counterclockwise.
2. Ensure the COB is turned OFF and has cooled for five minutes.
3. Grasp the modifier and align the four square mounting blocks with the adapter openings located
on the face of the COB.
4. Insert the modifier and gently turn clockwise until it locks into place.
Removing a Modifier
1. Ensure the COB is turned OFF and has cooled for five minutes.
2. Securely grasp the modifier.
3. Slide the COB’s modifier release away from the modifier.
4. Rotate the modifier counterclockwise until the four square mounting blocks align with the
openings. Pull the modifier away from the COB to remove.
5. Reinstall the clear protective cover to protect the COB during storage and transport.
NOTE: Use caution when removing modifiers to avoid damaging the COB. Never force entry or removal
of modifiers.
L60-B COB: Controls
Adjusting the Light Output
1. Ensure that the L60-B is ON .
2. Rotate the Dim•Bluetooth control knob to adjust the intensity.
Adjusting the Color Temperature (Kelvin)
1. Ensure that the L60-B is ON .
2. Rotate the CCT•FX control knob to adjust the color temperature.
Enabling and Adjusting the Visual FX
1. Ensure that the L60-B is ON .

7
2. Quick press the CCT•FX control knob to enable the FX functionality.
3. Rotate the CCT•FX control knob to select the desired FX.
4. Quick press the CCT•FX control knob again to change the frequency of the FX.
5. Rotate the CCT•FX control knob to select the desired frequency.
6. Exit FX Mode by pressing the CCT•FX and rotate the knob counterclockwise until FX[] is
displayed.
FX Options
● FX0 [ Constant Brightness ]
● FX1 [ TV ]
● FX2 [ Faulty Bulb ]
● FX3 [ Lightning ]
● FX4 [ Fire ]
● FX5 [ Pulse ]
● FX6 [ Paparazzi ]
● FX7 [ Headlight ]
● FX8 [ SOS ]
● FX9 [ Emergency ]
Enabling Bluetooth®
1. Ensure that the L60-B is ON .
2. Quick press the Dim•Bluetooth control knob to turn Bluetooth® ON .
L60-B COB: Wireless Control
NOTE: App available Winter 2022.
Connecting a Light
1. Download the Westcott StudioLink app via the Apple App Store or Google Play Store.
2. Ensure that the L60-B is ON .
3. Open the Westcott StudioLink mobile app.
4. Select the LED Controls icon.
5. Quick press the Dim•Bluetooth control knob to turn Bluetooth® on and the symbol will
appear on the back of the L60-B.
6. Long-press the DIM•Bluetooth control knob until the Bluetooth® logo appears to blink on the
L60-B screen; this will make the L60-B discoverable via the Westcott StudioLink app.
7. Select Add a Light or Group.
8. Tap on the Add a Light option.
9. Find your device listed in the Unpaired Devices section.
10. Tap on the L60-B device you want to connect.
11. Once connected, the app will redirect you to the My Scene menu.

8
Connecting Multiple Lights
1. Follow the same steps found in the Connecting a Light section .
2. When multiple lights are displayed in the Pairing Menu, select them one at a time to connect.
3. When there are no longer any lights in the Unpaired Devices section, return to the My Scene
menu.
4. All connected lights will be displayed, and you will have full control over your L60-B lights.
Removing a Light
1. Option #1:
a. To remove a light from the Westcott StudioLink App, swipe left on the light you would
like to remove.
b. A red trash can icon will appear to the right of the selected light.
c. Tap the trash can icon, and a message will appear asking, “Are you sure you want to
delete?”
d. Select Delete . The light is now removed from the Westcott StudioLink App.
2. Option #2:
a. Tap the corresponding three white dots on the right side of the screen.
b. A drop-down menu will appear, select Delete Light .
c. A message will appear asking “Are you sure you want to delete?”
d. Tap Delete. The light will then be removed from the Westcott StudioLink App.
Renaming a Light
1. To rename a light, tap on the corresponding three white dots on the right side of the screen.
2. Select Light Controls .
3. Once in the Light Controls Menu, press and hold down on the L60-B title at the top of the Light
Controls Menu.
4. Rename your light.
5. Return to the My Scene Menu, and the new light name will be displayed.
L60-B COB: Firmware Updates
Installing the Firmware
1. Download the Westcott StudioLink app via the Apple Appstore or Google Play Store.
2. Ensure that the L60-B is powered on.
3. Open the Westcott StudioLink mobile app.
4. Select the LED Controls icon.
5. Quick press the Dim•Bluetooth control knob to turn Bluetooth® on and the symbol will
appear on the L60-B display.
6. Long-press the DIM•Bluetooth Control Knob until the Bluetooth® logo blinks on the L60-B
screen. This will make the L60-B discoverable via the Westcott StudioLink App.

9
7. Select the Add a Light or Group icon.
8. Tap on the Add a Light option.
9. Find your device listed in the Unpaired Devices section.
10. Tap on the L60-B you would like to connect to.
11. Once connected, the app will redirect you to the My Scene menu.
12. Long-press the CCT/FX button on the L60-B for 10 seconds. After the allotted time has passed,
the L60-B will display the current firmware version number and the message “ Initiate Update
from Mobile App .”
13. Select Firmware Update at the bottom of the My Scene menu.
14. In the Firmware Update menu, select the L60-B that is connected.
15. The next menu will display SELECT FIRMWARE.
16. Select the newest firmware version number.
17. Select Update from the next pop-up screen.
18. The firmware installation process will begin.
19. Once the L60-B firmware installation process is completed, the COB will display, “Installation
Complete, L60-B Restarting, DO NOT UNPLUG.” The L60-B will restart automatically.
20. Press OK in the Westcott StudioLink App to complete the firmware update.
21. Reconnect your L60-B COB via Bluetooth® after it restarts, utilizing the steps in the section
“Connecting a Light.”
Important Firmware Details
● It’s recommended that the firmware update installation process be completed only when the
connected mobile device’s power level is ≥ 50% and the L60-B is operating via AC power. Loss
of power of any type during this process could render the L60-B inoperable and require
professional repair.
● If your device should freeze or the firmware does not load correctly, unplug the L60-B from the
power supply. Plug the power supply back into your L60-B again and start the firmware update
process again.
L60-B COB: Technical Specifications
L60-B: COB
Maximum Power Consumption (Watts)
Up to 90W
Intensity Range
0 - 100%
Color Temperature Range
2700 - 6500K
CRI
Up to 97
TLCI
Up to 98
SSI
Up to 88
L60-B: AC Power Input

10
AC Requirement
100 to 240 VAC, 50 / 60 Hz 1A max
Voltage
15V
Output Current
6A Max
AC Operating Temperature
14° to 104° F / -10° to 40° C
L60-B: DC Power Input
Input Range
12-17V, 6A max
Power Cable Length
14.76' (4.5 m)
AC Connection Point Type
5.5 mm
L60-B: General
Modifier Mount Type
Mini Mount
Display
LCD Display
Fan Cooled
Active Cooling Fans
Firmware
Over the Air (mobile app required)
Auto Memory Recall
Yes
Auto-Power Off
No
L60-B: Dimensions & Weight
Weight (Reflector)
1.45 lbs ( .66kg)
Length
5.5in ( 13.97cm)
Height
3.2 in ( 8.13cm)
Diameter
3.2 in ( 8.13cm)
Operating Temp
14° to 104° F / -10° to 40° C
Warranty Information
Westcott’s warranty obligations for this product are limited to the following terms.
The F.J. Westcott Co. (“Westcott”) warrants this Westcott branded product against defects in materials
and workmanship under normal use for a period of ONE (1) YEAR from the date of retail purchase from
Westcott or an authorized retailer by the original end-user purchaser (“Warranty Period”). If a defect
arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted
by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement
parts, or (2) exchange the product with a product that is new or which has been manufactured from
new or serviceable used parts and is at least functionally equivalent to the original product. This
Limited Warranty applies only to products manufactured by or for Westcott that can be identified by
the Westcott trademark, trade name, or logo affixed to them.

11
This warranty does not apply to: (a) damage caused by accident, abuse, misuse, flood, fire,
earthquake, mold, or other external causes; (b) damage caused by operating the product outside the
permitted or intended uses described by Westcott; (c) a product or part that has been modified to alter
functionality or capability without the written permission of Westcott; or (d) cosmetic damage,
including but not limited to scratches, dents, and broken plastic.
Disclaimer: By purchasing, borrowing and/or using this product for any event, both public or private,
you, the customer, accepts all responsibility and release Westcott, and its associates, of any and all
liability in the event of manufacturer’s defect, malfunction or misuse of the product which may lead to
further injuries or complications unforeseen by the user. Westcott is not responsible for any potential
or incurred damage caused by failure to properly mount, hang, or store the product, which includes,
but is not limited to damage to cameras, electronics, electrical equipment, buildings, building materials,
personal injury, death, or disability, fire damage, or any and all other damage not mentioned
previously.
Please contact Westcott’s Repair Department for a Return Authorization Number “RMA” before
requesting warranty service. This RMA must be clearly written on the outside of the box to the left of
the shipping label. Items sent in without pre-authorization or that do not fall under the limited warranty
will be returned at the sender’s expense.
Repair Department: 419-243-7311
Email: [email protected]
Shipping: F.J. Westcott Co, 1425-B Holland Rd. Maumee, OH 43537
Legal Information
Westcott products are made to the company’s traditionally high-quality standards and comply with all
applicable government safety regulations and requirements. In an effort to provide the best quality
products possible, we periodically make product modifications. Actual products may not be identical to
the items pictured. Future firmware updates may result in performance enhancements, removal of
features to achieve optimal performance, and modified menu options and layouts.
©F.J. Westcott Co. All rights reserved.
