Renewal Parts Data
33-790-1G
December,
1988
Supersedes Renewal Parts Data 33-790-lF,
pages 1-20, dated December,
1987
Supplements l.B. 33-790-lF
Parts Identification
Renewal Parts Data 33-790- lF is supplementary informa-
tion to Instruction Book 33-790- lF, Instructions for Low
Voltage Power Circuit Breakers Types
DS and DSL. The
illustrations in this Renewal Parts Data show parts and
sub-assemblies which are identified by name and style
number in the associated tabulations. Additional informa-
tion and illustrations are shown in the figures in
LB. 33-790- lE, which show many sub-assemblies and
detail parts
in order to illustrate their function and
location in the assembly. Some of the detail parts shown
in the instruction book are recommended only as part
of a sub-assembly to facilitate their replacement or instal-
lation
in the field. The availability of parts and subassem-
blies
is indicated by style number in the following data.
Page 1
Low-Voltage
Power Circuit Breakers
and CelI Parts
Types
DS and DSL
This publication covers the following
breakers.
Breaker
Type
Frame Size Amperes
DS-206
800
DSL-206 800
DS-206S 800
DS-416 1600
DSL-416 1600
DSA16S 1600
DS-420
2000
DS-632 3200
DS-840
4000
INDEX Page
Subject Number
General Information ... ... .... ... ... .. 2
Common Parts. . .... .... .... .. ... ..... 3
Pole Units .. .... .. .. .. .. .. .. .. .. ... .. . 4-7
Arc Chutes & Barriers ... .... ........ 8
Levering Mechanism .. ... .... .. ... ... 9
Operating Mechanism ................ 10-12
and Related Parts
Automatic Tripping System .. . ... .... 13
Optional Accessories ................. 14-15
DSL-206 and DSL-416............... 16
Feeder Circuit .. . .. .. .. .. .. .. .. ... .. .. 17
Instrumentation
Breaker Interference. ... ..... ......... 18
Brackets
Assembly Cell Parts .... .... .......... 19
If the item in question cannot be identified by style
number, refer to the Figure number, name and item num-
ber as shown in this RPD (or LB. 33-790-lF) along with
the breaker type and its shop order number or style num-
ber as shown on the nameplate on the front cover of the
circuit breaker.
The above nameplate information will also be required
when adding components, which are not direct replace-
ments, to a circuit breaker.
It
is not recommended that any field modification
be attempted to change type
DS manually operated
breaker to
an electrically operated breaker or any DS
breaker to a DSL type.
Courtesy of NationalSwitchgear.com

2
RECOMMENDED SPARE PARTS
Spare parts recommended for stocking are indicated in
the following data by the symbol®· An adequate stock
of spare parts
will help minimize emergency situations
and can substantially reduce production down time.
The amount of investment to be made in spare parts
stock can be dependent on a number of individual factors.
The items recommended and the quantities specified
below are intended as a guide.
For 1to 5 Breakers- Items marked ® in sufficient
quantity for one breaker.
For 6 to 10 Breakers-Items
marked® in sufficient
quantity for two breakers.
Over IO Breakers-One spare complete breaker. plus
recommended spare parts for one breaker.
ORDERING INFORMATION
1. Name item and give its style number. Specify quantity
desired.
2. State method of shipment desired.
3. Send all orders or correspondence to nearest
Westinghouse Sales Office.
PRICING INFORMATION
All of the style numbers in this Renewal Parts Data book
are listed in Price and Entry Guide 120 and Electronic AMS.
AMPTECTOR TRIP----------------.
AMPTECTOR TRIP TEST
TERMINAL ACCESS
{SHOWN WITH COVER
IN PLACE)
SHUTTER------
ORAWOUT UNIT
POSITION INOICATOR
PAOLOCK
PLATE-----,
TRIP PLATE------
SPRING CHARGE-----
INOICATOR
Fig. 1 View Showing Control~ on the Panel
Items Common to All Breaker Types
AUXILIARY SWITCHES-FIGURE 28
Refer to Fig. 28 for available auxiliary switches for all
breakers except those wired per diagrams figures IOD,
lOE, IOF, and IOG, and those equipped with mechanical
interlocks.
SECONDARY DISCONNECTING CONTACTS-
FIGURE NO. 3
To replace an existing contact block, or adding a block
to a breaker with an existing mounting frame, order
S# 591C498G06.
When ordering or replacing a top existing disconnect-
ing contact cover, order
S# 503B569H01.
Breakers originally supplied without secondary contacts
will require a mounting frame to add a contact block,
(see Fig. 3). Order
S# 591C498G07 which includes an 8
point block and mounting frame. For cell mounted sec-
ondary contacts (see Fig. 34), order
S# 590C808G01,
which includes an 8 point block, mounting and hardware.
TYPE DS CIRCUIT BREAKER FASTENER KIT
S# 3586A86G01 kit includes an assortment of retaining
rings, truarc rings,
"E" rings, and "X" washers in a
plastic bag. Recommended spares:
one (1) kit for one (1) breaker, two (2) for 2 to 5 break-
ers, three (3) for 6 to 20 breakers, and four (4) for over
20 breakers.
-----FRONT COVER
'------ NAMEPLATE
EMERGENCY
'------- CHARGING
HAN OLE
'------ OPEN~CLOSE
INDICATOR
;....__ ____ CLOSE BAR
Courtesy of NationalSwitchgear.com

STANDARD HARDWARE
Standard hardware such as bolts, nuts, washers, etc. are
not listed
in this data. Such items should be purchased
locally. Note: Bolts holding copper details together
in the
pole unit, and bolts holding levering
in cranks should
be SAE Grade
5.
BREAKER LIFTING YOKE
Breaker Type Style No.
Hooks
DS-206, DSL-206 802B331G01
DS-416, DSL-416 802B331G01
DS-420 802B331G01
DS-632 802B331G01
Spreader Bar
9561D78G01
9561D78G01
9561D78G01
9561D78G01
LEFT
INSIDE
LEVERING AMPTECTOR SHUTTER
DEVICE TRIP TEST (DEPRESSED)
SHAFT TERMINALS
EMERGENCY
CHARGING
HANDLE
AUXILIARY
DS-840 802B331G01 9561D78G02 TRIP
BREAKER FRONT COVER
Breaker Type
All
DS except DS-632 and DS-840
DS-632
DS-840
All DSL except DSL-632 and DSL-840
DS BREAKER LABELS
Mechanism
Breaker Closed/Breaker Open
Spring Charged/Spring Discharged
Trip Button Decal
Levering in Device
Levering Mech. Instruction
Front Cover
Conn/Test/Disc/Remove Decal
Read Instruction Book Before Decal
Style No.
567F498H01
567F499H01
567F503H01
567F498H02
3830A57H01
3830A66H01
3830A63H01
3830A56H01
3830A67H01
3830A64H01
Front cover not supplied with Labels. Labels must be
ordered separately
BREAKER ROLLERS (4 REQUIRED PER
BREAKER)
S#503B565H01
Note: Order Fastener Kit when ordering rollers.
LUBRICATION
S3701QB12J Moly Grease 14 oz. tube for
mechanical parts
53701ANOOT Graphite Grease Quart can for contacts
VIDEO MAINTENANCE TAPES
1. DS breaker maintenance and inspection tapes.
VHS or Beta or 8mm
Playing Time:
28 mins.
2. Calibration and testing of Amptector overcurrent pro-
tection system. (VHS or Beta or 8mm)
Playing Time:
31 ruins.
VHS -8187A14H01
Beta -8187A14H02
8mm -8187A14H03
VHS -8187A14H04
Beta -8187A14H05
8mm -8187Al4H06
TRIP
ACTUATOR
OPERATED
BREAKERS
OPENING ONLY
SPRING
Fig. 2 DS 416 Breaker with Front Panel Removed
SECONDARY
CONTACT
MOUNTING
FRAME
SENSORS
SECONDARY
DISCONNECTING
CONTACT COVER
SECONDARY
DISCONNECTING
CONTACTS
MAIN
DISCONNECTING
CONTACTS
LEFT
OUTSIDE
WIRING
GUIDE
LEVERING
DEVICE ARM
(CONNECTED
POSITION)
Fig. 3 Rear View Showing LeFering Del'ice Arm in
CONNECT Position
3
Courtesy of NationalSwitchgear.com

4
Type DS-206, DSL-206 and DS-206S Pole Unit
Fig. 4
@) ARCING CONTACT
SPRING
(!)MAIN CONTACT---..._
SPRING
@ STATIONARY MAIN
CONTACT FINGERS
@MOVING
ARCING CONTACTS
® MOVING MAIN----
CONTACTS
CD MOLOED BASE
@)STATIONARY ARCING
CONTACTS
STUD ASSEMBLY
HOLES
FOR
INSULATING LINK PIN
(PINS NOT SHOWN)
@INSULATING
Type DS-206Pole Unit Assembly-Front View LINK
DS-206
DSL-206 (j) DS-206S®
No. No. No.
Req. Req. Req.
Fig.
Item Per Per
Per
Description
No. No. Bkr. Style Number
Bkr. Style Number
Bkr. Style Number
Three Pole Unit Assembly Complete 4 140D152G05 140D152G07 3 9145D41G02
Following are included in Three Pole
Unit Assembly:
Molded Base 4 1 1
14001 50H01
1
14001 50H01
3
553F204H01
Upper Stud Assembly 4 2 3
59lC653G01
3 591
C653G03
3 592C928G01
Lower Stud Assembly 4 3 3 591
C652G01
3 591
C652G03
3 592C927G01
Following are included in Upper
Stud Assembly:
Stationary Arcing Contact-A .H. 4 4
3®
682C829G01
3®
682C829G01
3®
682C829G01
Stationary Arcing Contact-L.H.
4 4
3®
682C829G02
3®
682C829G02
3®
682C829G02
Stationary Arcing Contact Spring
4 5 6®
503B027H01
6®
503B027H01
6®
503B027H01
Stationary Main Contact Finger 4 6
6®
809A263G01
6®
809A263G01
12 ® 809A263G01
Stationary Main Contact Spring
4 7 3®
503B027H08
3®
503B027H08
6®
503B027H08
Following are included in Lower
Stud Assembly:
Moving Arcing Contact
4 8 3®
682C828G01
3®
682C828G01
3® 682C828G01
Moving Main Contact
4 9 6®
591 C651 G01
6®
591C651G01
12 ® 591C651G01
Insulating Link
Assembly
4 10 3 788A588G01 3 788A588G01 3 788A588G03
Pin for Insulation Links©
Center Pole 4 1 666A347H17 1 666A347H17 1 666A347H17
Left
and Right Pole 4 2 3755A23H01 2 3755A23H01 2 3755A23H01
Main Disconnecting Contact Assembly® 3 6 591C655G02 6 591C655G02 6 591C655G03
Compartment Trip Lever
7 1 8295A03G01 8295A03G01 8295A03G01
® Recommended Spare-See page 2.
@The DS-206S pole unit is not illustrated. The DS-206S pole unit assembly @ Not included in pole unit assembly.
CD See page 16 figure 32 for illustration of
is similar to the DS-41() with the upper and lower stud assemblies
® X washers for pin installation listed on
mounted on a separate molded base for each pole rather than a common
page 3 under OS Circuit Breaker
the DSL-206.
hase for the three poles. Fastener Kit
Courtesy of NationalSwitchgear.com

Type DS-416, DSL-416, DS-416S and DS-420 Pole Unit
DS-416 Pole Unit is illustrated. DS-4165 and DS-420 Pole Unit Assemblies are similar
@) ARCING CONTACT
SPRING
CD MOLDED BASE
@UPPER STUD
ASSEMBLY
@STATIONARY
MAIN CONTACT
FINGERS
@LOWER STUD
ASSEMBLY
CD MOVING ARCING
CONTACT
MOVING MAIN
CONTACT
LINK
PIN (NOT SHOWN)
Fig. 5 Fig. 6
Type DS-416 Pole Unit Assembly- Front View Type DS-416 Pole Unit
Assembly-Rear View
DS-416
DSL-416 (j)
DS-416Sand DS-420
No. No. No.
Req. Req. Req.
Fig. Item Per Per
Per
Description No. No. Bkr. Style Number Bkr.
Style Number Bkr. Style Number
Single Pole Unit Assembly Complete 5-6 3
151D064G01
3 151 D065G01
3
151D065G02
Following are included in Single
Pole
Unit Assembly:
Molded Base 5 1 3
553F204H01 3
553F204H01
3 553F204H01
Upper Stud Assembly -Stat.
5 2 3
591C750G02 3®
139D635G01
3®
139D635G02
Lower Stud Assembly -Moving
5 3 3
126D298G06 3
139D633G04
3®
139D633G05
Following are included in Upper
Stud Assembly:
Stationary Arcing Contact-R .H. 5 4 3® 682C829G01 3®
682C829G01 3®
682C829G01
Stationary Arcing Contact-L.H.
5 4 3® 682C829G02
3®
682C829G02
3®
682C829G02
Stationary Arcing Contact Spring 5 5 6® 503B027H01 6®
503B027H01
6® 503B027H01
Stationary Main Contact Finger 5 6 24 ® 809A263G01
36 (2)@ 809A263G01 36@
809A263G01
Stationary Main Contact Spring- 12 ®
503B027H05
12 (2)@
503B027H05
12@
503B027H05
Outer
Stationary Main Contact Spring-
12 (2)@
503B027H10
12@
503B027H10
Inner
Following are included in Lower
Stud Assembly:
Moving Arcing Contact
6 1
3®
682C827G01
3® 682C827G01
3®
682C827G01
Moving Main Contact 6 2 3®
665A321G01
3® 795A769G01 3 © 795A769G01
Insulating Link Assembly 5 7 3 436B450G02 3 436B450G02 3
436B450G02
Pin for Insulation Links©
Center Pole 4 1 666A347H17 1 666A347H17 1
666A347H17
Left and Right Pole 4 2 3755A23H01 2 3755A23H01 2 3755A23H01
Main Disconnecting Contact Assembly s 3 6 682C347G01 6 682C347G01 6 590C804G01
Compartment Trip Lever 7 1 8295A03G01 1 8295A03G01 1 8295A03G01
® Recommended Spare-See page 2. @
Changing the moving main contact is complicated because of a drilling
<D See page 16 figure 33 for illustration of the DSL-416.
and pinning operation. The Lower Stud Assembly is recommended for
the DS-416S and DS-420.
5
®Assembly of the stationary main contact fingers and inner and outer
© X washers for pin installation listed on page 3 under OS Circuit Breaker Fastener Kit.
springs is difficult. The Upper Stud Assembly is recommended for the
DSL-416. DS-416S and DS-420. ® Not included in pole unit assembly.
Courtesy of NationalSwitchgear.com

6
EMERGENCY
CHARGING
HANDLE
TRIP LEVER SPRING CHARGE
ASSEMBLY
Fig. 7 DS-632 Breaker with Front Panel Removed
OVERCURRENT
TRIP
SWITCH
COMPARTMENT
TRIP LEVER
ANTI PUMP
RELAY
Fig. 10 DS-840 Breaker with Front Panel Removed
@
UPPER
STUD
@
LOWER
STUD
CD
MOLDED
BASE
©
STATIONARY
.-------ARCING
CONTACTS
0
INSULATING
LINK
HOLE
FOR INSULATING
LINK PIN (NOT SHOWN)
Fig. 8 Type DS-632 Pole Unit Assembly- Front View
®
ARCING
CONTACT
SPRING
©
STATIONARY
FINGERS
@
UPPER STUD
ASSEMBLY
CD
ASSEMBLY
©
STATIONARY
ARCING
CONTACTS
0
-·-MOVING
LINK
HOLE
FOR INSULATING
LINK PIN (NOT SHOWN)
Fig. 11 Type DS-840 Pole Unit Assembly- Front View
Courtesy of NationalSwitchgear.com

CD
@
MOVING MAIN
CONTACTS
MOVING
MAIN
CONTACT
Fig. 9 Type DS-632 Pole Unit
Assembly- Rear View
Fig. 12 Type DS-840 Pole Unit
Assembly- Rear View
ID Recommended Spare-See page 2.

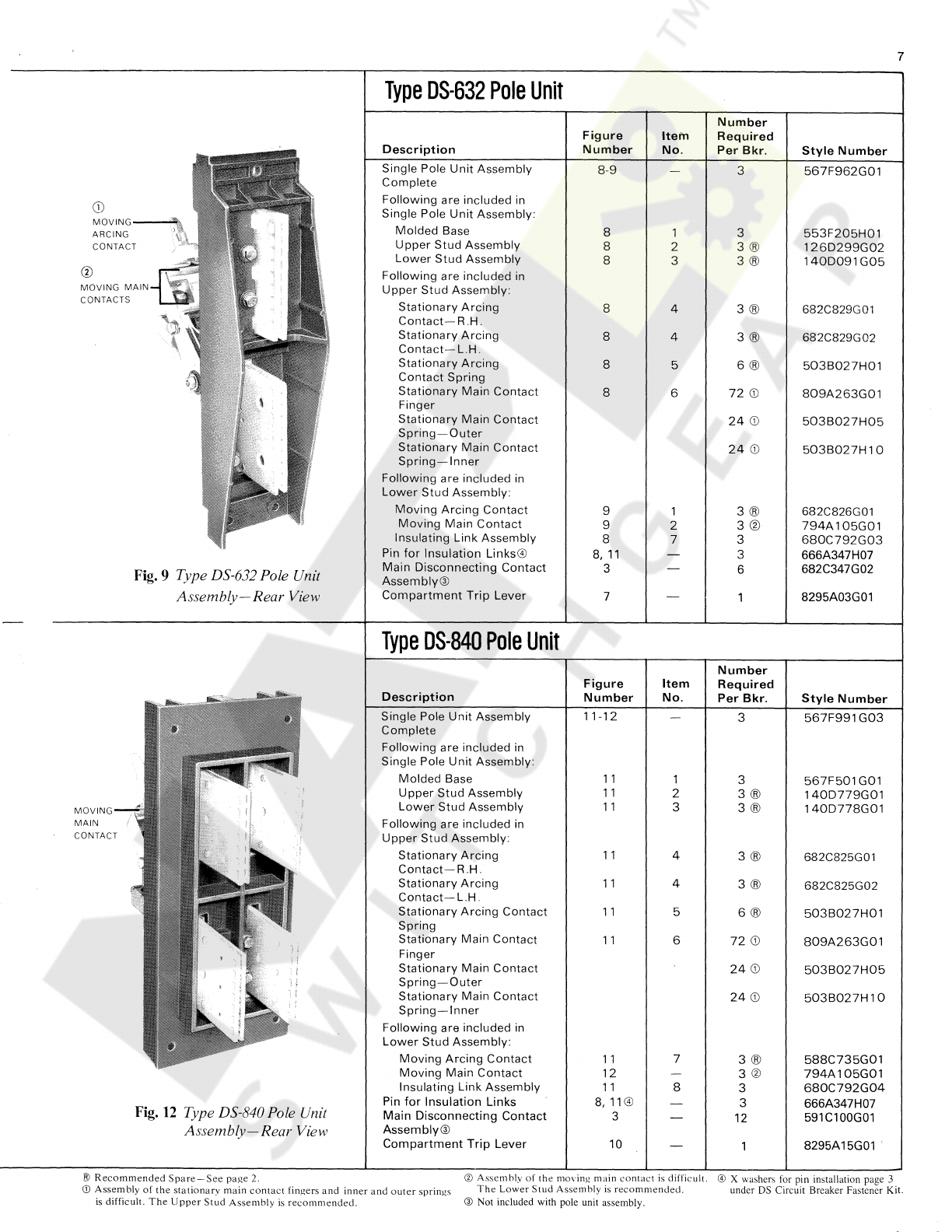

Type DS-632 Pole Unit
Description
Single Pole Unit Assembly
Complete
Following are included in
Single Pole Unit Assembly:
Molded Base
Upper Stud Assembly
Lower Stud Assembly
Following are included in
Upper Stud Assembly:
Stationary Arcing
Contact-R .H.
Stationary Arcing
Contact-L.H.
Stationary Arcing
Contact Spring
Stationary Main Contact
Finger
Stationary Main Contact
Spring-Outer
Stationary Main Contact
Spring-Inner
Following are included in
Lower Stud Assembly:
Moving Arcing Contact
Moving Main Contact
Insulating Link Assembly
Pin for Insulation Links©
Main Disconnecting Contact
Assembly@
Compartment Trip Lever
Type DS-840 Pole Unit
Description
Single Pole Unit Assembly
Complete
Following are included in
Single Pole Unit Assembly:
Molded Base
Upper Stud Assembly
Lower Stud Assembly
Following are included in
Upper Stud Assembly:
Stationary Arcing
Contact-R .H.
Stationary Arcing
Contact-L.H.
Stationary Arcing Contact
Spring
Stationary Main Contact
Finger
Stationary Main Contact
Spring-Outer
Stationary Main Contact
Spring-Inner
Following are included in
Lower Stud Assembly:
Moving Arcing Contact
Moving Main Contact
Insulating Link Assembly
Pin for Insulation Links
Main Disconnecting Contact
Assembly@
Compartment Trip Lever
Figure
Number
8-9
8
8
8
8
8
8
8
9
9
8
8, 11
3
7
Figure
Number
11-12
11
11
11
11
11
11
11
11
12
11
8, 11 ©
3
10
Item
No.
1
2
3
4
4
5
6
1
2
7
Item
No.
1
2
3
4
4
5
6
7
8
Number
Required
Per Bkr.
3
3
3®
3®
3®
3®
6®
72 CD
24 CD
24 CD
3®
3®
3
3
6
Number
Required
Per Bkr.
3
3
3®
3®
3®
3®
6®
72 CD
24 CD
24 CD
3®
3@
3
3
12
Style Number
567F962G01
553F205H01
126D299G02
140D091G05
682C829G01
682C829G02
503B027H01
809A263G01
503B027H05
503B027H10
682C826G01
794A105G01
680C792G03
666A347H07
682C347G02
8295A03G01
Style Number
567F991 G03
567F501 G01
140D779G01
140D778G01
682C825G01
682C825G02
503B027H01
809A263G01
503B027H05
503B027H10
588C735G01
794A105G01
680C792G04
666A347H07
591C100G01
8295A15G01
® Assemhly of the mo\'ing main contact is difficult. @ X washers for pin installation page 3
7
G) Assembly of the stationary main contact fingers and inner and outer springs
is difficult. The Upper Stud Assembly is recommended.
The Lower Stud Assembly is recommended. under DS Circuit Breaker Fastener Kit.
@ Not included with pole unit assembly.
Courtesy of NationalSwitchgear.com

8
Arc Chutes and Barriers
3 OF THE 4
.25-20 ARC CHUTE
INSULATING
------..--..,.......,
BARRIERS
3 ARC
CHUTES----------
Fig. 13 Breaker with Barrier Removed to Show Mounting
of Arc Chutes
Fig. 15 DS-2065, DS-416
DS-4165, DS-420
Fig. 16 DS-632 Arc Chute
Arc Chute
Fig. 14 DS-206 Arc Chute
Fig. 17 DS-840Arc Chute
Assembled Arc Chute and
Removable Insulating Barriers -
Mounting Screw
Fig.13
Outer
Number Number Number
Breaker Figure
Required Required Required
Type Number Per Breaker Style Number
Per Breaker Style Number
Per Breaker
DS-206
3
449D508G01 2
349A578H01
2
DSL-206
14
DS-2065
QS-416
DSL-416
15
3 151D018G01
2 349A578H01 2
DS-4165
DS-420
DS-632 16 3 151D018G02
2
436B108H02
2
DS-840 17
3
140D164G01
2 803A735H01 2
Inner
Style Number
788A586H01
349A578H01
436B108H01
803A735H01
Courtesy of NationalSwitchgear.com

Levering Mechanism
ELASTIC
STOP NUT
Fig. 18 Levering Mechanism
---------------------TRAVELING
STOP NUT
-------------------RETAINING
CLAMP
LEVERING MECHANISM ASSEMBLY
Levering Mechanism -Fig. 18
Description
Levering Mechanism Assembly
Following are included in Assembly:
Traveling
Stop Nut
Retaining Clamp
Following are not included in
Assembly:
Crank Arm with Roller
Special Bolt
Elastic Stop Nut
Lever-in Crank Handle
(Not Shown)
CD For DS-840 four are required per breaker.
Number
Required
per Breaker
2
2CD
2CD
1
All Type DS/DSL
except DS-840 DS-840
Style Number Style Number
449D224G04
449D224G05
791A674H01
791A674H01
791A679H01
791A679H01
786A586G01 567F993G02
792A024H01 792A024H01 CD
70220ERN18 70220ERN18CD (5116-18)
436B696G01 436B696G01
9
Courtesy of NationalSwitchgear.com

10

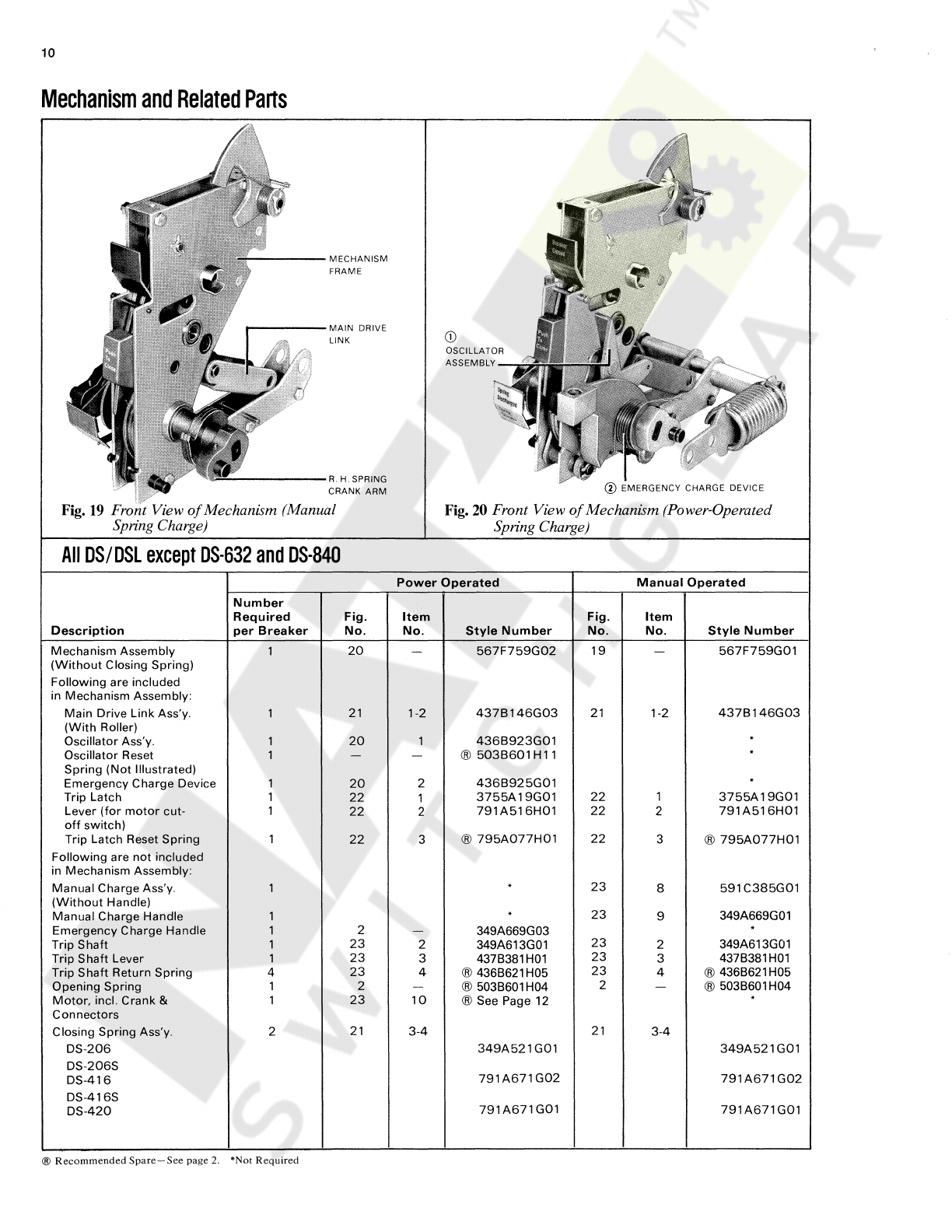

Mechanism and Related Parts
-----MECHANISM
FRAME
.------MAIN DRIVE
LINK
R. H SPRING @
EMERGENCY CHARGE DEVICE
CRANK
ARM
Fig. 19 Front View of Mechanism (Manual Fig. 20 Front View of Mechanism (Power-Operated
Spring Charge) Spring Charge)
All DS/DSL except DS-632 and DS-840
Power Operated Manual Operated
Number
Required Fig. Item
Fig.
Item
Description per Breaker No. No. Style Number No. No.
Style Number
Mechanism Assembly 20 567F759G02 19 567F759G01
(Without Closing Spring)
Following are included
in Mechanism Assembly:
Main Drive Link Ass'y. 21
1-2
4378146G03 21
1-2 4378146G03
(With Roller)
Oscillator Ass'y.
20
4368923G01
Oscillator Reset ® 5038601H11
Spring (Not Illustrated)
Emergency Charge Device
20
2
4368925G01
Trip Latch
22
1
3755A 19G01 22
1
3755A19G01
Lever (for motor cut-
22
2
791A516H01 22
2
791A516H01
off switch)
Trip Latch Reset Spring
22
3 ®
795A077H01 22
3 ® 795A077H01
Following are not included
in Mechanism Assembly:
Manual Charge Ass'y.
23
8 591
C385G01
(Without Handle)
Manual Charge Handle 1
23
9 349A669G01
Emergency Charge Handle 1 2 349A669G03
Trip
Shaft 1
23
2 349A613G01
23
2 349A613G01
Trip
Shaft Lever 1
23
3 4378381
H01
23
3 437B381H01
Trip
Shaft Return Spring 4
23 4 ® 436B621H05
23
4 ® 436B621H05
Opening Spring 1 2 ® 503B601H04 2 ® 5038601H04
Motor, incl. Crank & 23 10
®See Page 12
Connectors
Closing Spring Ass'y. 2
21 3-4
21
3-4
DS-206
349A521 G01
349A521G01
DS-206S
DS-416
791A671G02 791A671G02
DS-416S
DS-420
791A671G01 791A671G01
® Recommended Spare-See page 2. *Not Required
Courtesy of NationalSwitchgear.com

11
Mechanism and Related Parts
@ MAIN ROLLER
CD
MAIN
DRIVE LINK
0
CLOSING SPRING
ASSEMBLY
Fig. 21 Rear of Power-Operated Mechanism
DS-632 and DS-840
Number
Required
Description
per Breaker
Mechanism Assembly
(Without Closing Spring)
Following are included
in Mechanism Assembly:
Main Drive Link Ass'y.
(With Roller)
Oscillator Ass'y.
Oscillator Reset
Spring (Not Illustrated)
Emergency Charge Device
Trip Latch
Lever
(for motor cut-
off switch)
Trip Latch Reset Spring
Following are not included
in Mechanism Assembly:
Manual Charge Ass'y.
(Without Handle)
Manual Charge Handle 1
Emergency Charge Handle 1
Trip
Shaft
1
Trip
Shaft Lever 1
Trip
Shaft Return Spring
4
Opening Spring
1@
Motor, incl. Crank & 1
Connectors
Closing Spring Ass'y. 2
®Recommended Spare-See page 2. *Not
Required.
(j)
SPRING
@TRIP LATCH
RESET SPRING
@ MOTOR CUT-OFF
SWITCH LEVER
SPRING ANCHOR
Fig. 22 Rear View of Power-Operated Mechanism
(Left Close Spring
Removed)
Power Operated Manual Operated
(j)
Fig. Item Fig. Item
No. No. Style Number No.
No. Style Number
20
567F759G04
19
567F759G07
21 1-2 4378146G04 21 1-2 4378146G04
20
4368923G01
® 5038601 H11
20
2
4368925G01
22
1
3755A19G01 22
1
3755A 19G01
22
2
791A516H01
22
2
791A516H01
22 3 ®
795A077H01 22
3 ®
795A077H01
23
8 591
C385G01
23 9 349A669G01
7 349A669G03
23
2 349A613G01
23
2 349A613G01
23
3 4378381
H01
23
3 4378381
H01
23
4 ® 4368621H05
23
4 ® 4368621H05
8 ® 5038601H04 8 ® 5038601H04
23
10
® See Page 12
21
3-4
791A671G03 21
3-4
791A671G03
CD Figures 19 thru 22 illustrate mechanism for all DS/DSL breakers except DS-632 and DS-840.
DS-632 and DS-840 mechanisms are similar.
® Two opening springs are required for DS-840.
Courtesy of NationalSwitchgear.com

12

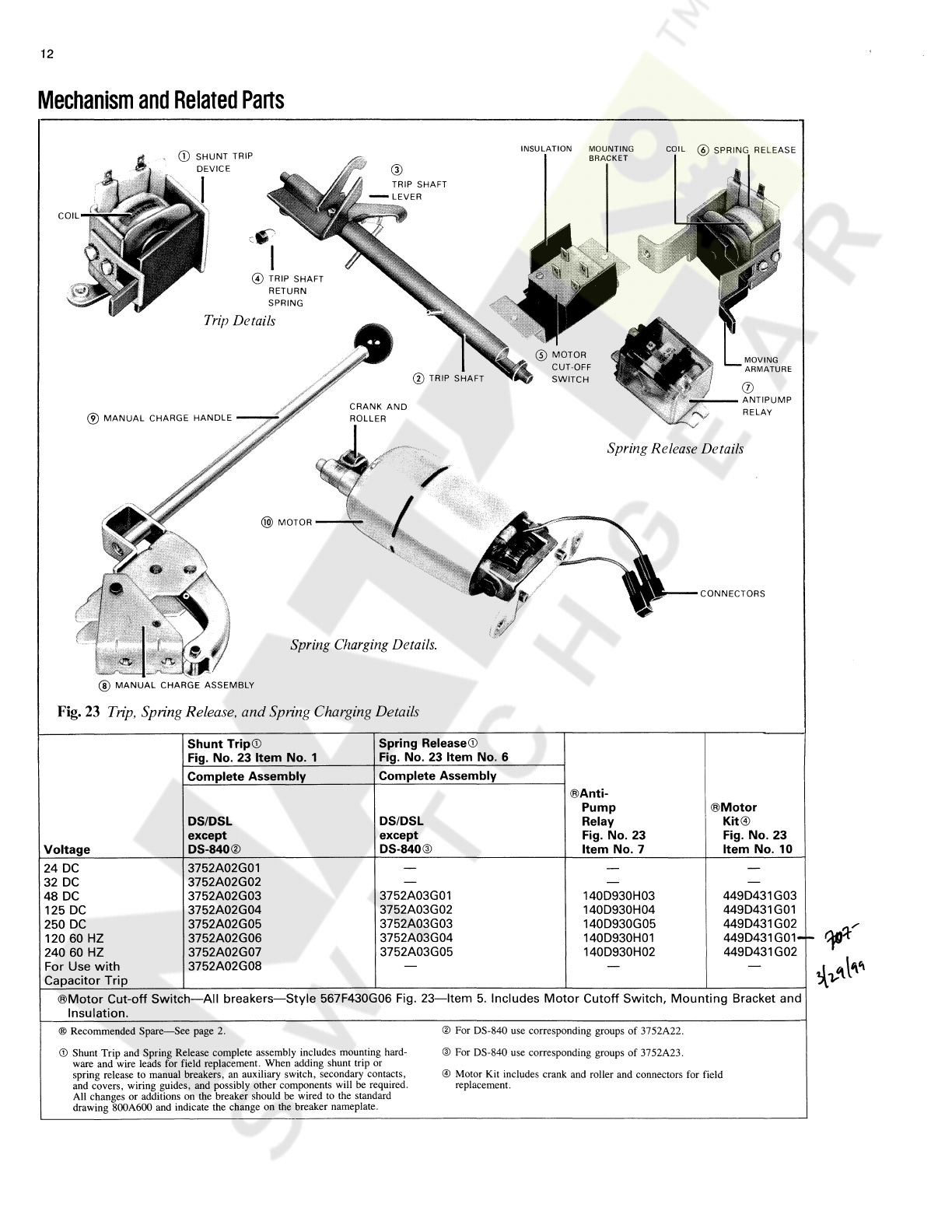

Mechanism and Related Parts
, G) SHUNT TRIP
DEVICE
~~
'"'
I
@TRIP SHAFT
RETURN
SPRING
Trip Details
® MANUAL CHARGE HANDLE
@MOTOR
@
TRIP SHAFT
Spring Charging Details.
@ MANUAL CHARGE ASSEMBLY
Fig. 23 Trip, Spring Release, and Spring Charging Details
Voltage
24 DC
32 DC
48 DC
125 DC
250 DC
120 60 HZ
240 60 HZ
For Use with
Capacitor Trip
Shunt Trip<D
Fig. No. 23 Item No. 1
Complete Assembly
DS/DSL
except
DS-840®
3752A02G01
3752A02G02
3752A02G03
3752A02G04
3752A02G05
3752A02G06
3752A02G07
3752A02G08
Spring Release(])
Fig. No. 23 Item No. 6
Complete Assembly
DS/DSL
except
DS-840@
3752A03G01
3752A03G02
3752A03G03
3752A03G04
3752A03G05
COIL @ SPRING RELEASE
INSULATION
MOUNTING
BRACKET
Spring Release Details
®Anti-
Pump
Relay
Fig. No. 23
Item No. 7
140D930H03
140D930H04
140D930G05
140D930H01
140D930H02
CONNECTORS
®Motor
Kit©
Fig. No. 23
Item No. 10
449D431G03
449D431G01
449D431G02
449D431G01
449D431G02
®Motor Cut-off Switch-All breakers-Style 567F430G06 Fig. 23-ltem 5. Includes Motor Cutoff Switch, Mounting Bracket and
Insulation.
® Recommended Spare-See page 2.
© Shunt Trip and Spring Release complete assembly includes mounting hard-
ware and wire leads for field replacement. When adding shunt trip or
spring release to manual breakers,
an auxiliary switch, secondary contacts,
and covers, wiring guides, and possibly other components will be required.
All changes or additions on the breaker should be wired to the standard
drawing 800A600 and indicate the change on the breaker nameplate.
@ For DS-840 use corresponding groups of 3752A22.
® For DS-840 use corresponding groups of 3752A23.
@ Motor Kit includes crank and roller and connectors for field
replacement.
Courtesy of NationalSwitchgear.com

13
Type OS Circuit Breaker Automatic Tripping System
Fig. 24
Amptector /-A Solid-State Trip
Amptector I-A can be supplied
in various combinations of four
independent continuouslyadjust-
able overcurrent tripping
functions:
Long delay
(L), Short delay (S),
Instantaneous (I), Ground (G)
The following combinations
are available:
LI, LIG, LS, LSG, LSI, LSIG
Fig. 25
Amptector II-A Solid-State Tnp
Amptector II-A can be supplied
in three models or combina-
tions of three independent con-
tinuously adjustable overcurrent
tripping functions: long delay,
short delay and instantaneous.
These models are:
DU(Dual- Long delay and
instantaneous
Style Number
Model
-60HZ
LI
6998D02G01
LIG
6998D02G02 (1)
LS
6998D02G03
LSG
6998D02G04 ( 1)
LSIG
6998D02G05 ( 1)
LSI
6998D02G06
(l) For DS-632 and DS-840 use Groups
62. 64. 65 and 82. 84. 85 respectively.
SE(Selective)-Long delay
and short delay
ACTUATOR
RESET SPRING ---..=:;illb..
TRIP SHAFT
ADJUSTING SCREW
MAGNET ASSEMBLY
Fig. 26
Tnp Actuator
DIRECT TRIP ACTUATOR FIGURE NO. 26
All type DS Breakers use Style Number 6482C55G01
(with Black Magnet Ass'y).
Exception: If a break.er is equipped with an earlier
Amptector II Style 151D792G series or Amptector I
139D643G series, the Amptector must also be changed in
addition to the actuator.
SENSORS
See Figure 3 for Typical Sensors
Refer to J.B. 33-790-lF, Table 4, for application
of sensors.
Sensor
Rating
Amperes
50
100
150
200
300
400
600
800
1200
1600
2000
2400
3200
4000
Sensor <D
Style
Number
436B080G01
151 D995G01
151D995G15
151D995G02
151D995G03
151D995G04
151D995G06
151D995G08
151D995G12
151D995G16
151D995G20
151D995G24
151D995G32
588C734G01
<D These are replacements for sensors of S#794A l70G series.
TR(Triple)-Long delay, short NOTE:
delay and instantaneous On type DS-206/DSL-206 two (2) spacers
Model
DU
SE
TR
Style Number
-60HZ
6997D20G41
6997D20G42
6997D20G43
S#794A965H01 are required for each sensor.
NOTE:
For information on application and operation of the
automatic tripping system refer to Section 8 of
Instruction Book 33-790-lF.
Courtesy of NationalSwitchgear.com

14
Optional Accessories
Fig. 27 Latch Check Switch-Style 140Dl61GOJ Fig. 28 Auxiliary Switches-See page 3 for
identification of auxiliary switches.
NOTE:
Wiring additions should be consistent with breaker stan-
dard wiring practices. Wiring guides when required, are
located on the left side
of the breaker with inside and
outside guides (Figs. 2 & 3). One guide is also located at
the rear
of the arnptector and one between the right side
of the arnptector and auxiliary switches.
For DS-206, DS-206S, 416, 416S, 420, DS-532 and DS-
632
Outside Guide
Inside Guide
Rear Guide
Right
of Amptector
S#437B242HOI
S#3702A37GOI
S#588C990HOI
S#436B 11 lHOl
NEW AUXILIARY SWITCHESCD
(FIELD ADDITIONS TO EXISTING DS BREAKERS)
1 AUX. SWITCH
2 AUX. SWITCHES
3 AUX. SWITCHES
*-Also order secondary contacts as reqd.
-For breaker -59IC498G06
-For compartment -590C808GOI
697B536G01
697B536G02
6978536G03
-If existing breaker does not have secondary contacts, one mounting
bracket per breaker must be ordered 436B657GOI
ADDITIONAL AUX. SWITCHESCD
(ADDITIONS TO BKRS. WITH EXISTING AUX. SWS.)
2ND AUX. SWITCH T
3"
0 AUX. SWITCH I
*-Also order secondary contacts as reqd.
-For breaker - 591 C498G06
-For compartment -590C808GO I
697B536G08
6978536G09
REPLACEMENT AUX. SWITCHES
(TO REPLACE EXISTING AUXILIARY SW. ONLY)
pr AUX. SWITCH
2N° AUX. SWITCH
3"0 AUX. SWITCH
Cover S#302C225H13
Cover Screw 70030ATJ5N
CD Linkage Included.
697B536G04
697B536G05
697B536G06
Courtesy of NationalSwitchgear.com

Optional Accessories
RESET ARM ----
MOVING
CORE
LATCH
RESET
ARM
Fig. 29 Undervoltage Trip Device Fig. 30 Overcurrent Trip Switch
LATCH LEVER
SWITCH LEVER
INDICATOR SWITCH
UNDERVOLTAGE TRIP DEVICE-FIGURE NO. 29 OVERCURRENT TRIP SWITCH-FIGURE NO. 30
For all type DS/DSL except DS-840 CD
Undervoltage- Undervoltage-
Instantaneous Time Delay
All DS/DSL
All DS/DSL
Voltage
Except DS-840 (j) Except DS-840 ®
120 60 HZ
3752A05G01 3752A06G01
208 60 HZ
3752A05G02
3752A06G02
240 60 HZ
3752A05G03 3752A06G03
-~430 60 HZ
3752A05G04 3752A06G04
48 DC
3752A05G05
3752A06G05
125 DC
3752A05G06 3752A06G06
250 DC
3752A05G07 3752A06G07
CD For DS-840 use corresponding groups of 3752A25
® For DS-840 use corresponding groups of 3752A26
Special All DS/DSL All DS/DSL
Voltage including DS-840 including DS-840
24 DC
3752A45G01 3752A46G01
Manual Reset
2 Contact 3 Contact 4 Contact
3752A04G01 3752A04G02 3752A04G03
Electrical Reset
Voltage 2 Contact
3 Contact
48 DC 3752A04G04 3752A04G09
115 AC 3752A04G05 3752A04G10
125 DC 3752A04G06
3752A04G11
230AC
3752A04G07
3752A04G12
250 DC 3752A04G08
3752A04G13
CD For DS-840 use corresponding groups of 3752A24.
All styles
include mounting hardware and wire leads for field replacement.
When adding to existing breakers other components may be needed.
15
115 50 HZ
3752A45G02
208 50 HZ
3752A45G03
3752A46G02
3752A46G03
For replacement of switches only order style 3752A04G lS which consists of two
switches, a switch bracket and rivets.
230 50 HZ
3752A45G04 3752A46G04
400/50
HZ
415
3752A45G05 3752A46G05
480 50 HZ
3752A45G06 3752A46G06
NOTES:
All styles include mounting hardware and wire leads for field replacement.
When adding to existing breakers, secondary contacts will be required.
The undervoltage trip device is available as a complete assembly. The coil
only is not recommended as it is riveted into the assembly.
Overcurrent trip reset pushbutton and nameplate S#809A 779G02.
Courtesy of NationalSwitchgear.com

16

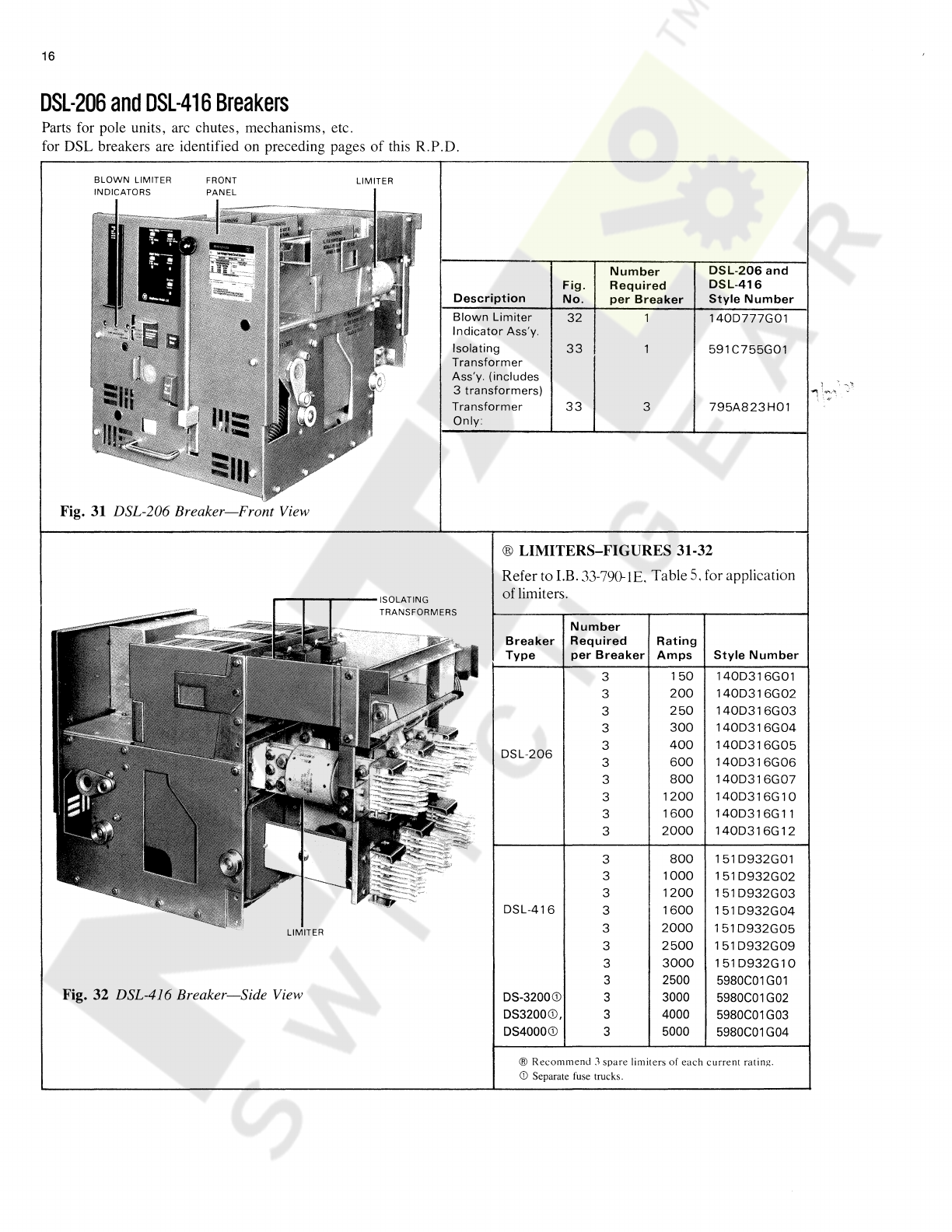

DSL-206 and DSL-416 Breakers
Parts for pole units, arc chutes, mechanisms, etc.
for DSL breakers are identified
on preceding pages of this R.P.D.
BLOWN LIMITER FRONT LIMITER
Number
DSL-206 and
Fig.
Required
DSL-416
Description
No.
per Breaker
Style Number
Blown Limiter
32 1
140D777G01
Indicator Ass'y.
Isolating
33
591C755G01
Transformer
Ass'y. (includes
:.1,
3 transformers) 1
Transformer
33 3 795A823H01
Only:
Fig. 31 DSL-206 Breaker-Front View
® LIMITERS-FIGURES 31-32
Refer to l.B. 33-790-lE. Table 5. for application
oflimiters.
Number
Breaker Required Rating
Type
per Breaker Amps
Style Number
3
150
140D316G01
3
200 140D316G02
3
250 140D316G03
3
300 140D316G04
3
400
140D316G05
DSL-206
3
600 140D316G06
3
800 140D316G07
3
1200
140D316G10
3
1600 140D316G11
3
2000 140D316G12
3
800 151 D932G01
3
1000
151D932G02
3
1200
151D932G03
DSL-416
3
1600
151D932G04
3
2000
151D932G05
3
2500 151D932G09
3
3000
151D932G10
3 2500 5980C01G01
Fig. 32 DSL-416 Breaker-Side View
DS-3200CD
3 3000 5980C01G02
DS3200CD, 3 4000 5980C01G03
DS4000CD 3 5000 5980C01 G04
® Recommend .3 spare limiters of each current rating.
Gl Separate fuse trucks.
Courtesy of NationalSwitchgear.com

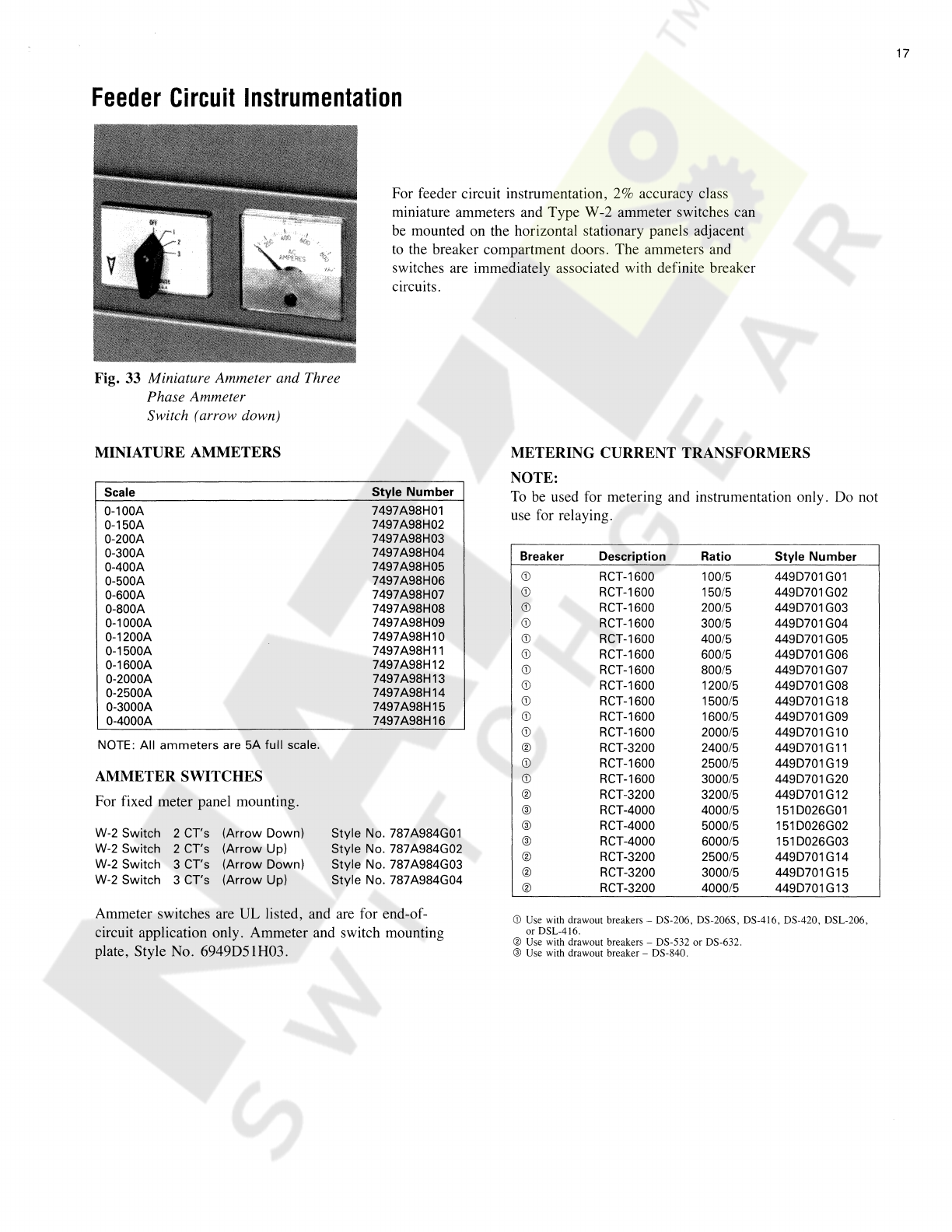

Feeder Circuit Instrumentation
For feeder circuit instrumentation, 2% accuracy class
miniature ammeters and Type W-2 ammeter switches can
be mounted on the horizontal stationary panels adjacent
to the breaker compartment doors. The ammeters and
switches are immediately associated with definite breaker
circuits.
Fig. 33 Miniature Ammeter and Three
Phase Ammeter
Switch (arrow down)
MINIATURE AMMETERS
Scale
0-100A
0-150A
0-200A
0-300A
0-400A
0-500A
0-600A
0-800A
0-1000A
0-1200A
0-1500A
0-1600A
0-2000A
0-2500A
0-3000A
0-4000A
NOTE: All
ammeters are 5A full scale.
AMMETER SWITCHES
For fixed meter panel mounting.
W-2 Switch 2 CT's (Arrow Down)
W-2 Switch 2 CT's (Arrow Up)
W-2 Switch 3 CT's (Arrow Down)
W-2 Switch 3 CT's
(Arrow Up)
Style Number
7497A98H01
7497A98H02
7497A98H03
7497A98H04
7497A98H05
7497A98H06
7497A98H07
7497A98H08
7497A98H09
7497A98H10
7497A98H11
7497A98H12
7497A98H13
7497A98H14
7497A98H15
7497A98H16
Style No. 787A984G01
Style No. 787A984G02
Style No. 787A984G03
Style No. 787A984G04
Ammeter switches are UL listed, and are for end-of-
circuit application only. Ammeter and switch mounting
plate, Style No. 6949D51H03.
METERING CURRENT TRANSFORMERS
NOTE:
To be used for metering and instrumentation only. Do not
use for relaying.
Breaker Description Ratio Style Number
(j) RCT-1600 100/5 449D701G01
(j) RCT-1600 150/5 449D701G02
(j) RCT-1600 200/5 449D701G03
(j) RCT-1600 300/5 449D701G04
(j) RCT-1600 400/5 449D701G05
(j) RCT-1600 600/5 449D701G06
(j) RCT-1600 800/5 449D701G07
(j) RCT-1600 1200/5 449D701G08
(j) RCT-1600 1500/5 449D701G18
(j) RCT-1600 1600/5 449D701G09
(j) RCT-1600 2000/5 449D701G10
® RCT-3200 2400/5 449D701G11
(j) RCT-1600 2500/5 449D701G19
(j) RCT-1600 3000/5 449D701G20
® RCT-3200 3200/5 449D701G12
@ RCT-4000 4000/5 151D026G01
@ RCT-4000 5000/5 151D026G02
@ RCT-4000 6000/5 151D026G03
® RCT-3200 2500/5 449D701G14
® RCT-3200 3000/5 449D701G15
® RCT-3200 4000/5 449D701G13
<D Use with drawout breakers -DS-206, DS-206S, DS-416, DS-420, DSL-206,
or DSL-416.
® Use with drawout breakers -DS-532 or DS-632.
@ Use with drawout breaker -DS-840.
17
Courtesy of NationalSwitchgear.com

18
Interference Interlocks
On original equipment, interference interlocks are sup-
plied
on breakers and in compartments where the com-
partments are
of the same physical size, to insure that a
Type DS-206 breaker cannot be inserted into a compart-
ment intended for a Type DS-416 or DS-420 breaker, and
a Type DS-416 or DS-420 breaker cannot be inserted into
a compartment for a Type DS-206 breaker.
It is impor-
tant that when equipping any blank breaker cell that
proper installation
of the correct interference brackets be
followed.
When ordering complete parts for blank cells, interfer-
ence brackets will be included.
If additional brackets are required they are available by
ordering the following style numbers.
Breaker Type
DS-206
DS-206S
DS-416
DS-416S
DS-420
DSL-206
DSL-416
KEY INTERLOCKS
Style Number
436B677H01 (1) -502B278H02 (1)
507B278H01
(2) -502B278H02 (1)
436B677H01 (1) -502B278H02 (1)
502B278H01
(2) -502B278H02 (1)
502B278H01 (2) -502B278H02 (
1)
803A553H01 (1) -502B278H02 (1)
803A553H01 (1) -502B278H02 (1)
Key interlocks are operative only after breakers have been
withdrawn beyond the Disconnect Position.
No modifica-
tion of the breaker
is required and storage of breaker
within the cell
is possible. The breaker can be removed
for use
as a spare without disturbing the interlock.
Breaker Type
DS-206 and DSL-206
DS-416 and DSL-416
DS-420
DS-632
DS-840
Style Number
6953D99G01
6953D99G01
6953D99G01
6953D99G02
6953D99G03
BREAKER CELL PARTS -SEE TABLE 1
Where original switchgear lineups were supplied with
blank compartments complete cell parts can be ordered.
The styles listed include the following items.
Breaker mounting pan with ground pad
Breaker extensions rails
Breaker door with handle/hinge/trip button
Floor mounted trip interlock mechanism
Current transformer mounting plate
Line side stabs*
Load side runbacks and supports*
Necessary gas and arc shields
*Styles listed are for switchgear manufactured with shop order number
series
24Y-- and 27Y--. Switchgear identified by shop orders
other than 24Y and 27Y, refer
to St. Louis OED.
Cell Swt. 800All7G06 - 6 pole 2a 2b contacts
Cell Swt. 800Al18G06 -
12 pole 6a 6b contacts
Fig. 34 Interference Bracket (set-up shown for a
DS-416 breaker)
OPTIONAL ITEMS:
Secondary Contacts
Compartment Switch (6P or 12P)
Heater
Current Transformers
Seismic Positioner
Ammeter and Ammeter Switch
Pushbuttons and Lights
Key Interlock
It is most important that the correct style be selected
after careful consideration of the following:
1. Cell location to be outfitted.
2. The riser material, copper or aluminum.
3. The bus compartment depth, 10 or 15 inches.
4. The breaker compartment depth,
27 or 35 inches.
Refer
to Fig. 34 for a typical equipped cell.
Insulation boots for live side stabs -
All DS breakers except DS-632 and DS-840
S# 140D294H02 - 6 reqd. per compt.
DS-632 breaker
(2 required per pole)
S#140D768H01 - 3 each
S#140D769H01 - 3 each reqd. per compt.
There are
no boots available for DS-840 breakers.
Courtesy of NationalSwitchgear.com

19
TABLE NO. 1- BREAKER CELL PARTS
Bus
Front
Breaker Cell
Com pt.
Com pt.
Type
Location
Riser
Depth
Depth
Style Number
DS-206 A
Alum.
10
27
9118D97G01
DS-206 B,C,D
Alum.
10
27
9118D97G02
DS-206 A
Alum.
15
27
9118D97G04
DS-206 B,C,D
Alum.
15
27
9118D97G05
DS-206 A Cu. 10
27
9118D97G07
DS-206 B,C,D Cu. 10
27
9118D97G08
DS-206 A Cu. 15
27
9118D97G10
DS-206 B,C,D Cu. 15
27
9118D97G11
DSL-206 A
Alum.
10 35 9118D97G13
DSL-206 B,C,D
Alum.
10 35 9118D97G14
DSL-206 A
Alum.
15 35 9118D97G16
DSL-206 B,C,D
Alum.
15 35 9118D97G17
DSL-206 A Cu. 10 35 9118D97G19
DSL-206 B,C,D Cu. 10 35 9118D97G20
DSL-206 A Cu. 15 35 9118D97G22
DSL-206 B,C,D Cu. 15 35 9118D97G23
DS-206 A
Alum.
10 35 9118D97G25
DS-206 B,C,D
Alum.
10 35 9118D97G26
DS-206 A
Alum.
15 35 9118D97G28
DS-206 B,C,D
Alum.
15 35 9118D97G29
DS-206 A Cu.
10
35 9118D97G31
DS-206 B,C,D Cu.
10
35 9118D97G32
DS-206 A Cu. 15 35 9118D97G34
DS-206 B,C,D Cu. 15 35 9118D97G35
DS-416 A
Alum.
10
27 9118D97G37
DS-416 B,C,D
Alum.
10
27 9118D97G38
DS-416 A
Alum.
15
27
9118D97G40
DS-416 B,C,D
Alum.
15
27 9118D97G41
DS-416 A Cu.
10
27 9118D97G43
DS-416 B,C,D Cu.
10
27
9118D97G44
DS-416 A Cu. 15
27 9118D97G46
DS-416 B,C,D Cu. 15
27 9118D97G47
DSL-416 A
Alum.
10
35 9118D97G49
DSL-416 B,C,D
Alum.
10 35 9118D97G50
DSL-416 A
Alum.
15 35 9118D97G52
DSL-416 B,C,D
Alum.
15 35 9118D97G53
DSL-416 A Cu.
10
35 9118D97G55
DSL-416 B,C,D Cu.
10
35 9118D97G56
DSL-416 A Cu. 15 35 9118D97G58
DSL-416 B,C,D Cu. 15 35 9118D97G59
DS-416 A
Alum.
10 35 9118D97G61
DS-416 B,C,D
Alum.
10
35 9118D97G62
DS-416 A
Alum.
15 35 9118D97G64
DS-416 B,C,D
Alum.
15 35 9118D97G65
DS-416 A Cu. 10 35 9118D97G67
DS-416 B,C,D Cu. 10 35 9118D97G68
DS-416 A Cu. 15 35 9118D97G70
DS-416 B,C,D Cu. 15 35 9118D97G71
Courtesy of NationalSwitchgear.com

20

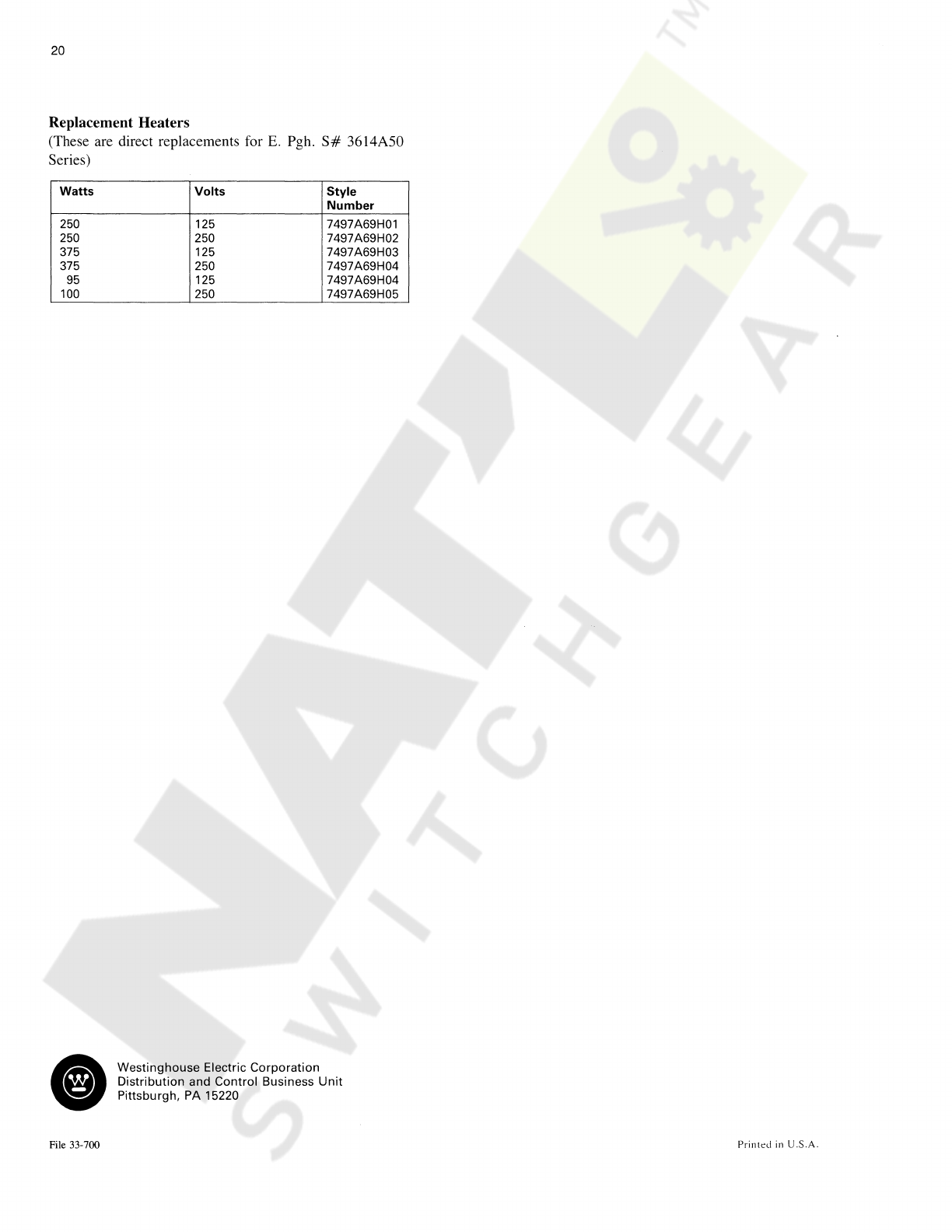

Replacement Heaters
(These are direct replacements for E. Pgh. S# 3614A50
Series)
Watts
250
250
375
375
95
100
File 33-700
Volts Style
Number
125 7497A69H01
250 7497A69H02
125 7497A69H03
250 7497A69H04
125 7497A69H04
250 7497A69H05
Westinghouse Electric Corporation
Distribution and Control Business Unit
Pittsburgh, PA 15220
Printed in U.S.A.
Courtesy of NationalSwitchgear.com
