Whalen WSF48FM23R-AO User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-05-22 Rev. 0001-A Factory: DONPEA
Farmstead 48" Fireplace Console
Model # WSF48FM23R-AO
# WSF48FM23R-PD
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website www.whalenfurniture.com
Or e-mail your request to: [email protected]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Farmstead 48" Fireplace Console
MODEL # WSF48FM23R-AO / WSF48FM23R-PD
MADE IN CHINA
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
MAXIMUM RECOMMENDED WEIGHT
LOADS

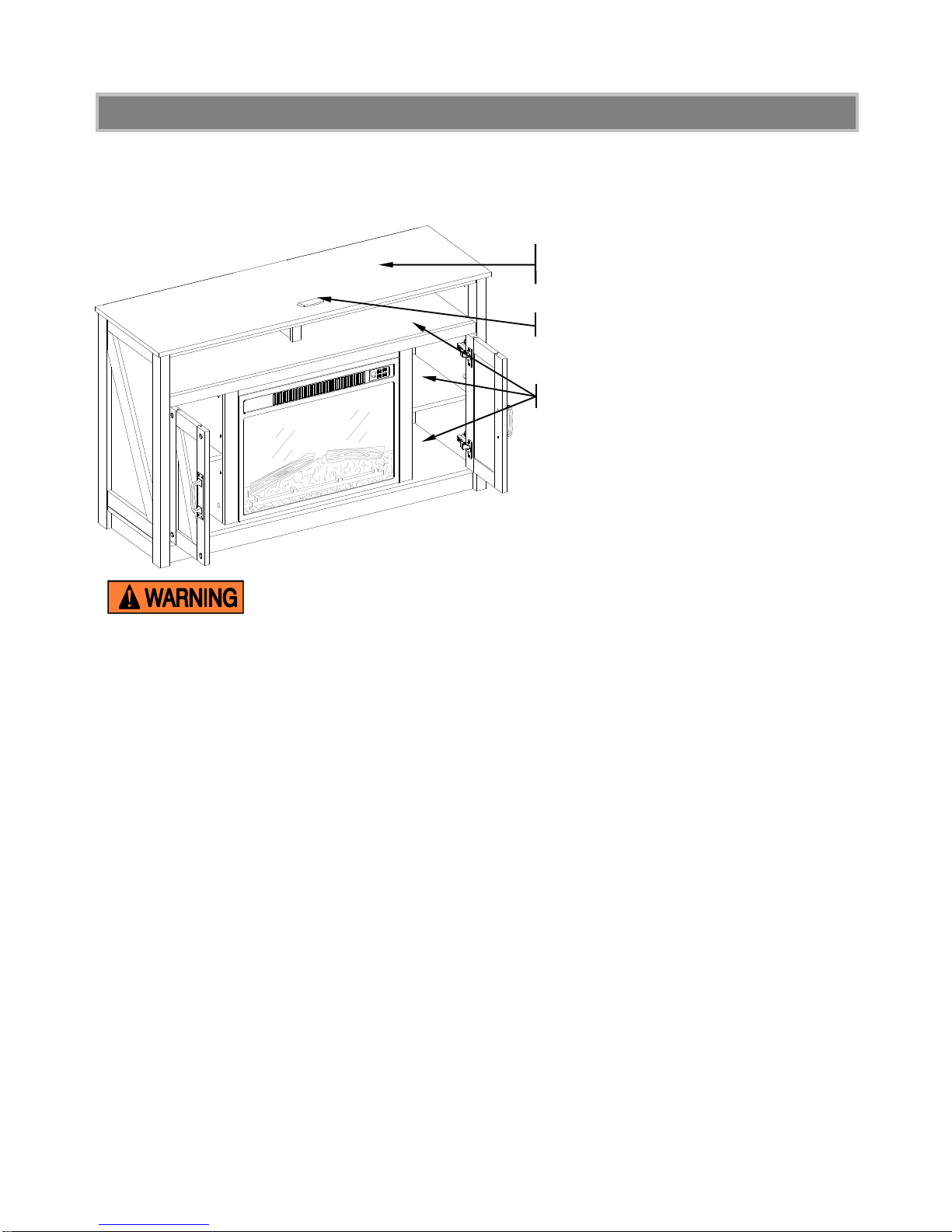

PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 60” FLAT PANEL TVs
MAXIMUM LOAD 61.3 kg / 135 lb.
MAXIMUM LOAD 22.7 kg / 50 lb.
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE
UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR
FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFFOR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.
XX
1 2 43

4

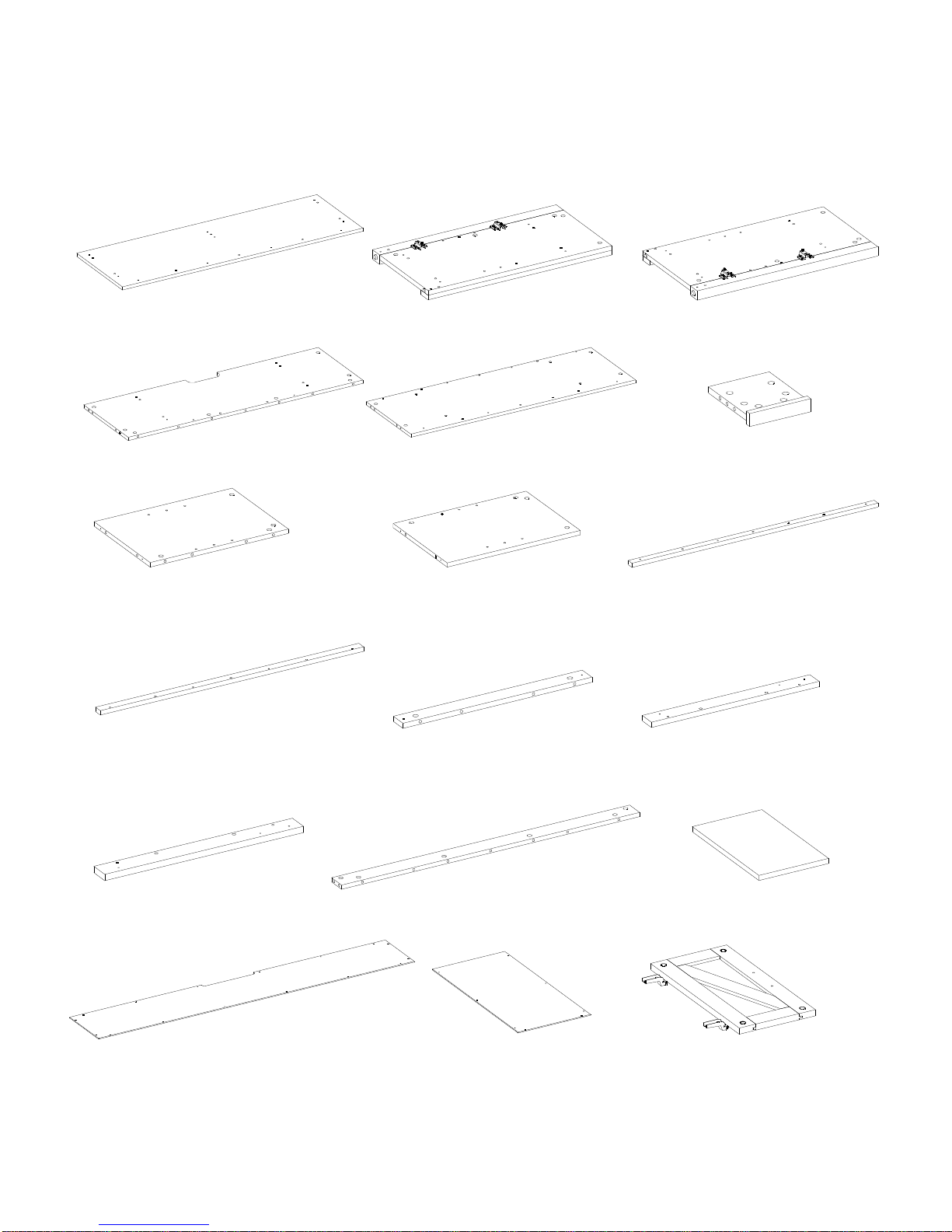

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Left Side Panel (Qty. 1) C- Right Side Panel (Qty. 1)
D- Center Shelf (Qty. 1) E- Bottom Panel (Qty. 1) F- Upper Partition Panel (Qty. 1)
G- Left Lower Partition Panel H- Right Lower Side Panel I-Top Front Stretcher
(Qty. 1) (Qty. 1) (Qty. 1)
J- Center Shelf Molding (Qty. 1) K- Middle Crossbar (Qty. 1) L- Left Middle Stile (Qty. 1)
M- Right Middle Stile (Qty. 1) N- Bottom Stretcher (Qty. 2) O- Adjustable Shelf (Qty. 2)
P- Upper Back Panel (Qty. 1) Q- Lower Back Panel (Qty. 2) R- Left Door (Qty. 1)

5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
S- Right Door (Qty. 1) Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1)
(1) Cam Lock (2) Cam Bolt (3) Large Wood Dowel
(Qty. 42+2 extra) (Qty. 42+2 extra) (Qty. 41+2 extra)
(4) Small Wood Dowel (5) M4 x 25 mm Screw (6) M4 x 50 mm Screw
(Qty. 3+1 extra) (Qty. 4+1 extra) (Qty. 4+1 extra)
(7) M3.5 x 12 mm Flat Head Screw (8) M3.5 x 15 mm Washer Head Screw (9) Straight Metal Bracket
(Qty. 4+1 extra) (Qty. 32+1 extra) (Qty. 2)
(10) Handle and Back Plate (Qty. 2) (11) Handle Bolt (Qty. 4) (12) Shelf Support (Qty. 8+1 extra)
(13) Rubber Bumper (14) Acrylic Stopper (15) Cam Lock Cover (16) Cam Lock Cap
(Qty. 4+1 extra) (Qty. 1) (Qty. 20+1 extra) (Qty. 8+1 extra)
Glue (Qty. 1) Touch-up Pen (Qty. 1) Tipping Restraint Hardware Kit (Qty. 2)
(Included in plastic bag)
Tools required: Phillips screwdriver and hammer (not provided).

6
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.

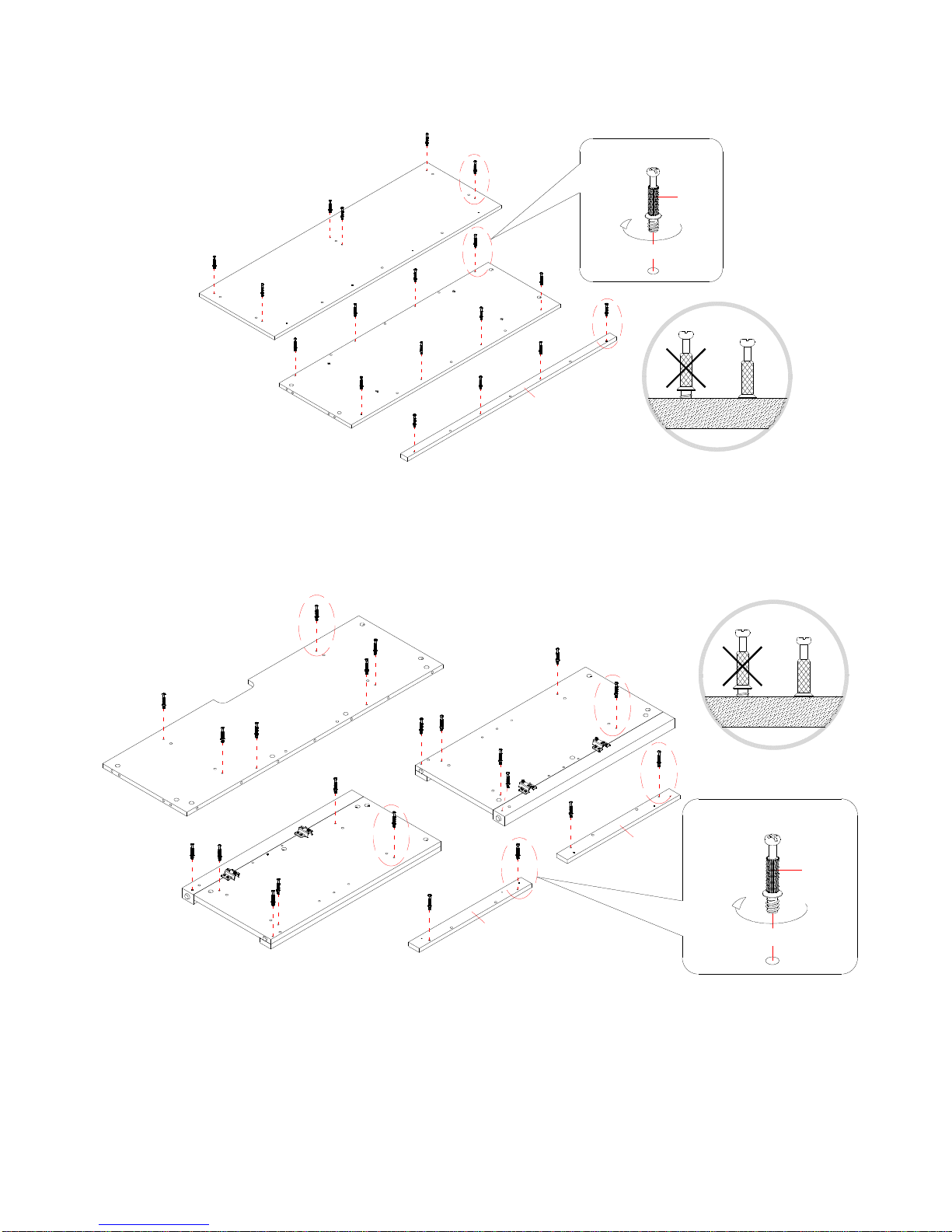

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), the Bottom
Panel (E) and the Center Shelf Molding (J) using a Phillips screwdriver.
3. Securely screw the Cam Bolts (2) into the designated small holes on the Side Panels (B and C), the
Center Shelf (D) and the Middle Stiles (L and M).
2
J
E
A
2
B
C
L
M
D

7
Assembly Instructions

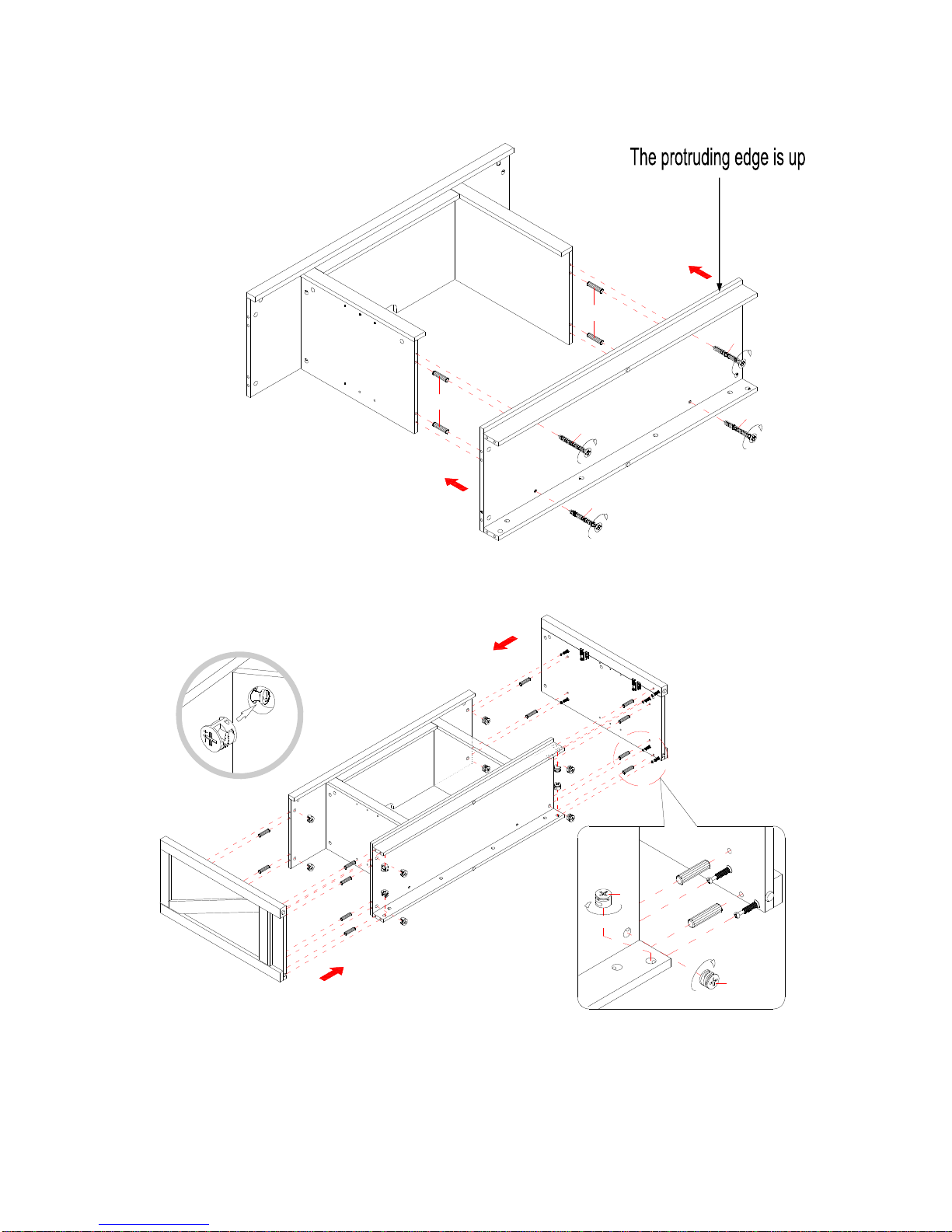

4. Insert three Wood Dowels (4) into the large holes on the front edge of Top Panel (A). Tap in with a
rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
5. Align the drilled holes on the Top Front Stretcher (I) with the inserted Wood Dowels (4) on the Top
Panel (A), and then press them together. Secure the Top Front Stretcher (I) in place with four 25 mm
Screws (5) using a Phillips screwdriver.

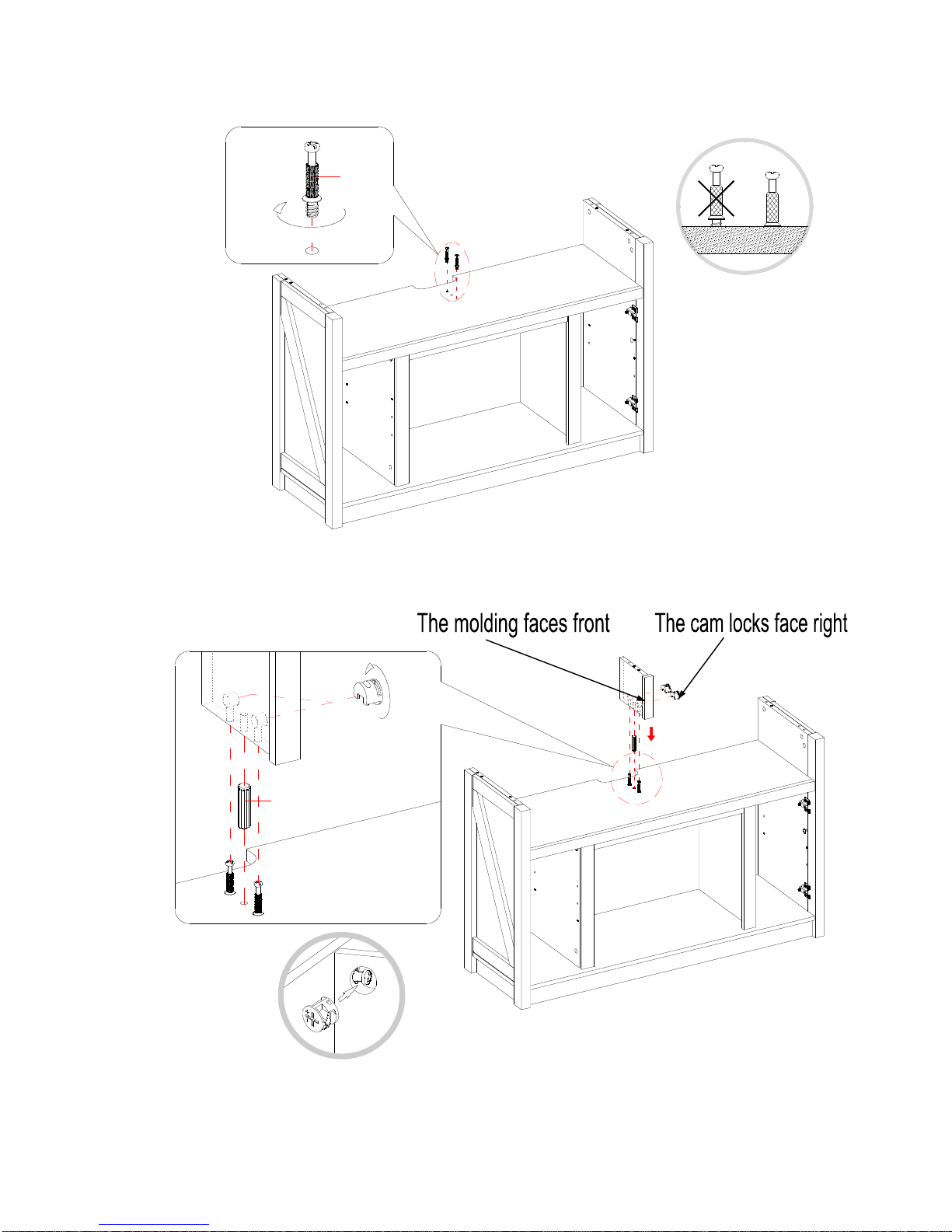

6. Insert three Large Wood Dowels (3) into the inner holes of the Center Shelf Molding (J) and attach it to
the Center Shelf (D) by engaging four Cam Locks (1) (Refer to page 3 on Cam Lock system operation
supplement).
4
4
4
5
5
5
5
A
I
3
3
3
1
1
1
1D
J

8
Assembly Instructions
7. Attach the Middle Crossbar (K) to the Center Shelf (D) with two Large Wood Dowels (3) and two Cam
Locks (1) as shown.
8. Attach the Left Middle Stile (L) to the Left Lower Partition Panel (G) with two Large Wood Dowels (3)
and two Cam Locks (1).
9. Repeat the same procedure to combine the Right Middle Stile (M) with the Right Lower Partition Panel
(H).
3
1
H
M
G
L
3
1
D
K

9
Assembly Instructions
10. Attach two Bottom Stretchers (N) to the Bottom Panel (E) with six Large Wood Dowels (3) and eight
Cam Locks (1).
11. Attach the Lower Partition Panels (G and H) to the Center Shelf (D) with four Large Wood Dowels (3)
and four Cam Locks (1).
3
1
G
H
D
N
N
E
3
1

10
Assembly Instructions
12. Attach the Bottom Panel assembly to the Lower Partition Panels (G and H) with four Large Wood
Dowels (3) and four 50 mm Screws (6).
13. Align and attach the Left Side Panel (B) to the previous assembly with six Large Wood Dowels (3) and
six Cam Locks (1).
14. Repeat the same procedure to attach the Right Side Panel (C) at the opposite end.
6
6
E
G
H
6
6
3
3
1
13
3
C
B
E
D
N
N

11
Assembly Instructions
15. Ask for assistance to stand the assembled unit upright.
16. Securely screw two Cam Bolts (2) into the designated small holes on the Center Shelf (D) using a
Phillips screwdriver.
17. Attach the Upper Partition Panel (F) to the Center Shelf (D) with one Large Wood Dowel (3) and two
Cam Locks (1).
F
3
1
D
D
2

12
Assembly Instructions

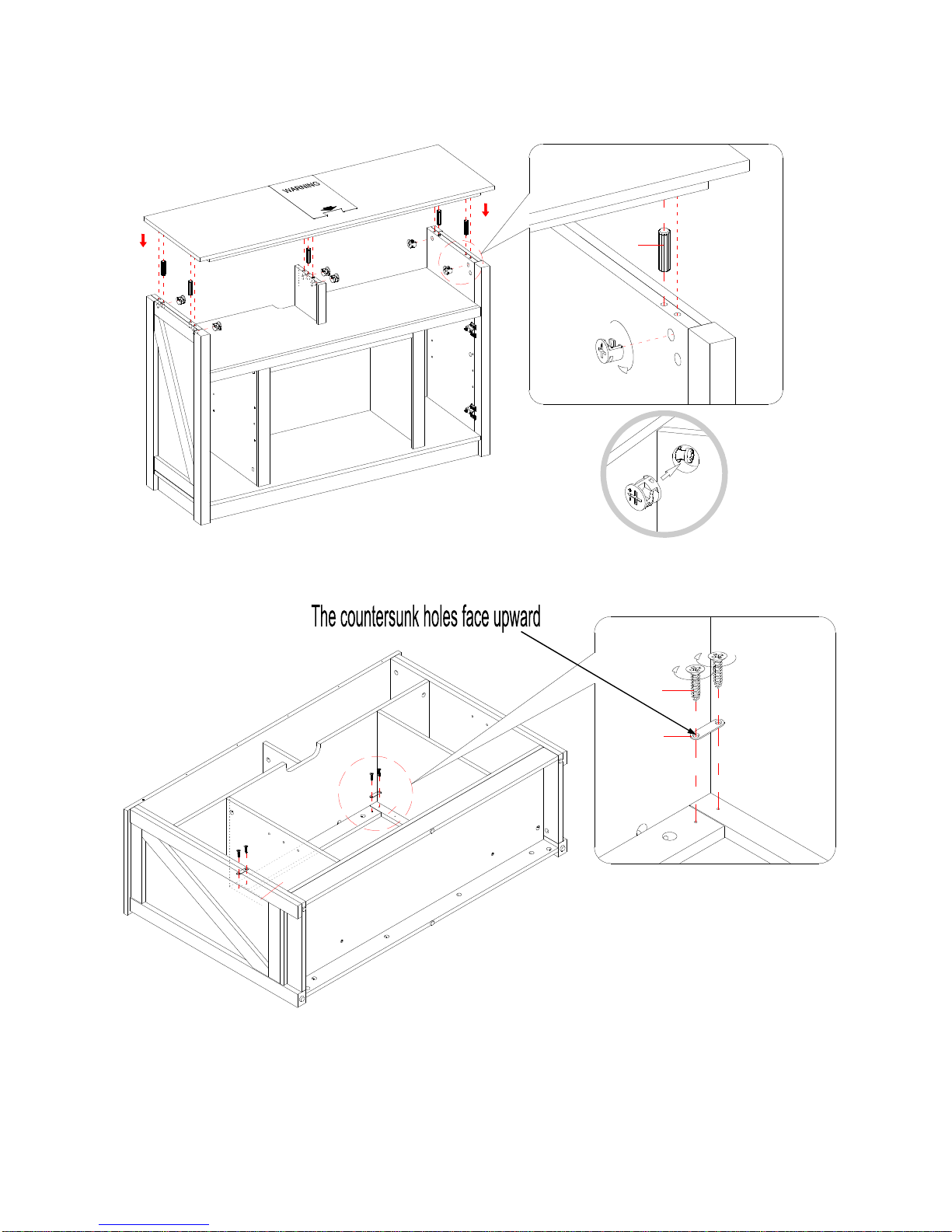

18. Attach the Top Panel (A) to the Side Panels (B and C) and Upper Partition Panel (F) with five Large
Wood Dowels (3) and six Cam Locks (1).
19. Flip the previous assembly around at its front edges.
20. With the pilot holes as a guide, fasten two Straight Metal Brackets (9) at the joints where Middle
Crossbar (K) met the Middle Stiles (L and M), using two 12 mm Flat Head Screws (7) per bracket.
7
9
K
L
M
B
3
1
C
F
A

13
Assembly Instructions
21. Now, go back and securely tighten all the Cam Locks and the Screws. Make sure that all the parts are
tight and there are no gaps between the parts. This will help keep the unit square.
22. Pick up the Upper Back Panel (P) and align the pre-drilled holes against the upper long edge with the
pilot holes on the back of the Top Panel (A). Attach the Back Panel (P) in place using the provided
Washer Head Screws (8).
NOTE: We recommend attaching back panel with the screws at the corners first.
23. Attach two Lower Back Panels (Q) to the mantel frame with the provided Washer Head Screws (8).
24. Attach one Handle and Back Plate (10) to the front side of each Door (R and S) using two Handle Bolts
(11).
R/S
11
10
8
E
Q
DH
C
P

14
Assembly Instructions
25. Stand the unit upright.
26. Pick up the Left Door (R) and attach the extended Hinge Arms to the Hinge Bases installed on Left Side
Panel (B). Loosen the bolt on the back of Hinge Base for an easy fit. Align and insert the “U” slot on
Hinge Arm under the bolt head on the back of Hinge Base. Make sure that both door hinges engage and
function properly. Tighten the bolt on the Hinge Base to lock the hinges in place.
27. Repeat the same procedure to attach the Right Door (S) to the Right Side Panel (C).
28. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the
screws for a good fit. Refer to the hinge sticker on door for adjustment.
29. Insert the Shelf Supports (12) into the desired holes in the sides of the compartments. Make sure you
place the four Shelf Supports in the same level so the shelf is not tilted. Tilt and rest the Adjustable
Shelves (O) onto the Shelf Supports (12).
O
O
B
12
12
O
1
C
S
R
B

15
Assembly Instructions
30. Stick the Rubber Bumpers (13) at the outer corners of the Doors (R and S) where they met the Middle
Stiles (L and M).
31. Plug the Cam Lock Caps (16) onto the visible Cams Locks included on the Side Panels (B and C) to
conceal the Cams.
32. Plug the Cam Lock Covers (15) onto the visible Cams Locks to conceal the Cams.
33. Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and
Side Trims to the fireplace insert.
34. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening.
DO NOT drag the insert across the Bottom Panel (E) as it may scratch the unit.
35. Fasten the fireplace insert to the mantel with four insert screws as shown.
FC
H
R
B
15
13
13
Q
S
16
E

16
Assembly Instructions
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the console.
36. Remove the paper backing from the Acrylic Stopper (14), then properly align the acrylic stopper into
the cut-out on the acrylic stopper template on the Top Panel (A). Press down on the acrylic stopper to
help adhesion.
37. At the back of Top Panel (A), carefully unscrew two thumb tacks to remove the acrylic stopper template.
Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.
38. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary,
adjust the pre-attached Floor Levelers at the bottom of the Base to level the unit. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over
restraints to the unit and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The
tipping restraint is intended only as a deterrent. They are not a substitute for proper adult supervision.
The tipping restraint is not an earthquake restraint. If you wish to add the extra security of earthquake
restraints, they must be purchased and installed separately.
39. Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace
insert to control your fireplace.
A

17
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous
area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
Cleaning Trim for Fireplace
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean
soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus
oil based products can be obtained at supermarkets or hardware stores.
A touch-up pen has been provided to minimize the small nicks or scratches that may occur during
assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
