Whirlpool 3QACM07XD2 User manual

Owher’s
Note to You
Important Safety
Instructions
Parts and Features
Operating Your
Air Conditioner
Personalizing
the Front Panel
Caring for Your
Air Conditioner
Installing Your
Air Conditioner

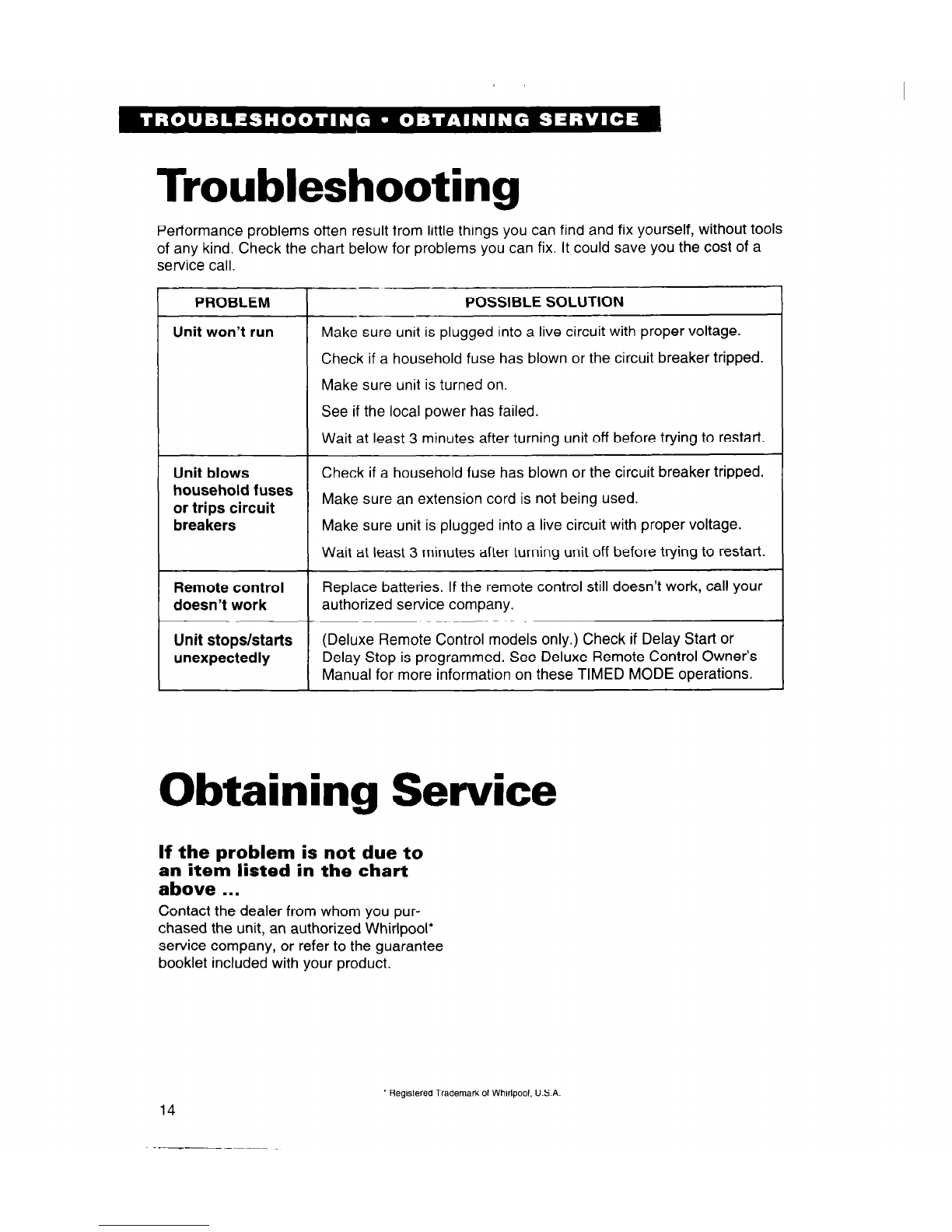

Troubleshooting
Obtaining Service
ROOM AIR CONDITIONERS
2
3
4
5
7
a
10
14
14
Part No. 1161126

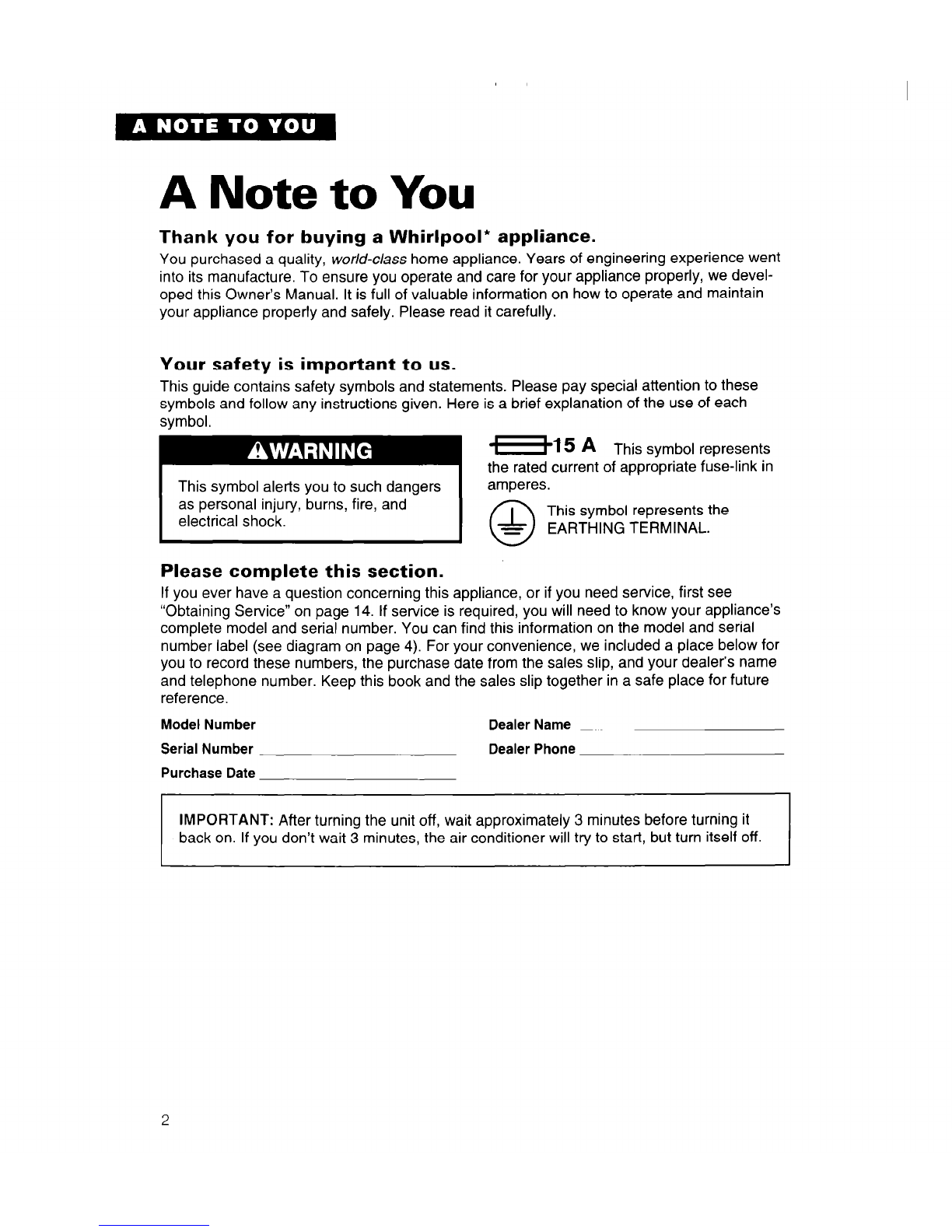

A Note to You
Thank you for buying a Whirlpool* appliance.
You purchased a quality, world-class home appliance. Years of engineering experience went
into its manufacture. To ensure you operate and care for your appliance properly, we devel-
oped this Owner’s Manual. It is full of valuable information on how to operate and maintain
your appliance properly and safely. Please read it carefully.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
Please complete this section.
If you ever have a question concerning this appliance, or if you need service, first see
“Obtaining Service” on page 14. If service is required, you will need to know your appliance’s
complete model and serial number. You can find this information on the model and serial
number label (see diagram on page 4). For your convenience, we included a place below for
you to record these numbers, the purchase date from the sales slip, and your dealer’s name
and telephone number. Keep this book and the sales slip together in a safe place for future
reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
IMPORTANT: After turning the unit off, wait approximately 3 minutes before turning it
back on. If you don’t wait 3 minutes, the air conditioner will try to start, but turn itself off.
I 1

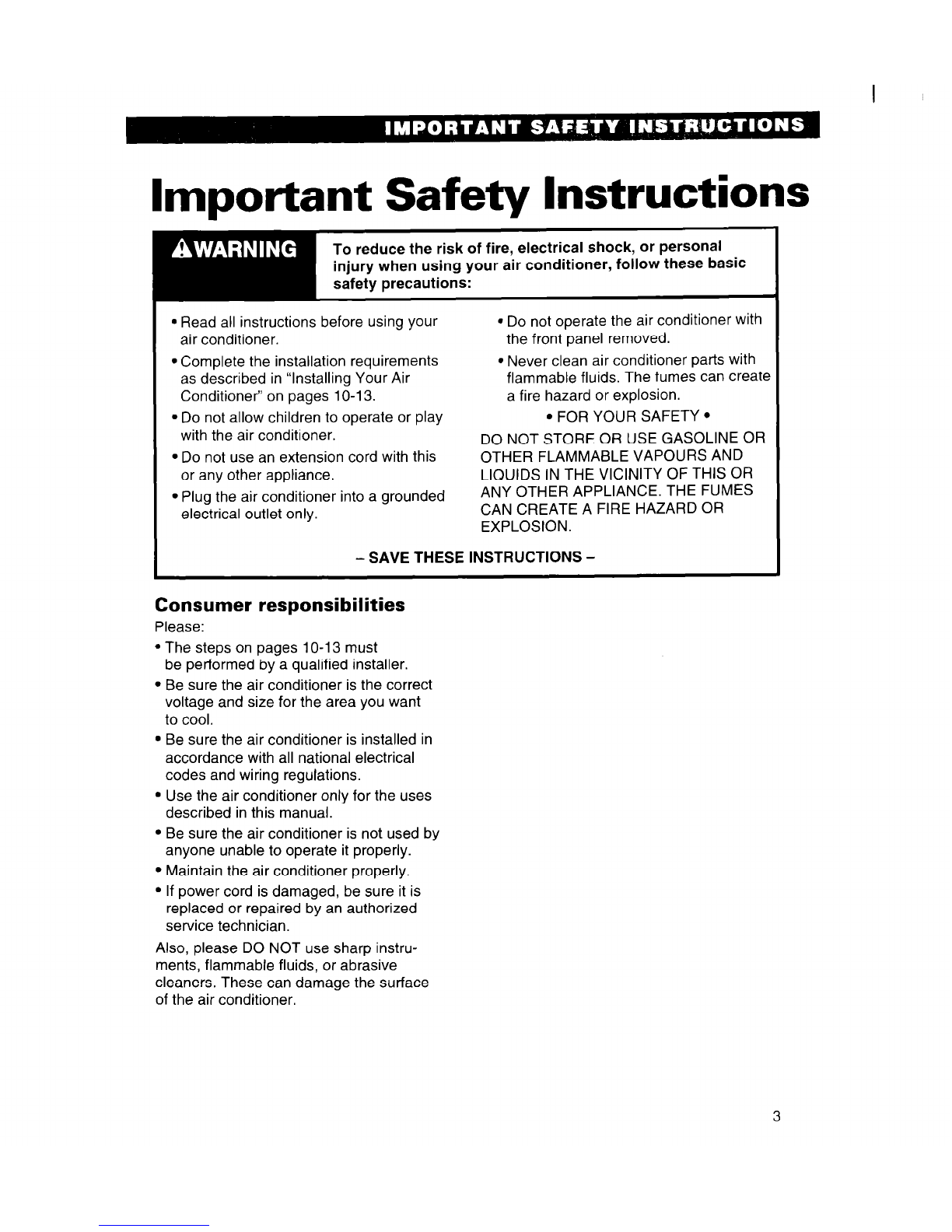

Important Safety Instructions
l Read all instructions before using your
air conditioner.
l Complete the installation requirements
as described in “Installing Your Air
Conditioner” on pages 1O-l 3.
l Do not allow children to operate or play
with the air conditioner.
l Do not use an extension cord with this
or any other appliance.
l Plug the air conditioner into a grounded
electrical outlet only.
l Do not operate the air conditioner with
the front panel removed.
. Never clean air conditioner parts with
flammable fluids. The fumes can create
a fire hazard or explosion.
. FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPOURS AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE. THE FUMES
CAN CREATE A FIRE HAZARD OR
EXPLOSION.
- SAVE THESE INSTRUCTIONS -
Consumer responsibilities
Please:
l The steps on pages 1O-l 3 must
be performed by a qualified installer.
l Be sure the air conditioner is the correct
voltage and size for the area you want
to cool.
l Be sure the air conditioner is installed in
accordance with all national electrical
codes and wiring regulations.
l Use the air conditioner only for the uses
described in this manual.
l Be sure the air conditioner is not used by
anyone unable to operate it properly.
l Maintain the air conditioner properly.
l If power cord is damaged, be sure it is
replaced or repaired by an authorized
service technician.
Also, please DO NOT use sharp instru-
ments, flammable fluids, or abrasive
cleaners. These can damage the surface
of the air conditioner.
3

Parts and Features
This section contains captioned illustrations of your air conditioner. Please use them to
become familiar with where the parts and features are located and what they look like.
Air conditioner
Outside air intake Exhaust door
louvers control Air output
louvers Protective plastic
cover for
Model and serw
number label Control
panel
Control panel Inside air intake Slide-out air filter
door louvers handle
4

A
Operating Your
Air Conditioner
In This Section
Page
Turning the air conditioner on/off .... . ... ,j
Modifying the fan speed . .. . ..._............ 5
Modifying the temperature .. . . ....._...... 6
Page
Using the FAN ONLY Cycle .................6
Modifying the air direction ....................6
Using the exhaust door ........................6
Operating your air conditioner properly is essential to obtain the best possible results. This
section tells you about each cycle and how to operate it.
Turning the air conditioner on/off
To turn the air conditioner on:
@Set the POWER Switch to ON.
To turn the air conditioner off:
* Set the POWER Switch to OFF.
1 -- IMPORTANT: After
ON
wait approximately 3 minutes before
1 turning it back on. If you don’t wait 3
OFF
/ minutes, the air conditioner will try to start, but turn itself off.
POWER
Modifying the fan speed
Use the FAN SPEED Switch to select a
desired fan speed. Use the speeds as
follows:
HI Speed -
Use for maximum cooling.
LOW Speed -
Use for sleeping comfort.
HI
liil
LOW
FAN
SPEED
5

Modifying the temperature
Set the TEMP Control to your desired
setting.
l Turn clockwise for more cooling.
l Turn counterclockwise for less cooling.
You will need to experiment to find the
setting which suits you best.
Using the FAN ONLY Cycle
The FAN ONLY Cycle circulates the room
air without cooling it. However, if the room
temperature rises above 32°C (9O”F), the
compressor will turn on and cool the room.
Modifying the air direction
The air output louvers, at the top of the air
conditioner’s front panel, control the direc-
tion of the cooled air. The louvers may be
adjusted left, right, up, or down.
Using the exhaust door
The exhaust door allows the air conditioner
to draw stale or smoky air from the room.
Pull to open exhaust door or push to close.
6

Personalizing the
Front Panel
(available on select models)
The appearance of the front panel can be customized to suit your tastes or to match the
room. The panel has a clear, protective plastic cover that you can remove. Then, place
wallpaper, fabric, pictures, etc., in the open area and replace the protective cover.
Removing the protective cover
1. Place the flat edge of a screwdriver into
the 1 mm gap between the protective
cover and the front panel.
2. Carefully pry off the protective cover.
U
Replacing the protective cover
1. Insert tabs on one side of the protective
cover into the tabs in the corresponding
side of the front panel.
2. Snap the other side of the cover into
place.
7

Caring for Your
Air Conditioner
In This Section
Page
Caring for the control panel ..__..,.,.,...... 8
Caring for the front panel, etc. ._,..,.,..... 8
Page
Caring for the slide-out air filter ............. 9
Performing annual coil cleaning ............ 9
Proper maintenance of your air conditioner ensures longer life and lower operating costs.
This section tells you how to clean your air conditioner and perform general maintenance.
You can always call an authorized Whirlpool* service company for annual service.
Caring for the control panel
l Wipe clean with a soft, damp cloth. Make
sure the cloth is not dripping wet.
The control panel door
If the control panel door pops out of place, it
pops back into place easily.
1. Place the left door pin into the hole on the
left side of the door opening.
2. Flex the door slightly.
3. Snap the right door pin into place.
Caring for the front panel, etc.
Perform basic cleaning of the front panel by
wiping it with a soft, dry cloth.
NOTE: Do not use abrasive or harsh
cleaners on the front panel, especially on
the protective plastic cover.
8

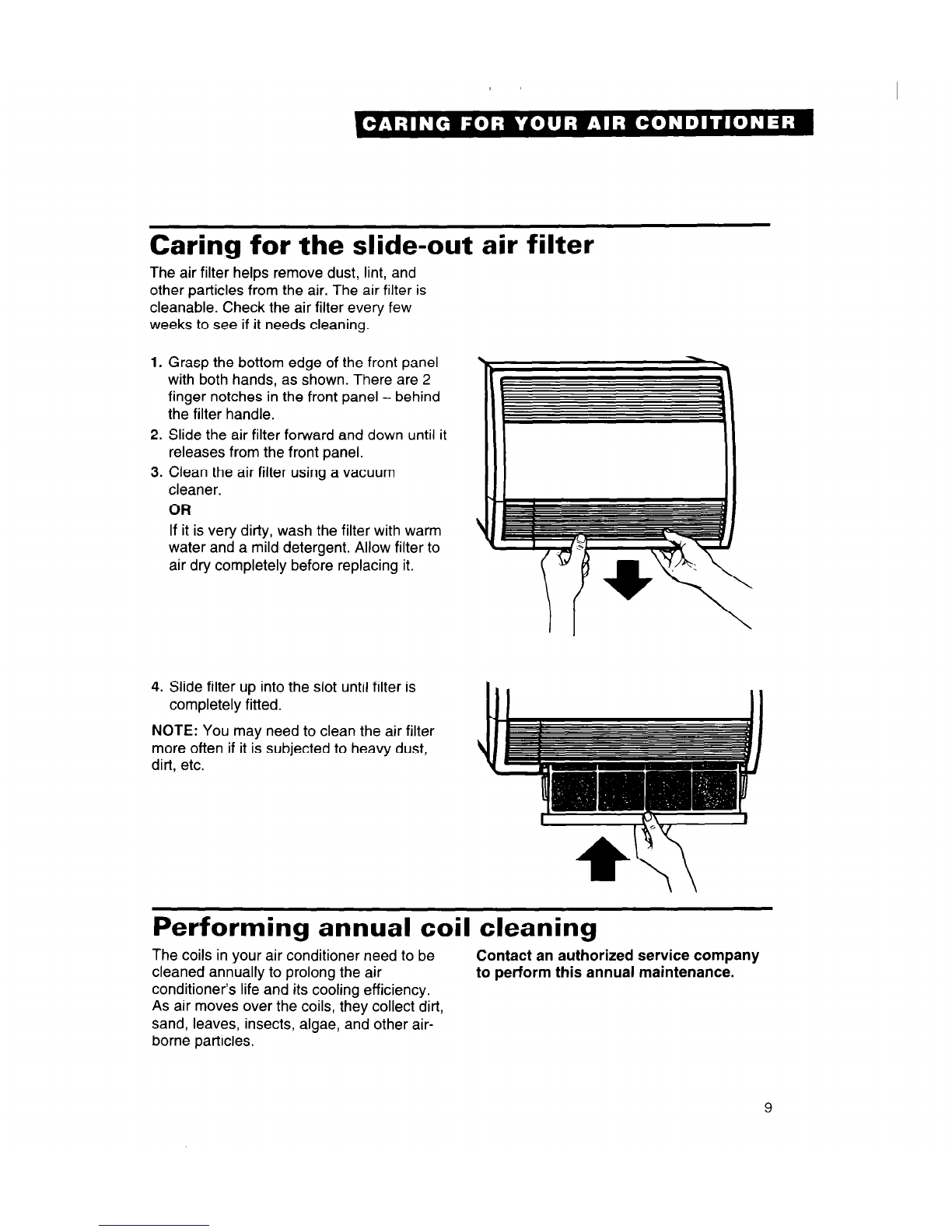

Caring for the slide-out air filter
The air filter helps remove dust, lint, and
other particles from the air. The air filter is
cleanable. Check the air filter every few
weeks to see if it needs cleaning.
1. Grasp the bottom edge of the front panel
with both hands, as shown. There are 2
finger notches in the front panel - behind
the filter handle.
2. Slide the air filter forward and down until it
releases from the front panel.
3. Clean the air filter using a vacuum
cleaner.
OR
If it is very dirty, wash the filter with warm
water and a mild detergent. Allow filter to
air dry completely before replacing it.
4. Slide filter up into the slot until filter is
completely fitted.
NOTE: You may need to clean the air filter
more often if it is subjected to heavy dust,
dirt, etc.
Performing annual coil cleaning
The coils in your air conditioner need to be Contact an authorized service company
cleaned annually to prolong the air to pet-form this annual maintenance.
conditioner’s life and its cooling efficiency.
As air moves over the coils, they collect dirt,
sand, leaves, insects, algae, and other air-
borne particles.
9

Installing Your
Air Conditioner
In This Section
Page Page
General information ..,...,....._._,,.,........_ IIJ Installation procedure ........................ 12

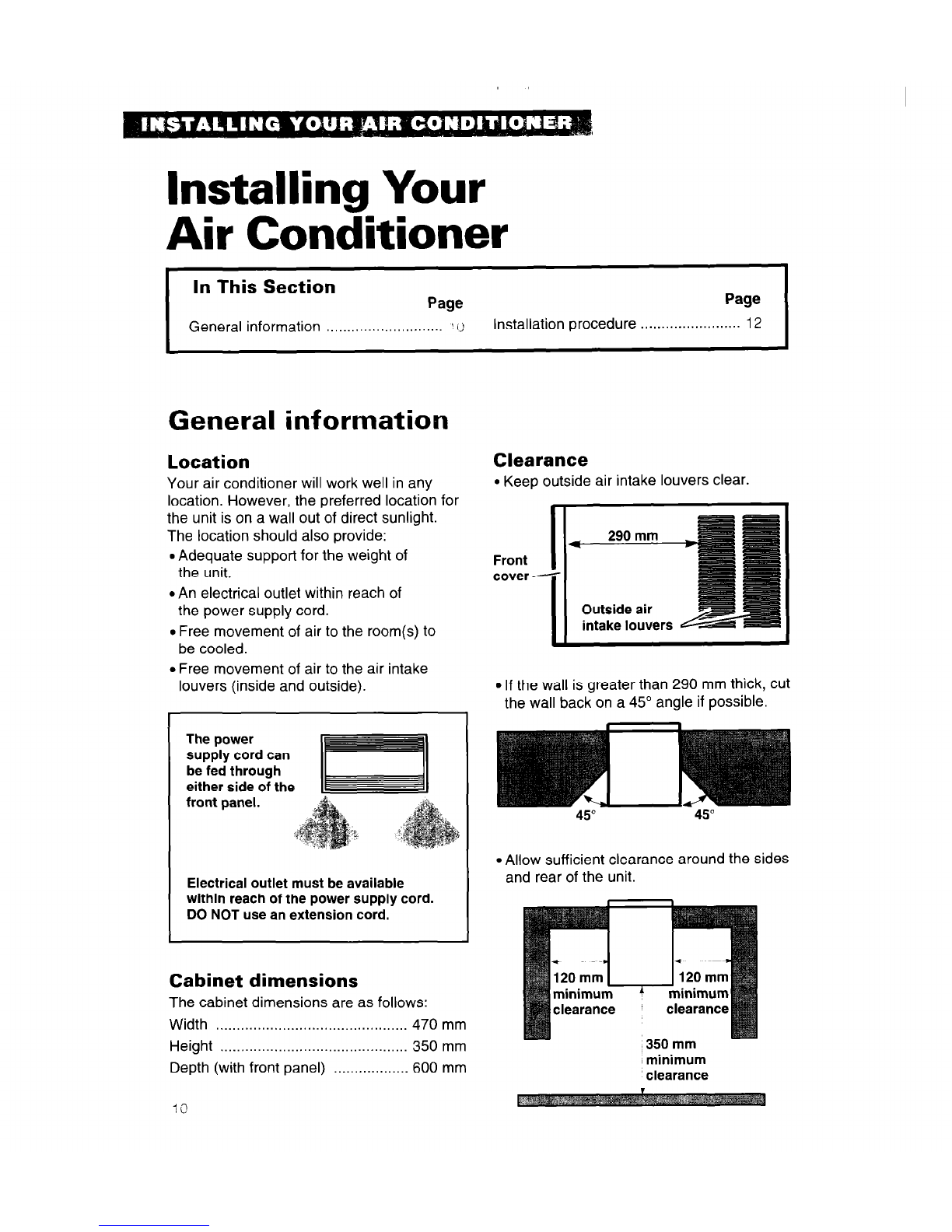

General information
Location
Your air conditioner will work well in any
location. However, the preferred location for
the unit is on a wall out of direct sunlight.
The location should also provide:
9Adequate support for the weight of
the unit.
l An electrical outlet within reach of
the power supply cord.
l Free movement of air to the room(s) to
be cooled.
l Free movement of air to the air intake
louvers (inside and outside).
The power
supply cord can
be fed through
either side of the
front panel.
Electrical outlet must be available
within reach of the power supply cord.
DO NOT use an extension cord.
Cabinet dimensions
The cabinet dimensions are as follows:
Width .............................................. 470 mm
Height ............................................. 350 mm
Depth (with front panel) .................. 600 mm
Clearance
l Keep outside air intake louvers clear.
I I
Front I
cover-i Outside air
intake louvers
l If the wall is greater than 290 mm thick, cut
the wall back on a 45” angle if possible.
l Allow sufficient clearance around the sides
and rear of the unit.
1120 mm 1 I120 mm
clearance clearance
,350 mm
minimum
clearance

* Provide adequate drainage. * Provide adequate clearance so the air filter
can be removed from the bottom of the
front panel.
outside so
unit drains
to the rear.
5tolOmm /
Must be
able to
remove
air filter
. Provide additional support for unit if
required.
Electrical requirements
Check the model and serial number label to
determine the electrical requirements of your
unit. ALL units must use a time delay fuse or
circuit breaker.
Grounding method
Your air conditioner is equipped with a
power supply cord containing a 3-prong
grounding plug. To minimize possible
electrical shock hazard, the power supply
cord must be plugged into a mating 3-prong,
grounding-type wall receptacle, which is
grounded in accordance with all applicable
codes. If a mating wall receptacle is not
available, it is the personal responsibility and
obligation of the customer to have a properly
grounded 3-prong wall receptacle installed
by a qualified electrician.
Power supply
DO NOT disconnect the air conditioner from
its electrical supply. DO NOT use an electri-
cal outlet that can be turned off with a
switch.
11

I

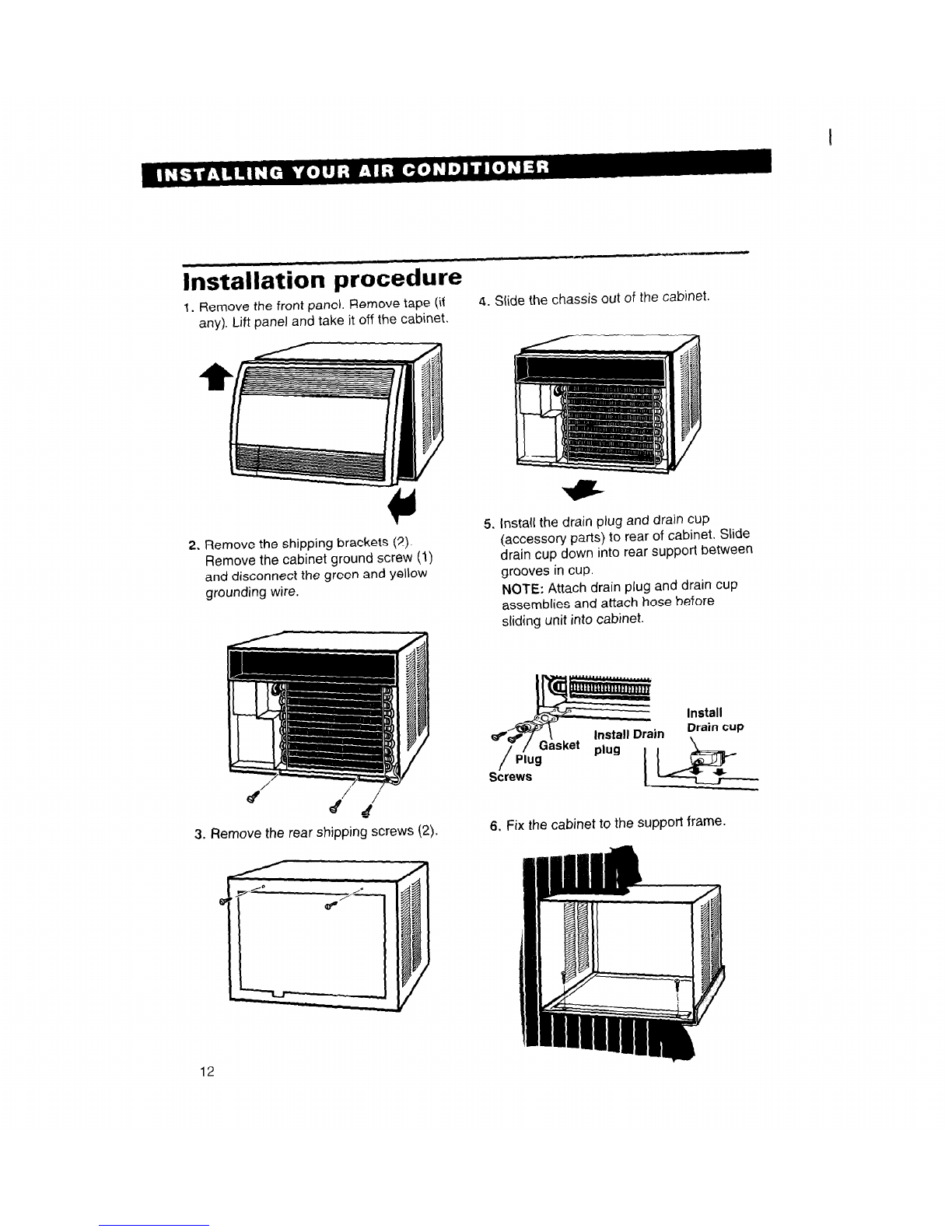

Installation procedure
1. Remove the front panel. Remove tape (if
any). Lift panel and take it off the cabinet.
5.
4. Slide the chassis out of the cabinet.
2. Remove the shipping brackets (2).
Remove the cabinet ground screw (1)
and disconnect the green and yellow
grounding wire.
3. Remove the rear shipping screws (2).
Install the drain plug and drain cup
(accessory parts) to rear of cabinet. Slide
drain cup down into rear support between
grooves in cup.
NOTE: Attach drain plug and drain cup
assemblies and attach hose before
sliding unit into cabinet.
Install
\
asket
Screws
Install Drain Drain cup
,
PlW
6. Fix the cabinet to the support frame.
12

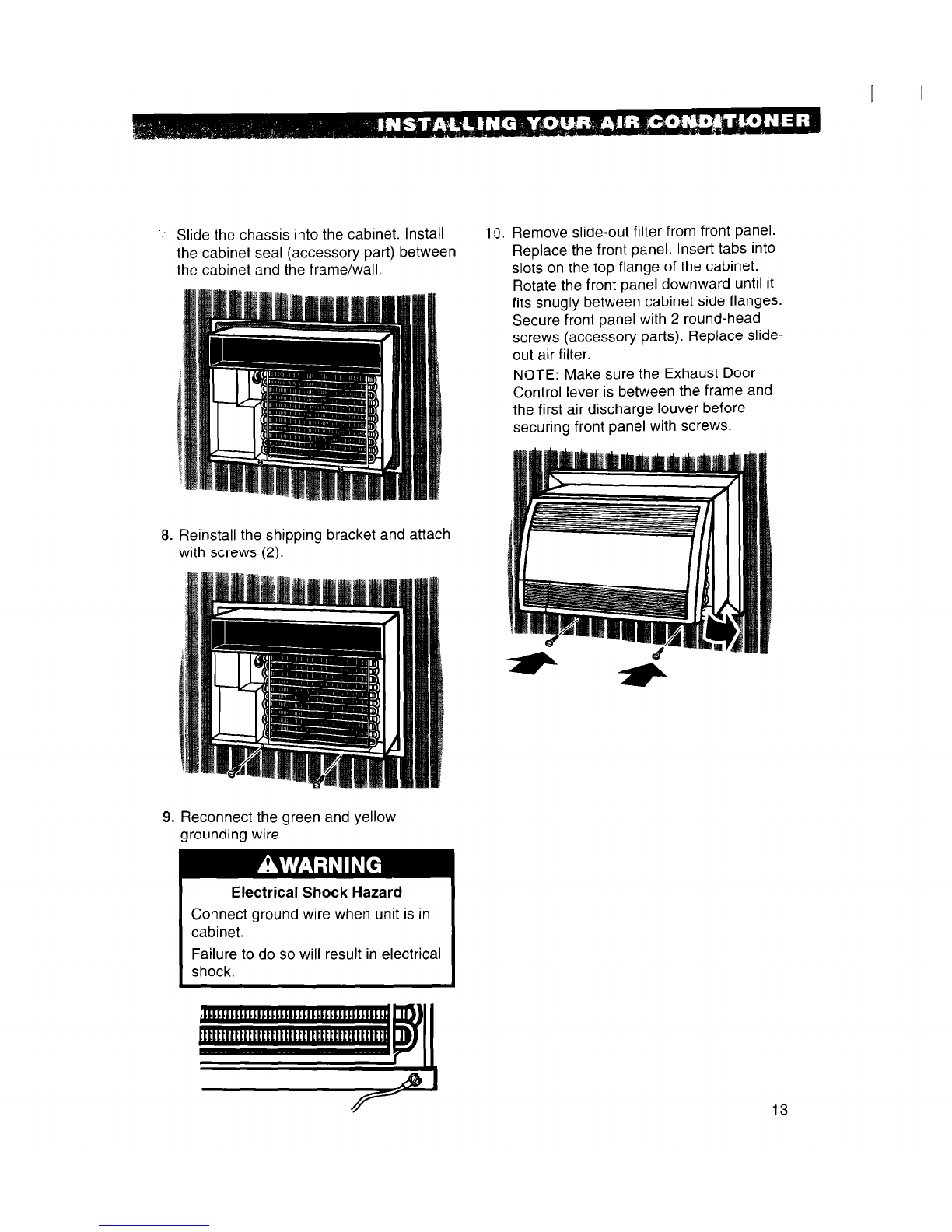

Slide the chassis into the cabinet. Install
the cabinet seal (accessory part) between
the cabinet and the frame/wall.
8. Reinstall the shipping bracket and attach
with screws (2).
9. Reconnect the green and yellow
grounding wire.
Electrical Shock Hazard
Connect ground wire when unit is in
cabinet.
Failure to do so will result in electrical
shock.
Remove slide-out filter from front panel.
Replace the front panel. Inset-t tabs into
slots on the top flange of the cabinet.
Rotate the front panel downward until it
fits snugly between cabinet side flanges.
Secure front panel with 2 round-head
screws (accessory parts). Replace slide-
out air filter.
NOTE: Make sure the Exhaust Door
Control lever is between the frame and
the first air discharge louver before
securing front panel with screws.
13

Troubleshooting
Performance problems often result from little things you can find and fix yourself, without tools
of any kind. Check the chart below for problems you can fix. It could save you the cost of a
service call.
PROBLEM
Unit won’t run
-- ~- POSSIBLE SOLUTION
-~
Make sure unit is plugged into a live circuit with proper voltage.
Check if a household fuse has blown or the circuit breaker tripped.
Make sure unit is turned on.
See if the local power has failed.
Wait at least 3 minutes after turning unit off before trying to restart.
Unit blows Check if a household fuse has blown or the circuit breaker tripped.
household fuses
or trips circuit Make sure an extension cord is not being used.
breakers Make sure unit is plugged into a live circuit with proper voltage.
Wait at least 3 minutes after turning unit off before trying to restart.
1
Remote control Replace batteries. If the remote control still doesn’t work, call your
doesn’t work authorized service company.
Unit stops/starts (Deluxe Remote Control models only.) Check if Delay Star-l or
unexpectedly Delay Stop is programmed. See Deluxe Remote Control Owner’s
Manual for more information on these TIMED MODE operations.
Obtaining Service
If the problem is not due to
an item listed in the chart
above ...
Contact the dealer from whom you pur-
chased the unit, an authorized Whirlpool*
service company, or refer to the guarantee
booklet included with your product.
-t
14
’ Registered Trademah 01 Whwlpool. U.S A
