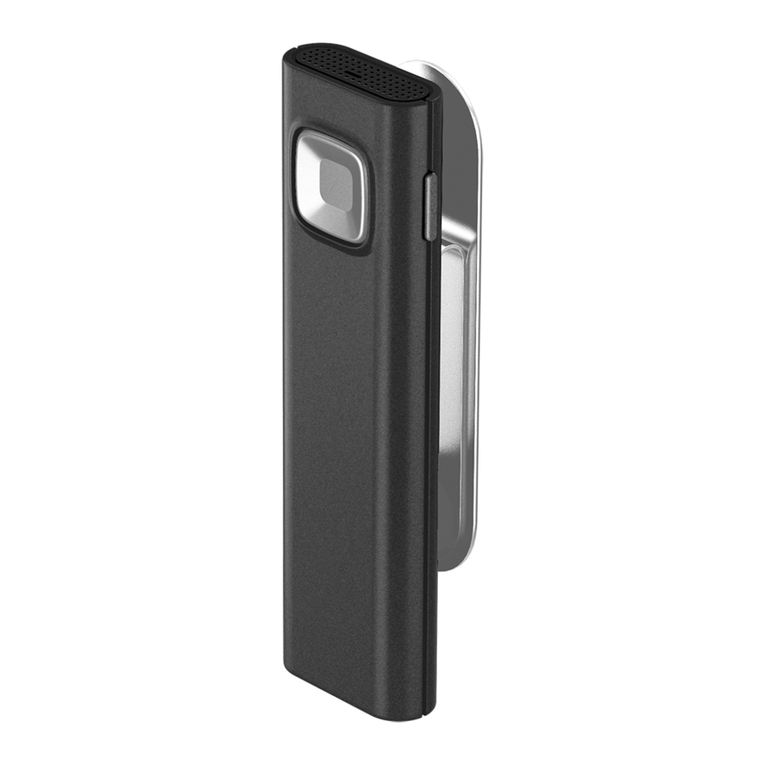

Widex COM-DEX User manual

COM-DEX
UK
CZ
SK
HU
HR
CS
SI
BG
GR
RO
BO
AL
UA

12
3
3.2
3.1
1.2
1.5
1.1
1.3
1.6
1.4

4
5
4.2
4.1
5.4
5.2
5.1/5.3

UK USERINSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
NL GEBRUIKSAANWIJZING.................................16
DK BRUGSANVISNING ....................................30
NO BRUKSANVISNING ....................................44
SE BRUKSANVISNING ....................................58
FI KÄYTTÖOHJE.........................................72
PL INSTRUKCJAOBSŁUGI.................................86
LT NAUDOJIMOINSTRUKCIJOS ...........................100
RU ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ ................
EE KASUTUSJUHEND.................................... 128
LV LIETOTĀJAINSTRUKCIJA.............................. 142
FCCANDICSTATEMENTS..................................... 156
PB 1

2
DESCRIPTION OF DEVICE – See illustration 1
 Pushbutton
 RoomOffbutton
 LED
 Microphone
 Neckloop
 MicroUSB
Note: Read these instructions carefully before you start using the
device.
Intended use
The device is intended to improve the ability of hearing impaired
people to conduct mobile phone conversations while using their
hearing aids, to improve the usability and ease of control of such
hearing aids by equipping them with a Smartphone-based con-
trol method.
Note: The device uses Bluetooth standard which is common in
newer mobile phones.

2 3
ACCESSORIES – See illustration 2
 USBcable
CHARGING – See illustration 3
 ConnectUSBcablebetweenthedeviceandthepower
supplyWerecommendthatthetwonecklooppartsare
notjoinedwhilechargingthedevice
 Redlightcharginggreenlightfullycharged
Batterylifehoursstreamingdaysstandby
HOW TO USE – See illustration 4
 JointhetwonecklooppartsTheneckloopfunctionsas
anonoffswitch
 PairthedevicetoyourmobilephoneusingBluetooth

4
How to pair the device with your phone
To pair your device with your phone for the first time, follow these
steps:
Makesurethatthedeviceandphonearewithinmetre
rangeofeachother
ConnecttheneckloopThedevicewillblinkredandblue
ActivateBluetoothonyourphone
Startthepairingprocessaccordingtotheinstructionsinyour
phone’suserguide
YourphonewillshowalistofBluetoothdevices
SelectCOM-DEXfromthelist
Once you have paired the device, it will remain so even when you
disconnect the neck loop.

4 5
Incoming calls – See illustration 5
 AnswercallPresspushbutton
 Speakintomicrophonewhiledeviceishangingaround
yourneck
 EndcallPresspushbutton
Note: Answering and ending calls is also possible on the mobile
phone. Note that on some mobile phones you may need to
selecttheCOM-DEXfromalistofdevicesOtherwisethesound
willbetransmittedthroughthephone’sspeakers
Outgoing calls – See illustration 5
 Dialfromphone
Note: You can also use the device to stream sound from any
sound source to your hearing aids.

6
Sound adjustment during use
Volumeisadjustedonthemobilephone
ToshutoutsurroundingsoundspressRoomOffbutton–See
illustration
You can download the COM-DEX app from the App Store or
Google Play. This app allows you to use your phone as a remote
control.

6 7
MAINTENANCE
• Clean with a damp cloth. Do not use chemicals.
• Do not expose to extreme temperatures or high humidity.
• Do not immerse in liquids.
• When the device is not in use keep it in a dry location out of
reach of children and pets.
• Never try to open or repair the device yourself. This may only
be done by authorised personnel.
INFORMATION ABOUT EMISSION
Emission levels from Widex devices are several times lower than
the levels transmitted by mobile phones and other communica-
tions equipment.
For further information, especially regarding patients with
medical implants, download the document: “Information on
WidexLinkTM” at www.widex.com/widexlink

8
TROUBLESHOOTING
Problem Possible cause Solution
The device does not
work
a) Device battery low
b) The mobile phone is
set to silent mode
c) Hearing aid battery
low
d) Out of range
a) Charge device bat-
tery
b) Set to normal
mode
c) Change hearing
aid’s battery
d) Bluetooth has a
range up to 10 m.
No sound a) Not connected via
Bluetooth
a) Repeat the pairing
process
If the problems persist, contact your hearing care professional.

8 9
WARNINGS
WARNING
• Do not use the device in mines or other areas with explosive gases.
• When the device is connected via micro USB cable to external mains-
operated equipment such as a charger, PC, audio source or similar, this
equipment must comply with IEC 60065, IEC 60950-1, IEC 60601-1 or
equivalent safety standards.

10
Hereby, Widex A/S declares that this COM-DEX is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
AcopyoftheDeclarationofConformitycanbefoundat
http://www.widex.com/doc

10 11
Symbols commonly used by Widex A/S in medical device labelling
(labels/IFU/etc.)
Symbol Title/Description
Manufacturer
The product is produced by the manufacturer whose name
and address are stated next to the symbol. If appropriate,
the date of manufacture may also be stated.
Date of manufacture
The date when the product was manufactured.
Use-by date
The date after which the product is not to be used.
Batch code
The product’s batch code (lot or batch identification).
SYMBOLS

12
Symbol Title/Description
Catalogue number
The product’s catalogue (item) number.
Serial number
The product’s serial number.*
Keep away from sunlight
The product must be protected from light sources and/or
The product must be kept away from heat
Keep dry
The product must be protected from moisture and/or The
product must be kept away from rain
Lower limit of temperature
The lowest temperature to which the product can be safely
exposed.

12 13
Symbol Title/Description
Upper limit of temperature
The highest temperature to which the product can be safely
exposed.
Temperature limits
The highest and lowest temperatures to which the product
can be safely exposed.
Consult instructions for use
The user instructions contain important cautionary infor-
mation (warnings/precautions) and must be read before
using the product.
Caution/Warning
Text marked with a caution/warning symbol must be read
before using the product.

14
Symbol Title/Description
WEEE mark
“Not for general waste”
When the product is to be discarded, it must be sent to a
designated collection point for recycling and recovery.
CE mark
The product is in conformity with the requirements set out
in European CE marking directives.
Alert
The product is identified by R&TTE Directive 1999/5/EC as
an equipment Class 2 product with some restrictions on use
in some CE member states.
RCM mark
The product complies with electrical safety, EMC and radio
spectrum regulatory requirements for products supplied to
the Australian or New Zealand market.

14 15
Symbol Title/Description
Interference
Electromagnetic interference may occur in the vicinity of
the product.
*The six- or seven-digit number on the product is the serial number. Se-
rial numbers may not always be preceded by

16
POPIS ZAŘÍZENÍ – viz obrázek1
 Tlačítko
 Tlačítkopropotlačeníokolníchzvuků
 LEDdioda
 Mikrofon
 Závěsnásmyčka
 KonektormicroUSB
Poznámka: Než začnete zařízení používat, přečtěte si pečlivě tyto
pokyny.
Použití
COM-DEX usnadňuje lidem sporuchou sluchu konverzovat pomocí
mobilního telefonu za použití sluchadel. Díky tomuto zařízení lze
také ovládat sluchadla prostřednictvím smartphonu.
Poznámka: Zařízení používá standardní Bluetooth, který je běžný
unovějších mobilních telefonů.

16 17
PŘÍSLUŠENSTVÍ – viz obrázek2
 USBNabíječka
NABÍJENÍ – viz obrázek3
 PřipojtezařízenípomocíUSBnabíječkydozdrojeener-
gieDoporučujemenespojovatoběčástizávěsnésmyčky
zatímcosezařízenínabíjí
 Kontrolkasvítíčerveněprobíhánabíjeníkontrolkasvítí
zeleněplněnabito
Výdržbateriehodinpřenosuzvukudnípohotovostního
režimu
ZPŮSOB POUŽITÍ – viz obrázek4
 SpojteoběčástizávěsnésmyčkyZávěsnásmyčkafunguje
jakopřepínačzapnutovypnuto
 SpárujtezařízenísVašímmobilnímtelefonemprostřednic-
tvímBluetooth
