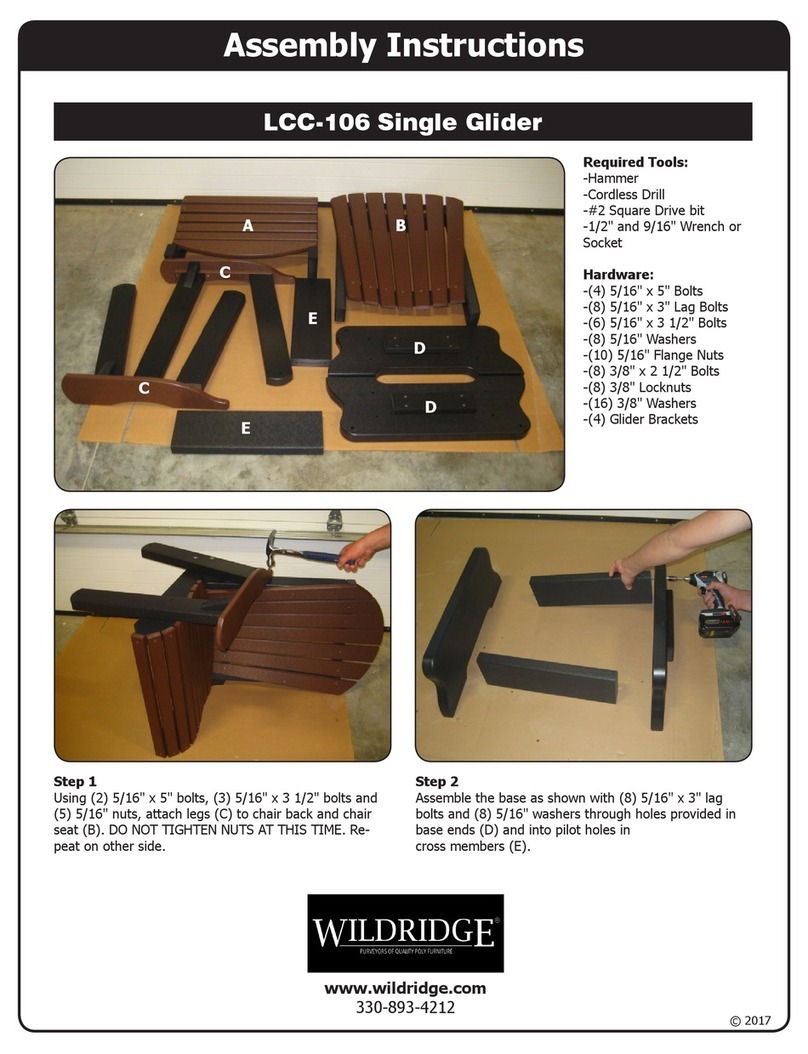

Wildridge LCC-106 User manual

ASSEMBLY INSTRUCTIONS
heritage single glider
330-893-4212 • www.wildridge.com LCC106
© 2019
Required Tools:
-Mallet/Non Marring Hammer
-Cordless Drill
-1/2" and 9/16" Wrench or Socket
Hardware:
-(4) 5/16" x 5" Bolts
-(8) 5/16" x 3" Lag Bolts
-(6) 5/16" x 3 1/2" Bolts
-(8) 5/16" Washers
-(10) 5/16" Flange Nuts
-(8) 3/8" x 2 1/2" Bolts
-(8) 3/8" Locknuts
-(16) 3/8" Washers
-(4) Glider Brackets
Parts:
A = (1) Backrest
B = (1) Seat
C = (1) Right Arm/Leg Assembly
D = (1) Left Arm/Leg Assembly
E = (2) Base Pieces
F = (2) Cross Members
D
A
B
C
E
E
F
F
Step 1
On a level surface, place the backrest (A) and the seat (B) on its side, butting them up against each other. Lay the right arm/leg assembly
(C) onto the backrest and seat and fasten them together. For the front leg use (2) 5/16”x 3 1/2” bolts and (2) 5/16” ange nuts. For the back
leg use (2) 5/16” x 5” bolts & (2) 5/16” ange nuts, and for the armrest use (1) 5/16” x 3 1/2” bolt & (1) 5/16” ange nut. DO NOT TIGHTEN
NUTS AT THIS TIME. Repeat with the left arm/leg assembly (D) on the other side.
(1) 5/16” x 3 1/2” Bolt &
(1) 5/16” Flange Nut
(2) 5/16” x 5” Bolts &
(2) 5/16” Flange Nuts
(2) 5/16” x
3 1/2” Bolt
& (2) 5/16”
Flange Nuts
A
B
C

ASSEMBLY INSTRUCTIONS
heritage single glider
330-893-4212 • www.wildridge.com LCC106
© 2019
Step 4
Place the glider assembly onto the base assembly and attach each
leg to a glider bracket using (1) 3/8”x 2 1/2” bolts, (1) 3/8”ange
nuts, and (1) 3/8”washer. Finish by tightening all nuts.
Your glider is now complete.
Thank you for purchasing from Wildridge.
Step 2
Pictured top left is a base piece (E) for
reference.
Please note the hole placement
dierence in the ends of the two base
pieces. One end goes towards the
front of the glider and the other end
will go towards the back of the glider.
Both base pieces will have the same
hole conguration - but on opposite
sides. The bolts will go through the four
holes that are to the left and right of
the pre-attached board. Do not put the
bolts in the holes on the top of the base
pieces, those are for the glider bracket
hardware in step 3.
Turning the base pieces (E) so the pre-
attached board faces outward, attach
them to the two cross members (F)
with (8) 5/16” x 3” lag bolts and (8) 5/16”
washers (the washer should go onto
the bolt before attaching), through
the holes provided in the base ends
and into the pilot holes in the cross
members.
Note: The front of the base will be
the front of the glider when you
are assembling the base and glider
assembly in step 3.
This pre-attached board will face towards
the outside of the chair.
This End
Goes
Towards
Front Of
Glider
This End
Goes
Towards
Back Of
Glider
Top
Bottom
(1) 3/8” x 2 1/2”
Machine Bolt
(1) 3/8”Washer
(1) 3/8”
Locknut
Note:
The Glider
Bracket will
curve away
from base.
Base
(1) 3/8”Washer
Step 3
Using the picture above as a reference, fasten the hardware
through the top holes on the two base pieces, using (1) 3/8” x 2
1/2” machine bolt, (2) 3/8” washers, (1) glider bracket and (1) 3/8”
locknut, per hole. Note: the glider bracket should be on the outside
of the base so you can attach it to the leg in step 4. For it to glide
correctly the hardware must be placed in the order that is pictured
above and with the curve on the glider bracket facing away from
the base. You will be doing this for all four glider brackets.
