Wilier Jena Hybrid User manual

ENG ASSEMBLY INSTRUCTIONS - BATTERY

WILIER.COM #LOVEMYWILIER
WILIERPEDIA 2020
2
ROAD COLLECTION

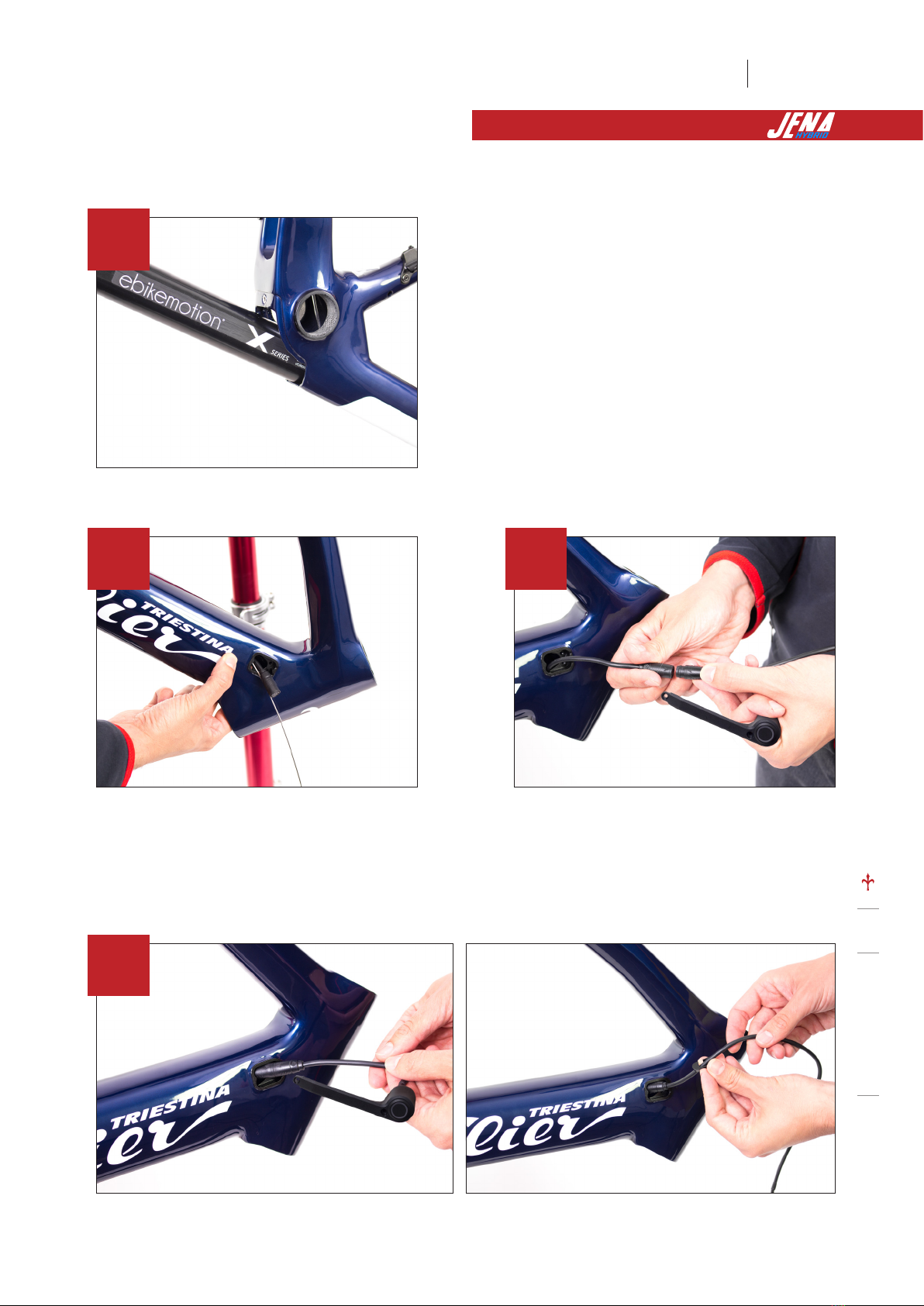

Remove the metallic pieces from the downtube
Pass a metallic guide through the side hole of the downtube until the bb.
Connect the extremity of the battery/iwoc cable to the metallic guide.
1
2
3
2

WILIER.COM #LOVEMYWILIER
WILIERPEDIA 2020
3
ROAD COLLECTION
Pull out the cable xed to the metallic guide through
the side hole. Fix the battery to the frame. Screw the
iwoc button to the holder with the metallic ring.
Connect the battery cable to the iwoc
Slide the battery inside the downtube
Place the connection junction inside the downtube.
4
5 6
7

WILIER.COM #LOVEMYWILIER
WILIERPEDIA 2020
4
ROAD COLLECTION
Close the side hole with the two closing metallic plates.
Close the bb shell cover
Assembly the bike as a normal jena. Once that the handlebar is compacted, x the iwoc holder to the handlebar.
8
9
10
