Operation Manual
QUARTZ PATIO HEATER
ARTICLE 61988
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© b WilTec Wildanger Technik GmbH Seite 9
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

The information contained in this document is subject to change without prior notice. o part of this
document can be copied or duplicated in another form without the prior written consent of WilTec
Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the following mistakes:
_______________________________ ____________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ +49 2403 55592-0
Introduction
Thank you for purchasing this quality product. To minimize the risk of injur b means of fire or
electric shock we urge that our clients take some basic safet precautions when using this
device. Please read the operation instructions carefull and make sure ou have understood its
content.
Always use a grounded power connection with the appropriate mains voltage. You can
nd the corresponding mains voltage on the type plate. If you have any doubts about the
connection being grounded, have it checked by a qualied professional. Never use a
faulty electric cable.
o not inspect the electrical part of the pressure pond lter in a wet or damp
environment or when you are wet yourself and protect it from direct sunlight. Install this
device in a safe location so that nobody can step on the cable, fall over or damage it.
isconnect the power plug before cleaning it and use only a damp cloth for cleaning.
Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised
intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
© b WilTec Wildanger Technik GmbH Seite 10
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

INSTRUCTION MANUAL
Thank you for purchasing this infrared heater. We hope you will be completely satisfied with this prod-
uct. To ensure this, please read these instructions carefully before use and keep them in a safe place.
PART DESCRIPTION
1) Heating Element Assembly
2) Knob
3) Body
4) Position Indication Plate
0 = Off
1 = Low (650W)
2 = Medium (1300W)
3 = High (2000W)
5) Pull switch
6) Tube Cover
7) Upper Post Assembly
8) 3-M5 X 6 Screw
9) Middle Post
10) 3-M5 X 6 Screw
11) Lower Post Assembly
12) Clamp
13) Power Cord
14) Base Cover
15) 4-M6 X 30 Screw
16) Base Assembly
17) Rubber base X 6pcs
© b WilTec Wildanger Technik GmbH Seite 11
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

WARNINGS
This electrical appliance complies with technical safety and electromagnetic compatibility stan-
dards.
ever touch your heater when in operation (risk of burns).
ever touch it with wet hands.
ever rotate the heating part of the appliance during operation. To change the tit angle of the
heating part, we advise you to wait for 15 minutes after the appliance has been switched off.
ever place anything on your heater's safety guard as this may cause overheating (e.g. tow-
els)
ever use your appliance to dry washing.
Although the heating element has stopped glowing, it may still be live and potentially danger-
ous. Check that the selection indicator (5) is in position off before taking any action.
Switch off your appliance:
- After use
- In the event of malfunction
- Before cleaning it.
ever operate your appliance if it has fallen over.
ever dismantle your appliance. An incorrectly repaired appliance maybe dangerous to the
user. If you encounter any problems, please contact an authorized service partner.
The warranty will be void in the event of damage arising from improper use.
Do not use this heater in the immediate surrounding of a bath, a shower or a swimming pool.
This movable appliance is designed for use in gardens, and can be used indoor and outdoor.
The warranty will not apply to appliances used for professional usage. Although the heater
may be used outdoors, the main plug must only be connected to the supply indoors.
The heater is provided with an anti-tilt switch will switch off the heater if it is overturned, and
will switch it on again automatically when it is restored to its upright position.
VOLTAGE
Before using the appliance at the first time, ensure that your mains voltage corresponds to voltage in-
dicated on the appliance. It is a class I appliance and must be earthed.
© b WilTec Wildanger Technik GmbH Seite 12
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

SAFETY
CAUTION: Before fitting or removing the appliance, ensure that the heater's power line suppl -
ing the heater is disconnected. Check that the power line is connected to a 30mA differential
circuit breaker.
This appliance is designed for use in gardens, and any room in your house. The installation
and use of your appliance must comply with the applicable standards in your country.
When it is switched on, an electrical heating appliance reaches very high temperature able to
cause burns. Make sure that all other users are aware of the risks.
If you have any doubts concerning installation possibilities for this heater, please consult a
qualified electrician.
Children, the elderly and the infirm may not always be aware of the danger involved in using
electrical appliances. ever allow this appliance to be used without supervision.
The appliance must be positioned so that the plug is accessible.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
similar qualified person in order to avoid a hazard.
The heater must not be located immediately below a socket-outlet.
Do not use this heater with a programmer, timer or any other device that switches the heater
on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
Do not place the appliance close to curtains and other combustible materials.
© b WilTec Wildanger Technik GmbH Seite 13
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

1
Clamp
4-M6 X 24 Screw
Lower Post Assembly
Base Assembly
4
Base Assembly
Heating Element Assembly
nob
Upper Post Assembly
Middle Post
Lower Post Assembly
Tube Cover
Clamp
Power Cord
Power Cord
5
Heating Element Assembly
Body

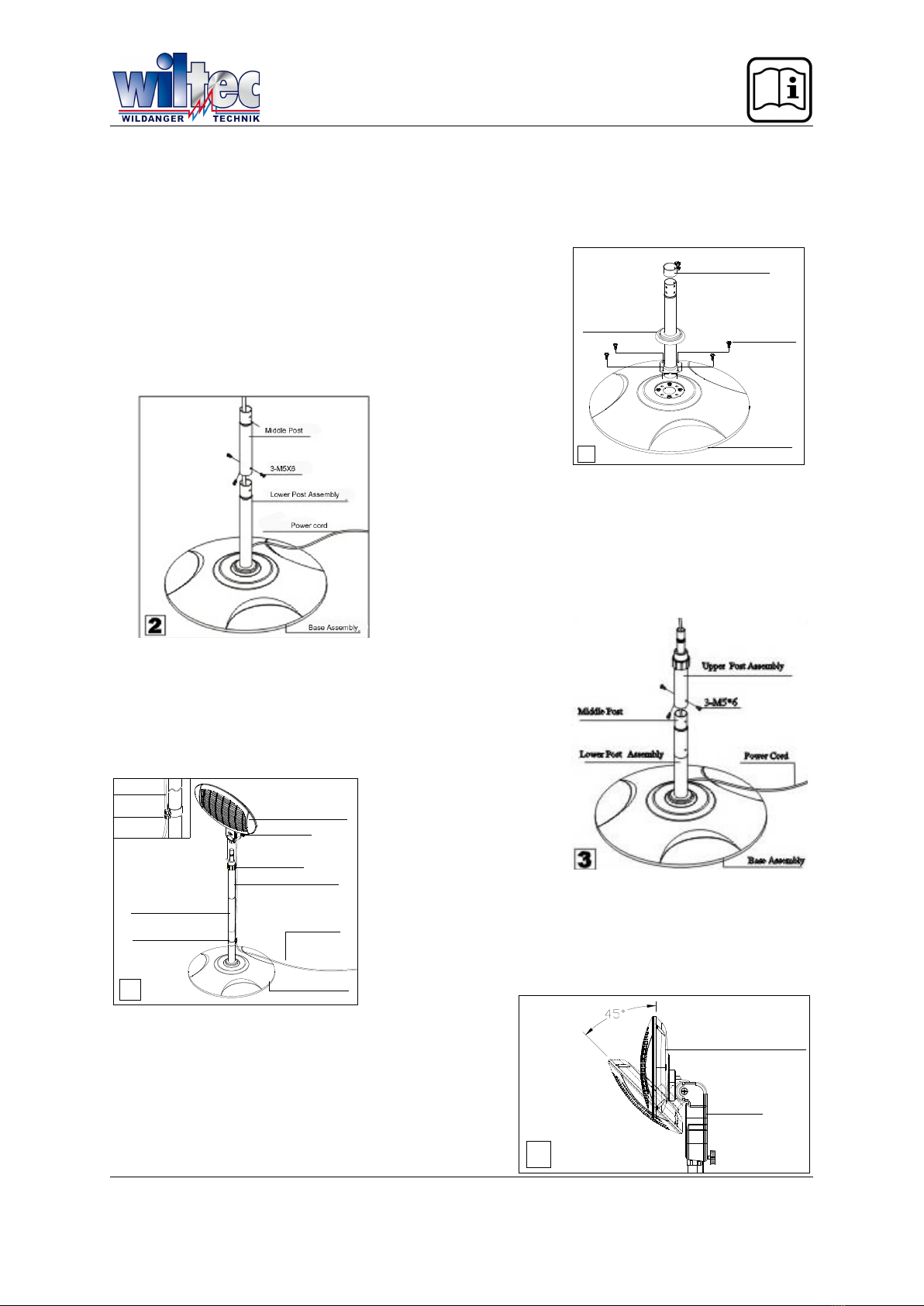

HOW TO ASSEMBLE
Before installing our appliance, ou must disconnect the electrical suppl at the circuit
breaker.
1) Insert the lower post assembly (11) into the base assem-
bly (16) and then fix it tightly by means of 4-M6X30
screw, and insert the clamp (12) into the lower post (11).
Join the Lower Post Assembly and the Middle Post
(9) together with 3-M5X6 screw.
2) Join the Upper Post Assembly (7) and the Middle Post
(9) together with 3-M5X6 screws.
3) Join the Heating Element Assembly (1) and the Upper Post
Assembly (7) together, then fix them tightly by rotating the
Knob, and put the power cord supply into the clamp.
4) According to the request of use angle, Heating
Element Assembly can adjust Angle at 0º~45º.
© b WilTec Wildanger Technik GmbH Seite 14
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

OPERATION
The appliance is switched on by means of the pull switch (5). The slight vibration noticeable when the
appliance is switched on will stop after a few seconds.
OUTPUT
Position 0: Stop
Position 1: 650W (lower power)
Position 2: 1300W (medium power)
Position 3: 2000W (high power)
MAINTENANCE
Your appliance does not require any particular maintenance. However, in the event of a malfunction,
please consult an authorized service center.
1) This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
2) Children should be supervised to ensure that they do not play with the appliance.
© b WilTec Wildanger Technik GmbH Seite 15
http://www.WilTec.de
http://www.ao ue.eu
http://www.teichtip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were
implemented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal
household waste but must be disposed to a recycling
collection point for electronic and electrical waste
equipment. By contributing to the correct disposal of
this article you protect the environment and the health
of your fellow men. Environment and health are
threatened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
