Operation Manual

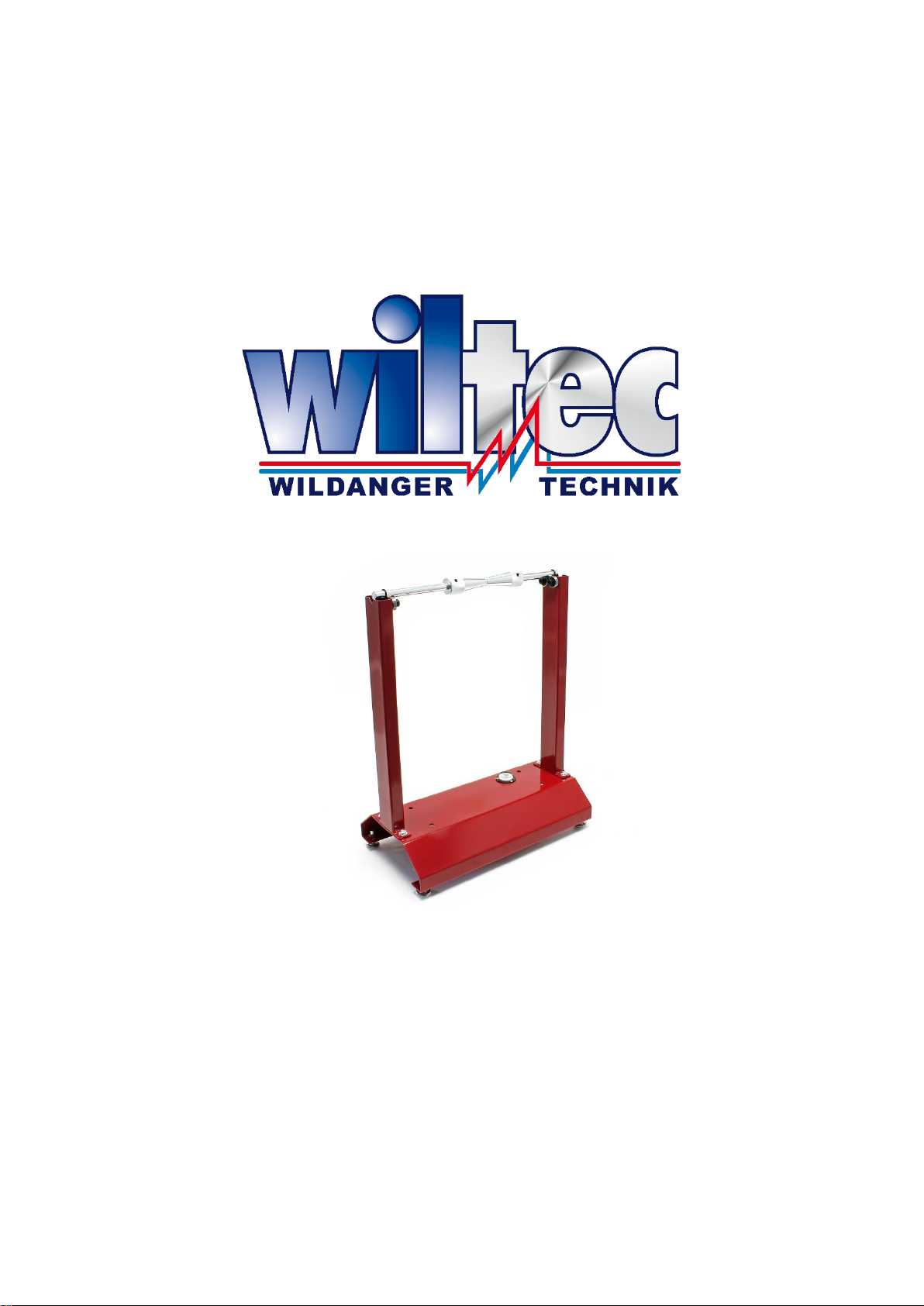

Balancing Machine for Motorbike Tyres
51743
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

© by WilTec Wildanger Technik GmbH Item 51743 Page 2
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
The information contained in this document may alter at any time without previous notice. It is prohibited
to copy or spread any parts of this document in any way without prior written allowance. All rights re-
served.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously or
placing your order via the webshop.
E-mail: [e-mail]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. Attention!
To allow for a smooth execution of your complaint or return, it is important to contact our customer
service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]o
Tel:[phone]
Fax: [phone]

© by WilTec Wildanger Technik GmbH Item 51743 Page 3
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our clients
take some basic safety precautions when using this device. Please read the operation instruc-
tions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Description
The professional balancer is a great help in the correction of unbalance. With the use of gravity, it can
find the focus of any tire and is suitable for almost all motorcycles. With the robust steel construction,
this balancing machine guarantees a long-term use.
Safety instructions/warnings
The owner and/or user must have read and understood the operating instructions of the device before
using it. Personnel should be cautious, competent, trained and qualified in the safe handling of the
working equipment used when working on engines and their components. Warnings should be read and
understood.
•Be familiar with the application control, the application process and the warnings.
•Ensure that all connectors are secure.
•Make sure you know the contents of the instructions for use.
•This device is not intended to be used by persons (including children) with reduced physical,
sensory or mental abilities or persons who do not have the appropriate experience or
knowledge, unless they are supervised by a person responsible for their safety or have previ-
ously been instructed by such to use the equipment.
•Children must be supervised to ensure that they do not play with the appliance.
•Immediately report to your supervisor or workshop as soon as something unforeseen happens.
•Always pay attention to the optimal lighting of the workplace.
•Be sure to wear solid footwear.
•Use a hairnet for long hair.
•Wear tight clothing.
•Take off jewellery (rings, earrings, watches, etc.).
•Be careful not to wear loose straps or belts.
Assembling the wheel balancer
1. Place the stands with the bearings inward on the base. Position the stands over the inner or
outer holes of the stand, depending on the tyre size you want to balance. Fasten the stands as
shown with the 2×8 mm socket screws on the base. You need a 6 mm hex wrench and a 13 mm
wrench.
2. Screw a nut on each foot and carefully tighten it. Do not over-tighten the screw.
3. Change the height of the feet so that the balancing stand is straight. Check the stand with a
water tank.
4. When the balance stands straight, tighten the nuts of the feet.

© by WilTec Wildanger Technik GmbH Item 51743 Page 4
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
№
Name
№
Name
1
Socket cap bolt 8 mm
4
Nut 8 mm
2
Washer
5
Foot 8 mm thread
3
Nut 8 mm
№
Name
№
Name
1
Balancer spindle
3
Cones
2
Stop
4
Adjustable feet

© by WilTec Wildanger Technik GmbH Item 51743 Page 5
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
Using the balancing block
1. Use the balancing block on a stable flat surface. If necessary, adjust the feet.
2. In the first step, mount the empty rim with valve and brake disc, but without tyre on the balance
stand. When the wheel is centred on the spindle, fix the screws in the cones with a 3 mm hex
wrench. Check the tight fit and push the rubber stoppers against the bearings to prevent them
from slipping.
Figure 1 Resting rim without tire
Figure 2 Resting position neutral rim
3. When the rim has come to rest, the lightest point is at the top (see Fig. 1).
4. For the further work, it is useful to mark the lightest point (point on fig. 1 above). For this, you
can use oil chalk or a piece of adhesive tape.
5. At the lightest point, add so much to the provisional weight that the rim will turn by about 90°
(see fig. 2). For an empty engine wheel rim, a maximum of 30 g of balancing weight should be
required. If you need more weight, then you should check the rim and the attachments for dam-
age. Check the height.
Figure 3: Resting position neutral rim with
mounted tyre
Figure 4: Matching

© by WilTec Wildanger Technik GmbH Item 51743 Page 6
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
6. Pull the tire onto the neutral rim and let it swing out. The lightest place is now up again (see
Fig. 3). Mark this spot in a different colour.
5. Now remove the applied balancing weight (step 5). With a little bit of luck, the unbalance of the
rim without tires and the rim with tires is annulled. If this is not the case, turn the rim so that the
two marked points are as shown in Fig. 4. Now the complete wheel is balanced. Normally, you
only need one of the two weights. The weight must be applied until the complete wheel remains
in the rest position. When doing so, be careful to use as little weight as possible, the weight
should be evenly distributed on both sides of the rim. If a total weight of more than 50 g is
required, then you should reclaim the tyre.
