Windsor CLP12 Specifications

Read these instructions before operating the machine
MODEL: CLP12
10080250
Operating Instructions
86038240 09/22/11
PRV NO. 98630
AD
CARPET EXTRACTOR
CUS
3146518

MACHINE DATA LOG/OVERVIEW
CLIPPER 86038240
1
Warranty Registration
Thank you for purchasing a Windsor product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to:
www.windsorind.com/WarrantyRegistration.aspx
For customer assistance:
1-800-444-7654

TABLE OF CONTENTS
CLIPPER 86038240
2
Machine Data Log/Overview.........................1
Table of Contents..........................................2
HOW TO USE THIS MANUAL
How to use this Manual.................................1-1
SAFETY
Important Safety Instructions........................2-1
Hazard Intensity Level ..................................2-3
Grounding Instructions..................................2-5
OPERATIONS
Technical Specifications. ..............................3-1
Controls/Component Location ......................3-2
Filling Operation............................................3-5
Operations. ...................................................3-6
Cleaning Procedure......................................3-8
Accessory Tool Usage................................3-11
MAINTENANCE
Service Schedule..............................……… 4-1
Periodic Maintenance. ..................................4-2
Daily/ Regular Maintenance..........................4-2
Vacuum Motor Replacement ........................4-3
Belt Replacement..........................................4-4
Solution Pump Replacement ............……… 4-5
Wiring Diagram.............................................4-6
Troubleshooting Chart ..................................4-7
GROUP PARTS LIST
Frame Assembly.........................................5-1
Brush Assembly..........................................5-3
Pump Assembly..........................................5-5
Vacuum Shoe Assembly.............................5-7
Control Panel Assembly..............................5-9
Solution Tank Assembly. ............................5-11
Recovery Tank Assembly...........................5-13
Suggested Spare Parts/Notes ....................5-15

HOW TO USE THIS MANUAL
CLIPPER 86038240
1-1
This manual contains the following sections:
-HOW TO USE THIS MANUAL
-SAFETY
-OPERATIONS
-MAINTENANCE
-PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers.
When placing an order for parts, the machine model
and machine serial number are important. Refer to
the MACHINE DATA box which is filled out during
the installation of your machine. The MACHINE
DATA box is located on the inside of the front cover
of this manual.
The model and serial number of your machine is on
the bottom back-end of the machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards is identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
-Periodic
-Daily/Regular
-Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
-REF – column refers to the reference
number on the parts illustration.
-PART NO. – column lists the part
number for the part.
-PRV NO. – reference number.
-QTY – column lists the quantity of the
part used in that area of the machine.
-DESCRIPTION – column is a brief
description of the part.
-SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs.
If column has an asterisk (*), call
manufacturer for serial number.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.

SAFETY INSTRUCTIONS
CLIPPER 86038240 2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or
service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the
machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into
water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp
edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
SAVE THESE INSTRUCTIONS
!
WARNING:

SAFETY
CLIPPER 86038240
2-2
IMPORTANTES MESURES DE SÉCURITÉ
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL).
Pour réduire les risques d’incendie, de choc électrique ou de blessure:
Cet appareil ne doit être connecter qu a des prises ayant une sortie de terre.
Ne pas laisser l’appareil sans surveillance lorsqu’il est branché. Débrancher lorsque l’appareil n’est pas utilisé et
avant l’entretien.
Pour reduire les risques de choc electrique, ne pas utiliser à l exterieur et ne pas aspirer de matières humides.
Ne pas permettre aux enfants de jouer avec l’appareil. Une attention particulière est nécessaire lorsque l’appareil
est utilisé par des enfants ou à proximité de ces derniers.
N’utiliser que conformément à cette notice avec les accessoires recommandés par le fabricant.
Ne pas utiliser si le cordon ou la fiche est endommagé. Retourner l’appareil à un atelier de réparation s’il ne
fonctionne pas bien, s’il est tombé ou s’il a été endommagé, oublié à l’extérieur ou immergé.
Ne pas tirer soulever ou traîner l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le coincer
dans l’embrasure d’unée porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire rouler l’appareil
sur le cordon.
Garder le cordon à l’écart des surfaces chaudes.
Ne pas débrancher en tirant sur le cordon. Tirer plutôt la fiche.
Ne pas toucher la fiche ou l’appareil lorsque vos mains sont humides.
N’insérer aucun objet dans les ouvertures. Ne pas utiliser l’appareil lorsqu’une ouverture est bloquée. S’assure
que de la poussière, de la peluche, des cheveux ou d’autres matières ne réduisent pas le débit d’air.
Tenga especial cuidado al manejar la apiradora en una escalera.
Ne pas aspirer de matiéres en combustion ou qui dégagent de la fumée, comme des cigarettes, des allumettes
ou des cendres chaudes.
Cette machine n’est pas adaptée au ramassage de poussières dangereuses.
Mettre toutes les commandes à la position ARRÊT avant de débrancher l’appareil.
Ne pas aspirer des liquides inflammables ou combustibles, comme de l’essence, et ne pas faire fonctionner dans
des endroits où peuvent se trouver de tels liquides.
Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines
hôtelier, scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage
domestique normal.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
CONSERVER CES INSTRUCTIONS
! AVERTISSEMENT

HAZARD INTENSITY LEVEL
CLIPPER 86038240
2-3
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use manufacturer approved replacement parts.
!WARNING
!CAUTION

DEGRÉS DE RISQUES EN CAS DE DANGER
CLIPPER 86038240
2-4
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et
ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante :
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détérioration du produit ou des biens
immobiliers.
POUR VOTRE SÉCURITÉ : ce signe permet d’identifier les mesures de précaution à prendre pour assurer
un bon fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la machine si
celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains dangers
potentiels pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers potentiels.
Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures nécessaires pour
former le personnel opérateur.
POUR VOTRE SÉCURITÉ :
NE PAS MANOEUVRER LA MACHINE :
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE :
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées Windsor
homologuées.

GROUNDING INSTRUCTIONS
CLIPPER 86038240 2-
5
ELECTRICAL:
In the USA, this machine operates on a standard 15
amp 115V, 60 Hz, A.C. power circuit. The amp,
hertz, and voltage are listed on the data label found
on each machine. Using voltages above or below
those indicated on the data label will cause serious
damage to the motors.
EXTENSION CORDS:
If an extension cord is used, the wire size must be at
least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped
with a cord having an equipment-grounding
conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounded plug that looks like the
plug in “Fig. A”. A temporary adaptor that looks like
the adaptor in “Fig. C” may be used to connect this
plug to a 2-pole receptacle as shown in “Fig. B”, if a
properly grounded outlet is not available. The
temporary adaptor should be used only until a
properly grounded outlet (Fig. A) can be installed by
a qualified electrician. The green colored rigid ear,
lug, or wire extending from the adaptor must be
connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the
adaptor is used, it must be held in place by a metal
screw.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified electrician
or service person if you are in doubt as to
whether the outlet is properly grounded. Do not
modify the plug provided with the appliance - if it
will not fit the outlet; have a proper outlet
installed by a qualified electrician.
Le raccordement incorrect du conducteur de
terre d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien
qualifié ou d'un responsable de l'entretien si
vous avez quelque doute que ce soit quant au
raccordement à la terre de votre prise murale. Ne
modifiez pas la fiche fournie avec l'appareil : si
elle ne correspond pas à la prise murale, faites
installer une prise adéquate par un électricien
qualifié. Utilisez-le uniquement sur des
réceptacles protégés GFCI.
USING AN ADAPTOR
GROUNDING CONNECTION
Outlet FIGURE A
Grounded
Grounding Pin
Metal Screw
Adaptor FIGURE B
Grounded
Outlet Box
Screw
Adaptor FIGURE C
Tab for Grounding
Note: Adaptors are not allowed in Canada.

TECHNICAL SPECIFICATIONS
CLIPPER 86038240
3-1
POWER TYPE
ELECTRICAL: 115 V, 15 A, 60 HZ
ELECTRIC VACUUM MOTOR: (1) –3 stage, 1 hp, 99 cfm
(2.80 cubic meters/min.) Waterlift –117” (297cm)
BRUSH: (1) 18” (45.7 cm.)
SOLUTION PUMP: 100 PSI, diaphragm style, internal
bypass
SOLUTION CAPACITY: 12 gallons (45.5ltr)
RECOVERY CAPACITY: 12 gallons (45.5ltr)
BRUSH SPEED: 1000 rpm

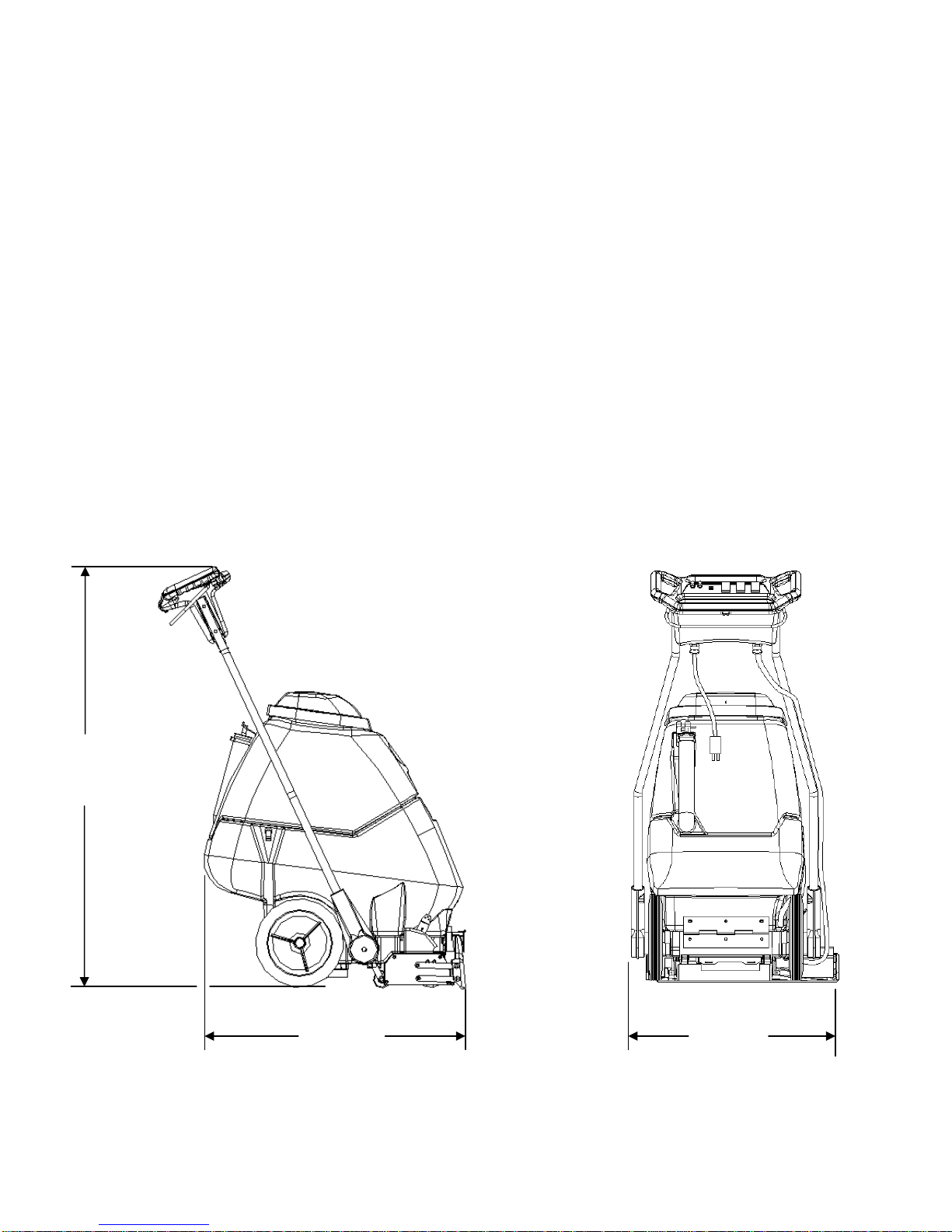

GENERAL DIMENSIONS/WEIGHT
Vacuum shoe: 20” (51 cm) cast aluminum
with spring loaded down pressure
WHEELS: (2) 10” dia. (25 cm) wheels by 2”
WEIGHT: 105lbs. (48kg)
LENGTH: 28” (71 cm)
HEIGHT: 46” (117 cm)
WIDTH: 24” (61 cm)
SOLUTION SPRAY: 2 quick change jets.
POWER CABLE: 50’ (12.7 m) (14 gauge)
24”
(61cm)
28”
(71cm)
46”
(117cm)

CONTROLS/COMPONENT LOCATIONS
CLIPPER 86038240 3-2
1. Main Handle. Used to pull and maneuver
machine.
2. Handle Adjustment. Used to adjust height of
handle, and allow machine to be used in “PUSH”
or “PULL orientation.
3. Electrical Cord.
4. Solution Switch. Turns on pump. Continuous
position (bottom) activates electro-valve to
dispense solution to floor through jets.
Intermittent position (up) requires operator to
depress 1 of 3 trigger switches to dispense
solution. Center position is off.
5. Brush Motor Switch. Turns on brush motor.
6. Vacuum Motor Switch. Turns on vacuum
motor.
7. Trigger Switches. Activates electro-valve to
dispense solution to floor through jets when
solution switch is in the intermittent position.
8. Brush Motor Circuit Breaker. 6 amp. Breaker
protecting brush motor.
9. Vacuum Motor Circuit Breaker. 15 amp.
Breaker protecting vacuum motor.
10. Recovery Dump Hose. Facilitates draining
dirty cleaning solution.
3
1
10
2
5
8 9 4 6
7

CONTROLS/COMPONENT LOCATIONS
CLIPPER 86038240
3-3
1
2
3
13
12
6 9
8
1. Solution Accessory Tool Hookup. Used for
various auxiliary cleaning tools.
2. Vacuum Hose Door. Used to connect various
auxiliary 1 ½ inch cleaning tool vacuum hoses.
3. Brush Height Adjustment. Used to regulate
brush height from storage position to various
carpet heights.
4. Recovery Tank. Used to collect dirty cleaning
solution.
5. Solution Tank. Used to hold cleaning solution.
6. Solution Dump Hose. Facilitates draining
excess cleaning solution from solution tank.
7. Recovery Tank Dome.
8. Solution Tank Lid.
9. Solution Tank Fill Hose.
10. Vacuum Shoe.
11. Brush Housing.
12. Front Lifting Handle.
13. Cleaning Solution Filter.
4
5
7
10
11

CONTROLS/COMPONENT LOCATIONS
CLIPPER 86038240 3-4

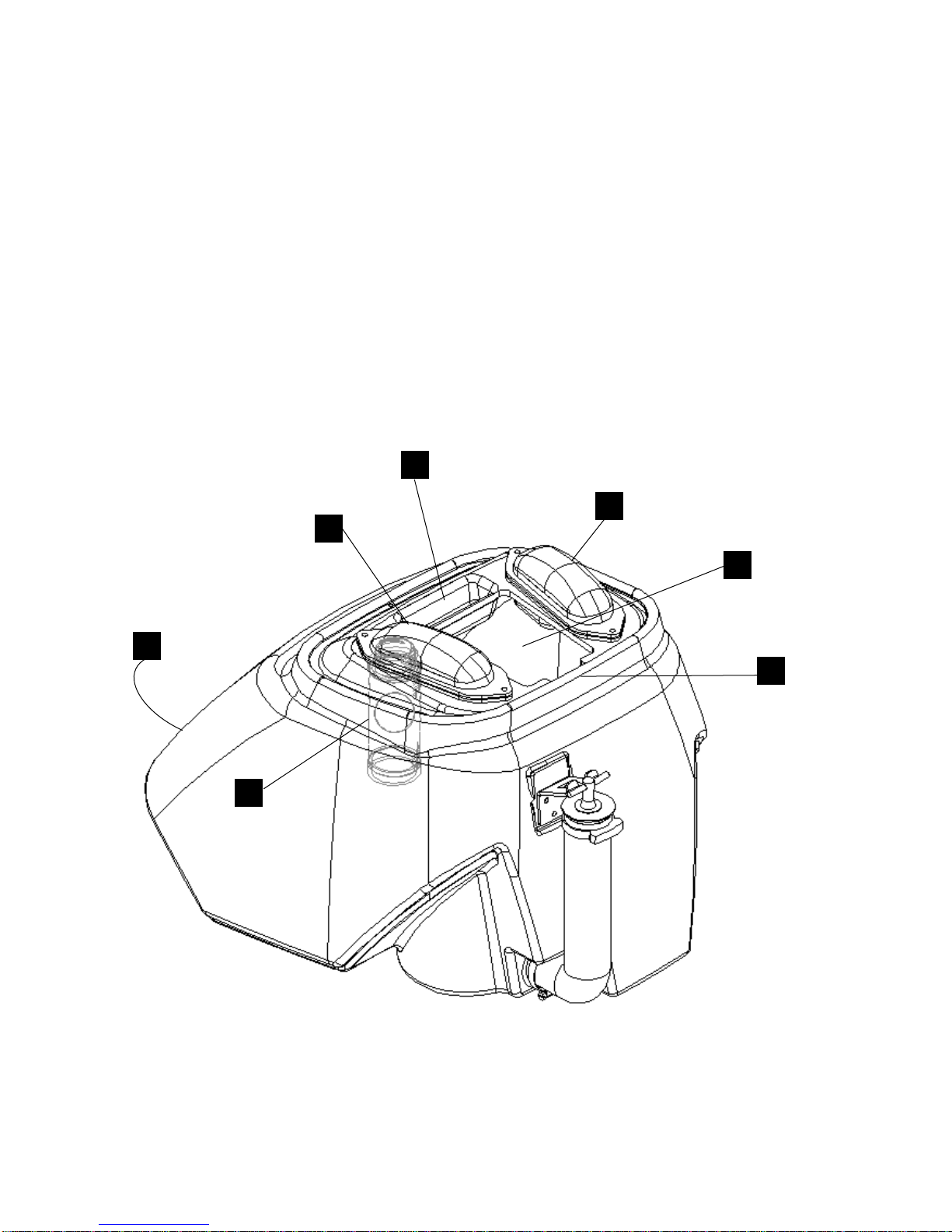

1. Solution Intake Cover.
2. Vacuum Intake Cover.
3. Float Shut-Off.
4. Clean-Out Opening.
5. Pour Spout.
6. Lift Handle.
2 1
3
4
5
6
6

FILLING OPERATIONS
CLIPPER 86038240
3-5

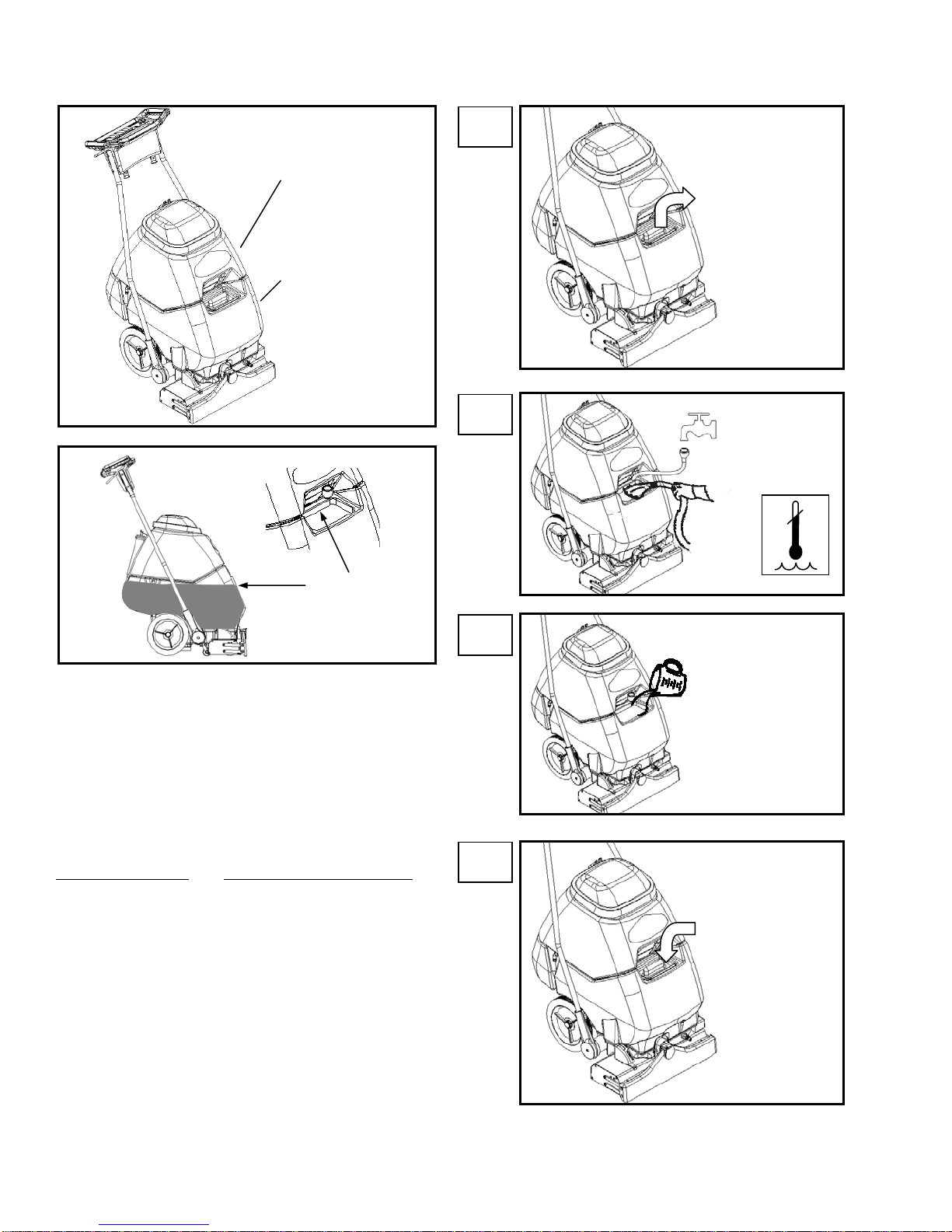

FILLING THE CLIPPER
NOTE: Use clean bucket of water to fill solution tank
Do not put defoamer, solvents, spotter or
prespray chemicals in the solution tank.
Do not allow water to spill into vacuum motor inlet.
Dry spillage from top of solution tank before
replacing recovery tank.
CHEMICALS
Suitable Chemicals Non-Compatible Chemicals
Alkalis Aldehydes
Detergents Aromatic Hydrocarbons
Hydroxides SP Butyls
Soaps Carbon Tetrachloride
Vinegar Clorox*
Chlorinated Bleaches
Chlorinated Hydrocarbons
Lysol*
Methyl Ethel Ketone (MEK)
Perchorethylene (perc)
Phenolics
Trichlorethylene
D-Limonene
STEP
1
STEP
2
STEP
3
STEP
4
RECOVERY TANK
SOLUTION
TANK
Remove solution
tank lid
Replace solution
tank lid
Add cleaning
chemical
12 – 24oz.
(356ml – 711ml)
FILL LINE 140°F
(
60°C
)
12 gal.
(45.5 ltr.)
or
Add water

OPERATIONS
CLIPPER 86038240 3-6
Remove electrical cord and literature from
recovery tank. Fill solution tank (see filling
instructions page 3-5).
Adjust brush to proper setting. Note: For
good operation the brush must skim the
carpet. If circuit breaker trips raise brush to
prevent damage to motor or carpet.
Plug cord into grounded outlet. Note: Be sure
dome is seated on recovery tank, and float
shut-off is installed correctly.
Turn on brush and vacuum motor switches
(“ON”=“I”). Turn on solution switch for
continuous spray or set switch to intermittent
to allow use of trigger switches.
STEP
1
STEP
2
STEP
3
STEP
4
SOLUTION VACUUM
CONT
INT BRUSH ON
ON

OPERATIONS
CLIPPER 86038240
3-7
Select continuous setting to start solution
spray or select intermittent setting to
enable use of trigger switches to start
solution spray.
The intermittent setting requires the
operator to hold any one of the three
trigger switches in the “on” position with the
fingers, and is typically used in small areas
where short cleaning passes are made.
The continuous setting allows the operator
to set the switch in the “on” position with
one touch, and is typically used in large
areas where long cleaning passes are
made.
Lower machine to floor.
Adjust handle to comfortable operating
position. Tip machine back by main handle
to move to starting point.
STEP
5
STEP
6
STEP
7
INT
CONT

CLEANING PROCEDURE
CLIPPER 86038240 3-8
Release intermittent trigger switches or
turn off continuous setting on solution
switch approximately 1 foot before ending
cleaning pass.
Push down on handle to raise vacuum
shoe and brush before moving to the next
cleaning pass. Overlap brush contact
area approximately 1inch.
STEP
1
STEP
2
STEP
3
Start at wall closest to power outlet. For
small areas, pull straight back without
pushing down on handle.
1in.
(25mm)
OFF
1ft.
(30cm)
1. This machine can be operated in either
direction. For smaller areas operate the
machine by pulling rearward.
2. For larger unobstructed areas, flip the
handle and use the machine’s brush
assisted propelling motion.
1 2

CLEANING PROCEDURE
CLIPPER 86038240
3-9
STEP
5
STEP
6
After cleaning, turn off all controls, return
brush to storage position and carefully unplug
machine.
STEP
4
STEP
1
Use right side of machine for cleaning against
walls.
OFF OFF OFF
SOLUTION
INTAKE COVER
VACUUM
INTAKE COVER
O
R
Start at wall closest to power outlet. For large
areas flip handle and operate machine in
parallel passes, overlapping brush path. Clean
perimeter last.
During operation, observe the following: The
Clipper is equipped with clear internal covers to
facilitate operator viewing of dirty solution and
vacuum air flow.
During operation, observe the vacuum intake
cover. Large amounts of water or foam
entering the vacuum system can damage the
vacuum motor. If you notice either condition,
shut down the machine immediately. Empty
recovery tank and/or add defoamer to recovery
tank.

CLEANING PROCEDURE
CLIPPER 86038240 3-1
0
To speed drying, use a Windblower
™
fan.
Empty recovery tank by releasing dump
hose. Use a hose with cold water to
clean out the recovery tank. Also drain
solution tank after each use.
STEP
7
STEP
8
RECOVERY
DRAIN
SOLUTION
DRAIN

ACCESSORY TOOL USAGE
CLIPPER 86038240
3-11
Turn on vacuum motor switch and set
solution switch to intermittent position.
Note: Be sure brush switch is in off position
and brush is in storage position.
Squeeze handle on accessory tool to begin
cleaning.
STEP
3
STEP
4
STEP
1
STEP
2
Use only one of the following acceptable
accessory tools.
HT – 86000610 - PRV NO. 89227
DDH – 86000600 - PRV NO. 89226
DH - 86031540 - PRV NO. 39504
Pull back collar and insert over machine
mounted fitting, then release collar to lock
into place.
Lift door on front of vacuum shoe and insert
1 ½ inch hose cuff into hole.
SOLUTION VACUUM
ON
OFF
INT BRUSH
