Winntec HD Series User manual

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series
Manual Workshop presses
Y461520
Manual Hydraulic press
Y461533
Manual Pneumatic
Hydraulic press
Winntec-Manual Y461520-Y461533.indd 1Winntec-Manual Y461520-Y461533.indd 1 22-09-21 09:1922-09-21 09:19

HD-Series
Manual Workshop presses
Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
WARNINGS
FOREWORD
We thank you for buying this Winntec quality product. Before using this product, carefully read these instructions and become acquainted with
the safety symbols. For use, guarantee and maintenance regulations please visit www.winntec.net
To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or werking near this tool must read and
understand these instructions carefully. Keep them in a safe place for later consultation.
SAFETY INSTRUCTIONS
This press has been designed tor general bending, toughening, axis and bearing extraction work etc. Never use it tor applications that should
not be pertormed by a press. Always use the appropriate tool tor each specific task. Hand Ie the press correctly and ensure that all parts and
components are in good condition and that no parts are missing prior to its use.
The press should only be used by authorized person should having read carefully and understood the contents of this manual. particulary chi-
Idren, away from the working area. Always position the press against a wall. lf the press is situated in the open workshop, it is essential that a
guard be placed at the rear of the unit. The press toot need to be amounted on the ground!
Make sure that the operator must wear protective cloth, gloves, safety helmet, shoes and ear protector during operating. To avoid accidents, al-
ways be aware of any on-going work on the machine. Also, always stay tocused on the job to be done. Do not modify the press in any way. Safety
valve should not be tampered with under any circu msta nces.
Never exceed the rated capacity of the press and V-blocks. Non-compliance with these instructions may result in injury or damage to the user,
the press or the piece being manipulated.
The manufacturer accepts no responsibility tor the improper use of the press or the component handled.
OIL
Winntec-Manual Y461520-Y461533.indd 2Winntec-Manual Y461520-Y461533.indd 2 22-09-21 09:1922-09-21 09:19

HD-Series
Manual Workshop presses
Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net

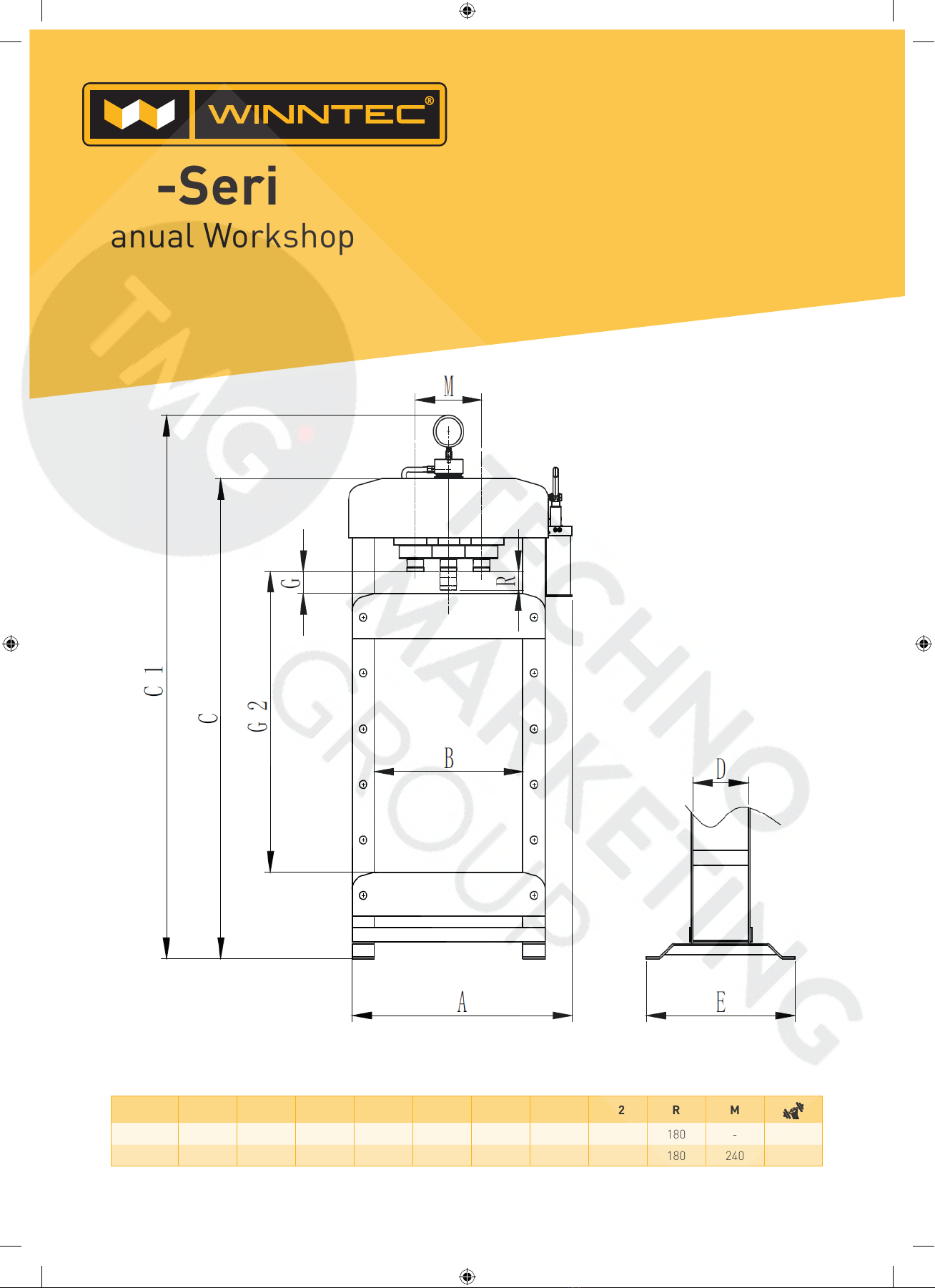

Model A B C C1 D E G G2 R M
Y461520 850 540 1602 1830 134 540 48 910 180 - 20 T
Y461533 840 540 1650 1850 148 540 75 990 180 240 30 T
Winntec-Manual Y461520-Y461533.indd 3Winntec-Manual Y461520-Y461533.indd 3 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
NR QTY NR QTY
1 OIL PUMP ASSY 1 6 WORKING BENCH ASSY 1
2 OIL CYLINDER ASSY 1 7 V-BLOCK ASSY 2
3 FRAME ASSY 1 8 HANDLE ASSY 1
4 FOOT BASE ASSY 2 9 OIL PIPE 1
5 GEAR SHAFT 2
20 OUTER HEX BOLT M10 4 26 SPRING WASHER Ø 10 4
21 OUTER HEX BOLT M8 2 27 SPRING WASHER Ø 8 4
22 INNER HEX BOLT M8 2 28 SPRING WASHER Ø 6 4
23 INNER HEX BOLT M6 4 29 WASHER Ø 6 4
24 OUTER HEX SCREW M10 4 30 OIL BLOCKING SCREW M14x1.5 2
25 OUTER HEX SCREW M8 2
HD-Series

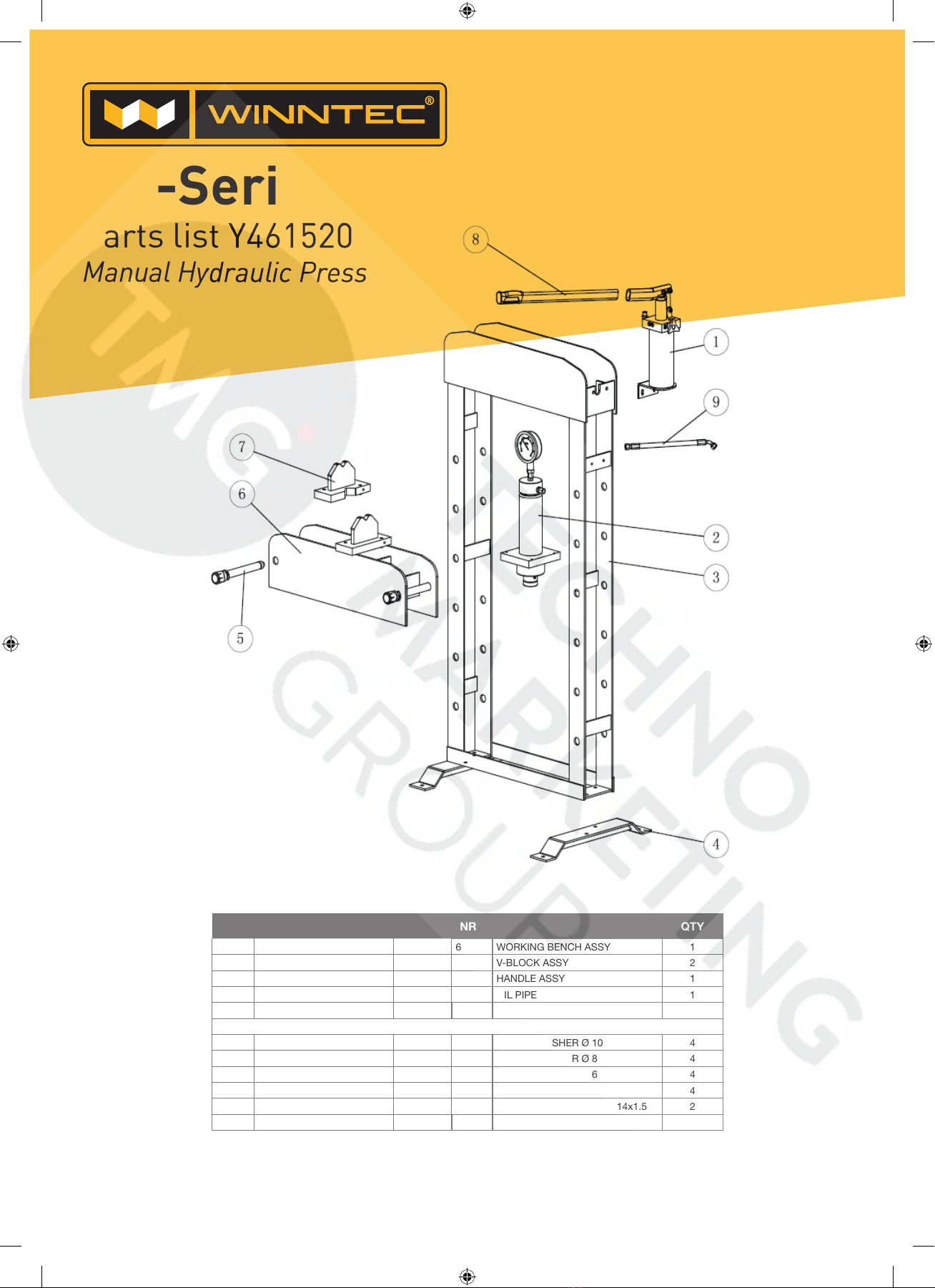

Parts list Y461520
Manual Hydraulic Press
Parts list Y461520
Manual Hydraulic Press
Winntec-Manual Y461520-Y461533.indd 4Winntec-Manual Y461520-Y461533.indd 4 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
NR QTY NR QTY
1 OIL PUMP ASSY 1 7 V-BLOCK ASSY 2
2 OIL CYLINDER ASSY 1 8 HANDLE ASSY 1
3 FRAME ASSY 1 9 OIL PIPE 1
4 FOOT BASE ASSY 2 10 AIR PIPE 1
5 GEAR SHAFT 2 11 CYLINDER MOVING SHAFT 2
6 WORKING BENCH ASSY 1 12 FOOT PEDAL VALVE 1
20 OUTER HEX BOLT M10 4 25 OUTER HEX SCREW M8 2
21 OUTER HEX BOLT M8 2 26 SPRING WASHER Ø 10 4
22 INNER HEX BOLT M8 2 27 SPRING WASHER Ø 8 4
23 SHOULDER SCREW 4 30 OIL BLOCKING SCREW M14x1.5 2
24 OUTER HEX SCREW M10 4 31 INNER HEX BOLT M6 2
HD-Series
Parts list Y461533
Manual Pneumatic
Hydraulic Press
Parts list Y461533
Manual Pneumatic
Hydraulic Press
Winntec-Manual Y461520-Y461533.indd 5Winntec-Manual Y461520-Y461533.indd 5 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series

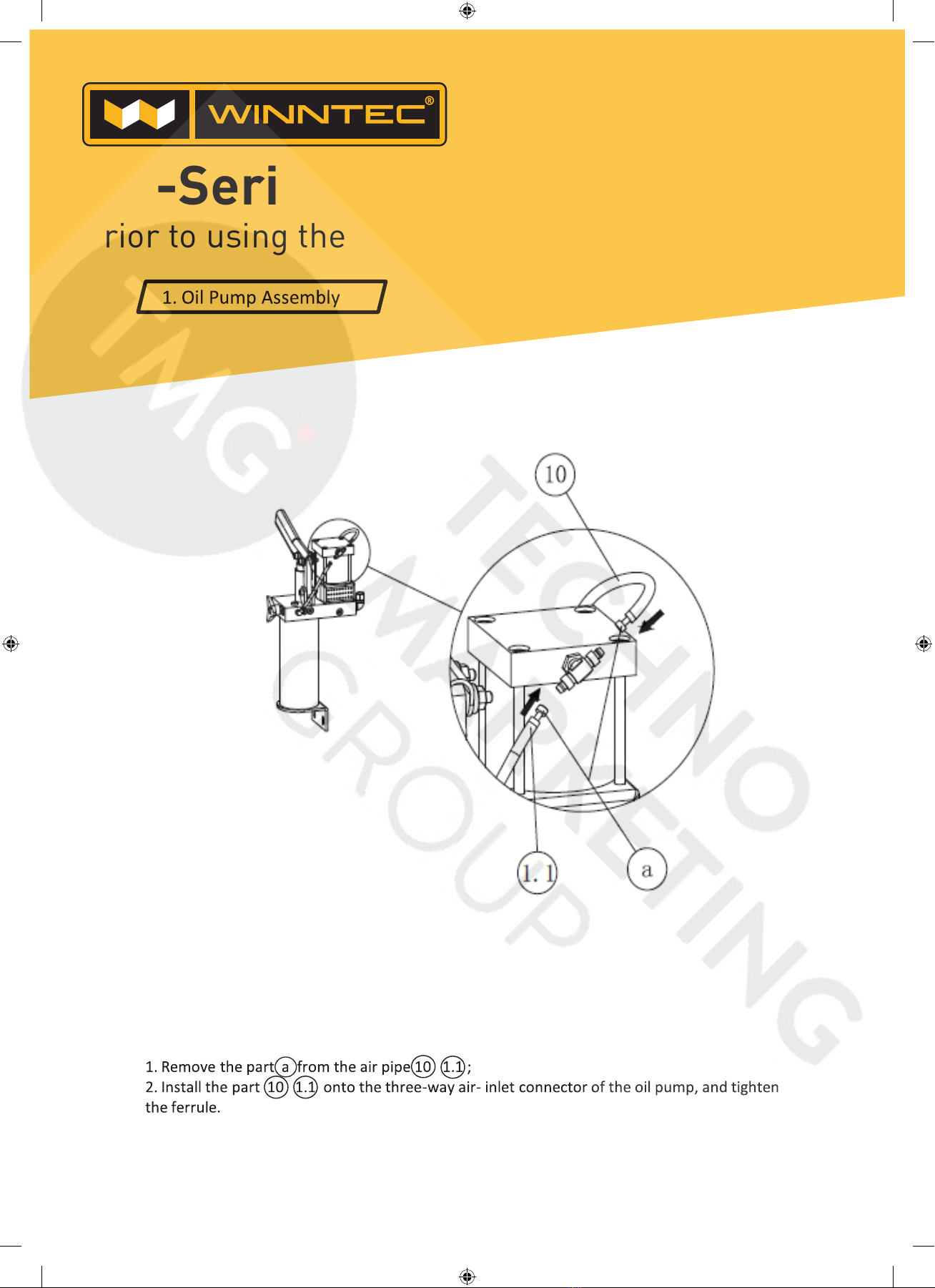

Prior to using the press
Winntec-Manual Y461520-Y461533.indd 6Winntec-Manual Y461520-Y461533.indd 6 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series
Prior to using the press
Winntec-Manual Y461520-Y461533.indd 7Winntec-Manual Y461520-Y461533.indd 7 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net

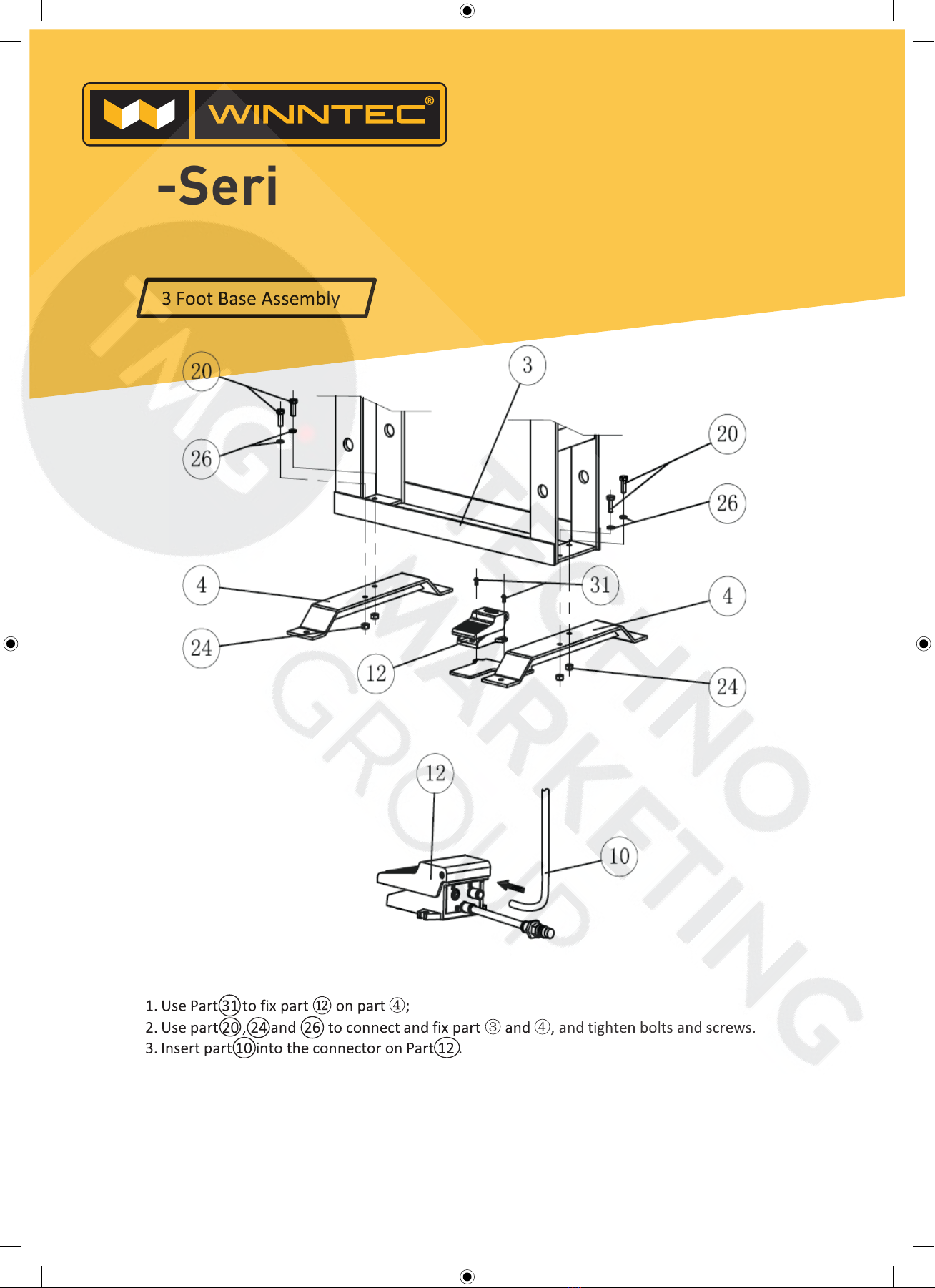

HD-Series
Winntec-Manual Y461520-Y461533.indd 8Winntec-Manual Y461520-Y461533.indd 8 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net

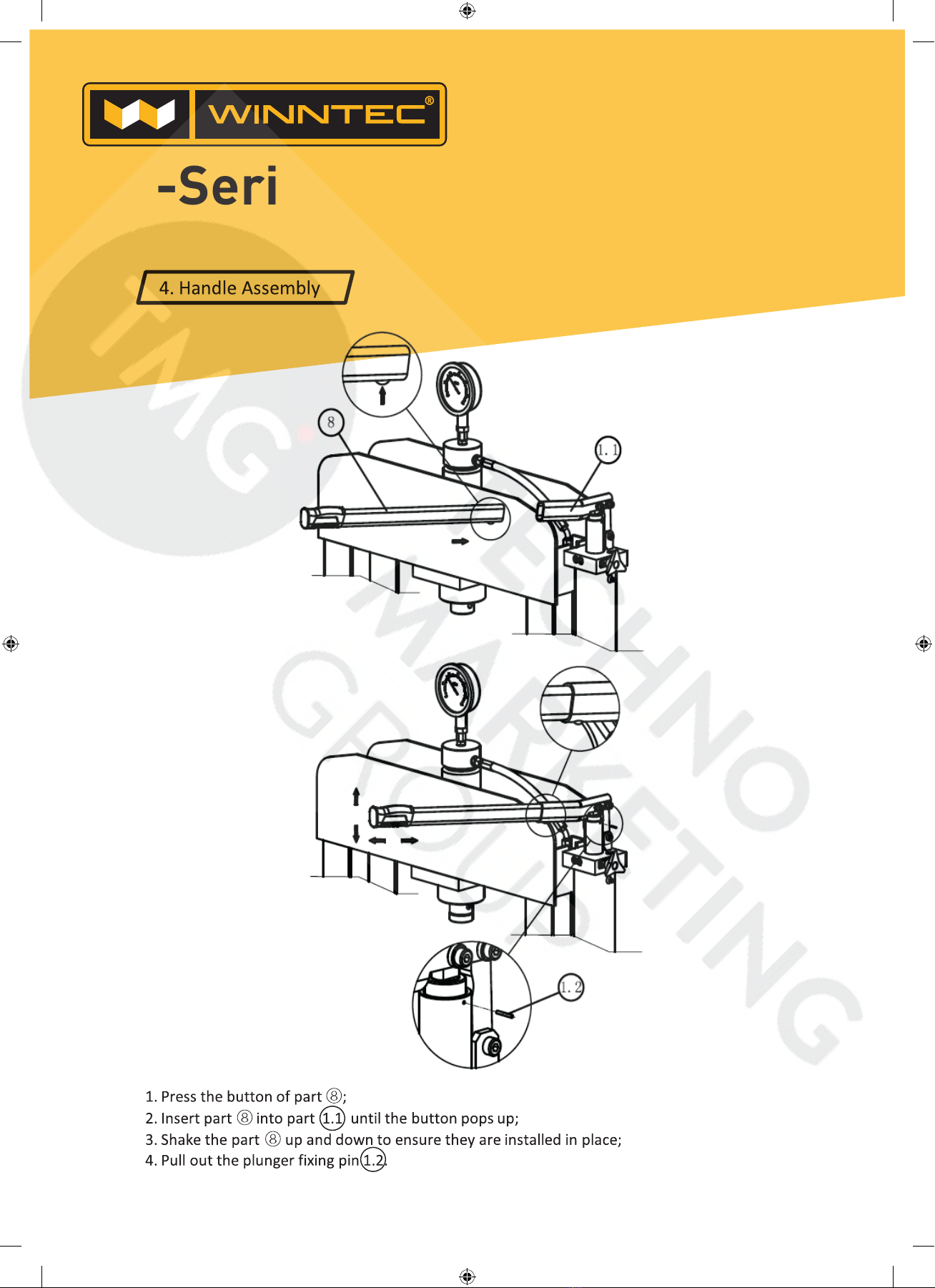

HD-Series
Winntec-Manual Y461520-Y461533.indd 9Winntec-Manual Y461520-Y461533.indd 9 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net

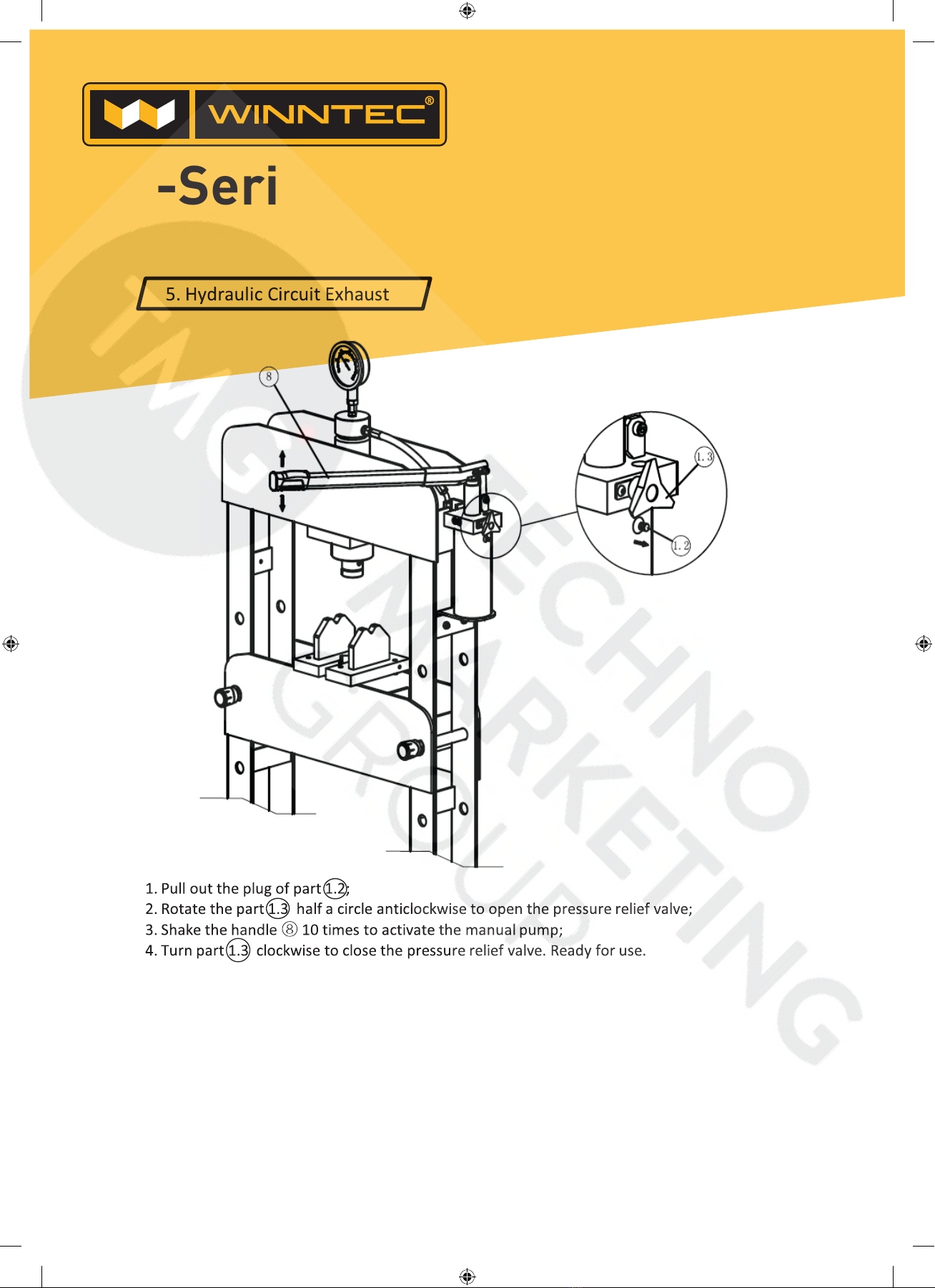

HD-Series
Winntec-Manual Y461520-Y461533.indd 10Winntec-Manual Y461520-Y461533.indd 10 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net

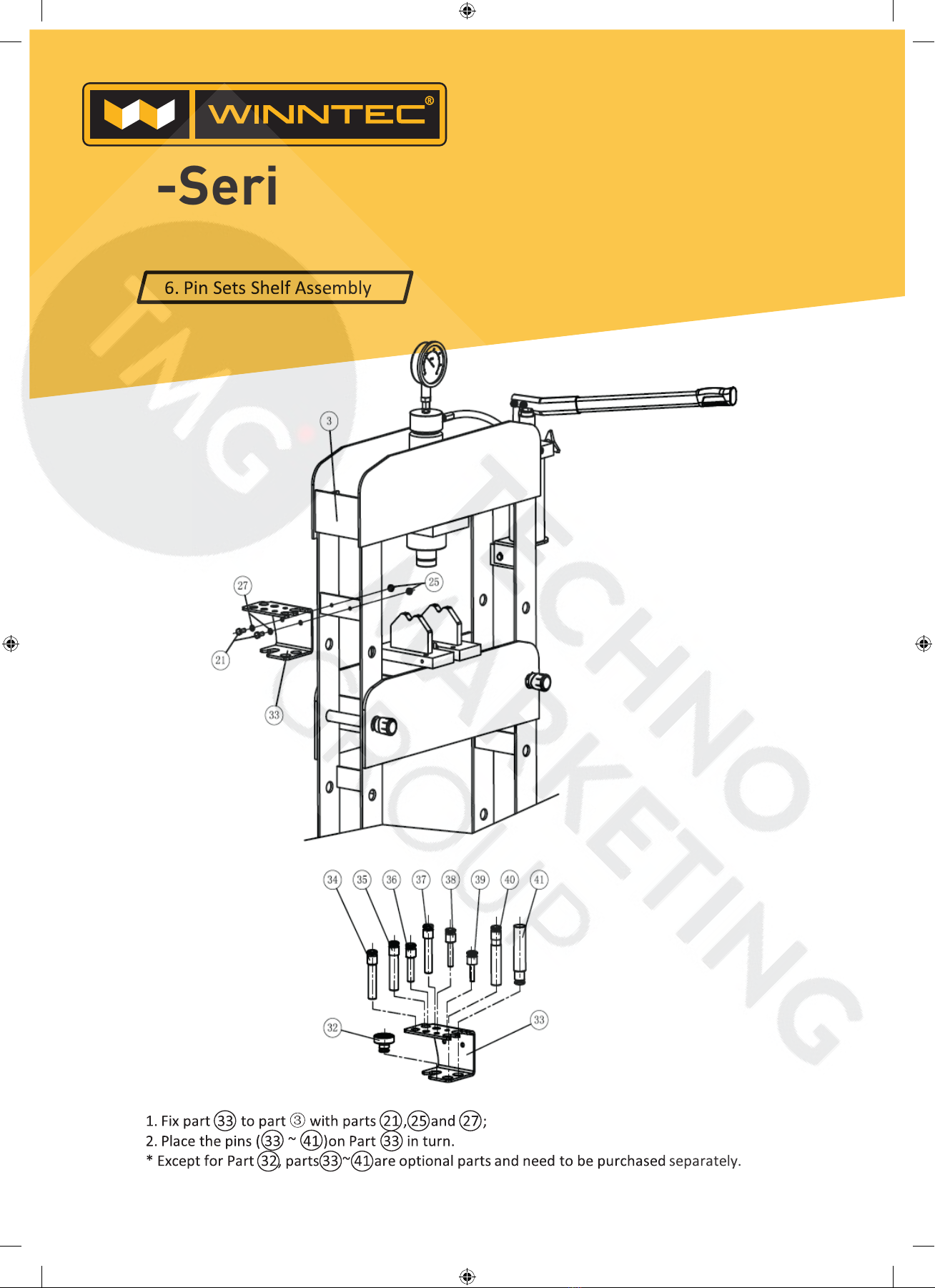

HD-Series
Winntec-Manual Y461520-Y461533.indd 11Winntec-Manual Y461520-Y461533.indd 11 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series
Winntec-Manual Y461520-Y461533.indd 12Winntec-Manual Y461520-Y461533.indd 12 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series
Winntec-Manual Y461520-Y461533.indd 13Winntec-Manual Y461520-Y461533.indd 13 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series

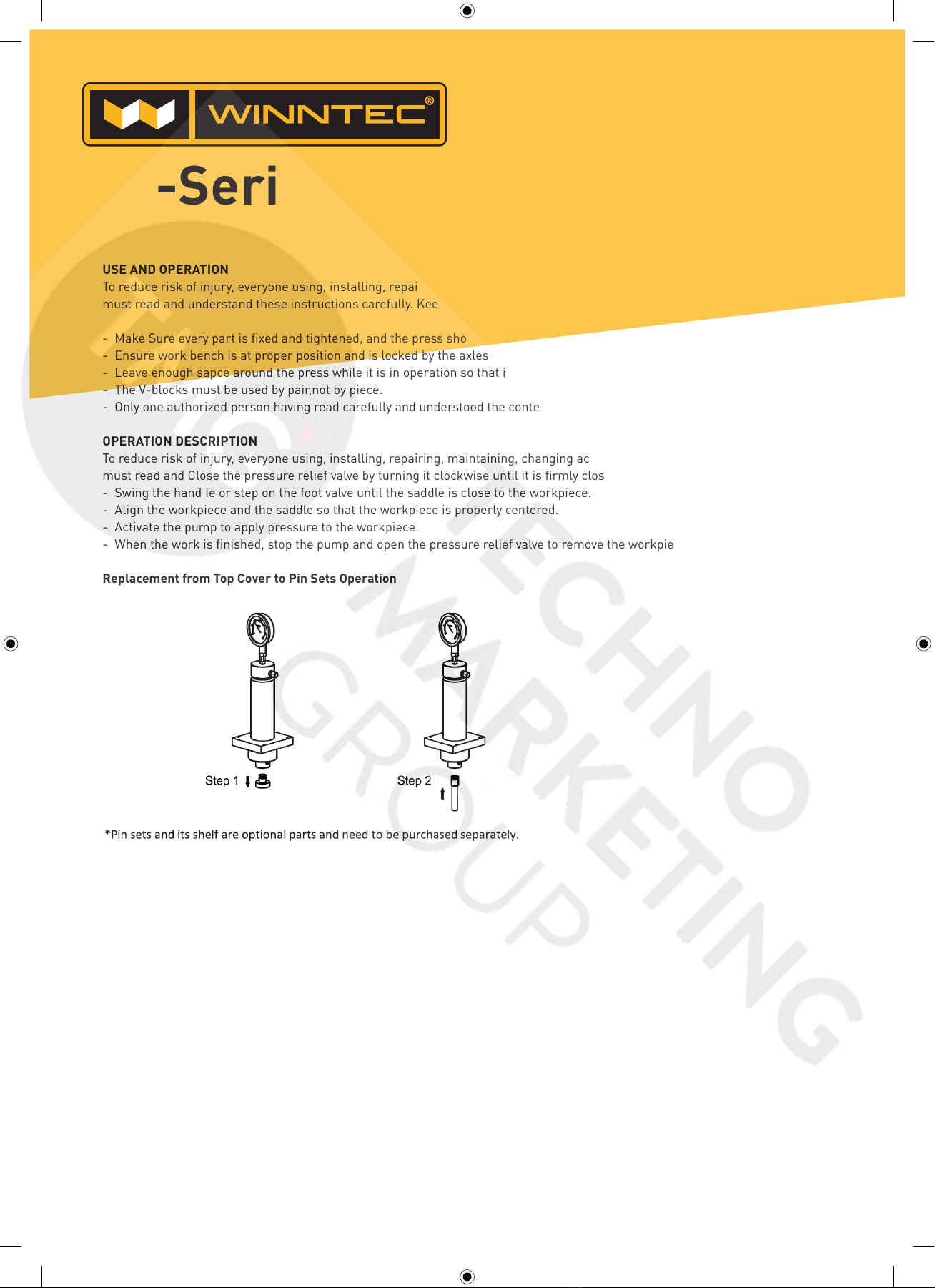

USE AND OPERATION
To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool
must read and understand these instructions carefully. Keep them in a safe place for later consultation.
- Make Sure every part is fixed and tightened, and the press should be placed on a firm, regular and horizontal surface.
- Ensure work bench is at proper position and is locked by the axles.
- Leave enough sapce around the press while it is in operation so that it is always easily accessible.
- The V-blocks must be used by pair,not by piece.
- Only one authorized person having read carefully and understood the contents of this manual is allowed to operate the press.
OPERATION DESCRIPTION
To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool
must read and Close the pressure relief valve by turning it clockwise until it is firmly closed.
- Swing the hand Ie or step on the foot valve until the saddle is close to the workpiece.
- Align the workpiece and the saddle so that the workpiece is properly centered.
- Activate the pump to apply pressure to the workpiece.
- When the work is finished, stop the pump and open the pressure relief valve to remove the workpiece.
Replacement from Top Cover to Pin Sets Operation
Winntec-Manual Y461520-Y461533.indd 14Winntec-Manual Y461520-Y461533.indd 14 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
HD-Series
VBLOCKS OPERATION
WORK BENCH OPERATION
Winntec-Manual Y461520-Y461533.indd 15Winntec-Manual Y461520-Y461533.indd 15 22-09-21 09:1922-09-21 09:19

Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
CAUTION
Do not use damaged/deformed product. lf abnormal noise or vibration occurs, stop using immediately, then inspect and ask
manufacturer for help. lt is recommended that this inspection be made by a manufacturer’s authorized repair facility.
Keep the press clean and well lubricated to prevent foreign matter from entering the system. lf the press has been exposed to
rain, snow, sand, or grit, it must be cleaned before it is used.
Store the press, with pistons completely retracted, in a well-protected area where it will not be exposed to corrosive vapors,
abrasive dust, or any other harmful elements.
Periodically check the condition of the press.
Store the product in dry and non-corrosion environment.
Owners and /or operators should be aware that repair of this equipment may require specialized knowledge and facilities. lt is
recommended that an annual inspection of the product be made by a manufacturer’s or supplier’s authorized repair facility and
that any detective parts, decals, or safety labels or signs be replaced with manufacturer’s or supplier’s specified parts. A list of
authorized repair facilities is available from the manufacturer or supplier, please call them for help.
Any product that appears to be damaged in any way, is found to be worn, or operates abnormally SHALL BE REMOVED FROM
SERVICE UNTIL REPAIRED. lt is recommended that necessary repairs be made by a manufacturer’s or supplier’s authorized
repair facility if repairs are permitted by the manufacturer or supplier.
Only attachments and/or adapters supplied by the manufacturer shall be use.
MAINTENANCE
Lubricate the axes and moving parts at regular intervals. The elements of the press should be kept clean and protected from
aggressive conditions at all times. Always use original spare parts.
HD-Series
Maintenance lnstruction
Winntec-Manual Y461520-Y461533.indd 16Winntec-Manual Y461520-Y461533.indd 16 22-09-21 09:1922-09-21 09:19

HD-Series
Manual Workshop presses
Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
F: DÉCLARATION DE CONFORMITÉ
Nous: Winntec
Addresse: Rechtzaad 6
4703 RC Roosendaal The Netherlands déclarons
sous notre seuoe responsabilité que les produits auxquels se
réfère cette déclaration sont conformes aux dispositions des
Directives: ENISO16092-1:2018, ENISO16092-3:2018
NL: VERKLARING VAN OVEREENKOMST
Wij: Winntec
Adres: Rechtzaad 6
4703 RC Roosendaal The Netherlands verklaren
geheel onder eigen verantwoordelijkheid dat de volgende
produkten, waarop deze verklaring betrekking heeft, in
overeenstemming zijn met de bepalingen van Richtlijn:
ENISO16092-1:2018, ENISO16092-3:2018
I: DICHIARAZIONE DI CONFORMITÀ
Noi: Winntec
Indirizzo: Rechtzaad 6
4703 RC Roosendaal The Netherlands dichiariamo
sotto la nostra esclusiva responsabilità che i prodotti ai quali
questa dichiarazione si riferisce sono conformi a quanto
previsto dalle direttive: ENISO16092-1:2018, ENISO16092-3:2018
E: DECLARACIÒN DE CONFORMIDAD
Nosotros: Winntec
Direcciòn: Rechtzaad 6
4703 RC Roosendaal The Netherlands declaramos
bajo nuestra exclusiva responsabilidad la conformidad de los
productos a los que refiere esta declaraciòn, con las disposiciones
de Directiva: ENISO16092-1:2018, ENISO16092-3:2018
P: DECLARAÇÁO DE CONFORMIDADE
Nós: Winntec
Endereço: Rechtzaad 6
4703 RC Roosendaal The Netherlands declaramos,
sob nossa única responsabilidade, que os seguintes produtos,
incluídos nesta declaração estão em conformidade com o
disposto na Directiva: ENISO16092-1:2018, ENISO16092-3:2018
SE: FÖRSÄKRAN OM ÖVERESSTÄMMELSE
Vi: Winntec
Adress: Rechtzaad 6
4703 RC Roosendaal The Netherlands försäkrar
under eget ansvar att följande produkter som omfattas av denna
försäkran är I överensstämmelse med villkoren i direktiv:
ENISO16092-1:2018, ENISO16092-3:2018
N: ERKLÆRING OM OVERENSSTEMMELSE
Vi: Winntec
Adresse: Rechtzaad 6
4703 RC Roosendaal The Netherlands
erklærer på eget ansvar, at følgende produkter som dekkes av
denne erklæringen, er i overensstemmelse med bestemmelsene
i Direktiv: ENISO16092-1:2018, ENISO16092-3:2018
DK: ÖVERENSSTEMMELSESERKLÆRING
Vi: Winntec
Adresse: Rechtzaad 6
4703 RC Roosendaal The Netherlands
erklærer på eget ansvar et følgende produkter som er omfattet
af denne erklæring, er i overensstemmelse med bestemmelserne
i Direktiv: ENISO16092-1:2018, ENISO16092-3:2018
Fin: ÖVERENSSTEMMELSESERKLÆRING
Me: Winntec
Osoite: Rechtzaad 6
4703 RC Roosendaal The Netherlands
vakuutamme yksinomaan omalia vastuullamme, että seuraavat
tuotteet, joihin tämä vakuutus liittyy, ovat seuraavien direktiivien
vaatimusten mukaisia: ENISO16092-1:2018, ENISO16092-3:2018
GB: DECLARATION OF CONFORMITY
We: Winntec
Address: Rechtzaad 6
4703 RC Roosendaal The Netherlands
declare under our sole responsibility that the following products
to which this declaration relates conform with the provisions of
Directives: ENISO16092-1:2018, ENISO16092-3:2018
D: KONFORMITÄTSERKLÄRUNG
Wir: Winntec
Anschrift: Rechtzaad 6
4703 RC Roosendaal The Netherlands
erklären auf eigene Verantwortung, daß folgende Produkte,
auf die sich diese Erklärung bezieht, mit den Bedingungen der
Direktiven: ENISO16092-1:2018, ENISO16092-3:2018
Typ,tyyppi,type,type,type,Typ,type,tipo,type,tipo,tipo:
Y461520, Y461533
Ralph Dubbeldam
Managing Director
Winntec, 2016-06-15
Roosendaal The Netherlands
Winntec-Manual Y461520-Y461533.indd 17Winntec-Manual Y461520-Y461533.indd 17 22-09-21 09:1922-09-21 09:19

HD-Series
Manual Workshop presses
Winntec Europe Rechtzaad 6, 4703 RC Roosendaal, The Netherlands, [phone], [email protected] www.winntec.net
UK: DECLARATION OF CONFORMITY
We: Winntec
Address: Rechtzaad 6
4703 RC Roosendaal The Netherlands
declare under our sole responsibility that the following products to which this declaration relates conform with the provisions of
regulation(s): Supply of Machinery (Safety) Regulations 2008 and the harmonised standard(s): BS EN 1494:2000+A1:2008
Type: Y461520, Y461533
Ralph Dubbeldam
Managing Director
Winntec, 2021-07-15
Roosendaal The Netherlands
Winntec-Manual Y461520-Y461533.indd 18Winntec-Manual Y461520-Y461533.indd 18 22-09-21 09:1922-09-21 09:19
