Wintersun WTS CORE Series User manual
WTS CORE Series
Product Operating Manual
V 1.5
2
Legal Provisions
All the information in this document is the
property of
GBA Green Energy Industrial
GmbH.
No part of this document could be
reproduced in any way for business use.
Internal use is allowed.
GBA Green Energy Industrial GmbH
makes
no representations or warranties express or
implied, with respect to this document or any
of the equipment and/or software it may
describe, including (with no limitation) any
implied warranties of utility, merchantability,
or tness for any particular purpose. All
such representations or warranties are
expressly disclaimed.
Neither
GBA Green
Energy Industrial GmbH
nor its distributors
or dealers shall be liable for any indirect,
incidental, or consequential damages under
any circumstances.
The exclusion of implied warranties may not
apply in all cases under some statutes, and
thus the above exclusion may not apply.
This document does not replace and is
not intended to replace any local, state,
provincial, federal, or national laws,
regulations, or codes applicable to the
installation, electrical safety, and use of the
battery system.
GBA Green Energy
Industrial GmbH
assumes no
responsibility
for the compliance or noncompliance with
such laws or codes in connection with the
installation of the battery system.
Specications are subject to change without
notice. Every effort has been made to
make this document complete, accurate,
and up-to-date. However,
GBA Green
Energy Industrial GmbH
may need to
make
some
improvements under certain
circumstances
without advance notice.
GBA Green Energy Industrial GmbH
shall
not
be responsible
for any loss caused by
this
document,including, but not limited to,
omissions errors,typographical errors,
arithmetical errors, or
listing errors in this
document.
All trademarks are recognized.
Limited Warranty
You can download the latest Limited
Warranty from the Internet at:
https://wintersun.de/downloads/
GBA Green Energy Industrial GmbH
Wehrmathen 4, 12529 Schönefeld Germany.
Contents
Legal Provisions
1. Information on this Document
1.1. Validity
1.2. Target Group
1.3. Content and Structure of this Document
1.4. Declaration of Conformity
1.5. Levels of Warning Messages
1.6. Symbols in the Document
1.7. Designation in the Document
2. Safety
2.1. Intended Use
2.2. IMPORTANT SAFETY INSTRUCTIONS
2.2.1. Battery Stack Leakage
2.2.2. Fireghting Measures
2.2.3. Battery Stacks Handling and Storage Guide
2.2.4. Warning of Electric Shock
2.2.5. Warning of Overvoltage
2.2.6. Caution of Weight
2.2.7. Notice of Property Damage
3. Scope of Delivery

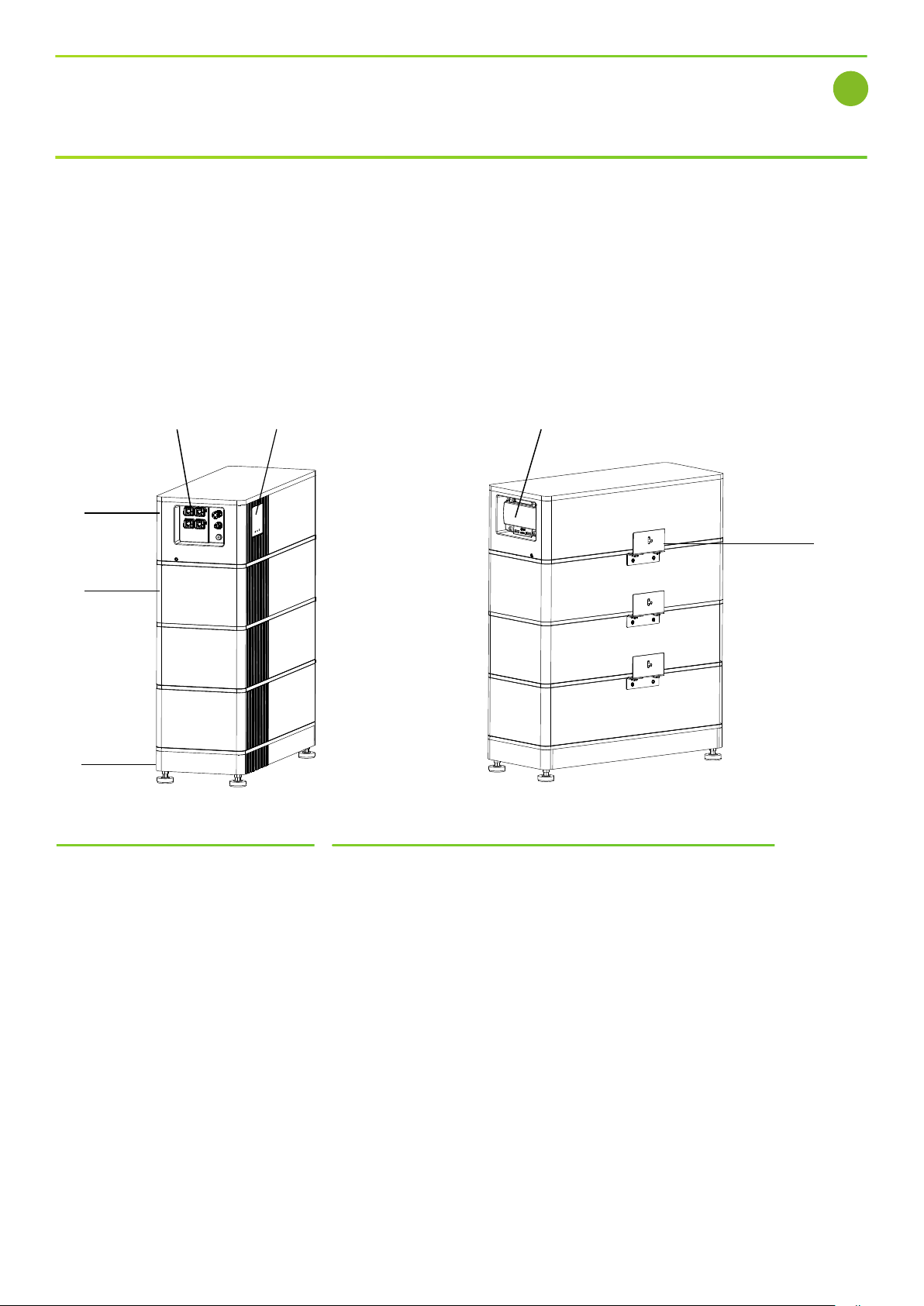

4. Battery System Overview
4.1. Battery System Description
4.2. LCD Display Description
4.2.1. Settings
4.2.2. LED Indicator
4.2.3. Status
4.2.4. Comm Cable Status
4.3. Symbols on the System
4
Contents
5. Installation
5.1. Requirements for Installation
5.1.1. Requirements for Installation Location
5.1.2. Tools
5.1.3. Safety Gear
5.1.4. Additionally Required Installation Materials
5.2. Installation
6. Electrical Connection
6.1. Overview of the Connection Area
6.2. Connection Diagram
6.2.1. Single Tower
6.2.2. Multiple Towers
6.3. Connecting the Grounding Conductor
6.4. Data Cable Connection
6.4.1. Fit RJ 45 Connector into the Coupler
6.4.2. Connect the Data Cable to an Inverter
6.4.3. Connect to the Router
6.4.4. Parallel Connection between Towers
6.5. DC Connection
7. Commissioning
8. Operation
8.1. Switch on the Battery System
8.2. Switch off the Battery System
9. Decommissioning
10.
Extension
1 1.
Troubleshooting
12.
Maintenance and Storage
13.
Disposal of the Battery System
14.
Technical Data
15.
Contact Information
7.1. Switch on Inverter AC supply and Do configuration
7.2. Switch on the Battery System
7.3. Configure the settings on the LCD Display
7.4. Close up
Appendix 1 Connection Options with Inverters
Appendix 2 Datasheet of the Combiner Boxes
5
6
1. Information on this Document
6
1.1. Validity
This document is valid for the WTS Power-CORE 5.36, 8.04,
10.72,
13.4, and WTS Energy-CORE 9.6, 12.8, 16, 19.2, 22.4, 25.6.
1.2. Target Group
The instructions in this document may only be
performed by qualied persons who must have the
following skills:
• Knowledge of how batteries work and are operated
• Knowledge of how an inverter works and is operated
• Knowledge of, and adherence to the locally applicable
connection requirements, standards, and directives
• Knowledge of, and adherence to this document and
the associated system documentation, including all
safety instructions
• Training in dealing with the hazards associated with the
installation and operation of electrical equipment and
batteries
• Training in the installation and commissioning of
electrical equipment
Failure to do so will make any manufacturer’s warranty,
guarantee or liability null, and void unless you can prove
that the damage was not due to non-compliance.
1.3. Content and Structure of this Document
This document contains safety information and
instructions, scope of delivery, system overview,
installation,
electrical connection, commissioning,
decommissioning,
expansion, troubleshooting,
maintenance and storage,
disposal, and technical data.
Please nish reading this document before taking any
action on the battery system.
1.4. Declaration of Conformity
The battery system described in this document complies
with the applicable European directives. The certicate
is available in the download area at:
https://wintersun.de/downloads/
7
1. Information on this Document
1.5. Levels of Warning Messages
The following levels of warning messages may occur
when handling the battery system.
1.6. Symbols in the Document
1.7. Designation in the Document
Sections describing activities to be performed
by qualied persons only.
DANGER
QUALIFIED PERSON
WARNING
CAUTION
NOTICE
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, could result in minor or moderate injury.
Indicates a situation which, if not avoided, could result in property damage.
Battery System
WTS CORE Series Product
BMS
Battery Management System
SOC
State of Charge
WTS
Wintersun
Designation
in
this
document
Complete designation
GBA GBA Green Energy Industrial GmbH
7
8
2. Safety
2.1. Intended Use
The battery system is for residential and works with a
photovoltaic system. It is a high voltage Li-ion battery
storage system, with the control unit on itself. It could
be operated in on-grid, off-grid and backup modes with
compatible inverters.
The battery system could be connected to the Internet
through network cable for maintenance and rmware
updating.
The battery system must only be used as stationary
equipment.
The battery system is suitable for indoor and outdoor use
under the conditions mentioned in Section 5.1.
The battery system is not suitable for supplying life-
sustaining medical devices. Please ensure that no
personal injury would occur due to the power outage of
the battery system.
Alterations to the battery system, e.g., changes or
modications are not allowed unless the written
permission of GBAis achieved. Unauthorized alterations
will void the guarantee and warranty claims. GBAshall
not be held liable for any damage caused by such
changes.
The type label should always be attached to the battery
system.
The battery system must only be operated in connection
with a compatible inverter. The list (WTS
CORE Series
Battery Compatible Inverter List) of these
inverters
could
be found at
https://wintersun.de/downloads/
7
8
9
2. Safety
Inhalation:
Eye contact:
Skin contact:
Ingestion:
Rinse eyes with owing water for
15 minutes and seek medical help
immediately.
Wash the affected area thoroughly with
soap and water and seek medical help
immediately.
Induce vomiting and seek medical help
immediately.
2.2. IMPORTANT SAFETY INSTRUCTIONS
The battery system has been designed and tested in
accordance with international safety requirements.
However, in order to prevent personal injury and
property damage and ensure long-term operation of
the battery system, please do read this section
carefully and observe all safety information at all times.
2.2.1. Battery Stack Leakage
If the battery stacks leak electrolytes, contact with the
leaking liquid or gas should be avoided. The electrolyte
is corrosive, and the contact may cause skin irritation
and chemical burns. If one is exposed to the leaked
substance, do these actions:
Evacuate the contaminated area, and
seek medical help immediately.
7
9
10
2. Safety
2.2.2. Fireghting Measures
The battery stacks may catch re when it is put into
the
re. In case of a re, please make sure that an ABC or
carbon dioxide extinguisher is nearby. Water cannot be
used to extinguish the re.
Full protective clothing and self-contained breathing
apparatus are required for the reghters to extinguish
the re.
2.2.3. Battery Stacks Handling and Storage Guide
•
The battery stacks and its components should be
protected from damage when transporting and
handling.
•
Do not impact, pull, drag, or step on the battery
stacks.
•
Do not insert unrelated objects into any part of the
battery stacks.
• Do not throw the battery stack into a re.
• Do not soak the battery stacks in water or seawater.
• Do not expose to strong oxidizers.
• Do not short-circuit the battery stacks.
•
The battery stacks cannot be stored at high
temperatures (more than 55°C).
•
The battery stacks cannot be stored directly under
the sun.
•
The battery stacks cannot be stored in a high
humidity environment.
•
Do not use the battery stacks if it is defective, or
appears cracked, broken or otherwise damaged, or
fails to operate.
•
Do not attempt to open, disassemble, repair, tamper
with, or modify the battery stacks. The battery
stacks
are not user-serviceable.
•
Do not use cleaning solvents to clean the battery
stacks.
7
10
11
2. Safety
2.2.4. Warning of Electric Shock
DANGER
DANGER
2.2.5. Warning of Overvoltage
Danger to life due to electric shock in case of overvoltage and if surge protection is missing
Overvoltage (e.g. in the event of a ash of lightning) can be
further conducted into building and to
other connected devices in the same network via the network cables or other data cables if there
is no surge protection. Touching live parts and cables
results in death or lethal injuries due to
electric shock.
•
When laying the network cables or other data cables outdoors, it must be ensured that a
suitable surge protection device is provided at the transition point of the cable from the battery
system or the inverter outdoors to the inside of a building.
Danger to life due to electric shock when live components or DC cables are touched
The DC cables connected to an inverter may be live. Touching live DC cables results in death or
serious injury due to electric shock.
•Disconnect the battery system and inverter from voltage sources and make sure it cannot be
reconnected before working on the device.
•Do not touch non-insulated parts or cables.
•Do not remove the terminal block with the connected DC conductors from the slot under load.
•Wear suitable personal protective equipment for all work on the battery system.
•Observe all safety information of the inverter manufacturer.
7
11
12
2. Safety
2.2.6. Caution of Weight
2.2.7. Notice of Property Damage
CAUTION
NOTICE
Risk of injury due to the weight of the battery stack
Injuries may result if the battery stack being lifted incorrectly
or dropped while being transported
or installed.
•
Transport and lift the battery stack carefully. Take the weight of the battery stack into account.
•
Wear suitable personal protective equipment for all work on the battery system.
Damage to the BMS due to sand, dust and moisture ingress
Sand, dust and moisture penetration can damage the BMS and impair its functionality
•
Only open the BMS if the humidity is within the thresholds and the environment is free of sand
and dust.
7
12
13
BMS and Base Package
3. Scope of Delivery
Battery Stack Package
1- BMS
1- Drilling template
1- Base
2- Power cable connector
unlock protection sleeve
1- Documents
1- Hanger 2- Screw (M6X16)1
- Battery stack
1
- Female power cable coupler
4
- Network cable coupler
1
- Male power cable coupler 2
- Screw M4×16
7
13
14
4. Battery System Overview
A
B
C
D
E
F
G
A
G
D E F
B
C
BMS
Battery Stack
Base
Connection Area
LCD Display
Air Switch
Hanger
4.1. Battery System Description
The WTS CORE Series battery product is used as a
connected battery for the intermediate storage of
excess PV energy in an inverter system.
BMS, short for Battery Management System, is the control unit of the product.
There are two types of battery stacks, WTS Power-CORE and WTS Energy-CORE. The
former one
has
a
higher rated power while the later one has a higher rated usable
energy.
Two to ve
WTS Power-CORE battery stacks or three to eight
WTS Energy-CORE battery
stacks
could
be installed in one tower, and maximum of six towers could be
connected in parallel.
These two battery stacks cannot be mixed up in operation.
7
14
15
4. Battery System Overview
4.2. LCD Display Description
In the display of the product, you can read the status of
the product, and adjust settings.
Status
LED indicator
Up button
Enter button
Down button
Comm cable status
Settings
7
15
16
4. Battery System Overview
After
downloading CORE Link APP (mobile
device)
or CORE Link+ (laptop), and
connecting
your
devices to the product
Wi-Fi, you can update the product
firmware
and read more detailed product information.
CORE Link + is available at our website.
The default status is
"ON".
Black-Start
Black-Start is used to start up an inverter
when there is a power outage.
Keep pressing the
Down button, and it will be
shown.
The default status is
"OFF".
Method of setting the parameters:
1.
Press the Enter button to show the Setting
menu.
2.
Press the Enter button again to change the
status between
the
Up button and
the Down
button.
3.
Press
the
Up button and
the
Down button
to choose different parameters.
7
16
4.2.1. Settings
There are five parameters that could be set.
Terminal Res
Terminal Res means the terminal status
for the communication circuit with an
inverter.
The default status is "ON".
No need to adjust for slave towers.
Parallel Res
Parallel Res means the terminal resistors in
the communication circuit of BMSes which
are connected in parallel.
The default status is
"ON".
End System
End System means there is no tower coming
after. The status
“ON”
means this tower is the
last slave tower of the whole system.
The default status is “OFF”.
If the status is not set correctly, the product
may not operate properly.
WIFI
The product is equipped with Wi-Fi as
standard. The Wi-Fi
will turn on as default
after the battery switches on, but it will turn
off automatically in 5 hours. You can activate
the Wi-Fi again here.
The password of the Wi-Fi could be read at
the contents page of this document, and
also the
sticker on the BMS near the air
switch.
17
4. Battery System Overview
4.2.2. LED Indicator
The denition of the LED status could be read in the table
below.
1
2
3
4
7
17
Initializing
Idle
Working
Error
Flashing green quickly (0.5 s interval)
Flashing green slowly (1.0 s interval)
Steady green
Steady yellow
18
4. Battery System Overview
4.2.3. Status The status and errors could be read here. You can read the meaning of the status
in the table below.
1001/2001
BTVH
The total Voltage is too high.
1002/2002
BTVL
The total Voltage is too low.
1003/2003
CVH
1004/2004
CVL
1005/2005
CTH_C
1006/2006
CTL_C
1007/2007
CTH_D
1008/2008
CTL_D
1009/2009
OC_C
1010/2010
OC_D
1011/2011
CUB
1014/2014
ENV_OT
1016/2016
SecAla
1101/2101
MemF
1102/2102
VSF
1103/2103
TSF
1104/2104
BICcomF
1105/2105
BVSF
1106/2106
CSF
1107/2107
R1F
1109/2109
PreCCF
1113/2113
SOHL
1201/2201
MSOFF
1208/2208
SCAla
1301/2301
Pamlnc
1302/2302
MTw
1303/2303
MNlnc
1304/2304
CANCOMF
1306/2306
invComTO
1307/2307
IDDstF
1308/2308
BIC_com_F_S
1309/2309
PreCF
1310/2310
UPdF_int
The update of built-in systems (BMS/Parameter) failed.
7
18
The
voltage
of
cell
is
too
high.
The
voltage
of
cell
is
too
low.
The
temperature
of
cell
while
charging
is
too
high.
The
temperature
of
cell
while
charging
is
too
low.
The
temperature
of
cell
while
discharging
is
too
high.
The
temperature
of
cell
while
discharging
is
too
low.
Overcurrent
occurs
in
charging.
Overcurrent
occurs
in
discharging.
The
cell
is
in
a
serious
unbalanced
condition.
The
temperature
of
environment
is
too
high.
Security
alarm.
Memory
fault.
Voltage
sensor
failed.
Temperature
sensor
failed.
Multiple
BIC
failed.
Battery
Voltage
sensor
failed.
Current
sensor
failed.
Relay
1
(Anode)
failed.
Pre-charge
circuit
failed.
Cycle
life
fault
(Low
SOH
or
the
failure
of
battery
cell).
Air
switch
off
Short-circuit
alarm.
The
parameter
is
incorrect.
The
stack
type
is
abnormal.
The
number
of
parallel
stacks
is
inconsistent.
Interior
CAN
communication
fault.
Inverter
communication
timeout.
BMS
ID
distribution
failed.
Single
BIC
failed
Pre-charge
failed.
19
4. Battery System Overview
Explanation
Observe the documents
Observe all documents supplied with the system.
Grounding conductor
This symbol indicates the position for connecting a grounding conductor.
CE marking
The system complies with the requirements of the applicable EU directives.
This side up.
Symbol
4.3. Symbols on the System
4.2.4. Comm Cable Status
The line will be yellow when the communication with an
inverter is initiating. It will change into green when the
communication is established. When color turns into
orange, and also shows “Comm fails”, it means the
communication is disrupted.
Handle with care
Disposal
Do not dispose of the system together with household waste, please contact
GBA service (contact information at the end of this document) to dispose
of
it in accordance with regulations for electronic waste and used batteries.
7
19
20
4. Battery System Overview
Explanation
Keep dry.
Beware of electrical voltage.
Beware of a danger zone
This symbol indicates that the system must be additionally grounded if
additional grounding or equipotential bonding is required at the installation site.
RCM (Regulatory Compliance Mark), a brief guide to electrical equipment
approvals in Australia
The product has been tested and certied by TUV Rheinland.
Symbol
Keep the battery stacks away from open ame or ignition sources.
Keep the battery stacks away from children.
Do not short-circuit.
7
20
Other manuals for WTS CORE Series
1
Table of contents
Other Wintersun Batteries Pack manuals
