WMF combiNation F2 8700 Series User manual

73
WMF COFFEE MACHINES
Operating instructions
WMF combiNation F/ F2
Series
8700
Edition 6 - Printed in 03.08
Item-No.
33 0914 3000

74
Congratulations on your purchase of a
WMF COFFEE MACHINE.
Its advanced technology, long service life,
economy and above all, the quality of the
coffee will delight you.
Are you one of those people who don’t like
reading operating instructions? Please do so
anyway!
You will get more pleasure from your WMF
COFFEE MACHINE afterwards and will find
it was worth it after all.
In your own interest, please follow all
safety and cautionary instructions. This
will help to avoid accidents and technical
malfunctions.
Never entrust the machine to anyone who
is not familiar with the operating
instructions.
Keep these operating instructions near the
machine. This will allow your operating
personnel easy access to information at any
time and will enable them to take the
appropriate action should any technical
malfunctions occur.

75
Contents
1Designation of machine parts........................................................................................................... 78
2General description........................................................................................................................... 79
3Warnings............................................................................................................................................ 80
4Safety instructions............................................................................................................................. 81
5Technical data ................................................................................................................................... 83
6Conditions of use and installation.................................................................................................... 84
7Operation........................................................................................................................................... 85
7.1 Starting the machine.................................................................................................................... 85
7.1.1 Switching on manually...................................................................................................... 85
7.1.2 Switching on via the timer................................................................................................ 86
7.1.3 Switching on via display (adjustments to be made by the service team).......................... 86
7.2 Filling the ground coffee hopper................................................................................................. 86
7.3 Beverage key selection and labelling.......................................................................................... 86
7.4 Adjusting the height of the front panel (optional)....................................................................... 87
7.5 Selection of quantity of coffee for storage.................................................................................. 89
7.5.1 Automatic quantity control ............................................................................................... 90
7.5.2 Manual quantity control.................................................................................................... 92
7.5.3 Quantity control using the timer ....................................................................................... 93
7.6 Coffee dispensing (cup/mug/pot/jug).......................................................................................... 93
7.7 Coffee and hot water dispensing ................................................................................................. 94
7.8 Switching off the machine........................................................................................................... 95
7.8.1 Switching off manually..................................................................................................... 95
7.8.2 Switching off via the timer................................................................................................ 95
7.8.3 Switching off via display (adjustments to be made by the service team)......................... 95
8User guide .......................................................................................................................................... 95
8.1 General symbols.......................................................................................................................... 96
8.2 Info .............................................................................................................................................. 97
8.3 Settings........................................................................................................................................ 98
8.3.1 Setting quantities............................................................................................................... 98
8.3.2 Beverage selection ............................................................................................................ 99
8.3.3 Quantity of ground coffee............................................................................................... 100
8.3.4 Boiler temperature........................................................................................................... 100
8.3.5 Mode (self-service) ......................................................................................................... 101
8.3.6 Setting the date and time................................................................................................. 101
8.4 Access authorisations (PIN code).............................................................................................. 103
8.4.1 System of access authorisations...................................................................................... 103
8.4.2 Changing access authorisations (PIN numbers).............................................................. 104
8.5 Unit number accounting............................................................................................................ 106
8.6 Manual dispensing..................................................................................................................... 106
8.7 Waiter accounting system.......................................................................................................... 108
8.8 Vending units............................................................................................................................. 109
8.8.1 Coin checker / token checker.......................................................................................... 109
8.8.2 (Chip) card reader ........................................................................................................... 112
8.8.3 Coin changer ................................................................................................................... 113
9Specific Supplement: WMF combiNation F2............................................................................... 117

76
9.1 General description of the functions..........................................................................................117
9.2 Technical data ............................................................................................................................118
9.3 Selection of storage quantity......................................................................................................119
10 Timer functions................................................................................................................................120
10.1Timer settings.............................................................................................................................121
10.1.1Setting the operating times ..............................................................................................121
10.1.2Setting coffee quantities to be prepared...........................................................................124
10.1.3Setting the machine cleaning times .................................................................................126
10.1.4Setting switch-over to self-service mode.........................................................................127
10.2Timer check................................................................................................................................129
10.3Making changes to the timer......................................................................................................131
10.3.1Copying the timer ............................................................................................................131
10.3.2Clearing the timer ............................................................................................................132
10.4Timer information......................................................................................................................133
11 Care of the machine.........................................................................................................................134
11.1Cleaning the machine.................................................................................................................135
11.1.1Fully automatic cleaning (using automatic granulate cleaning).....................................135
11.1.2Semi-automatic cleaning (via the manual input)............................................................138
11.2Cleaning using the timer ............................................................................................................139
12 Error messages / remedial action...................................................................................................140
13 WMF customer service....................................................................................................................142
14 Liability.............................................................................................................................................142

77
1
2
3
4
5
7
6 11
8
9
10
12
13
14

78
1Designation of machine parts
1 Ground coffee hopper
2 Coffee storage urn
3 Granulate cleaning reservoir
4 Touch screen display
5 Control panel
6 Coffee spout
7 Drip tray
8 Input (cover)
9 On/off key switch
10 Hot water key
11 Hot water spout
12 Height-adjustable front panel (optional)
13 Beverage keys
14 Waiter’s lock (optional)

79
2General description
The WMF combiNation Fis a coffee machine for automatic
preparation of filter coffee and hot water.
Cups, mugs, pots and jugs can be dispensed.
The brewer unit enables 1 and 2 litres of coffee to be prepared.
Each fresh brew is transferred to a storage urn, where it is kept
hot ready for dispensing.
The (optional) height-adjustable front panel enables jugs up to a
height of 280 mm to be filled without any difficulty.
The machine user guide is a graphic touch screen display. By
pressing on particular soft keys in the display, you can activate
certain machine functions or call up information.

80
3Warnings
Maximum machine safety is an integral WMF product characteristic to which we pay particular
attention.
In spite of all our safety precautions, every machine is potentially hazardous if not operated properly.
This is why – for your own safety – we have summarised the warnings below and highlighted them in
grey throughout the instruction manual.
This is why it is important to follow the “Safety instructions” given on page 81.
Important instructions which
must be observed for your
own safety
Connection and commissioning of the coffee machine may
only be undertaken by the WMF customer service team.
Maintenance and repair work on the machine may only be
undertaken by the WMF customer service team using
original spare parts.
Installed safety devices must not be altered for any reason.
No parts of the outside of the machine should be removed.
Caution! Risk of being burned and scalded
At the spout where hot water 11 and coffee 6comes out
there is a risk of being burned and scalded. Always ensure
that there is container placed under the drinks spout! Ensure
that the container is stable and do not leave it unattended.
After switching on it is possible that hot water comes out of
the hot water- 11 and coffee spout 6during the warm
brewing phase. Never reach under the spouts while cleaning
is in progress.
Caution! Health hazard!
Follow the precautions on the packaging when using the
cleaning product. The cleaning granulate is an irritant.
Cleaning fluid flows out of the coffee spout 6while cleaning is

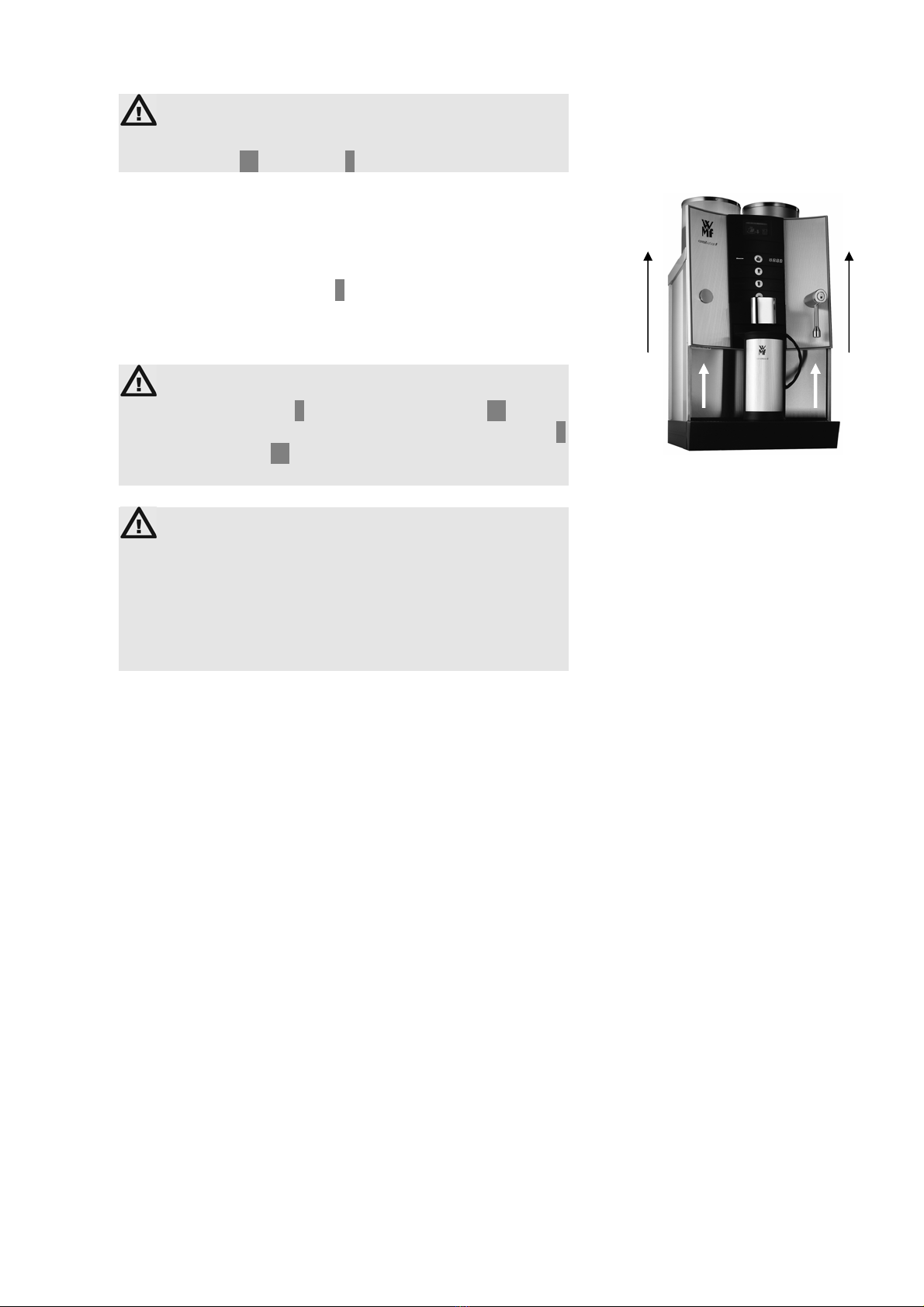

in progress. The protective panel provided should be fitted (see
picture on page 136). Do not leave jugs or cups underneath the
coffee spout 6while cleaning is taking place. Wait until
prompted by the display before placing cleaner granulate in the
brewer.
Caution! Danger of crushing!
Never put your hand into the ground coffee hopper 1or the
granulate cleaner reservoir 3when the machine is in use and
the power is switched on!
Caution! Electric shock hazard!
Moisture can cause short circuits. It is therefore essential not
to allow fluids to enter the inside of the machine housing .
Under no circumstances should the machine be opened up.
Never put your hand inside the machine interior or reach
inside with a tool.

81
4Safety instructions
1Always ensure that the main water tap in the supply line is closed when the machine is
switched off and that the main power switch outside the machine is off or the mains plug is
disconnected from the socket as there is a risk of water escaping from the machine.
2 The installed component approved safety equipment prevents an impermissibly high pressure
or temperature increase in the hot water boiler. If the safety valve is actuated one-time then
the machine must be switched off at the local main switch and the main stop cock on the
drinking water supply line closed. Switch off the machine if any faults arise on the hot water
boiler. Inform the WMF customer service team and do not switch on the machine again
before the fault has been removed.
3 Do not use the machine in the open air. The water system must be emptied if there is frost.
4 The device must not be sprayed with a water hose. Use of steam cleaning, steam jet devices
and similar equipment for cleaning purposes is not permitted. Clean the surface of the coffee
machine using a soft cloth or by using products from our WMF care range.
5 The device must be set on a flat, level and secure surface.
6 Do not let children near the machine!
7 Do not use the machine if it does not work properly or if has been damaged
Shutting down the machine – company holidays
1 If the machine is to be shut down for an extended period, a general cleaning should be carried
out first and the grouts collector should be emptied. Drain the machine first to prevent frost
damage if there is any risk of freezing. A WMF Customer Service Technician must be called
promptly in such cases.
2 After several weeks of shutdown for holidays, we recommend that the full automatic cleaning
program be run at least twice before the machine is started up again.
Regulations
Refer to rating plate for boiler data.
The hot water boiler complies with the Pressure Equipment Directive 97/23/EC, Category 1,
Module A.
The hot water boiler is subject to neither notification nor licensing. Each hot water boiler is
subjected to hydrostatic tests before delivery to the customer.
The operator of such plants must ensure that the safety devices are carely serviced and inspected.

82
The machine complies with all the relevant regulations.
The operator must ensure that the electrical equipment and systems are in safe working order,
(e.g. BGV A3).
This device is subject of the directive on waste electrical and electronic equipment
(WEEE/EU directive) and may not be disposed of as domestic waste. Please contact
your WMF Customer Service for information on proper disposal of the device.
Preventative measures against suffering damage to the machine
•There are always operating dangers associated with every technical device, particularly from
large fully automatic machines which are operating unobserved.
•We therefore recommend that the operator take reasonable measures to prevent damage
occurring to the machine, for example by installing a suitable water hydrant in the drinking
water supply on-site.
•If the water used in the machine has a carbonate hardness above 9°, a WMF water filter must
be fitted in the supply line. Otherwise limescale can cause damage to the machine.
•Maintenance intervals depend on how heavily the machine is used and on local water
conditions, and should be fixed by agreement with your WMF Customer Service Technician.
Even in the case of light use, maintenance should be carried out at least once a year and the
water filter, if fitted, should be replaced.

83
5Technical data
Rated power * 9.3 kW 13.8 kW
Hourly output **
Filter coffee 430 cups 500 cups
Storage urn 4.0 litres each
Hot water output, total 72 l/h 108 l/h
Ground coffee hopper
Granulate cleaning portioner 2.2 kg
1.0 kg
Electricity supply * 3/N/PE 50 Hz/400 V
External dimensions:
Width, single-product machine
Width, two-product machine
Height with ground coffee hopper
Depth
450 mm
700 mm
810 mm
590 mm
Empty weight:
Single-product machine
Two-product machine Approx. 68 kg Approx. 98 kg
Continuous sound pressure level
(Lpa)*** < 70 dB (A)
Heat emission
Stand-by
Full load *
200 W
9150 W
200 W
13650 W
Technical data subject to change without notice.
* Values quoted apply to basic version. For special versions, see rating plate.
** The hourly outputs indicated are GUIDELINES and depend, among other things, on the quantity of ground
coffee, coffee product, brewing temperature, brewing aperture size, brewing pressure, water hardness and
general condition of the machine (e.g. limescale, connections, power, water, sequence, wear, etc.)
*** The A-weighted mean sound pressure level Lpa (slow) and Lpa (impulse) at the operator’s workplace is
below 70 dB(A) in every operating mode.

84
6Conditions of use and installation
The machine operator must arrange for the site preparatory work. This should be carried out by
approved contractors in accordance with general and local regulations. WMF customer service
technicians are only permitted to connect the machine to the prepared connections. They are not
authorised to carry out plumbing or wiring work on site and will not be responsible for such
work.
Rated power 9.3 kW 13.8 kW
Connecting cable, site supply * 5 × 2.52 5 × 4²
Fuse, site supply 3 × 16 A 3 × 25 A
Mains voltage tolerance 230 V/400 V + 6 % - 10 %
Power cut < 50 ms does not affect machine operation
Water feed line TW15 (DN 15 /1/2") with dirt filter installed by customer,
min. 0,2 MPa flow pressure at 8 l/min, max. 0,6 MPa
Water quality If the local water has a carbonate hardness over 9°, a
WMF water filter must be fitted in the supply line.
Water drain line Min. DN 40 (1 ½"), minimum gradient 2 cm/m
Ambient temperature + 5°C to + 35°C (drain water system in case of frost)
Max. humidity
Protection
80 % rel. humidity without dewing; do not spray
machine with water; do not use machine out of doors.
IP 30
Installation clearance
For operating, service and safety reasons the machine should
be installed with clearance of not less than 50 mm from the
back and sides from the building or non-WMF components.
A clear height of 1100 mm from the top of the supporting
surface should be ensured. The height of the supporting
surface from the floor surface should be not less than
700 mm and not more than 900 mm.
If the machine connections are to be routed down through
the counter, remember also to allow space for the
connections. These may restrict the available space below
the machine.
Water filter installation
dimensions
W × H × D
Standard: 250 × 500 × 400 mm
Jumbo: 290 × 670 × 420 mm
*The site electrical system must comply with IEC 364. For greater safety, an earth leakage circuit breaker with a
rated fault current of 30 mA to EN 61008 should be fitted in the supply line to the machine. In the vicinity of the
machine, for a single-phase connection a shockproof socket and for a three-phase connection a 5-pole
CEE/CEKON socket to EN 60309 should be fitted. If the power lead to this machine is damaged, it must be
replaced by WMF customer service or a similarly qualified specialist. If the machine is permanently connected
on site, an all-pole circuit breaker (main switch) to EN 60947 with not less than 3 mm contact opening should
preferably be fitted ahead of the machine. In the case of a flexible connection, the circuit breaker is
recommended. The power lead must not be allowed to come into contact with hot components. The main switch
and socket are part of the customer’s system. The machine must not be installed with a fixed site connection if
used with a trolley (mobile station).

85
7Operation
7.1 Starting the machine
Before the machine is started up, the main shutoff valve in
the fresh water feed line must be opened and the main
electrical switch supplying the machine must be turned on.
7.1.1 Switching on manually

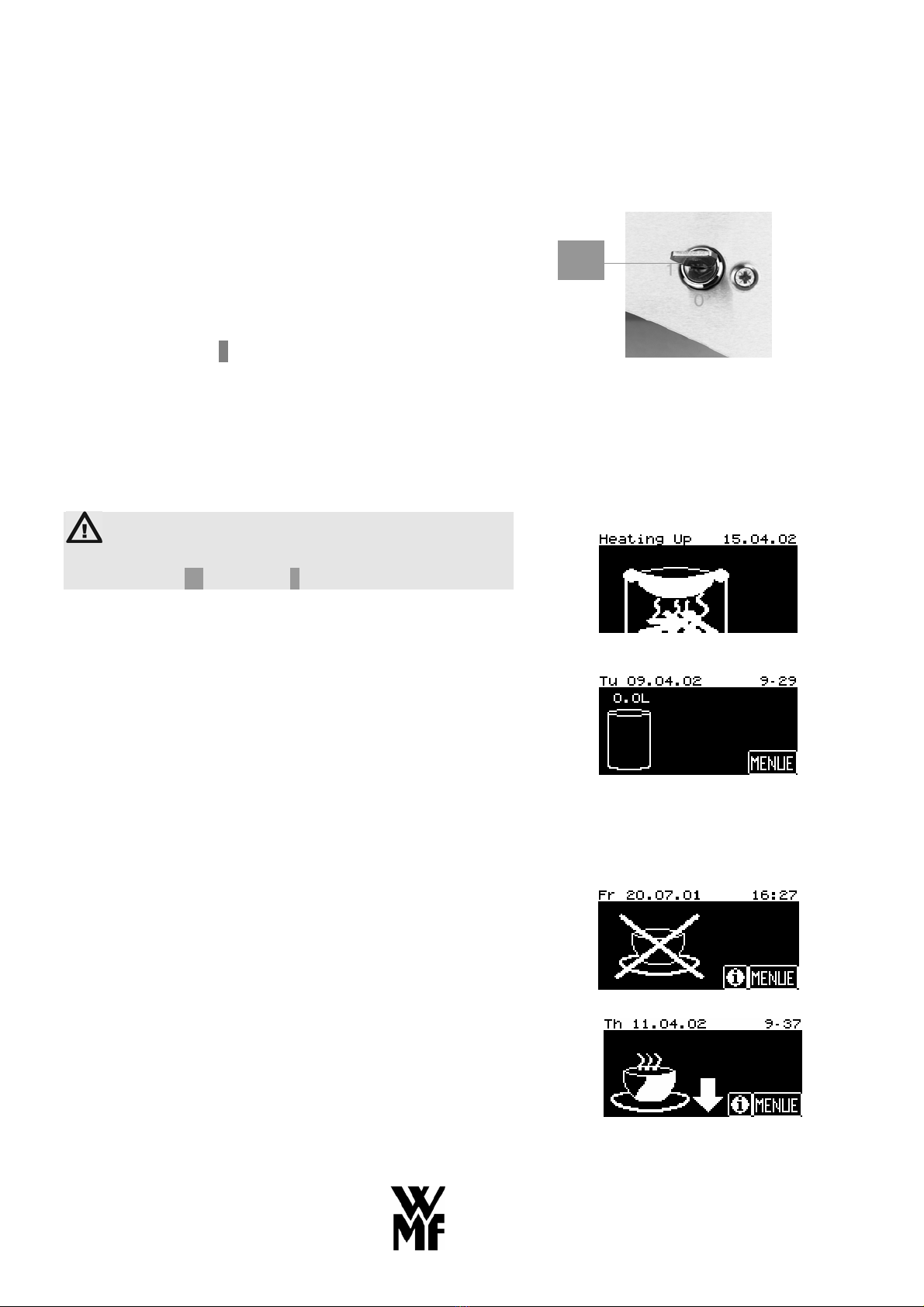

Turn the key switch 9to position “1” (On).
After switching on, the machine heats up to operating
temperature (about 5 minutes). The first time a quantity of
coffee is selected for storage (see chapter 7.5 on page 89), a
hot rinse program is executed.
Caution!
There is a danger of burning and scalding in the
hot water 11 and coffee 6dispensing area.
During the heating-up phase, the display shows the
following:
When the machine has warmed up, the display shows the
following:
Coffee cannot be dispensed at this stage. First of all, the
ground coffee hopper has to be filled (see chapter 7.2 on
page 86) and a quantity of coffee selected for storage (see
chapter 7.5 on page 89) before the machine is ready for
operation. Fresh coffee is then brewed into the storage urn,
ready for dispensing.
In the case of coffee machines for self-service use (see
chapter 8.3.5 on page 101), when the machine has warmed
up, the display shows the following:
Coffee cannot be dispensed at this stage.
First of all, the ground coffee hopper has to be filled (see
chapter 7.2 on page 86) and a quantity of coffee selected
for storage (see chapter 7.5 on page 89) before the machine
is ready for operation. Fresh coffee is then brewed into the
storage urn, ready for dispensing.
9

86
7.1.2 Switching on via the timer

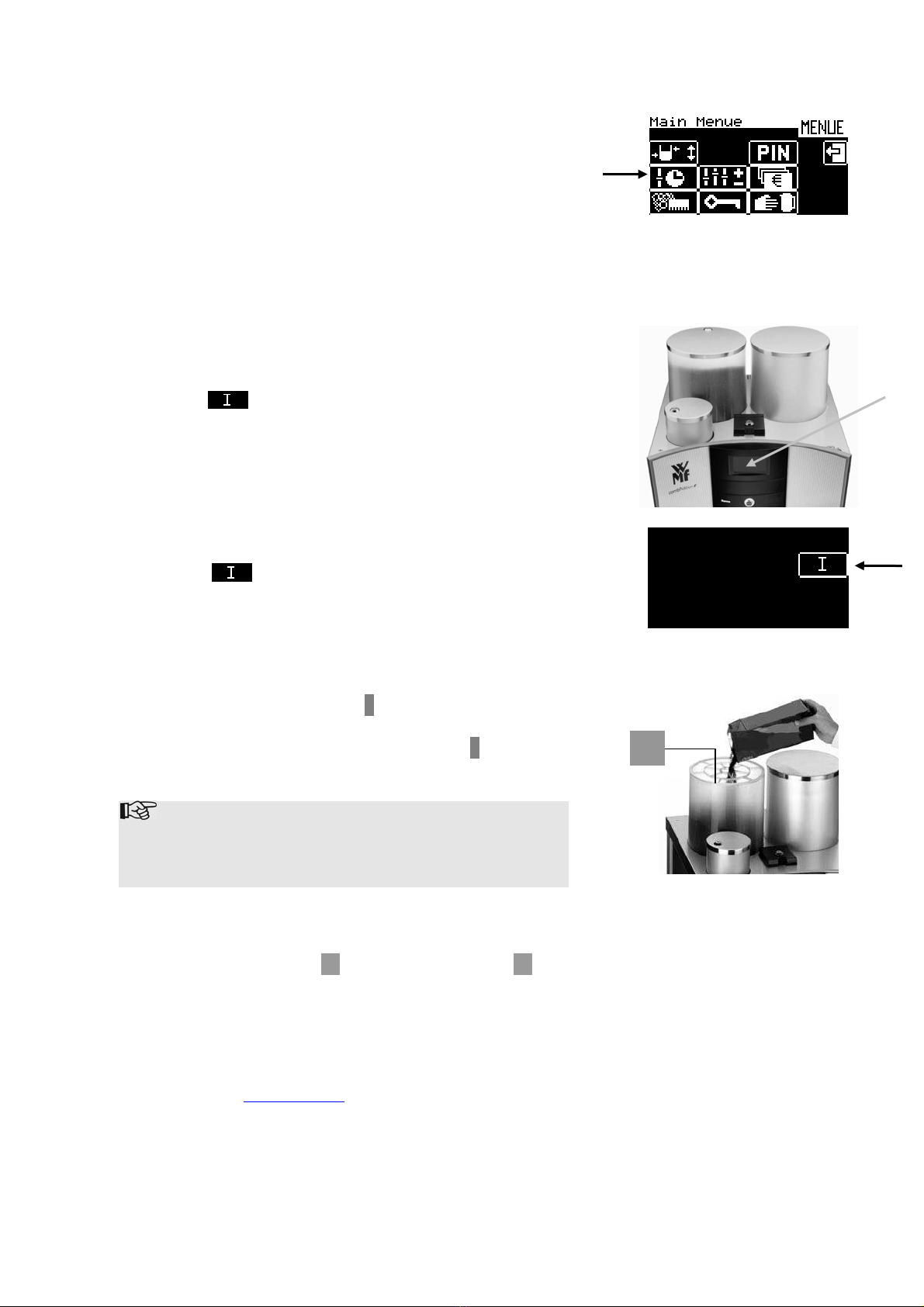

The coffee machine can be switched on automatically via
the “Timer” function in the machine selection menu.
Times are assigned to the day of the week and are not
controlled by the date.
For settings, refer to chapter 10 Timer functions
on page 120.
7.1.3 Switching on via display (adjustments to be made by the service team)
By touching the Standby Display (WMF-Logo) the switch-
on soft key appears.
The coffee machine now can be switched on by touching
the soft key . If you have allocated access
authorisations (PIN numbers) (see chapter 8.4 on page 103)
you will be asked for your PIN number.
7.2 Filling the ground coffee hopper
To fill the ground coffee hopper 1remove the hopper lid
and fill the hopper with ground coffee. Then replace the lid
to close the hopper. The ground coffee hopper 1has a
capacity of approx. 2.2 kg.
Note:
It is important to top up the ground coffee hopper
before it is completely empty, to ensure correct
operation of the coffee machine.
7.3 Beverage key selection and labelling
A total of 4 beverage keys 13 and one hot water key 10 are
at your disposal (see chapter 7.7 on page 94).
You can assign each beverage key individually with your
chosen coffee beverages.
You will find a master for labelling the beverage keys on
our Web site at www.wmf.de. You can use it to design
your own labels and print them out on transparencies.
1

87
Note:
We recommend switching off the machine when
changing the labels, to prevent a beverage key being
pressed in error.
Otherwise, there is a danger of burning and
scalding.
You can label the beverage keys 13 as you choose. To do
this, press on either the left-hand or right-hand side of the
key strip and, while still pressing, slide the key strip out
sideways until the key strip comes out of its holder.
Remove the key strip from its holder.
You can now replace the existing labels with labels which
you have made yourself. You can print your own labels on
plastic, cut to size and insert in place.
After changing the plastic labels, replace the key strip. To
do this, insert the key strip into the holder, pressing evenly
on both sides of the key strip until it clicks into position
into the holder.
7.4 Adjusting the height of the front panel (optional)
Note:
Front panel height adjustment is only available
as an option.
When you dispense a cup, pot or mug of coffee, the front
panel 12 remains fully down all the way to the stop. The
key lights in the Cup, Pot and Mug beverage keys are lit,
and the key light for Jugs is extinguished.
To fill jugs and containers over 140 mm high, the complete
front panel 12 has to be pushed fully up all the way to the
top. The key lights in the Jug and Hot water 10 beverage
keys are lit, and the key lights for Cup, Pot and Mug are
extinguished.
13
12
6
10

88
Caution!
There is a danger of burning and scalding in the
hot water 11 and coffee 6dispensing area.
Grasp the lower part of the front panel and slide it all the
way up to the top, using gentle pressure. This enables the
clear height to be increased to 280 mm.
In addition, the coffee spout 6can be removed (for
instance, to fill insulated jugs) but this is not possible in the
case of self-service machines.
Caution!
The coffee spout 6and the hot water spout 11 are hot.
There is a danger of burning.Beware in the coffee 6
and hot water 11 dispensing area: there is a danger
of scalding.
Important:
For safety reasons, it is not possible to dispense a
cup, pot or mug of coffee when the front panel is in
the raised position.
The corresponding keys are disabled. On sliding the
front panel back to the fully down position, the keys
are enabled again.

89
7.5 Selection of quantity of coffee for storage
Due to the design of the machine, a quantity for storage has
to be selected before coffee can be brewed and dispensed.
The brewer unit in the WMF combiNation F allows brew
quantities of 1 and 2 litres of coffee to be prepared. One or
more brews are carried out until the urn contains the desired
quantity.
The following actions are shown on the display:
Storage urn emptying
Storage urn flushing taking place
Brewing taking place (see display on the right)
By pressing the soft key you can access a second
level, where there is a selection menu. The following display
appears:
Now press the soft key to select a quantity of coffee to
be prepared.
You can also go directly into the quantity of coffee selection
by pressing on the storage urn.
The following quantity preselections are available and can
be selected by means of the soft keys:

90

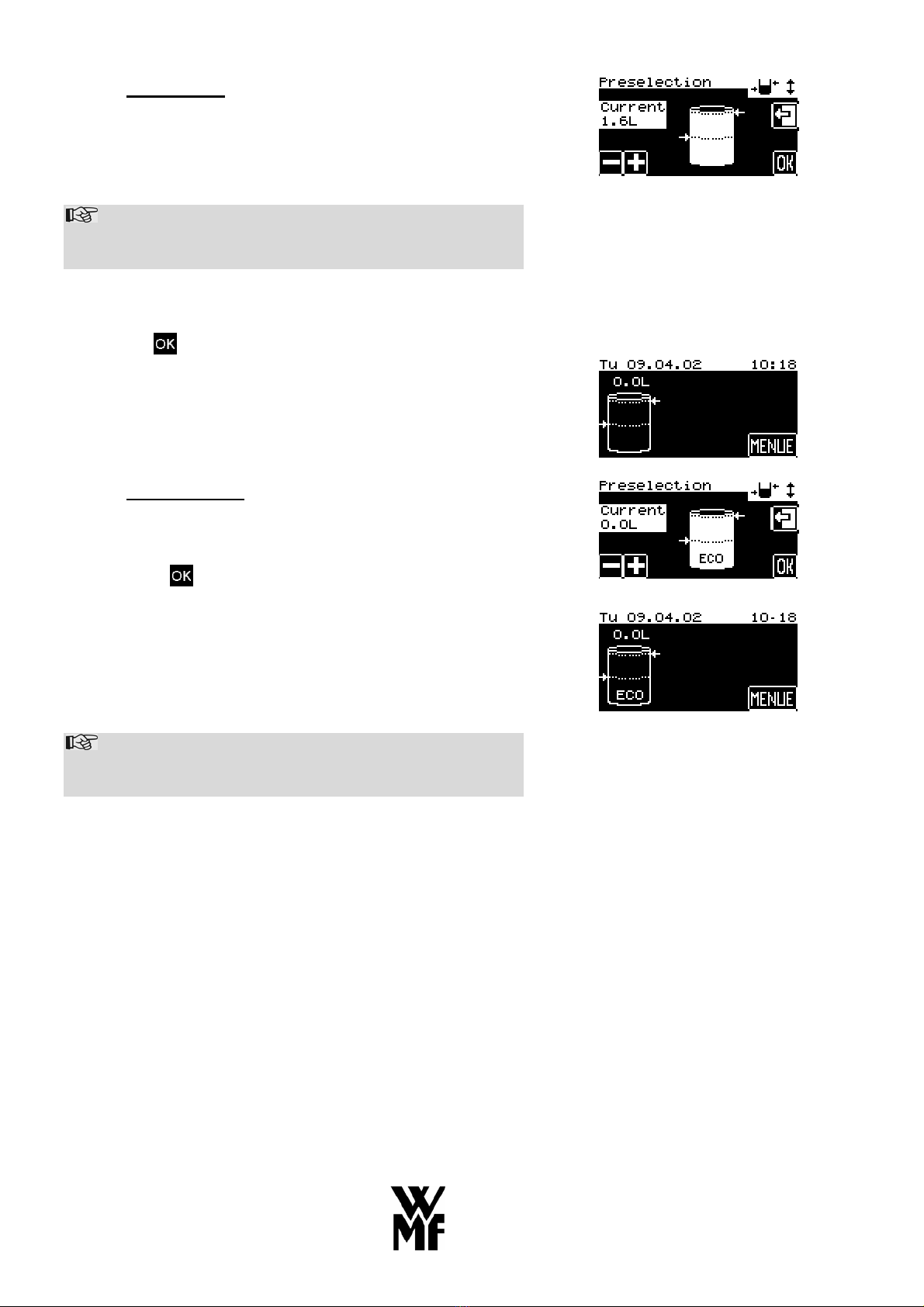

7.5.1 Automatic quantity control
There is a choice of 3 alternatives:
Half full,
Full (economy) and
Full (power)
-Half full
Two litres of coffee are transferred to the storage urn
to begin with. If the coffee level in the urn falls
below 1.5 litres, the WMF combiNation Fstarts
automatic refill brewing of fresh coffee (1 litre).
Should the coffee level fall below 1.0 litre, coffee
dispensing is disabled. No more coffee will be
dispensed until refill brewing of fresh coffee has
taken place.
Press to confirm your selection.

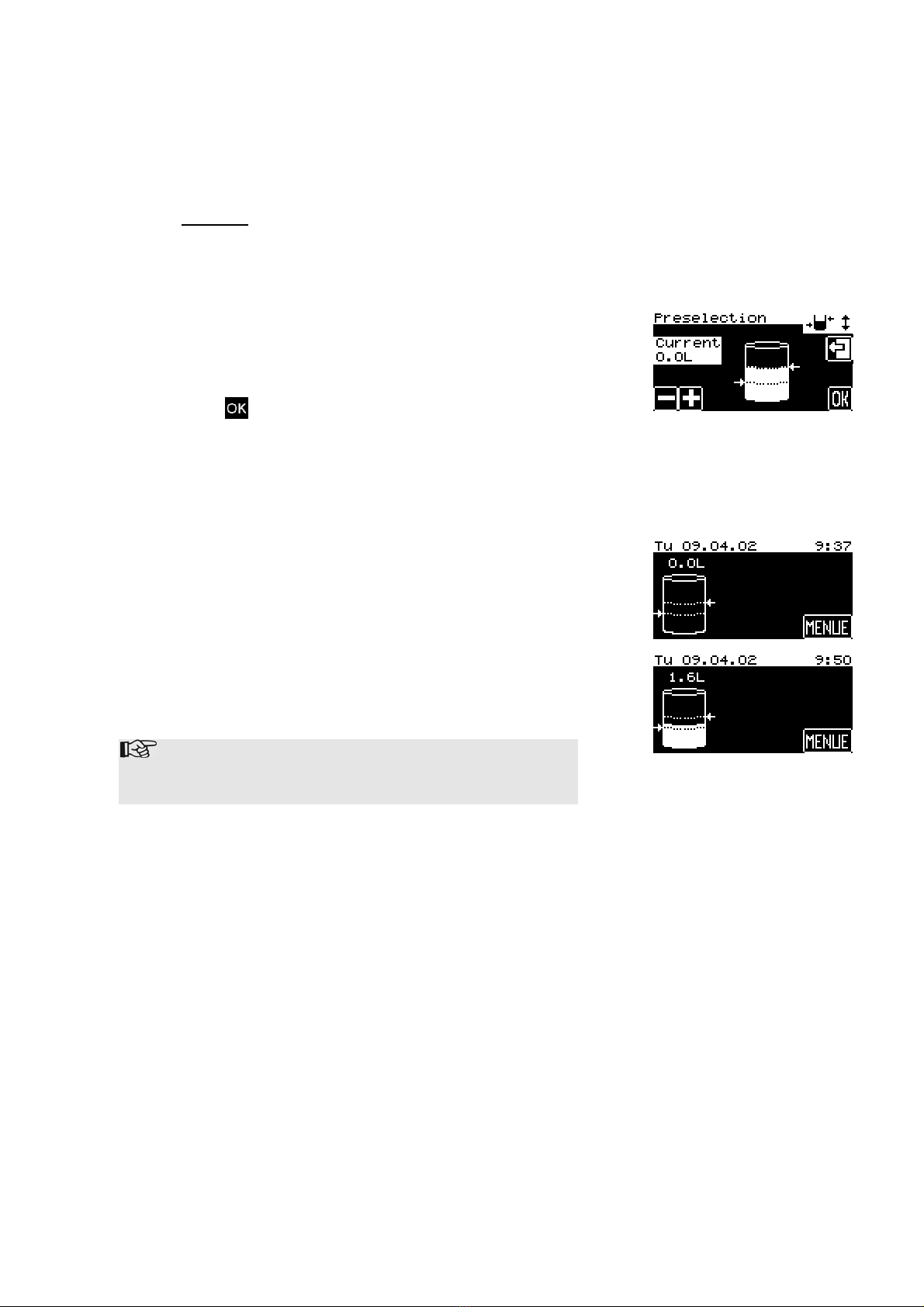

If you choose “Half full” as the quantity preselection,
instead of the empty storage urn, the display shows:
If coffee has already been brewed into the storage urn, the
display shows the current level in the urn. In this example,
the urn contains 1.6 litres of coffee:
Note:
The display of the actual contents of the storage urn
has a display tolerance of up to 0.3 litres.
The quantity of coffee currently stored in the urn is
displayed in litres in every quantity preselection stage
(except for coffee machines in self-service operation mode,
see chapter 8.3.5 on page 101).

91
-Full (power)
Four litres of coffee are transferred to the storage
urn to begin with. If the coffee level in the urn falls
below 2.1 litres, the WMF combiNation Fstarts
automatic refill brewing of fresh coffee (2 litres).
Note:
Should the coffee level fall below 1.0 litre, coffee
dispensing is disabled.
No more coffee will be dispensed until refill brewing
of fresh coffee has taken place.
Press . to confirm your selection.
If you choose “Full (power)” as the quantity
preselection, instead of the empty storage urn, the
display shows:
-Full - economy
This is the same version (see “Full power”) with a
lower hourly output and more economical use of the
ground coffee.
Press . to confirm your selection.
If you choose “Full - economy” as the quantity
preselection, instead of the empty storage urn, the
display shows:
Note:
Coffee dispensing is briefly disabled during refill
brewing.
