CT Induction Cooktop
Service Manual

Page 2
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
General Information
1-2
#821684 - Revision B - March, 2013
INTRODUCTION
This Technical Service Manual has been compiled to provide the most recent technical service information about this
series, starting with serial #17600000. This information will enable the service technician to troubleshoot and diag-
nose malfunctions, perform necessary repairs and return a Wolf Induction Cooktop to proper operational condition.
The service technician should read the complete instructions contained in this Service Manual before initiating any
repairs on a Wolf Appliance.
IMPORTANT SAFETY INFORMATION
Below are the Product Safety Labels used in this manu-
al. The "Signal Words" used are WARNING and
CAUTION.
Please note that these safety labels are placed in areas
where awareness of personal safety and product safety
should be taken and lists the precautions to be taken
when the signal word is observed.
This manual is designed to be used by Authorized Service Personnel only. Wolf Appliance, Inc. assumes
no responsibility for any repairs made to Wolf appliances by anyone other than Authorized Service
Technicians.
INDICATES THAT HAZARDOUS OR UNSAFE PRAC-
TICES COULD RESULT IN SEVERE PERSONAL
INJURY OR DEATH.
Indicates that hazardous or unsafe practices could
result in minor personal injury or product and/or
property damage.
In addition, please pay attention to the signal word
“NOTE”, which highlights especially important informa-
tion within each section.
The information and images are the copyright property of Wolf Appliance, Inc., an affiliate of Sub-Zero, Inc. Neither
this manual nor any information or images contained herein may be copied or used in whole or in part without the
express written permission of Wolf Appliance, Inc., an affiliate of Sub-Zero, Inc. © Wolf Appliance, Inc., all rights
reserved.
TECHNICAL ASSISTANCE
If you should have any questions regarding the appli-
ance and/or this manual, please contact:
Wolf Appliance, Inc.
ATTN: Service Department
P.O. Box 44988
Madison, WI 53744 - 4988
Customer Assistance
Phone #: (800) 332 - 9513
Facsimile #: (608) 441 - 5887
Technical Assistance
(For Technicians in Customer’s Homes Only)
Phone #: (800) 919 - 8324
Warranty Claims
Phone #: (800) 404 - 7820
Facsimile #: (608) 441 - 5886
Service Department e-mail Address:
[email protected]
Main Office Hours:
8:00 AM to 5:00 PM Central Time
Monday through Friday
(24/7 Phone Coverage)

Page 3
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
General Information
1-4
#821684 - Revision B - March, 2013
WARRANTY INFORMATION
This page contains a summary of the 2 & 5 Year Warranty that is supplied with every Wolf product, followed by
details and notes about the warranties.
TWO & FIVE YEAR Warranty Summary
• Two year TOTAL PRODUCT warranty, *parts and labor.
• Limited Parts Only Warranty for the 3rd through 5th year on the following parts only:
Electric heating elements
Electronic Control Boards
Warranty Details:
The warranty applies only to products installed for normal residential use. The warranty applies only to product
installed in the United States or Canada.
Warranty Notes:
• All warranties begin at the time of the unit’s initial installation.
• ll Warranty and Service information collected by Wolf Appliance, Inc., is arranged and stored under the unit seri-
al number and/or the customer’s name. Please note that Wolf Appliance, Inc., requests that you have the model
serial number available whenever contacting the factory or parts distributor.
• See Figure 1-1 for serial tag layout.
• See Figure 1-2 for serial tag location.
MELTHIGH
OFFO
N
MELTHIGH
O
FF ON
O
FF O
N
SIMHIGH
HI-PO
WER
O
FFO
N
SIM HIGH
HI-PO
WER
HI-PO
WER
HIGH
SIMO
FFON
CLEAR
O
FF
O
Wolf Appliance Company, Inc.
VOLTS :
Hz :
MODEL# : XXXXXX-X
INDUCTION COOKTOP
FOR HOUSEHOLD USE ONLY
208
50/60
"DO NOT IMMERSE IN WATER" "NE PAS PLONGE DANS L'EAU"
FITCHBURG, WI
SERIAL# : XXXXXXXX
KW :
240
X.X
X.X
3 WIRE
Figure 1-1. Serial Tag Layout
Figure 1-2. Serial Tag Location
Location of
Serial Tag.

Page 4
General Information
1-5 #821684 - Revision B - March, 2013
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
MODEL NUMBER KEY
Refer to this key for an example of the model numbers.
Model: CT 15 I / S
Product Type
Size
Fuel
Feature (If Applicable)
Finish
Product Type
CT Cooktop
IM Integrated Gas Multifunction Cooktop
IG Integrated Grill Cooktop
IS Integrated Steamer Cooktop
IF Integrated Fryer Cooktop
Size
15 15 - inch wide unit
30 30 - inch wide unit
36 36 - inch wide unit
Fuel
EElectric
IInduction
GNatural Gas
LP Propane Gas (Propane Gas will be indicated by -LP at the end of the model number. Example: CT36G/S-LP)
Finish
SClassic Stainless Steel
PPlatinum Stainless Steel (Not Available for IM, IG, IS and IF)
BCarbon Stainless Steel (Not available for gas models. Not available for IM, IG, IS and IF)

Page 5
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
General Information
1-6
#821684 - Revision B - March, 2013

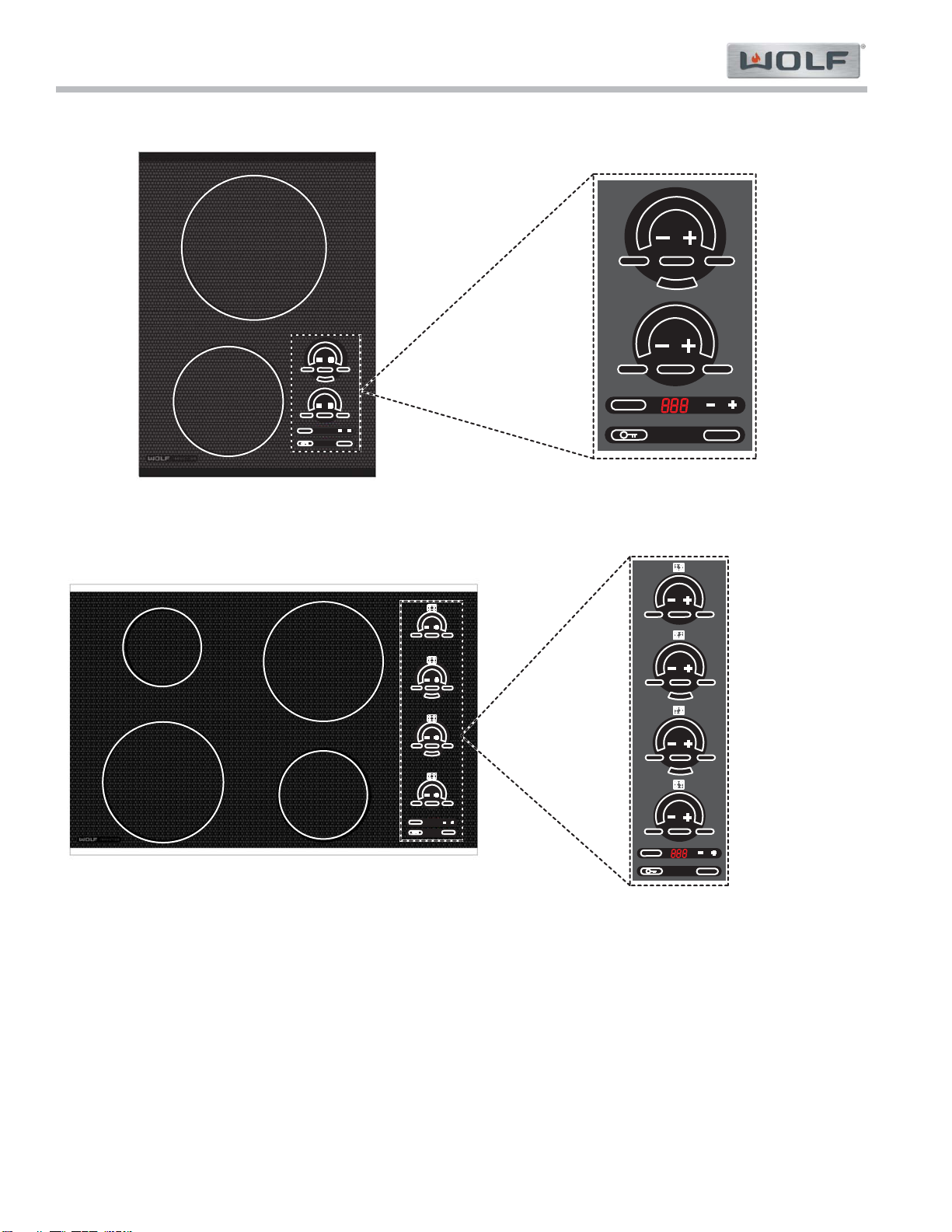

MODEL CONFIGURATIONS
OFF
CLEAR
MELT OFF ON HIGH
OFF ON HIGHSIM
H
I
-
P
O
W
E
R
HOT
Model Numbers Descriptions

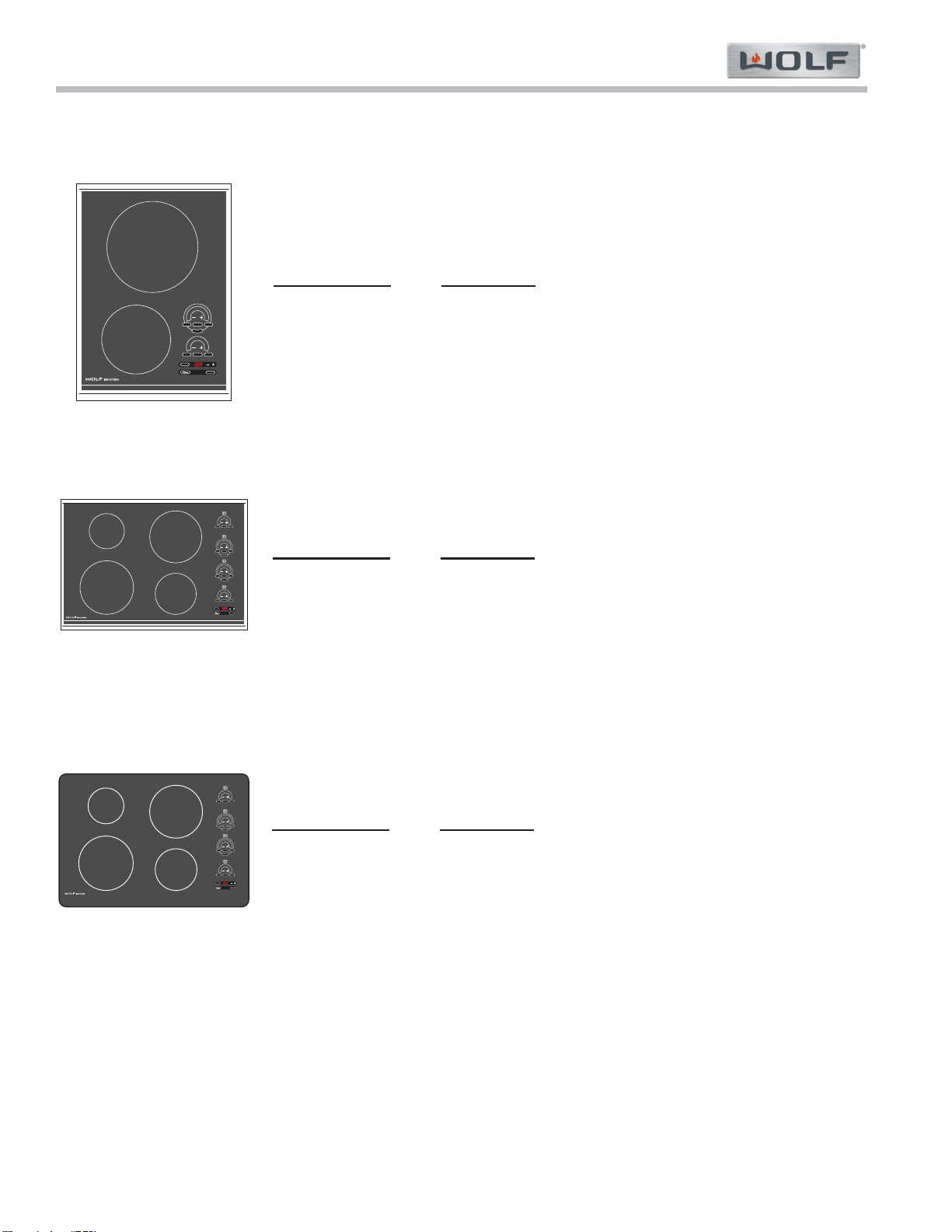

CT15I/S Cooktop 15” Induction, Stainless Steel Trim
15” Induction Cooktop Framed (CT15I/S)
OFFHOT
CLEAR
MELT OFF ON HIGH
OFF ON HIGHSIM
H
I
-
P
O
W
E
R
OFF ON HIGHSIM
H
I
-
P
O
W
E
R
MELT OFF ON HIGH
Model Numbers Descriptions
CT30I/S Cooktop 30” Induction, Stainless Steel Trim
30'' Induction Cooktop Framed (CT30I/S)
OFFHOT
CLEAR
MELT OFF ON HIGH
OFF ON HIGHSIM
H
I
-
P
O
W
E
R
OFF ON HIGHSIM
H
I
-
P
O
W
E
R
MELT OFF ON HIGH
Model Numbers Descriptions
CT30IU Cooktop 30” Induction, without Stainless Steel Trim
30'' Induction Cooktop Unframed (CT30IU)

Page 6
General Information
1-7 #821684 - Revision B - March, 2013
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
MODEL FEATURES
• Classic stainless steel trim finish. (Unframed Models do not have a Stainless Trim)
• Easy-to-clean black ceramic glass surface is resistant to scratching, staining, impact and heat.
• High-efficiency induction elements deliver power and control.
• Induction elements heat cookware, not the glass, for a cooler, safer cooking surface.
• Cookware sensing elements will not be energized without an induction-compatible pan on the cooktop surface.
• Hi-Power mode boosts power to the element.
• Temperature limiter to ensure that safe operating temperature of glass ceramic is never exceeded.
• Illuminated touch controls with graduated control lighting and adjustable sound frequency and volume.
• Hot-surface indicator light in control panel.
• Lock mode - cooktop will be locked so that no elements can be turned on.
• Universal off turns all elements off.
• Countdown timer with one to 99 minute range.
• CSA certified for US and Canada.
• Two and five year residential warranty
OFFHOT
CLEAR
MELT OFFON HIGH
MELT OFFON HIGH
OFFON HIGHSIM
H
I
-
P
O
W
E
R
OFFON HIGHSIM
H
I
-
P
O
W
E
R
OFFON HIGHSIM
H
I
-
P
O
W
E
R
Model Numbers Descriptions
CT36I/S Cooktop 36” Induction, Stainless Steel Trim
36'' Induction Cooktop Framed (CT36I/S)
OFFHOT
CLEAR
MELT OFFON HIGH
MELT OFFON HIGH
OFFON HIGHSIM
H
I
-
P
O
W
E
R
OFFON HIGHSIM
H
I
-
P
O
W
E
R
OFFON HIGHSIM
H
I
-
P
O
W
E
R
Model Numbers Descriptions
CT36IU Cooktop 36” Induction, without Stainless Steel Trim
36'' Induction Cooktop Unframed (CT36IU)
MODEL CONFIGURATIONS

Page 7
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
Installation Information
2-2
#821684 - Revision B - March, 2013
PRE-INSTALLATION SPECIFICATIONS
This section of the manual covers some of the installation issues a service technician may need to know when serv-
icing a Wolf Induction Cooktop. If additional information is needed after reviewing this section, please refer to the
Installation Guide or contact the Wolf Appliance Customer Service Department.
Electrical Requirements - Induction
Nominal Voltage
Model CT15I 240 VAC / 50/60 Hz / 20 amp service
208 VAC / 60 Hz / 20 amp service
Model CT30I & CT30IU 240 VAC / 50/60 Hz / 40 amp service
208 VAC / 60 Hz / 40 amp service
Model CT36I & CT36IU 240 VAC / 50/60 Hz / 50 amp service
208 VAC / 60 Hz / 50 amp service
Maximum Connected Load
Model CT15I 3.6 kW at 240 VAC, 3.1 kW at 208VAC
Model CT30I & CT30IU 7.2 kW at 240 VAC, 6.3 kW at 208VAC
Model CT36I & CT36IU 10.2 kW at 240 VAC, 8.9 kW at 208VAC
The Wolf Induction Cooktops require a separate, grounded three-wire service with their own circuit breaker. These
appliances must be installed in accordance with National Electrical Codes, as well as all state, municipal and local
codes. The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, grounded
circuit which is protected by a properly sized circuit breaker or time delay fuse. The proper voltage, frequency and
amperage ratings are listed on the product rating plate. The cooktops are provided with a 48” (1219 mm) conduit
consisting of two insulated hot lead conductors (copper) and one insulated ground conductor (copper).
• THIS APPLIANCE MUST BE PROPERLY GROUNDED AT ALL TIMES WHEN ELECTRICAL POWER IS
APPLIED.
• DO NOT GROUND APPLIANCE WITH NEUTRAL (WHITE) HOUSE SUPPLY WIRE. A SEPARATE GROUND
WIRE MUST BE UTILIZED.
• IF ALUMINUM HOUSE SUPPLY WIRING IS UTILIZED, SPLICE APPLIANCE COPPER WIRE TO ALUMINUM
HOUSE WIRING USING SPECIAL CONNECTORS DESIGNED AND CERTIFIED FOR JOINING COPPER AND
ALUMINUM. FOLLOW THE CONNECTOR MANUFACTURES RECOMMENDED PROCEDURE CAREFULLY.
IMPROPER CONNECTION CAN RESULT IN A FIRE HAZARD.
•TO ELIMINATE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STOR-
AGE SPACE LOCATED ABOVE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE IS TO BE
PROVIDED, THE RISK CAN BE REDUCED BY INSTALLING A RANGE HOOD THAT PROTECTS HORIZONTAL-
LY A MINIMUM OF 5''(127mm) BEYOND BOTTOM OF THE CABINETS.

Page 8
Installation Information
2-3 #821684 - Revision B - March, 2013
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
Electrical Requirements (Continued)
The cooktop is provided with a flexible conduit with electrical leads that must be connected to residential wiring.
For electrical installation attach the conductors to the residence wiring in accordance with National Electrical Codes
and all state, provincial, municipal and local codes.
Site Preparation
NOTE: Installation of the Wolf induction cooktop must meet the following location requirements. All dimensions list-
ed are minimum requirements for safe operation.
C
G
D
A
B
B
E
F

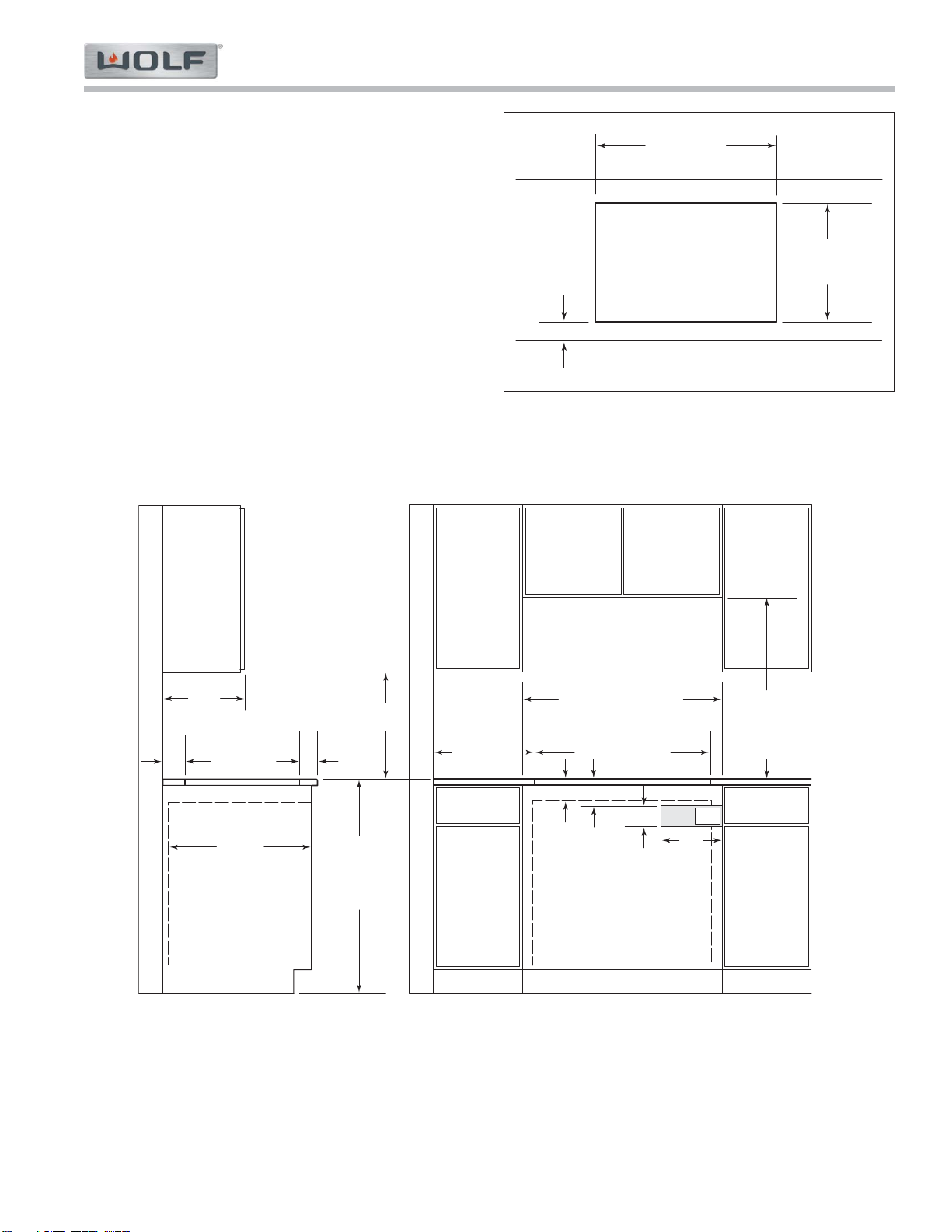

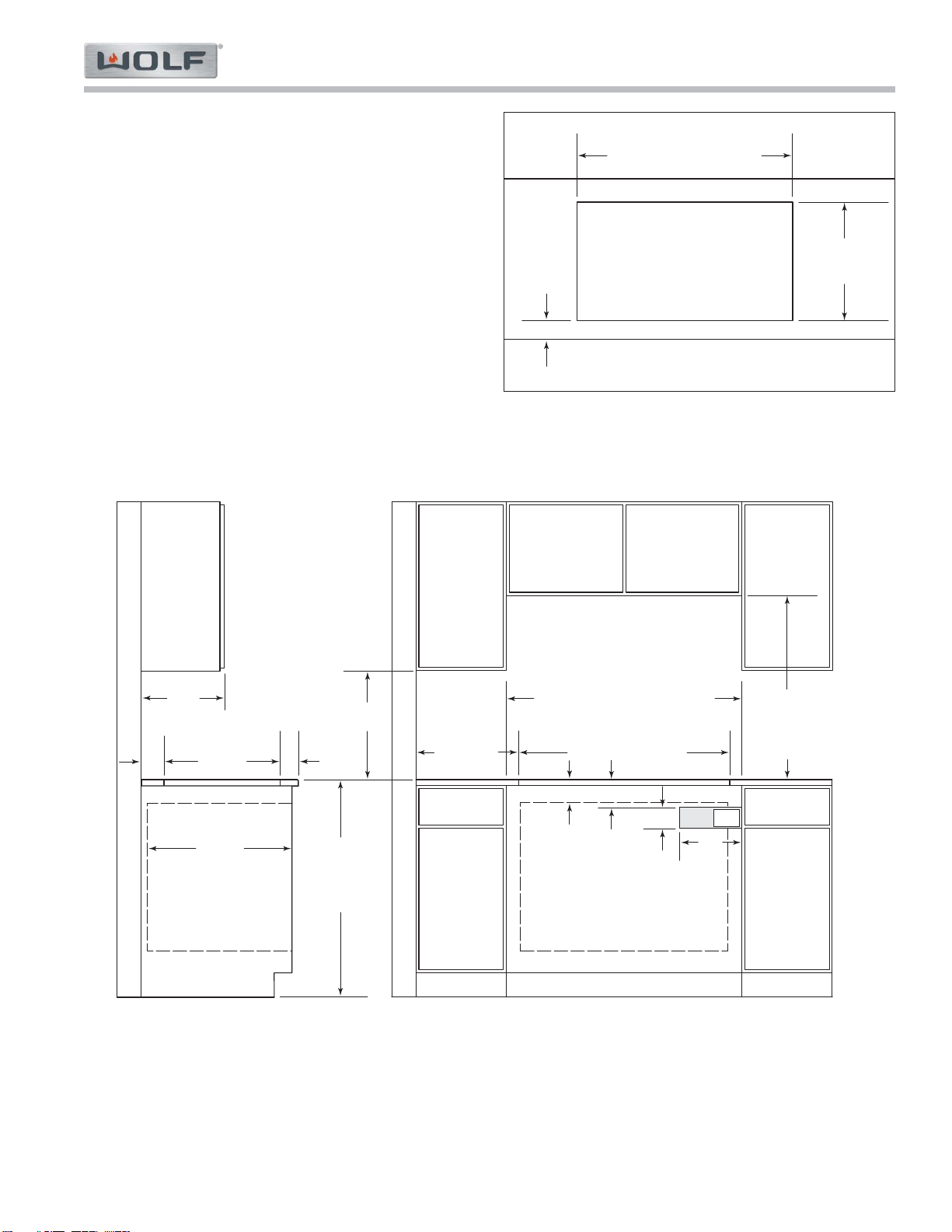

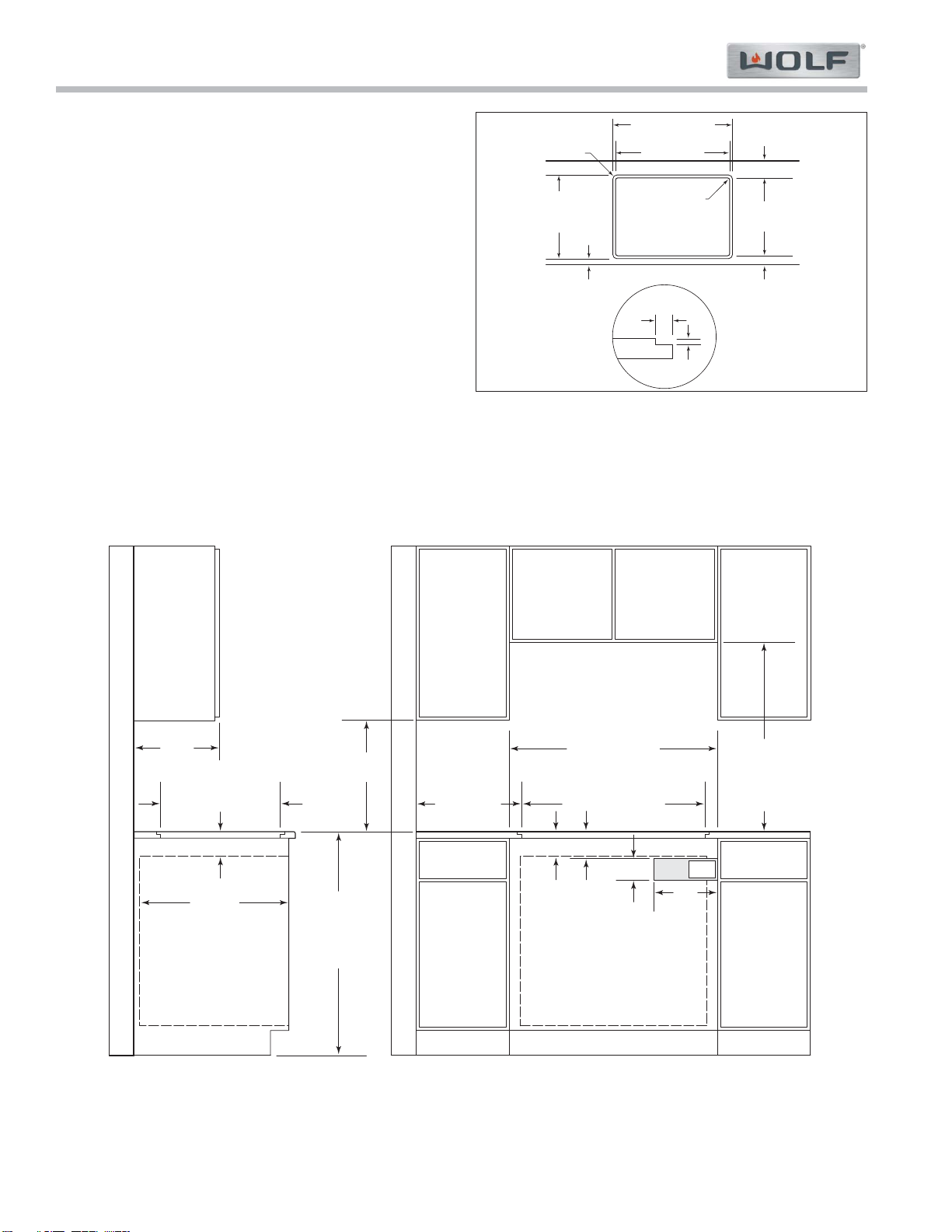

Figure 2-1. Installation Specifications.
• FAILURE TO LOCATE THE COOKTOP WITHOUT THE PROPER CLEARANCES WILL RESULT IN A FIRE HAZ-
ARD.
•TO ELIMINATE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STOR-
AGE SPACE LOCATED ABOVE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE IS TO BE
PROVIDED, THE RISK CAN BE REDUCED BY INSTALLING A RANGE HOOD THAT PROTECTS HORIZONTAL-
LY A MINIMUM OF 5''(127mm) BEYOND BOTTOM OF THE CABINETS.
Location In Countertop (Refer to Figure 2-1)
A. Minimum flat counter top surface. Must be equal to
or greater than cooktop width.
B. Minimum 1” (25mm) wide clearance from the cook-
top side edge to any combustible surface up to 18”
(457mm) above the cooktop (noted by shaded
area).
C. Minimum 1” (25mm) from rear wall.
Overhead Cabinet Dimensions
D. Minimum 18” (457mm) vertical distance from the
counter top to the bottom of side cabinets within
minimum side clearance.
E. Minimum vertical distance between the counter top
and combustible materials above the cooktop must
be 30” (762mm).
F. Minimum spacing between overhead side cabinets
must be greater than or equal to the nominal width
of the cooktop unit(s).
G. Maximum 13” (330mm) depth of overhead and side
cabinets directly above and within side clearance
(See letter B).

Page 9
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
Installation Information
2-4
#821684 - Revision B - March, 2013
INSTALLATION DIMENSIONS FOR CT15I
(Refer to Illustrations to the right & below):
This cooktop is designed to fit a standard 24” (610 mm)
width base cabinet with a 25” (635 mm) deep counter
top. Before making the counter top cut-out, verify that
the cooktop will clear the side walls of the base cabinet
below. There should be at least 6” (152mm) clearance
between the top counter top surface and any com-
bustible surface directly below the unit. This includes
upper edges of drawers located directly below unit. If a
shelf is installed below the unit, a 1” (25mm) gap at the
rear of the cabinet shelf is necessary to allow for proper
ventilation. Failure to do so could result in decreased
performance or product damage.
NOTES:
• Locate junction box within reach of 48"(1219 mm)
conduit, so it is accessible when the cooktop is installed.
• Plastic or other utensils with low melting temperatures should not be located in drawers directly below unit.
E
4-1/2”
(114)
15"
(381)
15"
(381)
2"* min (51)
13-3/8”
(340)
WIDTH
33" (838)
RECOMMENDED
CABINET WIDTH
18"
(457)
19-1/4”(489)
2-1/2” min
(64)
36" (914)
FLOOR TO
HEIGHT
13" max
(330) 30" (762)
2"**
(51)
STANDARD
COUNTER
CUT-OUT
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
COOKTOP
CUT-OUT
DEPTH
WIDTH
(64)
COOKTOP CUT-OUT
13-3/8” (340)
COOKTOP
DEPTH
CUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP

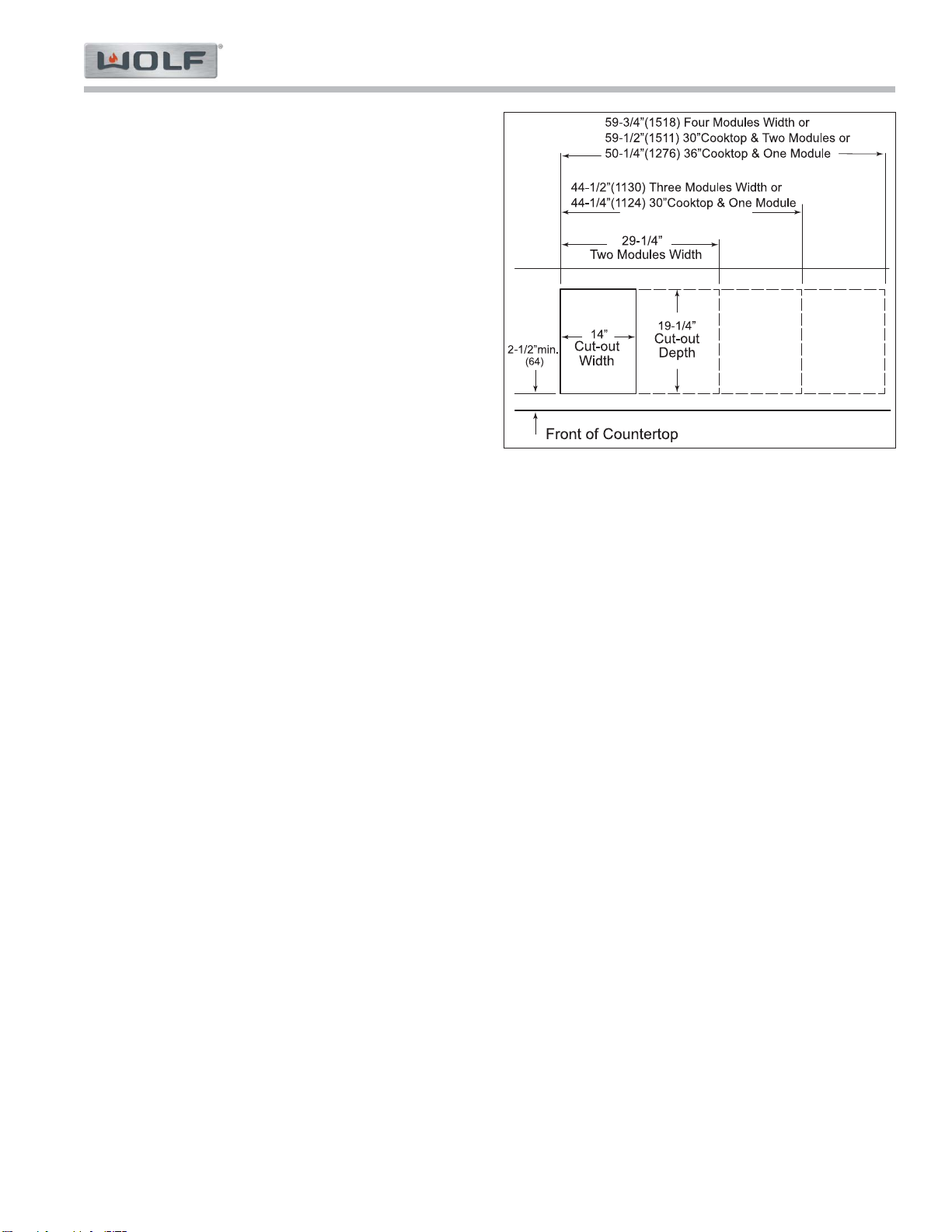

Overhead View of Countertop.
NOTES:
• Application shown allows for installation of two 15”(381mm) modules side-by-side with 33”(838mm) recommend-
ed cabinet width. 18”(457mm) recommended cabinet width for installation of single 15”(381mm) cooktop or mod-
ule. *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18”(457mm)
above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to
18”(457mm) above countertop.
• If cooktop is to be used with any combination of additional cooktops or modules with a filler strip, the cut-out
width increases to 14”(356mm).
• Unit dimensions may vary to ± 1/8” (3mm).

Page 10
Installation Information
2-5 #821684 - Revision B - March, 2013
Induction Cooktop (CTI) Series
Induction Cooktop (CTI) Series
INSTALLATION DIMENSIONS FOR CT30I
(Refer to Illustrations to the right & below):
This cooktop is designed to fit a standard 33” (838mm)
width base cabinet with a 25” (635mm) deep counter
top. Before making the counter top cut-out, verify that
the cooktop will clear the side walls of the base cabinet
below. A Wolf 30” (762mm) or 36” (914mm) built-in
single oven may be installed below Model CT30I. For
this installation, unless the cabinets are deeper than 24”
(610mm), it is recommended that the electrical supply
be placed in the base cabinet to the right of the oven.
Refer to installation instructions provided with the built-
in oven for additional specifications.
NOTE: Locate junction box within reach of 48”(1219
mm) conduit, so it is accessible when cooktop is
installed.
2"* min (51)
18"
(457)
(64)
36" (914)
13" max
(330) 30" (762)
24" min
(610)
3
3
/4" min
(95) 10"
(254)
(89) E
33" (838) RECOMMENDED
CABINET WIDTH
30" min (762)
2"**
(51)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
19-1/4”(489)
COOKTOP
CUT-OUT
DEPTH
2-1/2” min
FLOOR TO
HEIGHT
STANDARD
COUNTER
30” OVEN OPENING
28-3/8” (721) COOKTOP
CUT-OUT WIDTH
4-1/2”
(114)
3-1/2”
(64)
WIDTH
COOKTOP CUT-OUT
COOKTOP
DEPTH
CUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP
28-2/8” (721)
Overhead View of Countertop.
NOTES:
• *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm) above
counter top. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18”
(457mm) above counter top.
• Unit dimensions may vary to ± 1/8” (3mm).
