Wolf GAS COOK TOPS User manual

I STALLATIO GUIDE
Gas Cooktops

Important Note
To ensure the safe and efficient use of Wolf equipment,
please take note of the following types of highlighted
information throughout this guide:
IMPORTA T OTE highlights information that is
especially important.
CAUTIO signals a situation where minor injury or product
damage may occur if instructions are not followed.
WAR I G states a hazard that may cause serious injury or
death if precautions are not followed.
Contents
WolfGasCooktops............................3
SafetyInstructions ............................4
Gas Cooktop Specifications . . . . . . . . . . . . . . . . . . . . . 5
Gas Cooktop Installation . . . . . . . . . . . . . . . . . . . . . . . 9
ServiceInformation...........................15
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.
IMPORTA T OTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.

Wolf Gas Cooktops 3
wolfappliance.com/specs
Gas Cooktop Installation
IMPORTA T OTE: This installation must be completed
by a qualified installer, service agency or gas supplier.
Read this entire installation guide prior to installation and
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.
This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedi-
cated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency, and amperage ratings are listed on the
product rating plate.
Wolf gas cooktops are manufactured for use with natural
gas or LP gas. Check the product rating plate for the type
of gas for your specific model.
Record the model and serial numbers before installing the
gas cooktop. Both numbers are listed on the product
rating plate, located on the underside of the cooktop.

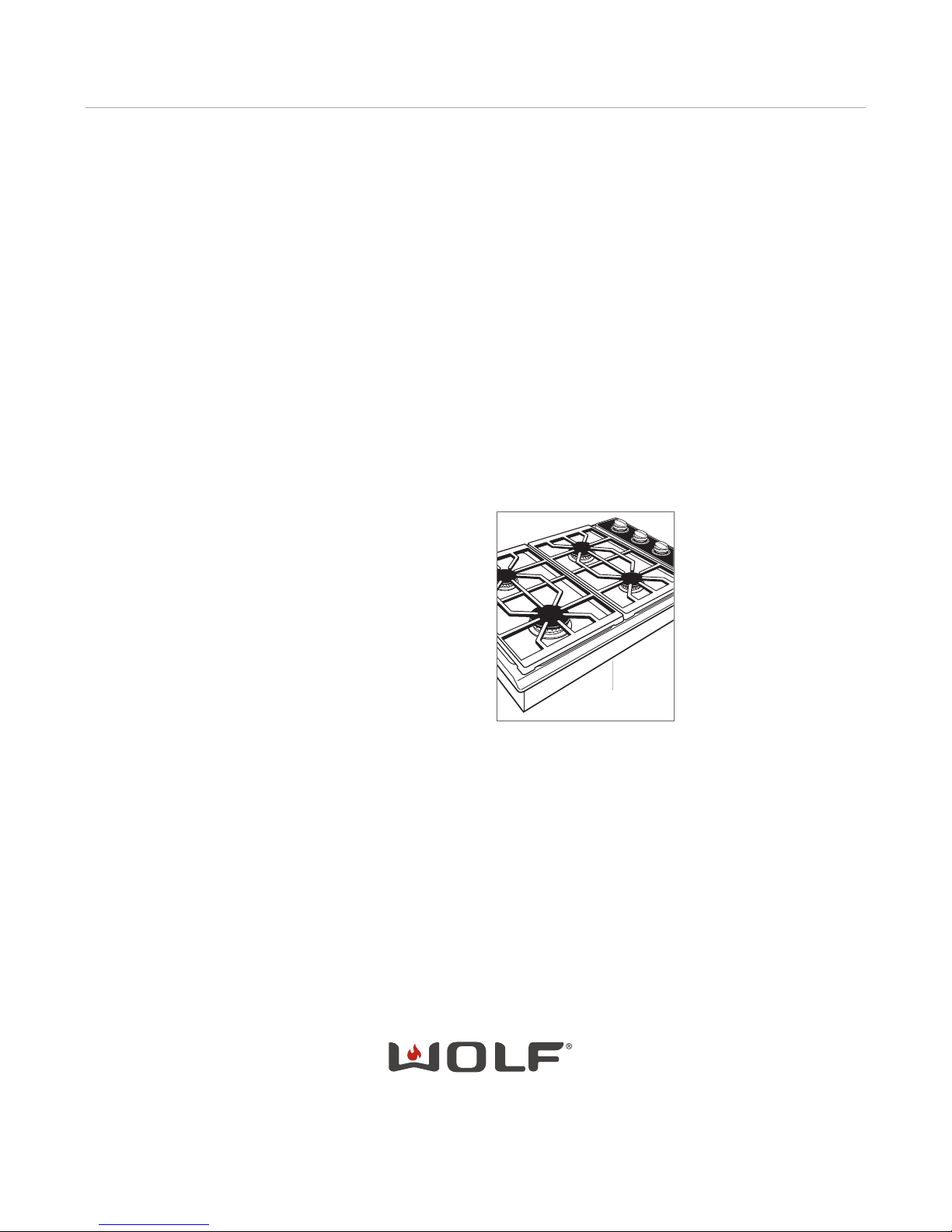

Refer to the illustration below.
Wolf Gas Cooktop
Model Number
Serial Number
Location of rating plate.
RATING PLATE

WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
Safety Instructions 4
IMPORTANT INSTRUCTIONS
• Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
• Warranty service must be performed by a Wolf
authorized service center.
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
• A ventilation hood is recommended (but not
required) for use with the Wolf gas cooktop.
• In Massachusetts: Installations and repairs must be
performed by a qualified or licensed contractor,
plumber or gasfitter qualified or licensed by the
state, province, or region where this appliance is
being installed. Only use gas shut-off valves
approved for use within the state, province, or region
where this appliance is being installed. A flexible gas
connector, when used, must not exceed 3' (.9 m).
If the information in this guide is not followed
exactly, a fire or explosion may result, causing
property damage, personal injury or death.

Gas Cooktop Specifications 5
wolfappliance.com/specs
7/8"(22)
ALL SIDES
4" (102)
21" (533)
15"
(381)
30" (762)
7/8"(22)
ALL SIDES
4" (102)
21" (533)
36" (914)
7/8"(22)
ALL SIDES
4" (102)
21" (533)
15" (381) COOKTOP 30" (762) COOKTOP 36" (914) COOKTOP
Gas Cooktop Dimensions

Gas Cooktop Specifications 6
36" (914)
FLOOR TO
COUNTERTOP
30" (762) min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
SEE COUNTERTOP
CUT-OUT BELOW
14" (356)
CUT-OUT
WIDTH

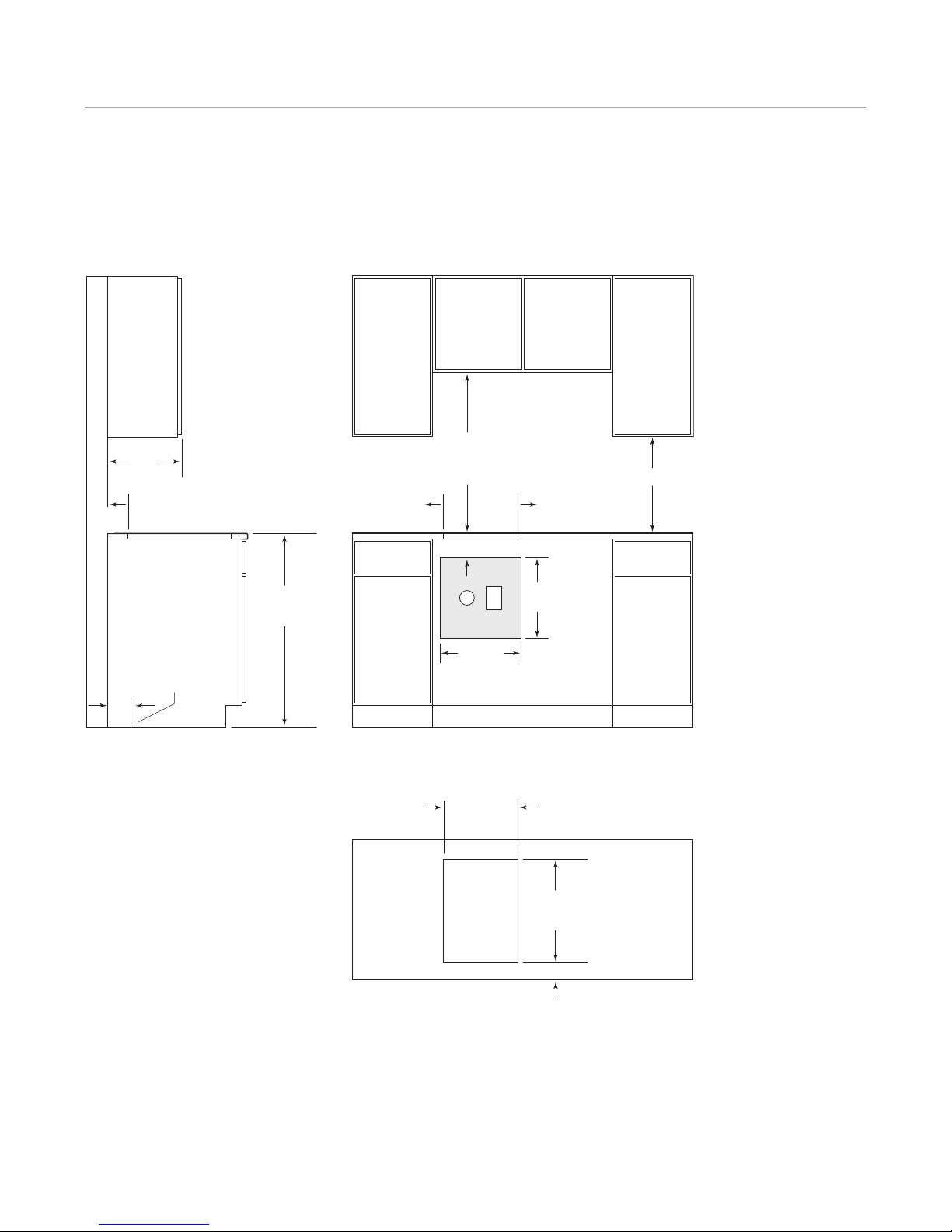

COUNTERTOP CUT-OUT
FRONT
191/4"(489)
CUT-OUT
DEPTH
21/2"(64) min
7" (178) TO
COMBUSTIBLE*
7" (178) TO
COMBUSTIBLE*
SIDE
CABINET
13" (330)
max
*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.
NOTE: Application shown allows for installation of two 15" (381) modules side by side.
E
15" (381)
15"
(381)
4"
(102)
18" (457) min
5"
(127)
LOCATION OF GAS
AND ELECTRICAL
EXTENDS ON FLOOR
G
21/2"
(64)*
15" (381) Gas Cooktop
I STALLATIO

Gas Cooktop Specifications 7
wolfappliance.com/specs
18" (457) min
36" (914)
FLOOR TO
COUNTERTOP
30" (762) min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
30-INCH OVEN OPENING
4"
(102)
10" (254)
31/2"(89) E
SEE COUNTERTOP
CUT-OUT BELOW
33/4"(95)min
9" (229) TO
COMBUSTIBLE*
9" (229) TO
COMBUSTIBLE*
21/2"
(64)*
SIDE
CABINET
13" (330)
max
29" (737)
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
FRONT
191/4"(489)
CUT-OUT
DEPTH
21/2"(64) min
*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.
NOTE: Gas and electrical location applies only to installation with built-in oven.
G
30" (762) Gas Cooktop
I STALLATIO

Gas Cooktop Specifications 8
4"
(102)
E
G
18" (457) min
36" (914)
FLOOR TO
COUNTERTOP
30" (762) min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
36-INCH OVEN OPENING
10" (254)
31/2"(89)
SEE COUNTERTOP
CUT-OUT BELOW
35" (889)
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
FRONT
191/4"(489)
CUT-OUT
DEPTH
21/2"(64) min
33/4"(95)min
9" (229) TO
COMBUSTIBLE*
9" (229) TO
COMBUSTIBLE*
SIDE
CABINET
13" (330)
max
*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.
NOTE: Gas and electrical location applies only to installation with built-in oven.
21/2"
(64)*
36" (914) Gas Cooktop
I STALLATIO

Gas Cooktop Installation 9
wolfappliance.com/specs
Installation Requirements
IMPORTA T OTE: Caution must be used in planning the
proper installation of the Wolf gas cooktop to avoid fires or
damage to adjacent cabinetry or kitchen equipment.
Follow all minimum clearances to combustible surfaces
shown in the installation illustration for your specific
model.
There should be at least 51/2" (140) clearance between the
countertop and any combustible surface directly below
the gas cooktop.
Wolf gas cooktops are intended for indoor use. An
adequate supply of fresh air is required to assure proper
combustion and ventilation. The location of the cooktop
should be away from strong draft areas, such as windows,
doors and strong heating vents or fans. Do not obstruct
the flow of air.
It is recommended that you use a Wolf cooktop ventilation
hood, pro hood or hood liner with the Wolf gas cooktop.
Refer to the Wolf ventilation guide.
Failure to locate the cooktop without the proper clear-
ances will result in a fire hazard.
MULTIPLE COOKTOP I STALLATIO
If the gas cooktop is to be used with any combination of
additional cooktops or modules with a filler strip, the
dimensions provided in the chart are derived by adding
11/4" (32) additional space for each additional unit, to give
you the total countertop cut-out width. Dimensions
include the filler strip available through your authorized
Wolf dealer. For local dealer information, visit the find a
showroom section of our website, wolfappliance.com.
IMPORTA T OTE: When multiple cooktops are installed
side by side, each unit must have its own separate recom-
mended electrical circuit. When multiple gas cooktops are
installed next to one another, they can receive their gas
supply from a common line. However, each unit must have
its own gas pressure regulator.
Multiple Cooktops
COU TERTOP CUT-OUT WIDTH
2 Modules 291/4"(743)
3 Modules 441/2"(1130)
4 Modules 593/4"(1518)
30" (762) Cooktop / Module 441/4"(1124)
30" (762) Cooktop / 2 Modules 591/2"(1511)
36" (914) Cooktop / Module 501/4"(1276)

Gas Cooktop Installation 10
GAS SUPPLY LI E
IMPORTA T OTE: The gas cooktop must be connected
to a regulated gas supply.
A gas supply line of 3/4" rigid pipe must be provided to the
cooktop. For LP gas, piping or tubing size can be 1/2"
minimum. LP gas suppliers usually determine the size and
materials used on the system. If local codes permit, a
certified, 1/2" or 3/4" ID flexible metal appliance connector
is recommended to connect the cooktop to the gas supply
line. The gas pressure regulator on the cooktop has 1/2"
female threads.
IMPORTA T OTE: The supply line must be equipped
with an approved external gas shut-off valve located near
the cooktop in an accessible location. Do not block
access to the shut-off valve. Refer to the illustration below.
Wolf natural gas cooktops will function up to an altitude
of 10,250' (3124 m) without any adjustment. LP gas
cooktops will function up to 8,600' (2621 m) without
adjustment. If the installation exceeds these elevations,
contact your authorized Wolf dealer for a high altitude
conversion kit.
Gas Supply Requirements
IMPORTA T OTE: This installation must conform with
local codes and ordinances. In the absence of local
codes, installations must conform with the American
National Standard, National Fuel Gas Code.
TYPES OF GAS
There are two types of gas, natural and liquid propane
(LP). Conversions are required in order for appliances
designed for one gas to be operated with the other gas.
Such conversions must be performed by a Wolf authorized
service center. Make sure your gas cooktop is correctly
adjusted for the type of gas being used.
The product rating plate has information on the type of
gas that should be used. If this information does not agree
with the type of gas available, check with the local gas
supplier. The rating plate is located on the underside of
the cooktop. Refer to the illustration on page 3.

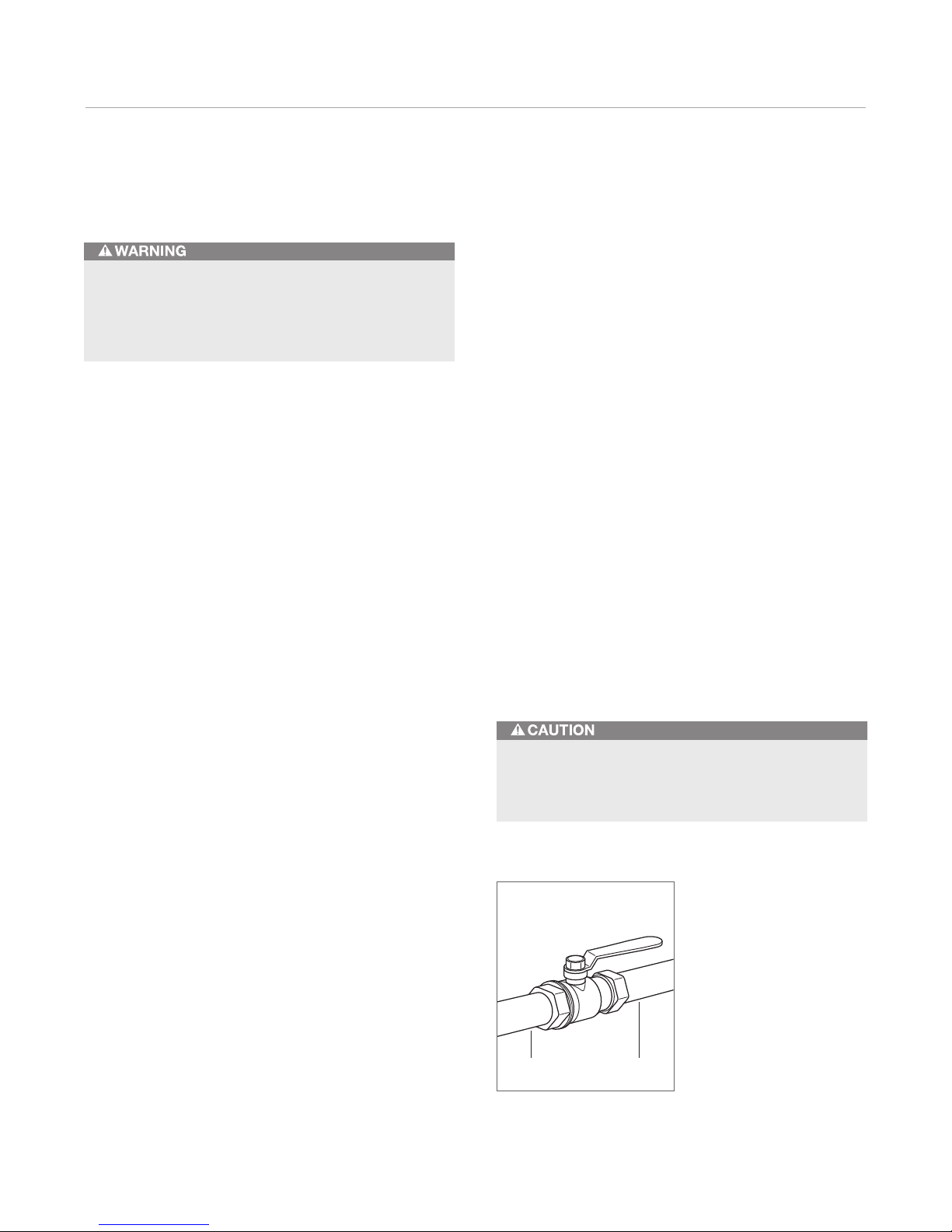

SHUT-OFF VALVE
OPEN POSITION
GAS SUPPLYTO APPLIANCE
Shut-off valve.
EXPLOSIO HAZARD: Use a certified gas supply line
and install a gas shut-off valve. Securely tighten all gas
connections. Failure to follow these instructions can
result in explosion, fire or death.
Before connecting the gas supply, make sure all valves
are in a closed position. Do not connect the gas supply
to an appliance that shows any sign of damage.

Gas Cooktop Installation 11
wolfappliance.com/specs
Gas Supply Requirements
GAS MA IFOLD PRESSURE
•atural Gas: Standard orifices are set for 5" (12.5 mb)
WC. A natural gas pressure regulator is installed.
•LP Gas: Standard orifices are set for 10" (25 mb) WC.
An LP gas pressure regulator is installed.
•Gas Supply Pressure: The maximum gas supply
pressure to the regulator should never exceed 14"
(34.9 mb) WC; .5 psi (3.5 kPa) for natural and LP gas.
The minimum line pressure is 7" (17.5 mb) WC for
natural gas and 11" (27.4 mb) WC for LP gas.
•Gas Pressure Regulator: To control and maintain a
uniform gas pressure in the gas manifold, the unit must
be used with a gas pressure regulator. The burner
orifices, etc. are sized for the gas pressure delivered by
the supplied regulator. Do not remove the regulator.
The maximum gas supply pressure to the regulator
should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).
Electrical Requirements
The Wolf gas cooktop requires a 120 V AC, 60 Hz electri-
cal supply to operate the electronic ignition system. The
service should have its own 15 amp circuit breaker. A
ground fault circuit interrupter (GFCI) is not recommended
and may cause interruption of operation.
The cooktop is equipped with a power cord with a 3-prong
grounding plug. To minimize shock hazard, the power cord
must be plugged into a mating 3-prong grounded outlet,
grounded to conform with the National Electrical Code,
ANSI/NFPA 70 latest edition, or Canadian Electrical Code
(CSA) and all local codes and ordinances. Refer to the
illustration below.
IMPORTA T OTE: Do not ground to a gas pipe.

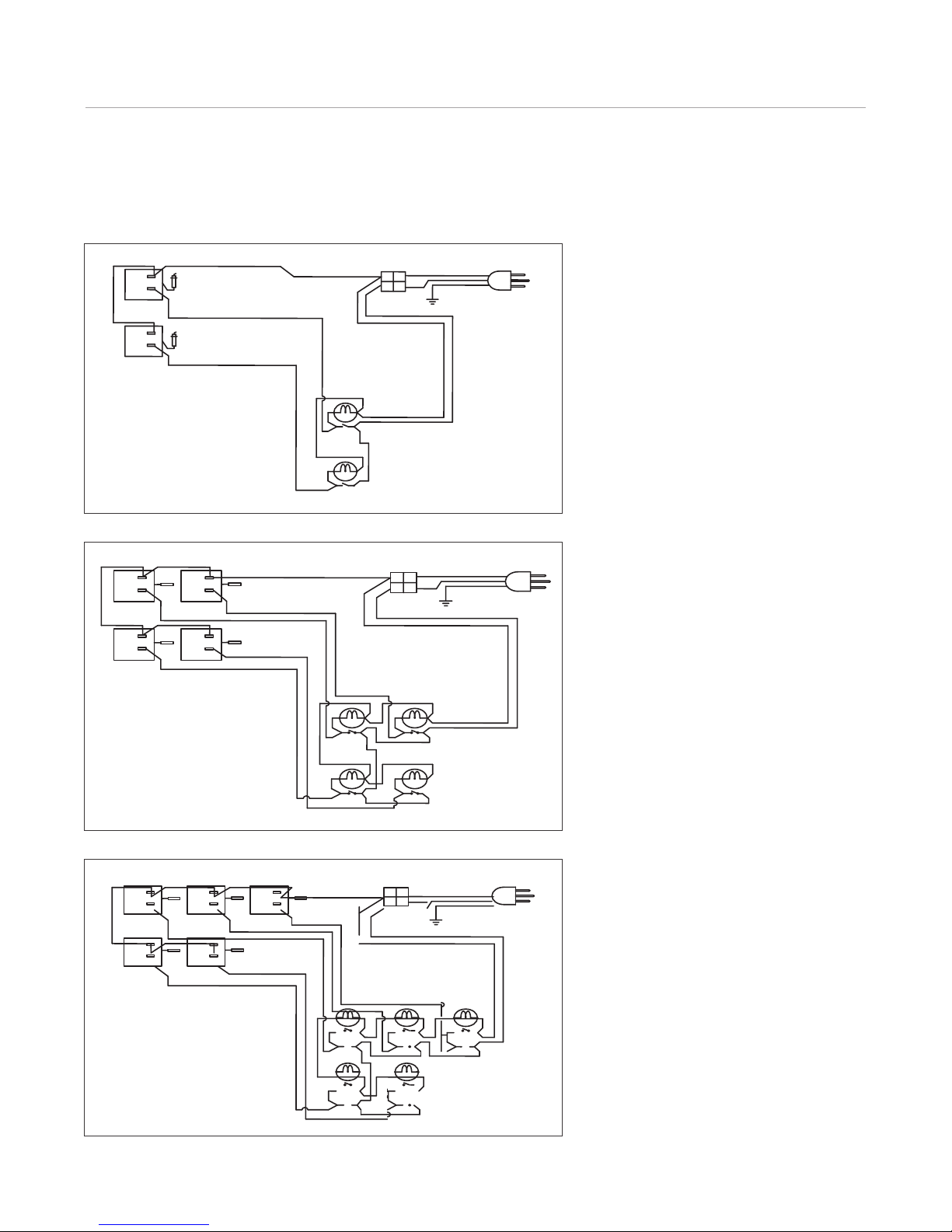

WIRI G DIAGRAM
A wiring diagram covering the control circuit for each gas
cooktop model can be found on the following page.
GROUNDING
PLUG
GROUNDED
ELECTRICAL OUTLET
Electrical ground.
ELECTRICAL SHOCK HAZARD: Plug into a grounded
3-prong outlet. Do not remove ground prong. Do not
use an adapter. Failure to follow these instructions can
result in electric shock, fire or death.

Gas Cooktop Installation 12
N
A
A
N
11
2
2
FSP
ARK
MODULE
RSP
ARK
MODULE
WHITEWHITE
BLK
GRN
RED
RED
BLACK
WHITE
WHITE
REAR
FRONT
WHITE
WHITE
BLK
3 CONDUCTOR
POWERCORD
Model CT15G
N
AA
N
A
N
A
N
11
2
2
RFSPARK
MODULE
LF SPARK
MODULE
LR SPARK
MODULE
RRSPARK
MODULE
WHITE WHITE
GRN
RED
RED
RED
RED
RED
BLACK
WHITE
WHITE
WHITE
LEFT
REAR
RIGHT
REAR
RIGHT
FRONT
LEFT
FRONT
BLK
WHITE
WHITE WHITE
BLK
BLK
BLK
BLK
3CONDUCTOR
POWERCORD
BLK
RED
RED
RED
IGN
IGN
IGN
IGN
N
AA
N
A
N
A
N
A
N
11
2
2
CEN
REAR
CF SPARK
MODULE
LF SPARK
MODULE
LR SPARK
MODULE
CRSPARK
MODULE
WHITE WHITE
GRN
RED
RED
RED
RED
RED
BLACK
WHITE
WHITE
WHITE
LEFT
REAR
RIGHT
REAR
CEN
FRONT
LEFT
FRONT
RRSPARK
MODULE
BLK
WHITE
WHITE
WHITE WHITE
BLK
BLK
BLK
BLK
3CONDUCTOR
POWERCORD
BLK
RED
RED
RED
RED
RED
IGN
IGN
IGN
IGN
IGN
Model CT30G
Model CT36G
Wiring Diagram

Gas Cooktop Installation 13
wolfappliance.com/specs
Install the Cooktop
Remove the cooktop, gas pressure regulator, burner
grates and burner caps from the shipping package.
Lower the cooktop into the countertop cut-out opening.
Center the cooktop in the opening and check that the
front edge of cooktop is parallel to the front edge of the
countertop. Check that all required clearances are met.
Using a pencil, outline the rear edge of the cooktop frame
on the countertop. Remove the cooktop from the counter-
top opening.
IMPORTA T OTE: When repositioning the cooktop in the
countertop opening, lift the entire cooktop up from the
opening to prevent scratching the countertop.
Apply the foam strip, included in the hardware package,
to the underside of the cooktop frame. Refer to the illus-
tration below.
Reinsert the cooktop into the countertop opening. Align
the rear edge of the cooktop frame with the pencil line and
check that it is parallel to the front edge of the countertop.
Lift the entire cooktop to make adjustments.
Attach the brackets to the bottom of the unit. Insert the
31/2" (89) clamping screws into the brackets. Use a screw-
driver to tighten the clamping screws against the under-
side of the countertop. Refer to the illustration below. Do
not overtighten screws.
IMPORTA T OTE: Do not seal the cooktop to the coun-
tertop. It must be removed if service is necessary.
GAS PRESSURE REGULATOR
Install the gas pressure regulator with the arrow on the
regulator pointing up toward the unit and in a position
where you can reach the access cap. Refer to the illustra-
tion below.
IMPORTA T OTE: All connections must be wrench-tight-
ened. Do not make connections to the regulator too tight,
as this may crack the regulator and cause a gas leak. Do
not allow the regulator to turn on the pipe when tightening
fittings.
FOAM
STRIP
COOKTOP
BURNER BOX
Foam strip. Bracket.
COUNTERTOP
COOKTOP
CLAMPING
SCREW
BRACKET
COOKTOP
ACCESS
CAP
ARROW
POINTS UP
Gas pressure regulator.

Install the Cooktop
GAS SUPPLY CO ECTIO

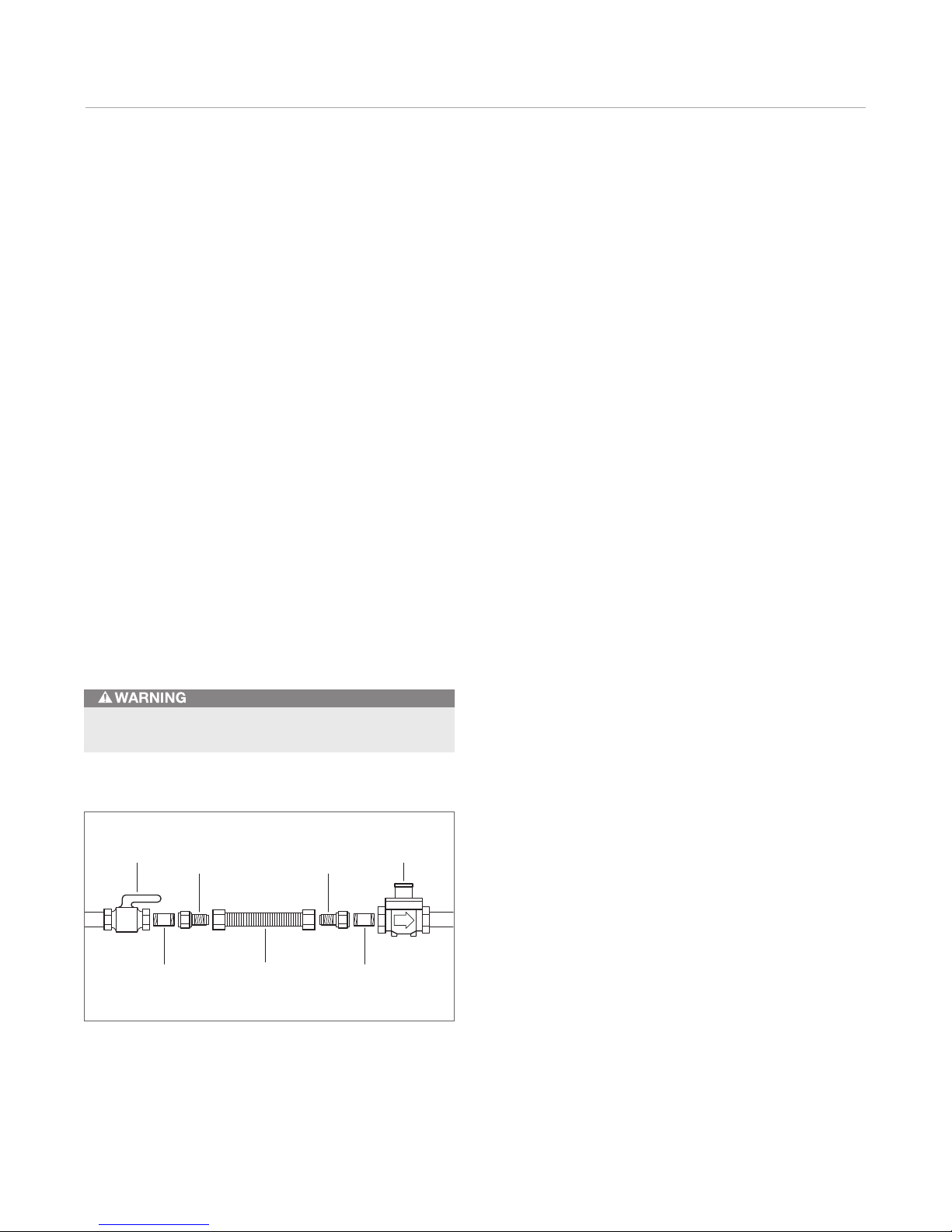

Assemble the flexible metal connector from the gas supply
pipe to the gas pressure regulator. You will need to deter-
mine the fittings required, depending on the size of your
gas supply line, flexible metal connector and shut-off
valve. Refer to the illustration below.
Use a pipe joint compound made for use with natural and
LP gas. If a flexible metal connector is used, be sure the
tubing is not kinked.
Open the shut-off valve in the gas supply line. Wait a few
minutes for the gas to move through the line. Refer to the
illustration on page 10.
GAS LEAK TESTI G
Use a brush and liquid detergent to test all gas connec-
tions for leaks. Bubbles around connections will indicate a
leak. If a leak appears, shut off the gas supply and adjust
connections. Then check connections again. Clean the
detergent solution from the cooktop.
Verify Cooktop Operation
SURFACE BUR ERS
The surface burners use electronic igniters in place of
standing pilots. When the cooktop control knob is pushed
in and turned to the HIGH position, the system creates a
spark to light the burner. This sparking continues until the
electronic ignition senses a flame.
Before lighting, place the burner head and cap on each
burner base and position the burner grates.
To check operation of the surface burners, push in and
turn each control knob to the HIGH position. The flame
should light within four seconds.
If the burners do not light properly, turn each control knob
to the OFF position. Check that burner heads and caps
are in the proper position. Check that the power cord is
plugged in and that the circuit breaker or house fuse has
not blown. Check that the gas shut-off valve is in the open
position. Check operation again, waiting at least five
minutes; if the burners do not light properly, contact a
Wolf authorized service center.
IMPORTA T OTE: Initial lighting of the surface burners
may take slightly longer, as air in the system must be
purged before gas can be supplied to the burner.
ever test for a gas leak with a match or other flame.
FLEXIBLE
METAL CONNECTOR
GAS PRESSURE
REGULATOR
SHUT-OFF
VALVE
NIPPLE
ADAPTERADAPTER
NIPPLE
Gas supply connection.
Gas Cooktop Installation 14

Service Information 15
Troubleshooting
IMPORTA T OTE: If the gas cooktop does not operate
properly, follow these troubleshooting steps:
•Verify that power is being supplied to the cooktop.
•Check the gas supply and electrical connections to
ensure that the installation has been completed
correctly.
•Check that the gas supply shut-off valve is in the open
position.
•Check polarity of the electrical outlet if excessive
igniter clicking occurs immediately after installation.
•Follow troubleshooting procedures outlined in the
Wolf gas cooktops use & care guide.
•If the cooktop still does not operate properly, contact a
Wolf authorized service center. Do not attempt to repair
the cooktop yourself. Wolf is not responsible for
service required to correct a faulty installation.
Service Information
If service is necessary, maintain the quality built into your
gas cooktop by calling a Wolf authorized service center.
To obtain the name and number of a Wolf authorized
service center, check the contact & support section of our
website, wolfappliance.com or call Wolf customer service
at 800-332-9513.
When calling for service, you will need the model and
serial numbers of the gas cooktop. Both numbers are
listed on the product rating plate, located on the under-
side of the cooktop. Refer to the illustration below.
wolfappliance.com/specs
The information and images in this guide are the copyright property of Wolf Appliance, Inc. Neither this guide nor any information or images contained herein
may be copied or used in whole or in part without the express written permission of Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living itchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
Location of rating plate.
RATING PLATE

WOLF APPLIA CE, I C. P. O. BOX 44848 MADISO , WI 53744 WOLFAPPLIA CE.COM 800.332.9513
814990 REV-A 5/2010
