Wolf CG365C/S Guide

Wolf New Generation Design Guide
REVISED 2/2016

12 | Wolf Customer Care 800.222.7820

wolfappliance.com | 13
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION

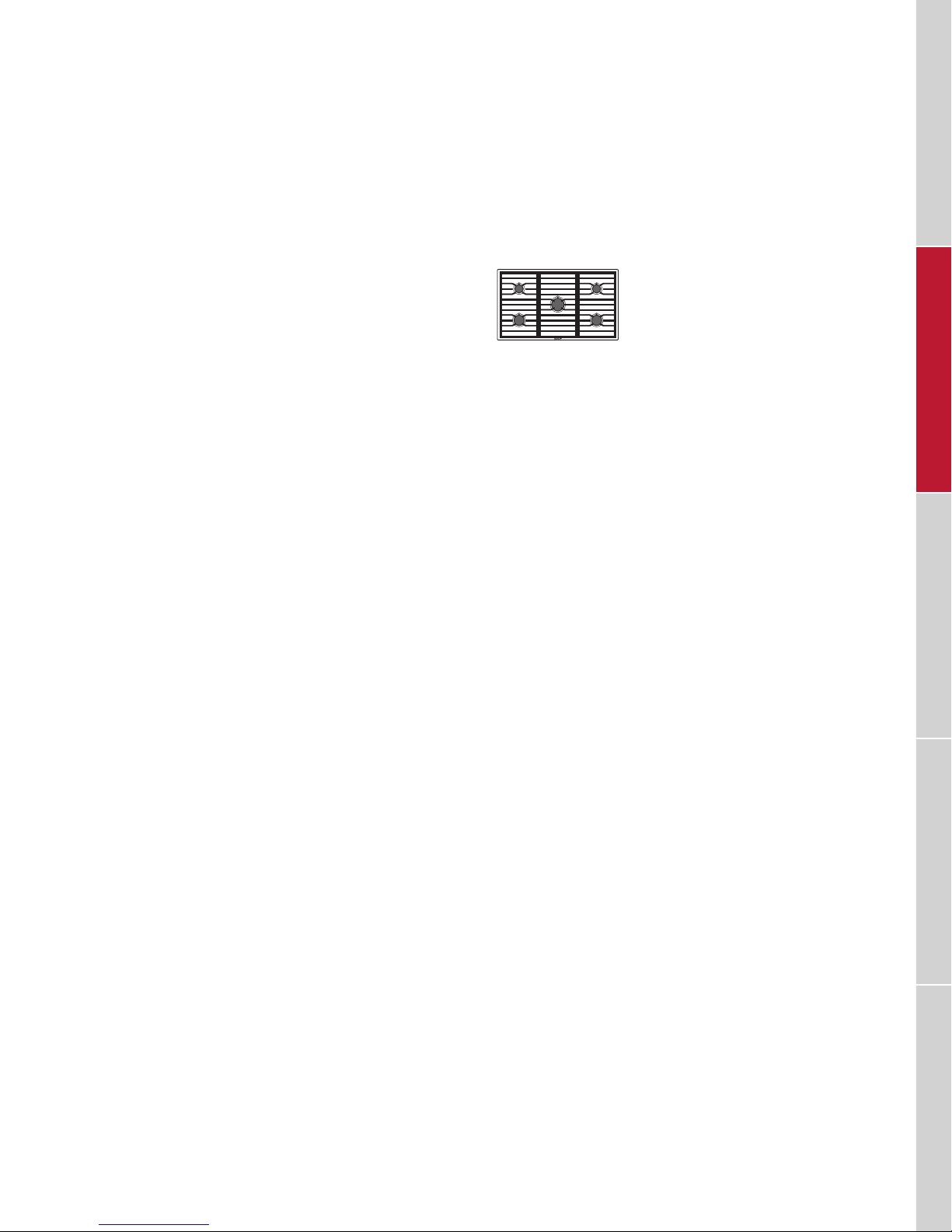

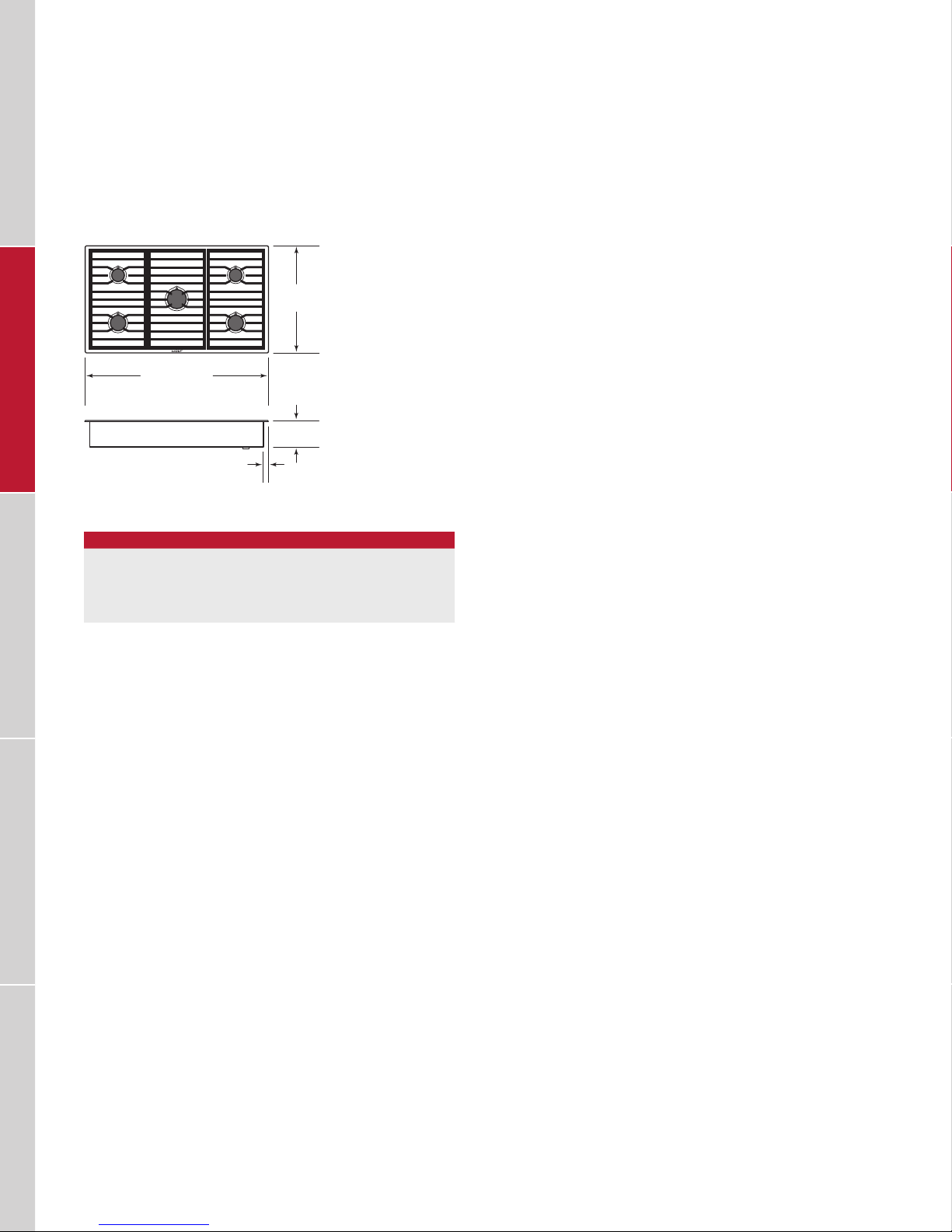

GAS COOKTOP

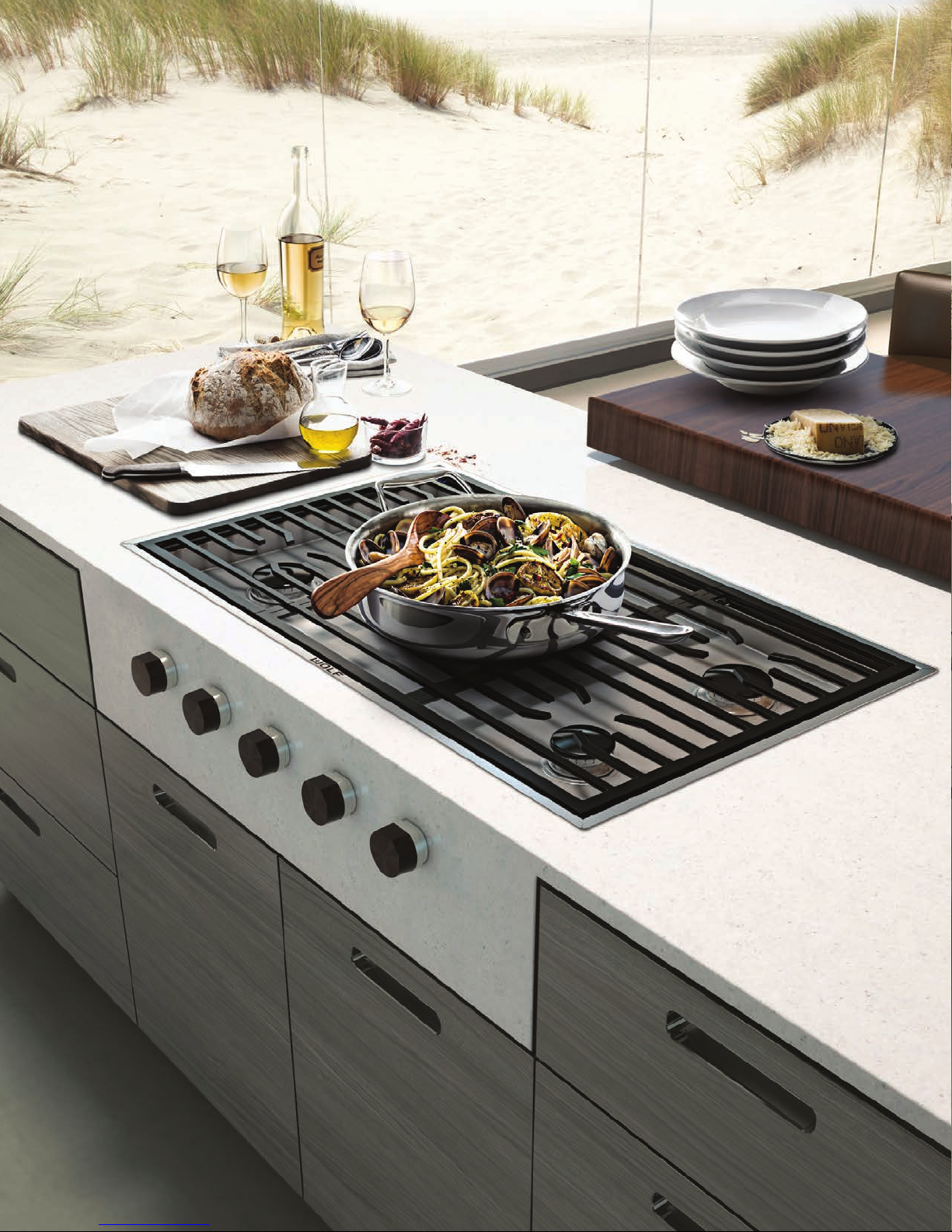

Gas Cooktop
The new generation of Wolf gas cooktops now offers a
36" contemporary gas cooktop. The cooking surface ts
ush to the countertop for a striking, low-prole look. Front-
mounted controls integrate directly into cabinetry below.
With a choice of knob colors, the new contemporary gas
cooktop offers exceptional design exibility. Performance
enhancements make delicious results even more of a
certainty than ever.
CG365C/S
GAS COOKTOP
CONTEMPORARY

14 | Wolf Customer Care 800.222.7820
GAS COOKTOP
Gas Cooktop
36" CONTEMPORARY
3515/16" (913)
2015/16"
(532)
7/8"
(22)
63/4" (171)
VENTILATION OUTDOOR GRILLS RANGES / RANGETOPS COOKTOPS / COFFEE BUILT-IN OVENS
BURNER RATING—Btu (kW)
36" CONTEMPORARY SIM HI
20K Burner 300 (.1) 20,000 (5.9)
12K Burner (2) 300 (.1) 12,000 (3.5)
9.2K Burner (2) 300 (.1) 9,200 (2.7)

wolfappliance.com | 15
GAS COOKTOP
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION
Planning Information
A minimum 2" (51) is required from the bottom of the
cooktop to combustible materials. If the cooktop is installed
above an oven, a minimum of 1/4"(6) is required between
units.
For the contemporary gas cooktop, the countertop must
be able to sustain temperatures up to 300°F (149°C). Wolf
downdraft systems cannot be used with the contemporary
gas cooktop.
Control knobs for the contemporary gas cooktop are
designed to be mounted on the front face of cabinetry
below the unit. Mounting holes must be drilled through the
cabinet face. Refer to the illustration on the following page
for hole location.
ELECTRICAL
Installation must comply with all applicable electrical codes.
Locate the electrical supply as shown in the illustration
on the following page. A separate circuit, servicing only
this appliance is required. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of
operation.
ELECTRICAL REQUIREMENTS
Electrical Supply grounded, 120 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
Power Cord 6' (1.8 m)
GAS SUPPLY
Installation must conform with all applicable gas codes.
A gas supply line of 3/4"(19) rigid pipe must be provided to
the cooktop. If local codes permit, a certied, 3' (.9 m) long,
1/2"(13) or 3/4"(19) ID exible metal appliance connector is
recommended to connect the units 1/2" NPT male inlet to
the gas supply line.
Wolf natural gas cooktops will function up to 10,250'
(3124 m) in altitude without adjustment and LP gas cooktops
will function up to 8,600' (2621 m). If the installation exceeds
these elevations, contact an authorized Wolf dealer for a
high altitude conversion kit.
GAS REQUIREMENTS
NATURAL GAS WC
Supply Pressure 5" (12.5 mb)
Min Line Pressure 7" (17.5 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)
LP GAS WC
Supply Pressure 10" (25 mb)
Min Line Pressure 11" (27.4 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)

16 | Wolf Customer Care 800.222.7820
GAS COOKTOP
VENTILATION OUTDOOR GRILLS RANGES / RANGETOPS COOKTOPS / COFFEE BUILT-IN OVENS

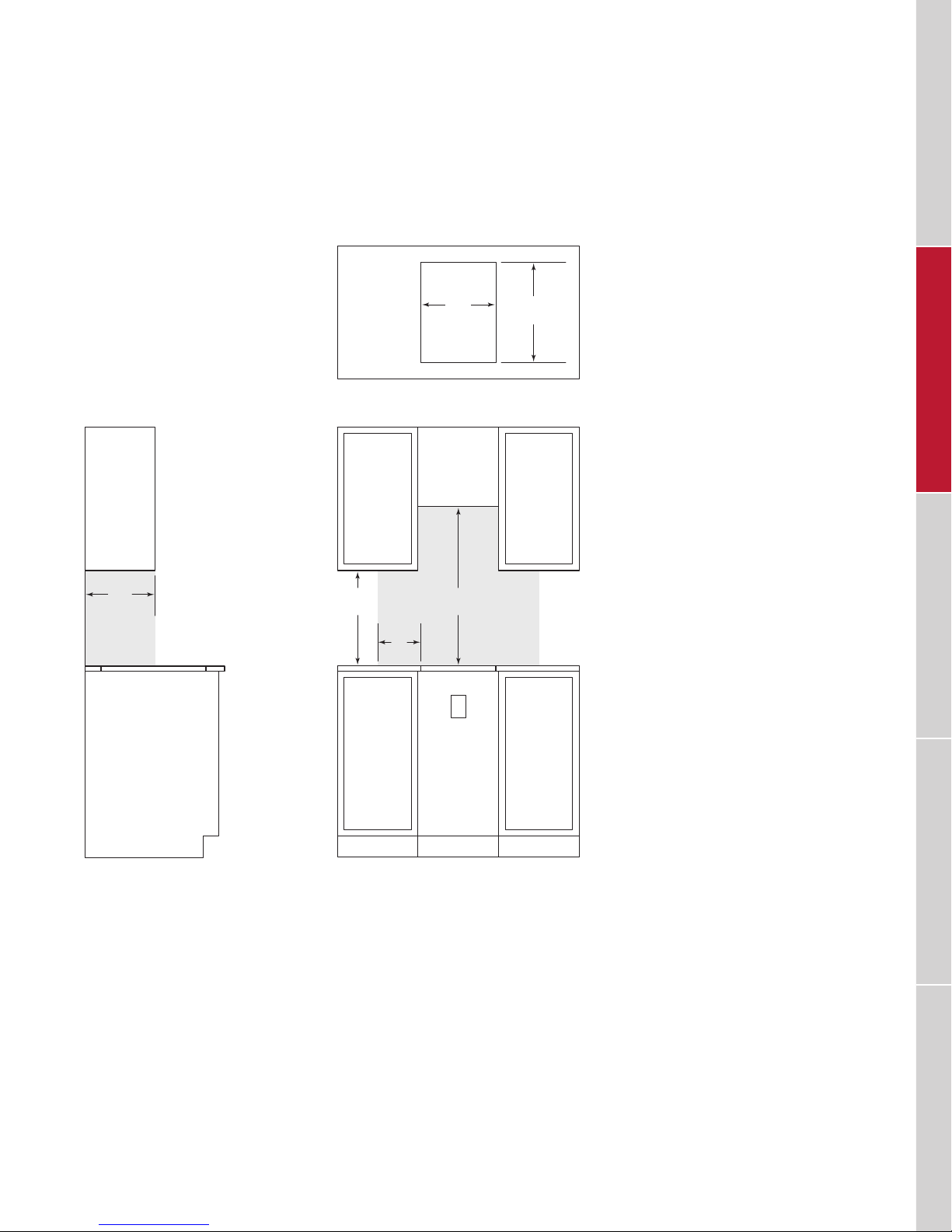

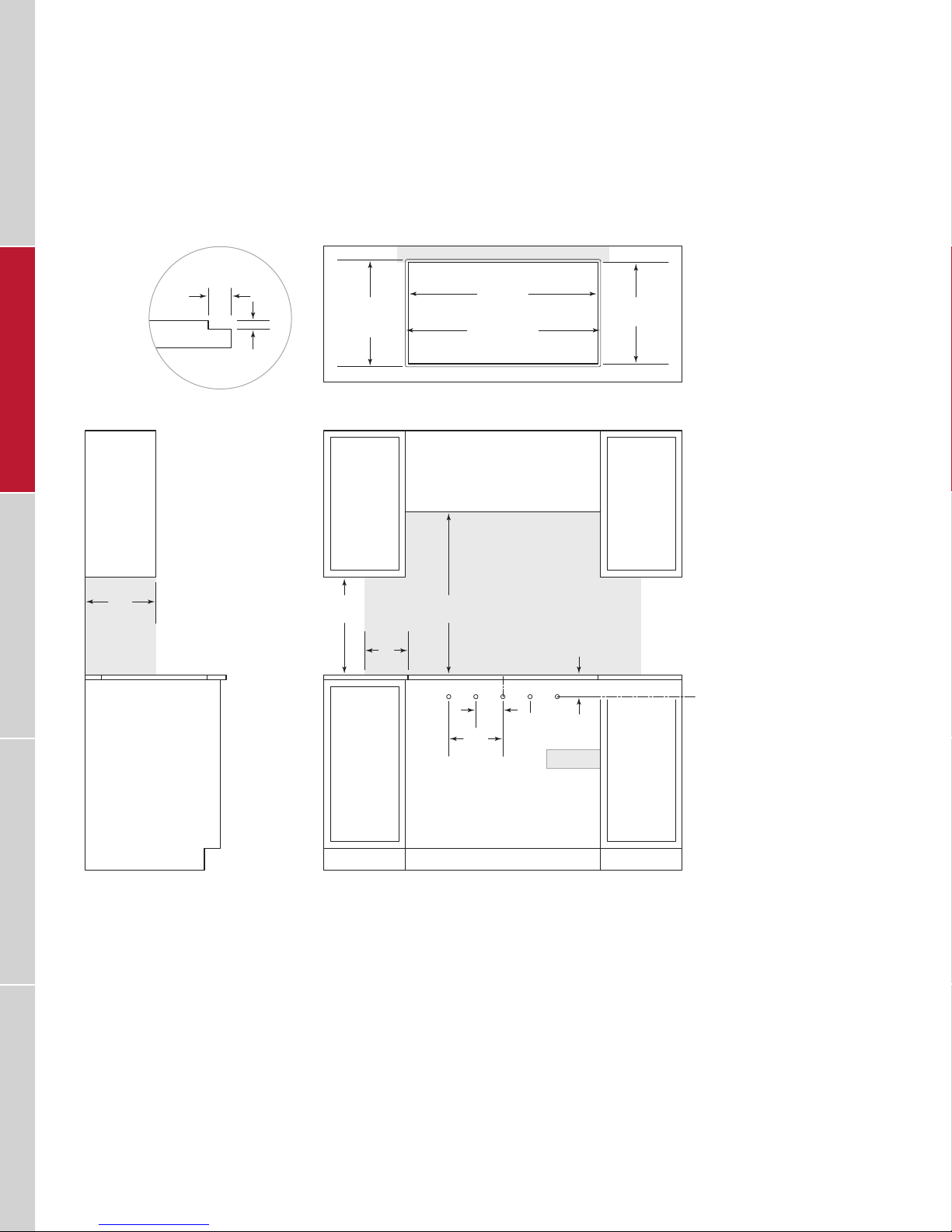

36" Contemporary Gas Cooktop
FLUSH INSTALLATION
FRONT VIEW
SIDE
VIEW
NOTE:
Shaded area above countertop indicates minimum clearance to combustible surfaces,
combus
tible materials cannot be located within this area.
Ma
ximum facade thickness 1" (25).
Outsid
e corner radius 3/8"(10).
30"
(762)
13"
(330)
18"
(457)
9"
(229)
E G
36" (914) MIN
RECESS
21"
(533) MIN
RECESS
35" (889)
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
20"
(508)
21/2" (64)
5/64" (2)
1/2"
(13) MAX
COUNTERTOP
PROFILE
5"
(127)
C
L
10"
(254)
11/4" (32)
DIAMETER
4" (102) C
L
3" (76) MIN –5"(127) MAX

wolfappliance.com | 17
GAS COOKTOP
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION

wolfappliance.com | 19

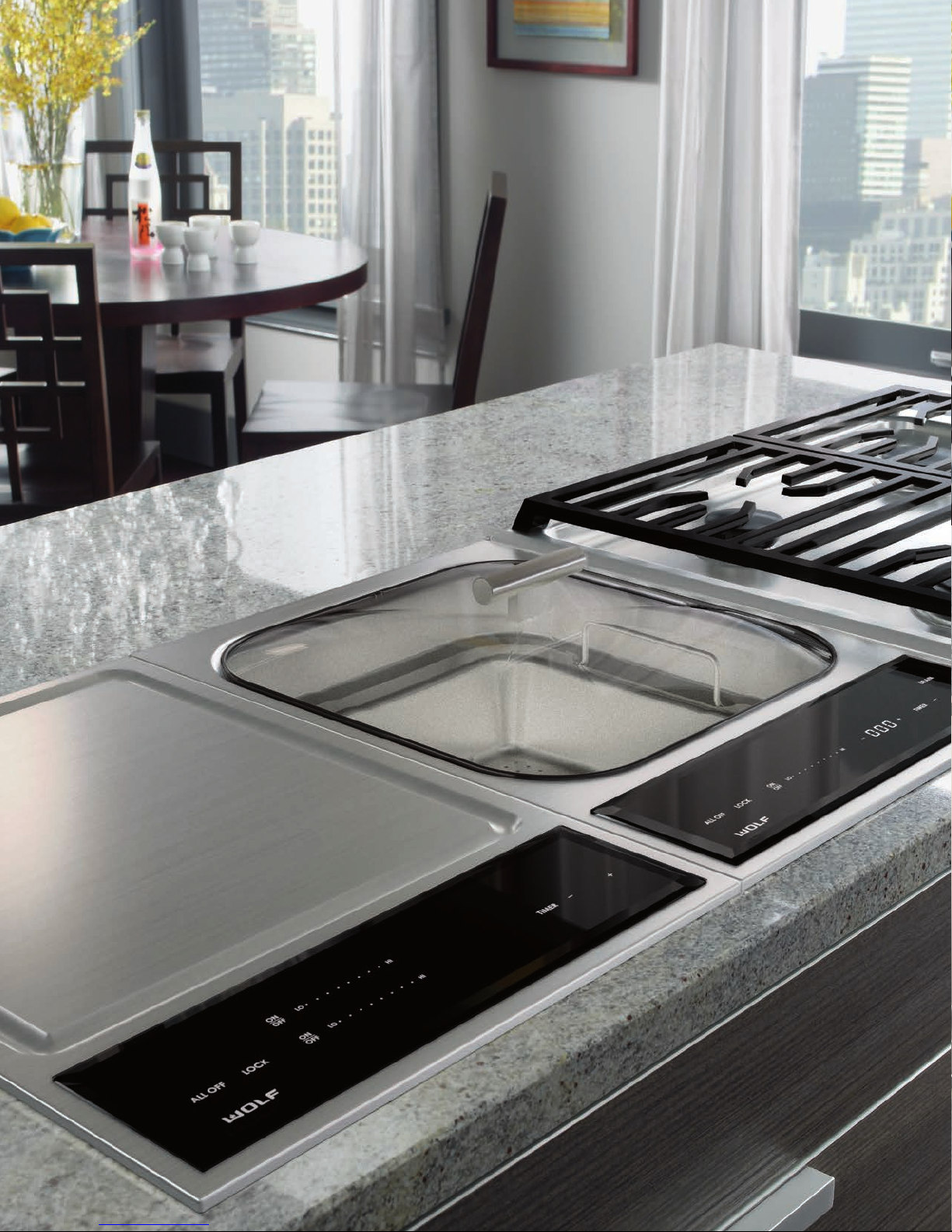

INTEGRATED MODULES
Integrated Modules
Wolf integrated modules have been redesigned to match
the updated lines of Sub-Zero and Wolf. Controls, grates
and trim allow them to integrate perfectly with their larger
counterparts and deliver equal performance.
INTEGRATED MODULES
GM15/S
Grill
FM15/S
Fryer
SM15/S
Steamer
TM15/S
Teppanyaki
MM15/S
Multifunction
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION

20 | Wolf Customer Care 800.222.7820
15"
(381)
21"
(533)
83/4"
(222)
7/8"
(22)
4"
(102)
DRAIN
OUTLET
15"
(381)
21"
(533)
7/8"
(22)
3" (76)
15"
(381)
21"
(533)
83/4"
(222)
7/8"
(22)
4"
(102)
DRAIN
OUTLET
Integrated Modules
STEAMER FRYER GRILL
INTEGRATED MODULES
TEPPANYAKI
VENTILATION OUTDOOR GRILLS RANGES / RANGETOPS COOKTOPS / COFFEE BUILT-IN OVENS
BURNER RATING—Btu (kW)
MULTIFUNCTION MAX
Burner 22,000 (6.5)
15"
(381)
21"
(533)
7/8"
(22)
5" (127)
MULTIFUNCTION
15"
(381)
21"
(533)
7/8"
(22)
61/2"
(165)

wolfappliance.com | 21
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION
Planning Information
A minimum 2" (51) is required from the bottom of the module
to combustible materials.
ELECTRICAL
Installation must comply with all applicable electrical codes.
Locate the electrical supply as shown in the illustrations on
the following pages. A separate circuit, servicing only this
appliance is required.
When multiple cooktops or modules are installed side by
side, each must have its own separate electrical supply.
ELECTRICAL REQUIREMENTS
ELECTRIC MODULES
Electrical Supply grounded 3-wire, 240/208 VAC, 60 Hz
Steamer 15 amp dedicated circuit
Fryer, Grill, Teppanyaki 20 amp dedicated circuit
Conduit exible 4' (1.2 m)
GAS MULTIFUNCTION
Electrical Supply grounded, 120 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
Power Cord 6' (1.8 m)
INTEGRATED MODULES
DRAIN OUTLET
Steamer and fryer modules require a method for draining
hot water and oil. For the steamer module, options include
connecting a drain hose from the 5/8"(16) outlet tied into
an existing drain, a separate drain with freefall or placing a
heat-resistant receptacle under the drain outlet. For the fryer
module, the drain outlet must be accessible to drain oil into
a heat-resistant receptacle.

22 | Wolf Customer Care 800.222.7820
VENTILATION OUTDOOR GRILLS RANGES / RANGETOPS COOKTOPS / COFFEE BUILT-IN OVENS
GAS REQUIREMENTS
NATURAL GAS WC
Supply Pressure 5" (12.5 mb)
Min Line Pressure 7" (17.5 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)
LP GAS WC
Supply Pressure 10" (25 mb)
Min Line Pressure 11" (27.4 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)
Planning Information
GAS SUPPLY
Installation must conform with all applicable gas codes.
A gas supply line of 3/4"(19) rigid pipe must be provided
to the gas multifunction cooktop. If local codes permit, a
certied, 3' (.9 m) long, 1/2"(13) or 3/4"(19) ID exible metal
appliance connector is recommended to connect the units
1/2" NPT male inlet to the gas supply line.
When multiple gas cooktops or modules are installed side
by side, they can receive their gas supply from a common
line. However, each unit must have its own regulator
installed between the mainline and the cooktop or module.
Wolf natural gas cooktops will function up to 10,250'
(3124 m) in altitude without adjustment and LP gas cooktops
will function up to 8,600' (2621 m). If the installation exceeds
these elevations, contact an authorized Wolf dealer for a
high altitude conversion kit.
INTEGRATED MODULES

wolfappliance.com | 23
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION
INTEGRATED MODULES
Steamer Module
STANDARD INSTALLATION
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
13"
(330)
18"
(457)
7"
(178)
E
30"
(762)
75/8"
(194)
6"
(152)
123/8"
(314)
DRAIN
OUTLET
191/2"
(495)
21/2" (64) min
21/2" (64) min
14"
(356)
WARNING
The steamer module must be installed at least 15" (381)
from a fryer module.

24 | Wolf Customer Care 800.222.7820
VENTILATION OUTDOOR GRILLS RANGES / RANGETOPS COOKTOPS / COFFEE BUILT-IN OVENS
INTEGRATED MODULES
FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
13"
(330)
18"
(457)
7"
(178)
E
30"
(762)
75/8"
(194)
6"
(152)
123/8"
(314)
DRAIN
OUTLET
191/2"
(495)
21/2" (64) min
21/2" (64) min
14"
(356)
Fryer Module
STANDARD INSTALLATION
WARNING
The fryer module must be installed at least 15" (381)
from any open-ame cooking device or a steamer
module.

wolfappliance.com | 25
BUILT-IN OVENS COOKTOPS / COFFEE RANGES / RANGETOPS OUTDOOR GRILLS VENTILATION
INTEGRATED MODULES
Grill and Teppanyaki Modules
STANDARD INSTALLATION
191/2"
(495)
21/2" (64) min
21/2" (64) min
FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
13"
(330)
18"
(457)
7"
(178)
30"
(762)
E
14"
(356)

26 | Wolf Customer Care 800.222.7820
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero,
Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
VENTILATION OUTDOOR GRILLS RANGES / RANGETOPS COOKTOPS / COFFEE BUILT-IN OVENS
INTEGRATED MODULES

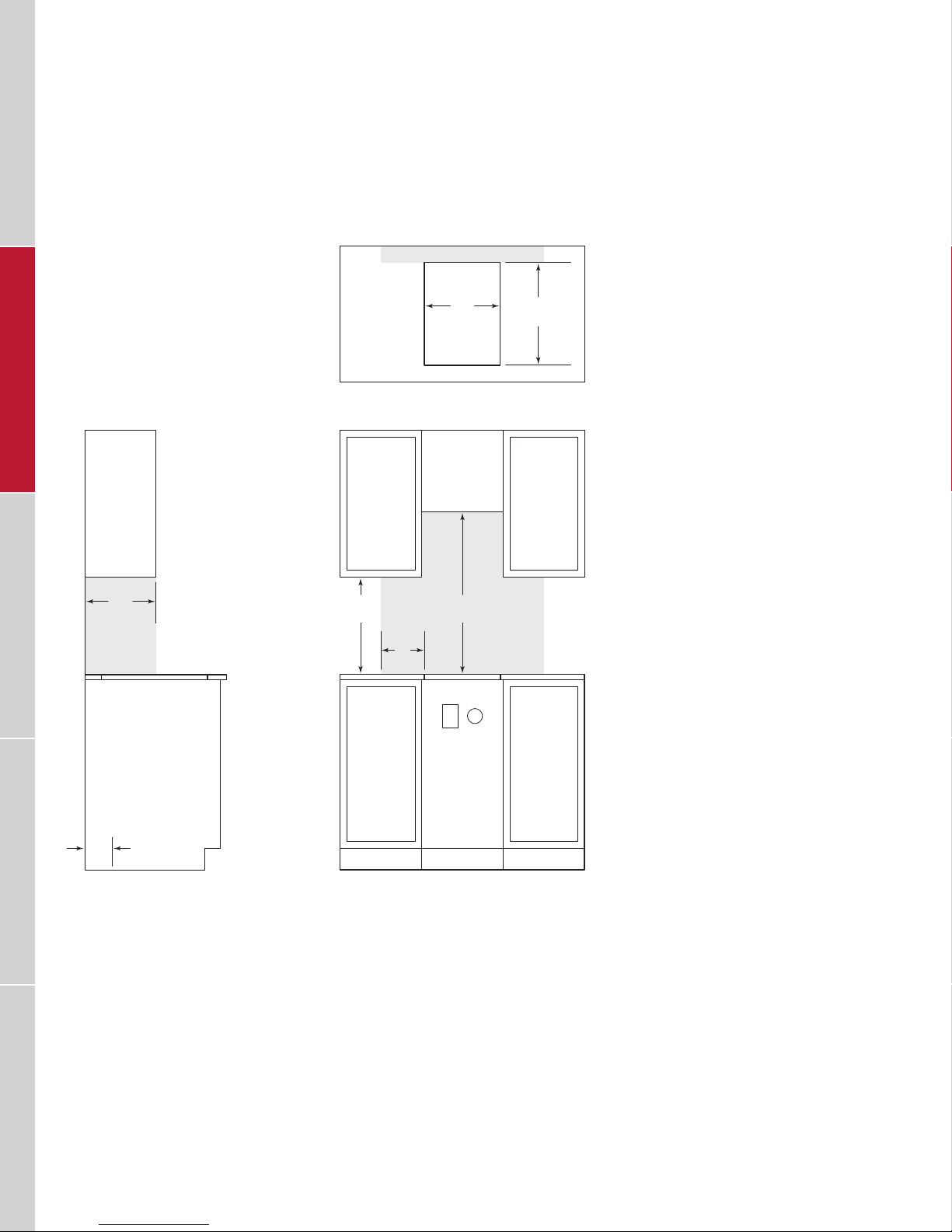

Multifunction Cooktop
STANDARD INSTALLATION
FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
13"
(330)
18"
(457)
7"
(178)
E G
5"
(127)
ELECTRICAL
AND GAS FLOOR
LOCATION
30"
(762)
14"
(356)
191/2"
(495)
21/2" (64)
21/2" (64)

Wolf Appliance Residential Limited Warranty
FOR RESIDENTIAL USE
FULL TWO YEAR WARRANTY*
For two years from the date of original installation, this Wolf Appliance product warranty covers all parts
and labor to repair or replace, under normal residential use, any part of the product that proves to be
defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty
must be performed by Wolf factory certied service, unless otherwise specied by Wolf Appliance, Inc.
Service will be provided during normal business hours.
LIMITED FIVE YEAR WARRANTY
For ve years from the date of original installation, Wolf Appliance will repair or replace the following
parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric
heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and
induction generators. If the owner uses Wolf factory certied service, the service provider will repair or
replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certi-
ed service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired
or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certied
service or other sources.
TERMS APPLICABLE TO EACH WARRANTY
The warranty applies only to products installed for normal residential use. The warranty applies only to
products installed in any one of the fty states of the United States, the District of Columbia or the ten
provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by
negligence, accident or improper use, maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE,
INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION
OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDEN-
TAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER
EXPRESS, IMPLIED OR STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may also
have other legal rights that vary from state to state.
To receive parts and/or service and the name of Wolf factory certied service nearest you, contact Wolf
Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the contact & support section of our website,
wolfappliance.com, email us at [email protected] or call 800-222-7820.
*Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited
60-day parts and labor warranty for cosmetic defects.
*Replacement lters for ventilation hood recirculating kits are not covered by the product warranty.

WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
