WolfPack DELTA 25 User manual

Safety Guide
This book has important information for use and safe operation of this machine. Failure to read this book
prior to operating or attempting any service or maintenance procedure to your concrete Grinder could
result in injury to you or other personnel, damage to the machine or to other property could occur
as well. You must have training in the operation of this machine before using it.
1.1 One operator, one machine. Attention- children and unauthorized personnel are not permitted in the vicinity of the
the machine while working.
1.2 This machine is only used for floor surface grinding and polishing.
1.3 Do Not start the machine when control panel shows "operation mode”or grinding plate does not touch the ground.
1.4 The machine adjusting bar has locking function in different positions, show by picture in this manual.
1.5 Make sure the machine has stopped running and emergency stop button is locked, when changing abrasives or
accessories. Should it be necessary, pull out the power or plug.
1.6 All necessary protective equipment, such as a hard hat, shoes, ear protection, safety glasses and face mask, must be
worn when operating machines.
1.7 Do no operate machine in the presence of explosive materials such as fuel, grains, solvent, thinners or other flammable
materials.
1.8 All electrical maintenance to be done by certified electrician only.
Note: Cut off all power supply before maintenance on machine.
1.9 Do not operate the machine when distribution box is opening.
1.10 Keep machine wire away from high temperature.
1.11 Keep electric equipment of the machine dry, and machine should be stored in a dry place.
Model Specifications
Voltage...................................................................220/240V 3 or 1 Phase
Motor Power..........................................................7.5HP(5.5kw)
Inverter Power.......................................................10HP(7.5kw)
HZ...........................................................................50/60HZ
AMP........................................................................19A
Rotating Speed.......................................................300-1800RPM
Water Tank............................................................. 7gal
Width......................................................................25''
Weight...................................................................440 lbs
1 Additional Weight.............................................. 66 lbs
3 Head
Page 1
www.wolfpackequipment.com [phone]
Holds 9 tools

Machine Instructions
Page 2

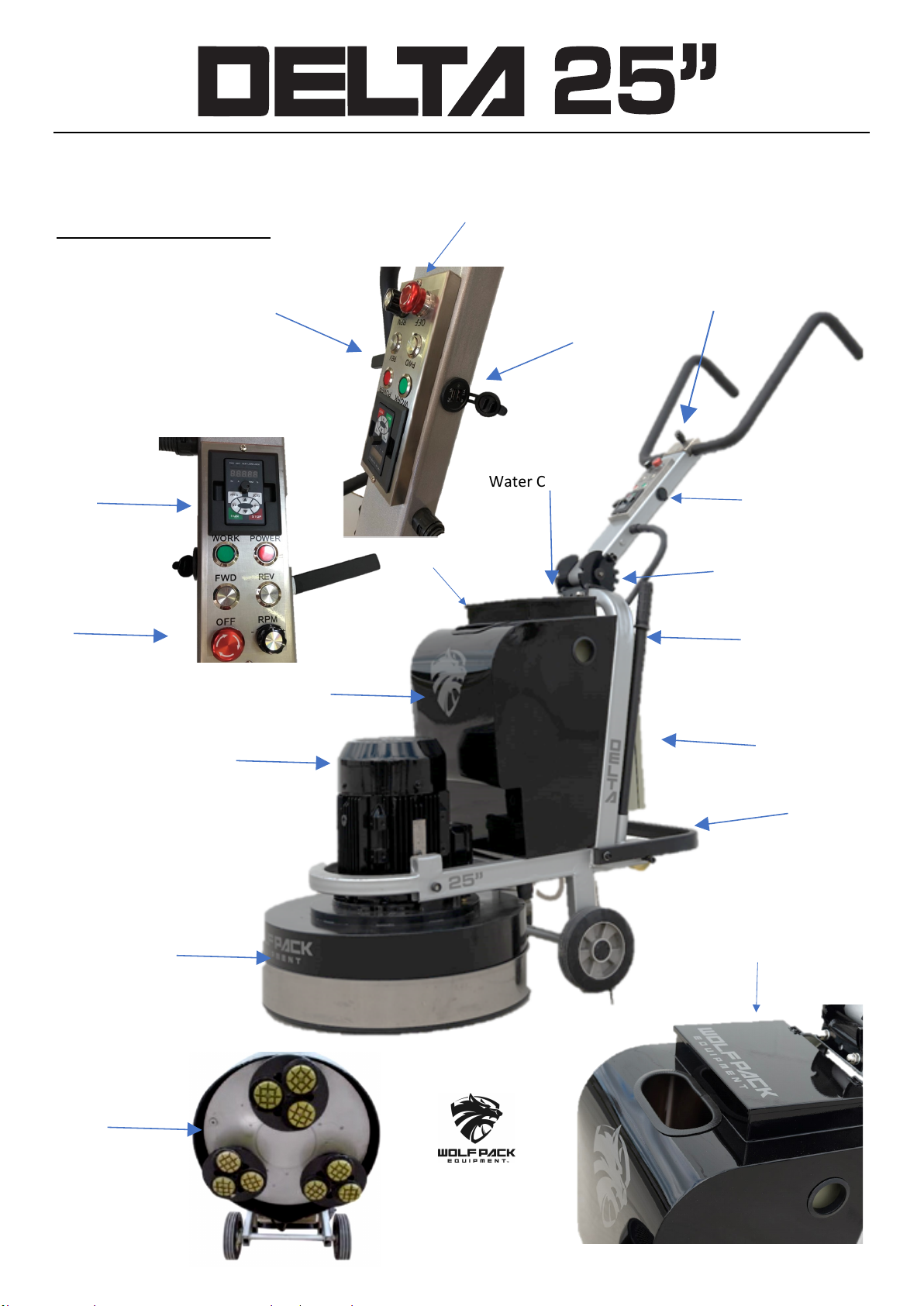

Parameter
Setting Area
Handle Adjustment latch
Water Controller
Hand Adjustment Pin
Water Tank
Carry Pole
Control Panel
www.wolfpackequipment.com [phone]
Tool Box
Tool Box
Motor
Pedal
USB
USB
Inverter Box
Gear Box
Oil Drain Hole
Emergency Stop
Swing lever Adjustment

Page 3
The standard HD30 Inverter is installed with LED display panel, as shown in Figure below
HD30 series vector control Inverter
Display Pane l keys and detailed function s shown below
Key Name Function
PRG Program/Exit key Entry or exit programming key
JOG Jog key In the mode of display panel control, jog start the Inverter
RUN Run key In the mode of display panel control, press this key to run
the Inverter
STOP Stop/Reset key In the mode of display panel control, to stop the Inverter
and reset fault
MMulti-Function key Set certain function by F00.12
Increase key Increase value or parameter
Decrease key Decrease value or parameter
SHF shift key Selecting display parameter and shift
E
NT enter/Confirm key Enter lower menu or confirm saving the data
Inverter Programming
www.wolfpackequipment.com [phone]

Operating Instructions
This book has important information for use and safe operation of this machine. Failure to read this book
prior to operating or attempting any service or maintenance procedure to your concrete Grinder could
result in injury to you or other personnel, damage to the machine or to other property could occur
as well. You must have training in the operation of this machine before using it.
1.12 Must be connected with electric GFCI and Ground.
1.13 Cables/Wire must not be damaged
1.14 Adjust the height of the operating handle so that the machine can be pulled down to the best state. Pull the handle
down and raise the whole base.
1.15 Make sure all fastening bolts are tight, and the gaps of the discs are even.
1.16 The bottom of the machine is magnetic, only need to adsorb the diamond tool or the adapter that absorbs the
adhesive resin grinding disc.
1.17 Check whether the indicator light ( on the back) is on after power-on, and the panel parameters are displayed
normally.
1.18 If dry grinding, please connect the vacuum cleaner and connect to the suction port to ensure that the suction pipe
has no air leakage. If wet grinding, be sure to full fill the floor with water. Do not only wet the floor in order to reduce
dust, so that the resistance during the flooding process is abnormal and the motor load is overloaded.
1.19 Turn on the start switch and run from low speed to high speed to see if the machine is running smoothly. The speed
is adjusted according to the ground conditions, and the general condition is 300-1500 rpm.
2.0 Do Not polish at low speed, especially on extremely poor ground. Low speed may not work,thus causing the motor to
overheat and burn out.
2.1 Start the machine with FWD/REV
2.2 Slowly rotate the speed control knob to adjust to the required construction speed and enter the normal grinding state.
2.3 If you encounter an emergency, immediately press the red brake button and the machine will stop working
immediately.
2.4 After the grinding is finished, unplug the power plug after the machine is stopped.
2.5 When starting and stopping work, the operator must protect the machine and keep moving the machine at a constant
speed, to prevent damaging grinding discs and burning the floor.
2.6 Avoid protrusions on the ground, such as steel bars
Page 4
www.wolfpackequipment.com [phone]

Page 5
www.wolfpackequipment.com [phone]
Maintenance
2.7 After each working day, you should do cleaning and maintenance.
2.8 Remove the mud and dust on the machine, especially the grinding disc. Use an air gun or water gun to flush the
bottom. Do Not flush the electrical parts with the water gun.
2.9 For 6 months of continuous or intermittent use, the gear oil 2Liters must be replaced. Check oil weekly.
3.0 Always check the condition of the grinding head and the grinding disc for damages or wear. When a grinding disc
is replaced, it is better to replace all discs at the same time to ensure the quality of the floor.
3.1 Clean water tank every 5-7 days to avoid sediment build up.
3.2 When the machine is not in use, it can be cleaned and stored in a safe dry place.
Moving the machine
3.3 Insert carry poles, adjust handle to horizontal position, and lift machine as shown below
Changing/Attaching tooling
3.4 Tip over the machine using pedal as shown below
Machine must be OFF, not running and emergency stop button locked, when changing abrasives, accessories, or
performing maintenance. Should it be necessary, pull out the power or plug.

Page 6
Trouble Shooting
Inconsistent Scratch on Floor
1. Machine standing still while running, must keep machine moving
while running
2. Grinding method is not correct
3. Using incorrect pads or tools
4. Tools are uneven
5. Incorrect operation, call dealer for technical support
Machine wobbles during operation
1. Check ground level for level difference.
a.If level difference is serious (2mm above), first repair with the angle grinder machine
b.b. Then, grind slowly from higher level to lower level with constant speed and shape moving
2. Make sure pad holders are tight
3. Make sure all pads are the same
4. Make sure pads are on same level
5. Adjust connector between machine frame and machine base, keep the pad holders and wheels
in the same level
Machine suddenly STOPS running (Over current protection)
1. Tap the STOP button, then after 5 seconds tap the RUN button to restart. Gently press the
handle when restarting to make sure pad holder has small friction which will
restart easier.
www.wolfpackequipment.com [phone]
Machine uttered low buzz when turned on and off
1. There is dust in the motor impeller
2. Motor burnt out
Machine has abnormal sound during use
1. Rubber pad is damaged, which causes collision of grinding plate.
Replace with new rubber pads
2. Lack of lubrication. Add lubrication
3. Bearing or drive shaft is damaged and needs replaced.

Trouble Shooting
www.wolfpackequipment.com [phone]
Machine will not run/start
1. Check plug for proper connection-on machine AND at wall outlet
2. Check building circuit breaker
3. The Emergency Stop switch is pressed
4. Look at the Inverter parameters and debug according to the “ERR” instructions below.
ERR 1 Open-phase at input side Open-phase infrequency inverter three phase input power phase
Check three phase input power and wiring
ERR 2 Output grounding Frequency inverter has device grounding short circuit at the output side
Check peripheral device, grounding line, motor insulation
ERR 6 Keyboard communication fault 1-Keyboard wiring fault
2-Keyboard communication component damaged
Check the Keyboard wiring, Ask for technical support
Machine plumbing barrier
1. Water switch is damaged
2. Warping of water pipe. Replace with new pipe
3. Water pipe or water tank has dirt build up and needs cleaned
Poor dust collecting during wet polishing
1. Dust collection tube is damaged and needs replaced
2. Dust cover is damaged or installed improperly which causes lack
of vaccum
