Wood Pellet Products WPPH001.3 User manual

Owner’s manual
WOOD PELLET PATIO HEATER
Model: WPPH001.3
IMPORTANT
Your safety is very important, please read this manual thoroughly before you install, operate and
maintain this heater. Retain this manual for future reference. If you have questions about assembly,
operation, servicing or repair of this heater, please call us directly, we will gladly provide assistance
as required.
Warning: For Outdoor Use Only!
FOR OUTDOOR USE ONLY
This outdoor patio heater
must be used for outdoors
only in a well ventilated area
and not be used in a vehicle
or any enclosed building or
area.
WARNING
Do not store or use
gasoline or other
flammable vapors and
liquids, solid combustibles
in the vicinity of this
appliance. Keep a safe
distance away from the
heater as it is extremely
hot during operation.
The Wood Pellet Patio Heater
by: Wood Pellet Products P.O. Box 761 / Mt. Angel, Oregon 97362

Table of Contents
Important Warnings……………………………………………………… …………2
Introduction………………………………………………………………………….3
Specification………………………………………………………………………...3
Important Safety Precautions…………………………………………….…… .3
Assembly…………………………………………………………………………....4
Unpacking…………………………………………………………..………………4
Installation………………………………………..…………………………….…...4
Operation……………………………………..………………………...……….…5
Storage…………………………………………..……………………….….……...5
Maintenance………………………………………………...…………………….…5
Paint Curing ……………………………………………….………………….….…6
Service and Warranty Information………………………………………….…...6
Warranty Terms……………………………………………………...……………6
IMPORTANT WARNING
+ Warning: For your safety
Fuels used in gas, wood or oil-fired appliances and the products of combustion of such
fuels, contain chemicals known to the State of California to cause cancer, birth
defects and other reproductive harm. California Health & Safety Code Sec.25249.6
+ Warning: For your safety
Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage from hazards of fire, explosion, burn, asphyxiation,
carbon monoxide poisoning. Please be sure you understand all operating the
instructions before operate or service this heater. Read this installation,
operation and maintenance instructions thoroughly before installing or servicing
this equipment.
+ Warning: For your safety
Follow the correct lighting and usage procedures. Handle metal parts with care
to avoid injuries. Never allow children to operate this heater.
+ Warning: For your safety
Do not store or use gasoline or other flammable vapors and liquids, solid combustibles
in the vicinity of this appliance.
+ Warning: For your safety
Maintain a safe distance away from the heater as it is extremely hot during
operation.

Introduction
Thank you for choosing the Wood Pellet Patio Heater. Please take the time to read these instructions and
follow each step carefully for safe operation. Retain this manual for future reference. If you have any question
regarding these instructions or operation of this heater, please contact us directly for assistance.
1-877-553-9900
Specifications
Model No…………………………………………..…………………………………………………WPPH001
Type of Fuel………………………………………………………….1/4” diameter by ½” long wood pellets
Input rating ……………………………………….…………………………………….……..80,000 BTU/HR
Overall Height…………………………………….…………………………………………………. 60 Inches
Reflector Diameter…………………………….……………………………………………………. 20 Inches
Ignition System……………………………….……manually light with a match and alcohol gel firelighter
Electrical connections …………………………………….……………………………………. Non Required
Net Weight………………………………………………………………………………………………. 64 IBS
Important Safety Precautions
To ensure safe use of your outdoor patio heater, you are requested to pay close attention to these
essential safety requirements. This is a wood pellet, direct-vented heater, all of the combustion
products leave the heater from the chimney/smokestack. Byproducts of combustion from this unit
include carbon monoxide. Carbon monoxide is toxic. Carbon Monoxide can build up in a heated
space and failure to provide adequate ventilation could result in death. Always be sure there is plenty
of ventilation when the heater is in use. Always follow the advice about ventilation in these operating
instructions.
FOR OUTDOOR USE ONLY.
DO NOT USE THIS UNIT IN A CLOSED SPACE.
Alert both children and elders to the hazard of high surface temperatures.
Care must be taken for the supervision of children in the vicinity of an operating or hot heater.
Your children and pets should be supervised when they are in area of heater.
�
This outdoor patio heater must be used for outdoors only in a well ventilated area and not be used in
a vehicle or any enclosed building or space.
�Always place the heater on a level stable surface.

Do not move or touch the heater while it is hot or burning.
�Do not alter or modify the heater in any manner
Always keep at least a 36 ‘’ clearance from the stove to any combustible material.
�Do not use the heater if the wind velocity is greater than 10 miles per hour.
�Do not spray aerosols near the heater while in use.
Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
�Do not hang clothing or flammable materials either on or near heater
�Allow 45 minutes for the heater to cool down after use before attempting to move your heater.
�Do not operate a damaged heater.
Never use petroleum based flammable vapors or liquids in or near this heater.
Warning:
When the heater is to be operated in the presence of other people, the owner/purchaser is required to
inform people unfamiliar with the operation of the patio heater of the instructions, and of the hazards
involved of operation. If this heater is used in a commercial or rental installation, it is the responsibility
of the purchaser to check with the local codes for properly acquainting users with the safety
precautions and instructions.
Failure to comply with the precautions and instructions provided with this heater can result in death,
serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation,
or carbon monoxide poisoning. Be sure you understand all operation instructions before attempting to
operate or service this heater.
1. Assembly
Note: Partial assembly has been done for you. The assembly of this heater requires basic mechanical
skills. Proper assembly is the responsibility of the purchaser. All service and repairs should be done
by a qualified person.
Tools required for assembly are:
Phillips Screwdriver / Drill with Philips bit.
Crescent Wrench
1.1 Unpacking
Carefully remove the all parts from the box. The paint on the heater is not fully cured until after you
fire the unit on its initial firing, so use care when handling painted parts.

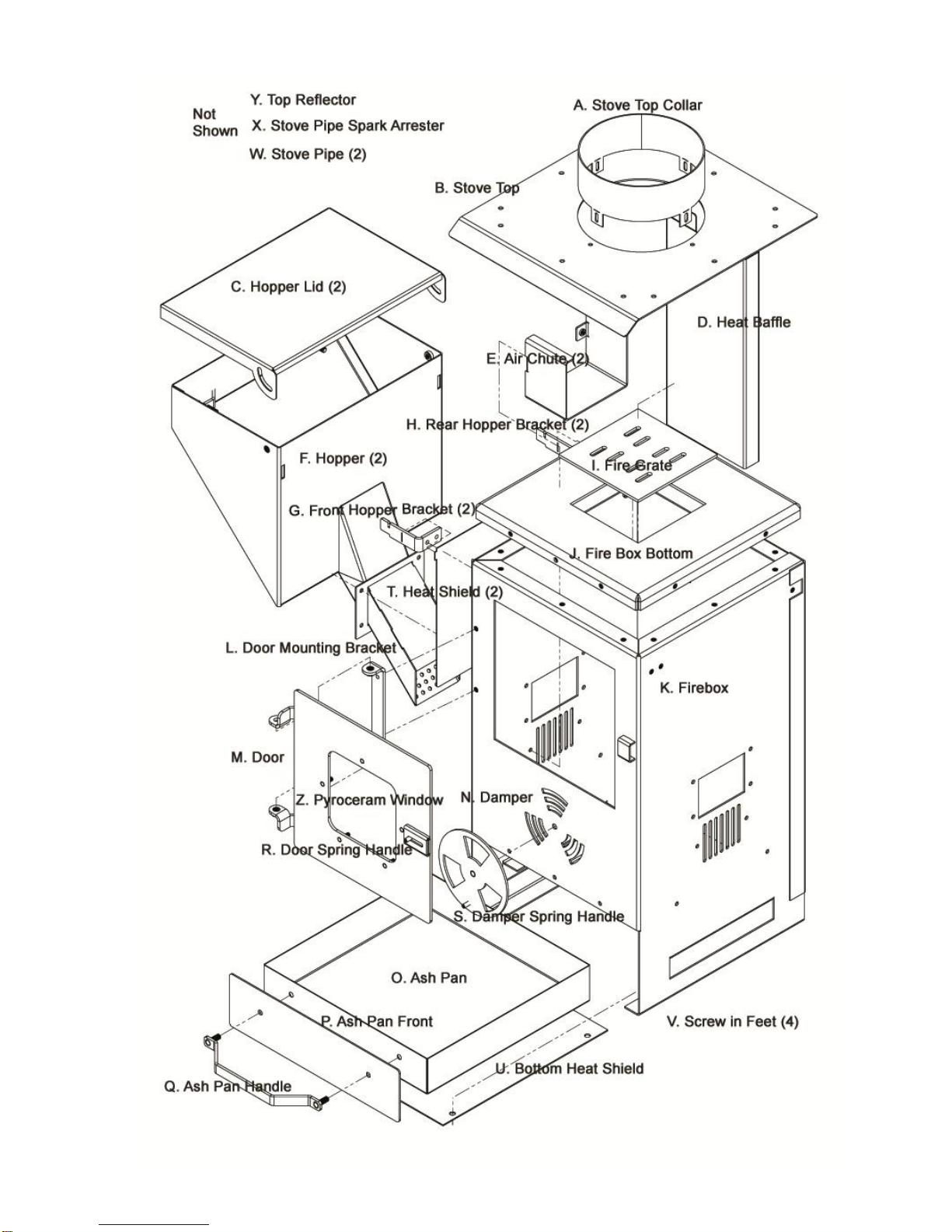

Find and identify the following parts:

Also included in the box is a hardware bag that contains:
¼” bolts (for (M) Door to (L) Door mounting bracket)
¼” nuts ( for (V) screw in feet, for securing (Q) Ash pan handles and hopper handles (not pictured)
¼” washer ( for (V) screw in feet)
¼” lock washers (for (Q) Ash Pan Handle and hopper handles (not pictured)
10/32” bolts for mounting the (F) Hoppers to (K) Firebox. 10/32’’ nuts with #8 washers for (Z)
Pyroceram Window to the (M) Door 10/32” bolts for securing (B) Stove top to (K) Firebox,
for securing (A) Stove top collar to (B) Stove top, for securing (D) Heat Baffle to (K) Firebox, for
securing (J) Firebox bottom to (K) Firebox, for securing (H) Rear Hopper Brackets and (G) Front
Hopper brackets to (K) Firebox, for securing (L) Door Mounting Brackets to (K) Firebox, for securing
(E) Air Chutes to (K) Firebox
10/32” nuts/bolts for securing (Y) Top Reflector to (X) Stove Pipe Spark Arrestor.
10/32” washers/nuts for securing the (Z) Pyroceram Window to the (M) Door.
Spring Handles (2)
Self-Taping Sheet Metal Screws
Lay out and identify all the heater parts.
1.2 Assembly Instructions
Step 1 Installing the Bottom Heat Shield and the Feet. Position the (U) Bottom Heat Shield in
place over the four holes on the bottom 1” flange of the firebox. Install four (V)Screw in Feet on the
bottom 1” flange of the (K) Firebox. Place washer over plastic washer on feet, then insert into holes.
Attach using ¼” washers and nuts.
Step 2 Installing the Hopper Brackets and Heat Shields. Attach (H) Rear Hopper Brackets using
one 10/32” bolt each.. Attach (G) Front Hopper Brackets using two 10/32” bolts each. Install (T) Heat
Shields by sliding heat shield in between the hopper and fire box so that the tabs are inserted into the
slots of the hopper bracket. The large tab on the bottom of heat shield should be facing the fire box.
Step 3 Installing the Hoppers. Place (F) Hopper pellet chute into hole in side of (K) Firebox. While
inserting pellet chute into hole, pull (T) Heat Shield towards (F) Hopper until the flange on the hopper
clears the heat shield. Use 10/32” bolts and nuts to secure Hopper flange to the(K) Firebox. Make
sure that the punch out in the hopper wall sets all the way down into the slot on the hopper brackets.
Step 4 Installing the Air Chutes. Place (E) Air Chute inside (K) Firebox by sliding the (E) Air
Chute under the protruding Hopper Pellet Chute and over the air slots that are cut into the side of the
(K) Firebox. Secure with two 10/32” bolts.
Step 5 Installing the Fire Grate and the Fire Box bottom. Insert (I) Fire Grate into (J) Firebox
Bottom. Install (J) Firebox Bottom in the (K) Firebox. The diagram shows the (J) Firebox bottom at the
top of the Firebox, but it is installed through the ash pan opening and is bolted in place just above the

ash pan. You will see three zerts in the front of the (J) Firebox Bottom. This side goes on the same
side as the door opening in the front of the heater. The (J) Firebox Bottom is installed just
underneath the Damper inlet holes. The ½” flanges on the (J) Firebox Bottom face down.
Step 6 Installing the Heat Baffle. Place (D) Heat Baffle inside (K) Firebox on back wall and secure
using four 10/32” bolts.
Step 7 Installing the Stove Top Collar onto the Stove Top. Slip (A) Stove Top Collar up from
underside of (B) Stove Top so flanges match holes in Stove Top. Secure with four 10/32” bolts and
nuts.
Step 8 Installing the Stove Top. Place (B) Stove Top on top of (K) Firebox with the beveled edge
facing down on the front of the heater. Secure with twelve 10/32” bolts.
Step 9 Installing the Door Hinges and the Door. Place (L) Door Mounting Bracket over mounting
holes to the left of the door opening on the (K) Firebox. The (L) Door Mounting Bracket has one end
that has a zert in it. This end goes up. Secure with two 10/32” bolts. Mount the (M) Door onto the (L)
Door Mounting Bracket using two ¼” bolts.
Step 10 Installing the Door Glass. Place (Z) Pyroceram Window between mounting pins on the
back side of the (M) Door. Secure using five 10/32” washers and nuts. DO NOT OVER TIGHTEN
THE NUTS ONTO THE PYROCERAM WINDOW. Hand tighten only.
Step 11 Assembling the Ash Pan. Place the (P) Ash Pan Front onto the (O) Ash Pan with the small
arrow sticker on the (P) Ash Pan Front pointing up and sandwiched between the (P) Ash Pan Front
and the (O) Ash Pan. Insert (Q) Ash Pan Handle into the holes in the (P) Ash Pan Front and (O) Ash
Pan and secure with ¼” lock washers and nuts. Slide the Ash Pan into the Firebox on the shelves
that are approximately 2” up from the bottom of the Firebox.
Step 12 Installing the Hopper Lids. Place (C) Hopper Lid over (F) Hopper opening and secure with
two ¼” bolts. Repeat for opposite side.
Step 13 Attaching the Spark Arrester to Top. Attach the (X) Stove Pipe Spark Arrester (stove
pipe piece with logo) to the (Y) Top Reflector using three 10/32” nuts and bolts. Bend tabs on (x)
spark arrestor 90 degrees out. Position over holes and bolt together.
Step 14 Assembling Stove Pipe and Installing on Stove. Place (W) Stove Pipe on the ground.
Start on one end and gradually connect two sides of locking pipe. Work your way from top to bottom.
Attach one (W) Stove Pipe to (A) Stove Top Collar with the crimped end up using three sheet metal
self-taping screws. Space screws out around pipe. Make sure you hit the (A) Stove Top Collar. Place
second (W) Stove Pipe onto the first piece with the crimped end up. Secure the two pieces of pipe
together using three sheet metal self-taping screws. Space screws out around pipe.

Step 15 Attaching the Top to the Stove Pipe. Place (X) Stove Pipe Spark Arrestor onto the top of
the second (W) Stove Pipe section. Secure together using three sheet metal self-taping screws.
Space screws out around pipe.
2. Installation
This heater is intended to be used outdoors only! It should never be used in an enclosed area or a
confined space.
2.1 Installation warning
The installation must conform with local, state and federal codes. In absence of such codes, install in
accordance with the current American National Standard (ANSI) / National Fire Protection
Association (NFPA) codes.
2.2 Minimum clearances
A minimum 36” clearance from this heater and all its parts to combustible materials must be
maintained at all times while the heater is in operation.
2.3 This Heater is to be used on a flat level non-combustible surface only.
Install on flat level non-combustible surface (concrete, tile, stone, etc.).
3. Operation
3.1 Preparation before lighting
3.1.1 Check any possible shipping damage of the heater. If any is found, call us directly.
3.1.2 Please review thoroughly and be sure you understand all of the “safety precautions and
warnings”.
3.1.3 Make sure the fire grate is in its proper position with slots running from the front (Door) to the
back of the heater.
3.1.4 Pour pellets in both hoppers.
INITIAL FIRING OF THE HEATER: On initial firing only fill the hoppers with about 5 lbs of pellets
each (about ¼ full). This one time initial firing needs to be done to cure the paint on the unit. Open
the damper on the heater and leave it open for the entire initial burn period. Fire the unit and let it
burn through all of the pellets and then let the heater cool. You will now be free to use the unit
according to the remainder of these direction. On your first firing, the high temperature paint on the
unit will cure. When curing, the paint gives off smoke. This will happen for about the first 15 minutes
of operation. Do not breath these fumes, they can make you sick.
3.1.5 Never attempt to relight a hot heater, always wait until the heater is cool.
3.2 Fill both hoppers completely with pellets.
3.3 Lighting
3.3.1 Open the door and squirt about two tablespoons of alcohol fire gel on the mound of wood
pellets in the middle of the firebox. Pellets will have funneled down from the right hopper chute and
the left hopper chute. Do not use charcoal lighter to light the unit, it will raise the temperature too
quickly, could affect the paint on the unit, and is a dangerous flammable liquids.
3.3.2 Light the alcohol fire gel with a match and close the door.
3.3.3. Open the (N) Damper below the door for the first ten minutes of a burn.
3.3.4 Standard burn time for the heater on two full hoppers (20lb) is about 2.5 hours. You can extend
this burn time by adding pellets to the hoppers during the burn.

4. Storage
4.1 When you are finished using the Heater you should make sure that the fire is completely out.
Allow at least 45 minutes for the heater to cool down before transporting.
4.2 Store the heater upright in a sheltered area away from inclement weather such as rain, snow and
dust.
4.3 This unit is manufactured as an “Outdoor Unit” from steel. If you leave it in the weather it will
accumulate rust. This is normal and can be treated by using touch up paint in spray cans available
from Wood Pellet Products.
5. Maintenance
5.1 To obtain the best performance from your heater make sure you perform the following
maintenance activities on a regular basis:
5.2 After a burn and once the heater is completely cooled, clean out any remaining ashes from on top
of the fire grate and in the ash pan. Do not dump an ash pan with hot embers or pellets in it into a
garbage can or any other combustible area. It will start a fire.
5.3 Keep exterior surfaces clean. Use warm soapy water for cleaning.
5.4 Never use flammable or corrosive cleaning agents on or near this Heater.
5.5 Airflow through dampers and out of the spark arrester must be unobstructed, clean regularly.
Caution:
Never burn stick wood or plastic or other combustibles in this heater. Burn only ¼” diameter wood
pellets. Never spray any cleaning product on or into any of the doors, air intakes, or dampers.
6. To Stop the Unit during a Firing.
Once your heater is started and running, the only way to shut it off is to remove the unburned pellets
from the hoppers. Be careful as the unit is hot. Remove unburned pellets from both hoppers and let
the few remaining pellets funnel down and burn out. Allow at least 45 minutes for cooling before
handling the stove.
7. Service and warranty Information
To learn how to service and procure parts for worn out, defective or damaged components, please
call us directly for assistance. Warning: Use our original equipment replaced parts only. Use of
unauthorized parts or modification of parts can void warranty and create an unsafe condition.
8. Warranty Terms
Subject to the conditions set out below, this product is warranted to the original purchaser to be free
from defects in workmanship and materials for 90 days from the date of purchase. This warranty does
not include the paint and or finish on the heater.
8.1 Satisfactory proof of the purchase date must be furnished at the time of notification of the defect
for any claim under the warranty to be enforceable.
8.2 This warranty covers all parts found defective in workmanship and / or materials during the
warranty period and can be repaired or replaced at the discretion of the manufacture at no
cost to the original purchaser.
8.3 This warranty will be void and accordingly no claim of any nature will be enforceable if the product
has not been assembled, installed or operated according to the instructions, subjected to abuse,
improperly treated, neglected, rusted by exposure to the elements, misused and / or if any repairs,
maintenance, or service has been done by an unauthorized person.
8.4 Return must be properly packaged and freight prepaid to us.

8.5 Each of the manufacturer, distributor and retailer will not be liable for any incidental or
consequential loss or damage arising from the installation or operation for the product and / or
the failure of any part for any reason.
8.6 There are no other express or implied warranties, except for those stipulated herein. This
warranty gives specific rights and the original purchaser may have additional rights and remedies
in law.
8.7 This warranty does not cover commercial or rental use.
8.8 Rust and oxidation is a normally occurring process for any metal exposed to the elements and is
expressly not covered under out warranty.
-------------------------------------------------------------------------------------------------------------------------------------
Patent Pending: Wood Pellet Products.com
Copyright 2012, All Rights Reserved
www.woodpelletproducts.com
