Wood Stone WS-PL-4836-4-CT User manual

Toll Free 800.988.8103
Tel [phone]
Fax [phone]
www.woodstone-corp.com
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
WOOD STONE GAS PLANCHA
Specialty Equipment
Gas-Fired Model, Hidden Control,
Countertop and Optional Cart Models
WOOD STONE GAS PLANCHA
WS-PL-4836-4-CT
WS-PL-3636-3-CT
DOC NO M0102.20 REVISED JULY 2019
Service Manual

Gas Plancha (GEN1)
Service Manual
PG 40 OF 64
M0102.20 JULY 2019
EXPLODED DIAGRAM, v1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
6
7
5
1
3
4
2
9
2 of 13
Item Part Number Rev Description Qty Notes
1002-PL4836-7 3Dual Burner Cassette 4
21532270 1Grease Reservoir 2
31552288 0Exhaust Baffle 1Prior to GPIB 20MAR13 00257
41562202 0Exhaust Flue 1Prior to GPIB 20MAR13 00257
41542250 0Exhaust Flue 1After GPIB 20MAR13 00257
52522299 1Bottom Cover 1
67000-0919-1 0Thermocouple 4
77000-1344 0Viewing Glass 1/2" 2
87000-1375 0Power Cord, SJT,
18/3, 5-15P to ROJ x
6'
1
9RP-0019-1 0Adjustable Leg 4
8
7
PL-4836 VERSION 1: PRE JUNE 2013
3
4
Item Part Number Rev Description Qty Serial Numbers
GP1B NNMTHYR XXXXX
1RP-002-PL4836-7 6 Dual Burner Cassette 4
2 1532270 1 Grease Reservoir 2
3 1562202 0 Exhaust Flue 1 00034 – 00036
4 1552288 0 Exhaust Baffle 1
3 002-PL4836-17 1 Exhaust Flue 2 00051 – 00256
4 1552288 1 Exhaust Baffle 2
4 1542250 0 Exhaust Flue 2 00257 – 00316
4 1542296 2 Exhaust Flue 2 After 00316
5 2522299 1 Bottom Cover 1
67000-0919-1 0 Thermocouple 4
7 7000-1344 0 Viewing Glass 1/2" 2
87000-1375-1 0Power Cord, SJT, 18/3,
5-15P to ROJ x 6' 1
9 7000-1840 0 Adjustable Leg 4

Gas Plancha (GEN1)
Service Manual
PG 41 OF 64
M0102.20 JULY 2019

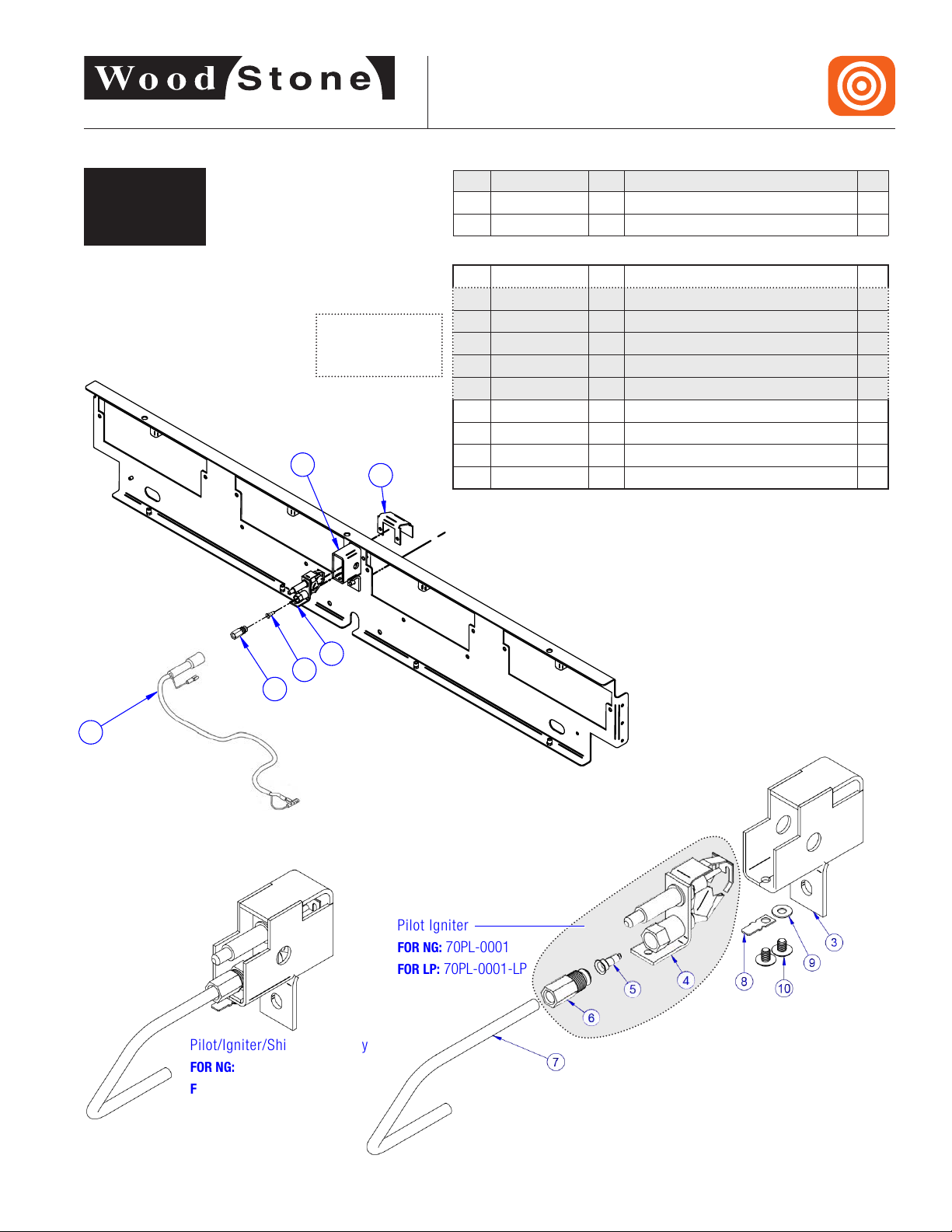

PILOT ASSEMBLY, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
2
3
4
5
6
3 of 13
Item Part Number Rev Description Qty
1 002-PL4836-9 4 Pilot Igniter Shield 1
2 2152201 2 Flame Deector, Pilot Shield 1
3 7000-1361 0 Ignition Cable 1
470PL-0001-NG 0 Igniter-Sensor, IR Burner, NG 1
1
Bulkhead shown for
reference only
Pilot/Igniter/Shield Assembly
FOR NG: 002-PL4836-9
FOR LP: 002-PL4836-9-LP
Pilot Igniter
FOR NG: 70PL-0001
FOR LP: 70PL-0001-LP
Item Part Number Rev Description Qty
17000-1341 1 Ignition Cable 1
2 2152201 2 Flame Deflector, Pilot Shield 1
Pilot / Igniter / Shield Assembly (002-PL4836-9 / 002-PL4836-9-LP) includes #3–10:
3 50PL-1327 0 Pilot Igniter Shield 1
470PL-0001 0 Igniter-Sensor, IR Burner, NG 1
470PL-0001-LP 0 Igniter-Sensor, IR Burner, LP 1
57000-0748-NG 0 Pilot Orifice, Stamped BCR-18, NG 1
5 7000-0748 0 Pilot Orifice, Stamped BBR-12, LP 1
6 70PL-0001-1 0 Compress Fitting Nut, Extended, 1/4" Tube 1
7 7000-0250-10 0 Pilot Igniter Gas Tube 1
8 7000-1373 0 Spade Terminal, 1/4", Ignition Cable Grnd 1
9 9000-0107 0 Washer, #10 Flat 1
10 9000-0114 0 Screw, 10-32 x 1/4" PH Truss Head 2
Pilot Igniter
FOR NG: 70PL-0001
FOR LP: 70PL-0001-LP
PL-4836
VERSION 1:
PRE JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 42 OF 64
M0102.20 JULY 2019
GAS VALVES, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
3/7/2019 lucasm
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location:\\woodstone\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
4 of 13
Item Part Number Rev Description Qty
1 6000-0143-1 1 Gas Tube, Main Burner 4
2 6000-0143-2 0 DoglegGasTube, Main Burner 1
3 6000-0144-1 3 Pilot Igniter Gas Tube 1
4 6000-0144-2 0 Zip Tube Gas Tube 1
57000-0116 0 Regulator 1
6 7000-0261 0 CompressionFitting, 1/4NPTM x1/4 Tube,Brass 2
7 7000-0267 0 Compression FittingAdapter,1/4NPTM x3/8 Tube, Brass 4
8 7000-0268 0 CloseNipple, 1/4NPT, Black 4
9 7000-0269 0 CompressionUnion, 3/8" Tube, Brass 1
10 7000-1321 0 1/4" DC Gas SolenoidValve 4
11 7000-1322 0 1/2" ACGasSolenoid Valve 1
1
2
43
9
10
10
6
5
11
8
10
7
77
Item Part Number Rev Description Qty
1 6000-0143-1 1 Gas Tube, Main Burner *4
2 6000-0143-2 0 Dogleg Gas Tube, Main Burner *1
3 6000-0144-1 3 Pilot Igniter Gas Tube *1
4 6000-0144-2 0 Zip Tube Gas Tube *1
57000-0116 0 Regulator 1
6 7000-0261 0 Compression Fitting, 1/4 NPTM x 1/4 Tube, Brass 2
7 7000-0267 0 Compression Fitting Adapter, 1/4 NPTM x 3/8 Tube, Brass 8
8 7000-0268 0 Close Nipple, 1/4 NPT, Black 4
9 7000-0269 0 Compression Union, 3/8" Tube, Brass 1
10 7000-1321 0 1/4" DC Gas Solenoid Valve 4
11 7000-1322 01/2" AC Gas Solenoid Valve 1
PL-4836
VERSION 1:
PRE JUNE 2013
*Bare Tube–
no fitting

Gas Plancha (GEN1)
Service Manual
PG 43 OF 64
M0102.20 JULY 2019

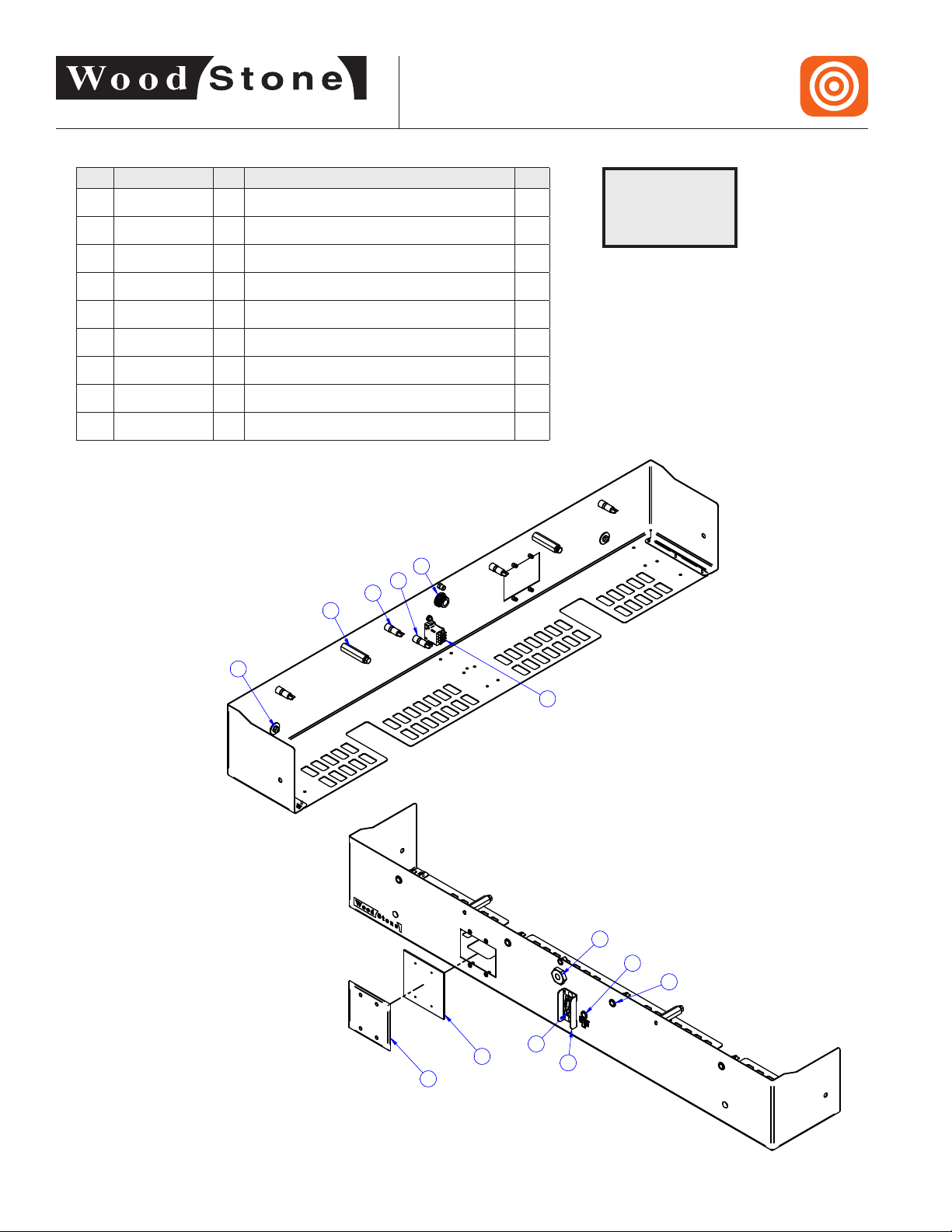

CONTROL BOX: FRONT PANEL, v1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
Outside View
Inside View
4
5
8
6
10
4
7
3
2
6 of 13
9
5
7
11
Item Part Number Rev Description Qty
11552290 1Switch Guard 1
26100-0003-12 1Sanitary Gasket 1
37000-0744-SS 0Blank Cover, 2 Gang, 430SS 1
47000-0895 0Panel Light 24V Green 4
57000-0897 0Panel Light 24V Red 1
67000-0946 0On/Off Switch, OTTO 1
77000-1343 0Sealing O-Ring, 1/2" NPT 2
87000-1344 0Viewing Glass 1/2" 1
99000-0541 0Hex Aluminum Spacer, 1/4-20 x 2.5" 2
10 9000-0554 01/4-20 Kep Nut 2
11 9000-0665 0Lock Bolt, 3/16 Dia. x 1-1/2", SS 2
1
PL-4836
VERSION 1:
PRE JUNE 2013
Item Part Number Rev Description Qty
1 1552290 1 Switch Guard 1
2 6100-0003-12 1 Sanitary Gasket 1
3 7000-0744-SS 0 Blank Cover, 2 Gang, 430SS 1
47000-0895 0 Panel Light 24V Green 4
5 7000-0897 0 Panel Light 24V Red 1
6 7000-0946 0 On/Off Switch, OTTO 1
7 7000-1343 0 Sealing O-Ring, 1/2" NPT 2
8 7000-1344 0 Viewing Glass 1/2" 1
9 9000-0541 0 Hex Aluminum Spacer, 1/4-20 x 2.5" 2
10 9000-0554 0 1/4-20 Kep Nut 2
11 9000-0665 0 Lock Bolt, 3/16 Dia. x 1-1/2", SS 2

Gas Plancha (GEN1)
Service Manual
PG 44 OF 64
M0102.20 JULY 2019
CONTROL BOX: INNER PANEL, v1
PL-4836
VERSION 1:
PRE JUNE 2013
Front View
4
13
5
6
7
8
9
10
12
1
2
Rear View
5
11
3
8
Item Part Number Rev Description Qty Serial Numbers
GP1B NNMTHYR XXXXX
1 1433228 0 Mount Bracket, Power Supply 1
2 2532241 0 Mount Bracket, Remote Potentiometer 1
3
RP-7000-0891-CMG-2 1 4-Channel Temperature Control Board 1
47000-0894-1 0 Potentiometer 2
5 7000-0977 0 Thermocouple Bulkhead 2
6 7000-1256 0 Transformer, 120V Pri x 24V Sec, 40VA, Class 2 1
7 7000-1323 0 Power Supply, 100W 1
8*7000-1835 0 Terminal Block, 2-pole, 4 Connector 1
87000-1327*0 Terminal Block, 3-pole, 12 Connector 1 Before SN 08461
9 7000-1355 0 Knob, Temperature Indicator 2
10 7000-1356 0 Silicone Grommet, High-Temp., 1/2" ID x 1" OD 1
11 7000-1359 1 Potentiometer Bracket Stick-On Label 1
12 70CE-0022 0 Ignition Module, Intermittent 1
13 7000-1763-1*7 Buffer Board, PCB 1
*Before SN 08461:
3-pole
Terminal
Block
7000-1827
8
* 1.23.17 Note
Boards with Part Numbers
7000-0898 and 7000-0898-1
are still functional.

Gas Plancha (GEN1)
Service Manual
PG 45 OF 64
M0102.20 JULY 2019
BURNER ASSEMBLY, v1
PL-4836
VERSION 1:
PRE JUNE 2013
Item Part Number Rev Description
1RP-002-PL4836-7 6IR Burner Assembly NG (includes parts 2, 3, 4 & Jets)
1 002-PL4836-7-LP 6 IR Burner Assembly LG (includes parts 2, 3, 4 & Jets)
2 002-PL4836-6 0 Burner Manifold - Dual Burner
3 9000-0554 0 1/4-20 Kep Nut
4 7000-0267 0 Compression Fitting Adapter, 3/8"
Dual-Burner Cassette
Part #: 002-PL4836-6
Main BurnerJets
NG = 7000-0579 (Stamped 'BL')
LP = 7000-1345 (Stamped 'BY')
3
4
1
2
Dual-Burner Cassette Assembly
NG = RP-002-PL4836-7
LP = RP-002-PL4836-7-LP

Gas Plancha (GEN1)
Service Manual
PG 46 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com

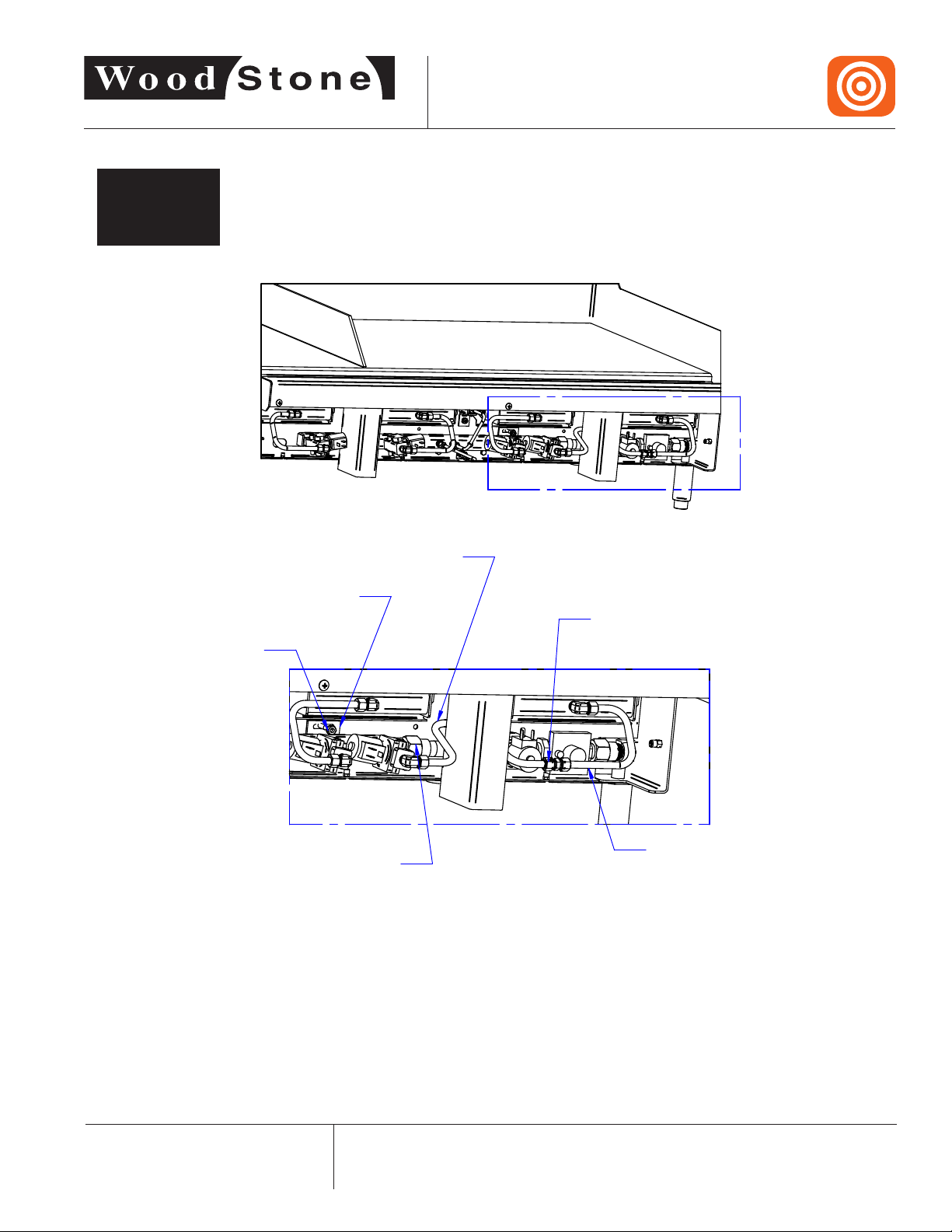

IGNITER REMOVAL, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
4/15/2013 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\0 Pn\001 Oven Main Stations\001-PL_Plancha\Service Manual DFT\Plancha Gas\4Zone\Revision 1\PL4836-4-CT00NG-1.dft
A
DETAIL A
8 of 13
Igniter Removal Procedure
1. Disconnect Ignition cable.
2. Remove pilot igniter gas tube.
3. Remove 1/4-20 kep nut.
4. Pull out pilot igniter assembly.
6000-0144-1
Pilot Igniter Gas Tube
9000-0554
1/4-20 Kep Nut
002-PL4836-9
Pilot Igniter Shield
7000-1341
Ignition Cable
Ground Strap
PL-4836
VERSION 1:
PRE JUNE 2013
7000-0250-10

Gas Plancha (GEN1)
Service Manual
PG 47 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
ZIP TUBE JET CLEANING, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
B
DETAIL B
9 of 13
Zip Tube Jet Cleaning Procedure
1. Remove (2) 1/4-20 x 1/2" Hex Bolts
2. Remove zip tube gas tube.
3. Remove zip tube manifold downward
4. Remoe any debris from jets.
50PL-1319
Zip Tube Manifold Tube
6000-0144-2
Zip Tube Gas Tube
9000-0251
1/4-20 x 1/2" Hex Bolt
PL-4836
VERSION 1:
PRE JUNE 2013
002-928-4836-3-NG
Zip Tube ManifoldAssembly, NG
002-928-4836-3-LP
Zip Tube ManifoldAssembly, LP
002-928-4836-8
Zip Tube Manifold Weldment
(No Jets or Fitting)

Gas Plancha (GEN1)
Service Manual
PG 48 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
THERMOCOUPLE REMOVAL, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
C
DETAIL C
10 of 13
Thermocouple Removal
1. Remove perforated service panel.
2. Remove screws holding bottom cover.
3. Drop front edge of bottom cover to counter top (rear lip supported
by lower chassis).
4. Reaching from front, locate large holes in flat horizontal stationary
panel.
5. Grip thermocouple and simultaneously push up & twist
counter-clockwise to unlock device.
6. Remove through large holes.
7. Reassemble in reverse order, insuring that hook of thermocouple
latches onto mounting bracket.
7000-0919-1
Thermocouple
PL-4836
VERSION 1:
PRE JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 49 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
PRESSURE MANIFOLD REMOVAL, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
D
DETAIL D
11 of 13
Pressure Manifold Removal
1. Loosen compression untion.
2. Remove dogleg gas tube.
3. Remove all (4) gas tubes.
4. Loosen (2) SolarFlo Unions on either end of pressure manifold.
5. Loosen 1/4-20 kep nut to chassis.
6. Move manifold mount plate to left enough to allow pressure manifold to
drop downward.
1372206
Gas Valve Manifold Mount Plate
9000-0554
1/4-20 Kep Nut
70ROC-0052
SolarFlo Union Component, Female End
7000-0269
Compression Union, 3/8" Tube, Brass
6000-0143-2
Dogleg Gas Tube, Main Burner
6000-0143-1
Gas Tube, Main Burner
PL-4836
VERSION 1:
PRE JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 50 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
ZIP TUBE REMOVAL, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
E
DETAIL E
12 of 13
Zip Tube Removal
NOTE: ONLY QUALIFIED GAS SERVICE PERSONNEL
SHOULD ATTEMPT THIS PROCEDURE!
1. Remove all (4) burner casette assemblies
2. Remove (4) 10-32 x 5/8" hex screws.
3. Reach inside burner access holes and pivot zip tubes away from front panel.
4. Lift zip tubes upwards, unseating them from zip tube manifold tube.
5. Remove through burner access holes.
6. Re-installation: CAUTION: Zip tubes are right and left handed and must have ports
facing towards burners when in place. Failure to follow this procedure may result in
failure of burners to light and create unsafe levels of unburned gas fuel.
9000-0643
Screw, Hex, NoSlot, 10-32 x 5/8", SS
1552289
Front Panel, Lower Chassis
50PL-1319
Zip Tube Manifold Tube
PL-4836
VERSION 1:
PRE JUNE 2013
002-928-4836-3-NG
Zip Tube ManifoldAssembly, NG
002-928-4836-3-LP
Zip Tube ManifoldAssembly, LP
002-928-4836-8
Zip Tube Manifold Weldment
(No Jets or Fitting)

Gas Plancha (GEN1)
Service Manual
PG 51 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
SOLENOID/GAS VALVE SERVICE, v1
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
13 of 13
NOTE: Valves must
be angled as shown.
7000-1321
1/4" DC Gas Solenoid Valve
(4)
7000-1322
1/2" AC Gas Solenoid Valve
Gas Solenoid Service
1. Remove retainer "C-clip" on top of valve stem.
2. Slide coil off of valve stem.
3. Install new coil onto valve stem.
4. Re-attach retainer "C-clip" on top of valve
stem.
Gas Valve Service
1. If entire valve needs replacement, either remove
pressure manifold or remove gas tube(s) from
appropriate valve.
2. (3) of the 1/4" DC valves can be rotated on their a
xis
and removed from manifold.
3.
Remaining 1/4" DC valve requires the main manifold
to be removed.
7000-0116
Regulator
PL-4836
VERSION 1:
PRE JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 52 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
OPTIONAL STAND, v2 & 3
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 02\0_Service_Manual-1.dft
REV:
DATE:
PART #:
WS-PL-4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
2
2 of 13
000-PL-STAND-CASTER
7100-0509
5" Caster w/ Roller Bearings Swivel & Brake
(x2)
1542290
Shelf, Tube Stand
7100-0508
5" Caster w/ Roller Bearings Swivel
(x2)
WS-PL-4836-4-CT00NG
4 - Zone Gas Plancha
PL-4836 VERSION 2 & 3: POST JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 53 OF 64
M0102.20 JULY 2019
EXPLODED DIAGRAM, v2 &3
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 02\0_Service_Manual-1.dft
REV:
DATE:
PART #:
WS-PL-4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
2
3 of 13
Item Part Number Rev Description Qty
1 RP-0019-1 0 Adjustable Leg 4
27000-0919-1 1 Thermocouple 4
31542296 2 Exhaust Flue 2
4002-PL4836-7 4 Dual Burner Cassette 4
514101040Bottom Cover 1
615322701Grease Reservoir 2
77000-13440 Viewing Glass 1/2" 2
87000-13750 Power Cord, SJT,
18/3, 5-15Pto ROJ x
66"
1
7
4
1
2
5
6
8
3
PL-4836
VERSION 2 & 3:
POST JUNE 2013
Item Part Number Rev Description Qty Serial Numbers
GP1B NNMTHYR XXXXX
1 7000-1840 0 Adjustable Leg 4
27000-0919-1 1 Thermocouple 4
3 1542296 2 Exhaust Flue 2 After 00316
4RP-002-PL4836-7 6 Dual Burner Cassette Assembly (NG) 4
4002-PL4836-7-LP 6 Dual Burner Cassette Assembly (LP)4
5 1410104 0 Bottom Cover 1
6 1532270 1 Grease Reservoir 2
7 7000-1344 0 Viewing Glass 1/2" 2
8 7000-1375 0 Power Cord, SJT, 18/3,
5-15P to ROJ x 66" 1

Gas Plancha (GEN1)
Service Manual
PG 54 OF 64
M0102.20 JULY 2019
PILOT ASSEMBLY, v2 & 3
REV:
DATE:
PART #:
001-PL4836-4-CT00NG
5/13/2015bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
1
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 01\PL4836-4-CT00NG-1.dft
2
3
4
5
6
3 of 13
Item Part Number Rev Description Qty
1 002-PL4836-9 4 Pilot Igniter Shield 1
2 2152201 2 Flame Deector, Pilot Shield 1
3 7000-1361 0 Ignition Cable 1
470PL-0001-NG 0 Igniter-Sensor, IR Burner, NG 1
1
Bulkhead shown for
reference only
Pilot/Igniter/Shield Assembly
FOR NG: 002-PL4836-9
FOR LP: 002-PL4836-9-LP
Pilot Igniter
FOR NG: 70PL-0001
FOR LP: 70PL-0001-LP
Item Part Number Rev Description Qty
17000-1341 1 Ignition Cable 1
2 2152201 2 Flame Deflector, Pilot Shield 1
Pilot / Igniter / Shield Assembly (002-PL4836-9 / 002-PL4836-9-LP) includes #3–10:
3 50PL-1327 0 Pilot Igniter Shield 1
470PL-0001 0 Igniter-Sensor, IR Burner, NG 1
470PL-0001-LP 0 Igniter-Sensor, IR Burner, LP 1
57000-0748-NG 0 Pilot Orifice, Stamped BCR-18, NG 1
5 7000-0748 0 Pilot Orifice, Stamped BBR-12, LP 1
6 70PL-0001-1 0 Compress Fitting Nut, Extended, 1/4" Tube 1
7 7000-0250-10 0 Pilot Igniter Gas Tube 1
8 7000-1373 0 Spade Terminal, 1/4", Ignition Cable Grnd 1
9 9000-0107 0 Washer, #10 Flat 1
10 9000-0114 0 Screw, 10-32 x 1/4" PH Truss Head 2
Pilot Igniter
FOR NG: 70PL-0001
FOR LP: 70PL-0001-LP
PL-4836
VERSION 2 & 3:
POST JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 55 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
GAS VALVES, v2 & 3
1
4
3
2
5
6
6
7
8
9
3b
Item Part Number Rev Description Qty
1 6000-0143-1 1 Gas Tube, Main Burner *4
2 6000-0143-2 0 Dogleg Gas Tube, Main Burner *1
3 7000-0250-10 3 Pilot Igniter Gas Tube *1
3b RP-7000-0251 0 Compression Nut & Ferrul 1/4" 2
4 7000-0250-11 0 Zip Tube Gas Tube *1
57000-0116 0 Regulator 1
6 7000-0269 0 Compression Union, 3/8" Tube, Brass 1
77000-1321 0 Gas Valve, 1/4" DC Gas Solenoid Valve 4
87000-1322 0Gas Valve, 1/2" AC Gas Solenoid Valve 1
9 7000-0267 0 Compression Nut & Ferrul 3/8" 8
*Bare Tube–no fitting
PL-4836
VERSION 2 & 3:
POST JUNE 2013

Gas Plancha (GEN1)
Service Manual
PG 56 OF 64
M0102.20 JULY 2019
CONTROL BOX: FRONT PANEL, v2 & 3
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 02\0_Service_Manual-1.dft
REV:
DATE:
PART #:
WS-PL-4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
2
6 of 13
Inside View
Outside View
7
1
8
9
4
3
2
6
6
2
3
1
5
Item Part Number Rev Description Qty
17000-0946 0On/Off Switch, OTTO 1
27000-0895 0Panel Light 24V Green 4
37000-0897 0Panel Light 24V Red 1
47000-1344 0Viewing Glass 1/2" 1
57000-1343 0Sealing O-Ring, 1/2" NPT 1
69000-0541 0Hex Aluminum Spacer, 1/4-20 x 2.5" 2
71552290 1Switch Guard 1
86100-0003-12 1Sanitary Gasket 1
97000-0744-SS 0Blank Cover, 2 Gang, 430SS 1
PL-4836
VERSION 2 & 3:
POST JUNE 2013
Item Part Number Rev Description Qty
1 7000-0946 0 On/Off Switch, OTTO 1
27000-0895 0 Panel Light 24V Green 4
3 7000-0897 0 Panel Light 24V Red 1
4 7000-1344 0 Viewing Glass 1/2" 1
5 7000-1343 0 Sealing O-Ring, 1/2" NPT 1
6 9000-0541 0 Hex Aluminum Spacer, 1/4-20 x 2�5" 2
7 1552290 1 Switch Guard 1
8 6100-0003-12 1 Sanitary Gasket 1
9 7000-0744-SS 0 Blank Cover, 2 Gang, 430SS 1

Gas Plancha (GEN1)
Service Manual
PG 57 OF 64
M0102.20 JULY 2019
CONTROL BOX: INNER PANEL, v2 & 3
*Before SN 08461:
3-pole
Terminal
Block
7000-1827
7
Front View
Rear View
11
1
2
4
13
5
6
7
8
9
10
12
3
7
PL-4836
VERSION 2 & 3:
POST JUNE 2013
* 1.23.17 Note
Boards with Part Numbers
7000-0898 and 7000-0898-1
are still functional.
Item Part Number Rev Description Qty Serial Numbers
GP1B NNMTHYR XXXXX
1 1433228 0 Mount Bracket, Power Supply 1
2 2532241 0 Mount Bracket, Remote Potentiometer 1
3 RP-7000-0891-CMG-2 1 4-Channel Temperature Control Board 1
47000-0894-1 0 Potentiometer 2
5 7000-1256 0 Transformer, 120V Pri x 24V Sec, 40VA, Class 2 1
6 7000-1323 0 Power Supply, 100W 1
7*7000-1835 0 Terminal Block, 2-pole, 4 Connector 1
77000-1327*0 Terminal Block, 3-pole, 12 Connector 1 Before SN 08461
8 7000-1355 0 Knob, Temperature Indicator 2
9 7000-1356 0 Silicone Grommet, High-Temp., 1/2" ID x 1" OD 1
10 7000-1359 1 Potentiometer Bracket Stick-On Label 1
11 7000-1383 0 Thermocouple Bulkhead, 4 - Circuit 1
12 70CE-0022 0 Ignition Module, Intermittent 1
13 7000-1763-1 * 7 Buffer Board, PCB 1

Gas Plancha (GEN1)
Service Manual
PG 58 OF 64
M0102.20 JULY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
IGNITER REMOVAL, v2 & 3
File Location: \\woodstone.net\dfs\CAD\Manuals\M0102\Rev 02\0_Service_Manual-1.dft
REV:
DATE:
PART #:
WS-PL-4836-4-CT00NG
5/13/2015 bena
DWN BY:
SHEET:
PL4836
4 - Zone Gas Plancha
2
8 of 13
A
DETAIL A
6000-0144-1
Pilot Igniter Gas Tube
9000-0554
1/4-20 Kep Nut
7000-1361
Ignition Cable
Igniter Removal Procedure
1. Disconnect Ignition cable.
2. Remove pilot igniter gas tube
from supply side.
3. Remove 1/4-20 kep nut.
4. Pull out pilot igniter assembly.
50PL-1327
Pilot Igniter Shield
70PL-0001
Ignitor-Sensor, IR Burner
9000-0114
Screw, Truss Hd, Phillips, 10-32 x 1/4", SS
PL-4836
VERSION 2 & 3:
POST JUNE 2013
7000-0250-10
