Wood Stone WS-PL-MTL-40-35-4-C User manual

Toll Free 800.988.8103
Tel [phone]
Fax [phone]
www.woodstone-corp.com
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
ELECTRIC PLANCHA
Speciality Equipment
Electric Countertop Models
ELECTRIC PLANCHA WS-PL-MTL-40-35-4-CT
DOC NO M0061.07 REVISED MAY 2019
Installation and
Operation Manual

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 2 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
TABLE OF CONTENTS
ANSI/UL 197
CSA 22.2
ANSI/NSF STD 4
The Wood Stone Electric Plancha
has been tested and approved by Intertek Testing Services and
conforms to UL 197;
is certified to CSA 22.2 #109;
and to NSF/ANSI 4.
TABLE OF CONTENTS
Cautions & Warnings . . . . . . . . . .3
Specifications . . . . . . . . . . . . . . .4
Venting & Clearances . . . . . . . . . .5
Basic Operation. . . . . . . . . . . . . .6
Daily Use & Maintenance . . . . . . . .7
Troubleshooting. . . . . . . . . . . . . .8
1 Phase Electrical Diagrams . . . . . .9
3 Phase Electrical Diagrams . . . . . 12
Limited Warranty . . . . . . . . . . . . 15

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 3 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
CAUTIONS & WARNINGS
INSTALLATION AND OPERATION MANUAL FOR THE
WOOD STONE 4-ZONE METAL COUNTERTOP ELECTRIC PLANCHA MODELS
WS-PL-MTL-40-35-4-CT
ADDITIONAL COPIES AVAILABLE UPON REQUEST
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual at woodstone-corp.com.
For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser d’essence ou d’autres vapeurs de liquides
inflammables ou des liquides dans les environs de ce ou de tout autre appareil.
CAUTION: TO REDUCE THE RISK OF FIRE, THE APPLIANCE IS TO BE PLACED ON A SURFACE OF NON-COM-
BUSTIBLE CONSTRUCTION. THIS NON-COMBUSTIBLE CONSTRUCTION SHALL IN ALL CASES EXTEND NOT
LESS THAN 6 INCHES BEYOND THE EQUIPMENT ON ALL SIDES.
ATTENTION: POUR RÉDUIRE LES RISQUES D’INCENDIE, L’APPAREIL DOIT ÊTRE PLACÉ SUR UNE SURFACE
DE NON-COMBUSTIBLE. CETTE NON-COMBUSTIBLES, LA CONSTRUCTION EST DANS TOUS LES CAS PAS
MOINS DE 6 POUCES AU-DELÀ DE L’ÉQUIPEMENT DE TOUS LES CÔTÉS.
It is recommended that this appliance be installed,
maintained and serviced by authorized professionals.
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE
Please read this entire manual before you install the oven. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or fire officials about restrictions
and installation inspection in your area.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
AVERTISSEMENT: L’installation, le réglage, la modification, la réparation ou l’entretien incorrect de cet
appareil peut causer des dommages matériels, de blessures ou la mort. Lire attentivement les instructions
d’installation, de fonctionement et d’entretien avant de procéder à son installation ou entretien.
DO NOT THROW THIS MANUAL AWAY

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 4 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
SPECIFICATIONS
Unit Shipping Weight: 480 lbs.
Front View
Plan Iso
Note: 4-zone model shown
COUNTERTOP MODELS - THREE ELECTRICAL CONFIGURATIONS OPTIONS
Voltage 208 VAC 3 phase 208 VAC 1 phase 240 VAC 1 phase
Watts 18.2 kW 13.3 kW 18.2 kW
Number of individual branch circuits 1 2 2
Rating of each individual branch circuit* 50 A 40 A 50 A
3 phase countertop models provided with one power cord equipped with a NEMA 15-50P plug
1 phase countertop models provided with two power cords each equipped with a NEMA 6-50P plug
* Each individual branch circuit requires 2-wire plus ground
Note: Electrical configuration must be specified at time of order. Verify voltage and phase on the appliance data plate before installing.
39 1/2"
1000mm
34 1/2"
880mm
2 1/2"
60mm
2 1/4"
50mm
34 3/4"
890mm
24 1/4"
620mm
35 3/4"
910mm
4 1/4"
110mm
8"
210mm
28 1/4"
720mm
5 1/2"
4"
140mm
100mm
ADJUSTABLE RANGE
Side View
Plan View

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 5 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
VENTING & CLEARANCES
VENTILATION
The plancha must be vented with a Listed Type 1 hood. This appliance must be installed and vented in
accordance with NFPA 96 and all relevant national and local codes, subject to the approval of the local
authority having jurisdiction.
CLEARANCES
If this grill is not properly installed a fire may result. To reduce the risk of fire, follow these installation instructions. A
major cause of appliance related fires is failure to maintain required clearances (air spaces) to combustible materials.
It is of utmost importance that this appliance be installed only in accordance with these instructions.
Allow a minimum of 12 inches of clearance to combustible construction or materials from sides and back.
Allow a minimum of 3 inches of clearance to non-combustible construction to allow cooling air to enter the vents on
the sides and back of the unit. Do not block the air vents on the sides, back or beneath the appliance.
WARNING: Do not pack required air spaces with insulation or other material
Electrical supply cords should be routed so that they are not subjected to the heat coming off of the plancha cooking
surface. We recommend locating the electrical outlets at a height that is below the level of the Plancha cooking
surface to avoid heat damage to the electrical cords.

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 6 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
BASIC OPERATION
BASIC OPERATION
Use the power switch to turn on the Plancha.
There are (4) temperature controls on the front of the control box. Use these to set the desired temperature for each zone.
Zones are marked above the temperature control knobs. The Heater Indicator Light for each zone will be illuminated
until the zone reaches the temperature set on the Temperature Control Knob or when the temperature drops below the
temperature set on the Temperature Control Knob.
Power
Switch
Zone
Indicator
4 Heater
Indicator
Lights
Temperature Control Knob
(one for each zone)
Grease/Debris Tray
CLEAN THOROUGHLY BEFORE FIRST USE
A vegetable oil cooking spray is applied to the cook surface at the factory to help protect from corrosion during shipping.
The cook surface must be thoroughly cleaned before use. Follow these instructions:
1. Set the Temperature Controls to LO. Make sure the Grease/Debris tray is in place.
2. Turn the Plancha ON and allow to heat for 5 minutes. Then turn the Plancha OFF and wait for 5 minutes.
3. Wipe the cook surface using a wet towel, dampened with a small amount of water and a mild dish detergent. Then
rinse with a towel dampened with clean water 3-4 times. Wipe the surface down with a dry towel and the Plancha
is ready for service.
CAUTION: THE COOKING SURFACE WILL BE HOT!
USE CAUTION WHEN WIPING SURFACE,
PAYING PARTICULAR ATTENTION TO AVOID STEAM FROM DAMP TOWELS.

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 7 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
DAILY USE & MAINTENANCE
DAILY USE AND MAINTENANCE
1. Check and empty the grease/debris tray frequently throughout the day. Keep the drain clear and do not allow the
tray to overflow.
2. The cooking surface should be scraped periodically throughout the day. To remove loose debris use a dry towel.
CAUTION: COOK SURFACE IS VERY HOT!
3. End of the day: The Plancha cook surface should be cleaned thoroughly at the end of each day. Wood Stone
recommends the 3M 710 Scotch Brite Quick Clean Griddle Cleaning System for cleaning the Plancha cooking
surface. This kit includes all of the necessary tools to clean the Plancha surface properly including Scotch Brite
Quick Clean Griddle Liquid. These products are available through your dealer or restaurant supplier.
When using chemicals to clean the grill surface, first shut down the Plancha and allow it to cool for 30 minutes. If
the Plancha is too hot, the chemical may tend to boil or burn off immediately and not work as effectively. Do not
pour water onto a hot Plancha to cool it as this can warp the cook surface. DO NOT USE EXCESSIVE AMOUNTS
OF WATER TO CLEAN THE PLANCHA.
Be careful when using scrapers on the cook surface to avoid scratching or gouging the top. Be aware that
the cook surface is made of mild steel—it will not clean to a shiny silver-like surface. Do not use heavy duty
degreasers or oven cleaners on the Plancha as these are not generally intended for use on hot surfaces.
Damage caused by using spray hoses or excessive water, and scratching or marring of the cook surface, is not
covered by the warranty.
4. The front, sides and back may be wiped down with a cloth and mild detergent if needed. Do not use abrasive
cleaners or scouring pads as these will scratch the stainless steel.
5. The Plancha grill is capable of extremely high temperatures, much higher than a conventional electric grill. To
ensure the reliability of the electrical components, cooling vents are provided on the appliance—on the sides,
back and underneath of the appliance. These vents must not be blocked, and must be kept clean and free of
grease and dust.

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 8 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
TROUBLESHOOTING
If you have checked the incoming power to the Plancha and it is still not functioning correctly, please unplug
the electrical supply cords and contact the Wood Stone Service Department at 1-800-988-8103.
Our service hours are 8 am to 5 pm Pacific time. Follow the recorded instructions for Emergency Service if
you require assistance during non-business hours. A Wood Stone technician will promptly respond to your
call.
PROBLEM POSSIBLE CAUSE/SOLUTION
Unit will not turn on Verify that all electrical supply cords are plugged in securely. Check
that circuit breaker(s) supplying power to the unit are not tripped.
Only two zones are working Verify that all electrical supply cords are plugged in securely.
SURFACE TEMPERATURE MEASUREMENT PROCEDURE
1. From a cold start: Turn on the Plancha, set temperature on all knobs
to 500 °F and wait at least 30 minutes before taking temperature
measurements.
If Plancha is heated up / in use: Allow 30 minutes of inactivity to
stabilize after last cooking run. Make certain grill surface is clean.
2. Take four temperature measurements using a surface probe. Note
measurement once reading has stabilized. Measurement points are
shown on the diagram at left—one at the center of each zone.
3. Temperature reading at each point should be within the range
495–525 °F.

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 9 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
1 PHASE ELECTRICAL DIAGRAMS
DATE:
DIAG #:
WD408 Rev. 1
4/12/2019
Plancha, 4-Zone, Countertop
Bellingham, WA [phone] www.woodstone-corp.com
Sheet: 2 of 4

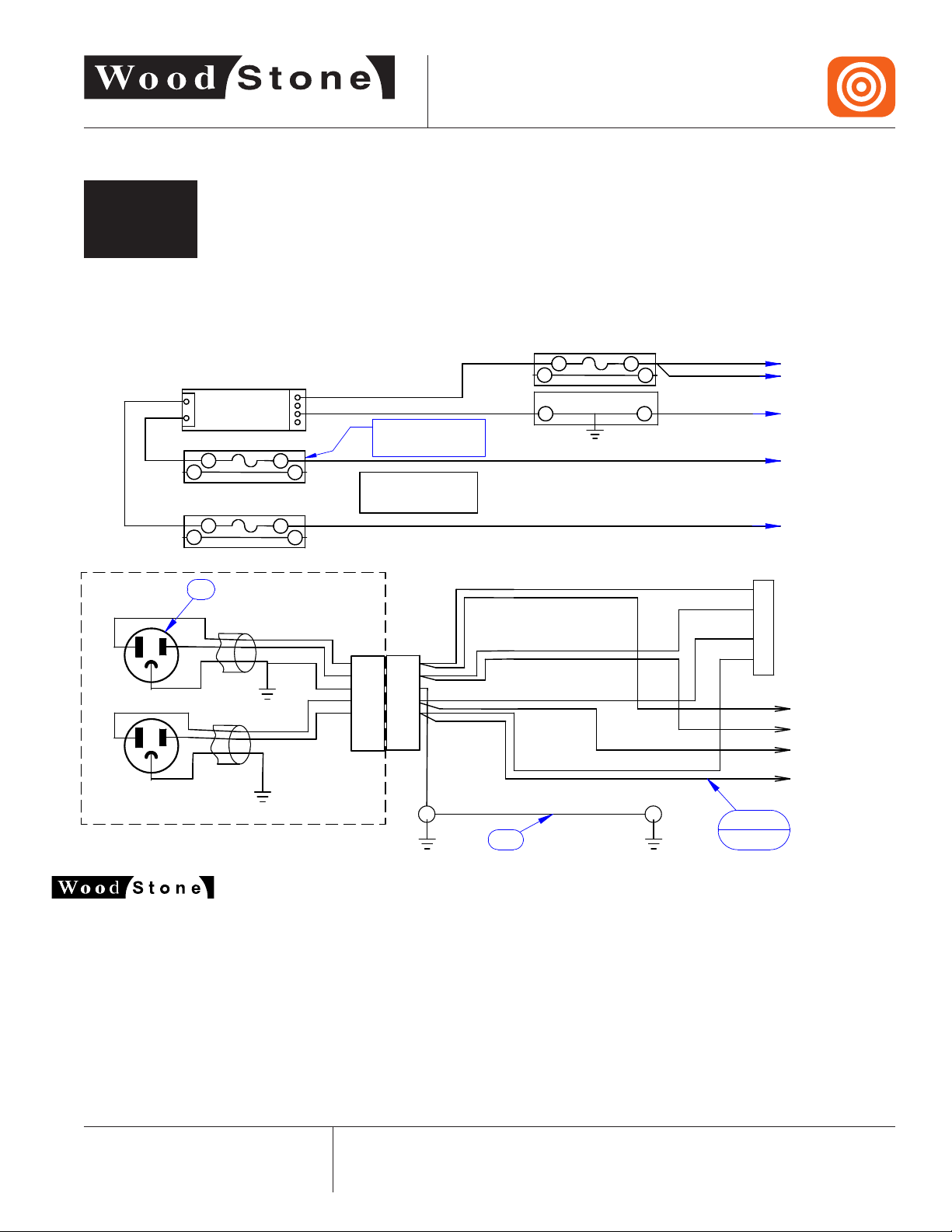

208 / 240 VAC, dual supply and disconnect
Power Distribution
L1
To HR2-1
To HR1-1
To K3-3
To HR4-1
To K8-L1
To K5-L1
To K7-3
To HR3-1
To K6-3
To K2-3
L2
L3
L4
6-50 P
6-50 P
P1
P2
8
2 plcs
11
P6
1
6
3
4
--<
Mates J6
next page
1
5
2
3
4
J7
1
5
2
3
4
P3
2
8plcs
Front Panel
GND Stud
Chassis
GND Stud
To S1-3
To S1-8
W27
W28
W29
W30
W31
W39
W38
002-PL1805
W77
W78
Note: F1, F2, and
F3 are Littelfuse
PN 0477002.MXP
+
+
-
-
20 watt SMPS
85-250VAC in
24 VDC out
L1
N/L2
ZPSA20-24
PS1
24 volts DC
(L1)
(L2)
F1
XF1
2 amp Slo-Blo 500VAC/400VDC
Fuse Block: 7000-0899
Fuse: 7000-0970
3 Plcs
XF3
2 amp Slo-Blo 500VAC/400VDC
F3
F2
XF2
2 amp Slo-Blo 500VAC/400VDC
TB4
1 2
4-ZONE
208/240 VAC
1 PHASE
NOTE: MUST be connected ONLY to the voltage specified on the equipment data plate.

Electric Metal Countertop Plancha
Installation and Operation Manual
PG 10 OF 16
M0061.07 MAY 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
1 PHASE ELECTRICAL DIAGRAMS
NOTE: MUST be connected ONLY to the voltage specified on the equipment data plate.
DATE:
DIAG #:
WD408 Rev. 1
4/12/2019
Plancha, 4-Zone, Countertop
Bellingham, WA [phone] www.woodstone-corp.com
Sheet: 3 of 4
208 / 240 VAC, dual supply and disconnect
Power Switching and Heating Elements
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K1
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K2
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K3
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K4
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K5
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K6
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K7
1 2
4
3
A1 + A2 -
1RHP 2520D32 Hybrid Relay
4 - 32 VDC
K8
To K9-24
To XF1-1
To XF2-1
6
8 plcs
2
1
J2
To
J7-5 (L4)
To
J7-4 (L3)
2
4 plcs, heavy lines
4
8plcs
7
HR1
HR7
HR8
Left, Far
HR2
HR9
HR10
Left, Front
HR3
HR5
HR6
Right, Far
HR4
HR11
HR12
Right, Front
2
1
J1
J5
2
1
3
6
4
7
9
8
--<
P5
2
1
3
6
4
7
9
8
<--
654Mating face
Jack
987
321
Conduit
J6
1
4
6
3
<--
Mates P6,
previous page
1
4plcs
1
2
3
4
56
Mating face
Jack
2
1
J3
2
1
J4
To
J7-1 (L1)
To
J7-2 (L2)
To A1J5-2
To A1J5-1
To A1J5-6
To A1J5-3
To A1J5-5
To A1J5-7
To A1J5-8
To A1J5-4
L1
L2
L3
L4
7
all
11 6
1
1
1
W41
W42
W43
W44
W45
W46
W47
W48
W20
W19
W23
W24
W22
W21
W25
W26
W2
W1
W3
W5
W4
W6
W8
W7
T1
L1 7000-1760-1 Relay T1 L1 7000-1760 Relay
T1
L1 7000-1760 Relay
T1
L1 7000-1760 Relay
T1
L1 7000-1760 Relay
T1
L1 7000-1760 Relay
T1
L1 7000-1760 Relay
T1
L1 7000-1760 Relay
T1
L1 7000-1760 Relay
W69
W73
W70
W71
W72
W74
W75
W76
W77
W78
1
3
8plcs
4-ZONE
208/240 VAC
1 PHASE
