woodmizer BMT200 Guide

Dual Toothsetter
Safety, Operation, Maintenance
& Parts Manual
BMT200 Rev. A.00
BMT250 Rev. A.00
Safety is our #1 concern! Read and understand
all safety information and instructions before
operating, setting up or maintaining this machine.
Form #1792
!

Table of Contents Section-Page
ii DSdoc030819 Table of Contents
SECTION 1 INTRODUCTION 1-1
1.1 About This Manual.................................................................................................... 1-1
General Contact Information.............................................................. 1-2
Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)1-3
SECTION 2 GENERAL INFORMATION 2-1
2.1 Safety......................................................................................................................... 2-1
2.2 Component ID ........................................................................................................... 2-6

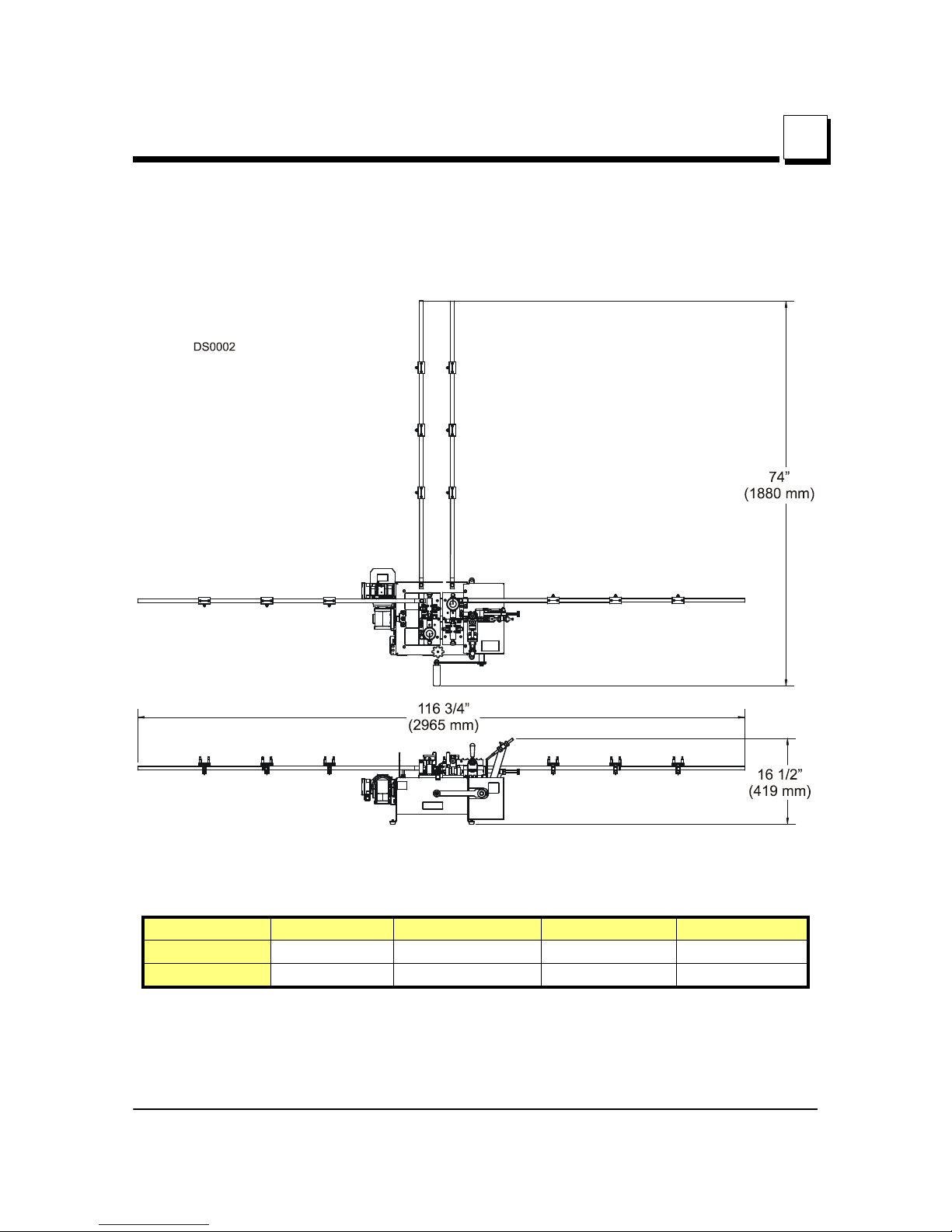

2.3 Dimensions and Specifications.................................................................................. 2-7
SECTION 3 SETUP & OPERATION 3-1
3.1 Assembly ................................................................................................................... 3-1
Blade Support Arms ............................................................................ 3-1
Auto Feed Installation (Optional)....................................................... 3-3
3.2 Operation ...................................................................................................................3-6
Blade Installation/Setup...................................................................... 3-6
Manual Feed Operation.................................................................... 3-12
Auto Feed Operation......................................................................... 3-13
3.3 Dual Setter Calibration............................................................................................ 3-15
Tooth Set Master Gauge Calibration................................................ 3-15
Dual Setter Calibration..................................................................... 3-16
SECTION 4 MAINTENANCE 4-1
4.1 Routine Maintenance Schedule ................................................................................. 4-1
Every 2 Weeks ................................................................................ 4-1
Every 3 Months ................................................................................ 4-2
Clamp Adjustment ............................................................................... 4-2
Gauge Assembly Adjustment............................................................... 4-3
4.2 Safety Devices Inspection ......................................................................................... 4-4
SECTION 5 STANDARD OPERATING PROCEDURE 5-1
5.1 Setter alignment: BMT200/250 .......................................................................... 5-2
5.2 Calibration: BMT 200/250 .................................................................................. 5-6

Table of Contents Section-Page
Table of Contents DSdoc030819 iii
SECTION 6 REPLACEMENT PARTS 6-1
6.1 Dual Toothsetter (Complete)..................................................................................... 6-1
6.2 Dual Toothsetter Assembly ....................................................................................... 6-2
6.3 BMT200 Decals......................................................................................................... 6-3
6.4 BMT250 Decals......................................................................................................... 6-4
6.5 Base Housing Assembly............................................................................................ 6-5
6.6 Dual Toothsetter Right Head..................................................................................... 6-7
6.7 Dual Toothsetter Left Head ..................................................................................... 6-10
6.8 Index Shaft Assembly.............................................................................................. 6-13
6.9 Blade Height Adjuster Assembly ............................................................................ 6-15
6.10 Blade Clamp & Guide ............................................................................................. 6-16
6.11 Outfeed Blade Guide ............................................................................................... 6-18
6.12 Optional Tool Set .................................................................................................... 6-19
6.13 Blade Support Arm.................................................................................................. 6-20
6.14 Tooth Set Gauge Assembly ..................................................................................... 6-21
6.15 Side Blade Guide..................................................................................................... 6-22
6.16 Rear Blade Guide .................................................................................................... 6-23
6.17 BMT250 Toothsetter Drive ..................................................................................... 6-25
6.18 Toothsetter Control Box .......................................................................................... 6-26

Introduction
About This Manual
1-1 DSdoc030819 Introduction
1
SECTION 1 INTRODUCTION
1.1 About This Manual
This manual is to replace or to be used with all previous information received on the
Wood-Mizer®1 equipment. All future mailings will be an addition to or a revision of
individual sections of this manual as we obtain new information.
The information and instructions given in this manual do not amend or extend the limited
warranties for the equipment given at the time of purchase.
This equipment is designed to work with Wood-Mizer blades only.
IMPORTANT! Read the entire Operator's Manual before operating
the equipment. Take notice of all safety warnings throughout this
manual and those posted on the equipment. Keep this manual with
this equipment at all times, regardless of ownership.
1.Wood-Mizer® is a registered trademark of Wood-Mizer Products, Inc.
!

General Contact Information
doc030819 -2
Getting Service
Wood-Mizer is committed to providing you with the latest technology, best quality and strongest
customer service available on the market today. We continually evaluate our customers’ needs to
ensure we’re meeting current wood-processing demands. Your comments and suggestions are
welcome.
General Contact Information
From Europe call your local distributor or our European Headquarters and Manufacturing Facility in
Koło, Nagórna 114 St, Poland at [phone]. From the continental U.S., call our U.S.
Headquarter 8180 West 10th St.Indianapolis, IN 46214, toll-free at 1-800-525-8100. Ask to speak
with a Customer Service Representative. Please have your machine identification number and your
customer number ready when you call. The Service Representative can help you with questions
about the operation and maintenance of your machine. He also can schedule you for a service call.
Office Hours:
Please have your vehicle identification number and your customer number ready when you call.
Wood-Mizer will accept these methods of payment:
Visa, Mastercard, or Discover
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on size and
quantity of order.
Technical data are subject to change without prior notice.
Actual product may differ from product images. Some illustrations show machines with optional
equipment.
Country Monday - Friday Saturday Sunday
Poland 7 a.m.- 3 p.m. Closed Closed
US 8 a.m.- 5 p.m. 8 a.m.- 12 p.m Closed

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
-3 doc030819
Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
EUROPE UNITED STATES
European Headquarters
Wood-Mizer Industries Sp. z o.o.
Nagórna 114, 62-600 Koło, Poland
Tel.: [phone]
Fax: [phone]
www.woodmizer.eu
World Headquarters
Wood-Mizer LLC
8180 West 10th Street
Indianapolis,Indiana 46214-2400,
USA
Tel.: [phone]
Fax: [phone]
www.woodmizer.com
BELARUS
MOST-GRUPP
Siemashko 15, k.3
Minsk 2200116
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SWITZERLAND Stefan Wespi
Maschinen u. Geräte
Spezialarbeiten GmbH
Eichistraße 4
6353 Weggis
Tel.: +41-(0)41 - 3900312
GSM: +41-(0)79 - 9643594
[email protected]
RUSSIA Dariusz Mikołajewski
OOO WOOD-MIZER INDUSTRIES
141031, Moscow
Reg., Mytishenski raj., pos. Veshki,
Zavodskaja str., 3B
Tel.Fax: [phone]
Tel.Fax: [phone]
e-mail: [email protected]
BULGARIA Kalin Simeonov
Ecotechproduct
38 Star Lozenski pat str.
Sofia 1186
Tel.: [phone]
Tel.: [phone]
Tel:/Fax
: [phone]
Kalin Simeonov
GSM: [phone]
e-mail: [email protected]
HUNGARY Wiktor Turoczy
Wood-Mizer Hungary K.F.T.
Szonyi Ut 67., 2921 Komárom
Tel.:/Fax: [phone]
e-mail: [email protected]
RUSSIA Far East Wladimir Głazaczew
“WM Service”
Krasnoretchenskaya Str.111
680006 Khabarovsk
Tel.:/Fax: [phone]
e-mail: [email protected]

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
doc030819 -4
CROATIA Krešimir Pregernik
Pregimex d.o.o.
S. Batušiæa 31, 10090 Zagreb
Tel.:/Fax: [phone]
Krešimir Pregernik
GSM: [phone]
e-mail: [email protected]
ITALY Pasquale Felice
Wood-Mizer Italia Srl
Cda. Capoiaccio SN
86012 Cercemaggiore
Campobasso
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SERBIA Dragan Markov
Wood-Mizer Balkan d.o.o.
Svetosavska GA 3/3; P. Fah 25
23 300 Kikinda
Tel.:/Fax: [phone]
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Miroslaw Greill
Wood-Mizer CZ s.r.o.
Osvaldova 91
339 01 Klatovy-Luby
Tel.:/Fax: [phone]
Fax: [phone]
Miroslaw Greill
GSM: [phone]
e-mail: [email protected]
SLOVAKIA Wiktor Turoczy
Wood-Mizer Danubia s.r.o.
Hadovce 5, 94501 Komárno
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Lubomir Kudlik
Wood-Mizer Moravia
Sovadinova 6
69002 Breclav
Tel.:/Fax: [phone]
Lubomir Kudlik
GSM: [phone]
e-mail: [email protected]
LATVIA Vilmars Jansons
OBERTS Ltd
Gaujas str. 32/2
LV-2167 Marupe, Rigas Raj.
Tel.: [phone]
Fax: [phone]
Vilmars Jansons
GSM: [phone]
Andris Orols
GSM: [phone]
e-mail: [email protected]
TURKEY
Er-Ka Ahsap Profil Kerestecilik San.
ve Tic. Ltd. Sti.
Adana Keresteciler Sitesi 191 sk No.41
ADANA
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
FINLAND Howard Blackbourn
Oy Falkberg Jordbruk Ab
Falkintie 220
25610 Ylonkyla
Tel.: [phone]
Fax: [phone]
Howard Blackbourn
GSM: [phone]
e-mail: [email protected]
LITHUANIA Andrius Zuzevicius
UAB Singlis
Savanoriu pr. 187, 2053 Vilnius
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
Dmitrij Gaiduk
GSM: [phone]
e-mail: [email protected]
UKRAINE Ivan Vinnicki
MOST UKRAINA
bul. Myru 3, Bajkivtsi Ternoplskyj r-j
Ternopolska oblast
47711 Ukraine
Tel/Fax: [phone]
GSM: [phone]
GSM: [phone]
E-mail: [email protected]
FRANCE Tizoc Chavez
Wood-Mizer France
556 chemin des Embouffus,
ZAC des Basses Echarrieres
38440 SAINT JEAN DE BOURNAY
Tel: [phone]
GSM: [phone]
Mail: [email protected]
NORWAY Odd Edvoll
Wood-Mizer Nordic AS
Vardelia 17, 2020 Skedsmokorset
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
e-mail: [email protected]
UNITED KINGDOM & IRELAND
Wood-Mizer UK
Hopfield Barn
Kenward Road, Yalding
Kent ME18 6JP, UK
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
SLOVENIA Jan Fale
FAMTEH d.o.o.
Gacnikova pot 2,
2390 Ravne na Koroskem
Tel.: [phone]
Fax: [phone]
Jan Fale
GSM: [phone]
e-mail: [email protected]
Matjaz Kolar
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
-5 doc030819
GERMANY Klaus Longmuss
Wood-Mizer Sägewerke GmbH
Dorfstraße 5, 29485 Schletau
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
Klaus Longmuss
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]
Subagent:
SWEDEN Kjell Larsson
Mekwood AB
Slingan 14, 812 41 Gästrike-Hammarby
Tel.: [phone]
Kjell Larsson
GSM: [phone]
e-mail: [email protected]
IRELAND
Wood-Mizer Ireland
Stephen Brennan
Cum Lahardane Ballina County Mayo
Tel:[phone]
E-mail: [email protected]
Subagents:
DENMARK Brian Jensen
Arnborgvej 9, 7330 Brande- Fasterholt
Tel.: [phone]
Fax: [phone]
Brian Jensen
GSM: [phone]
e-mail: [e-mail]
ROMANIA Adrian Echert
SC WOOD-MIZER RO SRL
TRANSILVANIEI Nr. 5
Sibiu, Cisnadie 555300
Tel.:/Fax: : [phone]
GSM: [phone]
e-mail: [email protected]
Regional Manager - Asia
Wood-Mizer Asia Pte Ltd.
James Wong
Tel: [phone]
Fax: [phone]
WWW: www.woodmizerasia.com
E-mail: [email protected]
Netherlands Chris Dragt
Lange Brink 77d,
7317 BD Apeldoorn
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
Subagent:
ROMANIA M. Echert
S.C. Echert Comprod s.r.l
Str. Schitului Nr. 6, Apt.7 etajul-1
725 70 Vatra Dornei, Romania
Tel.:/Fax: [phone]
Tel. : [phone]
Regional Manager - Africa
Wood-Mizer Africa
Jean-Jacques Oelofse
UNIT 3, LEADER PARK, NO: 20 CHARIOT
ROAD
STORMILL, EXT 5, Roodepoort,
Johannesburg
Tel: [phone]
Fax: [phone]
Jean-Jacques Oelofse E-mail:
[email protected]
Jean-Jacques Oelofse
Skype:jean.jacques.pierre.oelofse
USA World Headquarters Canadian Headquarters
Serving North & South America, Oceania, East Asia
Wood-Mizer LLC
8180 West 10th Street
Indianapolis, IN 46214
Phone: [phone] or 800.553.0182
Customer Service: 800.525.8100
Fax: [phone]
Email: [e-mail]
Serving Canada
Wood-Mizer Canada
396 County Road 36, Unit B
Lindsay, ON K9V 4R3
Phone: [phone] or 877.357.3373
Fax: [phone]
Email: [e-mail]
Brazil Headquarters Europe Headquarters
Serving Brazil
Wood-Mizer do Brasil
Rua Dom Pedro 1, No: 205 Bairro: Sao Jose
Ivoti/RS CEP:93.900-000
Tel: [phone]/ +55 51
3563-4784
Email: [e-mail]
Serving Europe, Africa, West Asia
Wood-Mizer Industries Sp z o.o.
Nagorna 114
62-600 Kolo, Poland
Phone: [phone]
Fax: [phone]
Branches & Authorized Sales Centers
For a complete list of dealers, visit www.woodmizer.com

General Information
Safety
General Information DSdoc030819 2-1
2
SECTION 2 GENERAL INFORMATION
2.1 Safety
This symbol calls your attention to instructions concerning your personal safety. Be sure
to observe and follow these instructions. This symbol accompanies a signal word.
The word DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury. WARNING suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury. CAUTION refers to potentially
hazardous situations which, if not avoided, may result in minor or moderate injury to
persons or equipment. Read all safety instructions before operating this equipment and
observe all safety warnings!
Read and observe all safety instructions before operating this equipment! Also read any
additional manufacturer’s manuals and observe any applicable safety instructions
including dangers, warnings, and cautions.
Always be sure that all safety decals are clean and readable. Replace all damaged safety
decals to prevent personal injury or damage to the equipment. Contact your local
distributor, or call your Customer Service Representative to order more decals.
Safety instructions are listed in this section by the following operations:
Electrical Safety
Blade Handling
Machine Operation
Electrical Safety (Optional Auto Feed Only)
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified
electrician and is in accordance with applicable electrical
codes.
DANGER! HAZARDOUS VOLTAGE can cause shock,
burns, or death. SHUT OFF & LOCK OUT POWER before
performing service in any area of this machine. DO NOT
restore power until all access panels are replaced and
secured.
WARNING! Always turn off and disconnect power at control
console AND at main supply circuit breaker before

General Information
Safety
2-2 DSdoc030819 General Information
2
performing any service to the machine.
Blade Handling
WARNING! Always wear gloves and eye protection when
handling bandsaw blades. Keep all persons away from
area when coiling or carrying a blade.
WARNING! Before installing the blade, inspect it for
damage and cracks. Always handle the blade with extreme
care. Use suitable carrier equipment for transporting the
blades.
Machine Operation
DANGER! Make sure all guards and covers are in place
and secured before operating the toothsetter. Failure to do
so may result in serious injury.
DANGER! Keep all persons away from moving parts when
operating this machine. Failure to do so will result in serious
injury.
DANGER! Always keep hands away from moving bandsaw
blade. Failure to do so will result in serious injury.
WARNING! Always wear eye protection when operating
this machine. Failure to do so may result in serious injury.
WARNING! Secure all loose clothing and jewelry before
operating this machine. Failure to do so may result in
serious injury or death.
WARNING! The toothsetter should be operated only by
adults who have read and understood the entire operator’s
manuals.
WARNING! The illumination at the operator’s position
should be at least 300 lux. The light source can not cause
stroboscopic effect.
WARNING! If at any time you need to immediately stop the
machine, press the Emergency Stop (E-Stop) button.
Before operating the machine again, turn the E-Stop button
clockwise to release. The machine will not start until the

General Information
Safety
General Information DSdoc030819 2-3
2
E-Stop button is released.

General Information
Safety
2-4 DSdoc030819 General Information
2
Dual Toothsetter Decals
See Table 2-1. The Dual Toothsetter decals are shown below.
Decal Part Number Description
S12004G Always wear safety goggles when operating
the equipment!
S12005G Always wear protective ear muffs when
operating the equipment!
501465 Always wear safety boots when operating
the equipment!
096319 Always disconnect the power cord before
opening the electric box!

General Information
Safety
General Information DSdoc030819 2-5
2
096316 Do not open or close the electric box when
the switch is not in the "0" position!
509255 Hand injury hazard
P85070 CE Certified Machine (Small)
053583 Dual Setter Operation Direction
509255
053583

General Information
Component ID
2-6 DSdoc030819 General Information
2
2.2 Component ID
See Figure 2-1. Major components of the dual toothsetter are shown below.
FIG. 2-1
Blade Support
Arm
end Back Tool
Blade Support
Guide
Blade
Clamp
Blade Index
Assembly
Auto Feed
Motor*
Auto Feed
Control*
Feed Crank
Handle
Toothsetter
AssembliesTooth Set
Master Gauge *Auto Feed: Optional for BMT200
Standard for BM&250

General Information
Dimensions and Specifications
General Information DSdoc030819 2-7
2
2.3 Dimensions and Specifications
See Figure 2-2. Dimensions of the Dual Setter are shown below.
See Table 2-2. The overall dimensions and weight are listed below.
FIG. 2-2
Length Width Height Weight
BMT200 74" (1880 mm) 116 3/4" (2965 mm) 16 1/2" (419 mm) 90 lbs. (41 kg)
BMT250 74" (1880 mm) 116 3/4" (2965 mm) 16 1/2" (419 mm) 105 lbs. (47.5 kg)
TOP VIEW
FRONT VIEW

General Information
Dimensions and Specifications
2-8 DSdoc030819 General Information
2
See Table 2-3. The Dual Toothsetter models are listed below.
See Table 2-4. The motor specifications are listed below.
See Table 2-5. The noise level of the operating BMT250 Dual Toothsetter is listed
below.1
See Table 2-6. The maximum electrical loads are listed below.
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified
electrician and is in accordance with applicable electrical
codes.
DANGER! It is recommended that a 30mA Ground Fault
Interrupter (GFI) be used.
Model Voltage
Code 1
1 M - 1 x 110V; A - 1 x 230V.
Electrical
Standard Code 2
2 U - UL (60Hz); S - CE (50Hz).
Electrical
Package
Description
BMT200 --- --- --- Dual Toothsetter w/Manual Crank
BMT250 M U EP Automatic Dual Toothsetter (1 x 110V 60Hz)
BMT250 A S EP Automatic Dual Toothsetter (1 x 230V 50Hz)
Motor Manufacturer Model Rated Output Rated Current Rated Speed
Electric Besel S.A.,
Poland
SKh 63-4A2 0.16 HP (0.12 kW) 0.80A at 230V
0.45A at 400V
1380 RPM
Model Noise Level
BMT250 dB (A)
1. The figures quoted are emission levels and are not necessarily safe working levels. Although there is a correlation between
the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required. Factors
that influence the actual level of exposure of the workforce include the characteristics of the work room and the other sources of noise
etc. i.e. the number of machines and other adjacent processes. Also, the permissible exposure level value may vary from country to
country. This information, however, will enable the user of the machine to make a better evaluation of the hazards and risk.
Model Maximum Load
BMT250 (1 x 110V AC 60Hz) 6.8 Amps
BMT250 (1 x 220V AC 50/60Hz) 3.95 Amps

Setup & Operation
Assembly
Setup & Operation DSdoc030819 3-1
3
SECTION 3 SETUP & OPERATION
3.1 Assembly
Place the setter on a table or workbench sturdy enough to support the weight of the
machine. Be sure there is enough room on either side of the setter to allow for the blade
to travel.
The unit will rest on the rubber feet on the bottom of the machine. If desired, the unit can
be bolted to the table through the holes provided in the bottom of the base frame.
Blade Support Arms
NOTE: The blade support arms supplied with the setter are capable of supporting most
blades up to 1 1/2" wide. An upgrade kit is available to increase the support arm capability
to support heavier blades (See Section 6.1).

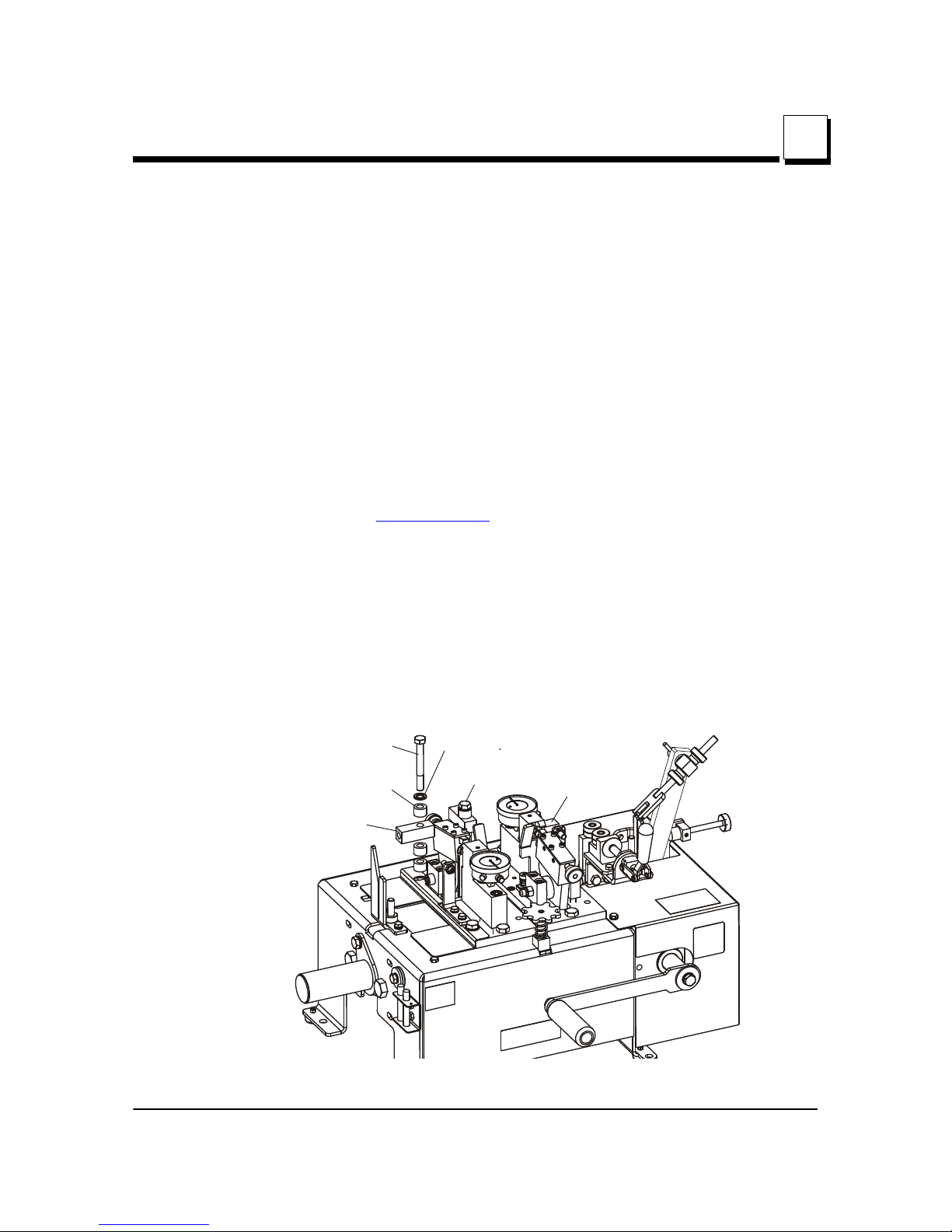

See Figure 3-1. There are arm mounting locations at the right side, left side and rear of
the machine. Install two spacer bushings and one arm mount block at each location.
Secure each block with a provided 10mm lock washer and M10-1.5 x 80 hex head bolt.
NOTE: If setting very wide blades, you may need to exclude one or both of the spacers
from each location to ensure the blade is positioned properly in the clamp. If installing the
optional arm kit for heavier blades, replace the arm mounting blocks with the extension
arms. Install the long extension arms to the left and right positions and the short arm to
the rear position.
FIG. 3-1
Spacer Bushings
(remove for wider blades)
Arm Mount Block
(replace with optional
extended block for
heavier blades)
10mm Split Lock Washer
M10-1.5 x 80 Hex Head Bolt
Right-side
arm mount
Rear arm mount
DS0001-20
M10-1.5x80 Hex Head Bolt
Spacers Bushings (remove
for wider blades)
Arm Mount Block
(replace with optional
extended block for
heavier blades)
10mm Split Lock Washer
Rear arm mount Right-side
arm mount

Setup & Operation
Assembly
3-2 DSdoc030819 Setup & Operation
3
See Figure 3-2. Thread a blade support tube into the threaded holes in the three
mounting blocks. Assemble a blade support extension tube to each blade support tube.
NOTE: If installing the optional arm kit for heavier blades, assemble the blade support
extension tubes to the extended mounting arms.
Install at least one blade support guide to each support tube with two 1/4-20 x 1 1/2" hex
head bolts, flat washers, self-locking nut and wing nut. The position of the guides will be
adjusted later. Three guide assemblies are provided for each arm so you can setup for
different blade lengths without having to adjust the guide assembly.
FIG. 3-2
1/4-20 Self
Locking Nut
1/4-20 Wing
Nut
1/4" Flat Washer (2)
1/4-20x1 1/2" Hex
Head Bolt (2)
Blade Support
Tube (3)
Blade Support
Guide (9)
Blade Support
Extension Tube (3)
Blade Support
Tubes

Setup & Operation
Assembly
Setup & Operation DSdoc030819 3-3
3
Auto Feed Installation (Optional)
The Auto Feed Option includes an electric motor and control to automate the setting
process.

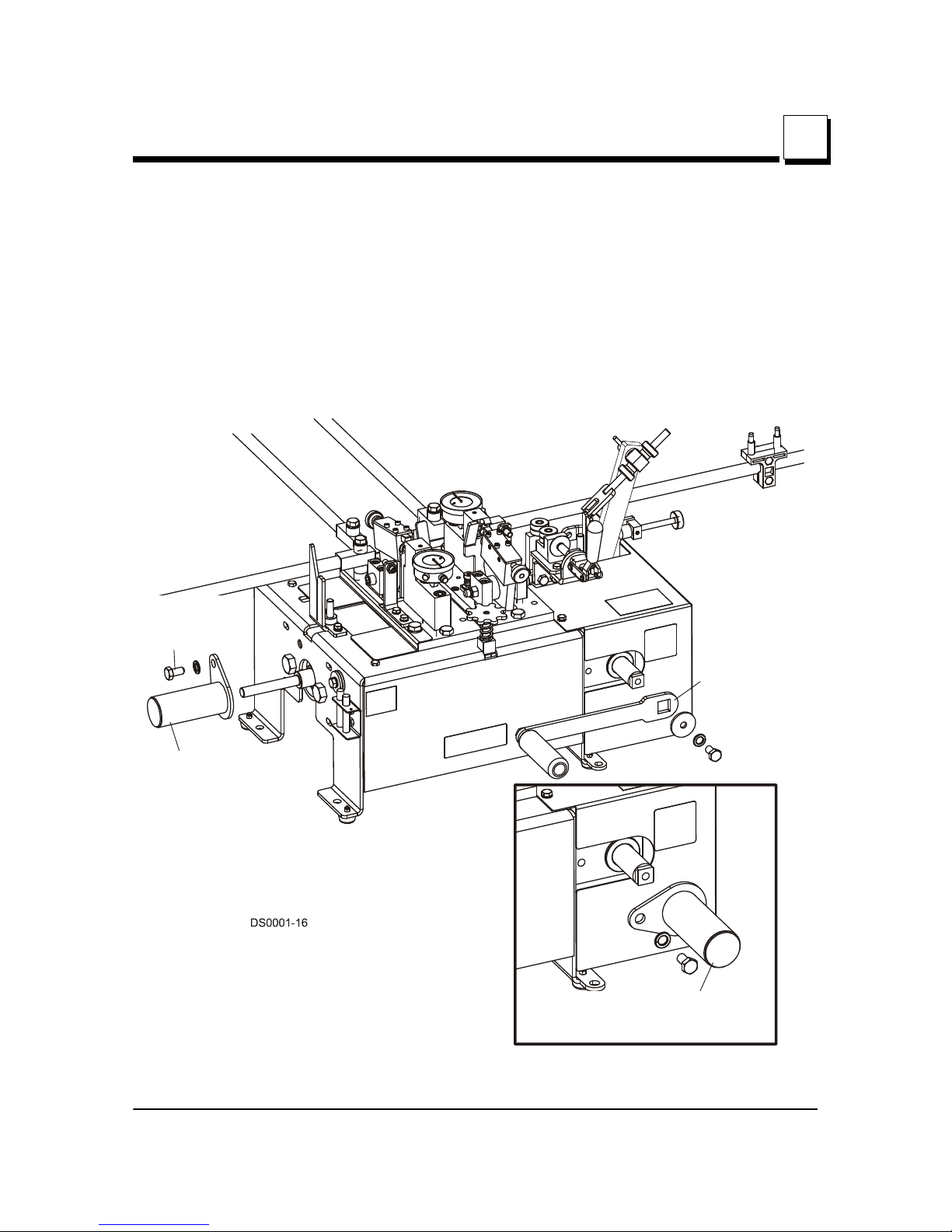

See Figure 3-3. Before installing the Auto Feed, remove the manual feed crank handle.
Disassemble the bolt, lock washer and fender washer to remove the handle. Remove the
M10-1.25 x 20 hex head bolt, split lock washer and the shaft cover mounted to the left
side of the setter assembly. Use the existing M10-1.25 x 20 hex head bolt and split lock
washer to reinstall the shaft cover over the manual feed shaft.
FIG. 3-3
M10-1.25x20 hex
head bolt and split
lock washer
Remove shaft cover
Use M10-1.25x20 hex head bolt and
split lock washer to install shaft cover
over crank handle shaft
Remove bolt, lock
washer, fender
washer and crank
handle

Setup & Operation
Assembly
3-4 DSdoc030819 Setup & Operation
3
See Figure 3-4. Install the motor mount plate to the feed motor with six M5-.8 x 10 hex
head bolts and #10 split lock washers.
See Figure 3-5. Install two 5 x 5 x 25mm round end keys to the feed shaft and slide the
motor with the mount plate onto the feed shaft. Secure the motor to the setter base with
eight M8 flat washers, four M8-1.25 x 20 hex head bolts and four M8 hex nylon nuts.
FIG. 3-4
FIG. 3-5
DS0001-21
Feed Motor
Motor Mount Plate
M5-.8 x 10 Hex
Head Bolt (6)
#10 Split
Lock Washer (6)
Feed Motor
Motor Mount Plate
M5-0.8x10 Hex
Head Bolt (6)
#10 Split Lock
Washer (6)
DS0001-22
M8-1.25 x 20 Hex
Head Bolt (4)
5 x 5 x 25mm
Round End Key (2)
5/16 Flat Washer (8)
M8 Hex Nylon Nut (4)
M8 Hex Nylon Nut (4)
5x5x25mm Round
End Key (2)
5/16 Flat Washer (8)
M8-1.25x20 Hex
Head Bolt (4)
