woodmizer CBT-430 Guide

Safety, Operation, Maintenance &
Parts Manual
CBT-430 Tailer rev. A1.00 - A2.04
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
April 2005
Form #1206

Table of Contents Section-Page
ii TL04doc081916 Table of Contents
SECTION 1 INTRODUCTION 1-1
1.1 About This Manual.................................................................................1-1
1.2 Getting Service .......................................................................................1-2
1.3 Customer and Equipment Identification.................................................1-4
1.4 Dimensions.............................................................................................1-5
1.5 Specifications .........................................................................................1-6
SECTION 2 SAFETY 2-1
2.1 Safety Symbols.......................................................................................2-1
2.2 Safety Instructions..................................................................................2-2
SECTION 3 SETUP AND OPERATION 3-1
3.1 Setup .......................................................................................................3-1
3.2 Electrical Installation..............................................................................3-4
3.3 Starting And Stopping The Machine......................................................3-8
SECTION 4 MAINTENANCE 4-1
4.1 Gearbox Oil ............................................................................................4-1
4.2 Tensioning the Chains ............................................................................4-2
4.3 Lubrication .............................................................................................4-5
SECTION 5 REPLACEMENT PARTS 5-1
5.1 How To Use The Parts List ....................................................................5-1
5.2 Sample Assembly ...................................................................................5-1
5.3 Outfeed, Drive Side ................................................................................5-2
5.4 Outfeed, Drive Side ................................................................................5-4
5.5 Outfeed, Drive Side ................................................................................5-6
5.6 Infeed, Idle Side......................................................................................5-8
5.7 Infeed, Idle Side......................................................................................5-9
5.8 Hold-Down Wheel Assembly...............................................................5-10
5.9 Legs, Emergency Switch and Electrical Box .......................................5-12
SECTION 6 ELECTRICAL INFORMATION 6-1
6.1 Electrical Symbol Diagram ....................................................................6-1
6.2 Electrical Component List......................................................................6-2
6.3 Component Layout Diagrams.................................................................6-3
INDEX I
TOC

Introduction
About This Manual
Introduction TL04doc081916 1-1
1
SECTION 1 INTRODUCTION
1.1 About This Manual
This manual is to replace or to be used with all previous information received concerning
the Tailer. All future mailings will be an addition to or a revision of individual sections of
this manual as we obtain new information.
The information and instructions given in this manual do not amend or extend the limited
warranties for the equipment given at the time of purchase.
TL0001-1

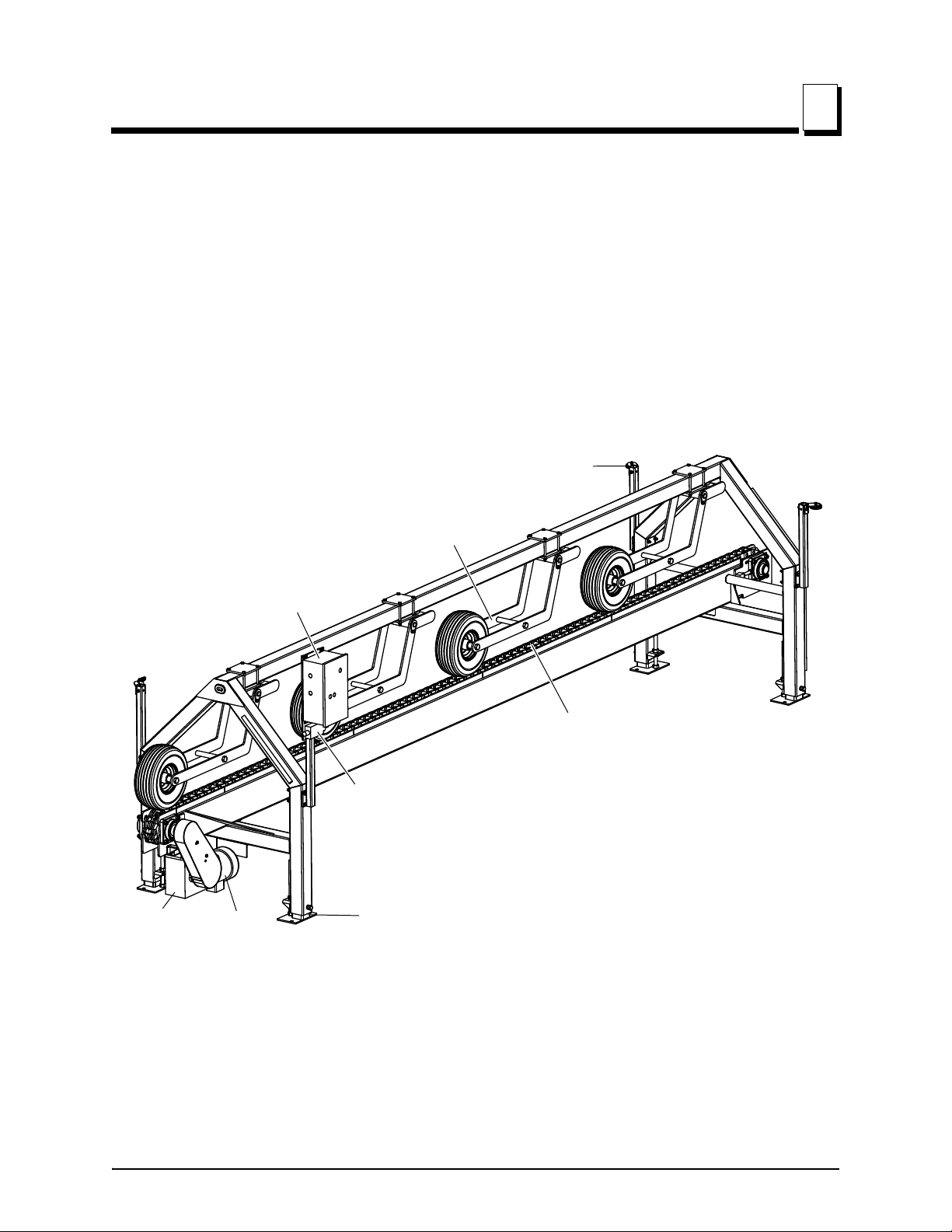

Holddown Wheel Assembly
Control Box
Adjustable Leg Assembly
Motor
Gearbox
E-Stop Support Post
E-Stop Switch
Chain Assembly

Introduction
Getting Service
1
1-2 TL04doc081916 Introduction
1.2 Getting Service
Wood-Mizer is committed to providing you with the latest technology, best quality and
strongest customer service available on the market today. We continually evaluate our
customers’ needs to ensure we’re meeting current wood-processing demands. Your com-
ments and suggestions are welcome.
General Contact Information
Toll free phone numbers are listed below for the continental U.S. and Canada. See the
next page for contact information for specific Wood-Mizer locations.
Office Hours: All times are Eastern Standard Time. Please remember that Indiana does
not observe Daylight Savings Time in the summer.
Please have your serial number and your customer number ready when you call. The
serial number is stamped on the identification tag on the side of the frame.
Wood-Mizer will accept these methods of payment:
Visa, Mastercard, or Discover
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on
size and quantity of order. In most cases, items will ship on the day they are ordered.
Second Day and Next Day shipping are available at additional cost.
If your equipment was purchased outside the United States or Canada, contact the dis-
tributor for service.
United States Canada
Sales 1-800-553-0182 1-877-866-0667
Service 1-800-525-8100 1-877-866-0667
Website www.woodmizer.com www.woodmizer.ca
E-mail [e-mail] [e-mail]
Monday - Friday Saturday
(Indianapolis Office Only)
Sunday
8 a.m. to 5 p.m. 8 a.m. to 12 p.m. Closed

Introduction
Wood-Mizer Locations
Introduction TL04doc081916 1-3
1
Wood-Mizer Locations
USA World Headquarters Canadian Headquarters
Serving North & South America, Oceania, East Asia
Wood-Mizer LLC
8180 West 10th Street
Indianapolis, IN 46214
Phone: [phone] or 800.553.0182
Customer Service: 800.525.8100
Fax: [phone]
Email: [email protected]
Serving Canada
Wood-Mizer Canada
396 County Road 36, Unit B
Lindsay, ON K9V 4R3
Phone: [phone] or 877.357.3373
Fax: [phone]
Email: [e-mail]
Brazil Headquarters Europe Headquarters
Serving Brazil
Wood-Mizer do Brasil
Rua Dom Pedro 1, No: 205 Bairro: Sao Jose
Ivoti/RS CEP:93.900-000
Tel: [phone]/ +55 51
3563-4784
Email: [e-mail]
Serving Europe, Africa, West Asia
Wood-Mizer Industries Sp z o.o.
Nagorna 114
62-600 Kolo, Poland
Phone: [phone]
Fax: [phone]
Branches & Authorized Sales Centers
For a complete list of dealers, visit www.woodmizer.com

Introduction
Customer and Equipment Identification
1
1-4 TL04doc081916 Introduction
1.3 Customer and Equipment Identification
An identification plate is located on the frame of the saw. The plate contains the serial
number and configuration information of your machine. You will also receive a customer
number when you purchase your machine.
These numbers will help expedite our service to you. Please locate them now and write
them below so you have quick, easy access to them.
Identification Information (To be filled in by purchaser)
Model No.
Serial No.
Customer No.
IDENTIFICATION PLATE
SERIAL #
VOLTS
ELECTRICAL DIAGRAM #
WOOD-MIZER PRODUCTS, INC. 8180 W. 10th St. Indianapolis, IN 46214-2400
317/271-1542 or 800/553-0182 www.woodmizer.com
AICFLA HZ PH
040997
WM1102 0443
41 230 60 3
RP00002

Introduction
Dimensions
Introduction TL04doc081916 1-5
1
1.4 Dimensions
TAILER DIMENSIONS
TL0001-2

Introduction
Specifications
1
1-6 TL04doc081916 Introduction
1.5 Specifications
TAILER SPECIFICATIONS
Model: Tailer Rev. A1.00 - A2.00
Dimensions
Length: 19'-2 31/32"
Width: 4'-7 59/64"
Height (Ground To Electrical Box): 61 7/8"
Weight:
Basic Unit: lbs.
Capacity:
Board/Slab Length: 2' to 18'
Motor:
Manufacturer: Leeson
Horsepower Rating: 2
RPM: 1725
Rates:
Normal Power Usage: 2.5 Amps, 1.90 kVa or 1.50 kWh
Chain Speed: 200 ft./min.*
Electrical Requirements:
Electrical Service: 460V 3-Phase 50/60Hz 10A
Suggested Wire Size (50' max.): 14AWG
NOTE: Service mains fused disconnect provided by
end user. Recommended fusing 10A Time Delay.
See Electrical Information Section for schematics.
*Chain speed changed from 100 ft/min. to 200 ft/min.
with Rev. A2.00. Use kit 038589 to retrofit previous
revisions

Safety
Safety Symbols
Safety TL04doc081916 2-1
2
SECTION 2 SAFETY
2.1 Safety Symbols
The following symbols and signal words call your attention to instructions concerning your
personal safety. Be sure to observe and follow these instructions.
DANGER! indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING! suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION! refers to potentially hazardous situations which,
if not avoided, may result in minor or moderate injury or
damage to equipment.
IMPORTANT! indicates vital information.
NOTE: gives helpful information.
Warning stripes are placed on areas where a single decal
would be insufficient. To avoid serious injury, keep out of
the path of any equipment marked with warning stripes.

Safety
Safety Instructions
2
2-2 TL04doc081916 Safety
2.2 Safety Instructions
NOTE: ONLY safety instructions regarding personal injury are listed in this section. Cau-
tion statements regarding only equipment damage appear where applicable throughout
the manual.
OBSERVE SAFETY INSTRUCTIONS
IMPORTANT! Read the entire Owner's Manual before operating
the Tailer. Take notice of all safety warnings throughout this manual
and those posted on the machine. Keep this manual with this
machine at all times, regardless of ownership.
Also read any additional manufacturer’s manuals and observe any
applicable safety instructions including dangers, warnings, and
cautions.
Only persons who have read and understood the entire operator's
manual should operate the Tailer. The Tailer is not intended for use
by or around children.
IMPORTANT! It is always the
owner's responsibility to comply
with all applicable federal, state
and local laws, rules and regula-
tions regarding the ownership
and operation of your Conveyor.
All owners are encouraged to
become thoroughly familiar with
these applicable laws and com-
ply with them fully while using the
Conveyor.
SETUP
WARNING! Use extreme care and proper equipment to lift and
move the tailer. Lift under the base of the machine only. Failure to
do so may result in personal injury and/or machine damage.
WEAR SAFETY CLOTHING
WARNING! Secure all loose clothing and jewelry before operating
the Tailer. Failure to do so may result in serious injury or death.

Safety
Safety Instructions
Safety TL04doc081916 2-3
2
WARNING! Always wear eye, ear, respira-
tion, and foot protection when operating or
servicing the Conveyor.
KEEP TAILER AND AREA AROUND TAILER
CLEAN
DANGER! Maintain a clean and clear path for all necessary move-
ment around the Tailer and lumber stacking areas. Failure to do so
will result in serious injury.
DISPOSE OF SAWING BY-PRODUCTS PROPERLY
IMPORTANT! Always properly dispose of all sawing by-products,
including sawdust and other debris, coolant, oil, fuel, oil filters and
fuel filters.
CHECK TAILER BEFORE OPERATION
DANGER! Make sure all guards and cov-
ers are in place and secured before operat-
ing the Conveyor. Failure to do so may
result in serious injury.
WARNING! Do not for any reason adjust
the drive chains with the machine running.
Doing so may result in serious injury.
KEEP PERSONS AWAY
DANGER! Keep all persons out of the path of moving equipment
and boards when operating the Tailer. Failure to do so will result in
serious injury.

Safety
Safety Instructions
2
2-4 TL04doc081916 Safety
KEEP HANDS AWAY
DANGER! Moving Parts Can Crush and Cut. Keep hands clear.
Make sure all guards and covers are in place and secured before
operating or towing. Failure to do so may result in serious injury.
DANGER! Always be aware of and take
proper protective measures against rotat-
ing shafts, pulleys, sprockets, etc.
Always stay a safe distance from rotating
members and make sure that loose cloth-
ing or long hair does not engage rotating
members resulting in possible injury.
WARNING! Coastdown Required.
Always shut off the motor and allow all moving parts to come to a
complete stop before removing any guards or covers. Do NOT
operate with any guards or covers removed.
WARNING! Kickback Hazard. Stay
clear of area during operation. Follow
all anti-kickback service and safety
rules. Failure to do so may result in
serious injury.
USE PROPER PROCEDURE WHEN CON-
DUCTING ELECTRICAL SAFETY CHECKS
AND MAINTENANCE
DANGER! Make sure all electrical installation, service and/or
maintenance work is performed by a qualified electrician and is in
accordance with applicable electrical codes.
DANGER! Hazardous voltage inside the
electric disconnect box, starter box, and at
the motor can cause shock, burns, or
death. Disconnect and lock out power sup-
ply before servicing! Keep all electrical
component covers closed and securely
fastened during Tailer operation.
WARNING! Consider all electrical circuits
energized and dangerous.
WARNING! Never assume or take the word of another person that
the power is off; check it out and lock it out.

Safety
Safety Instructions
Safety TL04doc081916 2-5
2
WARNING! Do not wear rings, watches, or other jewelry while
working around an open electrical circuit.
DANGER! Lockout procedures must be used during:
Changing or adjusting blades
Unjamming operations
Cleaning
Mechanical repair
Electrical maintenance
Retrieval of tools/parts from work area
Activities where guards or electrical panel guard is open or
removed
Maintenance hazards include:
Blade contact
Pinch points
Kickbacks
Missiles (thrown blades/wood chips)
Electrical
Failure to lockout may result in:
Cut
Crush
Blindness
Puncture
Serious injury and death
Amputation
Burn
Shock
Electrocution
To control maintenance dangers:
Lockout procedures must be followed (see ANSI Standard
Z244.1-1982 and OSHA regulation 1910.147).
Never rely on machine stop control for maintenance safety (emer-
gency stops, on/off buttons, interlocks).
Do not reach into moving blades or feed systems. Allow all coast-
ing parts to come to a complete stop.
Electrical power supply and air supply must both be locked out.
Where established lockout procedures cannot be used (electrical
troubleshooting or mechanical dynamic troubleshooting), alterna-
tive effective protective techniques shall be employed which may
require special skills and planning.

Safety
Safety Instructions
2
2-6 TL04doc081916 Safety
Always follow safe operations practices in the workplace.
Tailer LOCKOUT PROCEDURE
Lockout procedures must be followed (see ANSI Standard Z244.1-1982 and OSHA regu-
lation 1910.147).
Purpose:
This procedure establishes the minimum requirements for lockout of energy sources that
could cause injury.
Responsibility:
The responsibility for seeing that this procedure is followed is binding upon all workers. All
workers shall be instructed in the safety significance of the lockout procedure. It is your
responsibility to ensure safe operation of the machine.
Sequence of Lockout Procedure:
1. Notify all persons that a lockout is required and the reason therefore.
2. If the Tailer is operating, shut it down by the normal stopping procedure.
3. Operate the switch so that the energy sources are disconnected or isolated from the
Tailer. Stored energy such as moving blades and feed system shall be dissipated.
4. Lockout the energy isolating devices with assigned individual locks.
5. After ensuring that no persons are exposed and as a check on having disconnected the
energy sources, operate the push button or other normal operating controls to make cer-
tain the Tailer will not operate. Caution: Return operating controls to neutral position after
the test.
6. The Tailer is now locked out.

Safety
Safety Instructions
Safety TL04doc081916 2-7
2
Restoring Equipment to Service
1. When the job is complete and the Tailer is ready for testing or normal service, check the
Tailer area to see that no one is exposed.
2. When the Tailer is all clear, remove all locks. The energy isolating devices may be oper-
ated to restore energy to the Tailer.
Procedure Involving More Than One Person
In the preceding steps, if more than one individual is required to lock out the Tailer, each
shall place his own personal lock on the energy isolating devices.
Rules for Using Lockout Procedure
The Tailer shall be locked out to protect against accidental or inadvertent operation when
such operation could cause injury to personnel. Do not attempt to operate any switch or
valve bearing a lock.
Owner’s Responsibility
The procedures listed in this manual may not include all ANSI, OSHA, or locally required
safety procedures. It is the owner/operator’s responsibility and not AWMV Products to
ensure all operators are properly trained and informed of all safety protocols.
Owner/Operators are responsible for following all safety procedures when operating and
performing maintenance to the Tailer.

Setup and Operation
Setup
3
3-1 TL04doc081916 Setup and Operation
SECTION 3 SETUP AND OPERATION
3.1 Setup
Use a forklift or other appropriate equipment to move the tailer.
WARNING! Use extreme care and proper equipment to lift
and move the tailer. Lift under the base of the machine only.
Failure to do so may result in personal injury and/or
machine damage.
Place the tailer on a concrete foundation strong enough to support the weight of the
machine. Allow for room around the unit.
See Figure 3-1. Place the tailer on the outfeed side of the edger as shown below. Make
sure the trailer drive chain is positioned in the center of the edger and boards from the
edger can get on the tailer without obstruction.
FIG. 3-1
TL00008
Tailer
Edger

Setup and Operation
Setup
Setup and Operation TL04doc081916 3-2
3

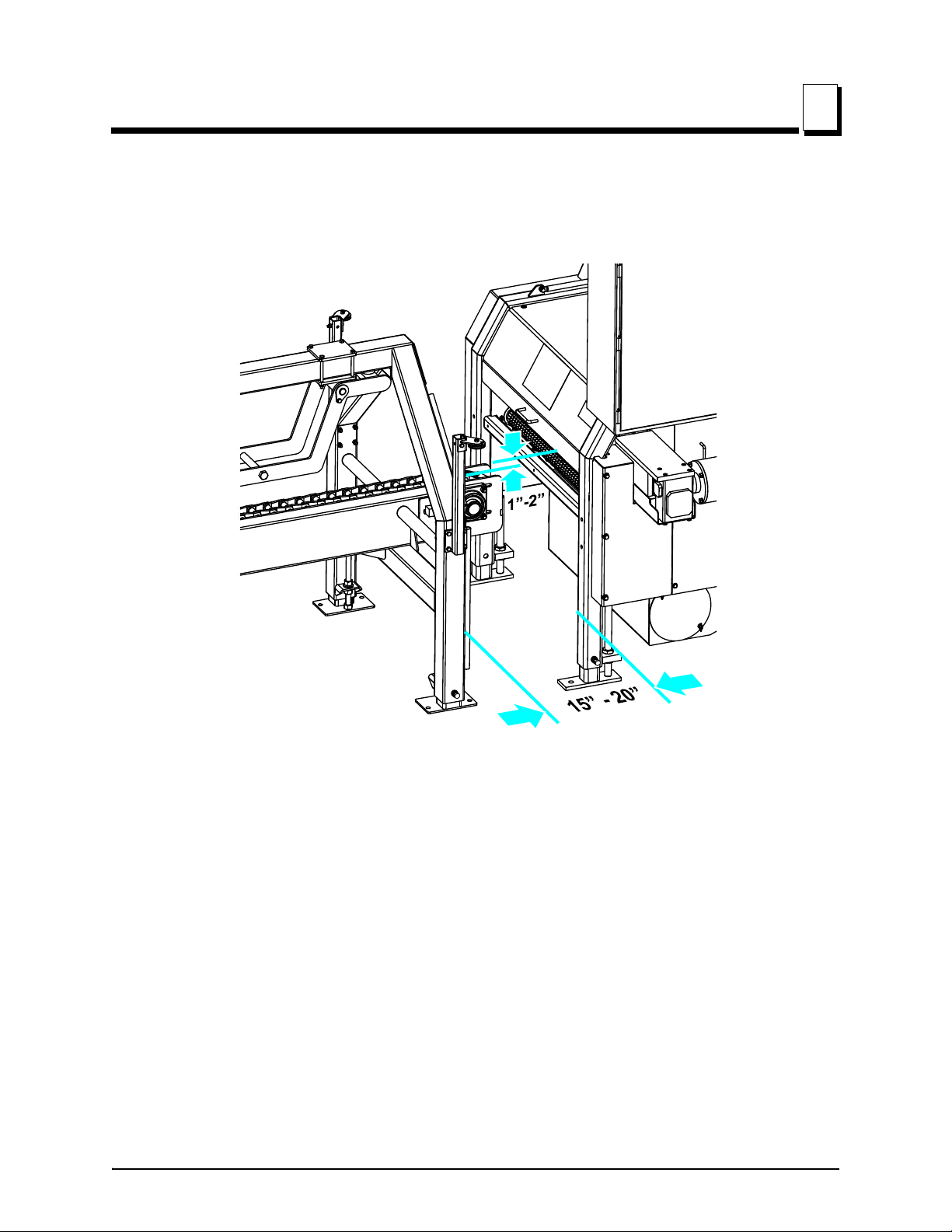

See Figure 3-2. Position the tailer approximately 15” to 20” away from the edger. Make
sure that the tailer drive chain is approximately 1” to 2” lower than the upper edge of the
edger outfeed rollers to allow for a slight drop of boards from the edger.
FIG. 3-2
TL0009

Setup and Operation
Setup
3
3-3 TL04doc081916 Setup and Operation

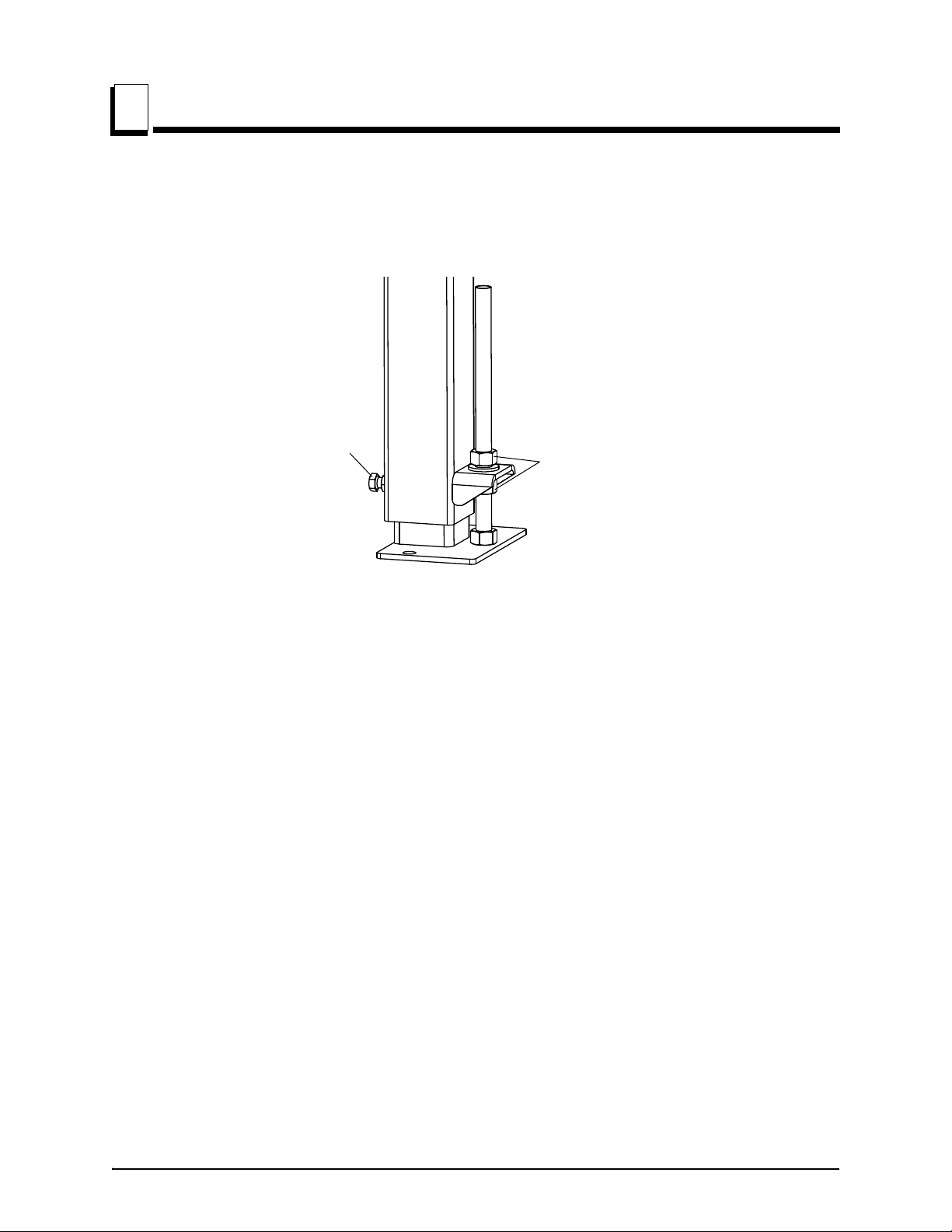

See Figure 3-3. Adjust the tailer legs so the feet firmly contact the ground. Loosen the
locking bolt. Turn the adjustment nuts counterclockwise to raise the tailer, turn the adjust-
ment nuts clockwise to lower the tailer. Make sure the unit is level before securing.
Tighten the adjustment nuts when the height adjustment is complete. Secure the leg with
the locking bolt. Secure the tailer to the foundation with anchor bolts.
FIG. 3-3
Locking Bolt
Adjustment Nuts (2)
TL0010

Electrical Installation
Electrical Installation
Electrical Installation TL04doc081916 3-4
3
3.2 Electrical Installation
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified elec-
trician and is in accordance with applicable electrical codes.
DANGER! Hazardous voltage inside the electric disconnect
box, starter box, and at the motor can cause shock, burns,
or death. Disconnect and lock out power supply before ser-
vicing! Keep all electrical component covers closed and
securely fastened during operation.
WARNING! Coastdown Required. Always shut off the
motor and allow all moving parts to come to a complete
stop before removing any guards or covers. Do NOT oper-
ate with any guards or covers removed.
WARNING! Always shut off the motor to stop the chain
whenever the tailer is not in use. Failure to do so may result
in serious injury.
Perform the following steps prior to operating the tailer to make the required electrical
connections:
1. Open the electrical box installed to the Tailer.

Electrical Installation
Electrical Installation
3
3-5 TL04doc081916 Electrical Installation
2. Locate the disconnect switch in the upper right corner inside the tailer electrical box.
Unplug the hole in the right side of the electrical box. Route the power supply cable
through the hole. Connect the power supply wires to the disconnect switch in the electri-
cal box.
See Figure 3-4. Connect the power supply to the disconnect switch in the electrical box.
FIG. 3-4
Green Black
White
Red
FRONT VIEW
Disconnect Switch
TL0005
TB1-4
GNDTB1
MC1
TAILER ELECTRICAL BOX
