Setup & Operation
Control Setup
1
1-1 60AS2-R07doc032519 Setup & Operation
SECTION 1 SETUP & OPERATION
1.1 Control Setup
The Accuset 2 is programmed for operation with DC saw-
mills by default. If your sawmill is an AC model, press and
hold the toggle button when first turning the key switch on.
The display will read “Overwrite Parameters with
Defaults?”. Push the button labeled “Yes” to change the set-
tings for operation with AC mills.

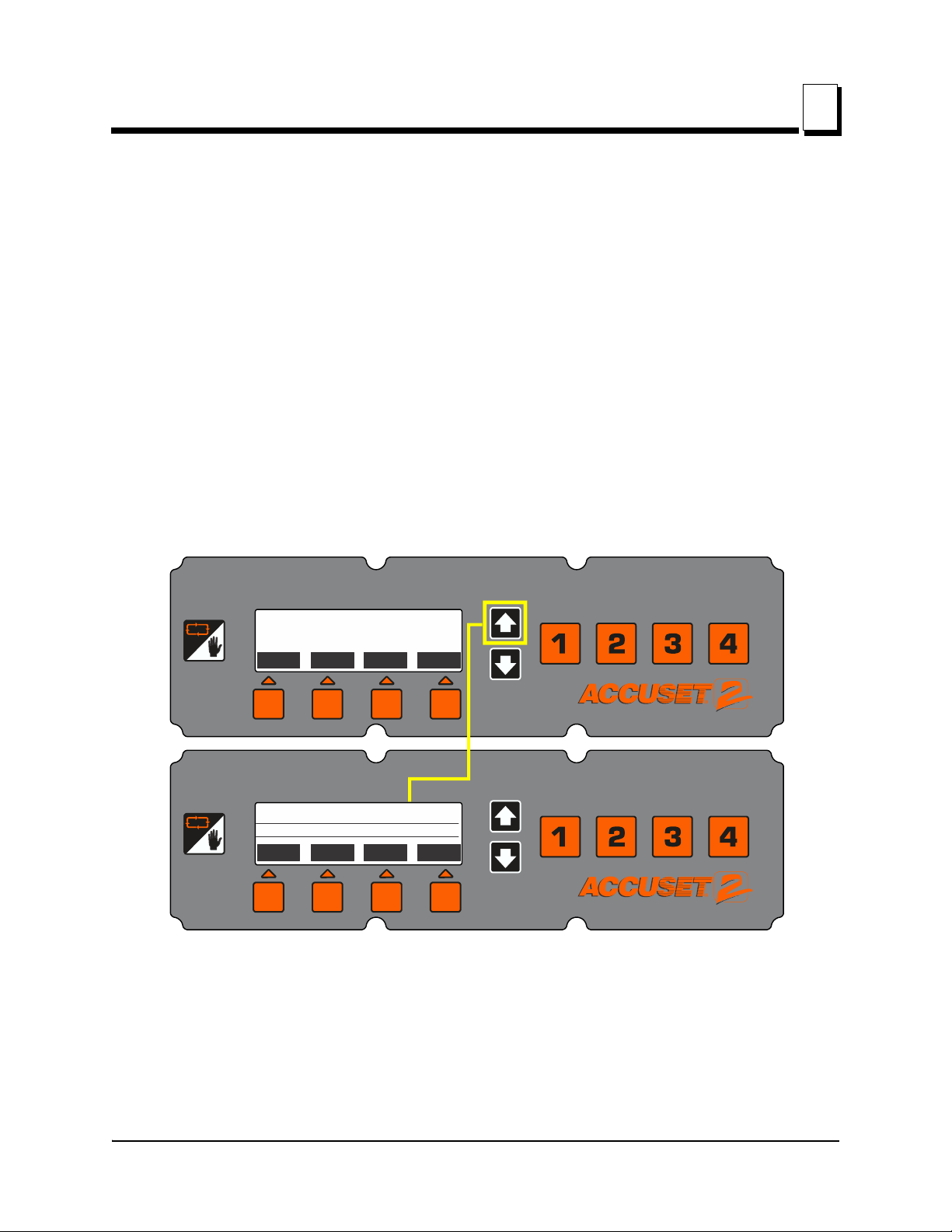

See Figure 1-1. Turn the key switch to the accessory (#3) position on DC mills or (#1)
position on AC mills. The Accuset control starts in Manual Mode by default. See the figure
below for identification of the control buttons and display.
About using the Up/Down Adjustment Buttons: To make adjustments to a setting,
push the Up or Down arrow buttons to scroll to the desired setting. As you push and hold
the up or down buttons, the setting scrolling speed will automatically increase.
In Manual Mode, the up and down arrow buttons have special functions. You can enter
configuration menus by pushing the Up button. Pushing the Down button moves the saw
head to the nearest nominal inch (or centimeter).
About the Toggle button: Use the Toggle button to exit configuration menus and return
to the main menu. Pressing and holding the Toggle button during startup will reset the
Accuset programming to factory default settings. Pressing the Toggle button in Manual
Mode will place Accuset in Reference Mode.
FIG. 1-1
3H0989
6 - 3/4
Modes
Up
Down
Toggle Increment Settings
Current Blade Height (inches)
Auto-DownManual Auto-Up Pattern

Setup & Operation
Control Setup
Setup & Operation 60AS2-R07doc032519 1-2
1
1.1.1 Contrast Adjustment
When the Accuset is first powered on, the Accuset 2 splash screen is displayed for a few
seconds. Push and hold the Up or Down button to adjust the display contrast as desired
for your lighting conditions.
1.1.2 Startup Configuration
Accuset controls on new sawmills are configured at the factory. If you have installed or
replaced the control, be sure to configure the control before operating the Accuset. Follow
the procedures below in the order they are listed.

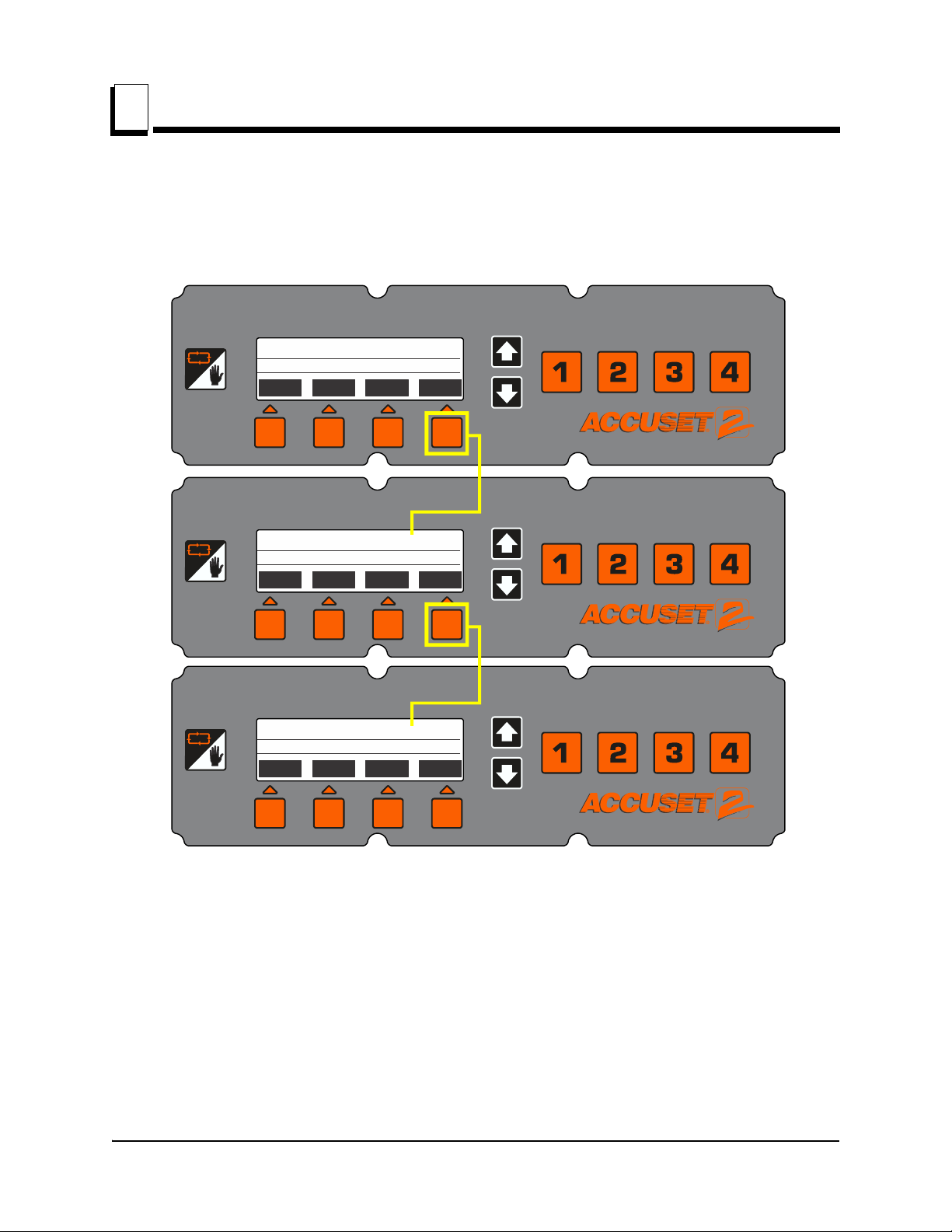

See Figure 1-2. To enter Configuration Menu 1, push the Up button while in Manual
Mode.
FIG. 1-2
3H0989-2
6 - 3/4
Push UP button to enter
Configuration Menu 1
CONFIGURATION MENU 1
Auto-DownManual Auto-Up Pattern
Calib. HeadSave Set Kerf Other

Setup & Operation
Control Setup
1
1-3 60AS2-R07doc032519 Setup & Operation
Adjust Gradient. If the Accuset is factory-installed, the Gradient Setting is already
set to match the gradient of the transducer sensor (labeled "GRD" on the sensor). If
the Accuset has been installed in the field, the transducer replaced or the Accuset
control has been reset to Factory Settings, the Gradient Setting should be adjusted.
See Figure 1-3. To enter Configuration Menu 1, push the Up button while in Manual
Mode. Push the button labeled “Calibrate Head”, then the “Adjust Gradient” button to dis-
play the menu below.
See Figure 1-4. Push the Up or Down buttons until the Gradient Setting is the same as
the sensor gradient shown on the sensor label (use the number labeled “us/in”). Push the
Save button to store the new Gradient Setting. If you don’t want to save the new setting
and want to return to the previously stored Gradient Setting, push Exit and turn the key
switch to the off (#0) position.
FIG. 1-3
FIG. 1-4
3H0989-3
9.1292
Set Gradient
Use <- -> buttons to
adjust, then save.
Save Exit
Press UP or DOWN button
to adjust Gradient
3H0817-7B
LHSD600U03601R0
S/N: 00245408
GRD: 9.1292us/in | 2782.28m/s
CPN:
Label (See Detail)
DETAIL

Setup & Operation
Control Setup
Setup & Operation 60AS2-R07doc032519 1-4
1
Press At 12 Inches (or 305mm in metric mode). The Accuset control should indi-
cate the actual position of the blade above the bed rails. To check this setting, move
the saw carriage so the blade is positioned above a bed rail. Raise the saw head
until the blade is positioned 12" (305mm) by actual measurement from the bed rail.
Measure from the top of the bed rail to the bottom of a down-set tooth of the blade.
While in Manual Mode, push the Up button to enter the Configuration Menu.
Choose Calibrate Head and press the button labeled "Press at 12 inches" (or “Press
at 305mm”). The display will change to "Head Calibrated". Push the Save Settings
button to store the new 12-inches setting and exit the Configuration Menu.
After recalibrating the Accuset control, check and adjust the inch scale on the
saw head to match the value displayed on the control. Adjust the bottom saw head
stop bolt all the way down. Move the saw head down until Accuset displays 3/4” and
adjust the bottom saw head stop bolt up until it just touches the saw head.

Setup & Operation
Control Setup
1
1-5 60AS2-R07doc032519 Setup & Operation
1.1.3 Other Settings
Set Kerf. The Kerf setting is optional. The default kerf setting is ’0’. You can use the kerf
setting to automatically factor the blade thickness into the increment setting. Factoring the
kerf into the program will allow you to saw boards that are the actual thickness of the pro-
grammed increment. For example, if kerf is set to ‘0’ and you have programmed incre-
ments of 1 1/8”, the resulting boards will be about 1 1/16” thick because Accuset did not
factor the thickness of the blade. If you enter an accurate kerf value, the resulting boards
will be 1 1/8”. Whether or not to use the kerf setting is dependant on your sawing prac-
tices and application.
See Figure 1-5. While in Manual Mode, push the Up button to enter the Configuration
Menu. Press the “Set Kerf” button to display the menu below.
See Table 1-1. Recommended kerf settings for various blades are provided below.
These kerf setting values assume the teeth of the blade are set per factory specifications.
If you prefer, a nominal kerf value of .125 (3 mm) can be entered and should be accurate
enough for most applications.
Push the Set Kerf button and use the Up and Down buttons to adjust the kerf setting.
Pushing the Up and Down buttons simultaneously will scroll the kerf faster. Push the
Save button to store the new Kerf Setting. If you don’t use the Kerf Setting, be sure to
include the thickness of the blade in your increment settings as described in Section 1.2
Mode Selection.
FIG. 1-5
Blade Thickness Blade Style Kerf Setting
.042 10S 0.084 (2.2 mm)
.045 9S 0.090 (2.3 mm)
10S 0.095 (2.5 mm)
.055 10S 0.111 (2.9 mm)
TABLE 1-1
3H0989-4
0.000
Set Kerf
Use <- -> buttons to
adjust, then save.
Save Exit
Press UP or DOWN buttons
to adjust Kerf Setting

Setup & Operation
Control Setup
Setup & Operation 60AS2-R07doc032519 1-6
1
See Figure 1-6. You can change other settings for the Accuset including the language
used on the display, the unit of measure, and PID values. These settings are found in
Configuration Menu 2. To display Configuration Menu 2, push the Up button while in Man-
ual Mode to display Configuration Menu 1. Select Other to display Configuration Menu 2.
FIG. 1-6
3H0989-5
CONFIGURATION MENU 2
Units
Language PID Values Diagnostic
CONFIGURATION MENU 1
Calib. HeadSave Set Kerf Other
Push Other button in Configuration
Menu 1 to enter Configuration Menu 2

Setup & Operation
Control Setup
1
1-7 60AS2-R07doc032519 Setup & Operation
Language. You can choose the language used for the Accuset display. Push the Lan-
guage button and choose the desired language. Push the Save (or language equivalent)
button to permanently store the new Language setting. To return to the previously stored
Language setting, push Exit and turn the key switch to the off (#0) position.
FIG. 1-6
3H0989-7
CHANGE LANGUAGE 3
English
Portuguese Exit
CHANGE LANGUAGE 2
English
Spanish Polish Other
CHANGE LANGUAGE 1
French
English German Other
Push Other button to enter
Language Menu 2
Push Other button to enter
Language Menu 3

Setup & Operation
Control Setup
Setup & Operation 60AS2-R07doc032519 1-8
1
Units. This setting allows you to choose what unit of measure to use for your Blade
Height and Increment Settings. The default value is Fractional Inches (1/32”). You can
change the Unit Of Measure to Decimal Inches (.0313”) or Millimeters (1 mm). Push the
Save button to store the new Unit Of Measure setting. To return to the previously stored
Unit Of Measure, push Exit and turn the key switch to the off (#0) position.
See Figure 1-7.
PID (Proportional - Integral - Differential) Values. These settings allow a technician to
diagnose and fine-tune the Accuset control for various environmental factors. These set-
tings are made at the factory and should not normally need adjusting by the operator.
See Table 1-2. The factory default PID value settings are shown below. Alternate set-
tings are provided for use with LT70E25 electric sawmills.
After making the desired PID Value adjustments, push the Save button and go to the
desired Accuset mode. Test how the changes affect Accuset performance. If the new set-
tings cause undesirable results, reset Accuset to the factory defaults (See Section 1.1.4).
FIG. 1-7
Value Factory Default Alternate for LT70 E25
Up Ticks 15
Up Distance 7500 17000
Up Minimum 50 2
Down Ticks 15
Down Distance 5000 17000
Down Minimum 50 2
TABLE 1-2
3H0989-6
UNIT OF MEASURE
Decimal
Fractional Millimeter Exit
6 - 3/4

Setup & Operation
Control Setup
1
1-9 60AS2-R07doc032519 Setup & Operation
Diagnostic. This menu provides diagnostic information regarding voltage, current and
software revisions. This information can be useful for troubleshooting by a qualified
Wood-Mizer service representative.
1.1.4 Restore Factory Defaults
To return all Accuset settings the their factory default values, press and hold the Toggle
button and turn the key switch on.
The Accuset settings are now returned to their factory default values, including:
Calibration settings. See Section 1.1.2 to recalibrate the Accuset control.
PID values. See Section 1.1.3 for setting values.

Setup & Operaton
Mode Selection
Setup & Operaton 60AS2-R07doc032519 1-10
1
1.2 Mode Selection
See Figure 1-8. To select an Accuset mode, press the desired Mode Select button
(Auto-Down, Auto-Up or Pattern) located under the display. Press the Manual Mode
Select button to return the control to Manual Mode.
Manual Mode - This mode allows you to use the up/down function of the sawmill as you
normally would without the Accuset option. The Current Blade Height will continue to be
displayed by the Accuset control.
Auto-Down Mode - This mode references the current blade height and allows you to
choose an increment to move the blade down. The Accuset will automatically move the
saw head down and stop at the next increment when you push the drum switch down.
You can store sixteen different increment levels using the four numbered Increment Set-
tings buttons. Each button stores four adjustable increment settings. Push button #1 once
for setting #1. Push button #1 a second time for setting #5, etc...
Auto-Up Mode - This mode references the current blade height and allows you to choose
an increment to move the blade up. The Accuset will automatically move the saw head up
and stop at the next increment when you push the drum switch up. Auto-Up mode is pri-
marily used to raise the saw head in large increments when preparing to cut a new log or
log that has been turned. This allows the operator to raise the saw head without having to
hold the drum switch up, freeing the operator to perform other functions while the saw
FIG. 1-8
3H0989
6 - 3/4
Modes
Up
Down
Toggle Increment Settings
Current Blade Height (inches)
Auto-DownManual Auto-Up Pattern

Setup & Operaton
Mode Selection
1
1-11 60AS2-R07doc032519 Setup & Operaton
head is being raised. The Increment Settings buttons work in the same manner as
described in Auto-Down Mode.
NOTE: The sixteen increment settings apply to Auto-Down
AND Auto-Up modes. If you change a setting in Auto-Down
mode, it will also change when you are in Auto-Up mode.
Pattern Mode - This mode references the bed surface and allows you to program up to
six different increments calculated up from the bed. The sixth (top) increment repeats
itself up to the upper limit of the saw head travel. The bottom increment indicates the size
of the remaining cant when the pattern is complete.
Reference Mode - This mode allows the operator to program up to four pre-set locations
along the saw head travel. The factory default settings are at the bottom (1”), the location
where the saw head is calibrated (12”), a location midway between the calibration and the
top (24”), and the top (31”).

Setup & Operation
Using Auto-Down Mode
Setup & Operation 60AS2-R07doc032519 1-12
1
1.3 Using Auto-Down Mode
See Figure 1-9.
Starting with a new log, position the saw head to make the first trim cut.
Push the Auto-Down button under the display. The first Increment Setting is displayed by
default. Choose the desired increment setting by pushing the appropriate Increment Set-
ting button.
FIG. 1-9
3H0822
In Manual Mode,
position blade
for trim cut. Switch
to Auto-Down and
make trim cut.
Cut first face as
desired in Auto-Down
Mode then turn
log.
Switch to Manual Mode
and position blade
for trim cut. Switch to
Auto-Down and make
trim cut.
Cut second face as
desired in Auto-Down
Mode then turn
log.
Switch to Manual Mode
and position blade
for trim cut. Switch to
Auto-Down and make
trim cut.
Cut third face as
desired in Auto-Down
Mode then turn
log.
Switch to Manual Mode
and position blade
for trim cut. Switch to
Auto-Down and make
trim cut.
Cut final face as
desired in Auto-Down
Mode.
Switch to Manual Mode
and edge flitches.

Setup & Operation
Using Auto-Down Mode
1
1-13 60AS2-R07doc032519 Setup & Operation
To change an Increment Setting, select the desired setting number and push the Up or
Down buttons until the desired Increment Setting is obtained. Remember to include blade
kerf in your setting (i.e. If you want the finished boards to be 1" thick, set the increment to
1 1/8" to allow for typical blade kerf). The amount of kerf will depend on the thickness and
tooth set of the blade you are using. The Accuset can be programmed with an automatic
kerf setting if desired (See Section 1.1.3).
When you change and increment value, it is only temporarily stored. If the control is
turned off, the settings will return to the factory defaults unless the new values are saved.
To save the new increment setting, push the Manual Mode then push the Up button. The
Configuration Menu will be displayed. Choose Save to enter the Save Settings menu,
then push Save.
Example: Verify you are in the Auto-down mode. To store 1 1/2" increment to the #1
increment setting, push button #1. Push the Up or Down arrow button to raise or lower the
increment on the screen to the desired setting. Push the Manual button, then the Up
arrow to display the Configuration menu. Now push the Save button to enter the Save
Settings menu. Push the Save Settings button. Your program is saved. You can program
multiple buttons and save them all at one time.
Push the Auto-Down button to return to Auto-Down Mode if necessary. Make the trim cut,
raise the saw head and return the carriage to the front of the log.
Push the up/down drum switch down and release. The saw head will automatically
bypass the setting where the first cut was made and stop at the next setting determined
by the increment you have chosen.
Make a cut, raise the saw head and return the carriage for the next cut. Push the up/down
drum switch down and release. The saw head will stop at the setting for the next cut.
Repeat this procedure down this face of the log as desired.
Turn the log as you normally would and push the Manual Mode button to place the
Accuset in Manual Mode.
Position the saw head for the trim cut and push the Auto-Down button to return to
Auto-Down Mode. Make the trim cut, raise the saw head and return for the next cut. Use
the same procedure as described above to cut each side of the log until done.
NOTE: Anytime a trim cut is necessary, you can push the
Manual button to enter Manual Mode. Position the saw
head for the trim cut and push the Auto-Down button to
return to Auto-Down Mode. Accuset will reference the new
blade position and stop at the next setting determined by
the increment you have chosen.

Setup & Operation
Using Auto-Up Mode
Setup & Operation 60AS2-R07doc032519 1-14
1
1.4 Using Auto-Up Mode
Auto-Up Mode works exactly the same as Auto-Down explained above except it controls
the saw head movement in the up direction.

Setup & Operaton
Using Pattern Mode
1
1-15 60AS2-R07doc032519 Setup & Operaton
1.5 Using Pattern Mode
Starting with a new log, position the saw head at the front end of the log.
Push the Pattern button under the display. Pattern Setting #1 is the factory default.
Choose the desired pattern setting (1 - 16) by pushing the appropriate Increment Setting
button.
In Pattern mode, a list of six increments is shown on the display. These increments are
referenced from the bed rail. The bottom increment represents the distance from the bed
rail for the last cut. Each increment in the list can be adjusted as desired. The top incre-
ment repeats as necessary depending on how high you raise the saw head.
As you raise or lower the saw head, symbols in the pattern increment list indicate where
the blade is located in reference to the pattern. When the blade is above the top setting a
^ symbol appears next to the top increment to indicate you are in the repeating top incre-
ment. After you lower the blade and reach the last top increment, a + symbol will appear
to indicate you are close to the next setting. When the blade reaches the increment set-
ting, a - symbol will appear next to that setting.
To change any of the six pattern increments, push the +/- Drop button (below the pattern
increment list) to scroll to the desired increment. The increment that is active is high-
lighted. As you scroll to each increment, the previous increment setting will automatically
be copied to the remaining increments below. Push the Up or Down buttons until the
desired increment is obtained. Remember to include blade kerf in your setting (i.e. If you
want the finished boards to be 1" thick, set the increment to 1 1/8" to allow for typical
blade kerf). The amount of kerf will depend on the thickness and tooth set of the blade
you are using. The Accuset can be programmed with an automatic kerf setting if desired
(See Section 1.1.3).
Push the +/- Drop button to move to the next pattern increment and adjust as desired.
After the bottom increment setting is adjusted as desired, push the Manual Mode button
then push the Up button. The Configuration Menu will be displayed. Choose Save to
enter the Save Settings menu, then select Save.
Example: To edit the pattern increment settings for the #4 pattern setting, push Increment
Selection button #4 once to display pattern setting #4 (the factory default value for pattern
setting #4 is 1 3/4"). Push the +/- Drop button to enter pattern edit mode. The top pattern
increment is now highlighted. Push the Down button to adjust the setting to 1 1/8". While
pushing the Down button, push the Up button to scroll faster. When you get close to 1
1/8", release both buttons. Push the Down button to fine tune the setting to exactly 1 1/8".
Push the +/- Drop button again to move the next pattern increment. The setting will auto-
matically be copied from the previous setting to 1 1/8” for all the remaining increments
below. Exit pattern edit mode by pushing the Manual button. Save the new pattern setting
by pushing the Up arrow button to enter Configuration Menu #1. Press the Save button to

Setup & Operaton
Using Pattern Mode
Setup & Operaton 60AS2-R07doc032519 1-16
1
enter the Save Settings menu, then push the Save button. Push the Pattern button to
return to Pattern Mode and push Increment Selection button #4. All of the pattern settings
should now be 1 1/8”.
Push the Manual Mode button and raise the saw head so the blade is positioned near the
top of the log. Push the Pattern button to return to Pattern Mode.
Push the up/down drum switch down and release. The saw head will automatically stop at
the first setting determined by the top pattern increment.
Make a cut, raise the saw head and return the carriage for the next cut. Push the up/down
drum switch down and release. The saw head will stop at the setting for the next cut.
Repeat this procedure down this face of the log as desired.
Turn the log as you normally would and push the Manual Mode button to place the
Accuset in Manual Mode.
Raise the saw head so the blade is positioned near the top of the log and push the Pat-
tern button to return to Pattern Mode. Make the cut, raise the saw head and return for the
next cut. Use the same procedure as described above to cut each side of the log until
done.

Setup & Operation
Using Reference Mode
1
1-17 60AS2-R07doc032519 Setup & Operation
1.6 Using Reference Mode
While in Manual Mode, push the Toggle button to enter Reference Mode.
Push one of the four Increment Setting buttons to select a reference. Factory defaults for
buttons 1 through 4 are 1”, 12”, 24” and 31”. Push the up/down drum switch in the appro-
priate direction to start the saw head toward the reference position. If the saw head is
already above the position and you push the drum switch up, Accuset will return to Man-
ual Mode. Likewise, if the saw head is below the reference position and you push the
drum switch down, Accuset returns to Manual Mode.
When the saw head reaches the target reference position, Accuset will return to Manual
Mode.
To change the stored setting for any of the four buttons, move the saw head to the
desired position. Press the Toggle button to enter Reference Mode. Push the button you
wish to store the setting and then push “Store Here”. Push the Toggle button to return to
Manual Mode.
You can also change a setting by selecting one of the four Increment Setting buttons and
changing the setting by using the Up and Down arrow buttons. Push the “Store Here” but-
ton to store the new setting.
NOTE: The new reference setting is only stored in temporary memory and will return to
the default value when the Accuset is powered off and back on. To permanently store the
new setting, enter Configuration Menu #1 and push the “Save”, then the “Save” button
from the Save Settings menu. Accuset will now keep the new setting until you readjust it
or reset the Accuset to factory defaults.
