woodmizer Shop Series User manual

LTAGA-CBN rev. B.01
LTAGA-FCBN rev. B.01
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
Form #841

Table of Contents Section-Page
ii CBNdoc080917 Table of Contents
LIMITATIONS 1-IV
SECTION 1 GENERAL INFORMATION 1-1
1.1 Safety......................................................................................................................... 1-1
1.2 Sharpener Components.............................................................................................. 1-3
SECTION 2 ASSEMBLY 2-1
2.1 Stand Assembly......................................................................................................... 2-2
2.2 Pump Installation....................................................................................................... 2-3
2.3 Electrical Installation................................................................................................. 2-6
2.4 Blade Support Installation ......................................................................................... 2-7
2.5 Sharpener Head Angle Adjustment......................................................................... 2-10
2.6 Sharpener Alignment............................................................................................... 2-12
2.7 Grinding Wheel Installation .................................................................................... 2-14
2.8 Blade Rest Bolt Adjustment .................................................................................... 2-15
Standard Blade Clamp
Optional Blade Clamp
2.9 Blade Installation..................................................................................................... 2-17
SECTION 3 SHARPENER ADJUSTMENTS 3-1
3.1 Overview Of Adjustments......................................................................................... 3-1
3.2 Face Grind and Depth/Back Grind Adjustments....................................................... 3-2
SECTION 4 SHARPENER OPERATION 4-1
4.1 Operation ................................................................................................................... 4-1
4.2 Magnetic Shut-off...................................................................................................... 4-2
4.3 Blade Removal .......................................................................................................... 4-3
SECTION 5 REPLACEMENT PARTS 5-1
5.1 How To Use The Parts List ....................................................................................... 5-1
5.2 Sample Assembly ...................................................................................................... 5-1
5.3 Stand Assembly......................................................................................................... 5-2
5.4 Blade Support Assembly ........................................................................................... 5-3
5.5 Clamp & Oil System ................................................................................................. 5-4
5.6 Blade Clamp Retrofit................................................................................................. 5-6
5.7 Cam Index Assembly ................................................................................................ 5-7
5.8 Grinder Assembly...................................................................................................... 5-9
5.9 Lift Assembly .......................................................................................................... 5-11
5.10 Transformer Assembly ............................................................................................ 5-13
5.11 Control Assembly.................................................................................................... 5-15
5.12 Splash Guards.......................................................................................................... 5-17
5.13 Miscellaneous Parts ................................................................................................. 5-18

Table of Contents Section-Page
Table of Contents CBNdoc080917 iii
SECTION 6 MAINTENANCE & TROUBLESHOOTING 6-1
6.1 Wiring Diagram......................................................................................................... 6-1
6.2 Converter Diagram (w/P09743 Transformer) ........................................................... 6-2
6.3 Converter Diagram (w/073573 Transformer) ........................................................... 6-3
6.4 Sharpener Maintenance ............................................................................................. 6-4
6.5 Blade Sharpening Tips .............................................................................................. 6-5
INDEX I

iv CBNdoc080917 Limitations
LIMITATIONS
When used within the limits of its design, this machine performs as a light-duty profile
grinder for Wood-Mizer blades. Do not use this machine for anything other than as
described below. Failure to acknowledge these limitations will lead to premature wheel
wear.
1. This equipment is designed for light-duty profile grinding of Wood-Mizer blades only.
2. This grinder cannot be used to convert the tooth profile more than would require a .020”
change in tooth height. Blades with 4° can be changed to 10° and vice-versa (may require
two or more light passes through the grinder). All other profile conversions should be
avoided.
3. Heavy grinding is not recommended. If necessary, grind twice to reduce the possibility of
premature wheel wear.
4. Approved grinding oil is required for proper performance and maximum wheel life.

General Information
Safety
General Information CBNdoc080917 1-1
1
SECTION 1 GENERAL INFORMATION
1.1 Safety
This symbol calls your attention to instructions concerning your personal safety. Be sure
to observe and follow these instructions. This symbol accompanies a signal word. The
word DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. WARNING suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury. CAUTION refers to potentially
hazardous situations which, if not avoided, may result in minor or moderate injury to per-
sons or equipment. Read all safety instructions before operating this equipment and
observe all safety warnings!
Warning stripes are placed on areas where a single decal would be insufficient. To avoid
serious injury, keep out of the path of any equipment marked with warning stripes.
Read and observe all safety instructions before operating this equipment! Also read any
additional manufacturer’s manuals and observe any applicable safety instructions includ-
ing dangers, warnings, and cautions.
Always be sure that all safety decals are clean and readable. Replace all damaged safety
decals to prevent personal injury or damage to the equipment. Contact your local distribu-
tor, or call your Customer Service Representative to order more decals.
IMPORTANT! Always properly dispose of all by-products,
including debris, coolant, oil, and filters.
DANGER! For the user’s safety, the power cord on this
product has a grounded plug. This power cord should only
be used with correctly grounded (3-hose) receptacles to
avoid electrical shock. To prevent electrical shock hazard,
this unit must be connected to a GFI (Ground Fault Inter-
rupter). The National Electrical Code, Article 680-41(A),
requires a GFI be installed in the branch circuit supplying
fountain equipment rated above 15 volts. See your local
electrical supply dealer for various brands of GFI’s.
DANGER! Make sure all guards and covers are in place
and secured before operating the sharpener. Failure to do
so may result in serious injury.
WARNING! Always wear gloves and eye protection when
handling bandsaw blades. Changing blades is safest when
done by one person! Keep all other persons away from

General Information
Safety
1
1-2 CBNdoc080917 General Information
area when coiling, carrying or changing a blade. Failure to
do so may result in serious injury.
WARNING! Always wear eye protection when operating the
sharpener. Failure to do so may result in serious injury.
WARNING! Only operate this machine in a well-ventilated
area. Mist from the grinding coolant can be hazardous,
especially if operating multiple grinders in an enclosed
space. See the coolant MSDS sheet for more information.
CAUTION! Remove the grinding wheel while transporting
the Sharpener to prevent damage due to jarring or bumping
of the unit.
CAUTION! Do not run the pump until it is under oil. Dry
operation will damage the pump!
CAUTION! Always turn off the converter box after you have
finished sharpening for the day. LEAVING THE POWER
ON COULD DAMAGE THE PUMP!
CAUTION! Always be sure the tip of the back grind adjust-
ment knob stays seated against the lift bracket. The grind-
ing wheel will damage the blade if the tip becomes
unseated.
CAUTION! Use the 110 Volt AC output to power the coolant
pump of the Wood-Mizer Automatic Sharpener Attachment
only. Using the output for other purposes will result in
machine damage.

General Information
Sharpener Components
General Information CBNdoc080917 1-3
1
1.2 Sharpener Components
See Figure 1-1. The Sharpener component locations and their functions are listed below.
1. Converter On/Off Switch. Controls power for entire unit.
2. Start Switch. Starts cam motor.
3. Stop Switch. Stops cam motor.
4. Feed Rate Dial. Controls cam speed.
5. Grinder On/Off Switch. Controls Sharpener motor (Start Switch must be pushed first).
6. Face Grind Adjustment Knob. Controls amount of metal ground from face of tooth.
7. Depth/Back Grind Adjustment Knob. Controls how far the grinding wheel comes down
against the gullet and back side of teeth.
8. Magnetic Shut-off Sensor. Automatically turns off grinder and cam motors by sensing
magnet placed on lower inside part of blade band.
NOTE: Circuit breakers (not shown) are located on the back of the control box and the left
side of the converter box.
1. Converter
On/Off Switch
Pump
Clamp
Oil Pan
5. Grinder
On/Off Switch
2. Start Switch
3. Stop Switch
Cam
Cam Motor
Blade Support
Front Splash Guard
Rear Splash Guard
Grinder Motor
Oiler Assembly
SH0037
6. Face Grind
Adjustment Knob
8. Magnetic
Shutoff Sensor
4. Feed Rate Dial
Filter Magnets
Alignment Tool 7. Depth/Back Grind
Adjustment Knob
Oil Flow Control Valve

Assembly
2
2-1 CBNdoc080917 Assembly
SECTION 2 ASSEMBLY
The Wood-Mizer Automatic Sharpener Assembly (LTAGA-FCBN & LTAGA-CBN) is
shipped preassembled. Additional assemblies and parts include:
Two-height Stand Assembly
Pump
Blade Support Arms
Bag Assembly
NOTE: If you are retrofitting a LTAGA sharpener to LTAGA-CBN, most of the parts listed
above are not included as they were already provided with the original sharpener.
Bag Assembly Contents Qty.
Magnet, Orange Shutoff 3
Plug, Rubber Stop 1
Fitting, 3/8 x 1/4 FPT Hose 1
Roller, Blade Support 1
Blade Support Half without Post 3
Blade Support Half with Post 3
Bolt, 1/4-20 x 1 1/2” Hex Head 6
Nut, 1/4-20 Wing 3
Washer, 1/4" Retaining 1
Nut, 1/4-20 Self-Locking 3
Wrench, Router 1
Plate, Head Angle 1
Washer, 1/2” SAE Flat 2
Plate, Oil Trough Extension 1
Bolt, 1/4-20 x 2 1/4” Hex Head Gr5 2
DVD, CBN Instructional 1

Assembly
Stand Assembly
Assembly CBNdoc080917 2-2
2
2.1 Stand Assembly
The stand assembly consists of one tray assembly, three long stand legs and three short
stand legs. It may be set at sitting height or standing height.
See Figure 2-1. For sitting setup, insert the three long stand legs into the sockets in the
top of the stand tray.
For a standing setup, add the three short stand legs to the bottom sockets of the stand
tray.
Once you have assembled the stand, lift the sharpener assembly and place the under-
neath sockets of the mount on top of the three long stand legs.
FIG. 2-1

Assembly
Pump Installation
2
2-3 CBNdoc080917 Assembly
2.2 Pump Installation
DANGER! For the user's safety, the power cord on this
product has a grounded plug. This power cord should only
be used with correctly grounded (3-hole) receptacles to
avoid electrical shock. To prevent electrical shock hazard,
this unit must be connected to a GFI (Ground Fault Inter-
rupter). The National Electrical Code, Article 680-41(A),
requires a GFI be installed in the branch circuit supplying
fountain equipment rated above 15 volts. See your local
electrical supply dealer for various brands of GFI's.
CAUTION! Do not run the pump until it is under oil. Dry
operation will damage the pump!
CAUTION! Use the 110 Volt AC output to power the coolant
pump of the Wood-Mizer Automatic Sharpener Attachment
only. Using the output for other purposes will result in
machine damage.
1. Plug the hole in the oil pan with the rubber stop supplied in the bag assembly.
2. Locate the hose connected to the EMT fitting of the oil flow control valve. Connect the
remaining end of this hose to the oil pump.
Place the provided pump plate and two filter magnets in the oil pan as shown to collect
sediment. Orient the plate so that the face of the plate lies directly against the bottom of
the oil pan. Place the pump on the plate.

Assembly
Pump Installation
Assembly CBNdoc080917 2-4
2

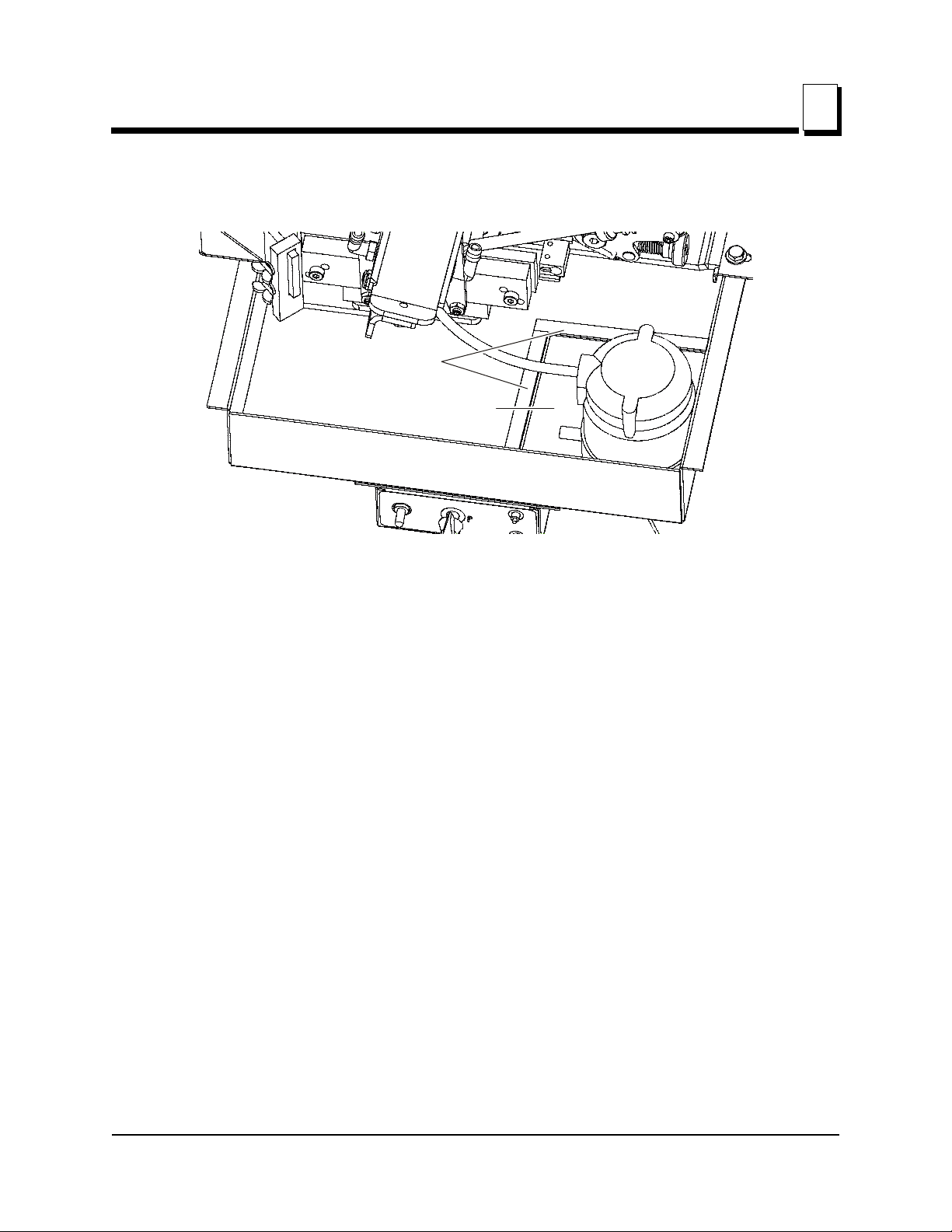

See Figure 2-2.
3. Plug the pump into the top cord on the converter box. Plug the converter into a grounded
receptacle.
4. Oil is pumped from the oil pan through the oil flow control valve to the grind area.
IMPORTANT! Be sure the rubber stop is properly installed before filling the oil pan.
Fill the pan with #165-CE oil to 1” (2.5 cm) from the top. Add oil as necessary to keep the
level at 1” from the top pan.
FIG. 2-2
SH0031B
Magnets
Pump Plate

Assembly
Pump Installation
2
2-5 CBNdoc080917 Assembly
5. For blades with 1 1/8” tooth spacing: An oil trough extension and longer mounting
bolts are supplied. Remove the existing oil trough mounting bolts. Place the extension
plate between the existing oil trough and mounting plate. Use the longer 2 1/4” bolts to
reassemble the trough.
See Figure 2-3.
FIG. 2-3
Trough Extension
Plate
2 1/4" Mounting
Bolts
SH0021-1

Assembly
Electrical Installation
Assembly CBNdoc080917 2-6
2
2.3 Electrical Installation
See Figure 2-4. Slide the control box into the slots under the oil pan. Make electrical con-
nections to the control box as shown.
The following is a test for the automatic control mechanisms of the sharpener.
1. Turn the CONVERTER switch on. The switch should light, showing that the converter is
on.
2. Open the oil flow valve to start the oil flow, indicating that the pump is operating.
3. With the FEED RATE all the way down, push the START button on the control box. This
turns on the cam motor.
4. Flip the GRINDER switch on. The sharpener motor should come on.
5. Turn up the FEED RATE dial. The cam assembly should rotate counterclockwise.
If a control does not work properly, check connections listed above. Also check the circuit
breakers on the back of the control box and on the left side of the converter box. To reset
a circuit breaker that has kicked out, push in and release. If a control still does not operate
properly, contact your nearest service dealer for assistance.
FIG. 2-4

Assembly
Blade Support Installation
2
2-7 CBNdoc080917 Assembly
2.4 Blade Support Installation
The blade support assembly includes three blade support arms and three blade support
guide assemblies.
See Figure 2-5. Lubricate the threaded ends of the three blade support arms with grease.
Insert a blade support arm in each of the three threaded holes located on the vertical
plate of the sharpener.
FIG. 2-5

Assembly
Blade Support Installation
Assembly CBNdoc080917 2-8
2
See Figure 2-6. Each guide assembly includes a blade support with post, a blade support
without post, two bolts, a keps nut and a wing nut. Join a blade support guide assembly
onto the ends of the left and rear blade support arms with posts facing outward as shown.
Bolt from the hexed side of the guide assembly. (These hex-shaped holes will keep the
bolts from turning once in place.) Tighten the top bolts with the keps nuts. Tighten the bot-
tom bolts with the wing nuts.
FIG. 2-6

Assembly
Blade Support Installation
2
2-9 CBNdoc080917 Assembly
See Figure 2-7. The guide assembly for the right support arm also includes a plastic
roller and lock washer. Place the plastic roller and lock washer over the blade support
post. Join the guide assembly onto the end of the blade support arm, post facing inward
as shown. Continue assembly as above.
Tilt the guide on the left blade support arm slightly backward, toward the rear of the sharp-
ener, and adjust to 5" (12.5 cm) from the end of the arm. Tilt the guide on the rear blade
support arm slightly to the right and adjust to 1" (2.5 cm) from the end of the arm. Tilt the
guide on the right support arm slightly forward and adjust to 3" (7.5 cm) from the end of
the arm.

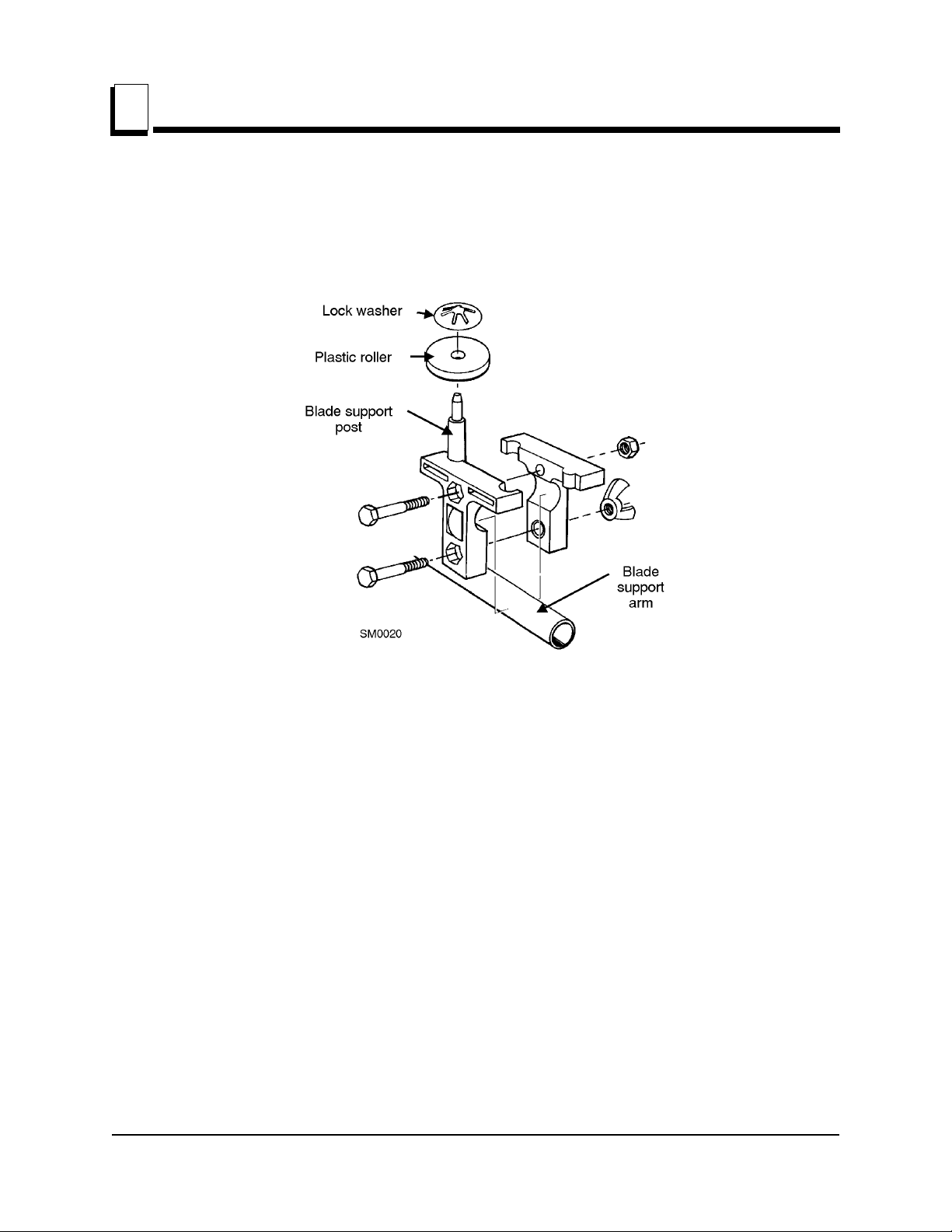

FIG. 2-7

Assembly
Sharpener Head Angle Adjustment
Assembly CBNdoc080917 2-10
2
2.5 Sharpener Head Angle Adjustment
NOTE: The grinder head is adjusted and pinned at 15
degrees. If you dissassemble the grinder head or clamp
assembly, the head angle will need to be checked. Remove
the roll pin and follow the procedure below. If necessary,
drill a new hole to reinstall the pin.
See Figure 2-8. To adjust sharpener head angle, place the angled template in the clamp-
ing fixture with the notches positioned around the blade rest bolts. Loosen the depth
adjustment until the sharpener head rests on the template.

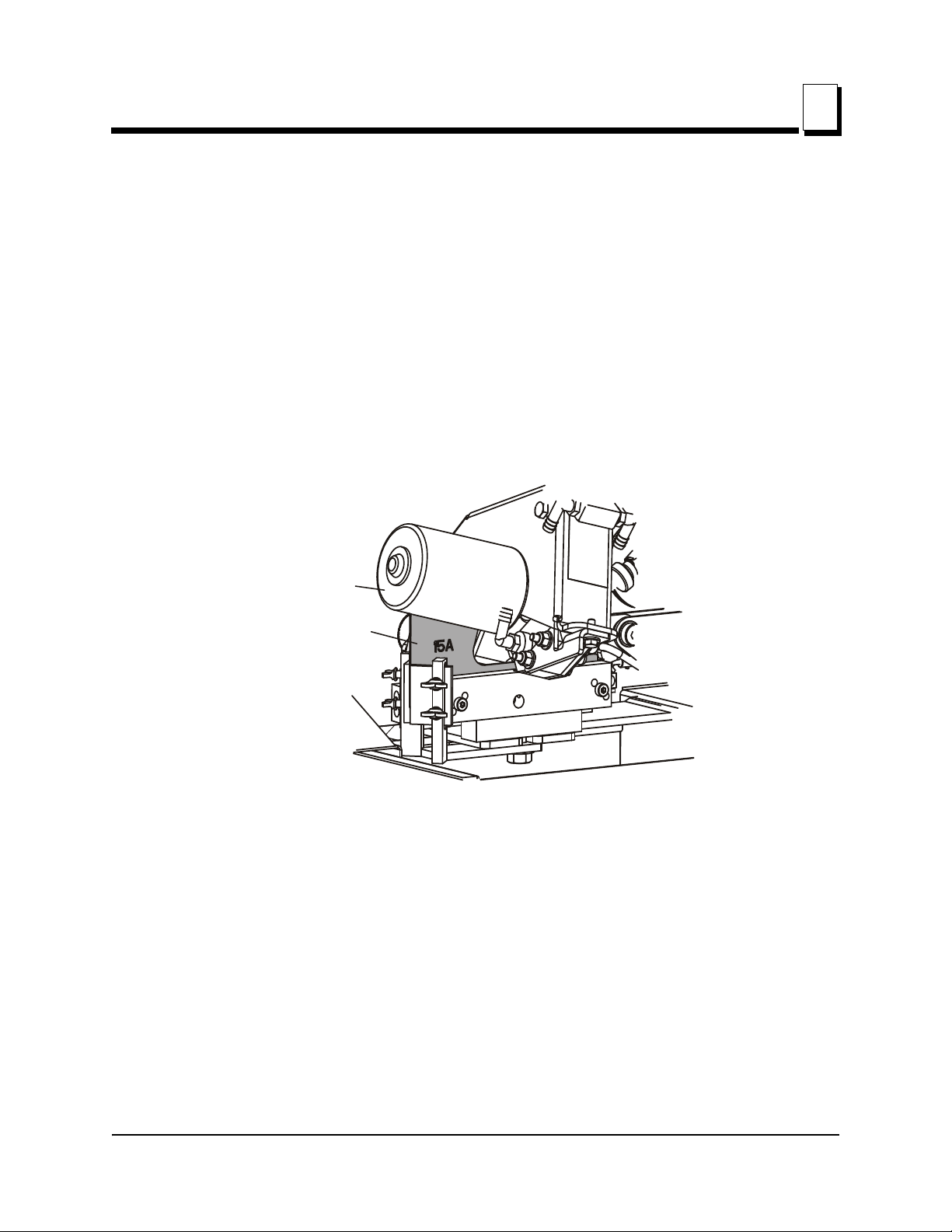

FIG. 2-8
SH0021D_CBN
Angled Template
Sharpener Head

Assembly
Sharpener Head Angle Adjustment
2
2-11 CBNdoc080917 Assembly
See Figure 2-9. Next, loosen the bolt in the vertical plate of the sharpener. Tip the sharp-
ener head until the full length of the motor housing contacts the full length of the template
edge. Hold the sharpener head in place while retightening the bolt in the vertical plate.
After tightening the bolt, recheck the head angle with the template.

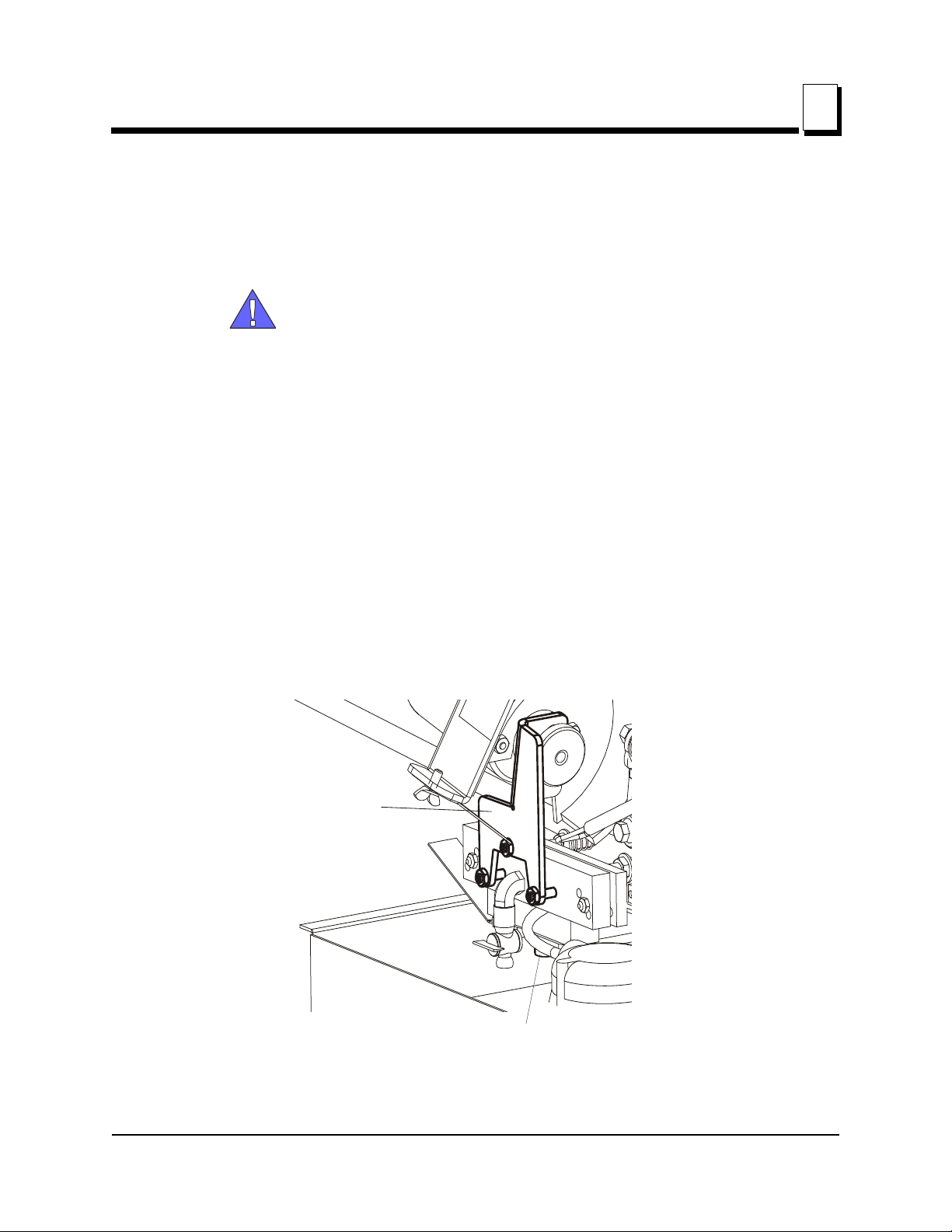

FIG. 2-9

Assembly
Sharpener Alignment
Assembly CBNdoc080917 2-12
2
2.6 Sharpener Alignment
Use the LTAGA alignment tool as necessary to achieve accurate alignment between the
blade clamp and the grinding wheel.
IMPORTANT! Do not attempt to adjust the tool gauge
points. They have been pre-calibrated at the factory to
ensure accurate alignment results.
1. Make sure the grinder motor is OFF. Cycle the cam until the grinding wheel is at the tip of
the tooth (about to begin face grind).
2. Remove the grinding wheel cover , oiler assembly and sharpener arbor nut. Remove the
grinding wheel.
3. Install the alignment tool to the grinder motor shaft as shown.
See Figure 2-10. Position the tool so all three gauge points are in line with the front
clamp plate.
4. Install (2) 1/2" SAE flat washers to the motor shaft. Secure the alignment tool and spacer
washers in position with the sharpener arbor nut.
FIG. 2-10
SH0012B
Alignment Tool
Clamp Adjustment Bolt

Assembly
Sharpener Alignment
2
2-13 CBNdoc080917 Assembly
5. Use a 3/4” wrench to loosen the bottom clamp adjustment bolt.
6. Position the clamp assembly so the front clamp plate touches all three tool gauge points.
Secure in position by tightening the clamp adjustment bolt.
See Figure 2-11.
7. Remove the arbor nut and alignment tool.
8. Reinstall the grinding wheel and secure in place with the arbor nut.
9. Reinstall the oiler assembly and grinding wheel cover.

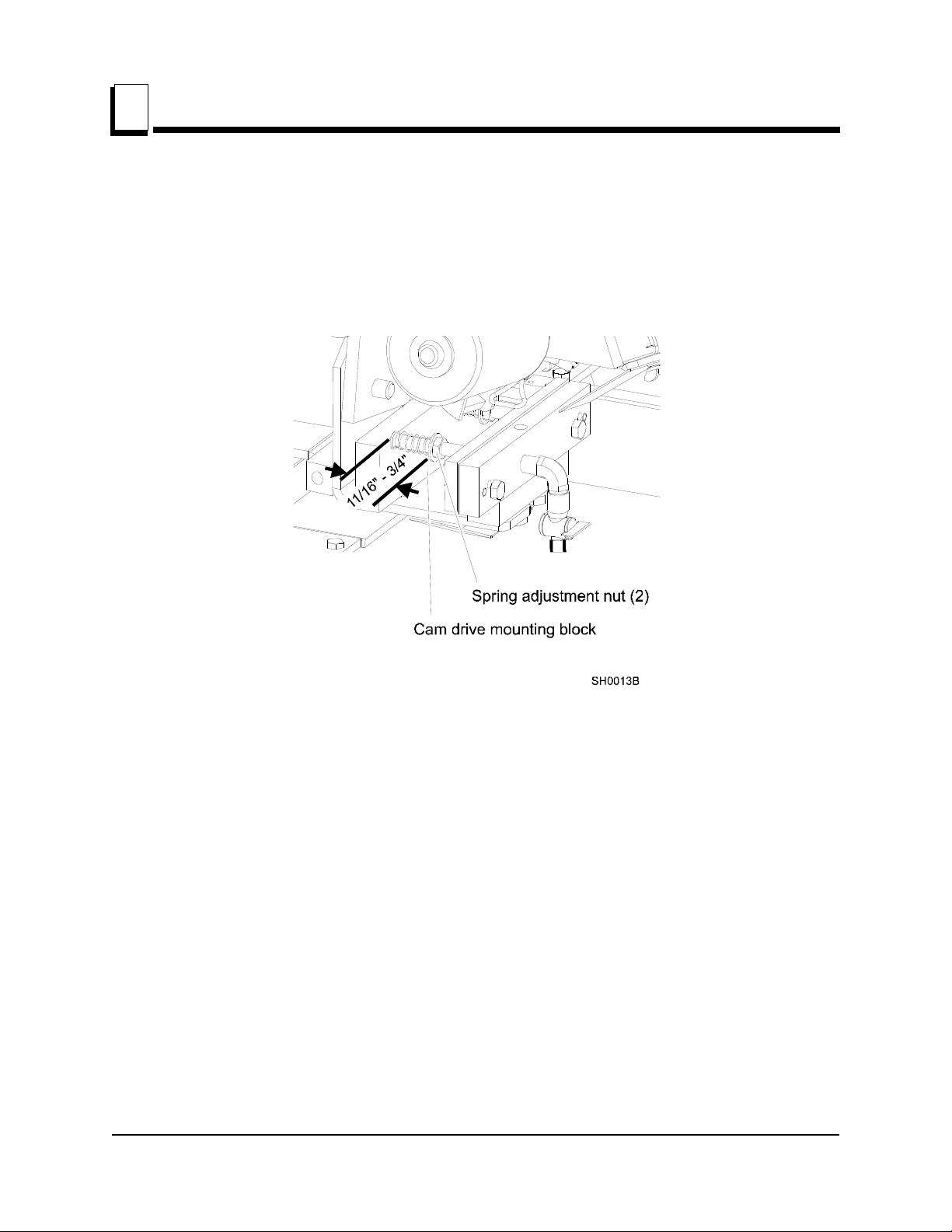

10. Use the spring adjustment nuts (one nut on each of the two threaded clamp studs) to
adjust the springs until they are compressed to 11/16” - 3/4”.
FIG. 2-11
