woodmizer Incline Log Deck Guide

Incline Log Deck
Safety, Operation
and Maintenance Manual
SLPILD rev.A8.03
Safety is our #1 concern! Read and understand
all safety information and instructions before
operating, setting up and/or maintaining this
equipment.
May 2008
Form #1012
!

2 SW-07doc112315 Table of Contents
Table of Contents Section-Page
SECTION 1 SAFETY INSTRUCTIONS 1-1
1.1 Safety Symbols.......................................................................................1-1
1.2 Safety Instructions..................................................................................1-2
SECTION 2 OPERATION 2-1
2.1 Incline Log Deck Components...............................................................2-1
2.2 Setup.......................................................................................................2-1
2.3 Operation................................................................................................2-3
SECTION 3 MAINTENANCE 3-1
3.1 Lubrication .............................................................................................3-1
3.2 Sawdust Removal...................................................................................3-2
3.3 Transfer Chain Tension..........................................................................3-2
3.4 Drive Chain Tension...............................................................................3-3
SECTION 4 SPECIFICATIONS 4-1
4.1 Log Deck Dimensions............................................................................4-1
4.2 Motor Specifications ..............................................................................4-3
SECTION 6 INCLINE LOG DECK 5-1
6.1 Infeed Assembly.....................................................................................5-1
6.2 Additional Grid, Option For TVS Incline Log Deck .........................5-2
6.3 Limit Switch Assembly..........................................................................5-3
6.4 Drive Assembly .....................................................................................5-4
6.5 Chain Guards..........................................................................................5-6
6.6 LD4 Leg Foot Plate................................................................................5-7
6.7 LD4 Log Rest Table...............................................................................5-8
6.8 LD4 Shut-Off Lever Assembly ............................................................5-9
6.9 Decals...................................................................................................5-10

Manufacturer Data:
Wood-Mizer Industries, Ltd.
Nagórna 114
62-600 Koło
Poland
Tel. [phone]
If You Need To Order Parts...
From Europe call our European Headquarters and Manufacturing Facility in Kolo, Poland
at [phone]. Wood-Mizer will accept the folowing methods of payment:
Visa, Mastercard, or Select Purchase
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on
size and quantity of order. In most cases, items will ship on the day they are ordered.
Second Day and Next Day shipping are available at additional cost.

If You Need Service...
From Europe call our European Headquarters and Manufacturing Facility in Kolo, Poland
at [phone].Ask to speak with a Customer Service Representative. Please have
your customer number ready when you call. The Service Representative can help you
with questions about alignment of your equipment. He also can schedule you for
a service call.
Office Hours: All times are Eastern Standard Time.
IMPORTANT! Read the entire Operator's Manual before
operating the conveyor. Take notice of all safety warnings
throughout this manual and those posted on the equipment.
Keep this manual with this equipment at all times,
regardless of ownership.
*Wood-Mizer®is a registered trademark of Wood-Mizer Products, Inc.
Country Monday - Friday Saturday Sunday
Poland 7 a.m. to 3:00 p.m. Closed Closed
!

Safety Instructions
Safety Symbols
Safety MHdoc112315 1-1
1
SECTION 1 SAFETY INSTRUCTIONS
1.1 Safety Symbols
The following symbols and signal words call your attention to instructions concerning your
personal safety. Be sure to observe and follow these instructions.
The word DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death or serious
injury.
WARNING! suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION refers to potentially hazardous situations which,
if not avoided, may result in minor or moderate injury to
persons or equipment.
IMPORTANT! indicates vital information.
NOTE: gives helpful information.
Warning stripes are placed on areas where a single decal
would be insufficient. To avoid serious injury, keep out of
the path of any equipment marked with warning stripes.
!

Safety Instructions
Safety Instructions
1
1-2 MHdoc112315 Safety
1.2 Safety Instructions
NOTE: ONLY safety instructions regarding personal injury are listed in this section.
Caution statements regarding only equipment damage appear where applicable
throughout the manual.
Observe Safety Instructions
IMPORTANT! Read the entire Operator's Manual before
operating the unit. Take notice of all safety warnings
throughout this manual and those posted on the equipment.
Keep this manual with this equipment at all times,
regardless of ownership.
Also read any additional manufacturer’s manuals and
observe any applicable safety instructions including
dangers, warnings, and cautions.
Only persons who have read and understood the entire
operator's manual should operate this equipment. The
equipment is not intended for use by or around children.
IMPORTANT! It is always the owner's responsibility to
comply with all applicable federal, state and local laws,
rules and regulations regarding the ownership, operation
and towing of your Wood-Mizer equipment.
!
!

Safety Instructions
Wear Safety Clothing
Safety MHdoc112315 1-3
1
Wear Safety Clothing
WARNING! Secure all loose clothing and jewelry before
operating this equipment. Failure to do so may result in
serious injury or death.
WARNING! Always wear eye, ear, respiration and foot
protection as well as safety clothing when operating or
servicing the equipment.
Keep the Equipment and Area Around Clean
DANGER! Maintain a clean and clear path for all necessary
movement around the equipment and lumber stacking
areas. Failure to do so may result in serious injury.
Dispose Of Sawing By-Products Properly
IMPORTANT! Always properly dispose of all sawing
by-products, including sawdust and other debris.
!

Safety Instructions
Check the Equipment Before Operation
1
1-4 MHdoc112315 Safety
Check the Equipment Before Operation
DANGER! Make sure all guards and covers are in place
and secured before operating the equipment. Failure to do
so may result in serious injury.
Keep Persons Away
DANGER! Keep all persons out of the path of moving
equipment and lumber when operating the equipment.
Failure to do so may result in serious injury.
DANGER! Be sure that all persons are away from the
equipment before starting it. Failure to do so may result in
serious injury.
Keep Hands Away
DANGER! Always keep hands away from moving chain.
Failure to do so may result in serious injury.
DANGER! Always be aware of and take proper protective
measures against rotating shafts, pulleys, fans, etc.
Always stay a safe distance from rotating members and
make sure that loose clothing or long hair does not engage
rotating members resulting in possible injury.

Safety Instructions
Safety MHdoc112315 1-5
1
Use Proper Maintenance Procedures
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified
electrician and is in accordance with applicable electrical
codes.
DANGER! Hazardous voltage inside the electric box and at
the motor can cause shock, burns, or death. Disconnect
and lock out power supply before servicing! Keep all
electrical component covers closed and securely fastened
during equipment operation.
WARNING! Consider all electrical circuits energized and
dangerous.
WARNING! Disconnect and lock out power supply before
servicing! Failure to do so may result in serious injury.
WARNING! Never assume or take the word of another
person that the power is off; check it out and lock it out.
WARNING! Do not wear rings, watches, or other jewelry
while working around an open electrical circuit.
CAUTION! The conveyor’s work-stand should be equipped
with a 4 kg or bigger dry powder extinguisher.

Safety Instructions
Keep Safety Labels In Good Condition
1
1-6 MHdoc112315 Safety
Keep Safety Labels In Good Condition
IMPORTANT! Always be sure that all safety decals are
clean and readable. Replace all damaged safety decals to
prevent personal injury or damage to the equipment.
Contact your local distributor, or call your Customer Service
Representative to order more decals.
IMPORTANT! If replacing a component which has a safety
decal affixed to it, make sure the new component also has
the safety decal affixed.

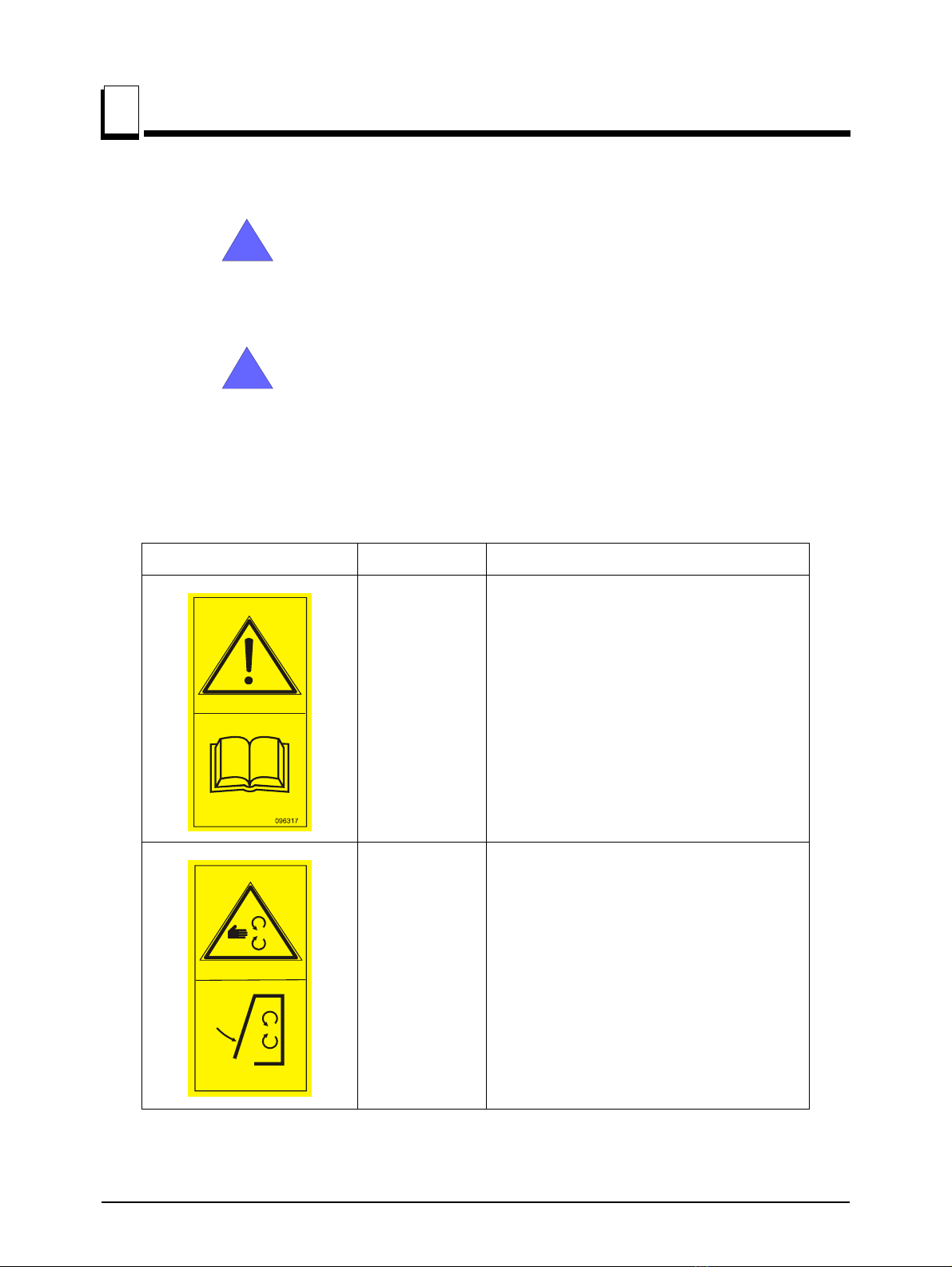

Safety Labels Description
See Table 1-1. Pictographic safety labels are shown in the table below.
TABLE 1-1
Decal View Decal No. Description
096317 Read thoroughly the operator’s manual
before operating the equipment. Observe
instructions and safety rules when
operating.
099220 Close all guards and covers prior to
starting the equipment.
!
!
099220

Safety Instructions
Safety Labels Description
Safety MHdoc112315 1-7
1
099221 Keep all persons a safe distance away
from work area when operating the unit.
096314 Keep all persons a safe distance away
from work area when operating the unit.
096316 Do not open or close the electric box when
the switch is not in the ”0” position.
TABLE 1-1
099221

Safety Instructions
Safety Labels Description
1
1-8 MHdoc112315 Safety
096319 Disconnect power supply before opening
the box.
098177 Disconnect power supply before servicing.
099540 CAUTION! Gear danger – keep a safe
distance away!
TABLE 1-1
098177
099540

Safety Instructions
Safety Labels Description
Safety MHdoc112315 1-9
1

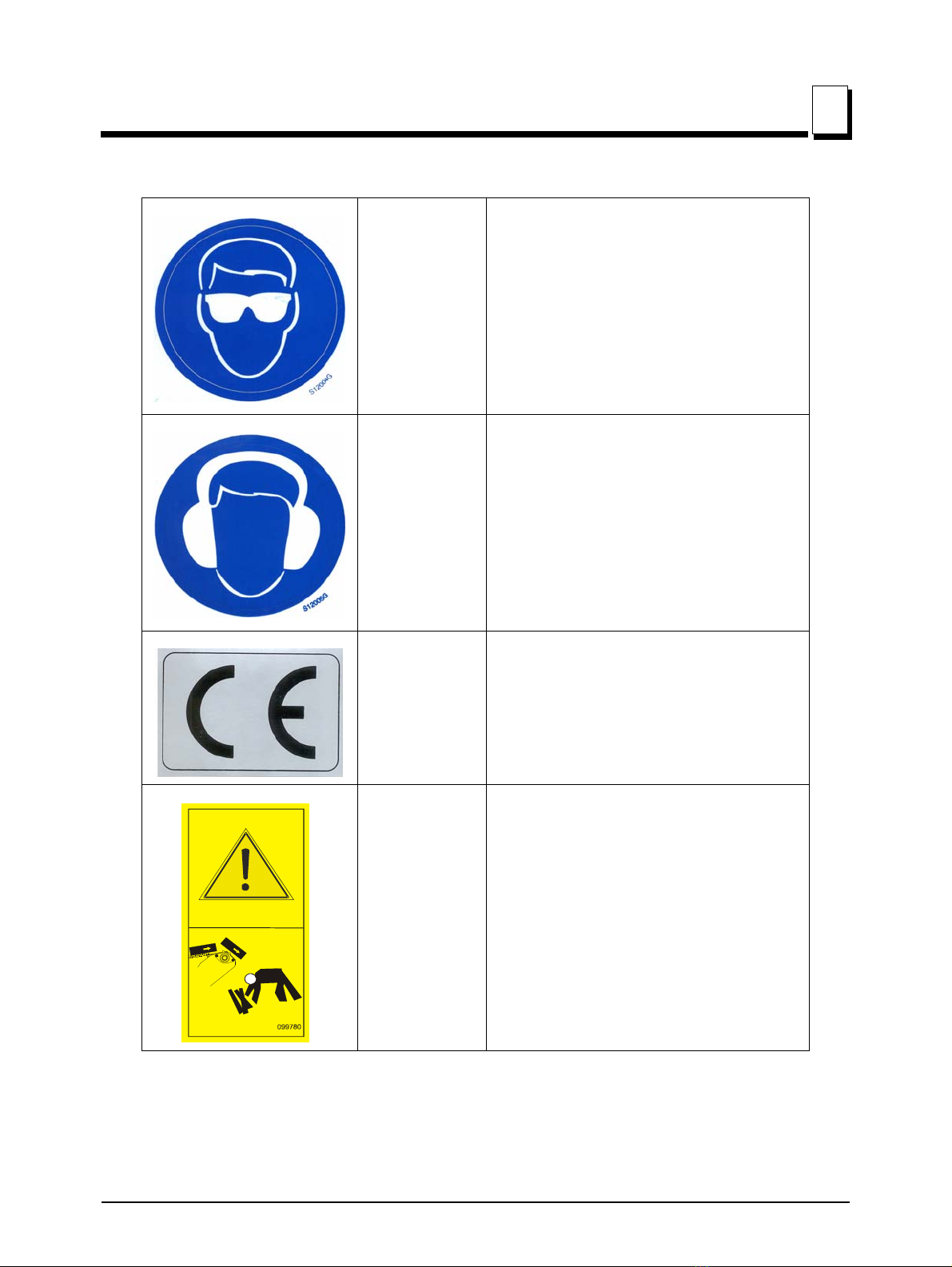

S12004G Always wear safety goggles when
operating the equipment.
S12005G Always wear protective ear muffs when
operating the equipment.
P85070 CE safety certification
099780 Caution! Slabs falling off the deck!
TABLE 1-1

OPERATION
Incline Log Deck Components
2
2-1 MHdoc112315
SECTION 2 OPERATION
2.1 Incline Log Deck Components
WARNING! Always stay a safe distance from moving
equipment and logs while operating the Incline Log Deck.
Failure to do so may result in serious injury or death.

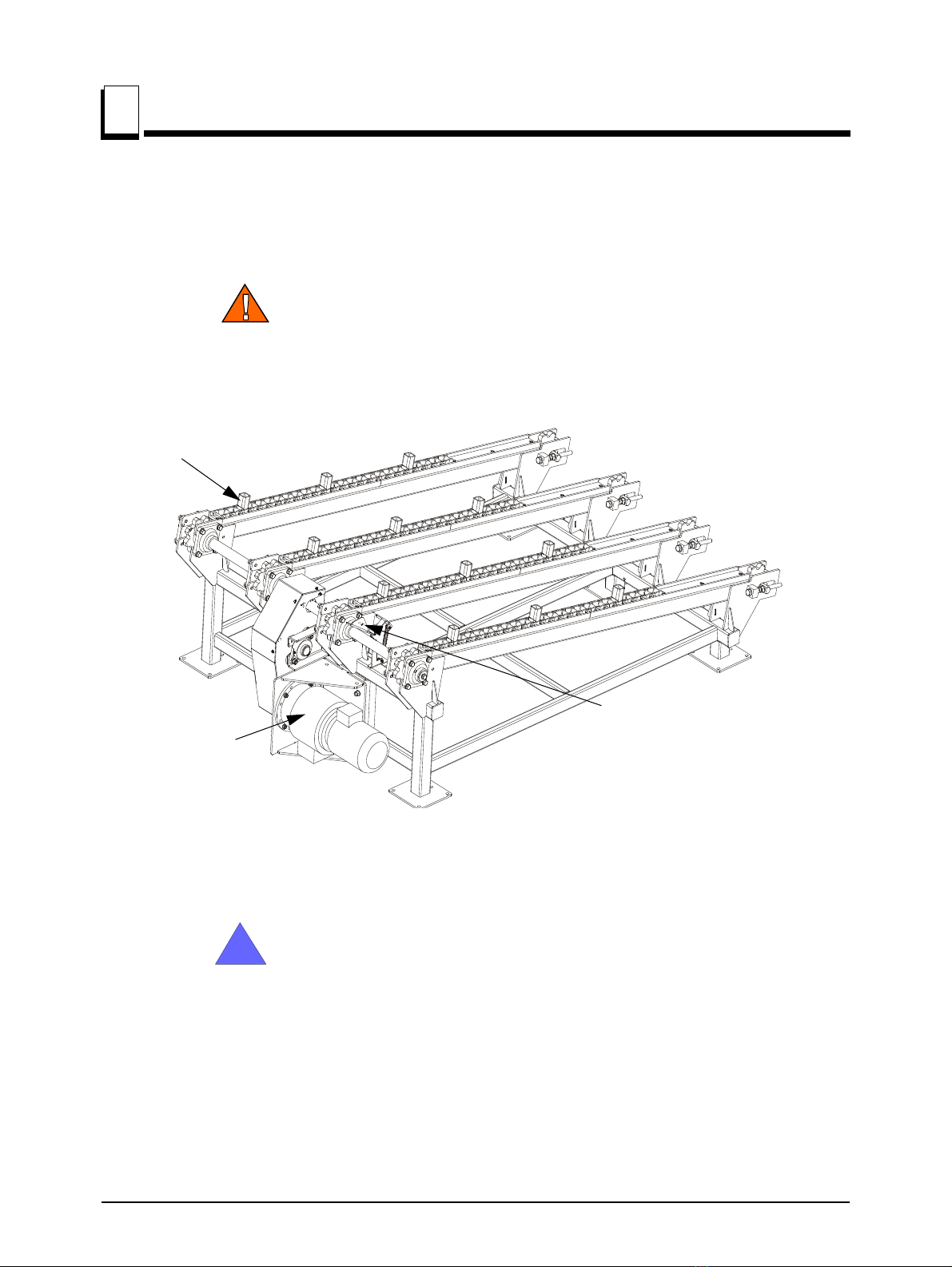

The major components of the Incline Log Deck are shown below.
2.2 Setup
IMPORTANT! Before starting to use the Incline Log Deck
you have to meet the following conditions.
Set up the deck on firm and level ground. Fasten the unit to the ground.
The log deck can be operated in temperature range from -20oC to 40oC only.
The operator’s position is shown in the figure below. The log deck is operated by
the operator of TVS.
FIG. 2-1 INCLINE LOG DECK
Chain Drive
Motorw/Gear
Box
Chain
Limit Switch
!

OPERATION
Setup
MHdoc112315 2-2
2
Have a qualified electrician install the power supply (in accordance with EN
60204 Standard). The power supply must meet the specifications given in the
table below.
IMPORTANT! When starting the log deck for the first time,
check that the chain rotation direction is correct. If it is
incorrect, invert the phases in the phase inverter located in
the power socket (in the electric box).
IMPORTANT! When starting the equipment for the first
time, let it run for the first 1-2 hours without load.
The Incline Log Deck can be lifted with a forklift only. The forklift should be rated for
at least 800 kg. The log deck is equipped with forklift pockets. Insert the forks into
3-Phase
Volts
Fuse Disconnect Recommended Wire
Size
400 VAC 4 A 1.5 mm2
TABLE 2-0
Operator’s
Position
TVS Control
Box
!
!

OPERATION
Operation
2
2-3 MHdoc112315
the pockets shown in the figure below.
2.3 Operation
Use the key switch located on the TVS control box to start or stop the Incline Log Deck
(see the figure below).
In case of any danger to persons or equipment, push the emergency stop button.
This stops the log deck and the TVS. To release the stop, turn the emergency stop button
FIG. 2-2 FORKLIFT POCKETS

OPERATION
Operation
MHdoc112315 2-4
2
clockwise. The machine will not restart until the emergency stop is released.
CAUTION! If at any time you need to immediately stop the
chain drive motor, press the emergency stop button located
on the electric box.
After engaging the log deck chain with the key switch, the logs placed on the deck are
routed towards the TVS infeed table until the first log is at the end of the deck and
activates the limit switch. The chain is disengaged until the log is removed from the deck
and the limit switch is released.
CAUTION! If the logs to be cut are short, place them in the
middle of the Incline Log Deck (so that they engage the
safety switch) to prevent the log from falling off the deck, on
the operator’s body. Logs of at least 700 mm length can be
transferred on the Incline Log Deck.
FIG. 2-3
I ON
0OFF
“0” “0”
“0”
I
II
START
STOP
Key Switch
Emergency Stop
Button

OPERATION
Operation
2
2-5 MHdoc112315
DANGER! If a large number of logs are loaded on the log
deck, remove them from the top. Be careful not to release
the limit switch which engages the chain and may cause
the log to fall off the deck and squeeze the operator’s body.
WARNING! Fasten the legs of the log deck to the ground
before operating the deck. Failure to do so may result in
serious injury or death.
CAUTION! Never load logs on the log deck from a height of
above 20 cm. Damage to the log deck may result.
FIG. 2-4
Limit
Switch
Limit Switch
Activator

MAINTENANCE
Lubrication
MAINTENANCE doc112315 3-1
3
SECTION 3 MAINTENANCE
This section lists the maintenance procedures that need to be performed.
This symbol identifies the interval (hours of operation) at which each maintenance procedure
should be performed.
3.1 Lubrication
CAUTION! Never apply grease to the transfer chain. It causes
sawdust buildup in chain links.
1. Using the grease fittings, lubricate the main shaft bearings every 50 hours of operation.
See Figure 3-1.
2. Make sure all safety warning decals are readable. Remove sawdust and dirt. Replace any damaged
or unreadable decals immediately. Order decals from your Wood-Mizer Customer Service
Representative.
FIG. 3-1
0
50

MAINTENANCE
Sawdust Removal
3
3-2 doc112315 MAINTENANCE
3.2 Sawdust Removal
1. Remove the excess sawdust from the drive and transfer chains every 50 hours of operation.
CAUTION! Never apply grease to the drive and transfer chains.
It causes sawdust buildup in chain links.
3.3 Transfer Chain Tension
CAUTION! Do not over-tension the chains of TVS tables, Incline Log
Deck and Cross Transfer Deck. Over-tensioning may lead to
premature failure of the gear, bearings, rollers and chains.
Use the adjustment bolts shown below to adjust the transfer chain tension as necessary. The chains
should have about 100 mm of slack.
See Figure 3-2. The figure shows how the transfer chain tension should be adjusted.
CAUTION! If the chain is too loose, the dogs located on it may hit the
deck frame. Tension the chain so that the dogs can move freely.
FIG. 3-2
50
~100mm
Adjustment
Bolts
