VLCD5 Manual

1. Summary
The Intelligent VLCD-5 is specially designed for e-bikes. It is used to control the power assistance, and
can also show the battery consumption, the speed at which you are travelling, and record the trip distance.
2.Specification
2.Installation

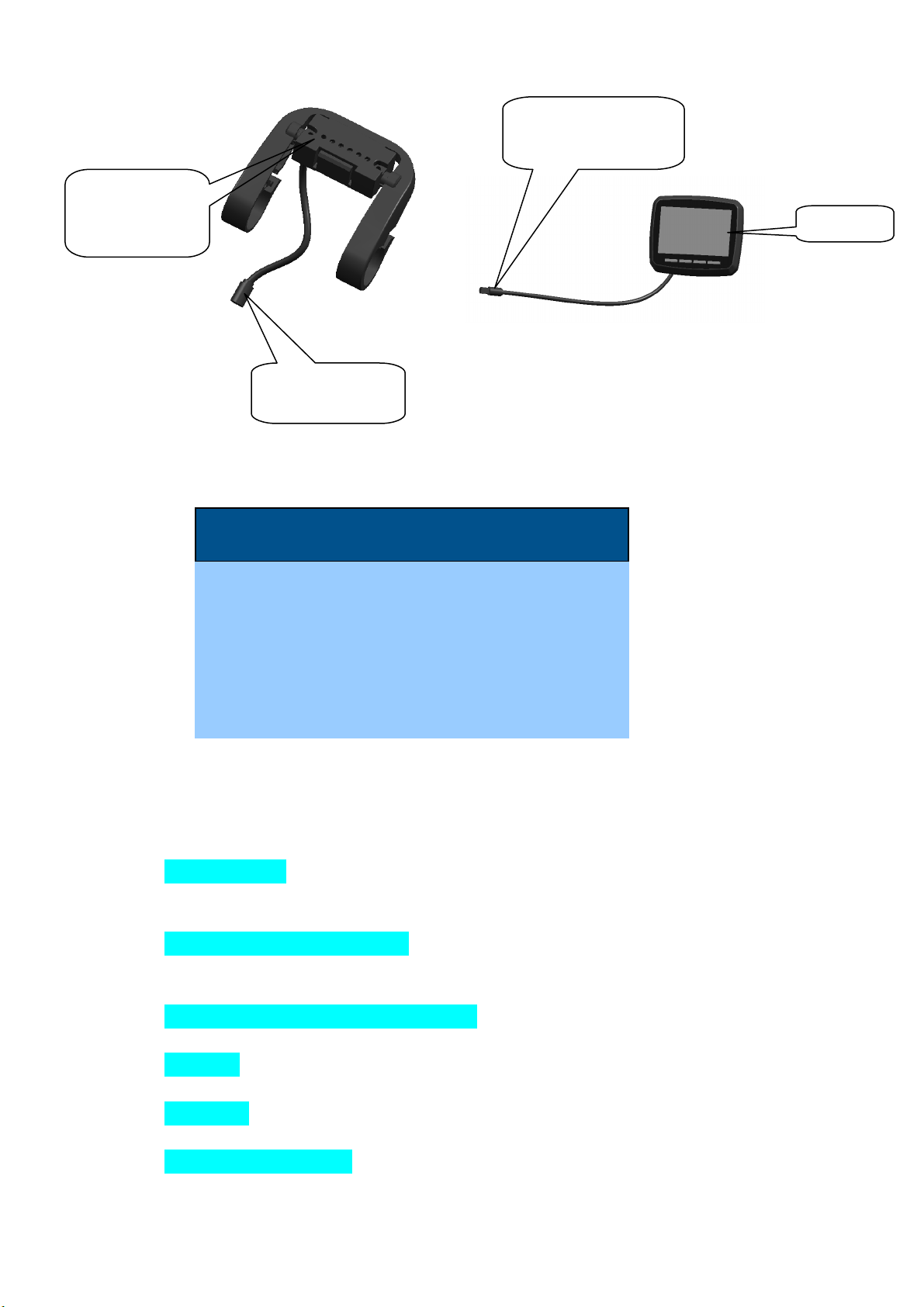

Mount the display and remote panel on the handlebars. Attach the 4 pin connector from the remote panel to the matching
connector from the display.
Type
TypeType
Type VLCD-5
Working voltage DC 11V-60V
Max working current 70mA(11V) 32mA(50V)
Display type 21*4 segment LCD
Measuring the speed 1-12 pulses each rotation of wheel
Working temperature -200C—+700C
Backlight White LED mode，brightness:200cd/m2
Dimensions 102.5mm×75.5mm×28mm (exclude thickness of Pedestal)
VLCD5
Remote panel
4 pin connector 6-pin plug - to motor

4、Functions
4.1、 Speed display
Speed displaySpeed display
Speed display
km/h, mile/h
Show current speed, unit: Km/h and mile/h, switchable.
4.2、 Battery
BatteryBattery
Battery voltage
voltage voltage
voltage indicator
indicatorindicator
indicator
Four segments to show the remaining battery capacity (each block represents 25%). The display will
flash when the battery is low to remind you to charge the battery.
4.3、 T
TT
Trip distan
rip distanrip distan
rip distance(reset while power off
ce(reset while power offce(reset while power off
ce(reset while power off )
Show trip distance. Can be reset to zero.
4.4、 Odo
OdoOdo
Odometer
metermeter
meter
Shows total miles from new.
4.5、 Trip T
Trip TTrip T
Trip Time
imeime
ime
Shows how long the bike has been in use (for this specific trip).
4.6、 Average speed
Average speedAverage speed
Average speed（
（（
（AVG
AVGAVG
AVG）
））
）
Shows average speed.
1、Orange ( RX )
2、Brown ( TX )
3、White (Weak current )
4、Green ( Power )
5、Black ( Earth)
6、Purple ( Brake)
VLCD wire system
Display
mounting base
Connect to motor
Connect to remote
panel
VLCD-5

4.7、 Power assis
Power assisPower assis
Power assist level
t levelt level
t level
Indicates the power assist level. There are 4 levels.
4.8、 Backlight
BacklightBacklight
Backlight
Switch between 2 levels brightness, default is backlight off.
4.9、 W
WW
Wheel
heelheel
heel-
--
-diamet
diametdiamet
diameter setting
er settinger setting
er setting
Select wheel-diameter among14-32 inch. Default is 26-inch.
4.10、 Speed sensor setting
Speed sensor settingSpeed sensor setting
Speed sensor setting
Select the number of spoke magnets used for the speed sensor, default value is 1.
4.11、 Speed unit
Speed unitSpeed unit
Speed unit
Switch speed unit from Km/h or Mil/h..
4.12、 6
66
6km/h throttle setting
km/h throttle settingkm/h throttle setting
km/h throttle setting
Select function of 6km, default is OFF.
4.13、 Maximum speed setting
Maximum speed settingMaximum speed setting
Maximum speed setting
Select max speed during 15-45km/h, Default is 25Km/h.
4.14、 Assist ratio setting (reserved)
Assist ratio setting (reserved)Assist ratio setting (reserved)
Assist ratio setting (reserved)
Select the ratio but default is 16..
4.15、 Zone setting (reserved)
Zone setting (reserved)Zone setting (reserved)
Zone setting (reserved)
Default is Europe.
Speed limit setting , default is ON.
4.16、 Software version
Software versionSoftware version
Software version
Showing the current version of s/ware – currently 3.7
4.17、 Fault
FaultFault
Fault code
code code
code
The system does a self-check when the kit is powered up. If there are any issues, a fault code will be
shown on the screen.
4.18、 Torque signal value (reserved)
Torque signal value (reserved)Torque signal value (reserved)
Torque signal value (reserved)
Torque signal value displays.
4.19、 Initial torquevalue (reserved)
Initial torquevalue (reserved)Initial torquevalue (reserved)
Initial torquevalue (reserved)
Initial torque signal value displays
5、Operation Procedure
5.1
5.1 5.1
5.1 Button Definition
+ - Info Power

5.2
5.2 5.2
5.2 Operation and setting

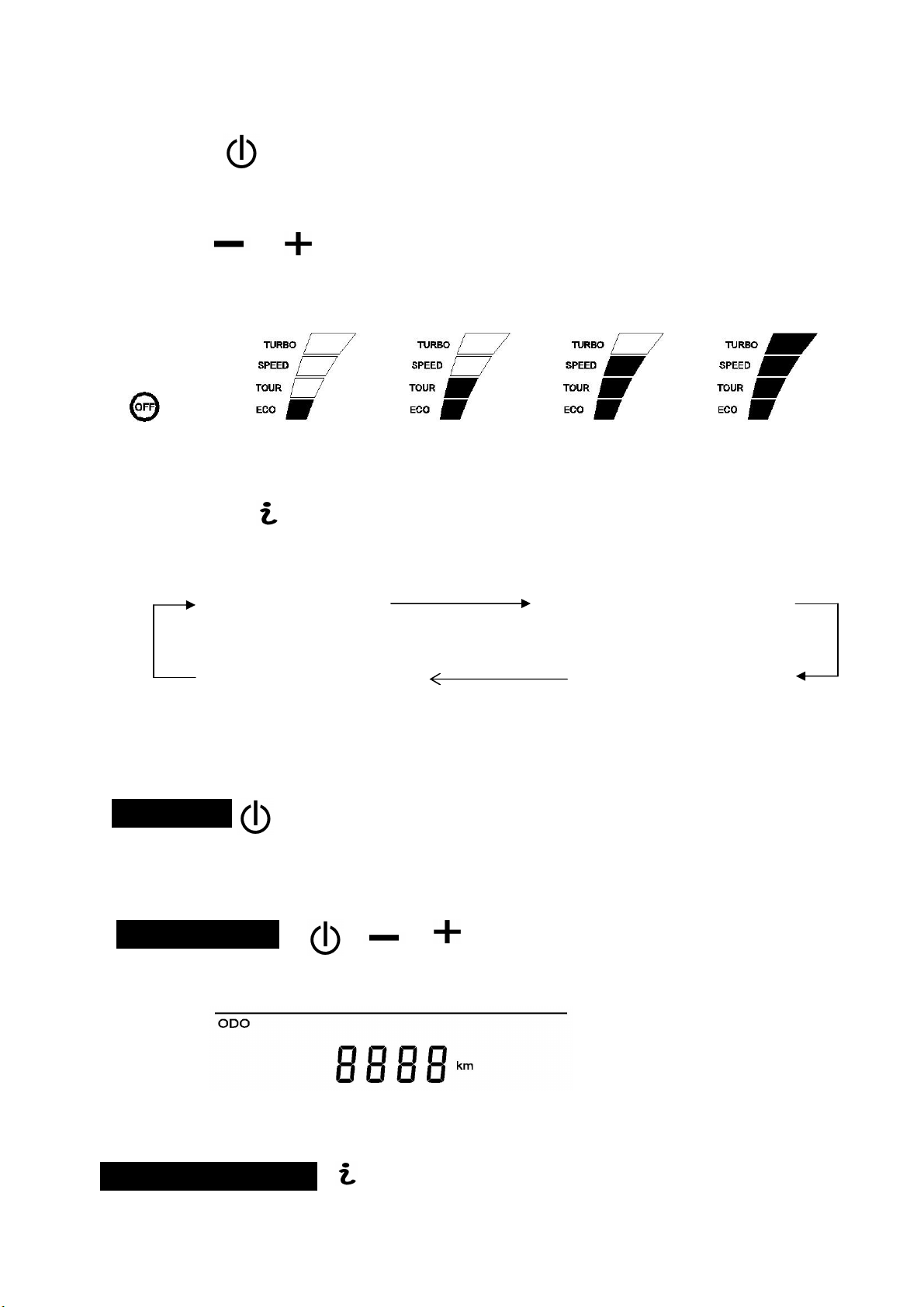

1）Power: 。
Press this button to power on the LCD display, press and hold the button for 2 seconds to power off.
The kit will power down after 5 minutes of inactivity.
2）Assist。
There are 4 levels of assistance. Press the +/- buttons to adjust the power assist level. The default is ECO
(minimum) assist.
（no power）（ECO）(TOUR) (SPEED) （TURBO）
None Minimum Medium Max
3) Info。
There are 4 levels of mode (odometer, trip distance, average speed, one way time). Press this button to
adjust the mode. Default is odometer.
Odometer（ODO）Trip distance（TRIP）
One way time(TIME) Average speed(AVG)
5.3
5.3 5.3
5.3 Basic functions
Backlight
Quick press the power button switch background lighting under switching on state.
Odometer (ODO)
When shown in odometer, press and hold those three buttons simultaneously for 10 seconds to reset the ODO.
Odometer

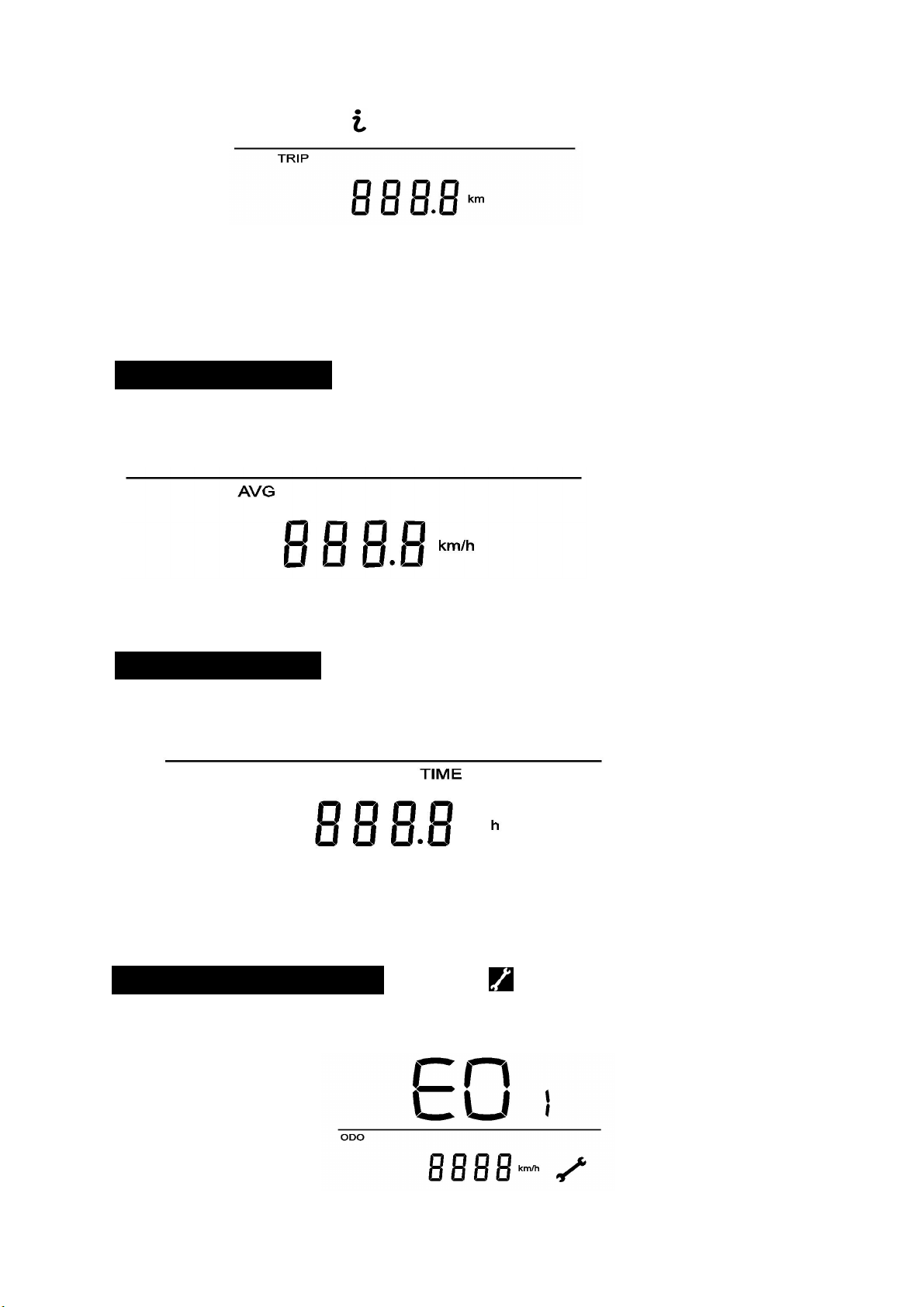

Trip distance(TRIP)

In the trip distance state, press the button for 2s, Reset counter and time.
Trip distance
Average speed（AVG）
Show average speed (average speed=trip distance / movement time), speed resolution is 0.1km/h (mil/h), full
range is 99 km/h or 99.9mil/h.
Average speed
Riding time（TIME）
Required time for a single mileage.
Riding time
Show diagnostic code
If the controller encounters an error, the relevant code will be shown on the top half of the display.

5.4
5.4 5.4
5.4 S
SS
Setting
ettingetting
ettings
ss
s mode
mode mode
mode

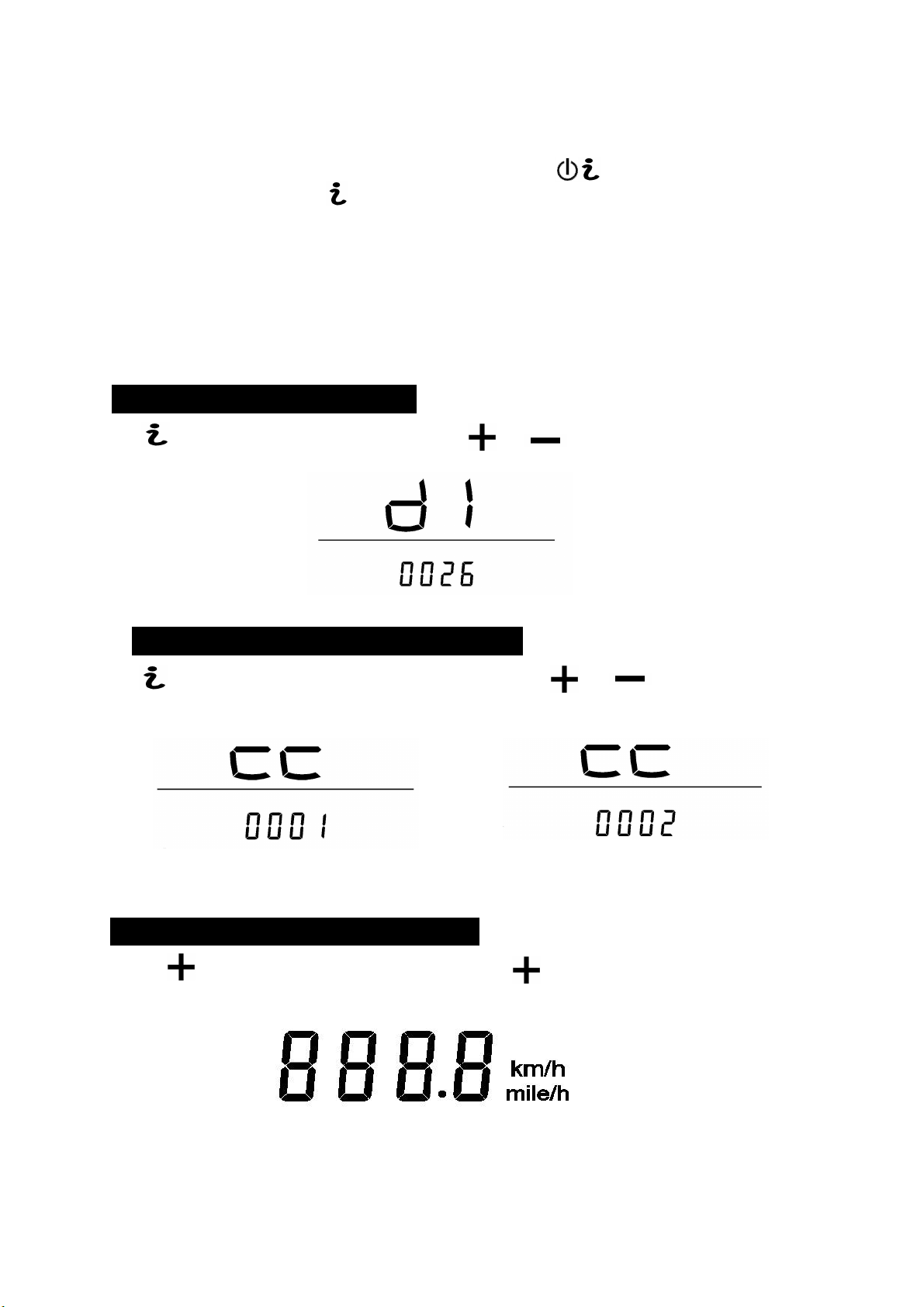

To show the hidden settings, you should press these two buttons simultaneously for 3 seconds on the
startup screen, then quick press the 4 times, you will then see the first setting.
If you leave the setting menu for a few seconds, the LCD will exit the setting mode.
There are 11 levels of mode (odometer, trip distance, average speed, one way time, wheel diameter selection,
magnet number selection, speed unit selection, 6/Km/h function selection, top speed selection, power adjustment
selection, mode selection). Default is odometer.
Wheel diameter selection(d1)
Use the button to enter the speed selection, press or button to choose the correct diameter. The
default is 26”.
Wheel diameter selection
Spoke magnet number selection (CC)：
Use the button to enter the magnet number selection, press or buttons to choose the no. of
magnets 1-12. The default is 1.The no. represents the no. of pulses from one complete rotation of the wheel.
Spoke Magnet number selection
Speed units selection(km/h mil/h)
Use the button to enter the speed units interface, press button to switch between km/h and mil/h. The
default is Km/h.
Speed units interface

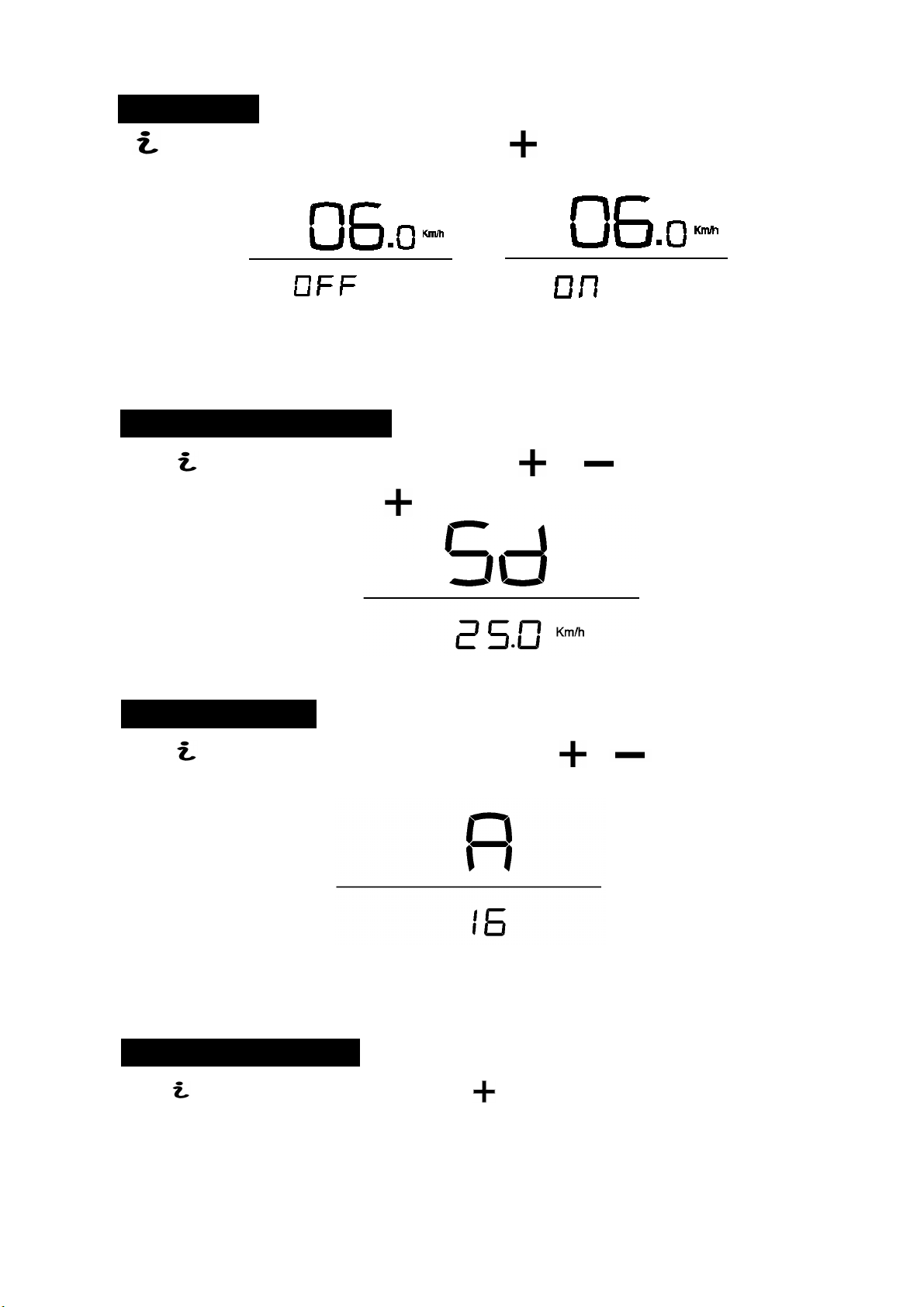

6km/h setting
Use the button to enter the 6/Km/h function selection, press buttons to switch between ON/OFF. Default is
OFF. Kept press button 3s in the neutral,enter the 6Km/h rotation motor, when selecting the open.
6/Km/h function selection
Speed limit setting (SD)
Use the button to enter the speed limit selection, press or buttons to set the speed limit.
15-45. The default is 25Km/h.
Speed limit selection
Power setting (A)
Use the button to enter the power adjustment submenu, press or buttons to change (6-35)
The default is 16.
Power adjustment selection

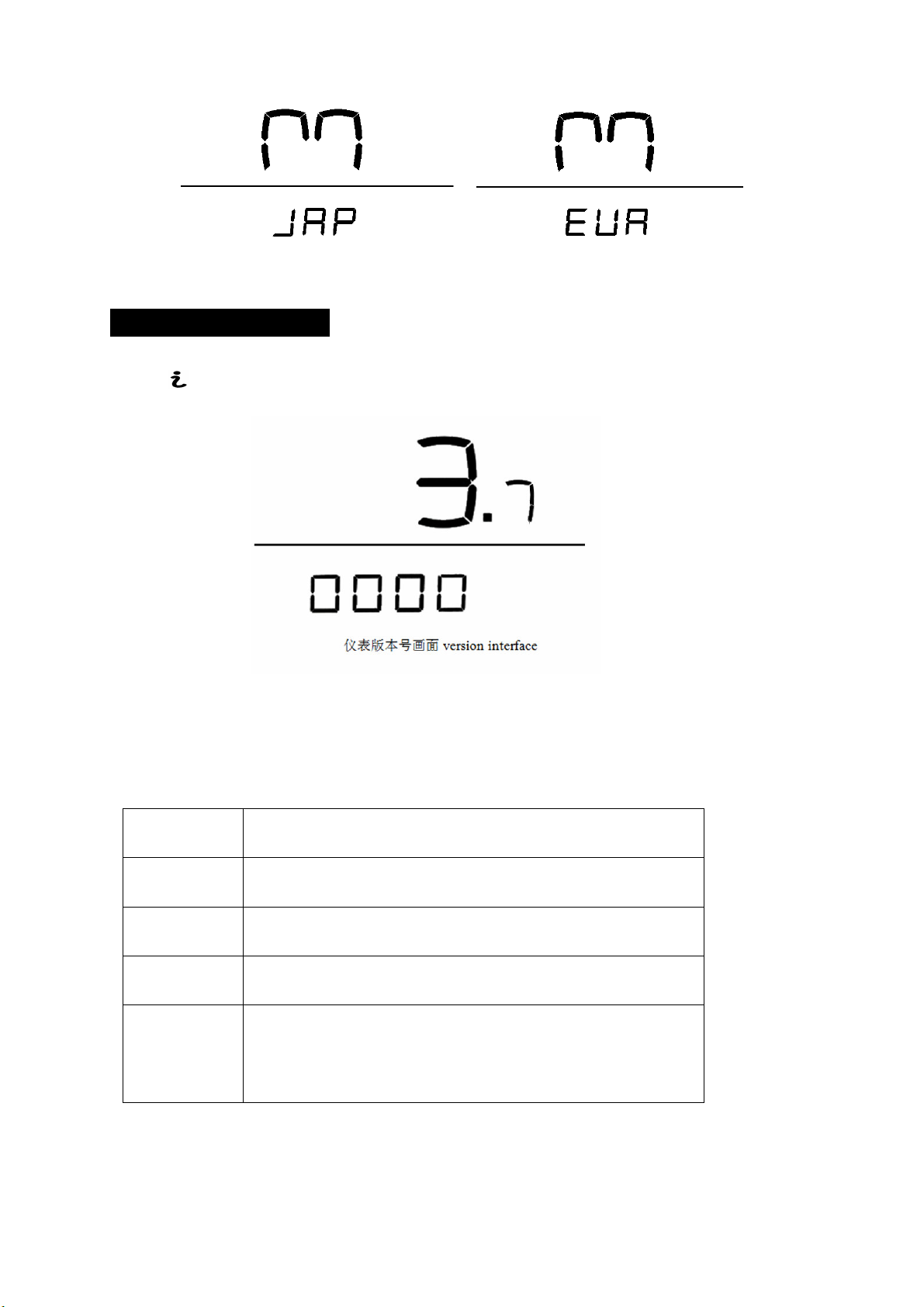

Zone mode setting (M)
Use the button to enter the mold submenu, press button to switch between Japan and Europe. Default
is Europe.

mode selection
Software version
Software version Software version
Software version 3.
3.3.
3.7
77
7
Use the button to show the current version is 3.7。
5.5
5.55.5
5.5 Fa
FaFa
Fault
ultult
ult code
code code
codes
ss
s
If there is a fault, the display will show an error code – see below.
ERR-02 Motor hall fault or motor short circuit
ERR-03 Controller failure
ERR-04 Throttle failure
ERR-08 Low battery alarm
ERR-06 Turn on the motor with cyclist’s feet on the pedal
for coaster brake version

5.6
5.65.6
5.6 Torque signal value display
Torque signal value displayTorque signal value display
Torque signal value display (reserved for
(reserved for (reserved for
(reserved for viewing
viewingviewing
viewing only)
only) only)
only)
Torque signal value display
Torque signal value displayTorque signal value display
Torque signal value display
5.7
5.7 5.7
5.7 Initial value for torque signal display
Under submenu “TE1”, press again, it shows initial torque value, which is for service viewing only
（
（（
（Initial value for torque signal display）
））
）

Suzhou Industrial Park Tongsheng Bicycle Co,. Ltd
Address: 1875-8#,Tongda road, Suzhou city.
Postcode: 215124 http://www.tsbicycle.com
Tel.: [phone]
Fax: [phone]
VLCD-5
VLCD-5 Display Instrument
Operational Manual
Suzhou Industrial Park Tongsheng Bicycle Co. Ltd.
