WorkPro W4 PRO DMX User manual

Please read before use
USER'S MANUAL
English
FUSE(Internal): F0.315A 250V
POWER INPUT: AC 230V~50Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 1.5A / Channel, 6A / Total.
POWER INPUT: AC 220V~50Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 5A /Channel, 20A / Total.
CH1
CH3 CH4
CH2
FUSES
MADEIN PRC 24-005-0544
CHINA
N'OUVREZPAS..RISQUE DE CHOC ELECTRIQUE
WARNING:THIS APPARATUS MUST BE EARTHED
CAUTION
RISKOF ELECTRIC SHOCK
DISCONNECTINPUT POWER
BEFOREOPENING

Contents
Features 1
Technical Specifications 11
General Instructions 2
1. Overview 3
2. Operation Guide 5
2.1 Mode Select 5
2.2 DMX Mode 5
2.3 Master Mode 6
2.4 Preset Functions 7
2.5 Chase Direction 9
2.6 Cross and Normal Dimmer 9
2.7 Initialization 10
2.3.1 Chase Mode 6
2.3.2 Channel Dimmer 7
Improvement and changes to
specifications, design and this
manual, may be made at any time
without prior notice.
All rights reserved.

DO NOTdismantle or modify the unit.
Packaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left
within children's reach, as it can be dangerous.
After having removed the packaging check that the unit is NOT damaged in any way .
If in doubt, DON'T use it and contact an authorized dealer .
This unit is intended for indoor use only.
NEVER try to repair the unit yourself. Repairs by unqualified people could cause
damage or faulty operation. Contact your nearest dealer .
Wait for at least one second to turn on the power after turning off this unit.
DO NOT open the unit--there are no user serviceable parts inside.
Take care not to damage the power cord.
STOP using the unit immediately In the event of serious operation problems and
either contact your local dealer for a check or contact us directly .
DO NOT make any inflammable liquids, water or metal objects enter the unit.
To prevent fire or shock hazard, do not expose this product under a high
temperature or humidity area.
This product must be earthed.
Read the instruction in this manual carefully and thoroughly , as they give important
information regarding safety during use and maintenance. Keep this manual with
the unit, in order to consult it in the future. If the unit is sold or given to another
operator, make certain that it always has its manual, to enable the new owner to
read about its operation and relative instructions.
Features General Instructions
Thank you for your purchase. This product features include:
1 2
WARNING
CAUTION
4 channel chaser with 16 built-in programs
4 channel DMX dimmer pack with 4 individual DMX addresses
Normal/Cross dimmer
Forward/Reverse chasing direction
Fade Time control
Preheat function
Manual override
Built-in microphone for Music triggering
Power failure memory

DO NOTdismantle or modify the unit.
Packaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left
within children's reach, as it can be dangerous.
After having removed the packaging check that the unit is NOT damaged in any way .
If in doubt, DON'T use it and contact an authorized dealer .
This unit is intended for indoor use only.
NEVER try to repair the unit yourself. Repairs by unqualified people could cause
damage or faulty operation. Contact your nearest dealer .
Wait for at least one second to turn on the power after turning off this unit.
DO NOT open the unit--there are no user serviceable parts inside.
Take care not to damage the power cord.
STOP using the unit immediately In the event of serious operation problems and
either contact your local dealer for a check or contact us directly .
DO NOT make any inflammable liquids, water or metal objects enter the unit.
To prevent fire or shock hazard, do not expose this product under a high
temperature or humidity area.
This product must be earthed.
Read the instruction in this manual carefully and thoroughly , as they give important
information regarding safety during use and maintenance. Keep this manual with
the unit, in order to consult it in the future. If the unit is sold or given to another
operator, make certain that it always has its manual, to enable the new owner to
read about its operation and relative instructions.
Features General Instructions
Thank you for your purchase. This product features include:
1 2
WARNING
CAUTION
4 channel chaser with 16 built-in programs
4 channel DMX dimmer pack with 4 individual DMX addresses
Normal/Cross dimmer
Forward/Reverse chasing direction
Fade Time control
Preheat function
Manual override
Built-in microphone for Music triggering
Power failure memory

FUSE(Internal): F0.315A 250V
POWER INPUT: AC 230V~50Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 1.5A/ Channel, 6A / Total.
POWER INPUT: AC 220V~50Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 5A/Channel, 20A / Total.
CH1
CH3 CH4
CH2
FUSES
MADEIN PRC 24-005-0544
CHINA
N'OUVREZPAS..RISQUE DE CHOC ELECTRIQUE
WARNING:THIS APPARATUS MUST BE EARTHED
CAUTION
RISKOF ELECTRIC SHOCK
DISCONNECTINPUT POWER
BEFOREOPENING

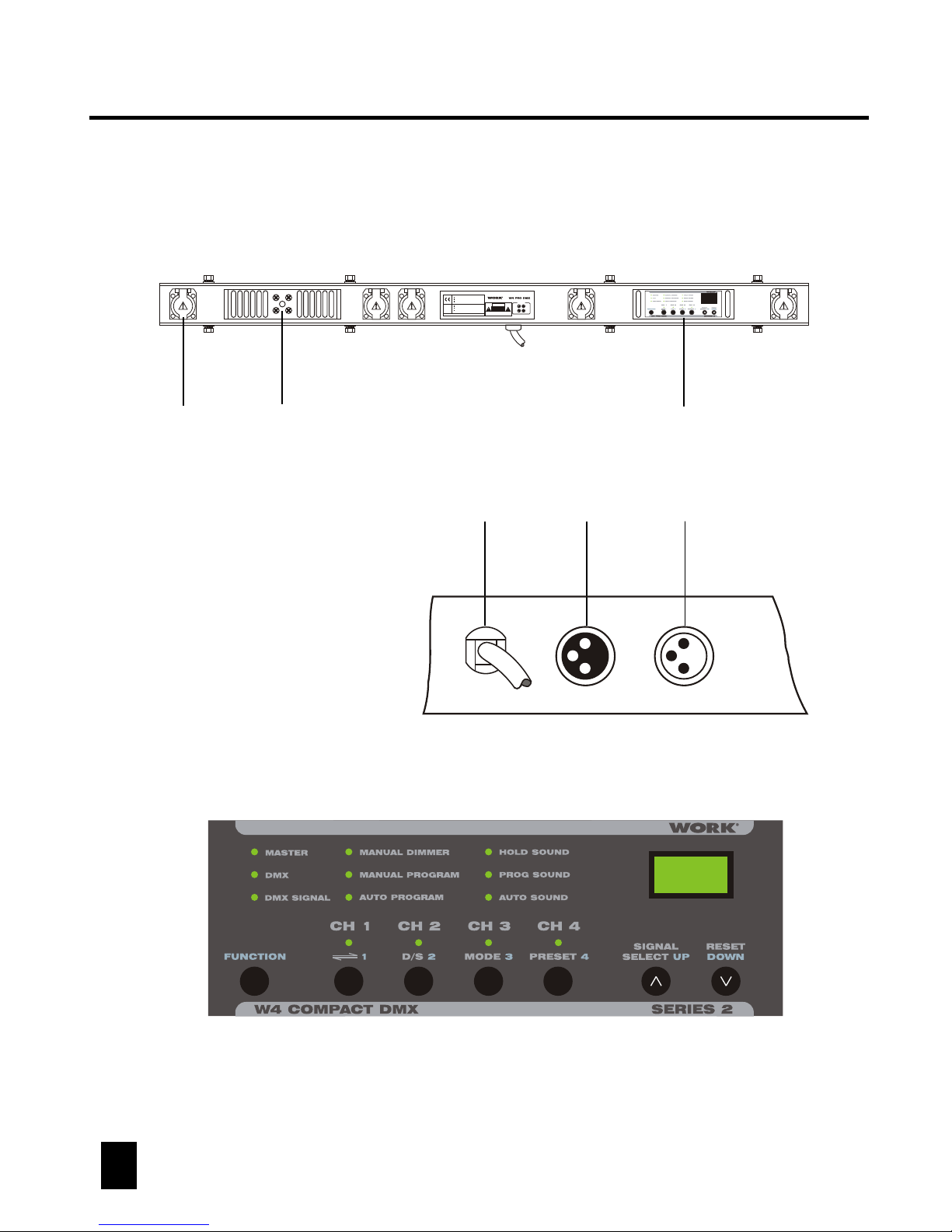

1. Overview 1. Overview
3 4
4. Power Cable
1. Control Board
3. Channel Output
6. DMX In
5. DMX Out
2. Channel Fuse
Connect to an appropriate power outlet.
Control this unit via these function buttons.
5 A/CH., Total 20 A max.(CHINA)
This connector receives DMX signal.
This connector sends DMX signal.
F6.3A 250V 5x20mm
1.5 A/CH., Total 6 A max.(CE)
DM X O UT DM X I N
2
3
1
2
3
1
1=Gr ound
2 =Dat a-
3=Data+
2
3
456
1
Control board

1. Overview
4
4. Power Cable
1. Control Board
3. Channel Output
6. DMX In
5. DMX Out
2. Channel Fuse
Connect to an appropriate power outlet.
Control this unit via these function buttons.
This connector receives DMX signal.
This connector sends DMX signal.
F6.3A 250V 5x20mm
1.5 A/CH., Total 6 A max.(CE)
DM X O UT DM X I N
2
3
1
2
3
1
1=Gr ound
2 =Dat a-
3=Data+

IN
2. Operation Guide2. Operation Guide
2.2 DMX Mode2.1 Mode Select
2.2 DMX Mode
5 6
Press and hold down F button first, tap the
Signal Select button causing the Segment
Display shows "IN", DMX LED lights indicating
DMX mode is active, this unit serves as a 4
channel DMX dimmer pack.
While holding down F button, tap Signal
Select button, when the Segment Display
shows"OUT", Master LED lights indicating
Master mode is active, this unit serves as a
4 channel DMX chaser when linkup use.
1. Tap the channel button, the corresponding
channel LED blinks indicating your selection
and the Segment Display shows the DMX
address of last time.
2. Tap the Up/Down button to select your desired
DMX address from 001 to 512.
3. Once you've set the DMX address, tap the
channel button a second time to store your
setting into memory.
4. Continue steps 1-3 until you've set all 4
channels.
When the Segment Display shows "IN" and the DMX LED lights, this unit serves
as a 4 channel DMX dimmer pack. The DMX Signal LED blinks when DMX signal
is present.
025
2.3 Master Mode
2.3.1 Chase Mode
When the Segment Display shows "OUT" and the
Master LED lights, this unit serves as a 4 channel
DMX chaser.
Keep pressing F button, tap Mode button several
times to select chase mode from Manual Dimmer/
Manual Program/Auto Program/Auto Sound/Prog.
Sound/Hold Sound, corresponding LED lights
indicating your selection.
00
025

IN
2. Operation Guide2. Operation Guide
2.2 DMX Mode2.1 Mode Select
2.2 DMX Mode
5 6
Press and hold down F button first, tap the
Signal Select button causing the Segment
Display shows "IN", DMX LED lights indicating
DMX mode is active, this unit serves as a 4
channel DMX dimmer pack.
While holding down F button, tap Signal
Select button, when the Segment Display
shows"OUT", Master LED lights indicating
Master mode is active, this unit serves as a
4 channel DMX chaser when linkup use.
1. Tap the channel button, the corresponding
channel LED blinks indicating your selection
and the Segment Display shows the DMX
address of last time.
2. Tap the Up/Down button to select your desired
DMX address from 001 to 512.
3. Once you've set the DMX address, tap the
channel button a second time to store your
setting into memory.
4. Continue steps 1-3 until you've set all 4
channels.
When the Segment Display shows "IN" and the DMX LED lights, this unit serves
as a 4 channel DMX dimmer pack. The DMX Signal LED blinks when DMX signal
is present.
025
2.3 Master Mode
2.3.1 Chase Mode
When the Segment Display shows "OUT" and the
Master LED lights, this unit serves as a 4 channel
DMX chaser.
Keep pressing F button, tap Mode button several
times to select chase mode from Manual Dimmer/
Manual Program/Auto Program/Auto Sound/Prog.
Sound/Hold Sound, corresponding LED lights
indicating your selection.
00
025

Keep pressing F button, tap Preset button
several times to change functions between
Fade Time/Dimmer/Preheat/Speed/Program.
f00 Fade Time The Segment Display shows "F"
followed by two numbers 00-99.
Tap Up/Down button to set fade
time from instant to 10 seconds.
2. Operation Guide2. Operation Guide
2.4 Preset Functions
78
2.3.2 Channel Dimmer
2.4 Preset Functions
1. When Manual Dimmer mode is active, tap the
channel button, the corresponding channel LED
blinks indicating your selection and the Segment
Display shows the intensity of last change.
2. Tap the Up/Down button to adjust the channel
intensity.
3. Continue steps 1-2 until you've set all 4
channels.
e25
Master
Dimmer
Preheat
Program
Speed
The Segment Display shows "d"
followed by two numbers 00-FF.
Tap Up/Down button to adjust
intensity from fully off(00) to fully
on(FF).
The Segment Display shows "E"
followed by two numbers 00-25.
Tap Up/Down button to adjust from
0% intensity to 25% intensity.
The Segment Display shows "P"
followed by two numbers 01-16.
Tap Up/Down button to select
desired chase program.
The Segment Display shows "A"
followed by two numbers 01-99.
Tap Up/Down button to select
desired chase speed. 01 will give
a slowest speed, 99 will give a
fastest speed.
f00

Keep pressing F button, tap Preset button
several times to change functions between
Fade Time/Dimmer/Preheat/Speed/Program.
f00 Fade Time The Segment Display shows "F"
followed by two numbers 00-99.
Tap Up/Down button to set fade
time from instant to 10 seconds.
2. Operation Guide2. Operation Guide
2.4 Preset Functions
78
2.3.2 Channel Dimmer
2.4 Preset Functions
1. When Manual Dimmer mode is active, tap the
channel button, the corresponding channel LED
blinks indicating your selection and the Segment
Display shows the intensity of last change.
2. Tap the Up/Down button to adjust the channel
intensity.
3. Continue steps 1-2 until you've set all 4
channels.
e25
Master
Dimmer
Preheat
Program
Speed
The Segment Display shows "d"
followed by two numbers 00-FF.
Tap Up/Down button to adjust
intensity from fully off(00) to fully
on(FF).
The Segment Display shows "E"
followed by two numbers 00-25.
Tap Up/Down button to adjust from
0% intensity to 25% intensity.
The Segment Display shows "P"
followed by two numbers 01-16.
Tap Up/Down button to select
desired chase program.
The Segment Display shows "A"
followed by two numbers 01-99.
Tap Up/Down button to select
desired chase speed. 01 will give
a slowest speed, 99 will give a
fastest speed.
f00

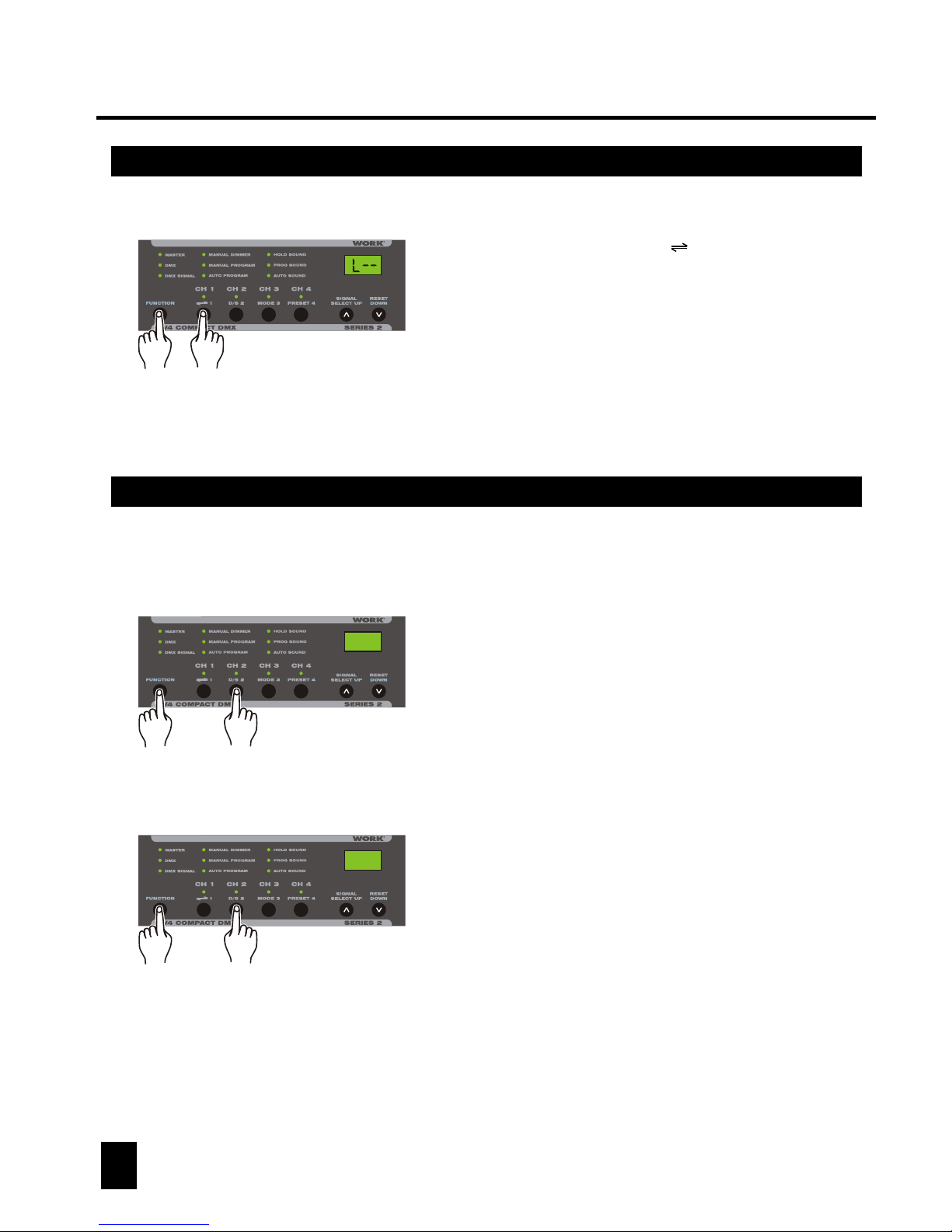

2.7 Initialization2.5 Chase Direction
2.6 Cross and Normal Dimmer
2. Operation Guide2. Operation Guide
910
Keep pressing F button, tap button to select
chase direction, the Segment Display shows
"L--" or "R--". "L--" indicates the programs will
chase from left to right, and "R--" indicates the
programs will chase from right to left.
CAO
NOA
in
Keep pressing F button, tap D/S button to select
dimmer mode from Cross / Normal dimmer.
The Segment Display shows "CRO" when cross
dimmer is active. In Cross mode, if output level is
50% or more, the fixture will be fully on; if output
is less than 50%, the fixture will be fully off.
The Segment Display shows "NOR" when normal
dimmer is active. In Normal mode, output level
varies according to manual control.
Press F, Signal Select and Reset buttons
at a time, this unit will initialize its memory,
the Segment Display shows "888". Release
all three buttons, this unit will return to default
setting, the Segment Display shows "IN", and
Manual Dimmer LED lights.

2.7 Initialization2.5 Chase Direction
2.6 Cross and Normal Dimmer
2. Operation Guide2. Operation Guide
910
Keep pressing F button, tap button to select
chase direction, the Segment Display shows
"L--" or "R--". "L--" indicates the programs will
chase from left to right, and "R--" indicates the
programs will chase from right to left.
CAO
NOA
in
Keep pressing F button, tap D/S button to select
dimmer mode from Cross / Normal dimmer.
The Segment Display shows "CRO" when cross
dimmer is active. In Cross mode, if output level is
50% or more, the fixture will be fully on; if output
is less than 50%, the fixture will be fully off.
The Segment Display shows "NOR" when normal
dimmer is active. In Normal mode, output level
varies according to manual control.
Press F, Signal Select and Reset buttons
at a time, this unit will initialize its memory,
the Segment Display shows "888". Release
all three buttons, this unit will return to default
setting, the Segment Display shows "IN", and
Manual Dimmer LED lights.

3. Technical Specifications
11
Power Input ..................................................... AC 230V~50Hz (CE)
Channel Output .......................................... 1.5A/CH., Total 6A (CE)
Channel Fuse ................................................. F6.3A 250V 5x20mm
DMX In/Outt .............................. 3 pin female & male XLR socket x1
Dimensions ........................................................... 1320x78x78mm
Weight(appro.) ........................................................................ 4.0 kg

Equipson,S.A.
www.equipson.es
[email protected]
