Workrite Ergonomics Rise Quiet RISE-3E-3044-X Programming manual

Box1
Box2
Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1 of 12

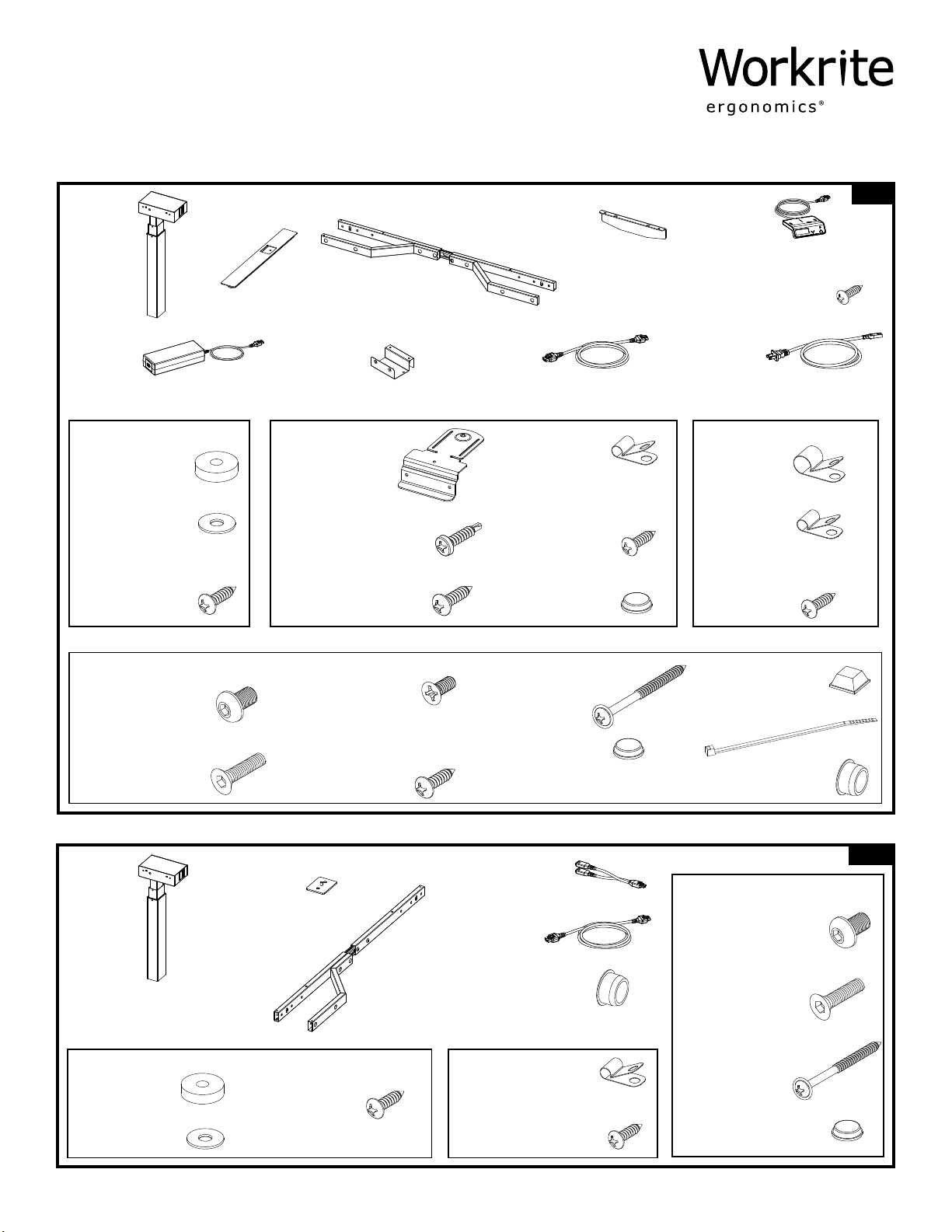

Two Leg Frameset, Components & Hardware
Hardware Kit 1
Assembly & Installation Instructions:
Rise Quiet 3-Leg Electric Workcenter
RISE-3E-3044-X, RISE-3E-4674-X, RISE-3E-7694-X
RISE-3LEG-CONV-3648-X, RISE-3LEG-CONV-5278-X
Silence Kit 1
Silence Kit 2
Cable Mgt. Kit 1
Cable Mgt. Kit 2
Third Leg Frameset, Components & Hardware
Hardware Kit 2
Collision Detection System (CDS) Kit
X
Round Bumpers
Qty: 8
X
Round Bumpers
Qty: 8
X
Round Bumpers
Qty: 2
R
" P-Clips
Qty: 6
R
" P-Clips
Qty: 4
Q
" P-Clips
Qty: 2R
" P-Clips
Qty: 6
S
#6 × ⅝" Phillips Flat
Head Wood Screw
Qty: 8
S
#6 × ⅝" Phillips Flat
Head Wood Screw
Qty: 6
S
#6 × ⅝" Phillips Flat
Head Wood Screws
Qty:4
O
#8 × ½" Self Tapping
Phillips Head Screws
Qty: 2
P
#8 × ¾" Phillips Pan
Head Wood Screw
Qty: 1
Y
Square Bumpers
Qty: 2
U-18 × 1" Flat Head Socket Cap Screws
Qty: 8
U-18 × 1" Flat Head Socket Cap Screws
Qty: 6
V-20 × " Flat Head Phillips Screws
Qty: 4
M#8 × 1" Phillips Pan Head Wood Screws
Qty: 8
M
#8 × 1" Phillips Pan
Head Wood Screws
Qty: 6
M
#8 × 1" Phillips Pan
Head Wood Screws
Qty: 6
W#10 × 2½" Phillips Pan Head Wood Screws
Qty: 6
W
#10 × 2½" Phillips Pan
Head Wood Screws
Qty: 3
T-18 × " Button Head Socket Cap Screws
Qty: 4
T-18 × " Button Head Socket Cap Screws
Qty: 2
L
16 mm Steel Washers
Qty: 6
L
16 mm Steel Washers
Qty: 6
BFeet Qty: 2 CFrameset Qty: 1 ESwitch Qty: 1DSide Bars Qty: 2
ILeg Cable Qty: 1
ILeg Cable Qty: 1
HPower Supply Bracket Qty: 1 JPower Cable Qty: 1
ALegs Qty: 2
ALeg Qty: 1 A"Y" Cable Qty: 1A
C3 Leg Frame
Conversion
Qty: 1
C
BCenter Foot
Qty: 1B
K20 mm Foam Washers
Qty: 12
K20 mm Foam Washers Qty: 12
NCollision Detection Sensor
Qty: 1
ZZip Ties Qty: 2
DRound Plugs Qty: 12D
DRound Plugs
Qty: 24D
GPower Supply*
Qty: 1
F3.5 mm × 16 mm Phillips Head Wood Screw
Qty: 2
*A second Power Supply may be added
to this system as a separate purchase.

2 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
WARNING: Maximum loading of frameset is 390 lb. (177 kg.). Maximum load includes the weight of the table top
itself, any equipment placed upon it, and any equipment suspended or hanging under it. Loading should be evenly distributed over table
surfaces.
Rise 3-Leg
V = 120 VAC, 60 Hz
3.2 A maximum with single power supply
6.4 A maximum with a second optional power supply
Duty cycle: 1 minute on/ 9 minutes o.
IMPORTANT SAFETY INSTRUCTIONS:
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this Rise Quiet Frameset.
DANGER:To reduce the risk of electric shock, always unplug this Rise Quiet Frameset from the electrical outlet before cleaning.
CAUTION-RISK OF ELECTRIC SHOCK. This unit may have two power cords. Unplug both cords before moving or servicing this
furnishing.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet (or outlets if equipped with a second power supply) before putting on or taking o parts, moving or servicing.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the
manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into
water. Return the furnishing to a service center for examination and repair.
5. Keep all cords away from heated surfaces.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. To disconnect, remove plug from outlet (or outlets if equipped with a second power supply).
9. Each Rise Quiet 3-Leg Frameset intended to support an equipment payload capacity of 390 lb.(177 kg.)
SERVICING OF DOUBLE-INSULATED PRODUCTS
In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-
insulated product, nor is a means for grounding to be added to the product. Servicing a double-insulated product requires extreme care and
knowledge of the system, and is to be done by a qualified service personnel. Replacement parts for a double-insulated product must be identical
to the parts they replace. A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED”. The symbol
(square within a square) is also able to be marked on the product.
FOR COMMERCIAL USE ONLY
SAVE THESE INSTRUCTIONS
Verify that you have all the hardware and tools needed for the assembly
Check your cartons against the list above to verify that you have all the parts needed.
You will also need the following tools:
Drill/driver with #2 and #3 Phillips head bit
" Allen bit for drill/driver
" Allan Wrench provided
If you do not have a Workrite pre-drilled worksurface, you will also need:
⅛" drill bit
Tape measure
✓
An electric Drill/Driver is
recommended over hand
tools for this installation.

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 12

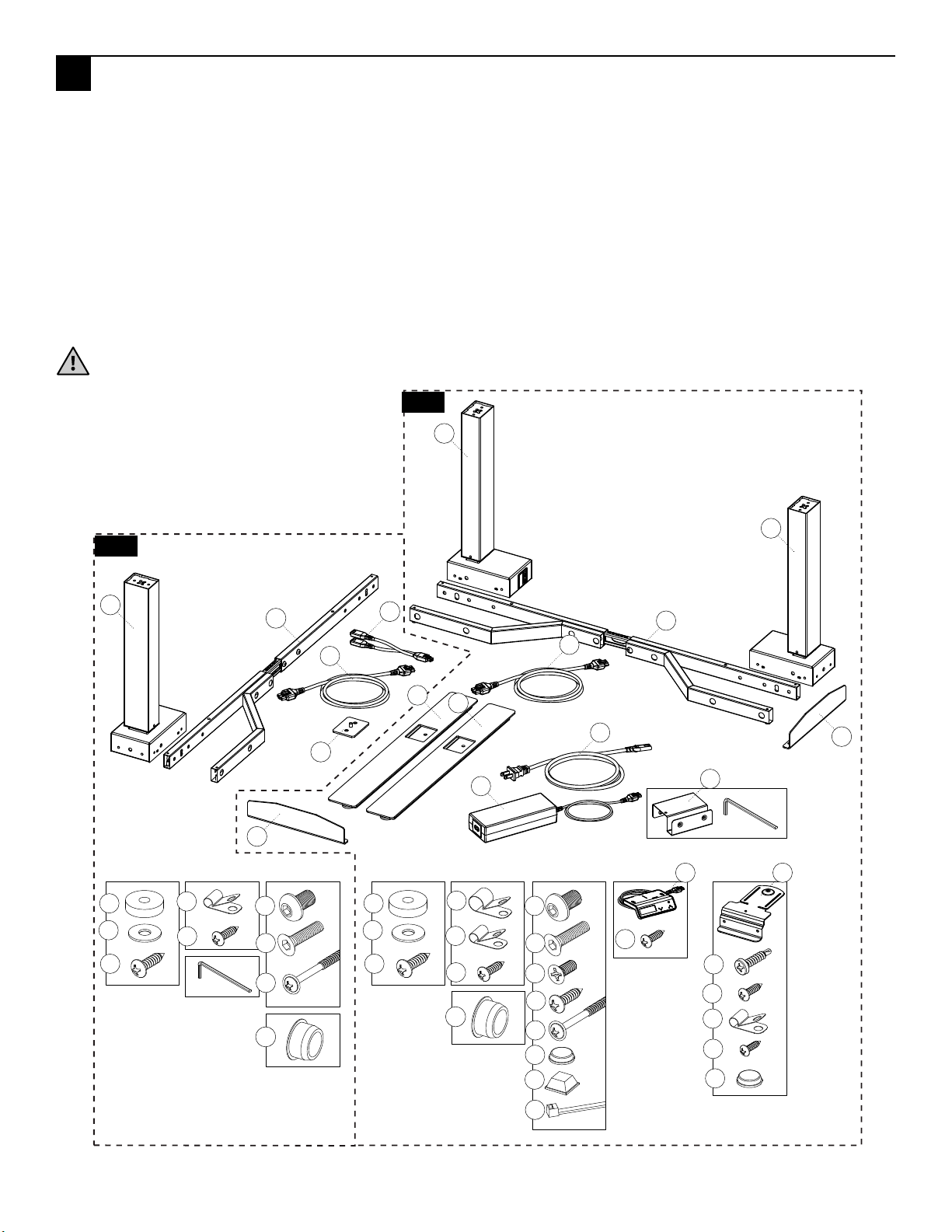

Layout Components in Assembly Area
Assemble near final installation location. Once the Workcenter is built it requires at least two people to li and
move into place. You'll need a large and clean area to assemble. Check your packaged contents against the parts
list on page 1 to verify that you have all the parts needed.
If you have a Workrite Pre-Drilled Worksurface, it may be easiest to assemble on the bottom of the worksurface,
using the pre-drilled holes as a guide.
Place Legs (A), Feet (B & BB), Framesets (C & CC) and Side Bars (D) on the floor or bottom of your worksurface.
Set the Switch (E), Collision Detection Sensor (N) packaged separately, and Power components (G,H,I & J) within
easy reach.
Carefully unpack and arrange all hardware.
Note! You will have many pieces in common and some VERY SIMILAR parts in the Silence Kit, Anti Collision
Kit,Cable Management and Hardware Kit. Use caution!
Note: Your Frameset may look dierent.
The example shown is an Oset Corner,
Le. If you have an Oset Corner, Right,
your layout will be a mirror of the layout
below. Equal Corner configurations can
be built either way.
1
Third Leg Frameset Hardware
Third Leg Frameset
Two Leg Frameset
Two Leg Frameset Hardware CDSSwitch
Box1
Box2
C
II
J
H
K K
L L
M M
G
EN
D
D
A
A
A
BB
CC
DD
DD
AA
BB
O
P
R
S
F
R
RQ
S
S
TT
UU
V
M
W
W
X
X
Y
Z

4 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

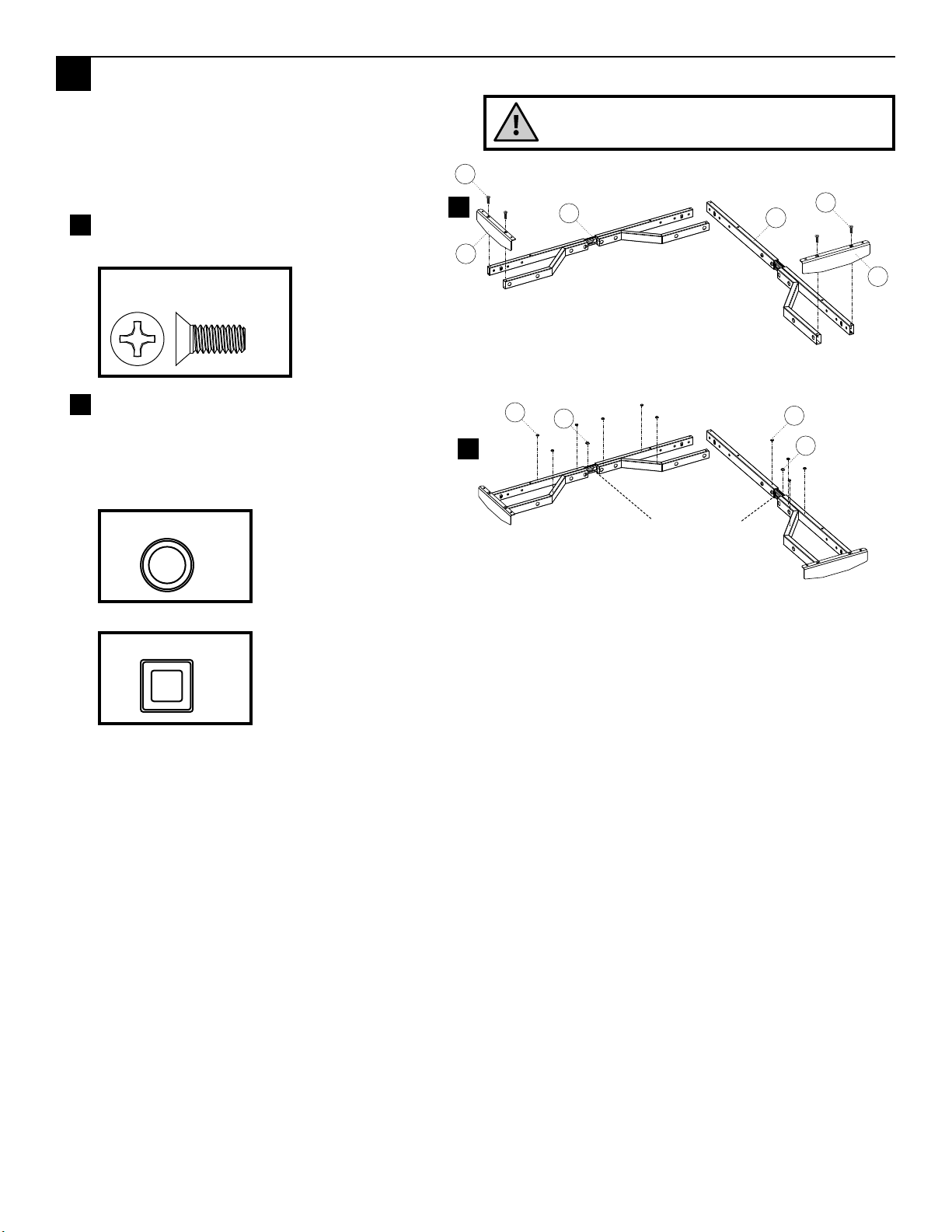

Attach Side Bars Bumpers to Underside of Framesets
Flip the Framesets (C & CC) "right side up"
to add Side Bars (D) & Bumpers (X & Y) to
the side of the frameset that will come
into contact with the underside of the
Worksurface.
Attach Side Bars (D) to Frame Assembly with
¼-20 × ⅝" Flat Head Phillips Cap Screws (V).
Attach the ten Round Bumpers (X) at mount
locations on the rear of the Frameset as
shown. Apply the two Square Bumper (Y) at
both of the Joining Bracket locations just to
the side of the center hole.
XX
Y
Y
To avoid stripping the threads, always insert and make
the first few turns of the screw BY HAND with the provided
Allen wrench, ensuring it is in straight.
C
aa
b
b
V
V
D
D
2
V-20 × " Flat Head Socket Cap Screw
Hardware at actual size
X
Round Bumpers
Hardware at actual size
Y
Square Bumpers
Hardware at actual size
CC
Framesets shown flipped over "right side up"
Joining Bracket

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 12
Attach Framesets to Legs
Flip the Frameset back over so the Bumpers and
Side Bars will rest on the Worksurface.
Loosen the Joining Bracket on the Frameset at
locations shown with the Allen head bit or wrench.
NOTE! Loosen frameset but do not
disassemble!
Move the internal Joining Brackets
out of the way to allow attachment
of center leg. Keep frameset loose.
Place Center Leg (A) in Frameset (C).
Attach both Framesets (C & CC)
to the Center Leg (A) using six
-18×1" Flat Head Socket Cap
Screws (U).
With frameset still loose, attach the
two outer legs to the frameset using
eight -18 × 1" Flat Head Socket
Cap Screws (U).
U
U
A
U
A
A
3
a
a
a
a
U-18 × 1" Flat Head Socket Cap Screw
Hardware at actual size
bb
b
d
d
c
c
e
e
e
Joining Bracket
To avoid stripping the threads, always
insert and make the first few turns
of the screw BY HAND with provided
Allen wrench, ensuring it is in straight.
C
CC
Make sure Frameset is
oriented with "knee saver"
areas towards user Side Bar (D)
facing down

6 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Front of desk
1.5"– 2"
1.5"– 2"
7.2"
7.2"

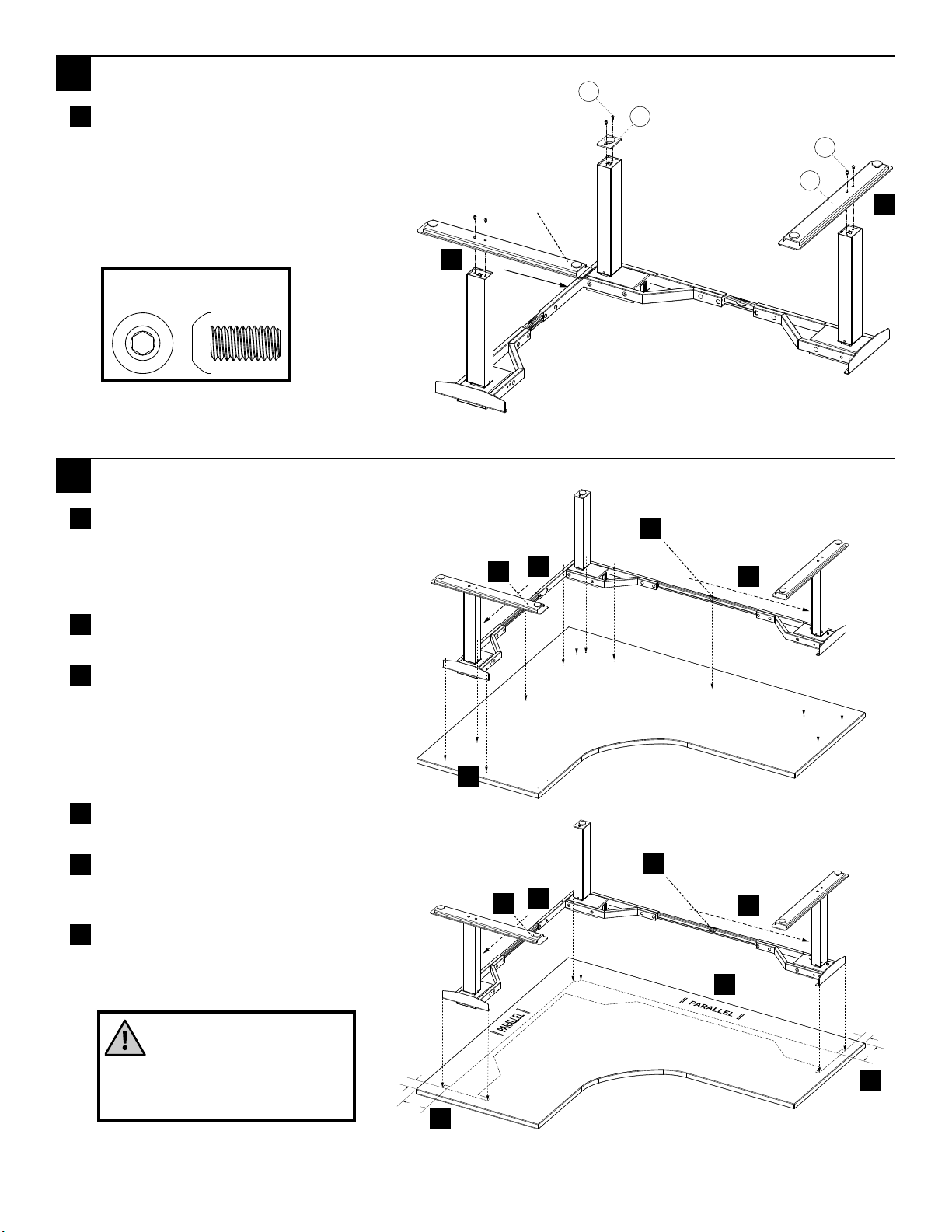

Expand Framesets to Correct Length
With Legs & Feet secure but the frameset
Joining Bracket still loose, extend the frameset
out towards the edge of the worksurface.
If you have a Workrite pre-drilled
Worksurface:
Align frameset holes with pre-drilled holes in
the undersides of the worksurface.
Adjust Joining Brackets so center bracket
hole aligns with the center hole location.
Proceed to Step 6.
If you have a non- Workrite top:
Align frameset parallel with the back of the
worksurface.
Position frameset 7.2" from rear of Worksurface
and extend frameset until the Side Bars (D) are
about 1.5"–2" from the ends of the top.
Adjust Joining Brackets so center bracket hole
is centered between framesets.
Proceed to Step 7.
Attach Feet to Legs
Attach Feet (B & BB) to all Legs using six -18×"
Button Head Socket Cap Screw (T). Make sure to use
the correct BUTTON HEAD Screws!
Note: Make sure the longer section of
the foot will face the front of the desk.
Tighten Securely.
a
a
a
a
d
a
a
a
a
b
c
c
c
c
d
d
c
b
b
c
b
4
5
B
T
T
Make sure longer
end of foot is facing
front of desk
Adjust Joining Brackets so middle hole
aligns with screw location.
Adjust Joining Brackets so
middle hole is centered.
BB
T-18 × " Button Head Socket Cap Screw
Hardware at actual size
CAUTION! Be sure to use the correct
hardware for this step!
Your Frameset size and shape may dier
Note: Avoid trip or tip hazards!
For uniquely shaped, non-standard
worksurfaces, it is the installers
responsibility to position the
worksurface to minimize extended
overhangs and position feet fully
under the worksurface.

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 12

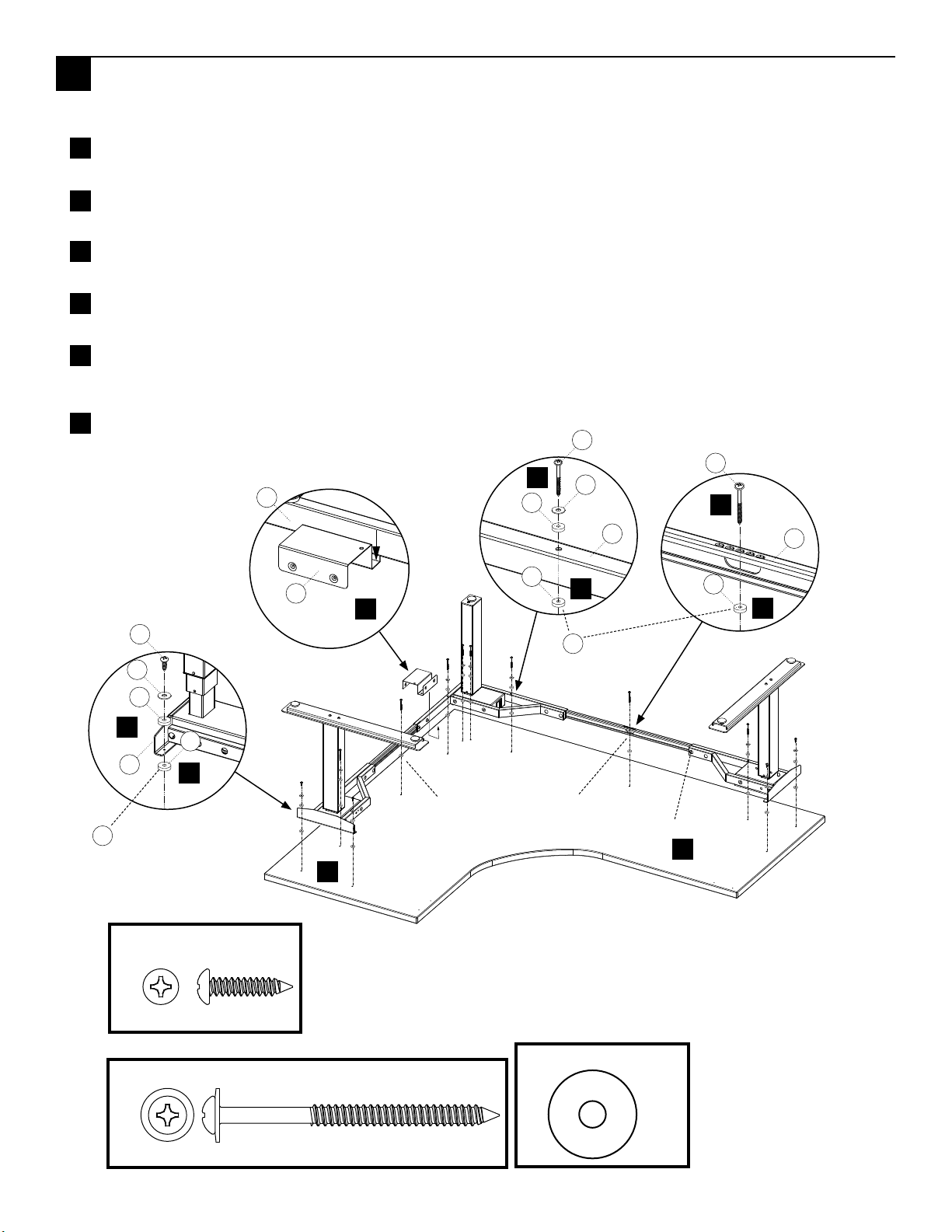

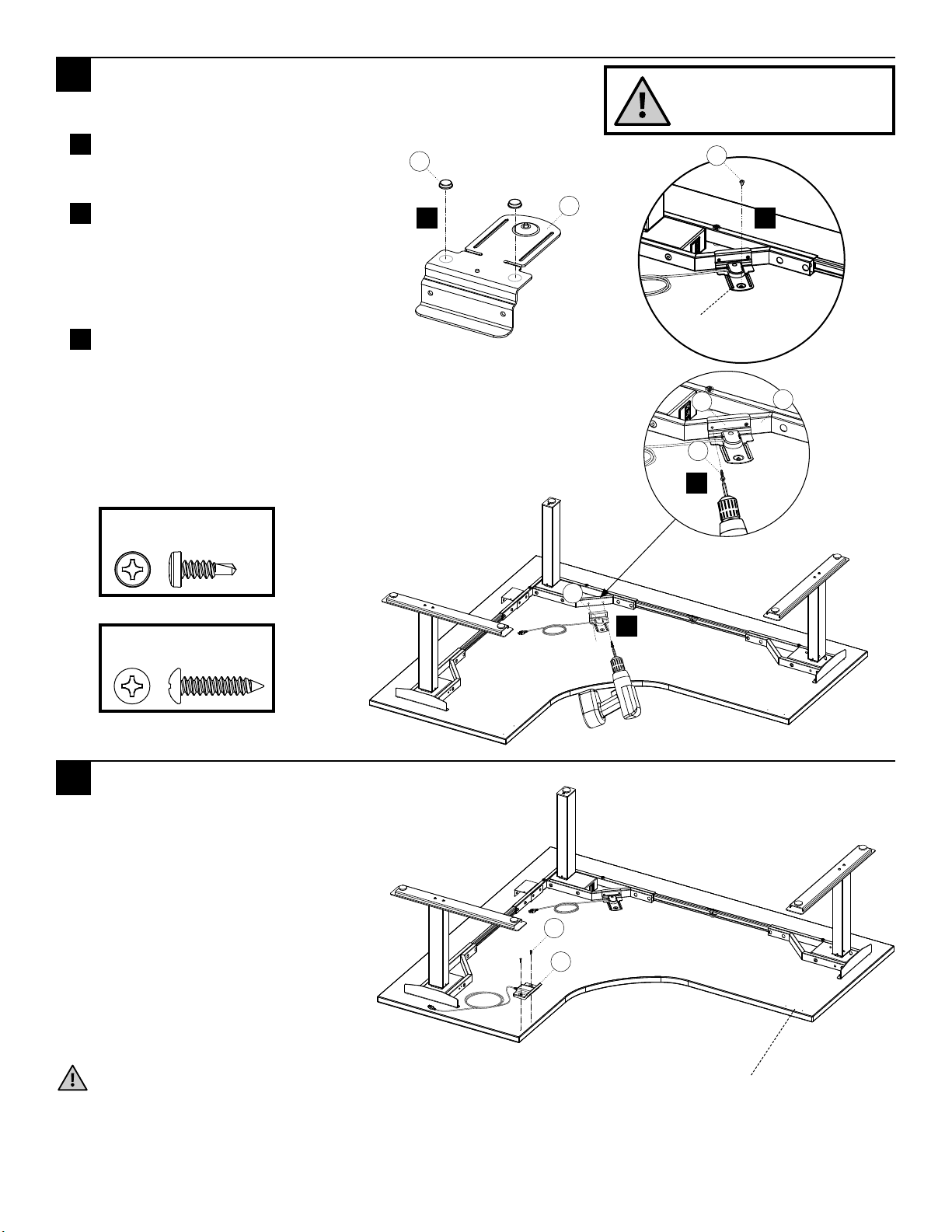

Attach Frameset to Workrite Pre-Drilled Worksurface
If you do not have a Workrite Pre-drilled Worksurface, skip to Step 7.
Position Frameset on the underside of the Worksurface to align mounting holes in brackets to pre-drilled holes
in worksurface.
With Frameset positioned, carefully li Frameset (CC) to place the Power Supply Bracket (H) under the Frameset
at location shown.
Carefully li the Frameset to place twelve 20 mm Foam Washers (K) at all frame mount locations UNDER the
frameset as shown. Be sure to keep frameset aligned with pre-drilled holes.
Attach the Side Bars (D) to the worksurface using four of the 16 mm Steel Washers (L), four 20 mm Foam Washers
(K) and four #8 × ¾" Pan Head Phillips Wood Screws(M).
Attach the Frameset assembly with six 16 mm Steel Washers (L), six Foam Washers (K) and eight of the longer
 × 2⅛" Flat Head Phillips Wood Screws (W). NOTE: No 16 mm Steel Washers (L) and only one BOTTOM Foam
Washer (K) are used in the Joining Bracket center frame location.
With frame securely fastened to the worksurface, re-tighten the Joining Brackets loosened in Step 3a.
Proceed to Step 8.
6
K
KK
a
a
b
c
cc
d
e
f
e
e
W
W
C
C
L
M#8 × ¾ Phillips Pan Head Wood Screw
W#10 × 2½" Phillips Pan Head Wood Screws
Hardware at actual size
Hardware at actual size
NOTE
Attaches Side Bars (D) to Worksurface.
NOTE
Attaches Framesets (C & CC) to Worksurface.
Joining Bracket location,
bottom Foam Washer (J) only.
b
H
CC
Klocated
between frameset
and worksurface
K20 mm Foam Washers
Hardware at actual size
K
K
c
d
M
D
L
Klocated between
frameset and worksurface f
Retighten

8 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
1.5"– 2"
1.5"– 2"
7.2"
7.2"
1
3
4
5
67
2
9
10
11
12
8
>¾"
1.5"– 2"
1.5"– 2"
7.2"
7.2"
1
3
4
5
67
2
9
10
11
12
8
>¾"
Attach Frameset to Non- Workrite Top
With Frameset positioned correctly from Step 5, use a ⅛" drill bit to drill pilot holes in the twelve frameset
mounting locations shown.
You may wish to mark your drill bit so you do not drill any more than ¾" deep to avoid damaging your
worksurface top. Do not drill all the way through worksurface!
With frame set positioned over pilot holes, li Frameset (C) to place the Power Supply Bracket (H) under the
Frameset at location shown.
With frame set positioned, li Frameset (C) to place twelve 20 mm Foam Washers (K) at all frame mount
locations UNDER the frameset. Be sure to keep frameset aligned with pilot holes.
Attach the Side Bars (D) to the worksurface using four of the 16 mm Steel Washers (L), four 20 mm Foam Washers
(K) and four #8 × 1" Pan Head Phillips Wood Screws(M).
Attach the Frameset (C) with six 16 mm Steel Washers (K), six Foam Washers (J) and eight of the longer  × 2⅛"
Flat Head Phillips Wood Screws (V). NOTE: No 16 mm Steel Washers (K) and only one BOTTOM Foam Washer (J)
are used in the Joining Bracket center frame location.
7
a
b
b
Mark drill bit so you do not
drill through your top
a
a
c
c
c
c
d
d
e
e
e
K
K
K
K
K
M
W
W
C
C
D
L
L
Joining Bracket location,
bottom Foam Washer (K) only.
H
CC
Mark
Klocated between
frameset and worksurface
Klocated
between frameset
and worksurface

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 9 of 12
Install Switch
Install your Switch (E) using two
3.5mm×16 mm Pan Head Screws (F).
If you have a Workrite pre-drilled
Worksurface:
Locate the pre-drilled holes near the
front edge of the Worksurface and
attach.
If you have a non-Workrite top:
Align the switch with the front edge of
the top, use a ⅛" drill bit to drill pilot
holes using the Switch holes as a guide
and attach.
Do not drill all the way through worksurface!
Attach Collision Detection Sensor to Frameset and
Worksurface
Attach the two Round Bumpers (X) to
the contact surface of the Collision
Detection Sensor (N).
Place the bumpers down, contacting
the worksurface and position on
Frameset (C) as shown. Attach
Collision Detection Sensor (N) to
worksurface with one #8×¾"
Phillips Head Wood Screw (P).
Attach the Collision Detection Sensor
(N) to the Frameset (C) in location
shown using the two #8×¾" Self
Tapping Screws (O). You will need
to apply pressure with the screw in
place to make the "bit" of the screw
drill into the frame then catch to
attach and hold secure.
9
E
F
8
a
b
c
b
Use Self Tapping Screws
(O) to drill into frame.
Alternative location
O
#8 × ½" Self Tapping
Phillips Head Screw
P
#8 × ¾" Phillips Pan
Head Wood Screw
Hardware at actual size
Hardware at actual size
N
N
N
P
X
C
c
c
a
O
Improper installation of the Anti
Collision Detection System may result
in false collision incidents. Please
follow instructions closely.
CDS mount location

10 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

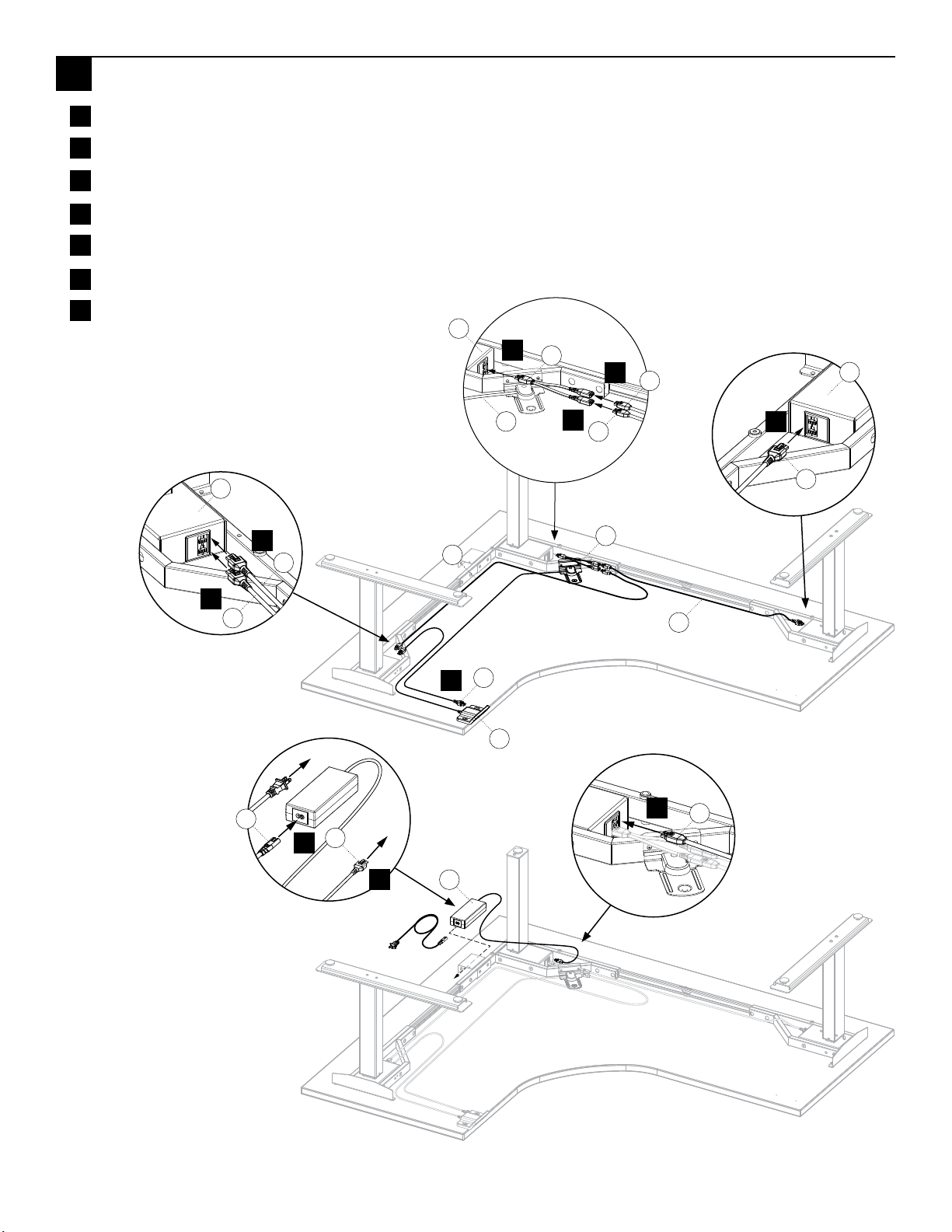

Route and Connect Cables
Connect Switch (E) to closest Leg (A).
Connect Y Cable (AA) into center Leg (A).
Connect one side Leg (A) to the center Leg (A) with Leg Cable (I) via the Y connector (AA) .
Connect the other side Leg (A) via the Y Connector (AA) to the center Leg with the other Leg Cable (I).
Connect Collision Detection Sensor (N) to Switch (E).
Insert Power Supply (G) into Power Supply Bracket (H) then connect Power (G) to Leg (A).
Plug Power Cord (J) into the Power Supply (G).
To Power
To Center
Leg (A)
10
E
A
I
I
N
a
b
b
d
e
e
f
g
d
c
To Power
To Center
Leg (A)
AA
AA
f
J
To Power
To Center
Leg (A)
A
E
I
a
I
I
c
To Power
To Center
Leg (A)
c
To Power
To Center
Leg (A)
N
A
d
I
g
f
G
G
G

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 11 of 12
12
34
678
910
11
5
Attach Cables to Worksurface With P-Clips
Attach the P-Clips (Q & R) with #6 × ⅝" Phillips Head Wood Screws (S) at convenient locations to keep cables
up and out of the way being sure to rout the cables through the Clips prior to attaching to the underside of the
worksurface.
Note: the larger " P-Clips (Q) are used on the Leg Cables (I) and the smaller " P-Clips (R) are used on all
other cables.
Insert Round Plugs
Insert the Round Plugs
(DD) into corresponding
Frameset holes as shown.
11
12
I
Q
S
R
DD

12 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
#1500358 - Rev C
Cleaning Instructions
To clean the legs, apply cleaner to a so cloth.
Suggested cleaners: Windex or Formula 409.
Do not use solvents and do not saturate or spray cleaners directly onto workcenter base.
✓
Parts & Accessories
Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf for
replacement parts.
✓
Initialize Legs
Aer all components are connected, and the power cord has been plugged
in, the Legs need to be initialized.
Press and hold the UP and DOWN arrows on the Switch for at least 8 seconds.
Release both buttons and immediately press the DOWN arrow. The display will show three dashes and a home
icon in the lower le of the display as the worksurface moves to its lowest position.
Once the worksurface stops moving, release the button and the three dashes will be replaced with the height
reading. The Legs are initialized and the Workcenter is ready to use.
Put Workcenter Upright and Plug in Power Cord
Turn the workcenter over into an upright position. Use at least two people to flip
over and position the workcenter.
Plug the Power Cord (J) into the power outlet.
Adjust Leveling Guides
If necessary, adjust leveling guides on table feet to level the worksurface.
Download the Rise Programmable Control User Guide
To get the full ergonomic benefit of this Workcenter, download the Rise Programmable User Guide. It contains
detailed information on set up and programming of your Rise Workcenter Programmable Control.
http://workriteergo.com/support/rise-control
Make active
13
14
Flip Workcenter on its
SIDE or BACK so you do
not damage the switch.
a
a
a
b
b
c
b
15
J
16
You must complete this
initialization step or your
workcenter will NOT
function properly!
