TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS
2. COMPONENT LIST
3. TECHNICAL DATA
4. OPERATING INSTRUCTIONS
5. TROUBLESHOOTING
6. MAINTENANCE
1.PRODUCT SAFETY
WARNING: Some dust created by power sanding,
sawing, grinding, drilling and other construction
activities contains chemicals known to the State of
California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals:
• Work in a well ventilated area, and
• Work with approved safety equipment, such as
those dust masks that are specially designed to
lter out microscopic particles.
WARNING: This product can expose you to
chemicals including lead and Di(2-ethylhexyl)
phthalate (DEHP) which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.For more information go to www.
P65Warnings.ca.gov.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases
or dust. Power tools create sparks which may ignite

7
the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with grounded power tools. Unmodied plugs
and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f ) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power
tool in unexpected situations.
f ) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these

8
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect
the power tools operation. If damaged, have the
power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
b) Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
d) Under abusive conditions, liquid may be ejected

9
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
e) Do not use a battery pack or tool that is damaged
or modied. Damaged or modied batteries may
exhibit unpredictable behaviour resulting in re,
explosion or risk of injury.
f) Do not expose a battery pack or tool to re
or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied
range may damage the battery and increase the risk
of re.
6) SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SCREWDRIVER SAFETY
WARNINGS
1. Hold power tool by insulated gripping surfaces, when
performing an operation where the fastener may
contact hidden wiring. Fasteners contacting a “live”
wire may make exposed metal parts of the power
tool “live” and could give the operator an electric
shock.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or re.
Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or drawer
where they may short-circuit each other or be short-
circuited by other metal objects. When battery pack
is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other
small metal objects, that can make a connection
from one terminal to another. Shorting the battery
terminals together may cause burns or re.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the
liquid to come in contact with the skin or eyes. If
contact has been made, wash the affected area with
copious amounts of water and seek medical advice.
f) Do not use any battery pack which is not designed

10
for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended by
the device manufacturer for the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean
dry cloth if they become dirty.
k) Battery pack needs to be charged before use.
Always use the correct charger and refer to the
manufacturer’s instructions or equipment manual
for proper charging instructions.
l) Do not leave battery pack on prolonged
charge when not in use.
m) After extended periods of storage, it may be
necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
n) Recharge only with the charger specied by Worx.
Do not use any charger other than that specically
provided for use with the equipment.
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application
for which it was intended.
q) Remove the battery pack from the equipment when
not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture,
capacity, size or type within a device.
t) Keep the battery away from microwaves and high
pressure.
SYMBOLS
To reduce the risk of injury, user must
read instruction manual

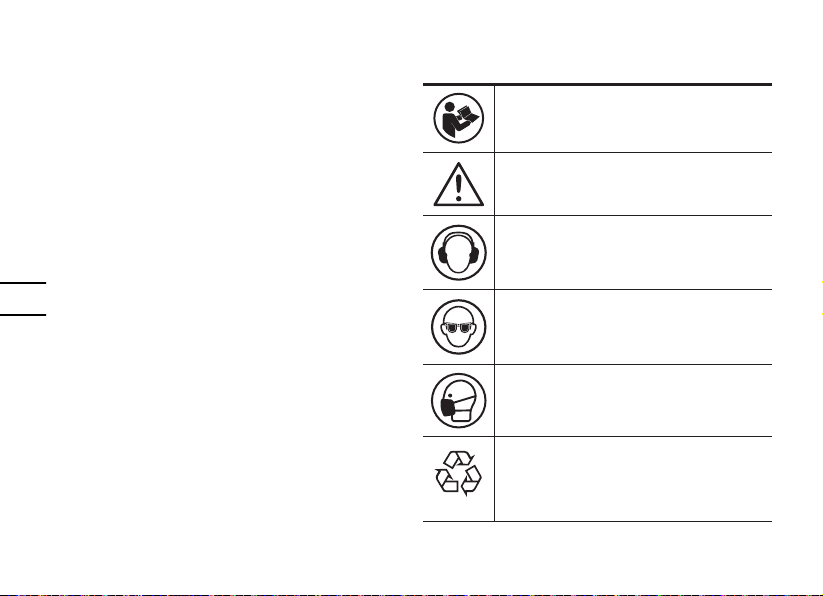

Warning
Wear ear protection
Wear eye protection
Wear dust mask
Li-I on
Li-Ion battery, battery must be recycled

11
Batteries may enter water cycle if disposed
improperly, which can be hazardous for eco-
system. Do not dispose of waste batteries
as unsorted municipal waste.
Do not burn
Wear protective gloves
Lock
Auto-stop mode
Screwdriving
POSITEC Inc. has established a partnership with the
RBRC Corporation to recycle any Positec batteries
with the RBRC-call2recycle seal. For environmental
protection, please do not discard batteries in the
trash. After the batteries’ life cycle is ended, please
call 1-800-822-8837 for a free service that will properly
dispose of the battery.

12
2.COMPONENT LIST
1. FORWARD/REVERSE ROTATION CONTROL
2. SOFT GRIP HANDLE
3. BATTERY PACK RELEASE BUTTON
4. BATTERY PACK *
5. BELT HOOK
6. LED LIGHT
7. SPEED ADJUSTMENT BUTTON
8. ON/OFF SWITCH
9. COLLET LOCKING SLEEVE
* Not all the accessories illustrated or described are
included in standard delivery.
3.TECHNICAL DATA
Type WX265L WX265L.X (2 - designation of machin-
ery, representative of screwdriver)
WX265L WX265L.X **
Rated voltage 20 V Max ***
No-load speed
I: 0-1200 rpm
II: 0-2400 rpm
III: 0-3400 rpm
Impact rate
I: 0-1400 bpm
II: 0-2600 bpm
III: 0-3600 bpm
Max torque 200 Nm
Chuck size 1/4˝ (6.35 mm)
Machine weight (bare tool) 2.10 lbs (0.95 kg)
** X may be followed by one or two characters. All
models are the same except model number and trade-
mark.The sux in models may be number from “1” to
“999” or English letter “A” to “Z” or “M1” to” M9” which
means different package or the various of accessories
packed in the package.
*** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage
is 18 volts.
SUGGESTED BATTERIES AND
CHARGERS
Category Model Capacity
20V Battery WA3669 2.0 Ah

13
20V Charger WA3881 2.0 A
We recommend that you purchase your accessories
listed in the above list from the same store that sold you
the tool. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.
4.OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction
book carefully.
ACTION FIGURE
ASSEMBLY AND ADJUSTMENT

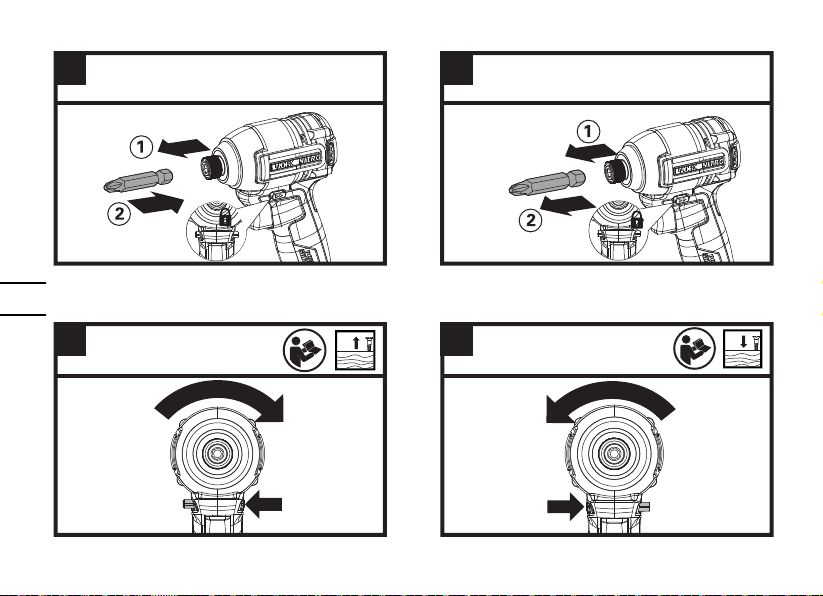

Inserting the bits See Fig. A1
Removing the bits See Fig. A2
OPERATION
Forward/reverse rotation control
WARNING: The ro tation direction of
machine cannot be change until it is
completely stationary.
See Fig. B1,
B2, B3
Starting/Stopping
WARNING: Do not operate at low
speed for a long time, otherwise
overheating reaction will occur inside the
machine.
Variable three-speed
Press the button to select the appropriate
speed. The speed is divided into 1 to 3
levels, of which 3 is the fastest speed. The
indicator will light up.
The tool has the reverse rotation
auto stop mode which works only
with pulling the trigger fully in
counterclockwise tool rotation.
See Fig. C
LED indicator
Before operation, gently press the switch to activate the
LED lamp. After the switch is released, the LED lamp will
automatically turn off with a delay of 15s.
Both the impact starter and the battery are equipped with
protection systems. When the LED ashes (about once
every second, it will stop ashing when you release the
switch), the system will automatically cut off the power of
the tool to prolong the battery life. If the impact screwdriver
and battery pack are placed in the following conditions, the
impact screwdriver may automatically cut off power during
operation:
• Overloaded: The tool is operated in a manner that
causes it to draw an abnormally high current. In this
situation, release the Trigger Switch on the tool and stop

14
the application that caused the tool to become overloaded.
Then pull the Trigger Switch again to restart.
• Overheated: Under the condition above, if the tool does
not start, the Tool and Battery are overheated. In this
situation, let the Tool and Battery cool before pulling the
Trigger Switch again.
• Low battery voltage: The remaining Battery capacity
is too low and the tool will not operate. In this situation,
remove and recharge the Battery.
WARNING: To turn on the light, press
the On/Off switch and make sure the
Forward/Reverse Rotation Control is on right/left position.
5.TROUBLE SHOOTING
REASONS FOR DIFFERENT BATTERY PACK WORKING
TIMES
Charging time problems, as above, and having not used
a battery pack for a prolonged time will reduce the
battery pack working time. This can be corrected after
several charge and discharge operations by charging &
working with your drill. Heavy working conditions such
as large screws into hard wood will use up the battery
pack energy faster than lighter working conditions. Do
not re-charge your battery pack below 0oC (32oF) and
above 40oC (104 oF) as this will affect performance.
6.MAINTENANCE
Remove the battery pack from the tool before
carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or
maintenance. Never use water or chemical cleaners
to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place. Keep the
motor ventilation slots clean. Keep all working controls
free of dust.
FOR BATTERY TOOLS
The ambient temperature range for tool and battery use
and storage is 32oF~113oF (0oC -45oC).
The recommended ambient temperature range for the
charging system during charging is 32oF~104oF (0oC
~40oC).

www.worx.com
Copyright © 2023, Positec. All Rights Reserved.
Copyright © 2023, Positec. Tous droits réservés.
Derechos reservados © 2023, Positec. Todos los derechos reservados.
