Worx WG540 User manual

18V Cordless Li-ion Blower/Sweeper EN
Souffleuse/Balayeuse sans fil Li-ion 18V F
Sopladora/Barredora de 18V con batería de iones de litio ES
P06
P13
P20
HELPLINE NUMBER
1-866-354-WORX (9679)
HELPLINE NUMBER
WG540 WG540.5 WG540.9

4
3 2 1
5
6(WA3840) 7(WA3838)
7b
7a
6a 6b
(b)
8
9
(a)
a
A.1 A.2

(b)
8
9
(a)
a
BC.2
D E F
G1 G2 G3
G5G4
C.1

18V Cordless Li-ion Blower/Sweeper EN
76
76
TECHNICAL DATA
1. HANDLE
2. ON/OFF SWITCH
3. TUBE RELEASE BUTTON
4. BLOWER TUBE
5. BATTERY PACK(WG540/WG540.5)
6. BATTERY CHARGER-WA3840(WG540)
6a. CHARGING INDICATOR LIGHT(WA3840-RED)
6b. CHARGED INDICATOR LIGHT(WA3840-GREEN)
7. BATTERY CHARGER-WA3838 (WG540.5)
7a. CHARGING INDICATOR LIGHT(WA3838-RED)
7b. CHARGED INDICATOR LIGHT(WA3838-GREEN)
8. BATTERY PACK RELEASE BUTTONS(See D)(WG540/WG540.5)
9. WALL MOUNT BRACKET(See G1)
WG540 WG540.5 WG540.9
Voltage 18V
No load speed 12500/min
Blow speed 120mph
Charging time 3-5hr approx. 0.5hr approx. --------
Battery pack 1.3Ah Li-ion 1.3Ah Li-ion --------
Charger WA3840 WA3838 --------
Machine weight 3.5lbs(1.6kg) 3.5lbs(1.6kg) 2.7lbs(1.2kg)
ACCESSORIES
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
WG540 WG540.5 WG540.9
Battery 1 1 --------
Charger 1(WA3840) 1(WA3838) --------
Wall mount bracket 2(a&b) 1(a) 1(a)

76
18V Cordless Li-ion Blower/Sweeper EN
76
WARNING: IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
INTENDED PURPOSE
WARNING: A garden blower is not a
wet suction device!
The device is designed only for blowing of dry
leaves in private households and as a hobby
device in the garden. Any other utilization,
which is not explicitly approved in these
directions, can lead to damage to the device
and represent a serious danger to the user.
The device must not be employed in areas
where there is health endangering debris or as
a wet suction device.
The device is designed for use by adults.
Young people over 16 years may use the
device under supervision only.
The use of the device in the rain or in a humid
environment is forbidden.
The manufacturer is not liable for damage
which is caused through inappropriate use or
incorrect operation.
WARNING: To reduce the risk of fire,
electric shock, or injury:
1. Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
2. WARNING To ReduceThe Risk Of Electric
Shock – Do not use on wet surfaces. Do not
expose to rain. Store indoors.
3. Do not allow to be a toy. Close attention is
necessary when used by or near children.
4. Use only as described in this manual.
Use only manufacture’s recommended
attachments.
5. Do not use with damaged cord or plug. If
appliance is not working as it should, has
been dropped, damaged, left outdoors, or
dropped into water, return it to a service
center.
6. Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or comers. Do not run
appliance over cord. Keep cord away form
heated surfaces.
7. Do not unplug by pulling on cord.To
unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet
hands.
9. Do not put any object into openings. Do not
use with any opening blocked; keep free
of dust, lint, hair, and anything that may
reduce air flow.
10.Keep hair, loose clothing, fingers, and all
parts of body away form openings and
moving parts.
11. Turn off all controls before unplugging.
12.Use extra care when cleaning on stairs.
13.Do not use to pick up flammable or
combustible liquids, such as gasoline, or
use in areas where they may be present.
14.Always turn off this appliance before
connecting or disconnecting either hose or
motorized nozzle.
15.Use only the charger supplied by the
manufacturer to recharge.
16.Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
17. Do not use without dust bag and/or filters
in place.
18.Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a
risk of fire when used with another battery
pack.
19.Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
20.When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
21. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the

18V Cordless Li-ion Blower/Sweeper EN
98
98
battery may cause irritation or burns.
SAFE OPERATION PRACTICES FOR
CORDLESS BLOWER/SWEEPER
1. SAFETY INSTRUCTIONS
1.1 Training
1) Read the operating and service instruction
manual carefully. Be thoroughly familiar
with the controls and the proper use of the
equipment.
2) Never allow children to operate the tool.
3) Keep the area of operation clear of all
persons, particularly small children, and
pets.
4) Do not use the tool for any job except that
for which it is intended.
1.2 Preparation
1) Thoroughly inspect the area where the
equipment is to be used and remove all
stones, sticks, wires, bones, and other
foreign objects.
2) Operate the tool only in daylight or in good
artificial light.
3) Never operate the equipment on wet
materials. Always be sure of your footing.
Keep a firm hold on the handle and walk,
never run.
1.3 Operation
1) Do not put hands or feet near or under
rotating parts.
2) If the equipment should start to vibrate
abnormally, stop the motor and check
immediately for the cause. Vibration is
generally a warning of trouble.
3) Stop the motor whenever you leave the
equipment, and before making any repairs
or inspections.
4) Shut the motor off and wait until the fan
comes to a complete stop before removing
the bags
5) Do not wash with a hose, avoid getting
water in motor and electrical connections.
1.4 Maintenance
1) Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
2) Check bag frequently for deterioration and
wear, and replace worn bags. Check that
replacement bags comply with the original
manufacturer’s recommendations or
specifications.
ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
TOOL
1. Do not charge appliance in damp or wet
locations.
2. Do not use battery-operated appliance in
rain.
3. Remove or disconnect battery before
servicing, cleaning or removing material
from the gardening appliance.
4. Do not dispose of the battery in a fire.The
cell may explode. Check with local codes
for possible special disposal instructions.
5. Do not open or mutilate the battery.
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may
be toxic if swallowed.
6. Exercise care in handling batteries in order
not to short the battery with conducting
materials such as rings, bracelets, and
keys.The battery or conductor may
overheat and cause burns.
7. Charge only using the charger provided
with the tool.
8. Do not place outlet tubes near eyes or ears
when operating.
9. Do not cross gravel paths or place the tool
on gravel while the tool is switched on.
10.Do not place any objects into the openings
and moving parts.
11. Before removing the blow tube, always
switch off the tool, remove the battery and
allow the tool to run down.
12.Avoid dangerous environment. Do not use
appliances in damp or wet location.
13.Do not use in rain.
14.Keep children away. All visitors should be
kept at a distance from work area.
15.Dress properly. Do not wear loose clothing
or jewelry.They can be caught in moving
parts. Use of protective gloves and
substantial footwear is recommended
when working outdoors. Wear protective
hair covering to contain long hair.
16.Use right appliance. Do not use appliance
for any job except that for which it is
intended.
17. Do not force appliance. It will do the job
better and with less risk of injury at the rate

98
18V Cordless Li-ion Blower/Sweeper EN
98
for which it was designed.
18.Do not overreach. Keep proper footing and
balance at all times.
19.Stay alert. Watch what you are doing. Use
common sense. Do not operate appliance
when you are tired.
20.Store idle appliances indoors. When not in
use, appliances should be stored indoors
in dry, and high or locked-up place, out of
reach of children.
21. Check damaged parts. Before further use
of the appliance, a guard or other part that
is damaged should be carefully checked
to determine that it will operate properly
and perform its intended function. Check
for alignment of moving parts, binding or
moving parts, breakage of parts, mounting,
and any other condition that may affect
its operation. A guard or other part that is
damaged should be properly repaired or
replaced by an authorized service center
unless indicated elsewhere in this manual.
CHARGERS
1. Use your charger only to charge the battery
in the tool which it was supplied. Other
batteries could burst, causing personal
injury and damage.
2. Never attempt to charge non-rechargeable
batteries.
3. Do not expose the charger to water.
4. Do not open the charger.
5. Do not probe the charger.
SAVE THESE INSTRUCTIONS
1. Refer to then frequently and use then to
instruct others who may use this tool. If
someone borrows this tool, make sure they
have these instructions.
2. Use only identical replacement parts.
SYMBOLS
Warning
Read the manual
Do not dispose of batteries.Return
exhausted batteries to your local
collection or recycling point.
Contains Li-ion battery. Battery
must be recycled or disposed of
properly.
Do not expose to rain or water
Always charge the battery
between temperatures 32°F-
86°F(0°C-30°C).
Do not burn
Wear eye protection
Wear ear protection

18V Cordless Li-ion Blower/Sweeper EN
1110
1110
ASSEMBLY
ASSEMBLING THE BLOWER TUBE
(Fig A1 & Fig A2)
Before assembling the BlowerTube(4), be sure
the on/off switch (2) is in ‘’O’’ Off position.
Fit the BlowerTube to the motor housing as
shown in Fig A1. Check the BlowerTube is
firmly secured.
WARNING! Do not attempt to operate
or disable the On/Off Switch by any
means other than the normal assembly or
removal of the tube.
NOTE: Before disassembling the Blower
Tube, be sure the on/off switch (2) is in ‘’O’’ Off
position. Press the Release Button(3) , so that
you can separate the tube.(Fig A2)Do not try to
separate the tubes by force or by using tools.
OPERATION
WARNING! The charger and battery
pack are specially designed to work
together so do not attempt to use any other
devices. Never insert or allow metallic objects
into your charger or battery pack connections
because of an electrical failure and hazard will
occur.
1. BEFORE USING YOUR CORDLESS
BLOWER
Your battery pack is UNCHARGED and you
must charge once before use.
The battery charger supplied is matched to the
Li-ion battery installed in the machine. Do not
use another battery charger.
2. CHARGING YOUR BATTERY PACK
The Li-ion battery is protected against deep
discharging. When the battery is empty,
the machine is switched off by means of a
protective circuit:The tool holder no longer
rotates.
In a warm environment or after heavy use, the
battery pack may become too hot to permit
charging. Allow time for the battery to cool
down before recharging.
3. INSTALL THE CHARGER-WA3838
STANDS(WG540.5)(See B)
Slide the two charger stands (a) into the both
grooves on back of the charger.The charger
can stand as shown in Fig.B.
4. HOW TO CHARGE YOUR BATTERY(See
C1/C2)(WG540/WG540.5)
Connect the battery charger (6/7) to the
power supply and the green light (6b/7b) will
illuminate.
Slide the battery pack into the charger to make
the connections (See C1/C2 ).
The green light(6b/7b) will be off. And the red
light(6a/7a) will illuminate to show charging
has started. When charging is completed the
green light(6b/7b) will illuminate while the red
light(6a/7a) is off.

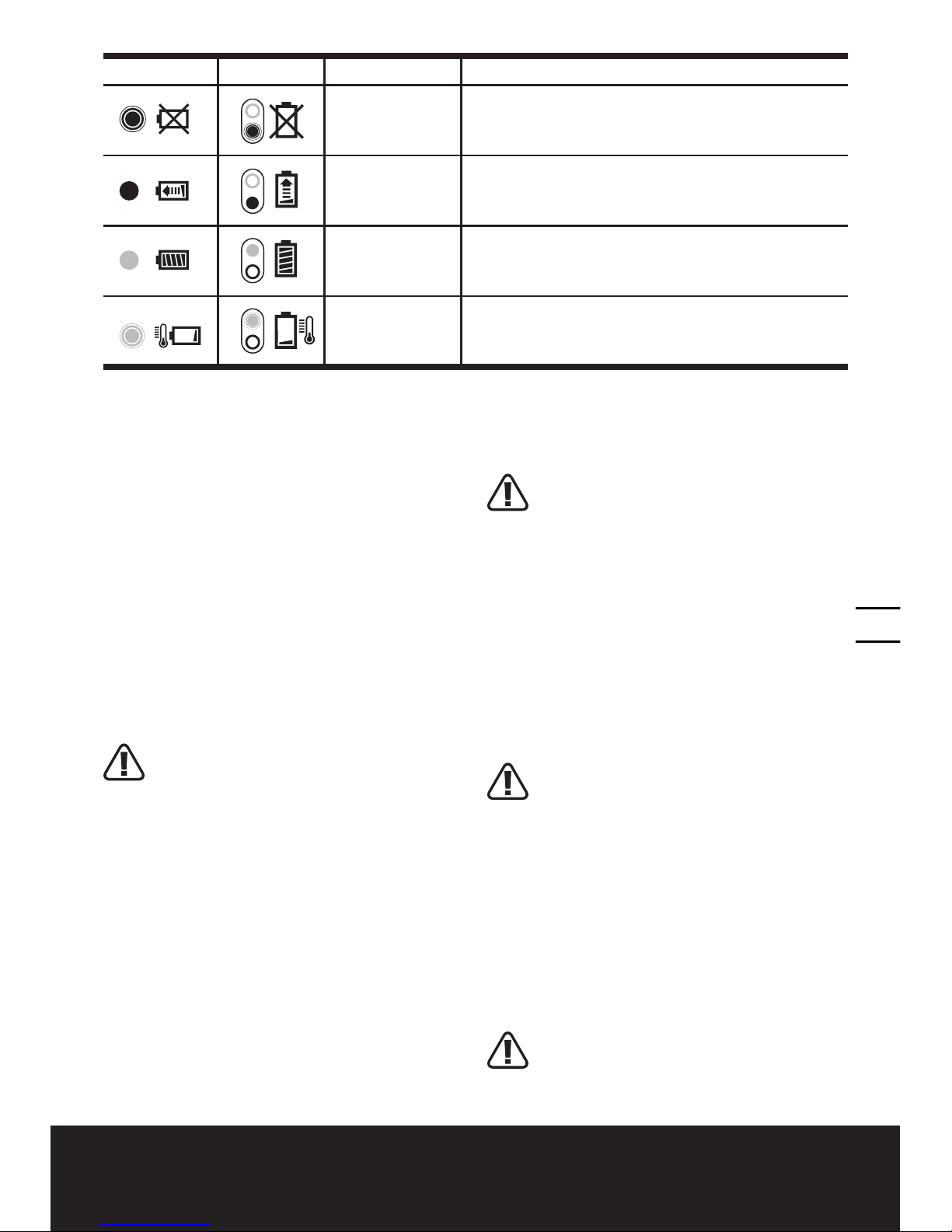

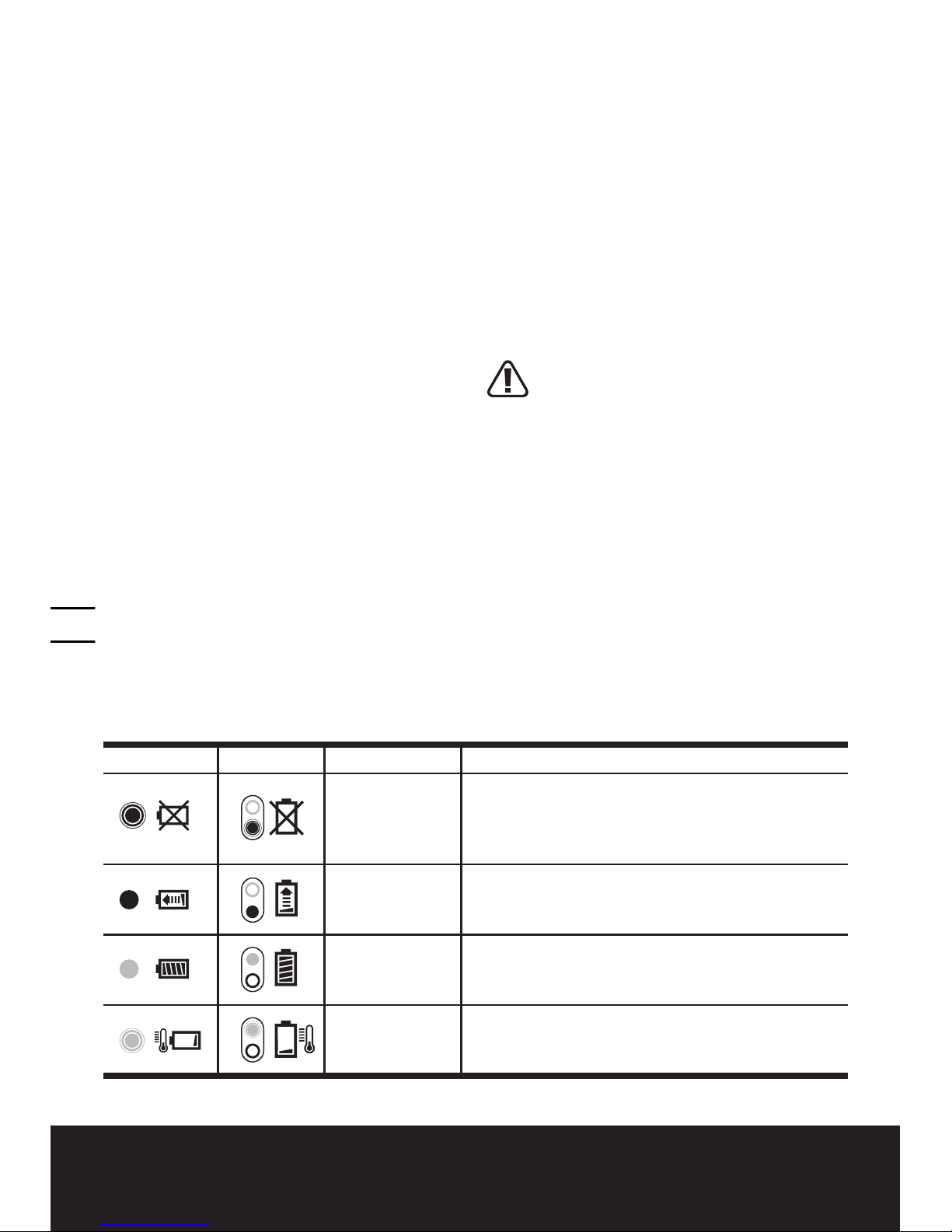

NOTE:
This charger is designed to detect some
problems that can arise with battery pack. (see
table below)
