INSTALLATION GUIDE

Installation guide P03
Original instructions EN

3
EN
How to install your Landroid®
The installation Landroid®of is easy. The entire process only takes a little time, depending on the size of
your garden. If you are like us, you hate wasting time to mow your lawn. Your Landroid®will prove to be a
great investment, providing you with years of lawn care.
You can watch the installation demo video at www.worx.com.
Landroid®loves to mow
Your Landroid®is designed to mow regularly, maintaining a healthy and better looking lawn than before.
Depending on the size of your lawn, Landroid®may be programmed to operate at any time or frequency
with no restrictions. It is here to work for you.
Preparation
Before starting the installation process, read through this entire Installation Guide carefully. Sketch the
working area, including all obstacles, to make it easier to see the ideal positions for the charging base and
where the boundary wires should be routed.
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.

4
EN

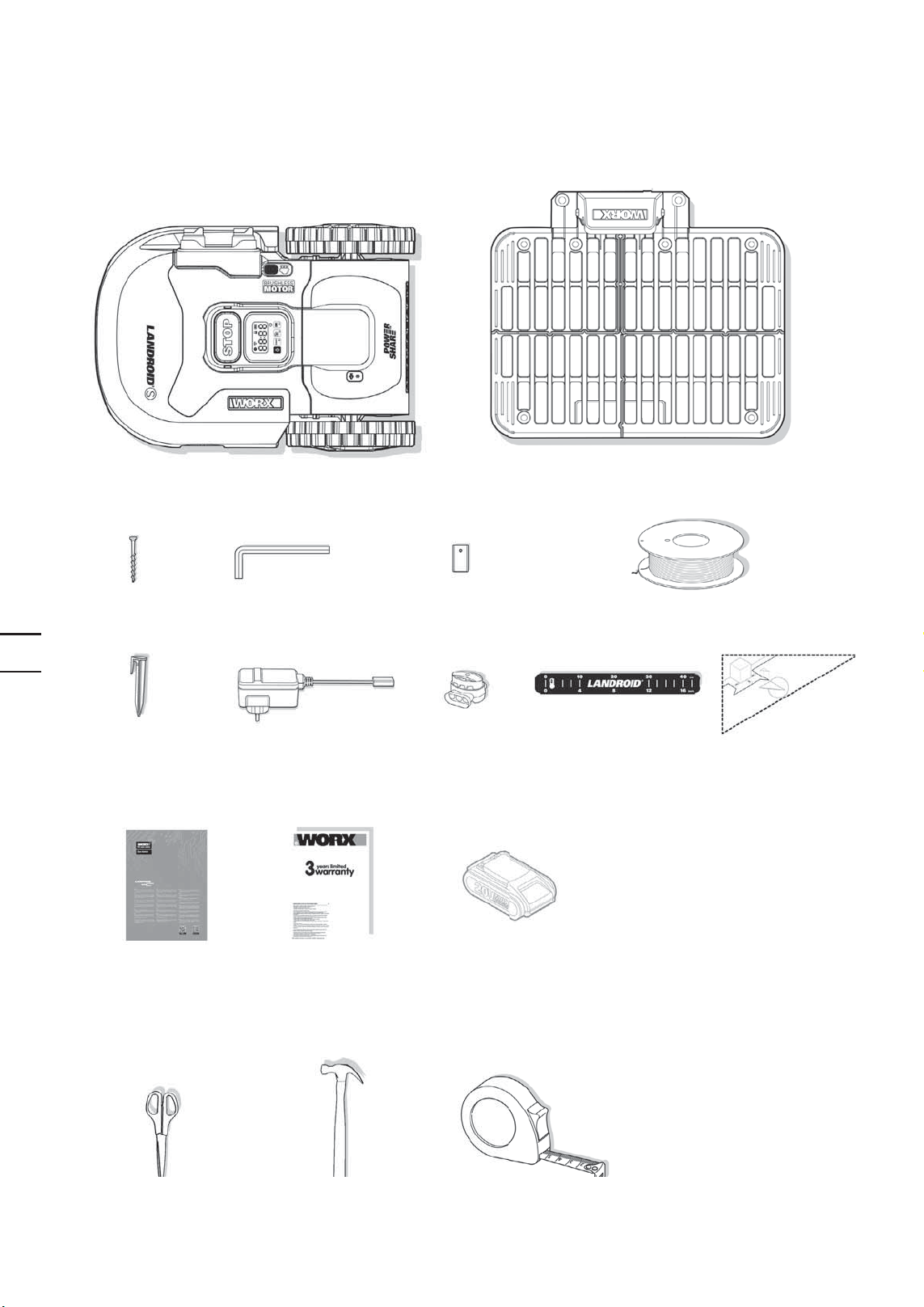

In the box
WR130E WR131E
From your shed
Distance gauge*
Hex key Spare blades
Scissors Hammer Tape
Landroid®Charging base
Base fixing nails
Wire pegs
Boundary wire reel
Power adapter Connector
Get Started Warranty statement Battery

5
EN

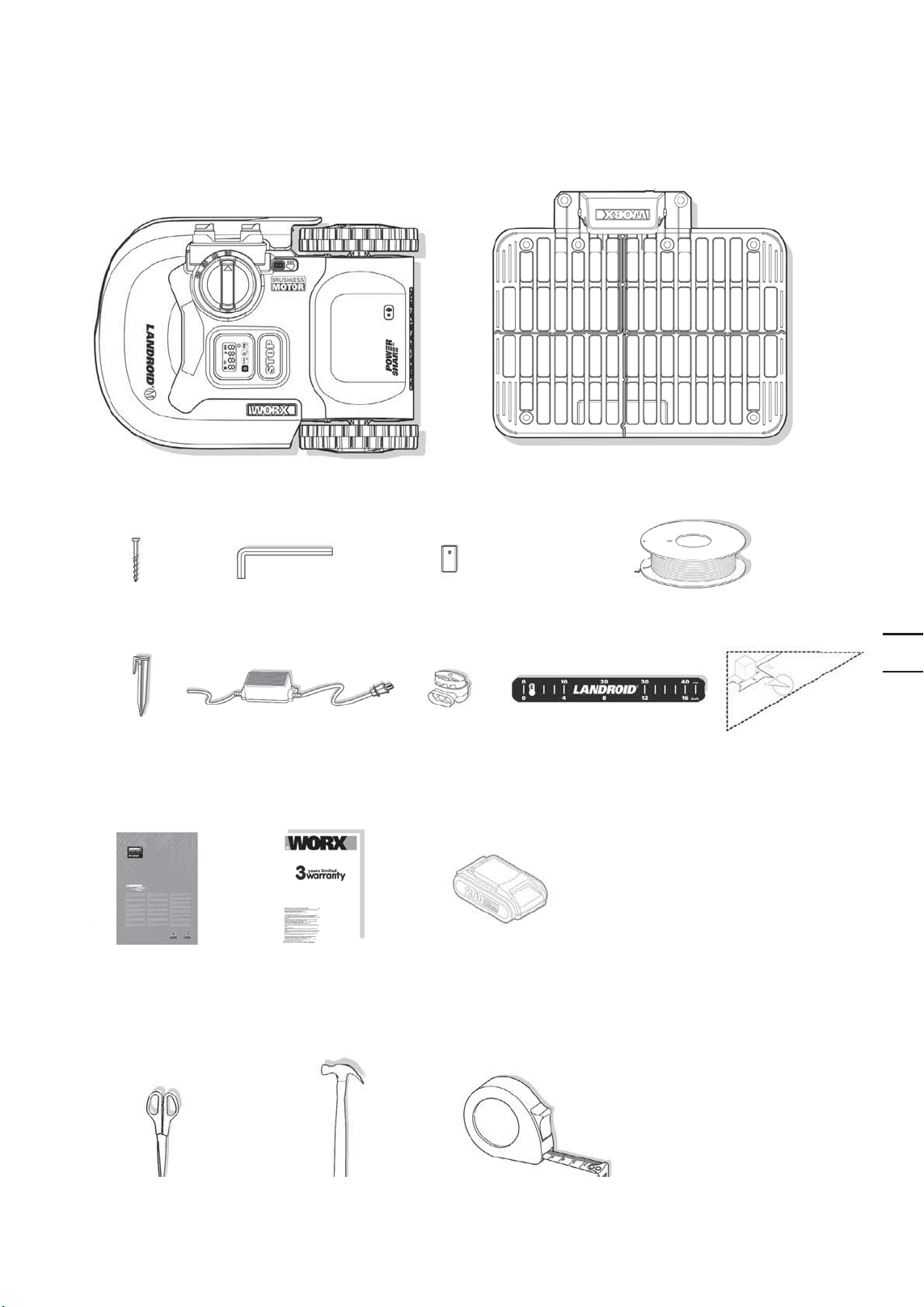

In the box
WR141E WR144E
From your shed
Distance gauge*
Hex key Spare blades
Scissors Hammer Tape
Landroid®Charging base
Base fixing nails
Wire pegs
Boundary wire reel
Power adapter Connector
Get Started Warranty statement Battery

6
EN
Landroid®'s new home: your garden

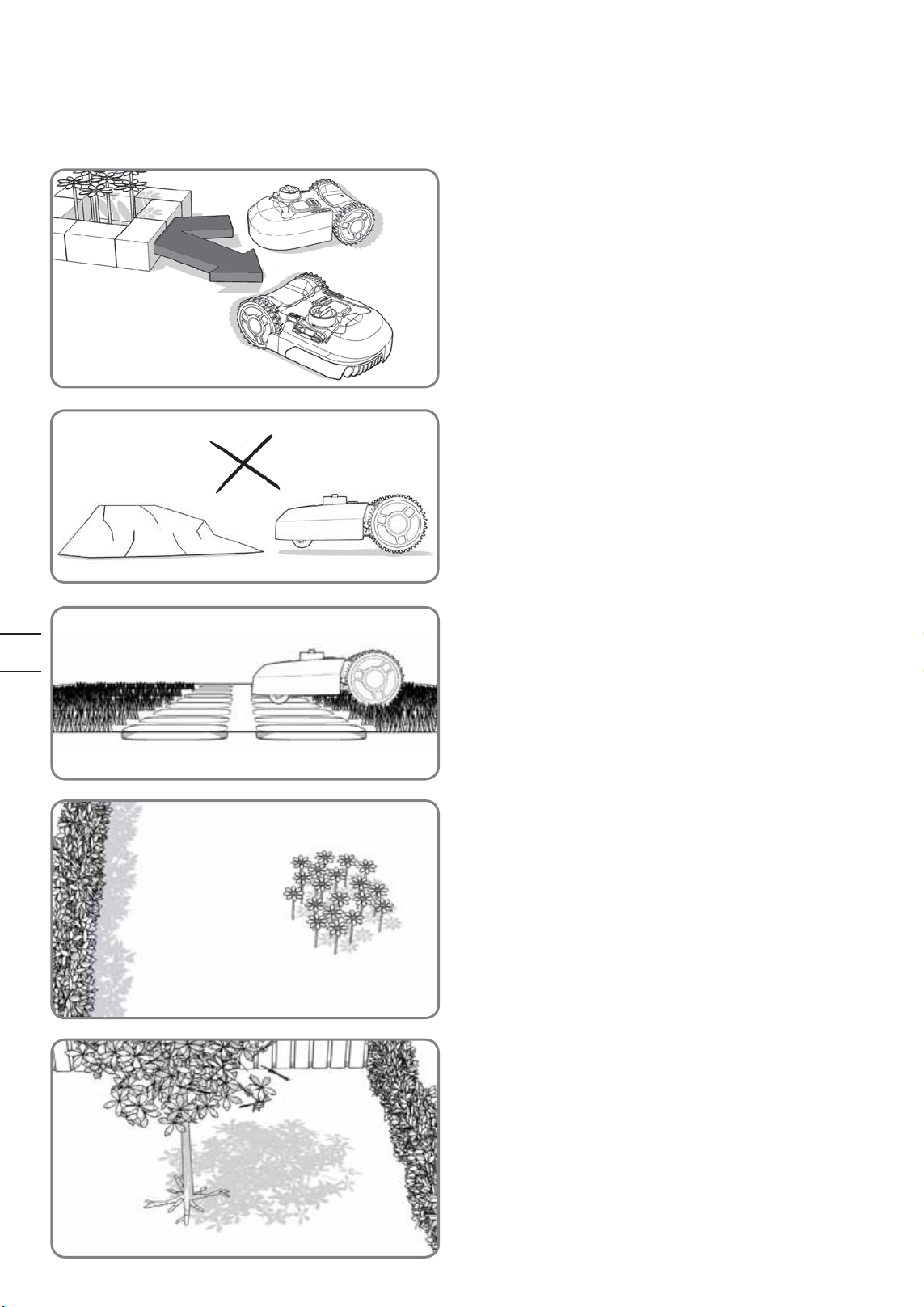

Let's start by having a closer look at Landroid®’s new home - your lawn - highlighting the areas where it
can safely go and areas Landroid®should avoid.
Stones
Stones too heavy to be moved by your Landroid®can be
safely hit. However, if a stone has an inclined surface that
your Landroid®can climb, it should be removed or excluded
from the working area.
Obstacles that can be hit
When hitting any obstacle that’s rigid, stable and taller than
10cm - such as a wall or a fence - Landroid®will stop and re-
direct away from the obstacle.
Flowerbeds, ponds, pools...
You certainly don’t want Landroid®to mow your flowers, or
fall into the water. These areas should be avoided.
Additionally, obstacles between 2cm-10cm high should also
be excluded from Landroid®’s operation area.
Driveways
If your driveway is level with your lawn, without any
protruding surface, Landroid®can freely run over it. If you'd
like Landroid®to avoid it, place the boundary wire 10cm*
away from it.
If it’s covered with gravel, you should not allow Landroid®to
travel over it. Using the distance gauge for spacing, keep a
26cm* space between the boundary wire and the driveway.
* This is the recommended distance. The provided distance
gauge ensures proper installation.
Trees
Roots emerging from the ground should be avoided to
prevent damage.

7
EN
26cm
26cm
26cm
35% (20°)
The slope would be:
35cm (Elevation)
100cm (Length) =35% (slope)
Placement of boundary wire on slopes
The upper boundary wire should NOT be placed on slopes
steeper than 35% (20°), and it should be placed at a distance of
26cm from any obstacle. The lower boundary wire should NOT
be placed on slopes steeper than 17% (10°), and it should be
placed at least 40cm away from any obstacle when positioned
on a slope that is 17%.
NOTE: The lower boundary wire cannot be laid across a slope
steeper than 17% as Landroid®will slip and cross outside the
wire, especially when the grass is wet.
Placement of boundary wire at a corner
If you want Landroid®to turn a right angle, lay down the
boundary wire as the illustration shown.
Upper boundary wire
Lower boundary
Wire
Lower boundary
Wire
**How to calculate the slope of your lawn:
100cm
35cm
Length
Elevation
Max. 35% slope
Max.10cm
Max.2.5cm
Max.2cm
Depressions and bumps
In case of large bumps (higher than 2cm) or dips (wider than
10cm and deeper than 2.5cm), please determine if the blades
would touch the ground or if Landroid®would get stuck. If
this is the case, either make the inclines smoother or exclude
these areas from Landroid®’s operation.
Slopes
Your Landroid®has the ability to safely climb slopes up to
35% (20°)**, so please avoid areas steeper than this.

8
EN

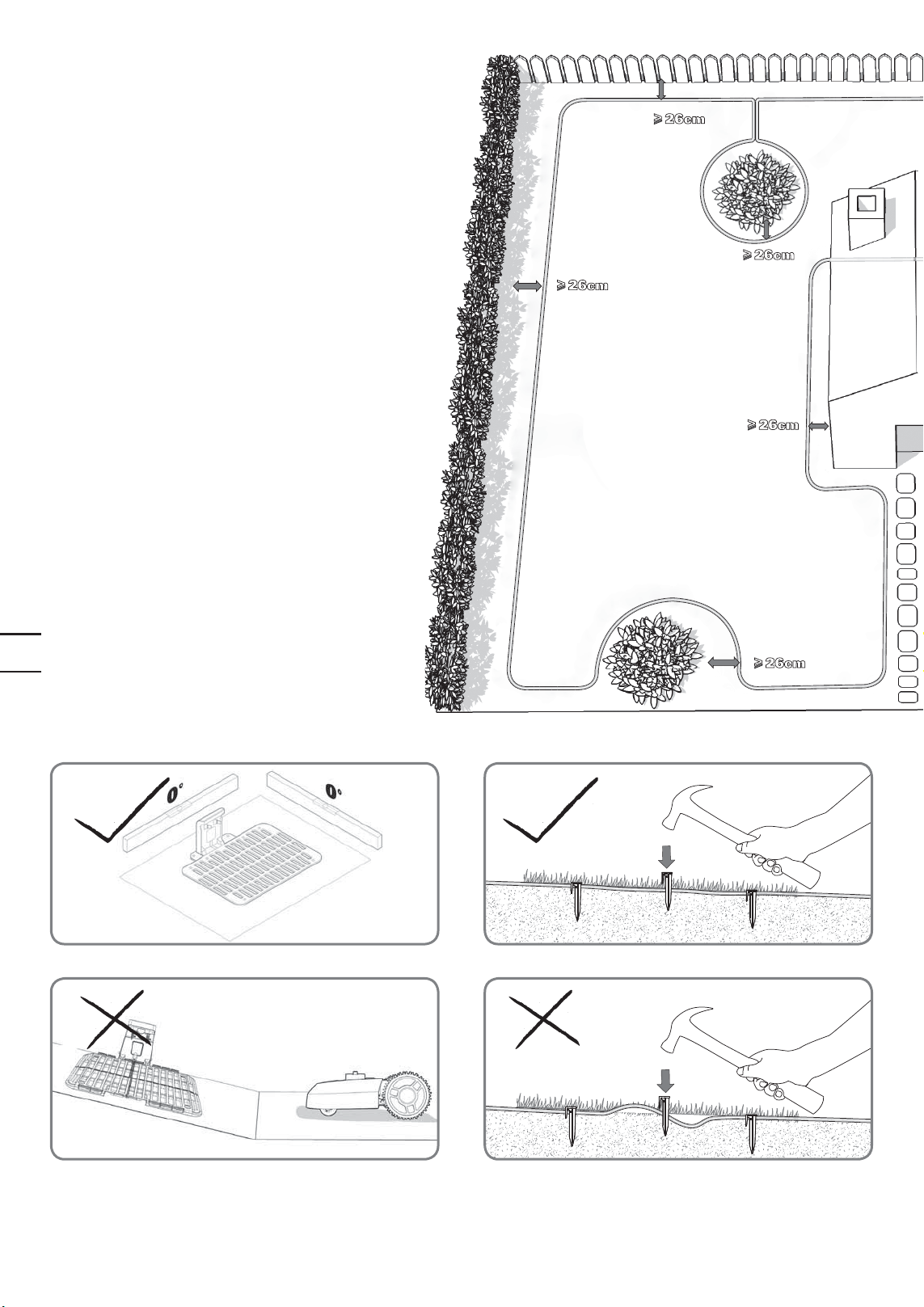

Overview
>26cm
>26cm
>26cm
>26cm
>26cm
Your Landroid®needs to know where to mow. Using the boundary wire, you'll define Landroid®'s working area and form an
invisible fence. This wire will also guide Landroid®to its charging base.
“Please note: Under certain conditions, additional magnetical fields generated by reinforcement steel
(Rebar), which is often found in underground constructions like a parking garage or an underground

9
EN
>
>>
75cm75cm
10cm
>10cm
1.5m 1.5m
>26cm
>26cm
>26cm
>1m
>1m
>90º>90º
<90º
>1m
0m
hangar, can lead to navigational disturbances of robotics lawn mowers.”
If your neighbor also uses a Landroid®, you must keep a space of at least 1 metre between your boundary wire and your
neighbor's.

10
EN
Place the charging base
Find a flat surface for the charging base, the place should be dry
and out of direct sun light and the adapter can be mounted on
the wall.
Landroid®’s charging base can be placed against the wall or
fence, with the charging components facing your lawn. If
possible, place the charging base in the shade, and batteries
are better recharged in a cool place. Make sure the adapter and
electrical outlet are always kept in a dry place.
You can now permanently fix the charging base to the ground by
tightening the supplied base fixing nails with the supplied hex
key.
1
Installation
The charging station must be positioned on relatively level
ground. It must not be positioned on an inclined surface or
anywhere that makes its plate bend.

11
EN
Charge your Landroid®before the first operation
When connecting the power cord of the charging base to the
adapter, align the notch on the power cord (b) with the groove on
the adapter (a).
Connect the adapter to the electrical outlet. The LED on the
charging base will turn on in red color. Manually dock Landroid®
into the charging base while Landroid®is powered off. The green
light on the charging base will turn green and Landroid®will
begin to charge.
If the power cord is in Landroid®'s working area, you may bury it
if desired.
NOTE: If you want to plug the adapter in an indoor electrical
outlet, you need to route the power cord through the hole in the
wall.
Peg the boundary wire
Before pegging the boundary wire, it is recommended to use a
normal lawn mower or a grass trimmer to cut the grass along
the boundary. Then the wire should be laid as close as possible
to the ground to prevent your Landroid®accidentally cutting the
wire. The boundary wire is powered with a very low voltage
totally safe to humans and pets.
Pull out a length of boundary wire around 80cm and fasten it
to the ground near the charging base. Later, this end of the
boundary wire (IN-wire) will be connected to the BLACK terminal
after pegging your boundry wire.
NOTE: The extended boundary wire should not exceed 400m or
it may cause signal problem.
2
3
ba
ab
80cm
WR130E WR131E
WR141E WR144E
BLACK
RED

12
EN
In the case of two islands that are close to each other, it would
be convenient to lay out the wire as illustrated in the picture.
Landroid®can travel freely over the boundary wire between the
areas and the mowing boundary.
If your lawn has multiple areas connected to each other by a
corridor, it should be at least 1 meter wide. If the corridor is
narrower than 1 meter, Landroid®will have difficulty travelling
between. In this case, it is recommended to set up a main area
and a secondary area in your lawn. The boundary wire should be
placed as illustrated in the picture. When the secondary area has
to be cut, please pick up Landroid®and bring it to the secondary
area. Landroid®will mow without problem, but you have to bring
it back to the charging base when the battery runs out.
>1m >1m
>1m

13
EN
>
>>
75cm75cm
10cm
>10cm
1.5m 1.5m
>26cm
>26cm
>26cm
>26cm
>26cm
>26cm
>26cm
>26cm
>1m
>1m
90
o
90
o

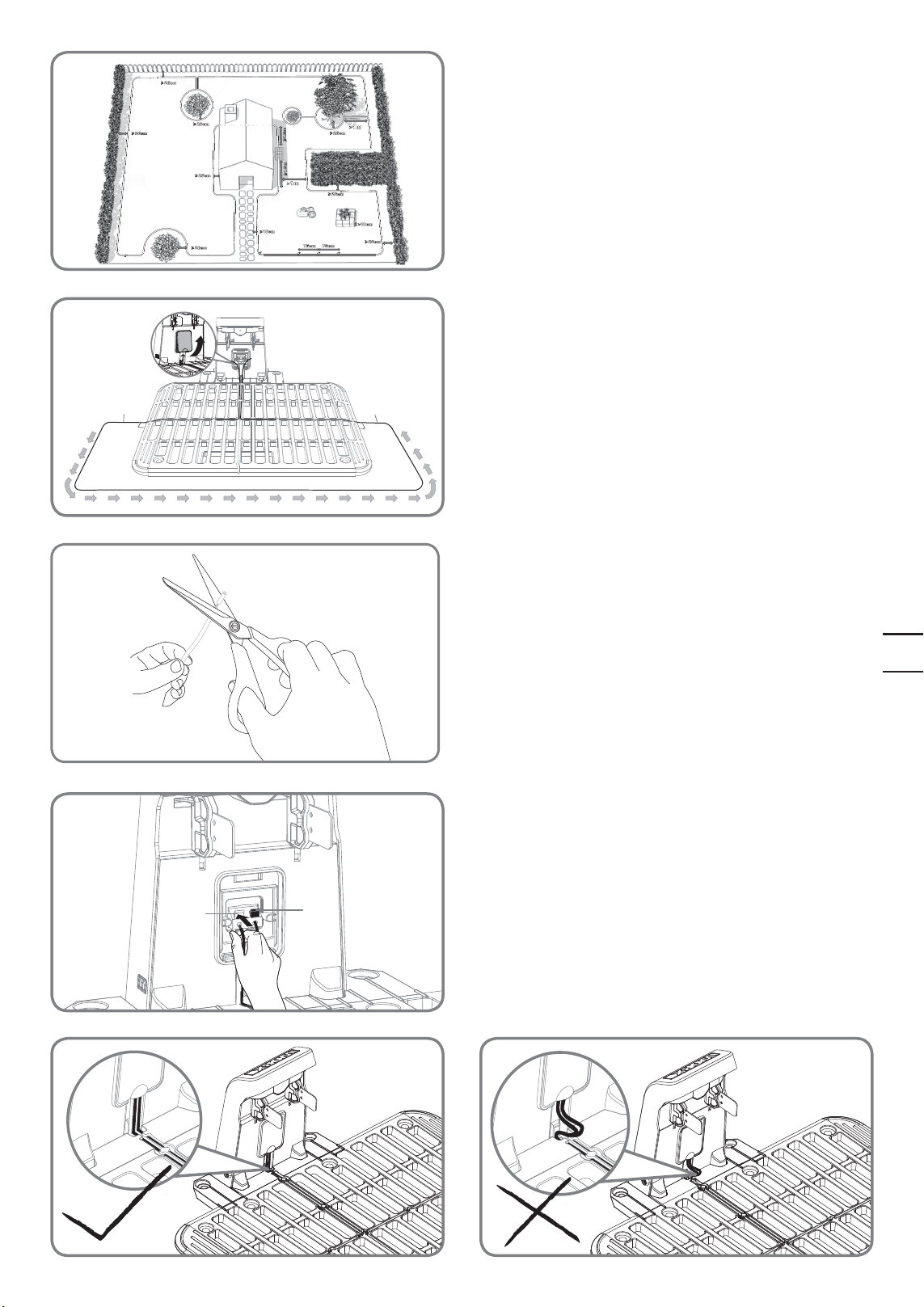

Complete the entire boundary wire setup
Lay down the boundary wire around the working area as the
illustration shown.
After pegging the boundry wire, please take your Landroid®
away from the charging base. Lead the boundary wire back to
the charging base, leave a length of the boundary wire (OUT-
wire) around 80cm and cut it off. Insert both wire ends into the
grooves on the charging base. Peel off the plastic skin at the end
of both wires (around 1cm), and connect the naked metal wire
end of the IN-wire to the BLACK terminal and the end of OUT-
wire to the RED terminal.
NOTE: If you need to extend the boundary wire, please refer
to “Joining the BoundaryWire” in Owner’s Manual for
instructions.
4
IN WIREOUT WIRE
OUT IN

14
EN
Verification
Before it starts mowing for the first time, make sure Landroid®'s working area is clear of objects such as
toys and branches...
Set the cutting height to the maximum level (50mm (WR130E
WR131E) / 60mm (WR141E WR144E)).
Place your Landroid®a few meters in front of the charging base.
Press until Landroid®turns on. For the first use, input the
default PIN code 0000 by pressing for four times when the
number 0 is blinking.
NOTE: When Landroid®turns on, all lights on the display will be
illuminated and then turn off. Check if there is any light damaged.
It is recommended to shield the display with your hand when the
outdoor light gets too strong.
NOTE: Landroid®will turn off if it does not receive any input
within 30 seconds after it is turned on. If you enter wrong PIN
code three times, Landroid®will raise the alarm “di-di” and then
turn off.
1
2
3
WR130E WR131E
WR141E WR144E
Only for reference

15
EN
Press then to send Landroid®back to the charging base.
Landroid®will follow the boundary wire to the charging base.
Fine tune the outline shape of the boundary wire if necessary.
NOTE: If the boundary wire is broken during the testing or you need to extend the boundary wire, please refer to “Joining the
Boundary Wire” in Owner’s Manual for instructions.
Check the status of the LED light indicator on the charging base to make sure the connection is OK.
If the verification test is completed smoothly, you can start mowing by pressing then .
If there is any problem during verification test, please refer to “Owner’s manual-Troubleshooting”.
4
5
LED light indicator on the
charging base
Status Action
Light does not turn on There is no power. Confirm that the power cord is connected properly to the
charger and that the charger is connected to a suitable
power supply.
Green light on Boundary wire is connected
successfully; Landroid®is fully
charged.
/
Red light on The Boundary Wire isn’t connected. Confirm that there are no breaks in the boundary wire.
Power supply is connected
successfully, while the wire is
connected unsuccessfully.
Check that the boundary wire has been connected
correctly to the charging base.
Confirm that there are no breaks in the boundary wire.
Green light flashing Landroid®is auto charging. /
• If your Landroid®is
outside its territory, it will
not move and “ “

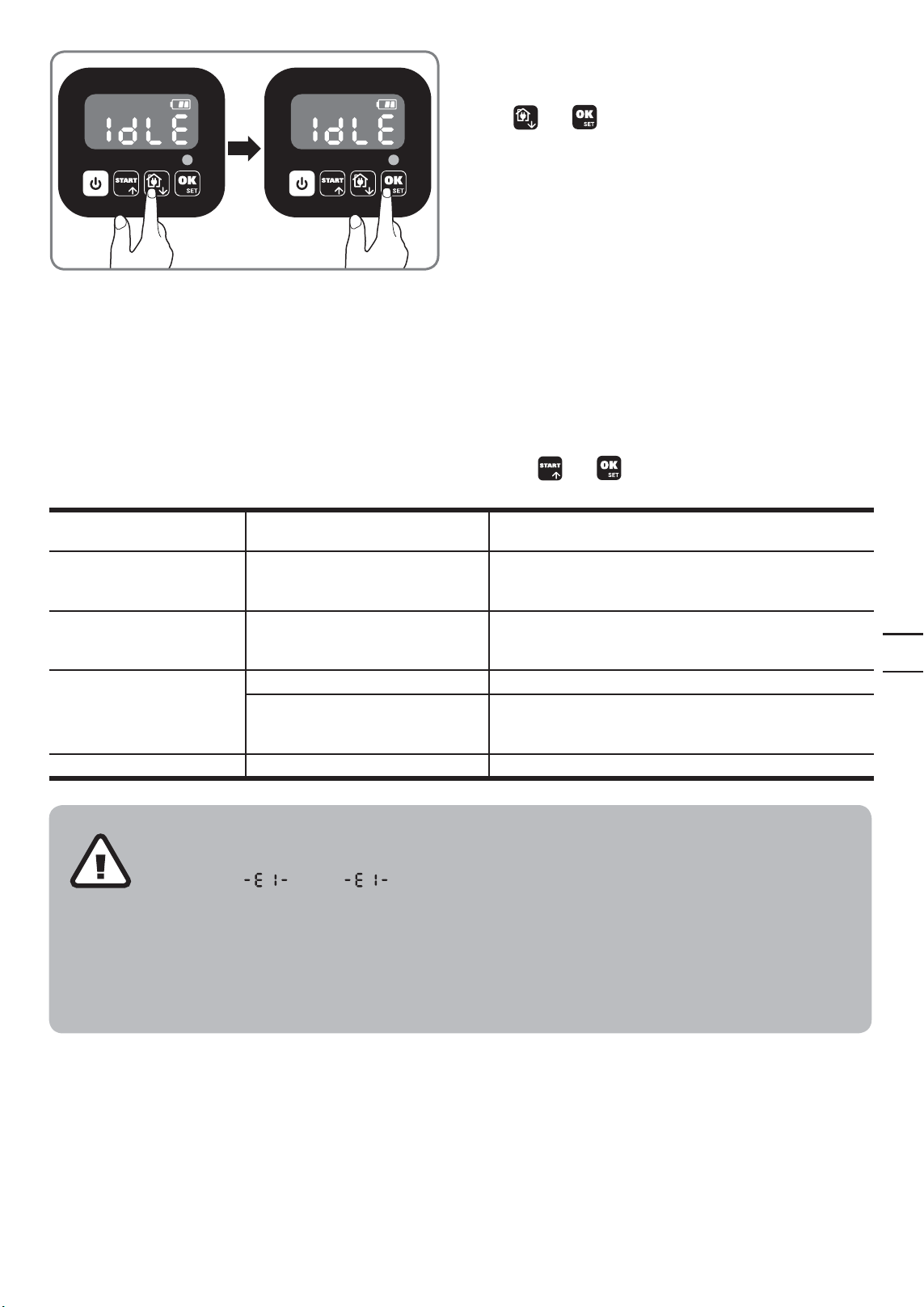

will be displayed.
Move it inside its territory
and repeat Verification.
• If your Landroid®is
inside its territory but
““ is displayed,
please refer to “Error
Messages” in Owner’s
Manual for solutions.
• Your Landroid®should
always remain switched
on. If you ever need to
turn it off, then make
sure you place it within
its boundary area
before you switching it
back on again.
• Should your Landroid®
stop operating, simply
restart it and operate it
as you normally would.
NOTE: Please refer to the Owner’s Manual for more information.
Warning
Only for reference

16
EN
Setting
First please set the height to a desired grass level after cut and you can do the program setting manually or
using mobile App.
NOTE: When doing the program setting manually, Landroid®will enter the standby page if it does not
receive any input from the user within 30 seconds.
Change PIN code
To change the PIN code, keep pressing both and buttons
at the same time for 5 seconds.The icon will be blinking,
and “ ” will be rolling flashing. After that, the first number
will be blinking, use or to select the number you want
and press to confirm. The next number will be blinking. Use
the same method to complete other numbers. For example,
the new PIN code is set to be 0326. After that, “ ” will
be rolling flashing and the first number will be blinking again.
Use the same method to input the new PIN code you set just
now (in this example, ). Then “ ” will be
rolling flashing on the display. Your PIN code has been changed
successfully.
Set year, date and time
Set year, date and time are compulsory setting items. If you
don’t set these items, it will influence the schedule time in the
following setting. These items should be set in the order of
year, date and time. For the year setting, keep pressing for
3 seconds until the icon and a number are blinking on the
display, for example, . Use or to select the year
you want. Then press to confirm to finish the year setting.
Meanwhile, the icon will be flashing again and a number will
be displayed to indicate the date, for example, , meaning
September 29. When is flashing, use or to select the
number and press to confirm. Then will be flashing. Use
the same method to select the number and press to confirm
to finish the date setting.
Meanwhile, the icon will be flashing and the time will be
displayed, for example, . When is blinking, use or
to to select the number and press to confirm. Then
will be blinking, use the same method to select the number and
press to confirm. Now the time setting is completed and
Landroid®will enter the standby page.
1
2
Only for reference
Only for reference
Only for reference
Only for reference
Standby page

17
EN

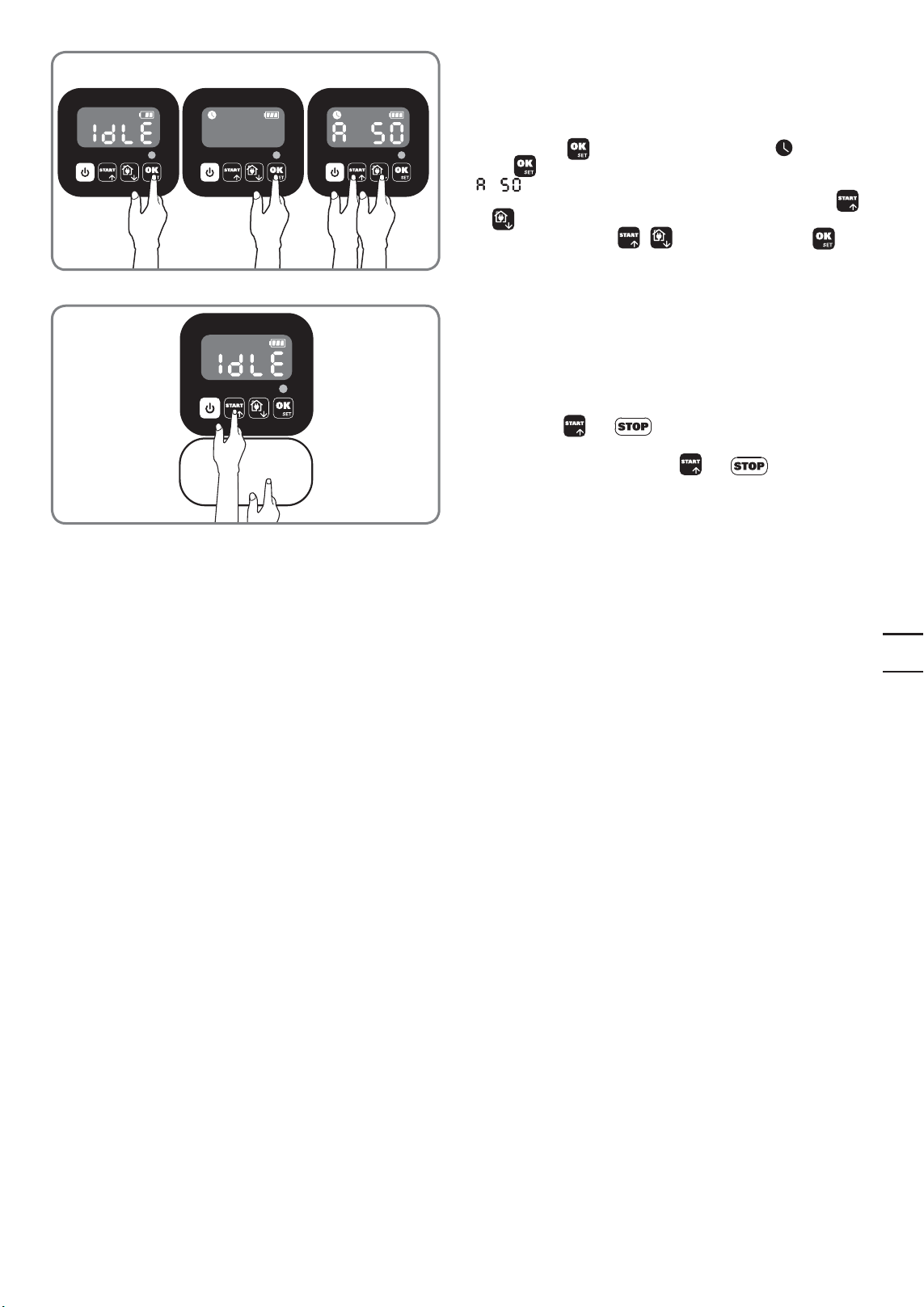

Set work area
Keep pressing for 3 seconds. When the icon is blinking,
press . A number will be blinking on the display, for example,
, which is the lawn area.The working time will be
automatically set according to the size of your garden. Use
or to set the lawn area (the area will increase / decrease
by 50m2each time the / is pressed), and press to
confirm. Then Landroid®will enter the standby page.
Change default start time
The default start time of 8:00 can be changed to anytime by keep
pressing both and buttons at the same time until a
ding sound is heard.
For example, keep pressing both and buttons at 14:05,
and your Landroid®will start mowing from 14:05.
3
4
STOP
Only for reference
Only for reference

18
EN
App
Your Landroid®is able to connect with smartphone. Using Landroid®App for your smartphone, you can
change your Landroid®'s general settings, and view the machine's status and error messages.
Checklist before connecting your App to Landroid®
Step 1: Check your smart phone

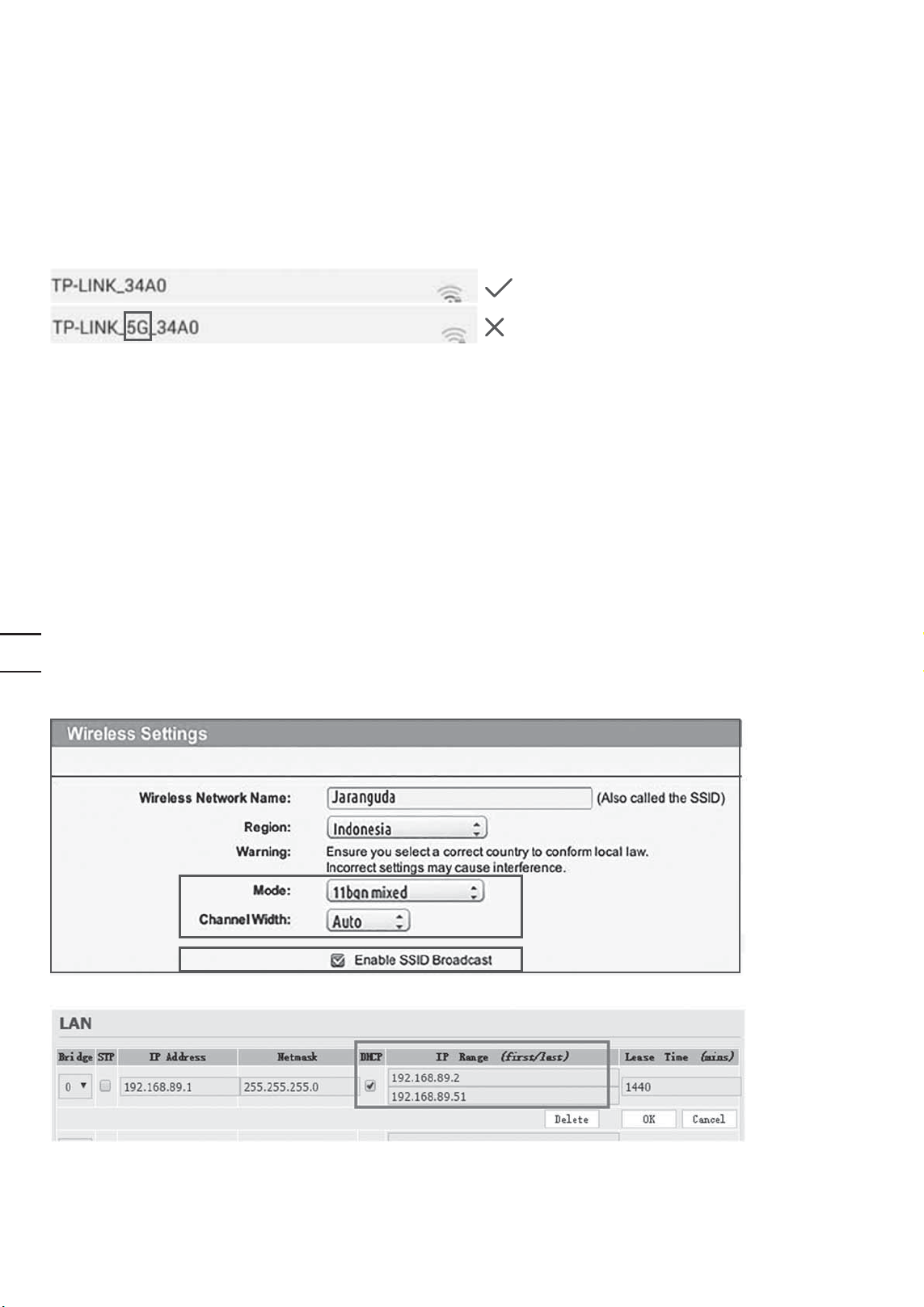

1. Make sure the Wi-Fi that your smart phone connected is 2.4GHz instead of 5GHz.
Example:
2. Make sure the APP installed on your smart phone is the latest version.
Step 2: Check your Landroid®
1. Make sure your Landroid®is under the same router environment as your smart phone.
2. Make sure the firmware on your Landroid®is the latest version.
3. Make sure the distance between your Landroid®and smart phone is as close as possible during
connection (less than 3 meters).
4. Make sure the distance between your Landroid®and router is as close as possible during connection
(less than 3 meters).
Step 3: Check your router
1. Make sure your router is 2.4GHz or 2.4GHz mixed 5GHz, and please enable 2.4GHz band.
2. Make sure your router 802.11 mode of wireless setting is b/g/n mixed. (See Fig. 1)
3. Make sure your router channel/ band width of wireless setting is Auto or 20M or 20M mixed 40M. (See
Fig. 1)
4. Make sure your router Enable the SSID Broadcast function when you connect the machine with the
APP. And you can close it after you connect successfully. (See Fig. 1)
Fig. 1
5. Make sure DHCP function is enabled. (See Fig. 2)
6. If you have a “Fritz!box” Router, please make sure activate “Allow communication between devices in
same network” in the settings.
7. Mare sure Port 8883 TCP is open. If it’s blocked (See Fig. 3), please modify the setting.
Fig. 2

19
EN
To connect smartphone to your Landroid®:
Step 1: To download the Landroid®App, scan the QR code below or download it from Playstore (Google-
Android), AppleStore (Apple-iOS) or our website www.worx.com.
Step 2: Keep pressing for 3 seconds, the icon will be blinking. Use or to choose the icon ,
then press to confirm.
Step 3: Enter the Landroid®APP, and then follow the instructions to connect to your Wi-Fi.
*The Serial No. can be found at the rear of Landroid®as shown.
NOTE:
1. If your Wi-Fi information changes, Landroid®needs to be re-set according to Step 3.
2. When Landroid®is located in an area with low or no Wi-Fi signal, instructions sent from the mobile App
may not be executed immediately. Landroid®will receive instructions when it returns to an area with good
Wi-Fi signal.
3. For strong Wi-Fi signal to ensure stable connection, it is recommended to install Wi-Fi extenders to
cover areas with weak or no Wi-Fi signal.
Fig. 3
