Worx WG723E User manual

SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
Electric Lawn Mower WG723E

2
3
4
5
6
7
8
9
10
11
1
6
7
8
Front Part
Back Part
A5 B1
A1 A2
A4
A3

6
7
8
Front Part
Back Part
A5 B1
A1 A2
A4
A3
2
2
1
3
a
C2 C3
B2 B3
C1
B4

2
2
1
3
a
C2 C3
B2 B3
C1
B4
22
1
12
13
a
b
1
2
H1 H2
D E
G
F

22
1
12
13
a
b
1
2
H1 H2
D E
G
F
I

7
Electric Lawn Mower WG723E
1. SWITCH LEVER
2. CABLE CLIP
3. GRASS BAG FILLING INDICATOR
4. GRASS COLLECTION BAG
5. SAFETY BUTTON
6. UPPER HANDLE
7. LOCK CAM LEVER
8. LOWER HANDLE
9. SAFETY FLAP
10. CARRY HANDLE
11. MOTOR COVER
12. BLADE BOLT (See Fig. H1)
13. BLADE (See Fig. H1)
Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
Type WG723E (705-739-designation of machin-
ery, representative of Electric Lawn mower)
Rated Voltage 230-240V~50Hz
Rated Power 1600W
No Load Speed 3700/min
Cutting diameter 36cm
Cutting height 20-70mm
Cutting height positions 6
Grass collection capacity 40L
Protection Class /II
Machine Weight 12kg
NOISE DATA
A weighted sound pressure LpA: 82.2dB(A)
KpA: 3.0dB(A)
A weighted sound power LwA: 96dB(A)
Wear ear protection
VIBRATION INFORMATION
Typical weighted
vibration
ah< 2.5 m/s2,
Uncertainty K=1.5m/s2
WARNING: The vibration emission value
during actual use of the power tool can differ
from the declared value depending on the ways in
which the tool is used dependant on the following
examples and other variations on how the tool is
used:
How the tool is used and the materials being cut or
drilled.
The tool being in good condition and well
maintained.
Using the correct accessory for the tool and ensuring
it is sharp and in good condition.
The tightness of the grip on the handles and if any
anti vibration accessories are used.
And the tool is being used as intended by its design
and these instructions.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed
WARNING:To be accurate, an estimation of
exposure level in the actual conditions of use
should also take account of all parts of the operating
cycle such as the times when the tool is switched off
and when it is running idle but not actually doing the
job.This may significantly reduce the exposure level
over the total working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions
and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti
vibration accessories.
Plan your work schedule to spread any high vibration
tool use across a number of days.
ACCESSORIES
Spanner 1
Grass collection bag 1
Lock Cam Lever 2
Cable clips 2
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.

8
Electric Lawn Mower WG723E
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING! Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock,
fire and/or serious injury.
Save all warnings and
instructions for future
reference.
- This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
- Children should be
supervised to ensure that
they do not play with the
appliance.
If the supply cord is
damaged, it must
be replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
IMPORTANT
READ CAREFULLY BEFORE
USE
KEEP FOR FUTURE
REFERENCE
Safe operating practices
for electrically powered
lawnmowers
TRAINING
a) Read the instructions
carefully. Be familiar with
the controls and the proper
use of the machine.
b) Never allow children or
people unfamiliar with
these instructions to use
the lawnmower. Local
regulations can restrict the
age of the operator.
c) Never operate the machine
while people, especially
children, or pets are nearby.
d) Keep in mind that the
operator or user is
responsible for accidents or
hazards occurring to other
people or their property.
PREPARATION
a) While operate the machine,
always wear substantial
footwear and long trousers.
Do not operate the
equipment when barefoot
or wearing open sandals.
Avoid wearing clothing that
is loose fitting or that has
hanging cords or ties.

9
Electric Lawn Mower WG723E
b) Thoroughly inspect the
area where the equipment
is to be used and remove
all objects which can be
thrown by the machine.
c) Before using, always
visually inspect to see that
the blade, blade bolt and
the blade assembly are not
worn or damaged. Replace
worn or damaged blades
and bolts in sets to preserve
balance. Replace damaged
and unreadable labels.
d) Before use check the
supply and extension cord
for signs of damage or
aging. If the cord becomes
damaged during the use,
disconnect the cord from
the supply immediately.
DO NOTTOUCHTHE CORD
BEFORE DISCONNECTING
THE SUPPLY. Do not use
the machine if the cord is
damaged or worn.
OPERATION
a) Operate the machine only
in daylight or in good
artificial light.
b) Avoid operating the
machine in wet grass.
c) Always be sure of your
footing on slopes.
d) Walk, never run.
e) Mow across the face of
slopes, never up and down.
f) Exercise extreme caution
when changing direction on
slopes.
g) Do not mow excessively
steep slopes.
h) Use extreme caution when
reversing or pulling the
lawnmower towards you.
i) Stop the blade(s) if the
lawnmower has to be
tilted for transportation
when crossing surfaces
other than grass, and
when transporting the
lawnmower to and from the
area to be mowed.
j) Never operate the
lawnmower with defective
guards, or without safety
devices, for example
deflectors and/or grass
catchers, in place.
k) Switch on the motor
carefully according to
instructions and with
feet well away from the
blade(s).
l) Do not tilt the lawnmower
when switching on the
motor, except if the
lawnmower has to be tilted
for starting. In this case,
do not tilt it more than
absolutely necessary and
lift only the part which is
away from the operator.
m) Do not start the machine
when standing in front of
the discharge.
n) Do not put hands or feet

10
Electric Lawn Mower WG723E
near or under rotating
parts. Keep clear of the
discharge opening at all
times.
o) Do not transport the
lawnmower while the
power source is running.
p) Stop the machine and
disconnect the plug from
the mains. Make sure that
all moving parts have come
to complete stop.
- whenever you leave the
machine;
- before clearing blockages
or unclogging chute;
- before checking, cleaning or
working on the lawnmower;
- after striking a foreign
object. Inspect the
lawnmower for damage
and make repairs before
restarting and operating the
lawnmower.
if the lawnmower starts to
vibrate abnormally
(check immediately)
- inspect for damage;
- replace or repair any
damaged parts;
- check for and tighten any
loose parts.
MAINTENANCE AND
STORAGE
a) Keep all nuts, bolts and
screws tight to be sure the
machine is in safe working
condition;
b) Check the grass catcher
frequently for wear or
deterioration;
c) Replace worn or damaged
parts for safety. Use only
genuine replacement parts
and accessories.
d) Be careful during
adjustment of the machine
to prevent entrapment of
the fingers between moving
blades and fixed parts of the
machine.
e) On machines with multi
blade, take care as rotating
one blade can cause other
blades to rotate.
f) Always allow the machine
to cool down before storing.
g) When servicing the
blades be aware that, even
though the power source is
switched off, the blades can
still be moved.

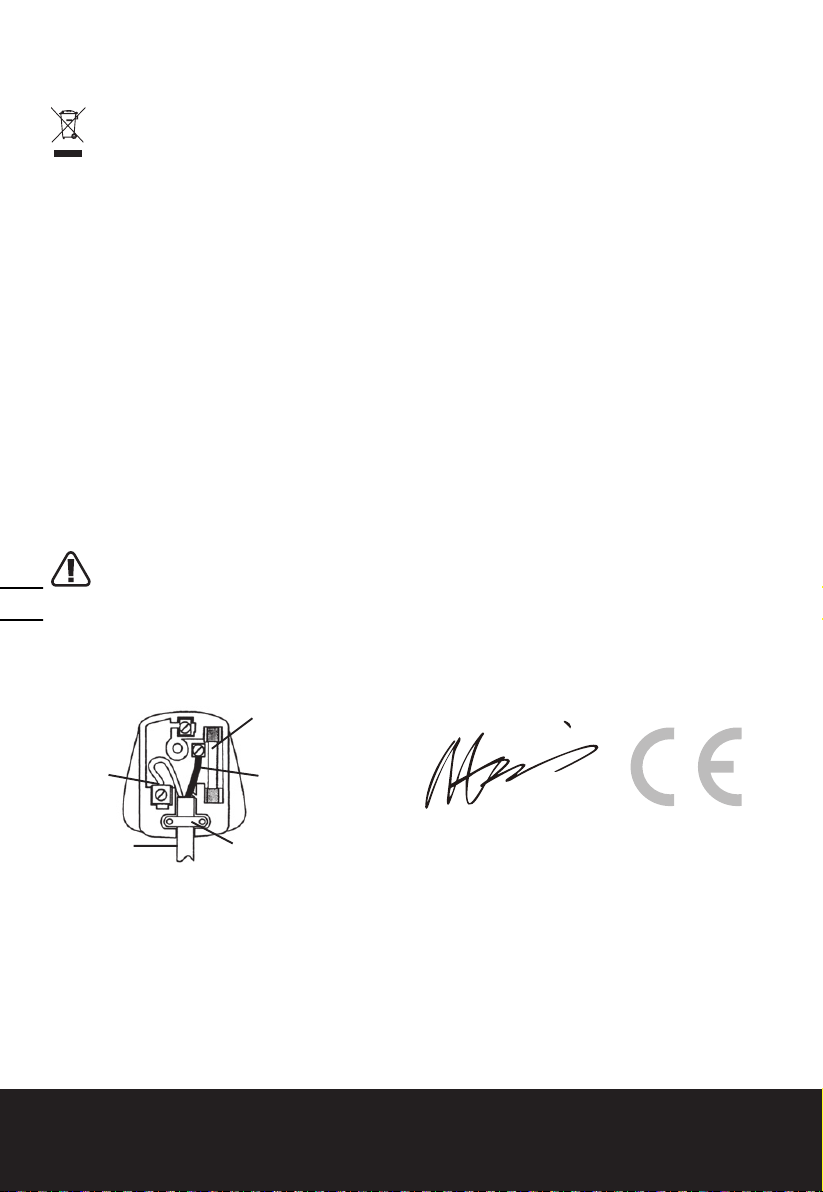

RECOMMENDATION
To connect the machine only
to a supply circuit protected
by a residual current device
(RCD ) with a tripping current
of not more than 30mA.
