Worx WG783E User manual
WG783E
P07
P18
P30
P42
P53
P64
P75
P86
P96
P106
P116
P126
P137
P149
Cordless lawn mower
Schnurloser Rasenmäher
Tondeuse à gazon sans fil
Falciatrice per prato senza fili
Cortacésped sin cables
Corta-relva sem fios
Snoerloze graasmaaier
Ledningsfri plæneklipper
Johdoton ruohonleikkuri
Batteridrevet gressklipper
Sladdlös gräsklippare
Arada kablosuz çim biçme makinesi
EN
D
F
I
ES
PT
NL
DK
FIN
NOR
SV
TR
GR
RU
Original instructions EN
Übersetzung der Originalanleitung D
Traduction des instructions initiales F
Traduzione delle istruzioni originali I
Traducción de las instrucciones originales ES
Tradução das instruções originais PT
Vertaling van de oorspronkelijke instructies NL
Oversættelse af de oprindelige instruktioner DK
Alkuperäisten ohjeiden käännös FIN
Oversettelse av de opprinnelige instruksjonene NOR
Översättning av originalinstruktionerna SV
TR
GR
RU
1
2
3
4
5
6
7
8
9
10
11
12

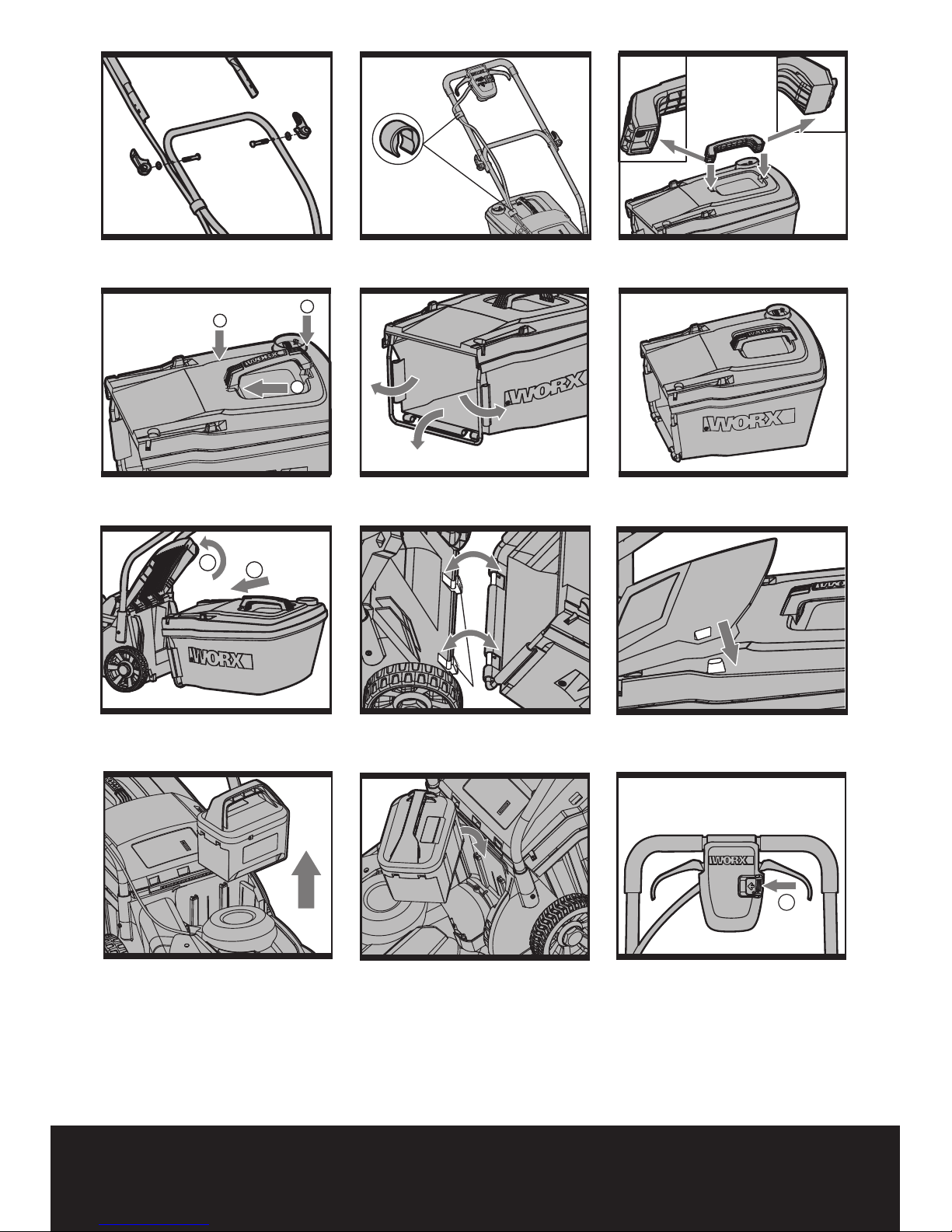

Front Part
Back Part
1
2
3
12
a
A1 A2
13
B1
B2 B3 C1
C2 C3 C4
D1 D2 D3
Front Part
Back Part
1
2
3
12
a
A1 A2
13
B1
B2 B3 C1
C2 C3 C4
D1 D2 D3
1
1
1
2
2
a
b
1
2
L-1
L-2
L-3
M-1
M-2
M-3
14
15
E1 E2 F1
F2 GH
IJK
LMN1
N2 O
76
1
1
1
2
2
a
b
1
2
L-1
L-2
L-3
M-1
M-2
M-3
14
15
E1 E2 F1
F2 GH
IJK
LMN1
N2 O
76
Cordless lawn mower EN
1. UPPER HANDLE
2. SWITCH LEVER
3. CABLE CLIP
4. GRASS BAG FILLING INDICATOR
5. GRASS COLLECTION BAG
6. WORK MODE DIAL
7. SAFETY KEY
8. LOCK CAM LEVER
9. LOWER HANDLE
10. SAFETY FLAP
11. BATTERY PACK*
12. MOTOR COVER
13. CHARGER*(See A2)
14. BLADE BOLT (See N1)
15. BLADE (See N1)
* Not all the accessories illustrated or described are included in standard delivery.
98
Cordless lawn mower EN
98
TECHNICAL DATA
Voltage 24V
Cutting diameter 33cm
Cutting height 20-60 mm
Cutting height positions 3 positions
Grass collection capacity 30L
Battery type Lead acid
Battery model WA3216
Charging time 5-7 hrs
Charger model WA3720
Charger rating Input: AC 220-240V, 50/60Hz,
Output: 29.5V , 1.0A
Machine weight 13.6kg
NOISE / VIBRATION INFORMATION
A weighted sound pressure LpA: 73dB(A) — TURBO mode KpA: 3dB(A)
LpA: 64dB(A) — QUIET mode KpA: 3dB(A)
A weighted sound power LwA: 88dB(A)
Wear ear protection when sound pressure is over 80dB(A)
Typical weighted vibration 3.0m/s2K=1.5m/s2
ACCESSORIES
Battery pack 1
Charger 1
Grass collection bag 1
Lock cam levers 2
We recommend that you purchase your accessories from the same store that sold you the
tool. Use good quality accessories marked with a well-known brand name. Choose the type
according to the work you intend to undertake. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.
98
98
Cordless lawn mower EN
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Carefully read the instructions for the
safe operation of the machine.
Save all warnings and instructions for
future reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
TRAINING
1) Read the instructions carefully. Be familiar
with the controls and the proper use of
the equipment;
2) Never allow children or people unfamiliar
with these instructions to use the
lawnmower. Local regulations can restrict
the age of the operator;
3) Never mow while people, especially
children, or pets are nearby;
4) Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their
property.
PREPARATION
1) While mowing, always wear substantial
footwear and long trousers. Do not
operate the equipment when barefoot or
wearing open sandals;
2) Thoroughly inspect the area where the
equipment is to be used and remove
all objects which can be thrown by the
machine;
3) Before using, always visually inspect to
see that the blades, blade bolts and cutter
assembly are not worn or damaged.
Replace worn or damaged blades and
bolts in sets to preserve balance;
4) On multi-bladed machines, take care as
rotating one blade can cause other blades
to rotate.
OPERATION
1) Mow only in daylight or in good artificial
light;
2) Avoid operating the equipment in wet
grass, where feasible;
3) Always be sure of your footing on slopes;
4) walk, never run;
5) For wheeled rotary machines, mow
across the face of slopes, never up and
down;
6) Exercise extreme caution when changing
direction on slopes;
7) Do not mow excessively steep slopes;
8) Use extreme caution when reversing or
pulling the lawnmower towards you;
9) Stop the blade(s) if the lawnmower has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the lawnmower to and from
the area to be mowed;
10) Never operate the lawnmower with
defective guards, or without safety
devices, for example deflectors and/or
grass catchers, in place;
11) Switch on the motor carefully according
to instructions and with feet well away
from the blade(s);
12) Do not tilt the lawnmower when
switching on the motor, except if the
lawnmower has to be tilted for starting
In this case, do not tilt it more than
absolutely necessary and lift only the part
which is away from the operator;
13) Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times;
14) Not to touch the blades before the
disabling device has been removed and
the blades have come to a complete stop;
15) To remove the disabling device
– Whenever leaving the machine
unattended,
– Before clearing a blockage,
– Before checking, cleaning or working on
1110
Cordless lawn mower EN
1110
the machine,
– After striking a foreign object,
– Whenever the machine starts vibrating
abnormally.
MAINTENANCE AND STORAGE
1) Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition;
2) Check the grass catcher frequently for
wear or deterioration;
3) Replace worn or damaged parts for safety.
BATTERY TOOL USE AND CARE
1) Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
2) Use power tools only with
specifically designated battery
packs. Use of any other battery packs
may create a risk of injury and fire.
3) When battery pack is not in use,
keep it away from other metal
objects, like paper clips, coins, keys,
nails, screws or other small metal
objects, that can make a connection
from one terminal to another. Shorting
the battery terminals together may cause
burns or a fire.
4) Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact accidentally
occurs, flush with water. If liquid
contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
BATTERY CHARGER
1. Before charging, read the instructions.
2. If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
3. After charging, disconnect the battery
charger from the supply mains.Then
remove the battery pack.
4. Do not charge a leaking battery.
5. Do not use chargers for works other than
those for which they are designed.
6. Before charging, ensure your charger is
matching the local AC supply.
7. The charging device must be protected
from moisture.
8. Do not use the charging device in the
open.
9. Do not short out the contacts of battery or
charger.
10. Respect the polarity “+/-“ when charging.
11. Do not open the unit and keep out of the
reach of children.
12. Do not charge the batteries of other
manufactures or ill-suited models.
13. Ensure that the connection between the
battery charger and battery is correctly
positioned and is not obstructed by
foreign bodies.
14. Keep battery charger’s slots are free of
foreign objects and protect against dirt
and humidity. Store in a dry and frost-free
place.
15. When charging batteries, ensure that the
battery charger is in a well-ventilated area
and away from inflammable materials.
Batteries can get hot during charging.
Do not overcharge any batteries. Ensure
that batteries and chargers are not left
unsupervised during charging.
16. Do not recharge non-rechargeable
batteries, as they can overheat and break.
17. Longer life and better performance can
be obtained if the battery pack is charged
when the air temperature is between 18º
and 24º. Do not charge the battery pack
in air temperatures below 4.5º, or above
40.5º.This is important as it can prevent
serious damage to the battery pack.
1110
1110
Cordless lawn mower EN
SYMBOLS
Read instruction handbook before
operation this machine.
Warning
Keep bystanders away.
Blade continues to rotate after
the machine is switched off. Wait
until all machine components
have completely stopped before
touching them.
Beware of sharp blades. Blades
continue to rotate after the motor is
switched off.
Remove plug from mains before
maintenance or if cord is damaged.
Keep the supply flexible cord away
form the blades.
Do not expose to rain or water.
Do not burn.
Do not dispose of batteries. Return
exhausted batteries to your local
collection or recycling point.
Contains Pb battery. Battery must
be recycled or disposed of properly.
Waste electrical products should
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your
Local Authority or retailer for
recycling advice.
Only use the battery charger
indoors
1312
Cordless lawn mower EN
1312
INTENDED USE
This product is intended for domestic lawn
mowing.
CHARGER SAFETY RULES
1. Plug charger directly into an electrical
outlet. DO NOT ABUSETHE CORD. Never
carry charger by cord. Do not disconnect
the charger from the outlet or mower by
pulling it by the cord.
2. CAUTION: To reduce the risk of fire,
electrical shock, or personal injury do not
attempt to use this charger with any other
product.
Likewise, do not attempt to charge the
mower with any other charger.
3. Do not service mower with charger or
safety key installed.
4. Do not operate a damaged charger.
Replace damaged cords or charger
immediately at an authorized WORX
service depot.
5. Always charge the mower in a dry area
protected from the weather. Do not
expose the mower or charger to rain. Do
not charge in wet locations. Do not charge
mower when temperature is above 104°F
(40°C) or below 41°F (5°C).
6. Keep the mower and charger away
from water, heat sources, (Such as
radiators, heaters, stoves...etc.) flames, or
chemicals. Be careful not to damage the
charger cord, by keeping cord away from
sharp edges.
CHARGING PROCEDURE
1. Charging can be carried out either with
the battery FITTED (See A1) or REMOVED
from the machine (See A2).
2. Plug the charger connector into the
receptacle on the battery. (See A1,A2)
3. Insert the plug of the charger into the wall
receptacle.
4. Press the button on the charger, the red
light should come on indicating that
you have power and the battery is being
charged.
5. The red light will turn off and the green
light will come on when charging is
complete (approximately 5-7 hours to
charge a fully discharged battery)
6. After the battery is fully charged the
green light will turn on and stay it for 15
seconds to indicate a full charge. After 15
seconds the green light and charges will
turn off to save power.
NOTE: If the battery is defective, the red
light will flash.
The lights will only function when the
charger is connected to both the battery
and wall receptacle.
7. The charger is a smart charger and can
stay connects to the battery and wall
receptacle for extant periods of time
without fear of damaging the battery or
charger.The charger will automatically
turn on to ensure the battery is fully
charged.
BATTERY CARE
The battery in your cordless lawnmower is a
24-volt sealed lead acid system.The mower
can be stored in any position without fear of
leakage.
• Foroptimalbatterylifeandperformance
the battery should be fully charged every
2 months during storage
• Foroptimalbatterylifeandperformance
the battery should be fully charged after
each use
• Storethebatteryinacooldrylocation.
• Thebatterycanbesafelystoreddownto
14°F (-10°C).
• Thebatterydoesnotneedtobefully
discharged before recharging.
• Initially2to3chargingcyclesmay
be required after purchase to achieve
maximum run time capacity.
ADDITIONAL BATTERIES can be obtained
from the Customer Helpline.
1312
1312
Cordless lawn mower EN
ASSEMBLY
IMPORTANT! Before you assemble
the lawn mower, check the accessories
according above information, make sure the
accessories are completed.
1. FITTING THE HANDLE (See Fig.B1, B2,
B3)
1) Insert the lower handle (9) into the holes
on the deck provided.
2) Secure with the screws provided.(Fig B1)
3) Attach the upper handle (1) with the bolts
and lock cam lever (8) to the lower handle
(9). (Fig B2)
4) Tightening the two Lock cam levers.
Check that the handle is FULLY secured.
The cam lever pressure can be adjusted
by adjusting the lock cam lever (8)
clockwise/counter-clockwise. DO NOT
OVERTIGHTEN.
NOTE: Ensure the bolts are fully inserted
through the handles before fitting the handle
knobs.
5) Attach the cable clips (3) provided, to the
upper and lower handle. Insert the cable
into the clips ensuring there is enough
cable slack .(Fig B3)
2. GRASS COLLECTION BAG ASSEMBLY
Connect the grass box handle to the box top
as shown in Fig C1-C4.
Step 1. Press the front of the handle briefly.
(Fig C2)
Step 2.Then push it forward. (Fig C2)
Step 3. Push down the back of the handle. (Fig
C2)
Step 4. Clip the plastic clips over the metal
frame. (Fig C3)
WARNING: Don’t fit the handle in
reversed direction. Fit the handle as
shown in Fig C1.
3. GRASS COLLECTION BAG FITTING
(See Fig D1, D2, D3)
1) Turn the mower off, wait until blade stops
and remove safety key (7).
2) Raise the safety flap (10) and hold it up.
3) Pick up the grass bag by the handle, and
position grass bag on the lower hooks (a)
on the mower deck (Fig. D2).
4) Release the safety guard to lock the grass
bag into position. Ensure the grass bag is
installed securely (Fig. D3).
NOTE: Depress the grass bag slightly to
ensure that it is completely installed.
4. REMOVING/EMPTYING
Hold the grass bag, lift the safety flap (10) and
hold up. Remove grass bag (5).
WARNING: Always check the safety
flap can close the discharge outlet
tightly before using. Never lift the safety flap
(10) when the lawn mower is being used
without fitted grass bag.
5. FITTING/REMOVING BATTERY (See
E1, E2)
REMOVING BATTERY
Pull out the battery with the battery handle
directly. (See E1)
NOTE: Be careful not to drop the battery onto
your foot or on the ground when removing it.
FITTING BATTERY
Put the battery into the battery container;
make sure the battery is fitted correctly. (See
E2)
OPERATION
1. STARTING AND STOPPING (See F1,
F2) WARNING: The blade continues
to rotate for a few seconds after the
machine is switched off. Allow the motor/blade
to stop rotating before switching “on” again.
Do not rapidly switch off and on.
STARTING
1) Insert safety key into the housing of the
switch box.
2) Slide the key to the right and hold in
position.
3) Pull the lever bar towards the handle and
the mower will start.
4) Release the safety key.
STOPPING
Release the switch lever.
1514
Cordless lawn mower EN
1514
2. GRASS BAG FILLING INDICATOR (See
G)
To remind you immediately to empty when
the grass bag is full, the mower provides
an indicator on the top of bag to show the
collection status. And you can follow as
below:
Empty status: flap float (a)
Fully status: flap fall down (b)
3. REAR DISCHARGE (See H)
The mower provides a rear discharge function,
so that you can mower without bag collection.
The debris will be discharged from the rear
chute.
4. WORK MODE DIAL (See I)
Status1: QUIET mode
Select QUIET mode when mowing in everyday
conditions, removing approximately 20mm of
grass at a time.
Status2: TURBO mode
Set the dial toTURBO mode when cutting
dense or overgrown grass.
5. BATTERY STATUS LED’S (See J)
NOTE: The Status LED’s will indicate the
battery condition when the button on the
battery is pressed.
The LED’s constantly senses and displays the
battery condition as follows:
Press the button “POWERTEST”, the light
button is illuminated.
When the three green lights are illuminated,
the battery is in a highly charged condition.
When two lights ( ) are illuminated, the
battery is in a moderately charged condition.
When only one green light ( ) is illuminated,
the battery charge is depleted.
Before using your new mower for the first
time, it is recommended that the unit be
charged overnight to ensure that the battery is
fully charged.
IMPORTANT
When only one light is illuminated,
your battery is overly discharged, even
though the mower may still be capable
of cutting grass. Continuing to operate
your lawnmower with the battery in this
discharged condition may reduce the life
and performance of your battery.
6. ADJUSTING THE CUTTING HEIGHT
(See K)
WARNING: Before adjusting the mower
height, wait for the mower to completely
stop. Mower blades continue to rotate after
the machine is switched off and a rotating
blade can cause injury. Wait until all machine
components have completely stopped before
touching them.
Before your first cut, adjust the mower cutting
depth to the desired position.The lawnmower
can be set to 3 cutting heights between 20mm
and 60mm.
Grip one wheel and pull it out of the groove
and reposition it in the required height. ALL
other wheels should be positioned at the
same height.
7. MOWING TIPS
NOTE: Always inspect area where mower
is to be used and remove all stones,
sticks, wire, metal and other debris
which might be thrown by the rotating
blade.
1) Mow across the face of slopes, never
up-and-down. Exercise extreme caution
when changing direction on slopes.
Do not mow excessively steep slopes.
Always maintain good footing.
2) Release switch lever to turn mower “OFF”
when crossing any graveled area (stones
can be thrown by the blade).
3) Set mower at highest cutting height when
mowing in rough ground or in tall weeds.
Removing too much grass at one time
can cause circuit breaker to trip, which
stops mower.
4) If a grass collection bag is used during
the fast growing season, the grass may
tend to clog up at the discharge opening.
Release switch lever to turn mower “OFF”.
1514
1514
Cordless lawn mower EN
Remove the grass collection bag and
shake the grass down to the back end
of the bag. Also clean out any grass or
debris which may be packed around the
discharge opening. Replace the grass
collection bag.
5) If mower should start to vibrate
abnormally, release switch lever to turn
mower “OFF”. Check immediately for
cause.Vibration is a warning of trouble.
Do not operate mower until a service
check has been made.
6) ALWAYS RELEASE SWITCH LEVER TO
TURN MOWER “OFF” AND REMOVE
SAFETY KEY WHEN LEAVING IT
UNATTENDED EVEN FOR A SHORT
PERIOD OF TIME.
MAINTENANCE
WARNING: Stop the mower and
remove the safety key before
removing the grass bag.
NOTE: To ensure long and reliable service,
perform the following maintenance
procedures regularly. Check for obvious
defects such as a loose, dislodged or a
damaged blade, loose fittings, and worn
or damaged components. Check that the
covers and guards are all undamaged and
are correctly attached to mower. Carry out
any necessary maintenance or repairs before
operating mower. If the mower should
happen to fail despite regular maintenance,
please call our customer helpline for advice.
BLADE SHARPENING
KEEP BLADE SHARP FOR BEST MOWER
PERFORMANCE. A DULL BLADE DOES NOT
CUT GRASS CLEANLY OR MULCH PROPERLY.
WEAR PROPER EYE PROTECTION WHILE
REMOVING, SHARPENING, AND INSTALLING
BLADE ENSURETHAT SAFETY KEY IS
REMOVED.
Sharpening the blade twice during a mowing
season is usually sufficient under normal
circumstances. Sand causes the blade to dull
quickly. If your lawn has sandy soil, more
frequent sharpening may be required.
REPLACE BENT OR DAMAGED BLADE
IMMEDIATELY.
WHEN SHARPENING THE BLADE:
1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting
angle.
3. Sharpen cutting edges on both ends
of blade, removing equal amounts of
material from both ends.
TO SHARPEN BLADE IN A VISE (See L)
1. Be sure the switch lever is released, the
blade has stopped and the safety key
removed before removing the blade.
2. Remove blade from mower. See
instructions for removing and attaching
blade.
3. Secure blade L-1 in a vise L-2.
4. Wear safety glasses and be careful not to
cut yourself.
5. Carefully file the cutting edges of
the blade with a fine tooth file L-3 or
sharpening stone.
6. Check balance of blade. See instructions
for blade balancing.
7. Replace blade on mower and tighten
securely. Refer to instructions below.
BLADE BALANCING (See M)
Check balance of blade by placing center hole
in blade M-1 over a nail or screwdriver shank
M-2, clamped horizontally in a vise M-3. If
either
end of the blade rotates downward, file that
end. Blade is properly balanced when neither
end drops.
BLADE MAINTENANCE (See N1, N2)
Renew your metal blade after 50 hours
mowing or 2 years, which ever is the sooner-
regardless of condition.
Follow these procedures to remove and
replace the blade. You will need garden gloves
(not provided) and a spanner wrench (not
provided) to remove the blade. Hold the blade
(15) and unscrew the blade bolt (14) counter-
clockwise using a spanner wrench, and then
remove blade.
To re-assemble, position the blade (15) with
the cutting edges towards the ground.Then
1716
Cordless lawn mower EN
1716
securely tighten the blade bolt (14).
STORAGE: (See O)
Stop the mower and always remove the
safety key. Clean the exterior of the machine
thoroughly using a soft brush and cloth. Do
not use water, solvents or polishes. Remove
all grass and debris, especially from the
ventilation slots.
Turn the machine on its side and clean the
blade area. If grass cuttings are compacted
in the blade area, remove with a wooden or
plastic implement.
Store the machine in a dry place. Do not place
other objects on top of the machine.
To aid storage, release the handle cam lever,
and rotate or fold the upper handle.
ENVIRONMENTAL
PROTECTION
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for
recycling advice.
PLUG REPLACEMENT
(UK & IRELAND ONLY)
If you need to replace the fitted plug then
follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the electrical cord
of this appliance may not correspond with the
colored markings identifying the terminals
in your plug, proceed as follows.The wire
which is colored blue must be connected to
the terminal which is marked with N.The wire
which is colored brown must be connected to
the terminal which is marked with L.
WARNING! Never connect live or
neutral wires to the earth terminal of the
plug. Only fit an approved 13Amp BS1363/A
plug and the correct rated fuse.
NOTE: If a moulded plug is fitted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed
to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
1716
1716
Cordless lawn mower EN
EC DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Neuer Höltigbaum 6
22143 Hamburg
Declare that the product
Description WORX Cordless lawn mower
Type WG783E
Function Mowing grass
Complies with the following Directives,
EC Machinery Directive 2006/42/EC
EC Low Voltage Directive 2006/95/EC
EC Electromagnetic Compatibility Directive
2004/108/EC
Noise Emission in the Environment by
Equipment for Use Outdoors Directive
2000/14/EC amended by 2005/88/EC
Conformity assessment procedure as per
Annex VI.
Measured Sound Power Level
85dB(A) TURBO mode
76dB(A) QUIET mode
Declared Guaranteed Sound Power Level
88dB(A)
The notified body involved
Name: Intertek Testing & Certification
Ltd
Address: Davy Avenue, Knowlhill, Milton
Keynes, MK5 8NL
Standards conform to,
EN 60335-1 EN 60335-2-77
EN ISO 3744 EN 55014-1
EN 55014-2 EN 61000-3-2
EN 61000-3-3 EN 62233
EN 60335-2-29
The person authorized to compile the technical
file,
Name: Russell Nicholson
Address: Positec Powertools (Europe)
LTD
Pinewood, Chineham Business Park,
Basingstoke, Hampshire, RG24 8AL,
United Kingdom
2010/12/08
Jacky Zhou
POSITEC Quality Manager
1918
Schnurloser Rasenmäher D
1918
1. GRIFFOBERTEIL
2. SCHALTBÜGEL
3. KABELKLEMMEN
4. GRASBEHÄLTERFÜLLSTANDANZEIGE
5. GRAS-SAMMELBEUTEL
6. BETRIEBSMODUSWÄHLER
7. SICHERHEITSSCHLÜSSEL
8. HALTENOCKEN-HEBEL
9. GRIFFUNTERTEIL
10. SICHERHEITSKLAPPE
11. BATTERIEPACK *
12. MOTORABDECKUNG
13. AUFLADEGERÄT *(Siehe A2)
14. BLATTBOLZEN (Siehe N1)
15. SÄGEBLATT (Siehe N1)
* Abgebildetes oder beschriebenes Zubehör gehört teilweise nicht zum
Lieferumfang.
1918
1918
Schnurloser Rasenmäher D
TECHNISCHE DATEN
Nennleistung 24V
Schneidradius 33cm
Schnitthöhe 20-60 mm
Schneidehöhen-Positionen 3 positions
Grass collection capacity 30L
Batteriekapazität Säure-Blei
Batterietyp WA3216
Akkumodell 5-7 Stunden
Ladegerätmodell WA3720
Leistung des Ladegeräts Eingang: AC 220-240V, 50/60Hz,
Ausgang: 29.5V , 1.0A
Gewicht 13.6kg
LÄRMPEGEL UND VIBRATIONEN
Gewichteter Schalldruck LpA:73dB(A) —Turbomodus KpA: 3dB(A)
LpA: 64dB(A) — Leiser Modus KpA: 3dB(A)
Gewichtete Schallleistung LwA: 88dB(A)
Tragen Sie bei einem Schalldruck über einen Gehörschutz 80dB(A)
Typischer gewichteter Vibrationswert 3.0m/s2K=1.5m/s2
ZUBEHÖRTEILE
Batterie-Paket 1
Aufladegerät 1
Gras-Sammelbeutel 1
Haltenocken-Hebel 2
Wir empfehlen Ihnen, sämtliche Zubehörteile beim selben Fachhändler zu beziehen, bei dem
Sie auch Ihr Elektrowerkzeug gekauft haben. Verwenden Sie nur hochwertige Zubehörteile von
namhaften Herstellern. Weitere Informationen finden Sie auf der Verpackung der Zubehörteile.
Auch Ihr Fachhändler berät Sie gerne.
2120
Schnurloser Rasenmäher D
2120
ALLGEMEINE
SICHERHEITSHINWEISE
FÜR ELEKTROWERKZEUGE
WARNUNG: Lesen Sie alle
Sicherheitshinweise und
Anweisungen. Versäumnisse bei der
Einhaltung der Sicherheitshinweise und
Anweisungen können elektrischen Schlag,
Brand und/oder schwere Verletzungen
verursachen.
Lesen Sie die Bedienungsanleitung
zum sicheren Betrieb des Gerätes
aufmerksam durch.
Bewahren Sie alle Sicherheitshinweise
und Anweisungen für die Zukunft auf.
- Dieses Gerät ist nicht zur Verwendung
durch Personen (einschließlich Kindern)
vorgesehen, die über reduzierte
körperliche Eignung, Wahrnehmung
oder geistige Fähigkeiten, Mangel
an Erfahrung und Wissen verfügen,
sofern diese Personen nicht von einer
verantwortlichen Person beaufsichtigt
oder in der Verwendung des Gerätes
unterwiesen wurden.
- Kinder sollten grundsätzlich beaufsichtigt
werden, damit sie nicht mit dem Gerät
spielen.
TRAINING
1) Die Anweisungen aufmerksam
durchlesen. Machen Sie sich mit
den Bedienelementen und dem
vorschriftsmäßigen Gebrauch des
Rasenmähers vertraut.
2) Niemals Kindern oder mit diesen
Anweisungen nicht vertrauten Personen
erlauben, den Rasenmäher zu benutzen.
Nationale Vorschriften können das Alter
der Bedienperson möglicherweise
beschränken.
3) Niemals mähen, während sich Personen,
insbesondere Kinder, oderTiere in
unmittelbarer Nähe aufhalten.
4) Bedenken Sie, dass der Bediener oder
Benutzer bei Unfällen oder Gefährdungen
anderer Personen oder deren Eigentum
die Verantwortung trägt!
VORBEREITUNG
1) Tragen Sie beim Mähen stets festes
Schuhwerk und eine lange Hose. Den
Rasenmäher nicht barfuß oder mit
offenen Sandalen benutzen.
2) Inspizieren Sie die Gegend, in der die
Ausrüstung eingesetzt werden soll,
gründlich und entfernen Sie alle Objekte,
die durch die Maschine aufgeschleudert
werden könnten.
3) Vor der Benutzung immer durch
Augenschein prüfen, ob Messer,
Messerschrauben und Schneidbalken
abgenutzt oder beschädigt sind.
Abgenutzte Messer und Schrauben
nur im ganzen Satz auswechseln, um
Unwuchten zu vermeiden.
4) Achten Sie darauf, dass bei Geräten mit
mehreren Klingen ein Klingensatz durch
den anderen in Rotation versetzt werden
kann.
BETRIEB
1) Nur beiTageslicht oder gutem künstlichen
Licht mähen.
2) Nach Möglichkeit nicht in nassem Gras
arbeiten.
3) Auf schrägen Flächen stets auf sicheren
Tritt achten.
4) Laufen Sie niemals, sondern gehen Sie
immer;
5) Mähen Sie bei Rotormaschinen mit
Rädern Abhänge niemals auf hinaus oder
hinab, sondern immer seitlich am Hang
entlang;
6) Beim Richtungswechsel an Abhängen
äußerst vorsichtig sein.
7) Keine besonders steilen Abhänge mähen.
8) Beim Rückwärtsgehen oder Ziehen des
Rasenmähers äußerst vorsichtig sein.
9) Die Messer müssen stehen, wenn der
Rasenmäher für denTransport gekippt
werden muss, wenn nicht mit Gras
bepflanzte Flächen überquert werden
und beimTransport vom und zu dem zu
mähenden Bereich.
10) Den Rasenmäher auf keinen Fall
mit defekten Schutzvorrichtungen
oder Schutzblechen, oder ohne
ordnungsgemäß montierte
Table of contents
Languages:
Other Worx Trimmer manuals
